Crossfire CFBH H-Style Brass Gas Fire Pit Burner
Crossfire CFBH H-Style Brass Gas Fire Pit Burner - 120K BTU 18 x 6.75-Inch with WATERSTOP / Natural Gas is backordered and will ship as soon as it is back in stock.
Description
Description
Burner sizes: 18 x 6.75 in. (120,000 BTU) to 48 x 14 in. (340,000 BTU)
The Warming Trends CROSSFIRE CFBH is an H-style jetted brass burner for rectangular and linear fire pits. Two long runs of CROSSFIRE jets joined by a center feed spread a wide, even flame across a rectangular opening, and the burner is 100% brass, so it will not rust in an outdoor fire feature.
Six sizes run from 120,000 to 340,000 BTU for openings from 28 x 15 to 62 x 25 in., in natural gas or propane. The four smaller sizes include Warming Trends' WATERSTOP fitting. This listing is the burner alone; plate, flex line, key valve and ignition are separate.
Features
- H-style CROSSFIRE burner for rectangular and linear fire pits
- 6 sizes from 120,000 to 340,000 BTU
- WATERSTOP fitting on the CFBH120, CFBH160, CFBH200 and CFBH240
- 1/2 in. inlet on the four smaller sizes, 3/4 in. on the CFBH300 and CFBH340
- Natural gas or propane
- 100% brass CROSSFIRE burner, will not rust
- Jetted design mixes air and gas for a tall, full flame
- Made in the USA by Warming Trends (per listing)
- Full lifetime burner warranty
Key Specifications
| Model family | Warming Trends CROSSFIRE CFBH H-style burner (6 sizes) |
|---|---|
| Burner material | 100% brass |
| Output | 120,000 to 340,000 BTU by size (select above) |
| Fuel | Natural gas or propane, burner built for one fuel (select above) |
| Inlet | 1/2 in. (CFBH120 to CFBH240); 3/4 in. (CFBH300, CFBH340) |
| Gas inlet pressure | Match lit: NG 3.5 to 7.0 in. W.C.; LP 11.0 to 13.0 in. W.C. (June 2026 manual) |
| Ignition | Match lit as sold; electronic and spark ignition kits available separately |
Sizes

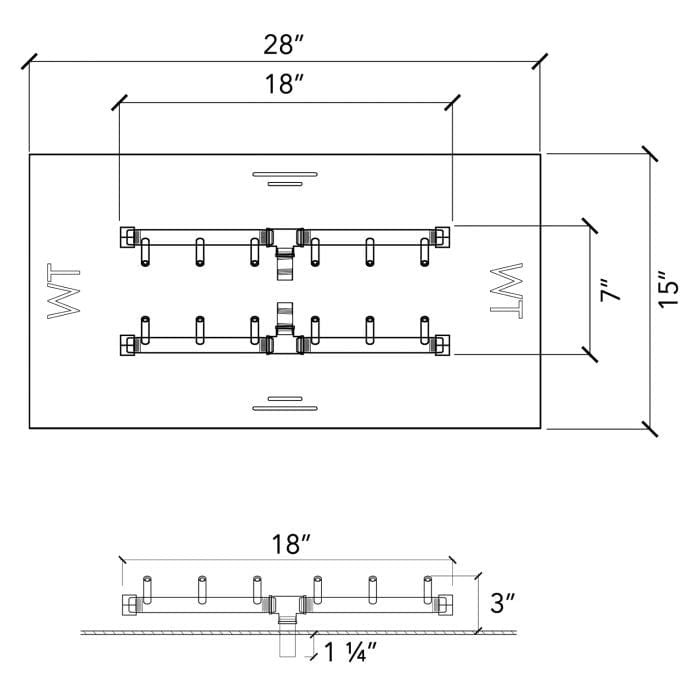

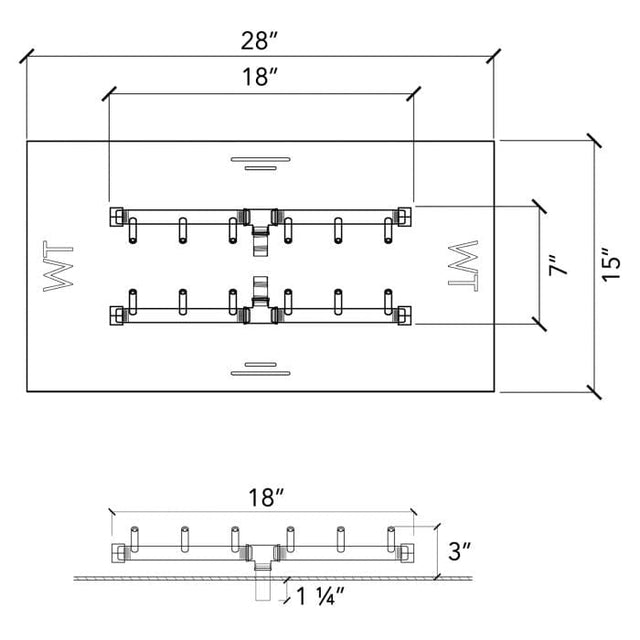

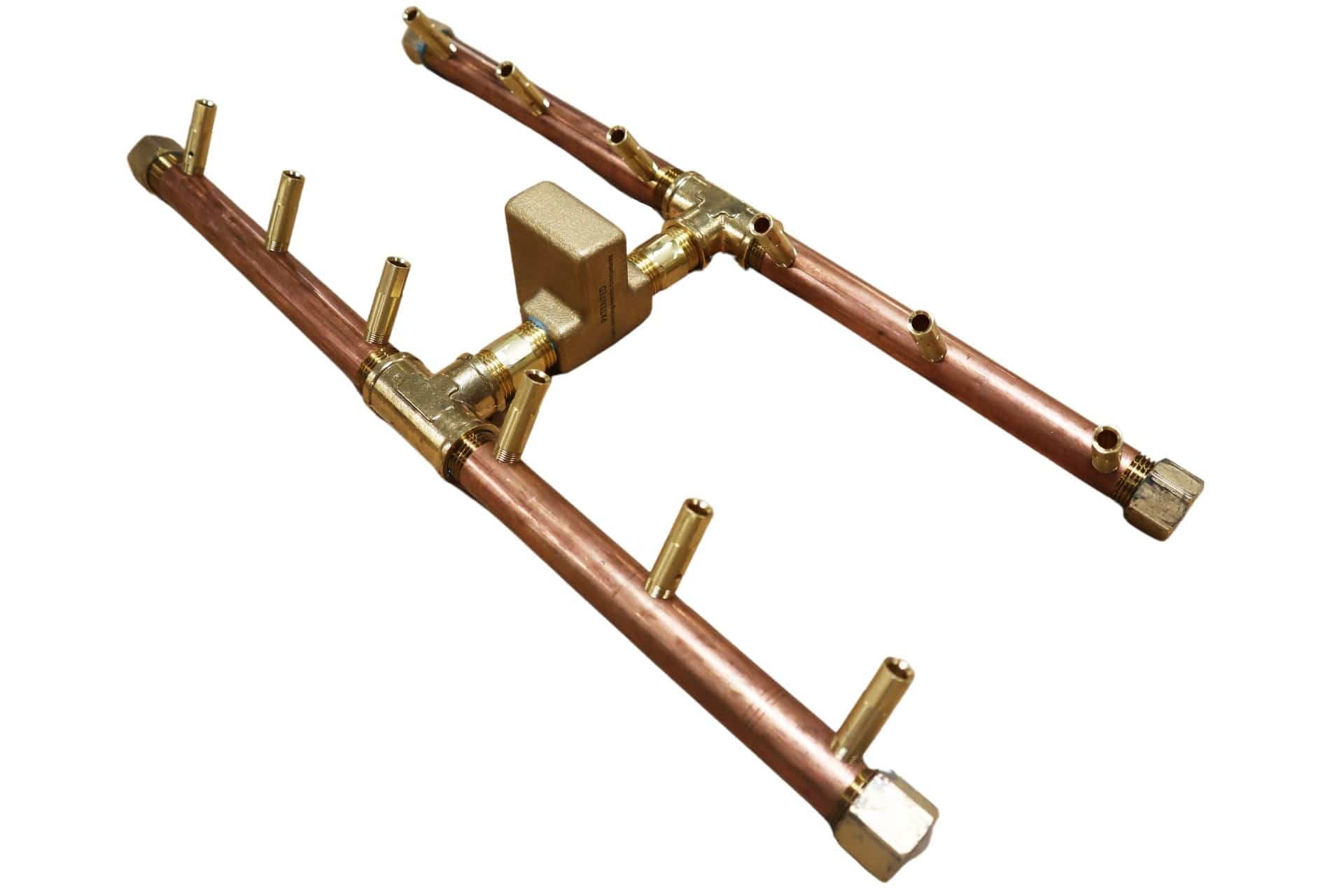

| CFBH120 | 120,000 BTU; burner 18 x 6.75 in.; 1/2 in. inlet; recommended opening 28 x 15 in.; WATERSTOP yes |
|---|---|

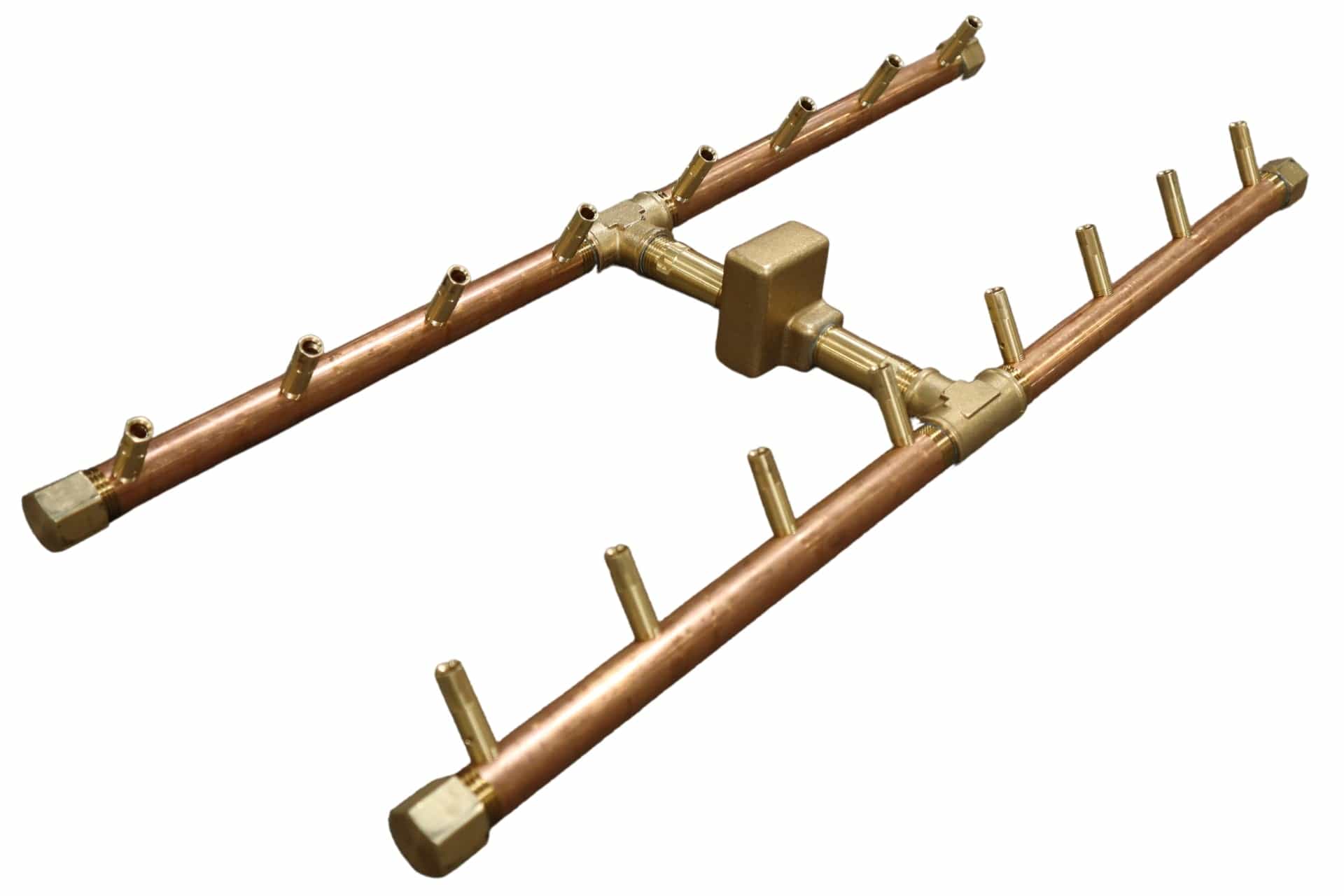

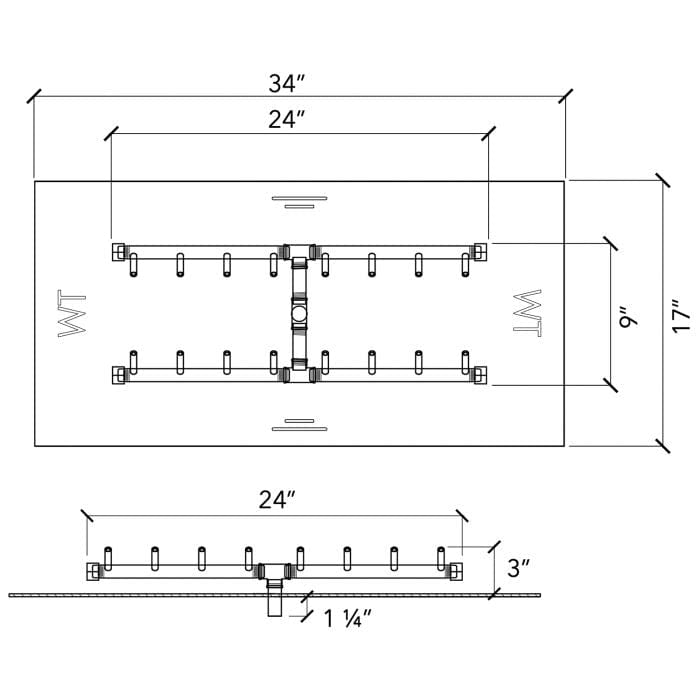

| CFBH160 | 160,000 BTU; burner 24 x 8.75 in.; 1/2 in. inlet; recommended opening 34 x 17 in.; WATERSTOP yes |

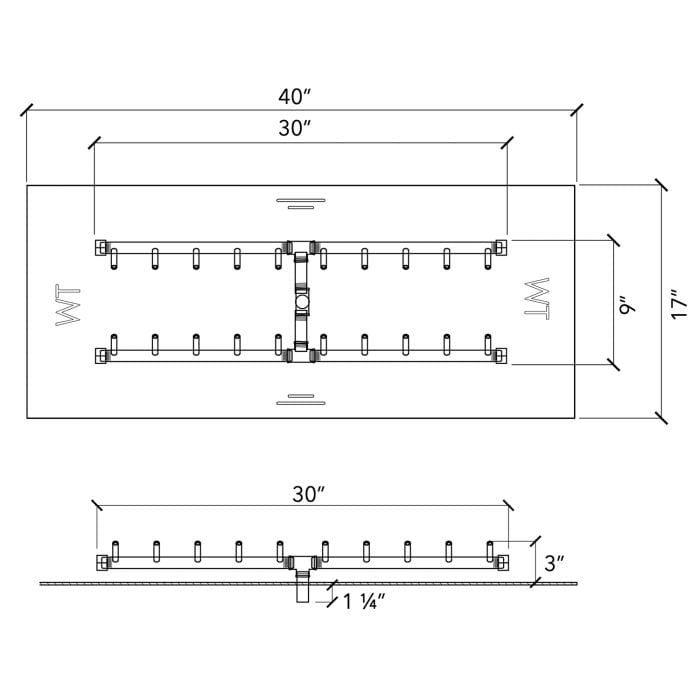

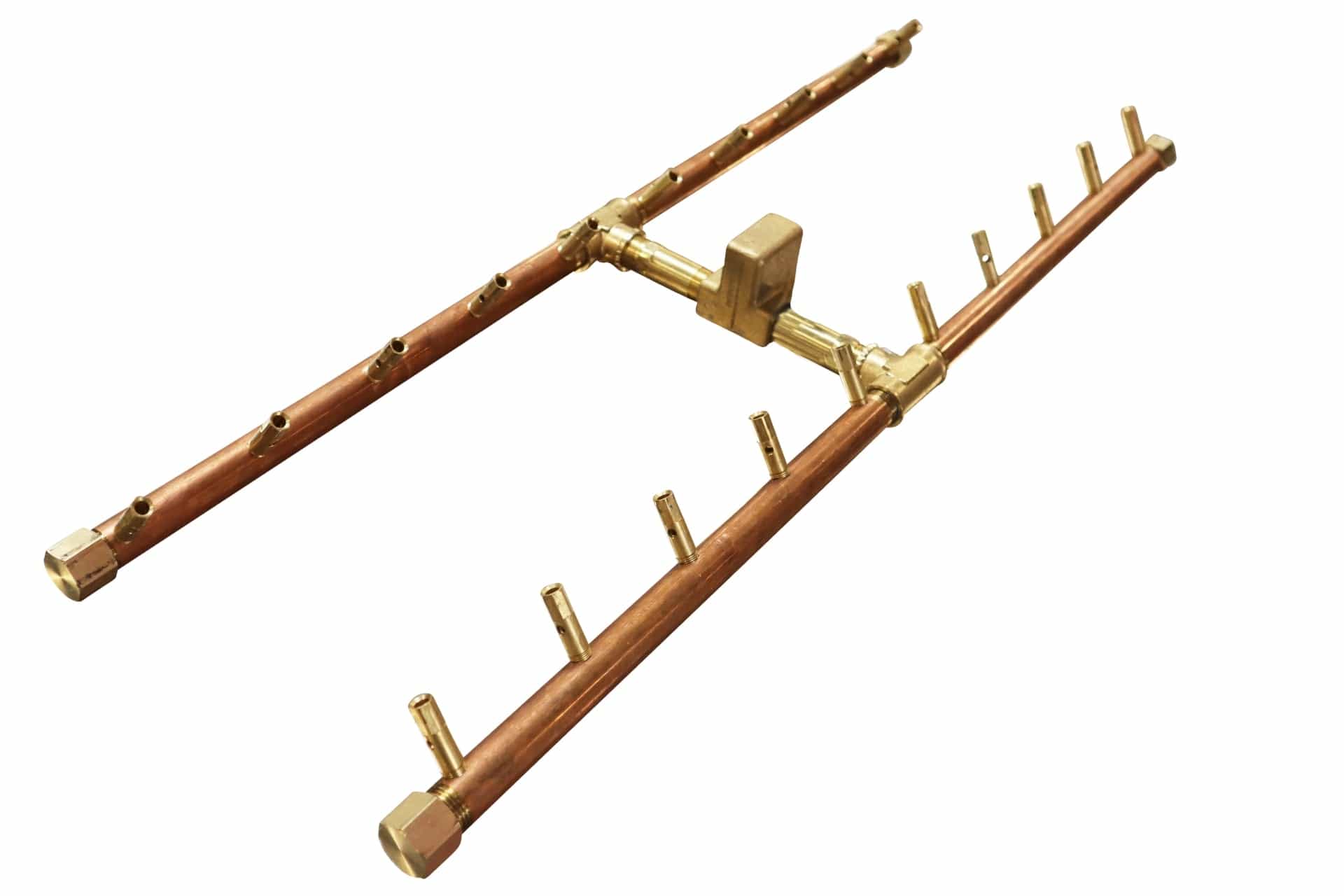

| CFBH200 | 200,000 BTU; burner 30 x 8.75 in.; 1/2 in. inlet; recommended opening 40 x 17 in.; WATERSTOP yes |

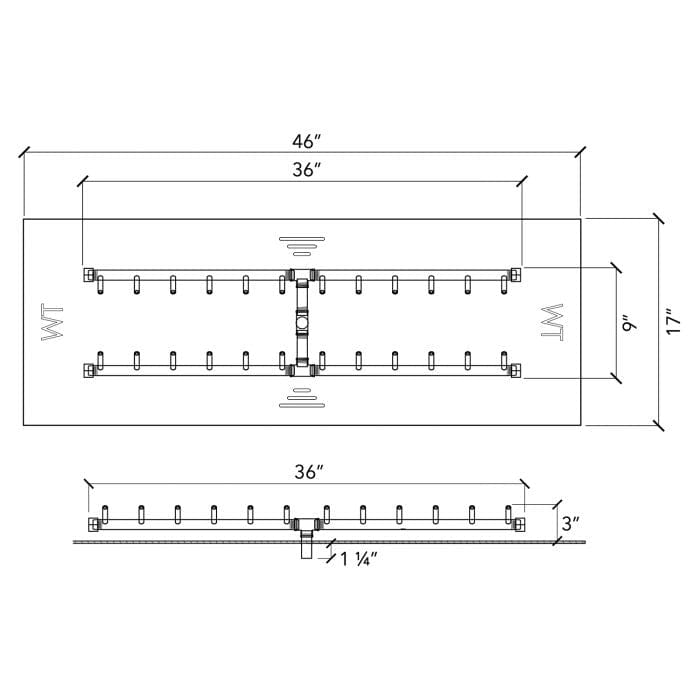

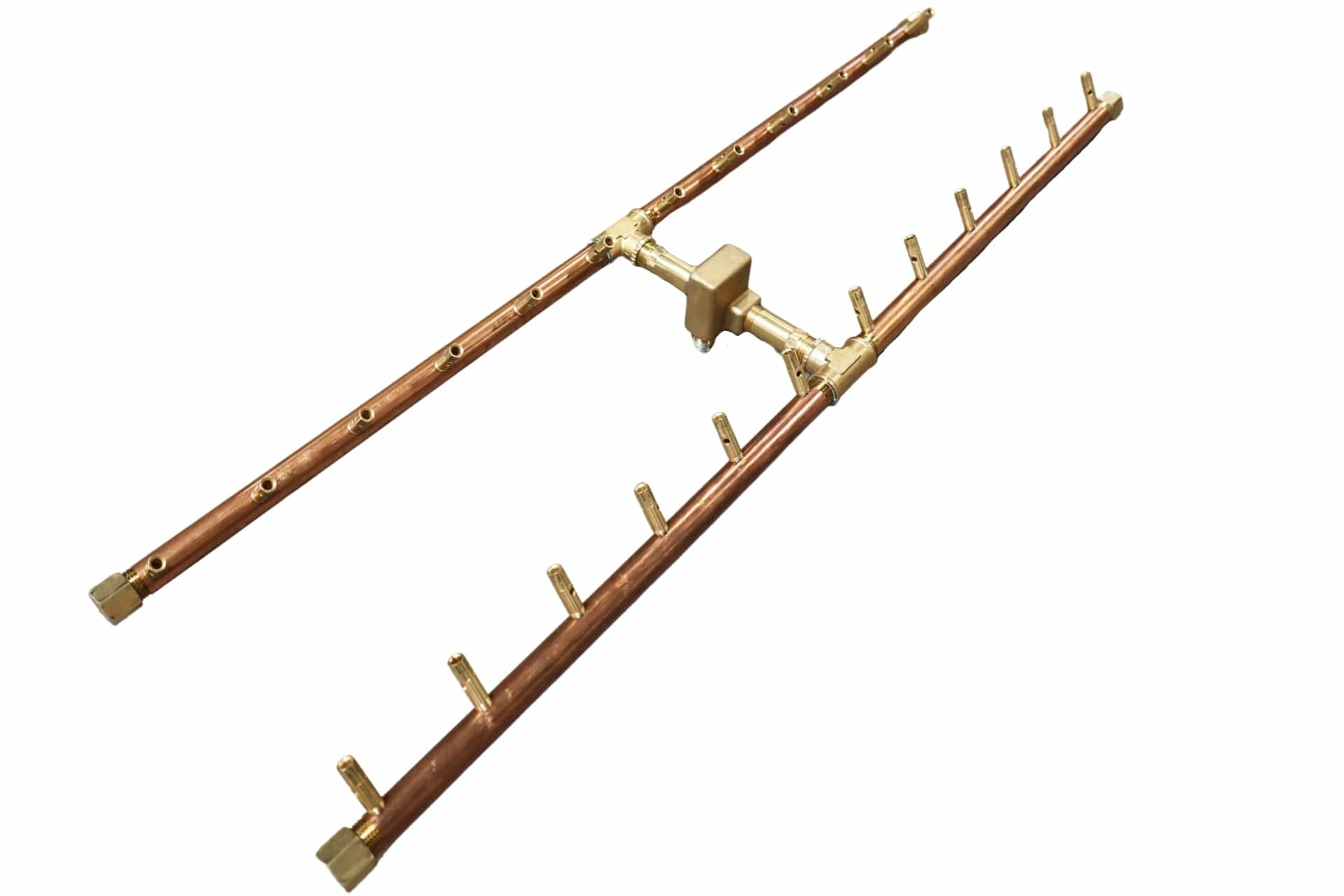

| CFBH240 | 240,000 BTU; burner 36 x 8.75 in.; 1/2 in. inlet; recommended opening 46 x 17 in.; WATERSTOP yes |

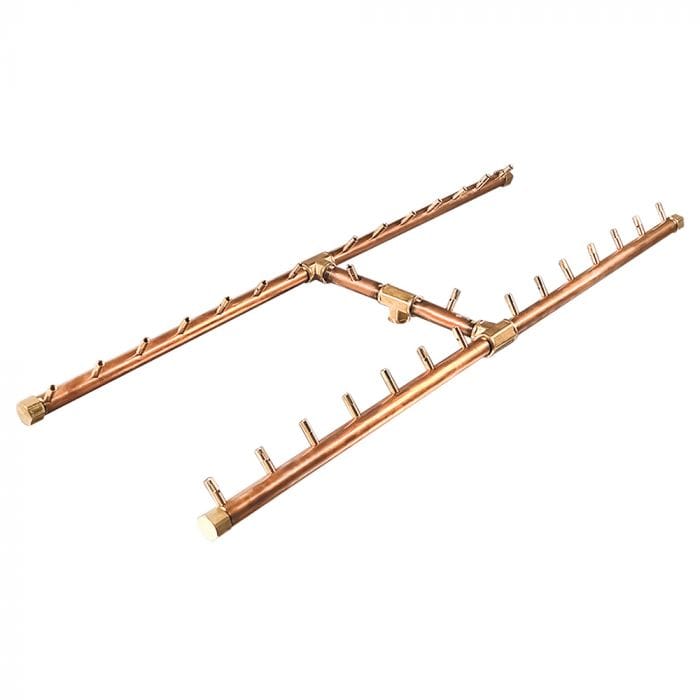

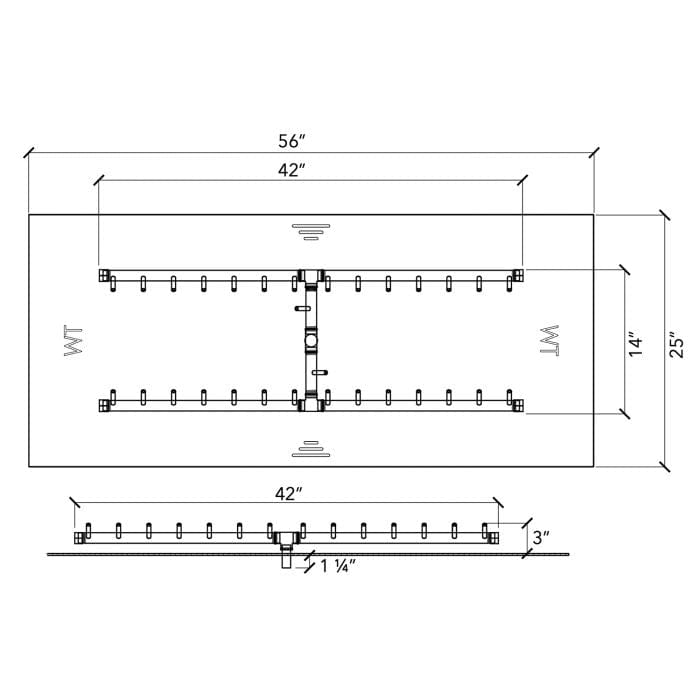

| CFBH300 | 300,000 BTU; burner 42 x 14.125 in.; 3/4 in. inlet; recommended opening 56 x 25 in.; WATERSTOP no |

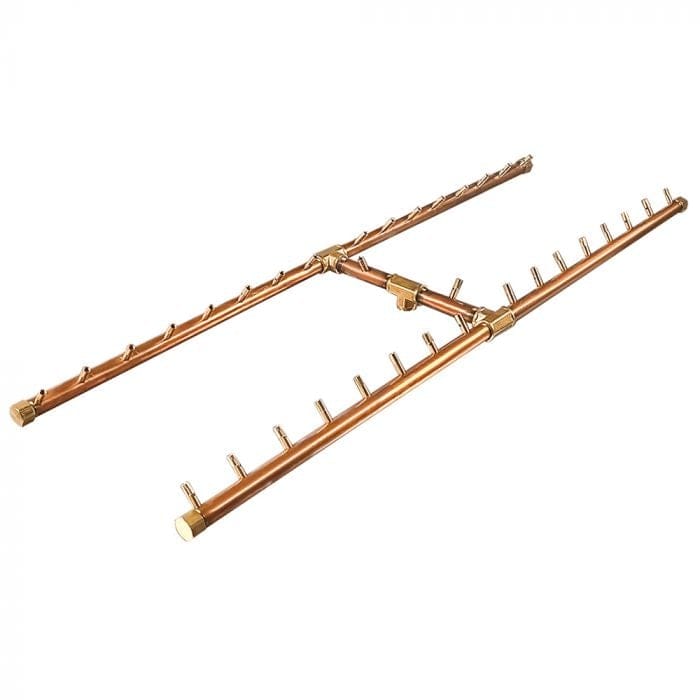

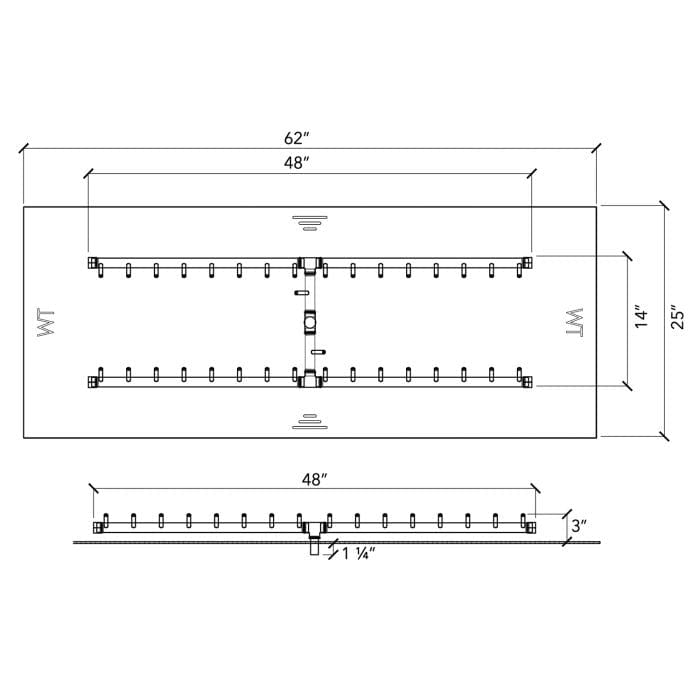

| CFBH340 | 340,000 BTU; burner 48 x 14 in.; 3/4 in. inlet; recommended opening 62 x 25 in.; WATERSTOP no |
| Source | Burner sizes and inlets per listing; openings match the Warming Trends burner size guide |
What Is Included and What You Will Need
- Included: CROSSFIRE CFBH H-style brass burner in the size and fuel selected
- Not included: burner plate or pan, flex line, key valve, ignition and media
- Required, sold separately: fire-rated media such as Warming Trends black lava rock (BLR) or rolled lava rock (LRR)
- Optional ignition upgrades: PBIK3.0 push button spark ignition or Mercury (MERC) spark ignition with safety shutoff
- Required: venting on at least two opposing sides of the enclosure, such as the Warming Trends VENTBW vent kit
- Required: a non-combustible enclosure and a gas line with an exterior shutoff, run by a licensed installer
Installation Notes
Warming Trends requires venting on at least two opposing sides of the enclosure, 18 sq in. minimum each, and at least 84 in. of overhead clearance from combustible structures or materials (June 2026 manual). Never fill the cavity with gravel or concrete, keep the burner serviceable from above, fit a gas shutoff outside the fire feature, and have a licensed gas professional make the connection and leak test. Cover the burner with approved media no more than 1/2 in. above the jets. For New York City addresses, outdoor gas fire features and their gas piping fall under the NYC Fuel Gas Code and Department of Buildings permitting, and propane at residences is restricted by the NYC Fire Code, so the approval path must be confirmed before you buy. Book a design consultation and we will size the burner, plate and gas line.
Documentation
- Owner/Instruction Manual (V3.1)
- Manual De Instrucciones
- Burner Size Guide

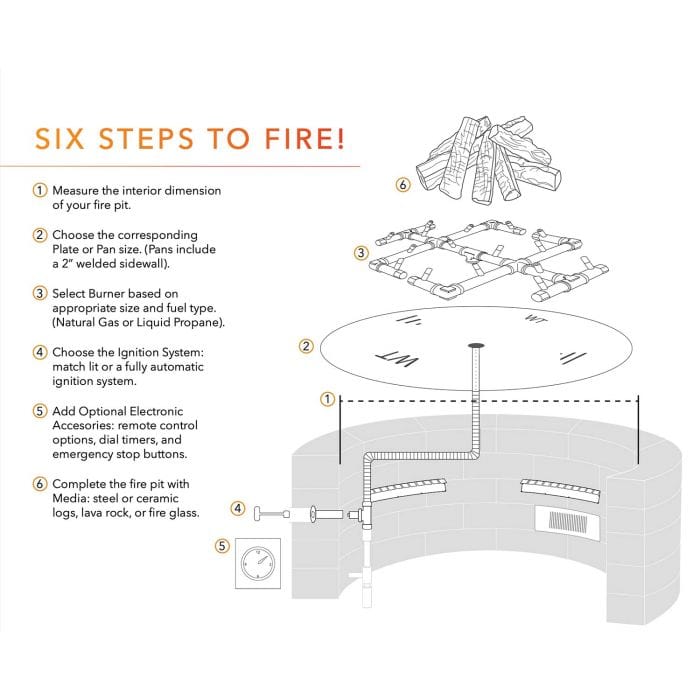

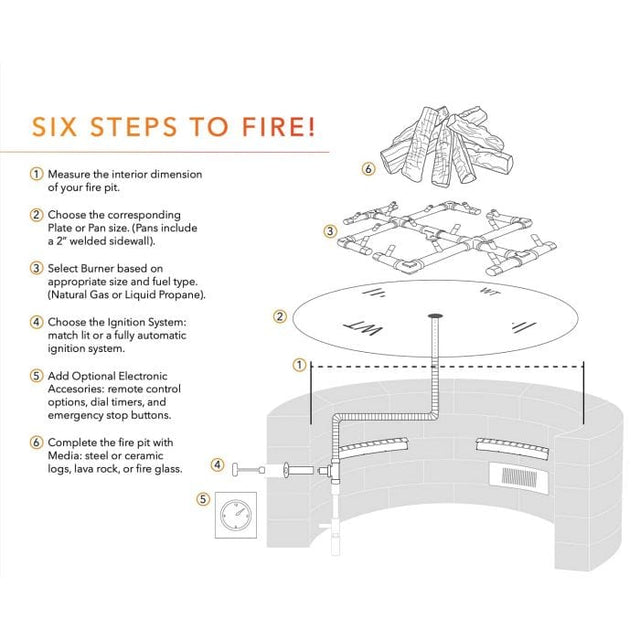

- 6 Steps To Fire
- Warming Trends Warranty
- Warming Trends Owner's Guide and Instruction Manual (June 2026)
Frequently Asked Questions
Which size do I need?
Match the burner to the inside of your fire pit: the CFBH120 suits about a 28 x 15 in. opening and the CFBH340 about 62 x 25 in., per the Warming Trends size guide.
What does the WATERSTOP do?
It is a Warming Trends fitting that helps keep water and debris away from the valve and gas line. It is included on the CFBH120 through CFBH240.
Natural gas or propane?
Each burner is built for one fuel. Order the version that matches your supply; the two are not interchangeable without the correct parts.
What media can I use?
Fire-rated media made for fire features, such as lava rock or fire glass, no more than 1/2 in. above the jets. Never use gravel, pebbles or river rock.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Warming Trends Full Lifetime Warranty on CROSSFIRE and other jetted brass burners, beginning on the date of purchase and transferable with proof of ownership; during the warranty period Warming Trends repairs or exchanges a defective burner without charge. Misuse, installation defects, accidents, modification, improper maintenance and indoor use are excluded, and installation services are not covered. Ignition systems carry separate terms: Platinum, Cobalt, Carbon and Mercury systems 3 years residential, push button systems 1 year residential (June 2026 manual).
