Warming Trends Crossfire CFBH H-Style Brass Gas Fire Pit Burner Kit
Warming Trends Crossfire CFBH H-Style Brass Gas Fire Pit Burner Kit - 120K BTU 18 x 6.75-Inch with WATERSTOP / Natural Gas / I already have a Plate is backordered and will ship as soon as it is back in stock.
Description
Description
Burner sizes: 18 x 6.75 in. (120,000 BTU) to 48 x 14 in. (340,000 BTU), per listing
The Warming Trends CROSSFIRE CFBH is an H-style brass burner for rectangular and linear fire pits, with two long flame rails joined at the center for a wide, even line of fire. Each kit includes the 100% brass burner, a flex line kit and a key valve kit with a chrome flange and two keys for match lit operation.
Six sizes from 120,000 to 340,000 BTU, natural gas or propane, can be ordered alone or with a matching rectangular plate from 28 x 15 to 62 x 25 in.
Key Specifications
| Model family | Warming Trends CROSSFIRE CFBH H-style burner kit (6 sizes) |
|---|---|
| Burner material | 100% brass |
| Output | 120,000 to 340,000 BTU by size (select above) |
| Fuel | Natural gas or propane, burner built for one fuel (select above) |
| Ignition | Match lit with key valve |
| Gas inlet, match lit | NG 3.5 to 7.0 in. W.C.; LP 11.0 to 13.0 in. W.C. |
| Flex line | Single flex line kit (FK1) through CFBH240, dual (FK2) on CFBH300 and CFBH340 |
| Plate option | Rectangular aluminum plate sized to the burner, or burner only |
| Certification | CFBH120 to CFBH340 are listed as certified match lit units in the Warming Trends Version 6 manual |
Dimensions and Cutout

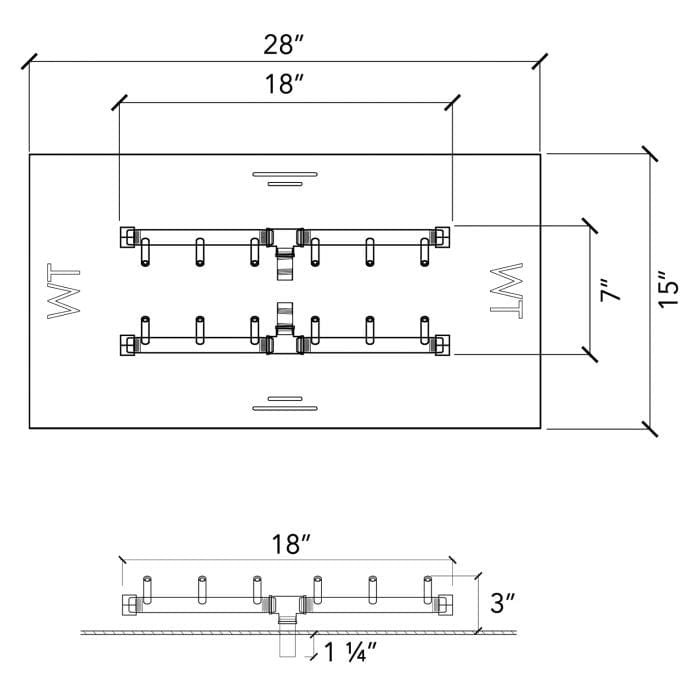

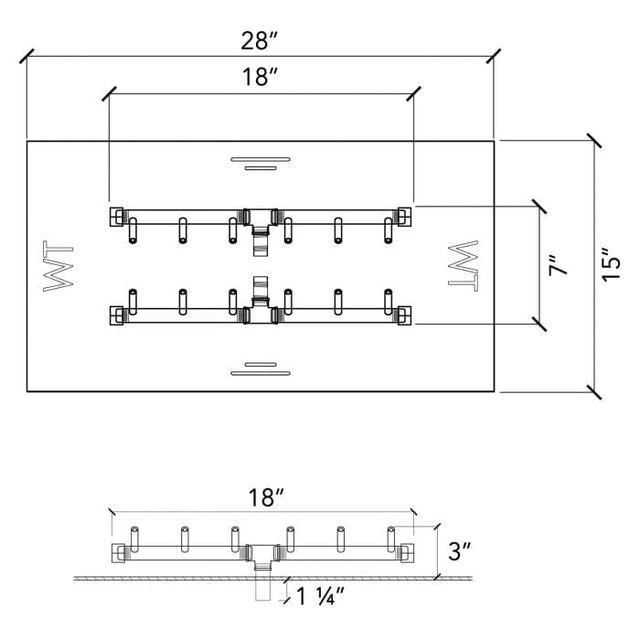

| CFBH120 | 120,000 BTU; burner 18 x 6.75 in.; 1/2 in. inlet; plate 28 x 15 in.; WATERSTOP yes |
|---|---|

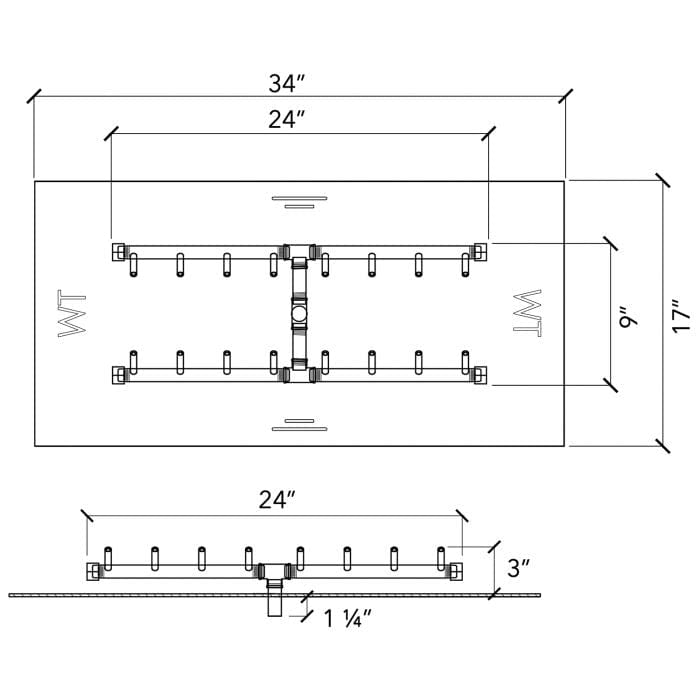

| CFBH160 | 160,000 BTU; burner 24 x 8.75 in.; 1/2 in. inlet; plate 34 x 17 in.; WATERSTOP yes |

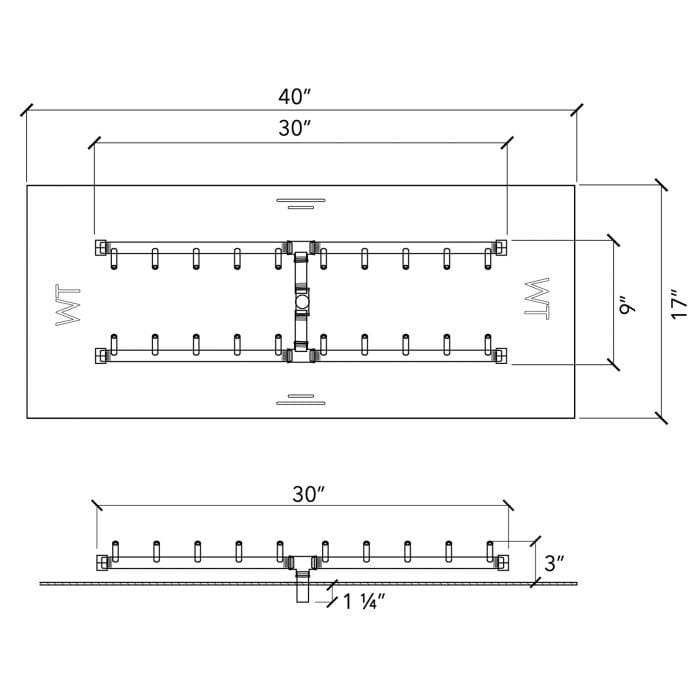

| CFBH200 | 200,000 BTU; burner 30 x 8.75 in.; 1/2 in. inlet; plate 40 x 17 in.; WATERSTOP yes |

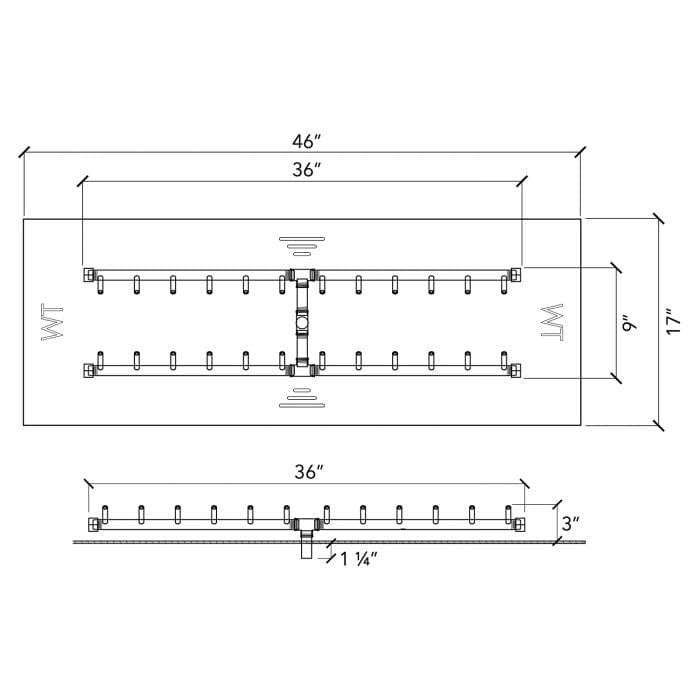

| CFBH240 | 240,000 BTU; burner 36 x 8.75 in.; 1/2 in. inlet; plate 46 x 17 in.; WATERSTOP yes |

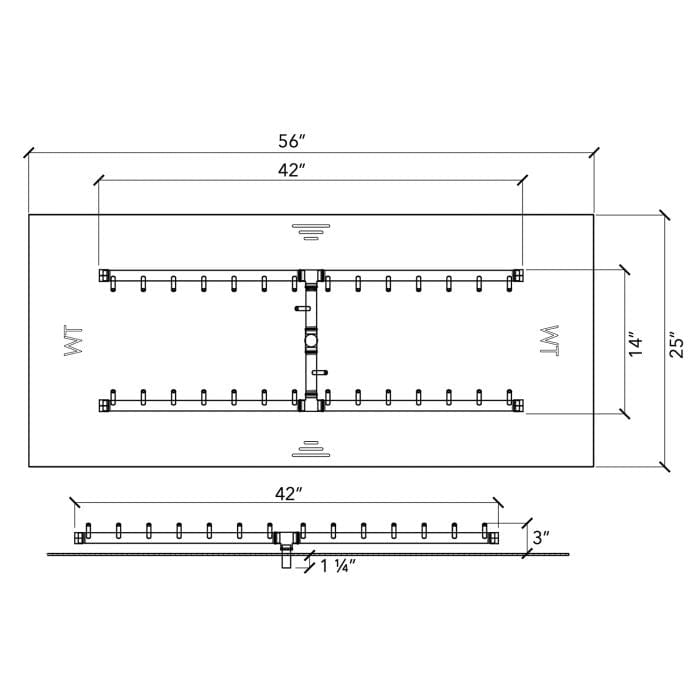

| CFBH300 | 300,000 BTU; burner 42 x 14.125 in.; 3/4 in. inlet; plate 56 x 25 in.; WATERSTOP no |

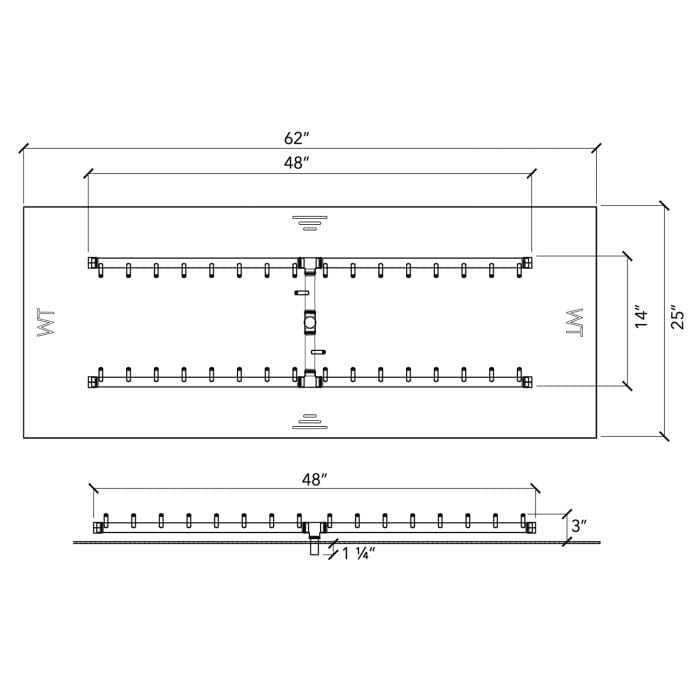

| CFBH340 | 340,000 BTU; burner 48 x 14 in.; 3/4 in. inlet; plate 62 x 25 in.; WATERSTOP no |
| Sizes source | Burner sizes and inlets per listing; plate sizes match the Warming Trends burner size guide |
Features
- H-style CROSSFIRE burner for rectangular fire pits
- 100% brass, will not rust
- Jetted design for tall, bright flames
- Match lit with key valve, no power needed
- 6 sizes from 120,000 to 340,000 BTU
- Optional matching rectangular plate
- Full lifetime burner warranty
What Is Included and What You Will Need

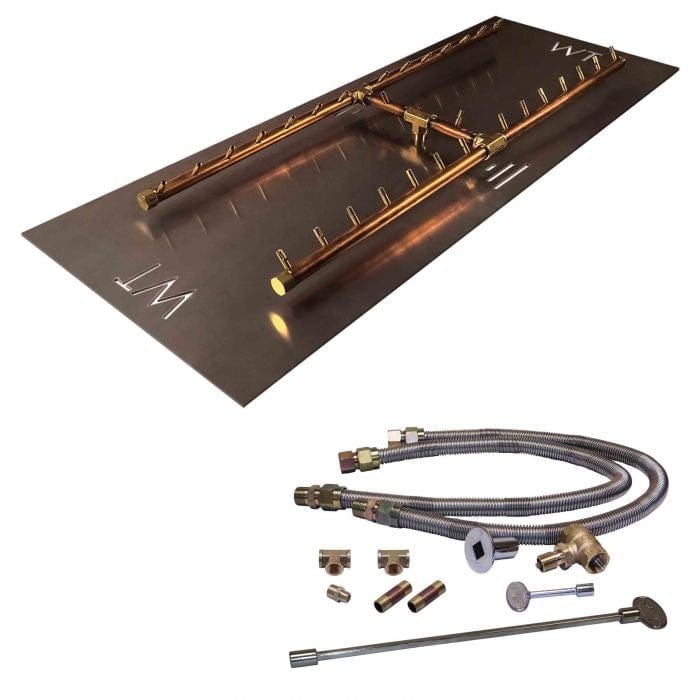

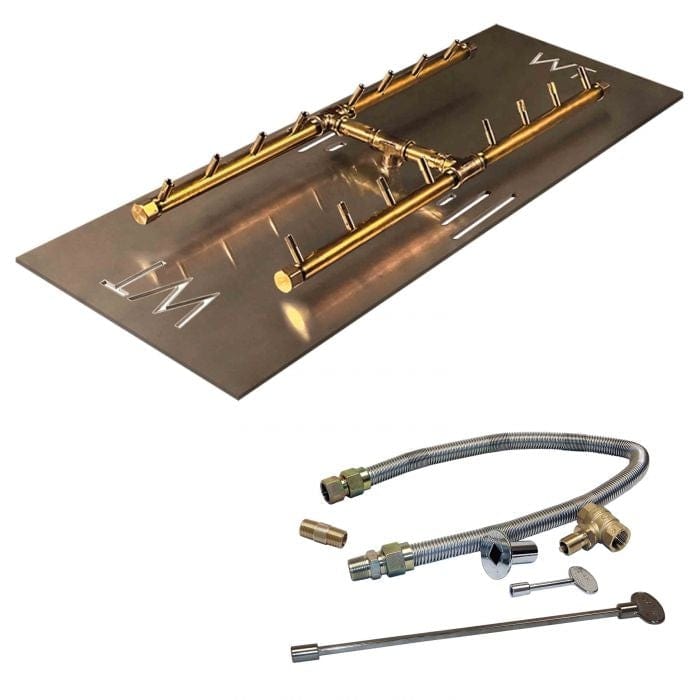

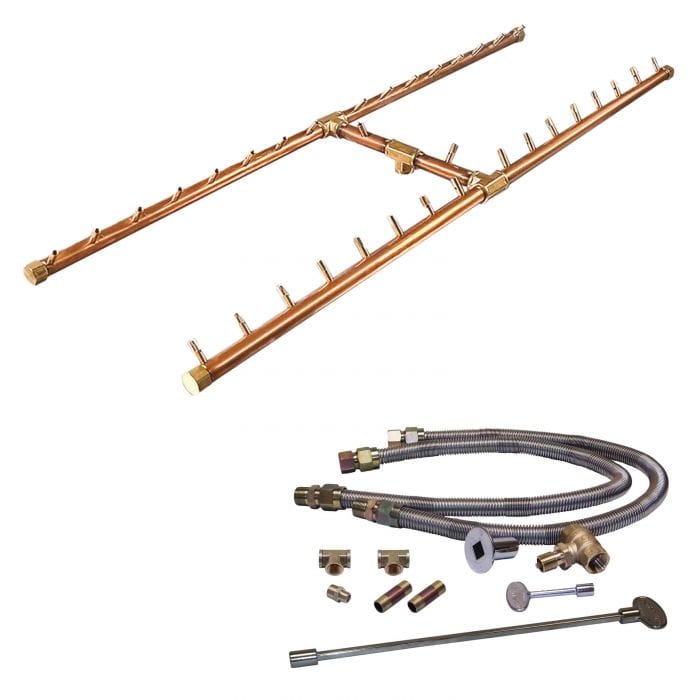

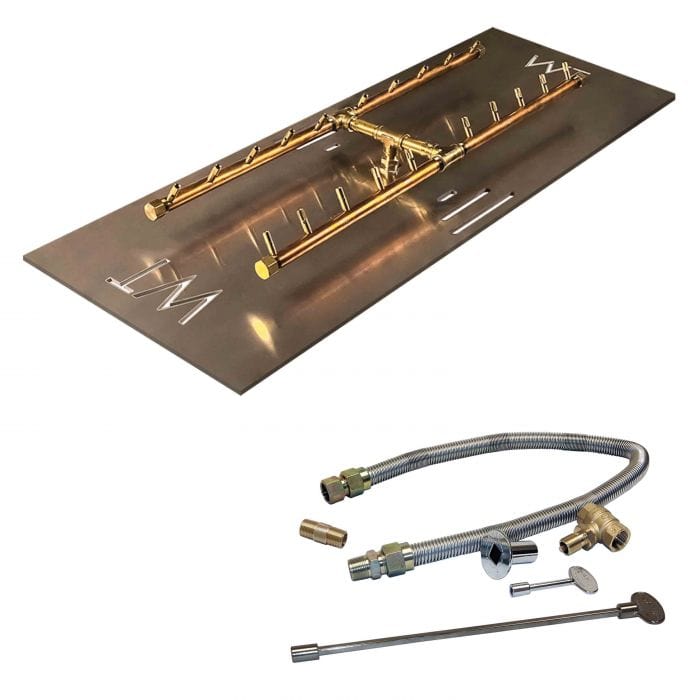

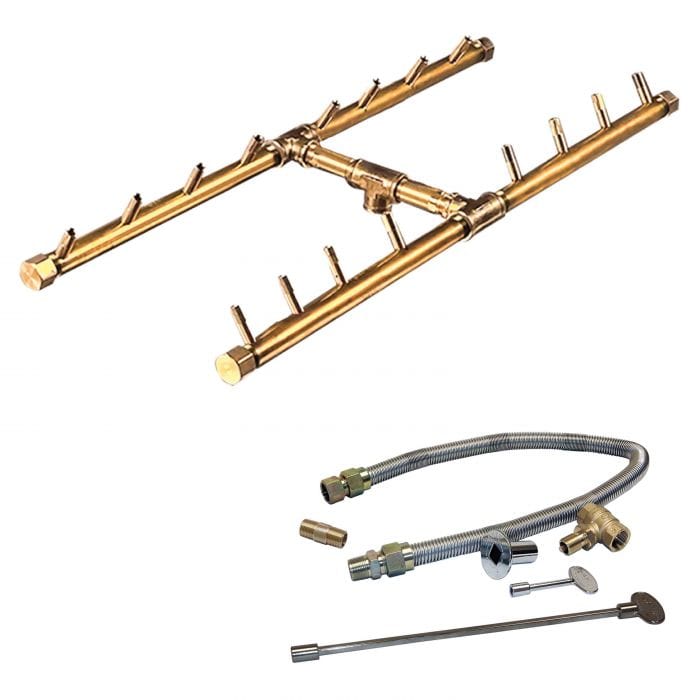

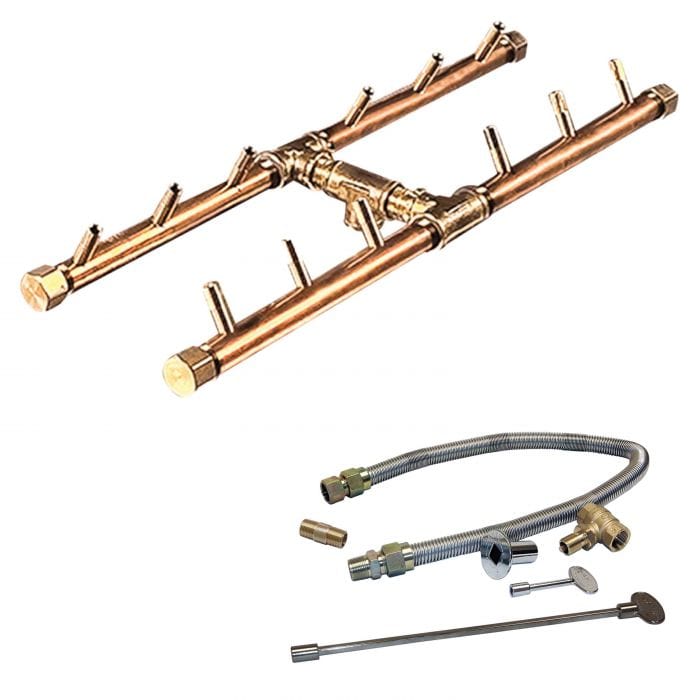

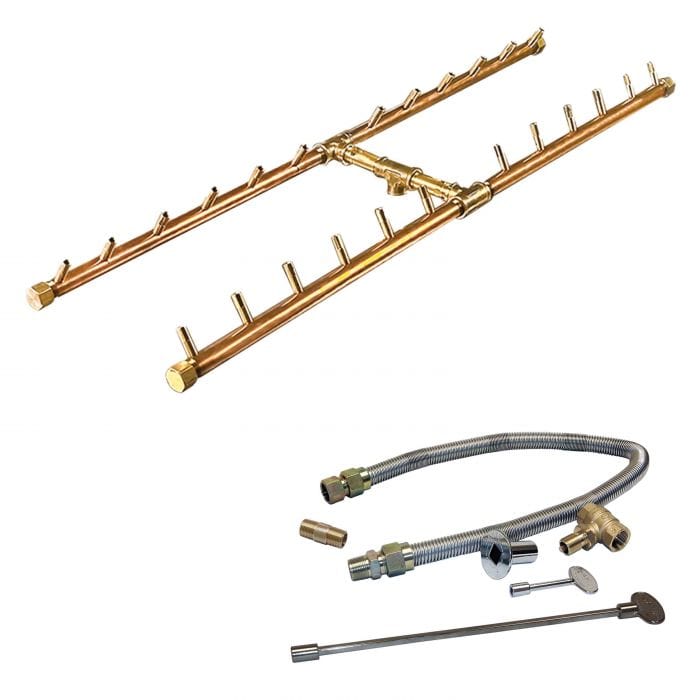

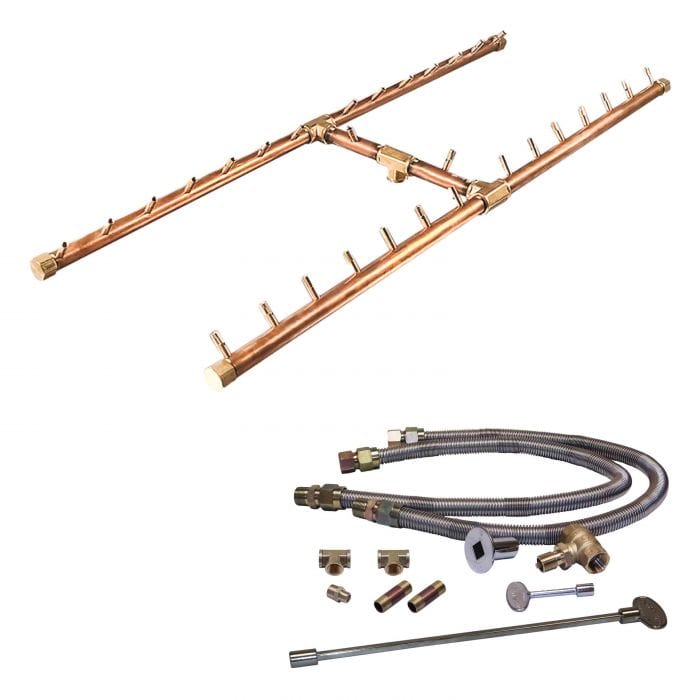

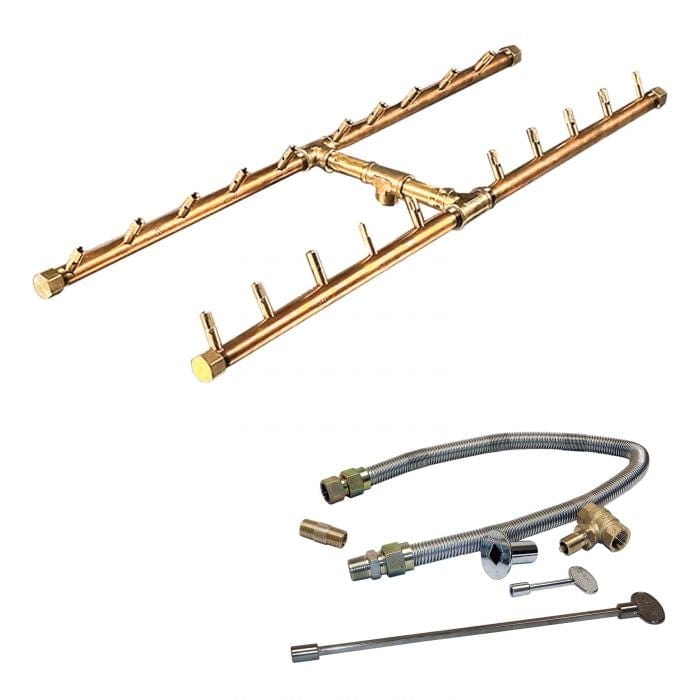

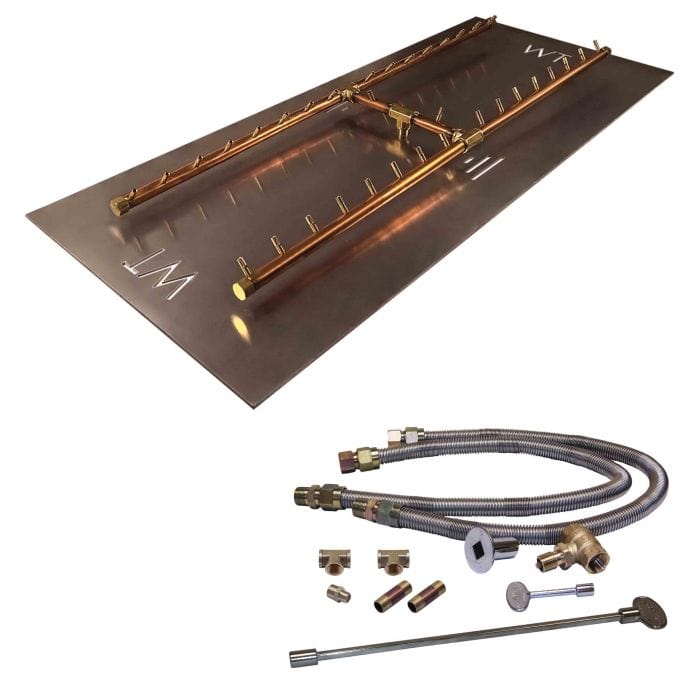

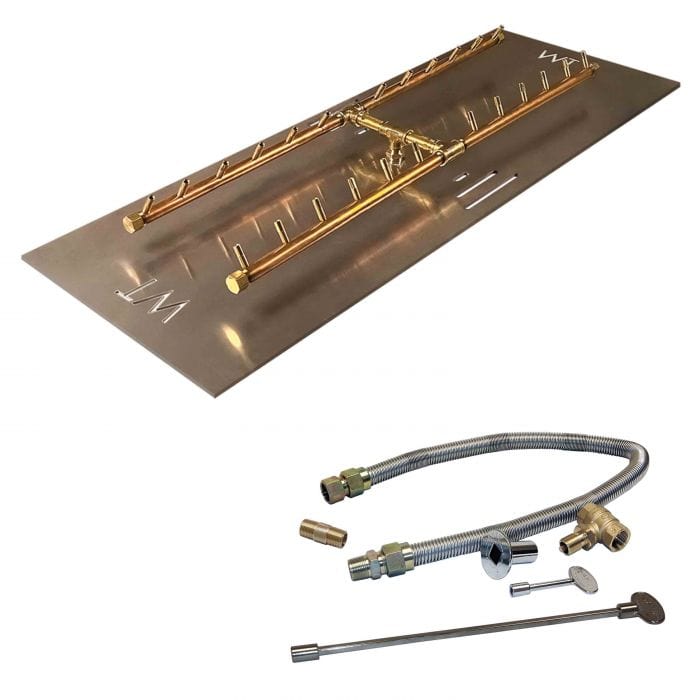

- Included: CROSSFIRE CFBH brass burner, flex line kit (two flex lines on CFBH300 and CFBH340) and key valve kit with chrome decorative flange and two keys
- Optional (select above): rectangular plate sized to the burner
- Required, sold separately: fire-rated media such as Warming Trends black lava rock (BLR) or rolled lava rock (LRR)
- Required: a non-combustible, vented enclosure and a gas line with an exterior shutoff, run by a licensed installer
Installation Notes
Warming Trends requires a non-combustible enclosure with venting on at least two opposing sides, 18 sq in. minimum each, placed mid to low; the cavity must never be filled with gravel, crushed rock or concrete, and the burner should sit 4 to 6 in. below the top to protect the flame from wind. Support the plate or pan on blocks, bricks or L-brackets, never on the valve. Keep 36 in. horizontally and at least 84 in. overhead from combustible materials (Version 6 manual), fit a gas shutoff outside the fire feature, and have a licensed gas professional make the connection and leak test. Cover the burner with fire-rated media no more than 1/2 in. above the jets; never use gravel, pebbles or river rock. A center support under the plate is recommended for rectangular plates over 40 in. For New York City addresses, outdoor gas fire features and their gas piping fall under the NYC Fuel Gas Code and Department of Buildings permitting, and propane at residences is restricted by the NYC Fire Code, so the approval path for a built-in fire pit must be confirmed before you buy. Book a design consultation and we will size the burner, plate and gas line.
Documentation
- Owner/Instruction Manual
- Manual De Instrucciones
- Burner Size Guide

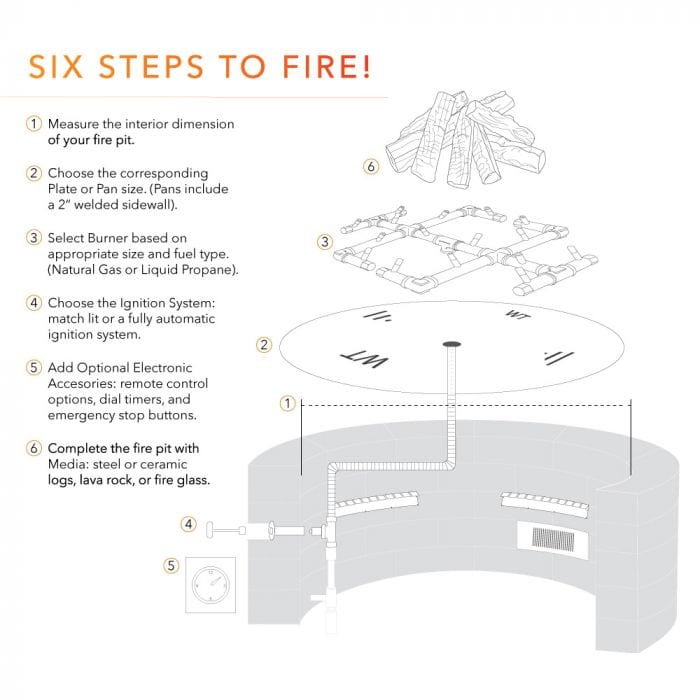

- 6 Steps To Fire
- Warming Trends Warranty
- Warming Trends Owner's Guide and Instruction Manual, Version 6 (6/26)
Frequently Asked Questions
Which size do I need?
Match the plate to the inside of your fire pit: 28 x 15 in. for the CFBH120 up to 62 x 25 in. for the CFBH340, per the Warming Trends size guide, and confirm your gas supply can deliver the BTU rating.
Do I need the plate option?
Only if your fire pit does not already have a plate or pan. Choose I already have a Plate to buy the burner kit alone.
Natural gas or propane?
Each burner is built for one fuel. Order the version that matches your supply.
What media can I use?
Fire-rated media made for fire features, such as lava rock or fire glass, placed on the plate rather than dumped over the burner and no more than 1/2 in. above the jets. Never use gravel, pebbles or river rock.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Warming Trends Full Lifetime Warranty on CROSSFIRE and other jetted brass burners, from the date of purchase and transferable with proof of ownership; Warming Trends repairs or exchanges a defective burner free during the warranty period. Misuse, installation defects, modification and indoor use are excluded, installation services are not covered, and electronics carry separate warranties. Burners and electronics must be covered when not in use or the warranty is void.
