Crossfire CFBL Linear Brass Gas Fire Pit Burner
Crossfire CFBL Linear Brass Gas Fire Pit Burner - 90K BTU 17.625-Inch / Natural Gas is backordered and will ship as soon as it is back in stock.
Description
Description
Burner sizes: 17.625 in. (90,000 BTU) to 53.625 in. (270,000 BTU), all with a 1/2 in. inlet (per listing)

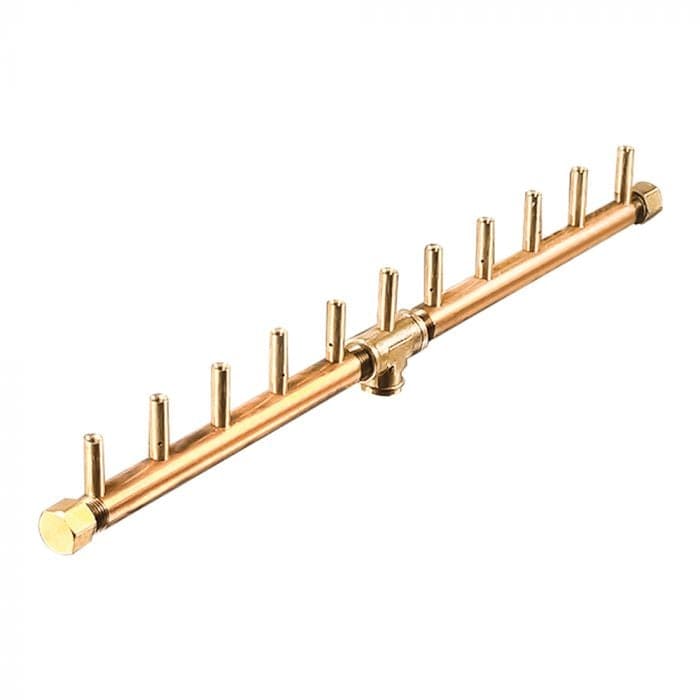

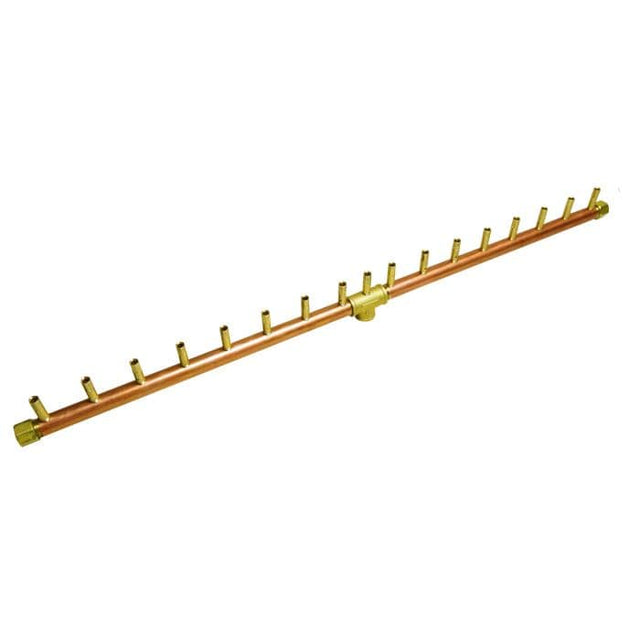

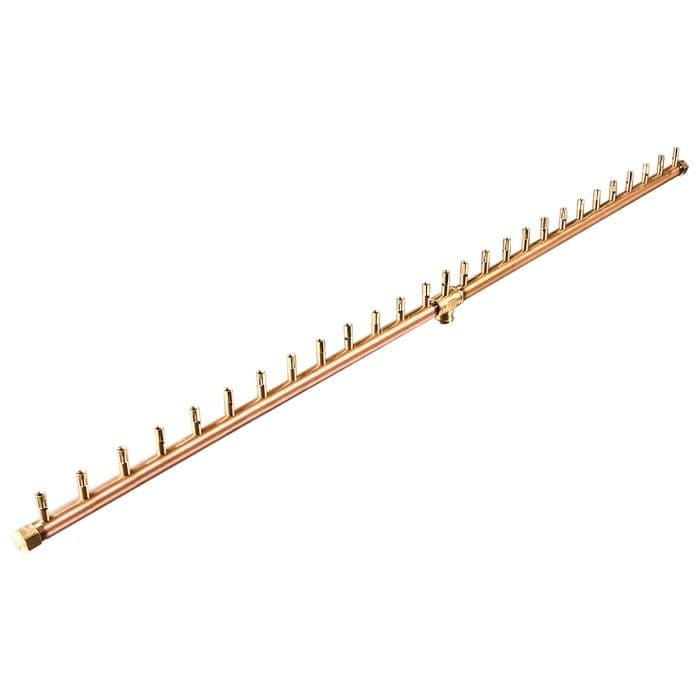

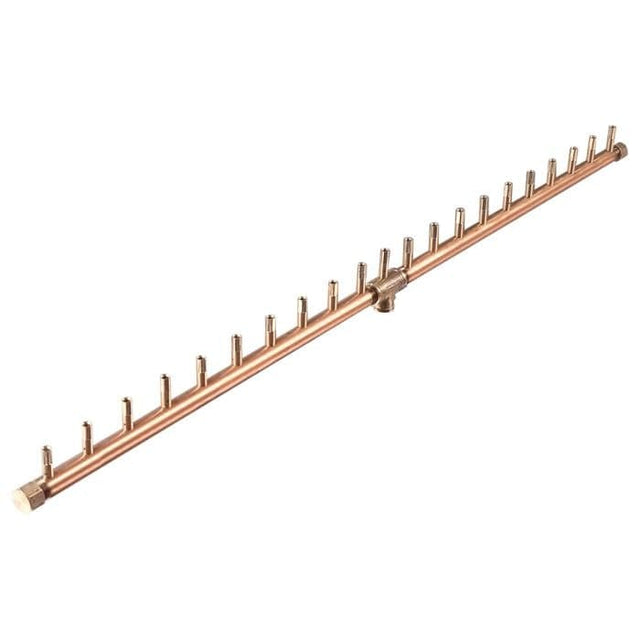

The Warming Trends CROSSFIRE CFBL is a straight, jetted brass burner for linear fire pits, fire tables and long trough features. A single run of CROSSFIRE jets mixes air with the gas for a tall, even line of flame, and because the burner is 100% brass it will not rust in an outdoor fire feature.
Nine lengths run from 17.625 to 53.625 in. and 90,000 to 270,000 BTU, for openings from 20 x 6 up to 62 x 12 in., in natural gas or propane. This listing is the burner alone; the plate or pan, flex line, key valve and ignition are separate.
Features
- Linear CROSSFIRE burner for long, narrow fire features
- 9 lengths from 17.625 to 53.625 in.
- 90,000 to 270,000 BTU
- 1/2 in. inlet on every size
- Natural gas or propane, select above
- 100% brass, will not rust
- Made in the USA by Warming Trends (per listing)
- Full lifetime burner warranty
Key Specifications
| Model family | Warming Trends CROSSFIRE CFBL linear burner (9 sizes) |
|---|---|
| Burner material | 100% brass |
| Output | 90,000 to 270,000 BTU by size (select above) |
| Fuel | Natural gas or propane, burner built for one fuel (select above) |
| Inlet | 1/2 in. (all sizes) |
| Gas inlet pressure | Match lit: NG 3.5 to 7.0 in. W.C.; LP 11.0 to 13.0 in. W.C. (June 2026 manual) |
| Ignition | Match lit as sold; spark and electronic ignition kits available separately |
Sizes

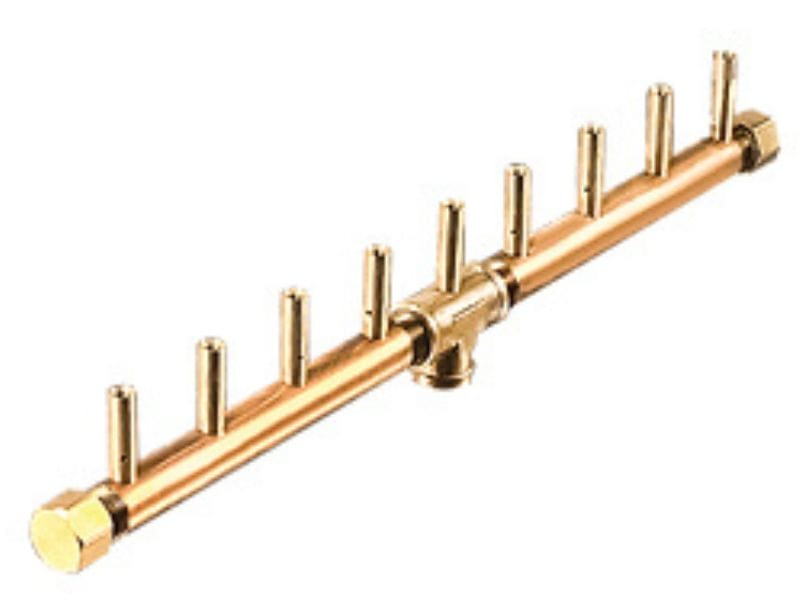

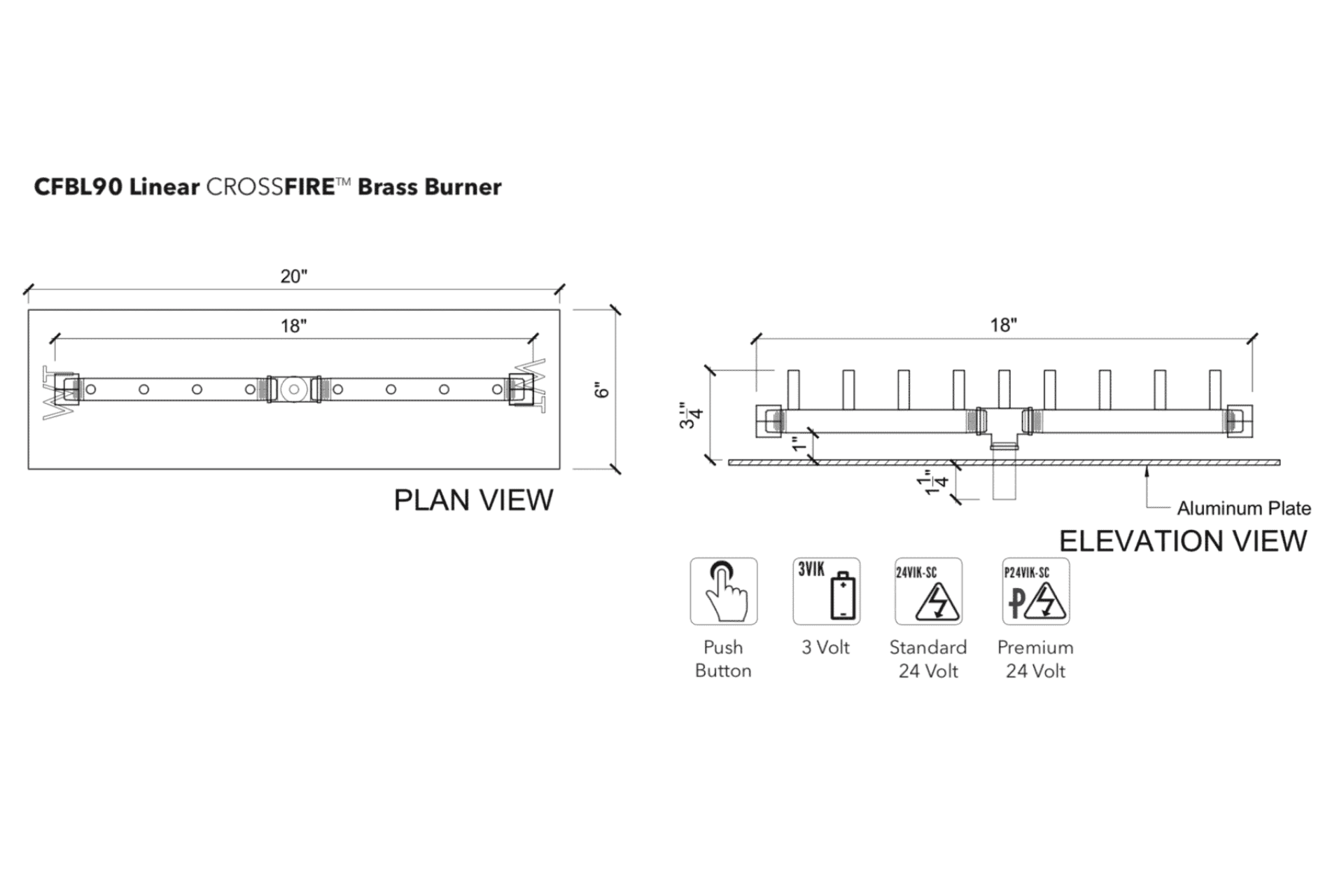

| CFBL90 | 90,000 BTU; burner 17.625 in. long; 1/2 in. inlet; recommended opening 20 x 6 in. |
|---|---|

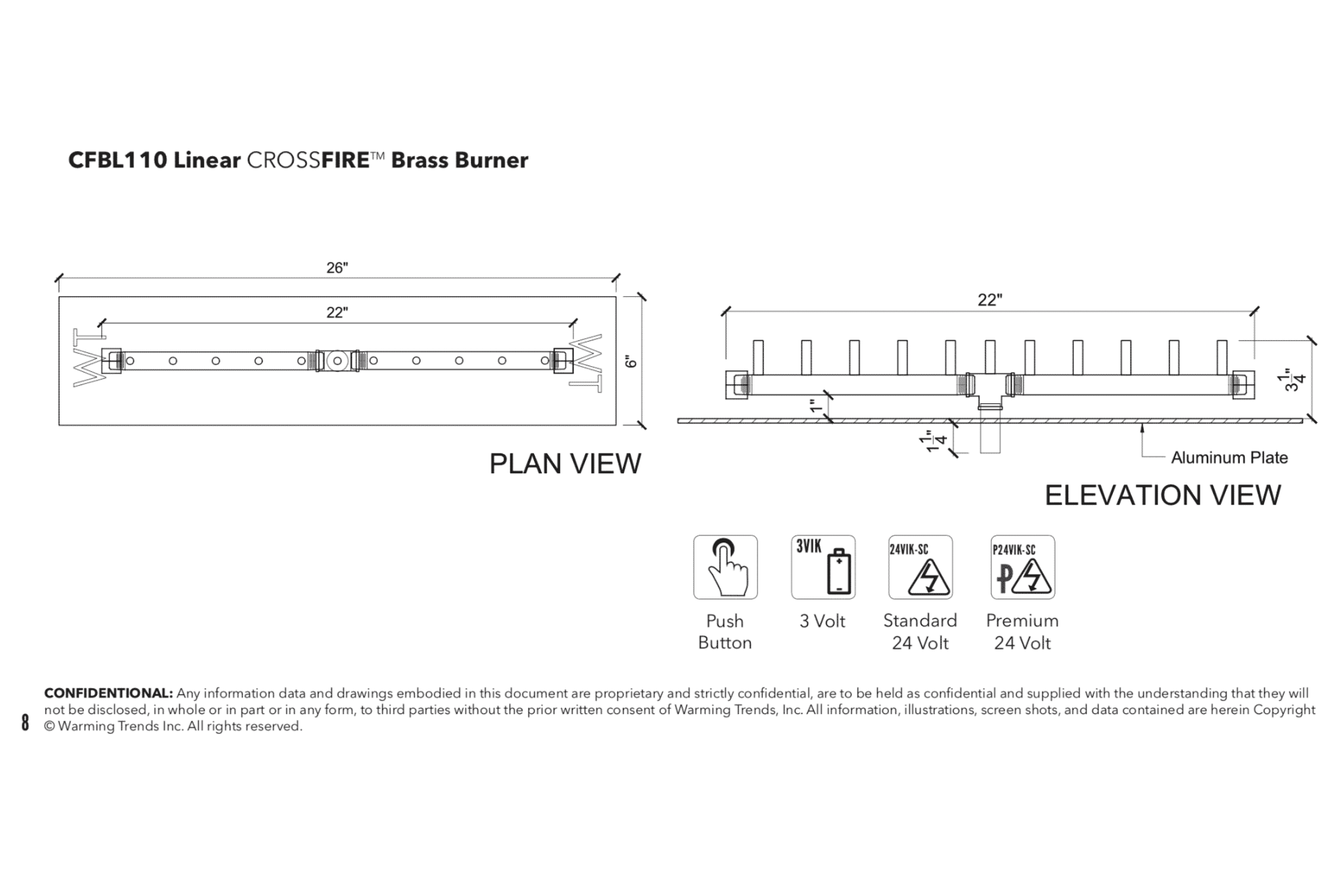

| CFBL110 | 110,000 BTU; burner 21.625 in. long; 1/2 in. inlet; recommended opening 26 x 6 in. |

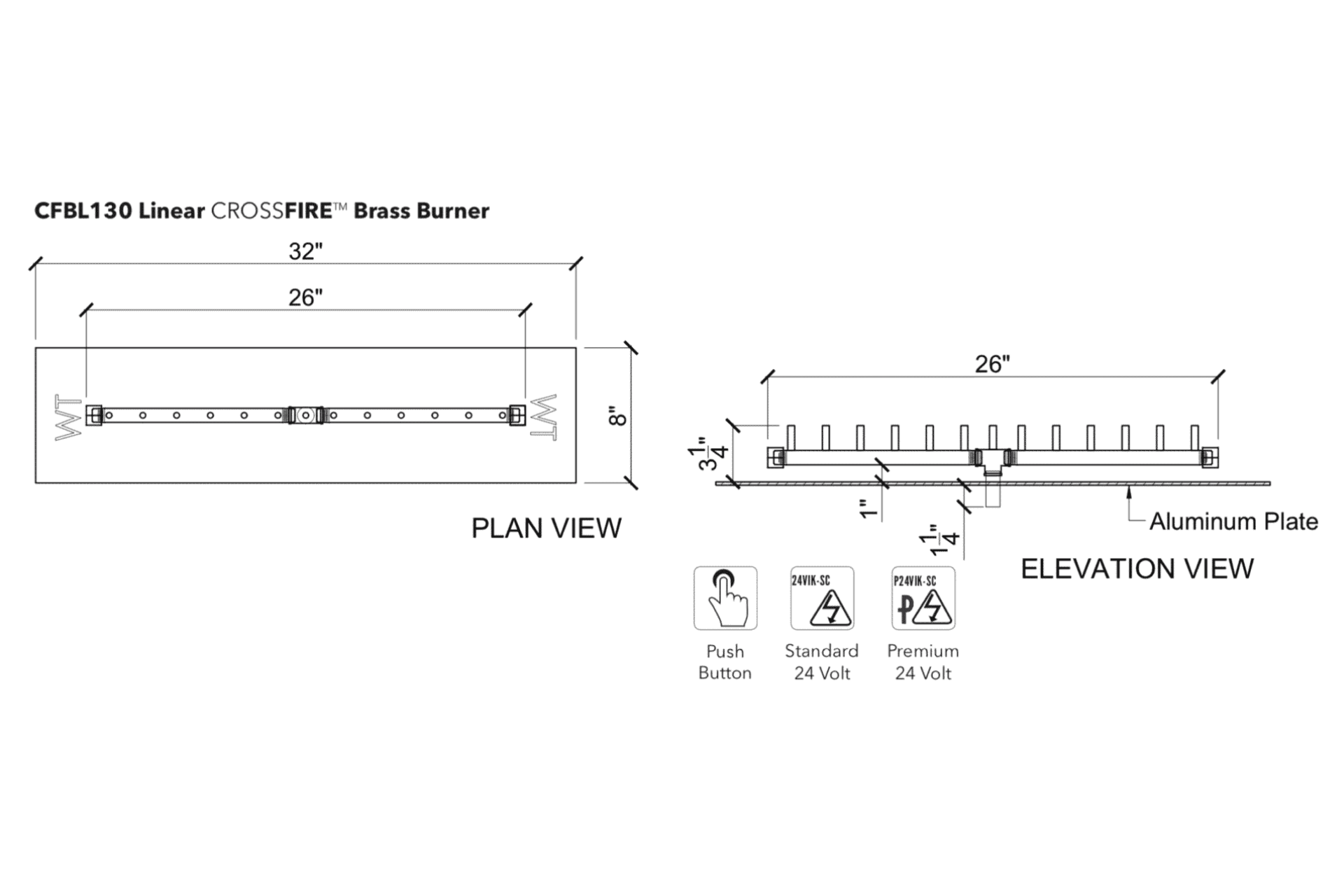

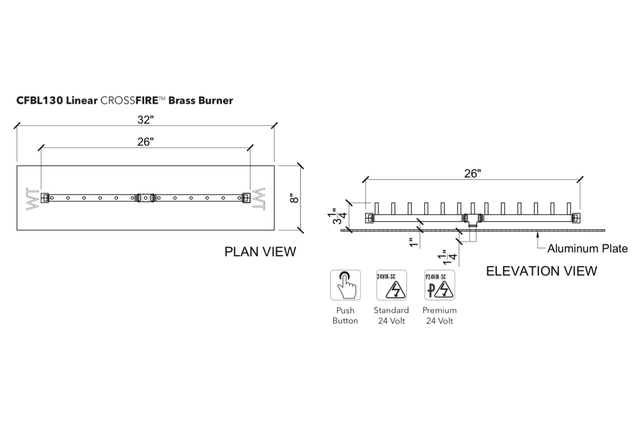

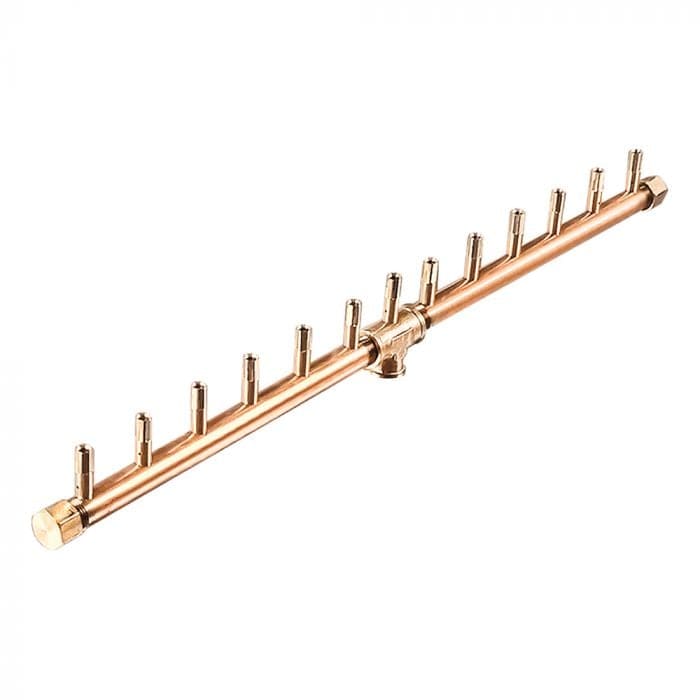

| CFBL130 | 130,000 BTU; burner 25.625 in. long; 1/2 in. inlet; recommended opening 32 x 8 in. |

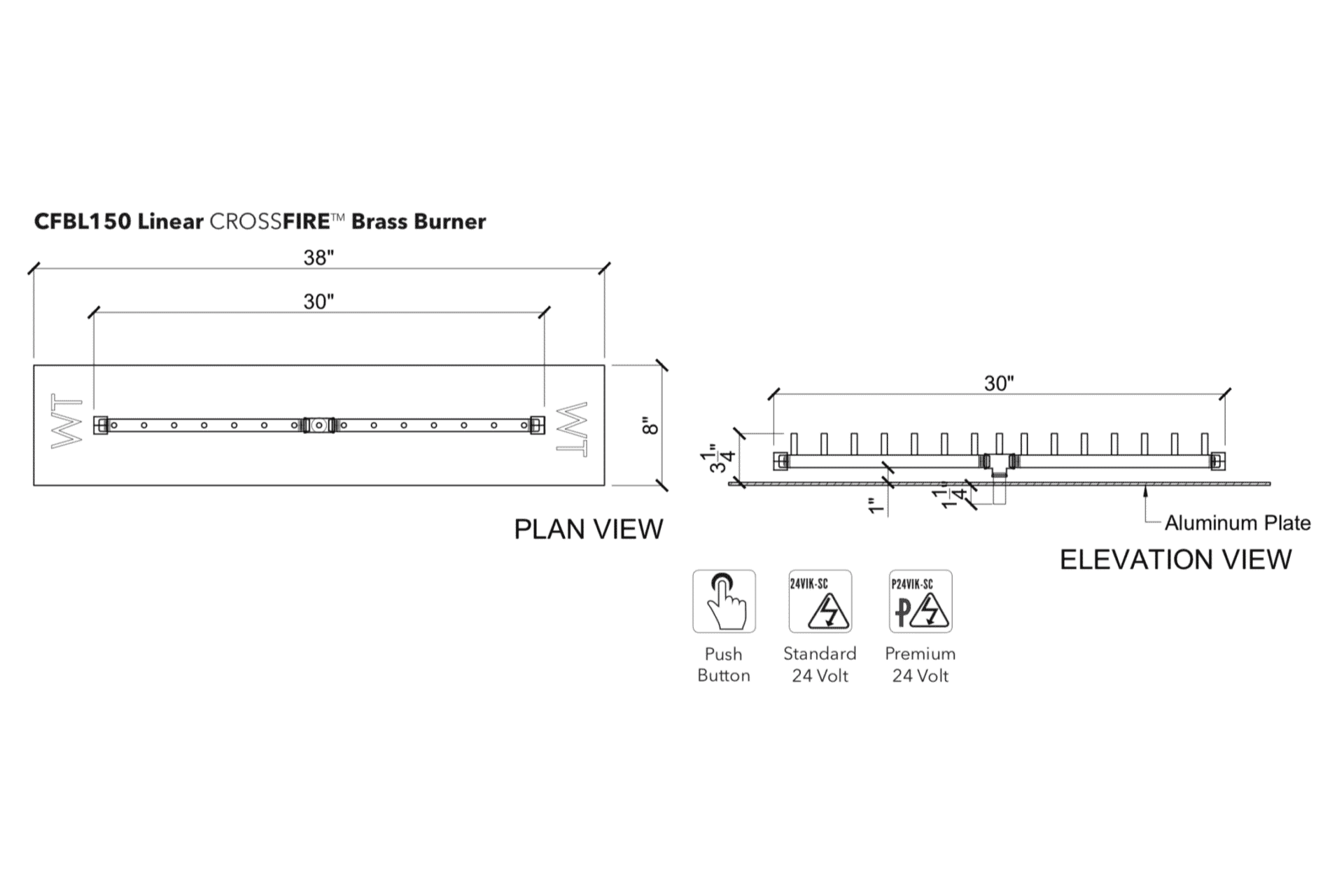

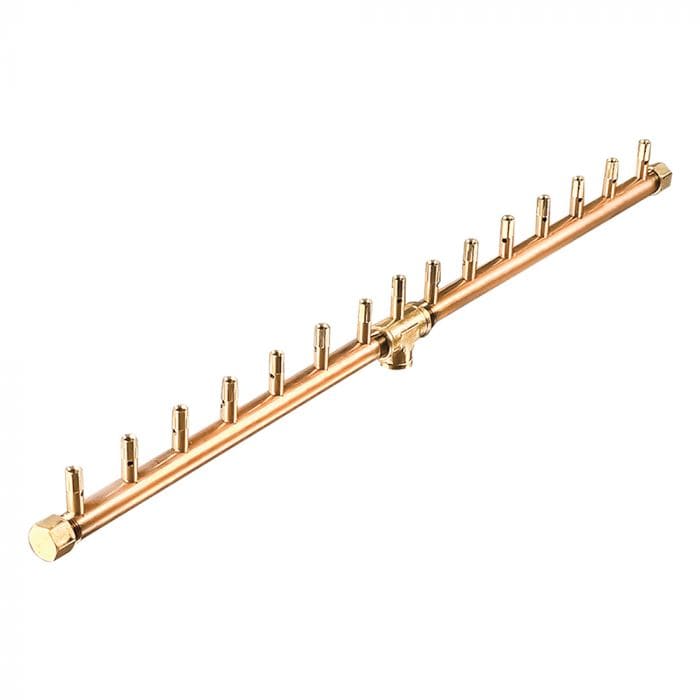

| CFBL150 | 150,000 BTU; burner 29.625 in. long; 1/2 in. inlet; recommended opening 38 x 8 in. |

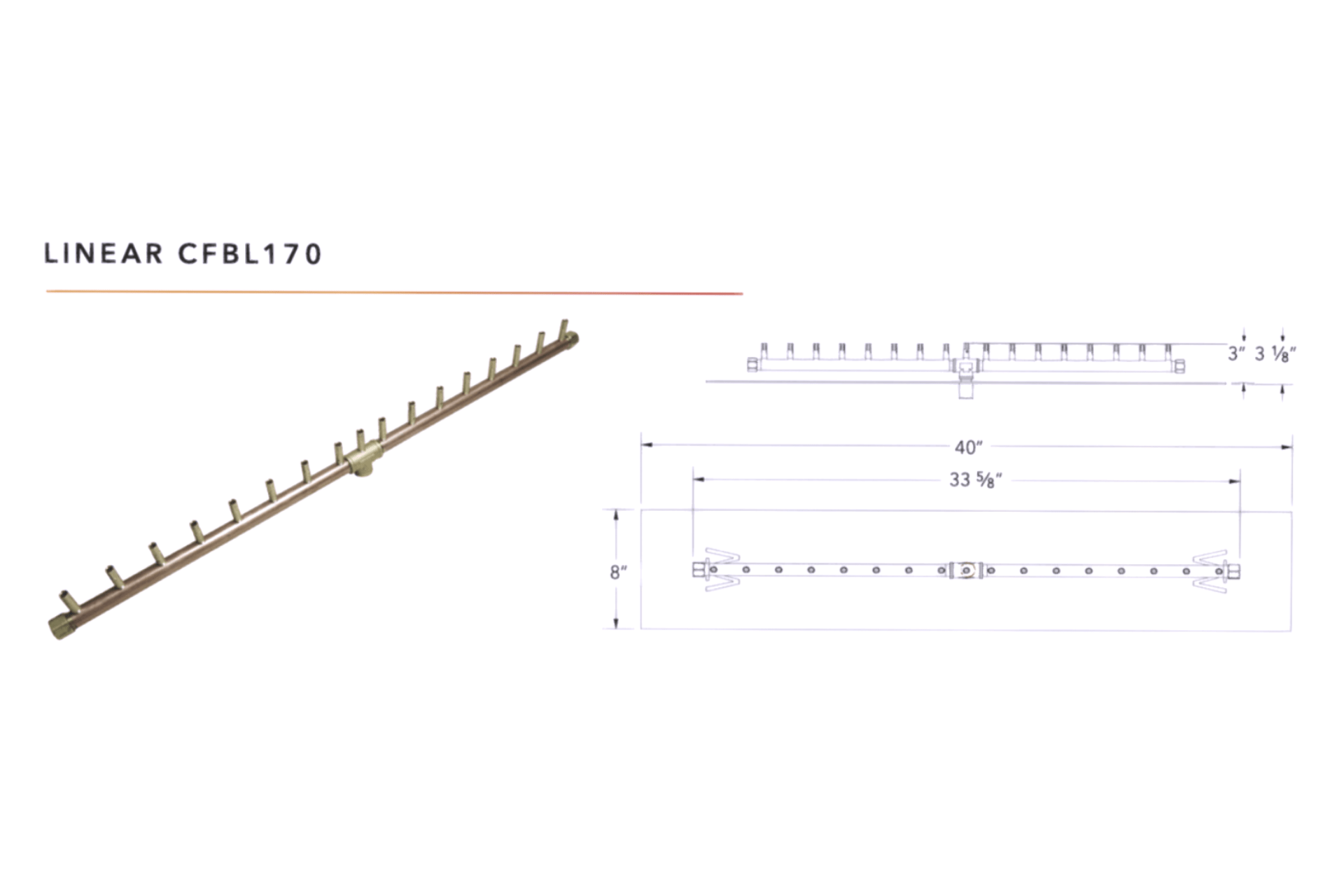

| CFBL170 | 170,000 BTU; burner 33.625 in. long; 1/2 in. inlet; recommended opening 40 x 8 in. |

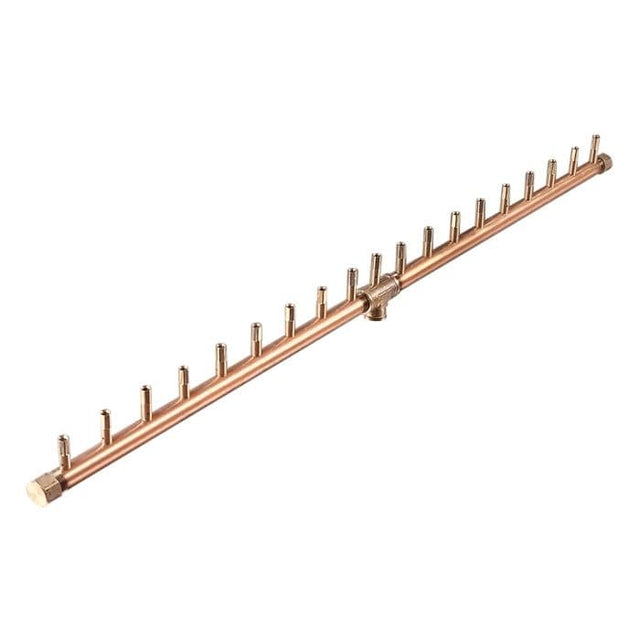

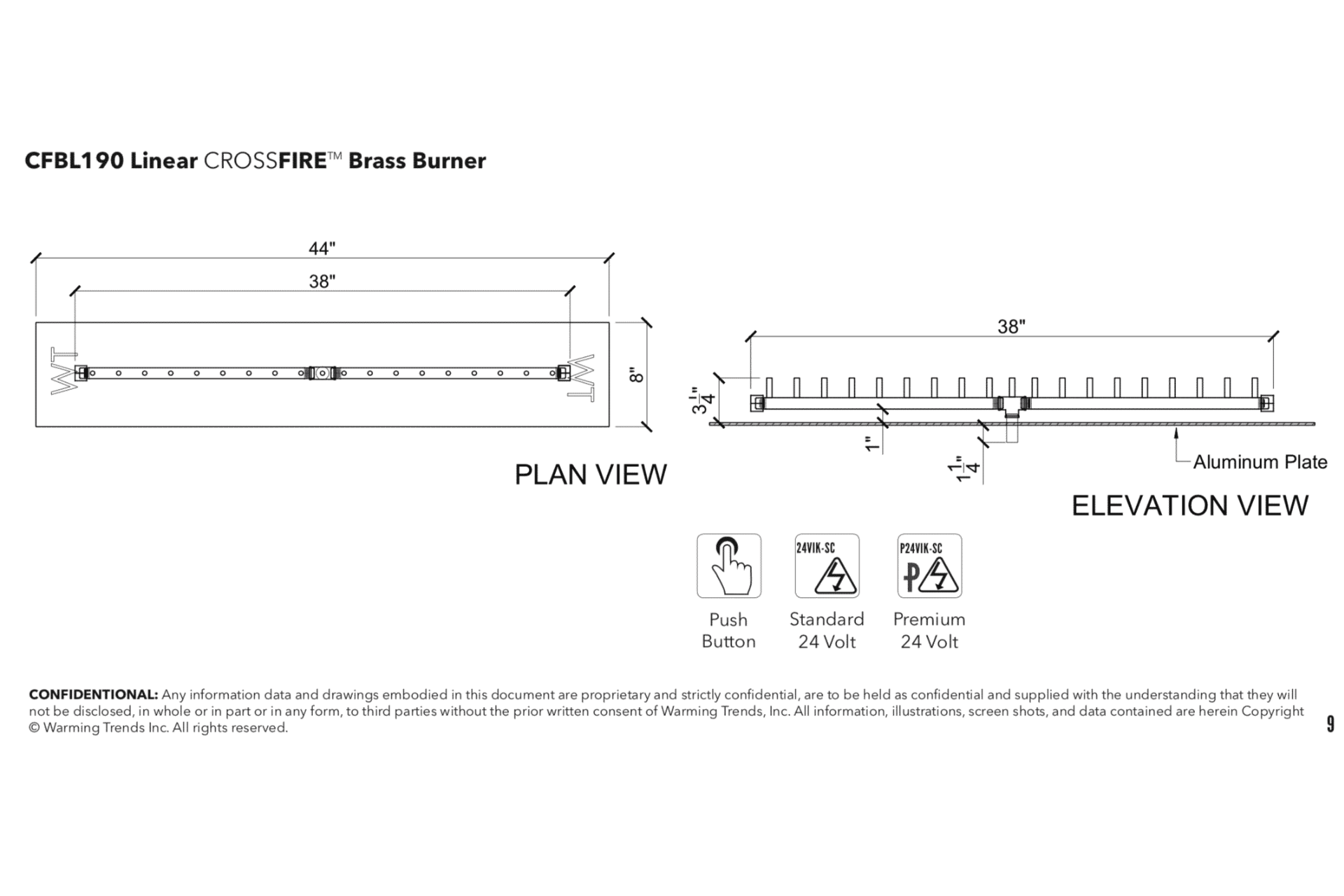

| CFBL190 | 190,000 BTU; burner 37.625 in. long; 1/2 in. inlet; recommended opening 44 x 8 in. |

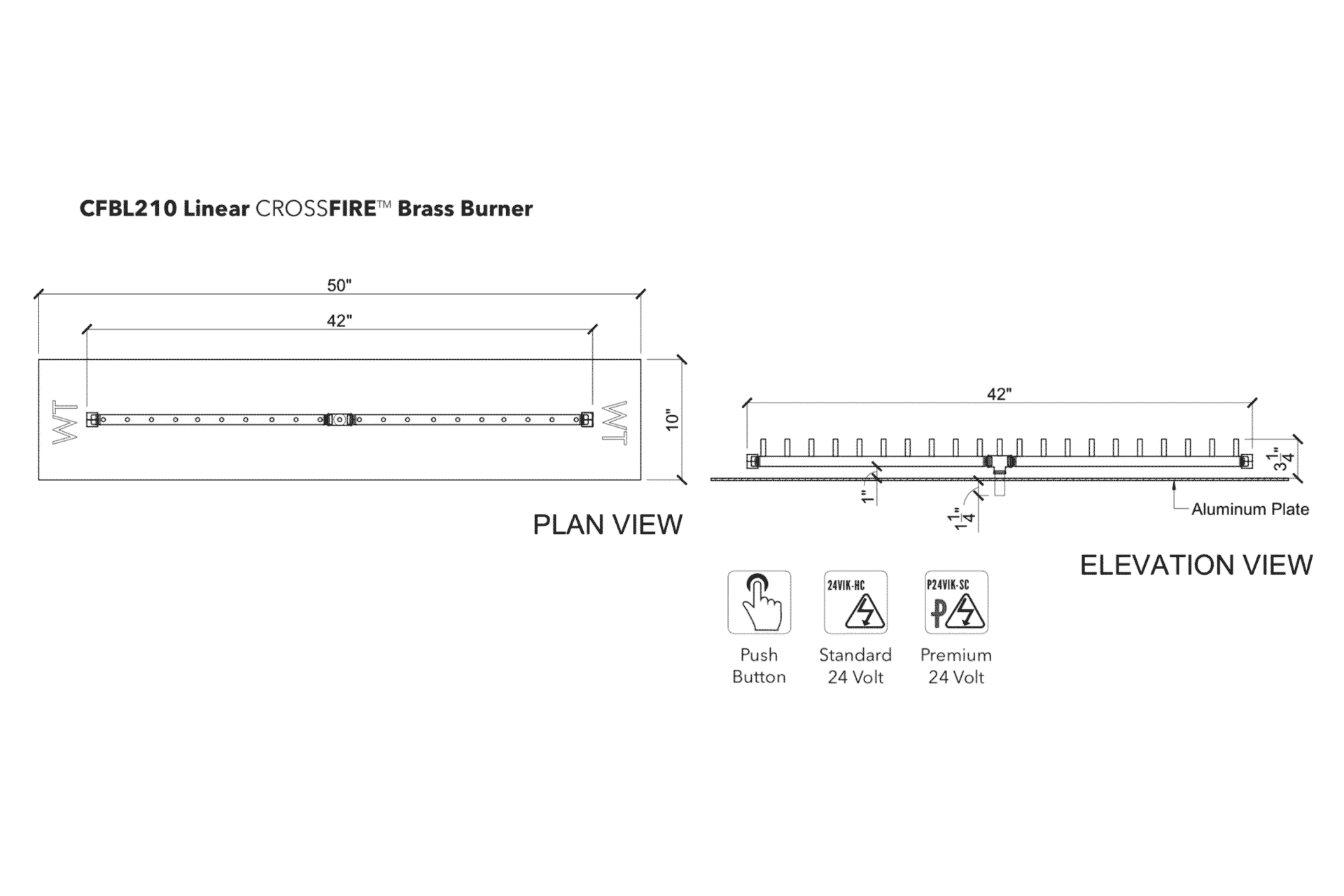

| CFBL210 | 210,000 BTU; burner 41.625 in. long; 1/2 in. inlet; recommended opening 50 x 10 in. |

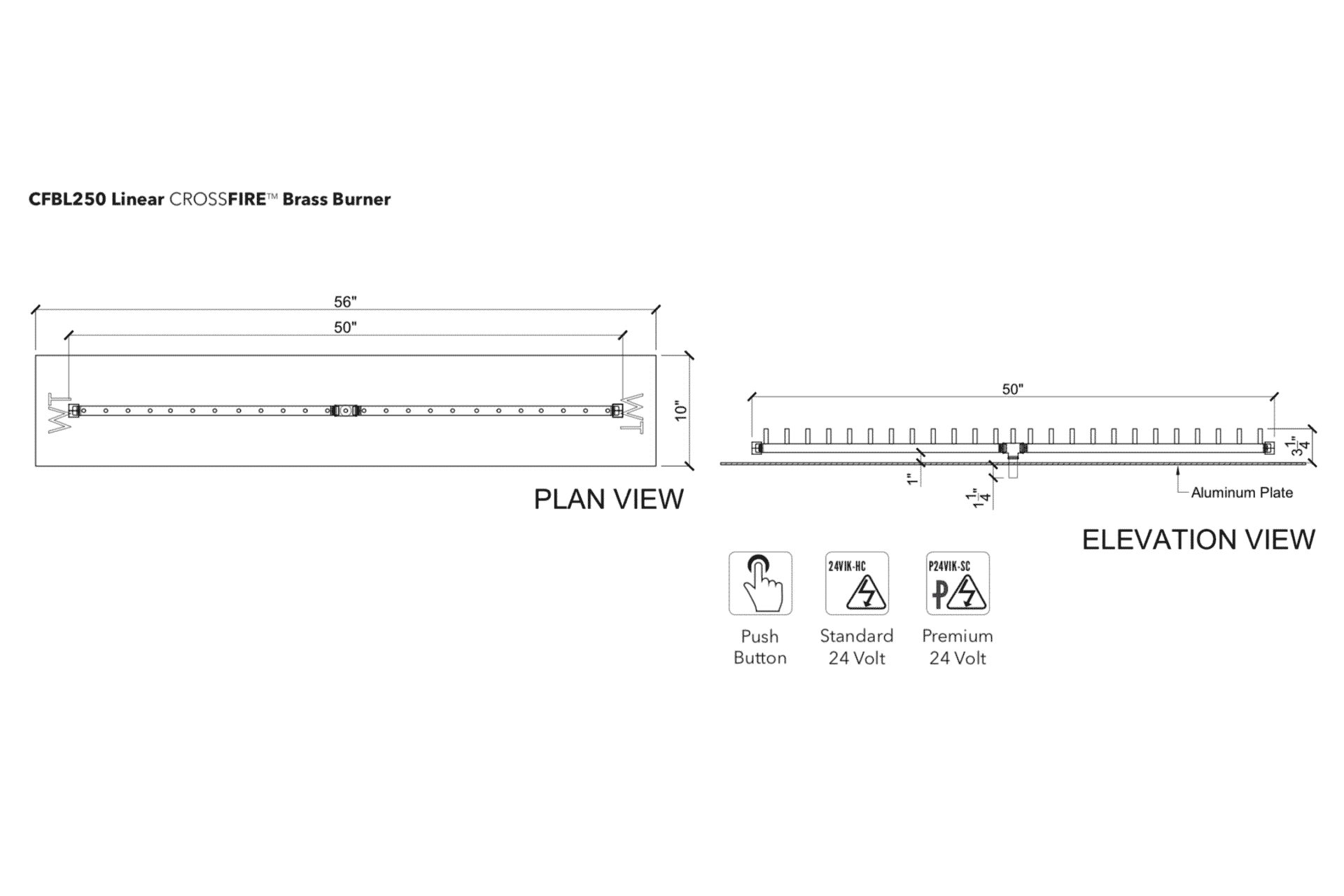

| CFBL250 | 250,000 BTU; burner 49.625 in. long; 1/2 in. inlet; recommended opening 56 x 10 in. |

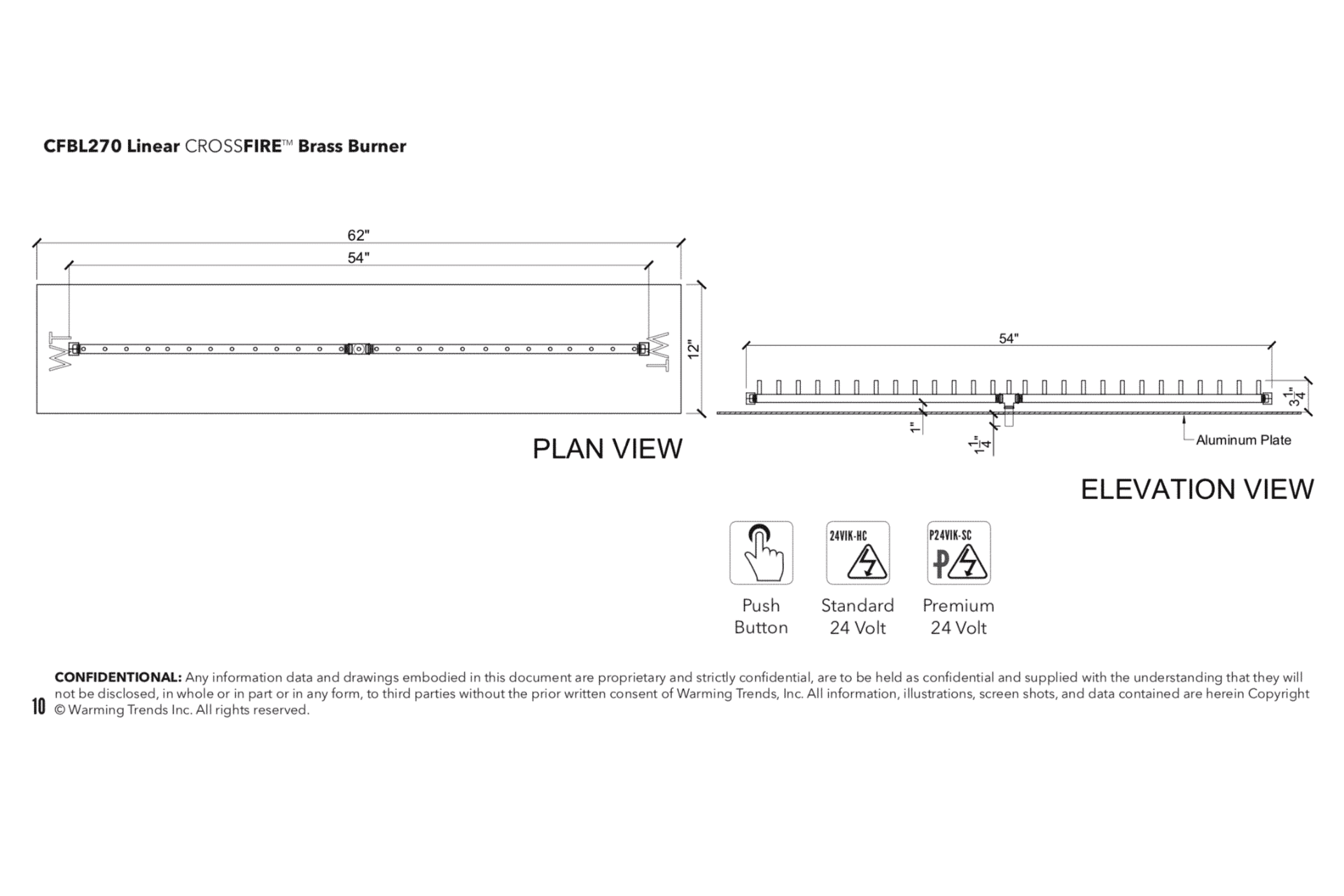

| CFBL270 | 270,000 BTU; burner 53.625 in. long; 1/2 in. inlet; recommended opening 62 x 12 in. |
| Source | Sizes and openings per current listing and the Warming Trends burner size guide |
What Is Included and What You Will Need
- Included: CROSSFIRE CFBL linear brass burner in the length and fuel selected
- Not included: burner plate or pan, flex line, key valve, ignition and media
- Recommended: Warming Trends KV12 1/2 in. key valve kit and FL3612 36 x 1/2 in. flex line
- Required, sold separately: fire-rated media such as Warming Trends black lava rock (BLR) or rolled lava rock (LRR)
- Optional ignition upgrades: PBIK3.0 push button spark ignition or Mercury (MERC) spark ignition with safety shutoff
- Required: venting on at least two opposing sides of the enclosure, such as the Warming Trends VENTBW vent kit
- Required: a non-combustible enclosure and a gas line with an exterior shutoff, run by a licensed installer
Installation Notes
Warming Trends requires venting on at least two opposing sides of the enclosure, 18 sq in. minimum each, and at least 84 in. of overhead clearance from combustible structures or materials (June 2026 manual). Never fill the cavity with gravel or concrete, keep the burner serviceable from above, fit a gas shutoff outside the fire feature, and have a licensed gas professional make the connection and leak test. Cover the burner with approved media no more than 1/2 in. above the jets. For New York City addresses, outdoor gas fire features and their gas piping fall under the NYC Fuel Gas Code and Department of Buildings permitting, and propane at residences is restricted by the NYC Fire Code, so the approval path must be confirmed before you buy. Book a design consultation and we will size the burner, plate and gas line.
Documentation
- Owner/Instruction Manual (V3.1)
- Manual De Instrucciones
- Burner Size Guide

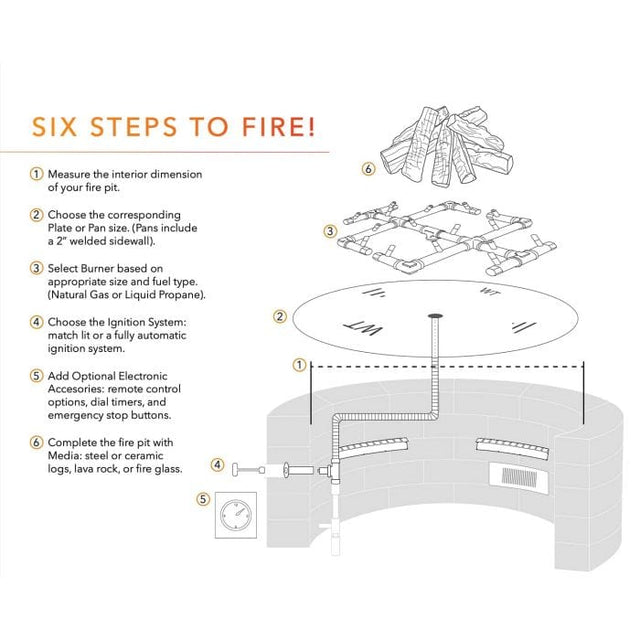

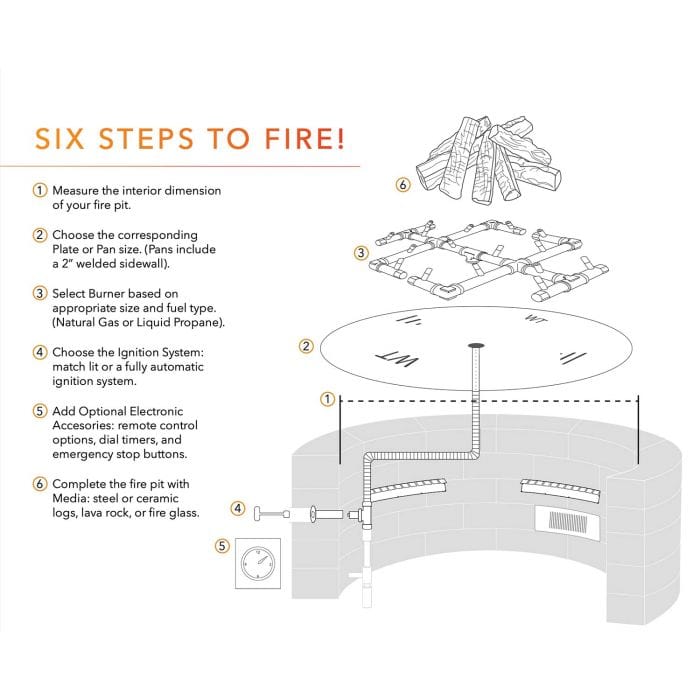

- 6 Steps To Fire
- Warming Trends Warranty
- Warming Trends Owner's Guide and Instruction Manual (June 2026)
Frequently Asked Questions
Which length do I need?
Match the burner to the inside of your linear fire feature: the CFBL90 suits about a 20 x 6 in. opening and the CFBL270 about 62 x 12 in., per the size table above.
Is a plate or pan included?
No. This is the burner alone. Warming Trends also sells CFBL kits with a matched pan, flex line and key valve.
Natural gas or propane?
Each burner is built for one fuel. Order the version that matches your supply; the two are not interchangeable without the correct parts.
What media can I use?
Fire-rated media made for fire features, such as lava rock or fire glass, no more than 1/2 in. above the jets. Never use gravel, pebbles or river rock.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Warming Trends Full Lifetime Warranty on CROSSFIRE and other jetted brass burners, beginning on the date of purchase and transferable with proof of ownership; during the warranty period Warming Trends repairs or exchanges a defective burner without charge. Misuse, installation defects, accidents, modification, improper maintenance and indoor use are excluded, and installation services are not covered. Ignition systems carry separate terms: Platinum, Cobalt, Carbon and Mercury systems 3 years residential, push button systems 1 year residential (June 2026 manual).
