Warming Trends Crossfire CFBL Linear Brass Gas Fire Pit Burner Kit
Warming Trends Crossfire CFBL Linear Brass Gas Fire Pit Burner Kit - 90K BTU 17.625-Inch / Natural Gas / I already have a Plate is backordered and will ship as soon as it is back in stock.
Description
Description
Burner lengths: 17.625 in. (90,000 BTU) to 53.625 in. (270,000 BTU); plates 6 x 20 to 12 x 62 in.

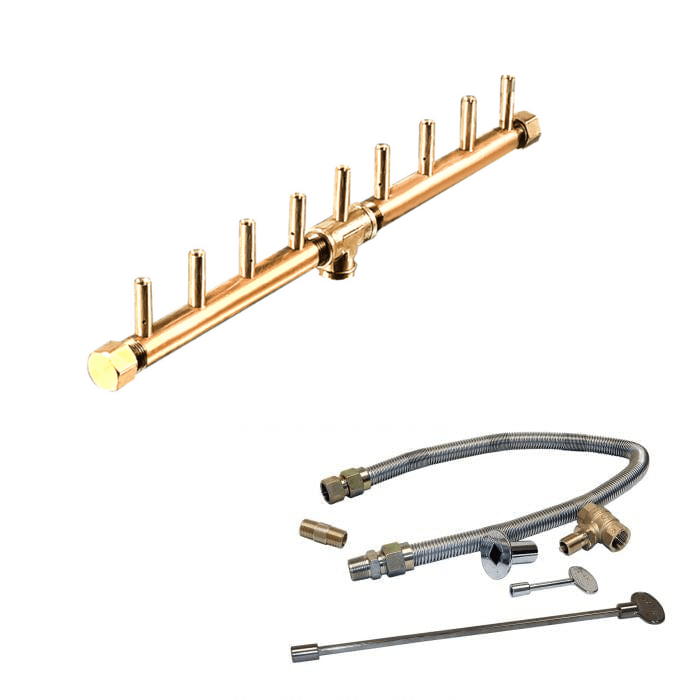

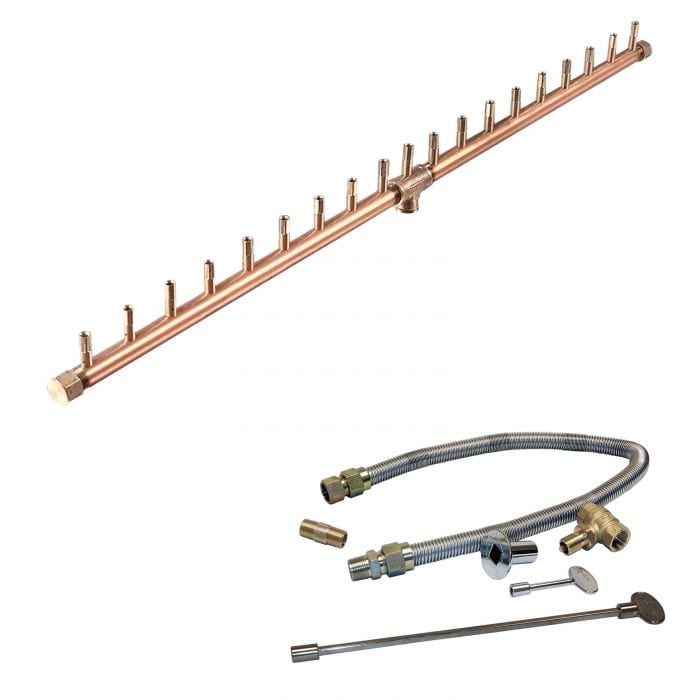

The Warming Trends CROSSFIRE CFBL kit is a linear brass burner kit for narrow fire tables, troughs and linear fire pits. The burner is a single row of CROSSFIRE jets that throws a continuous ribbon of flame, and the kit adds a flex line kit, key valve with chrome flange and keys, and match light ignition, with an optional matching rectangular plate.
Nine lengths run from 90,000 to 270,000 BTU for plates from 6 x 20 to 12 x 62 in., in natural gas or propane.
Features
- Linear CROSSFIRE burner for narrow fire features
- 9 lengths from 90,000 to 270,000 BTU
- Kit includes flex line, key valve with chrome flange and two keys, match light
- Optional matching aluminum plate (select above)
- Natural gas or propane
- 100% brass CROSSFIRE burner, will not rust
- Jetted design mixes air and gas for a tall, full flame
- Made in the USA by Warming Trends
- Full lifetime burner warranty
Key Specifications
| Model family | Warming Trends CROSSFIRE CFBL linear burner kit (9 sizes) |
|---|---|
| Burner material | 100% brass |
| Output | 90,000 to 270,000 BTU by size (select above) |
| Fuel | Natural gas or propane (select above) |
| Inlet | 1/2 in. (per listing) |
| Ignition | Match light with key valve |
| Gas inlet pressure | NG 3.5 to 7.0 in. W.C.; LP 11.0 to 13.0 in. W.C. (match lit, Version 6 manual) |
Sizes

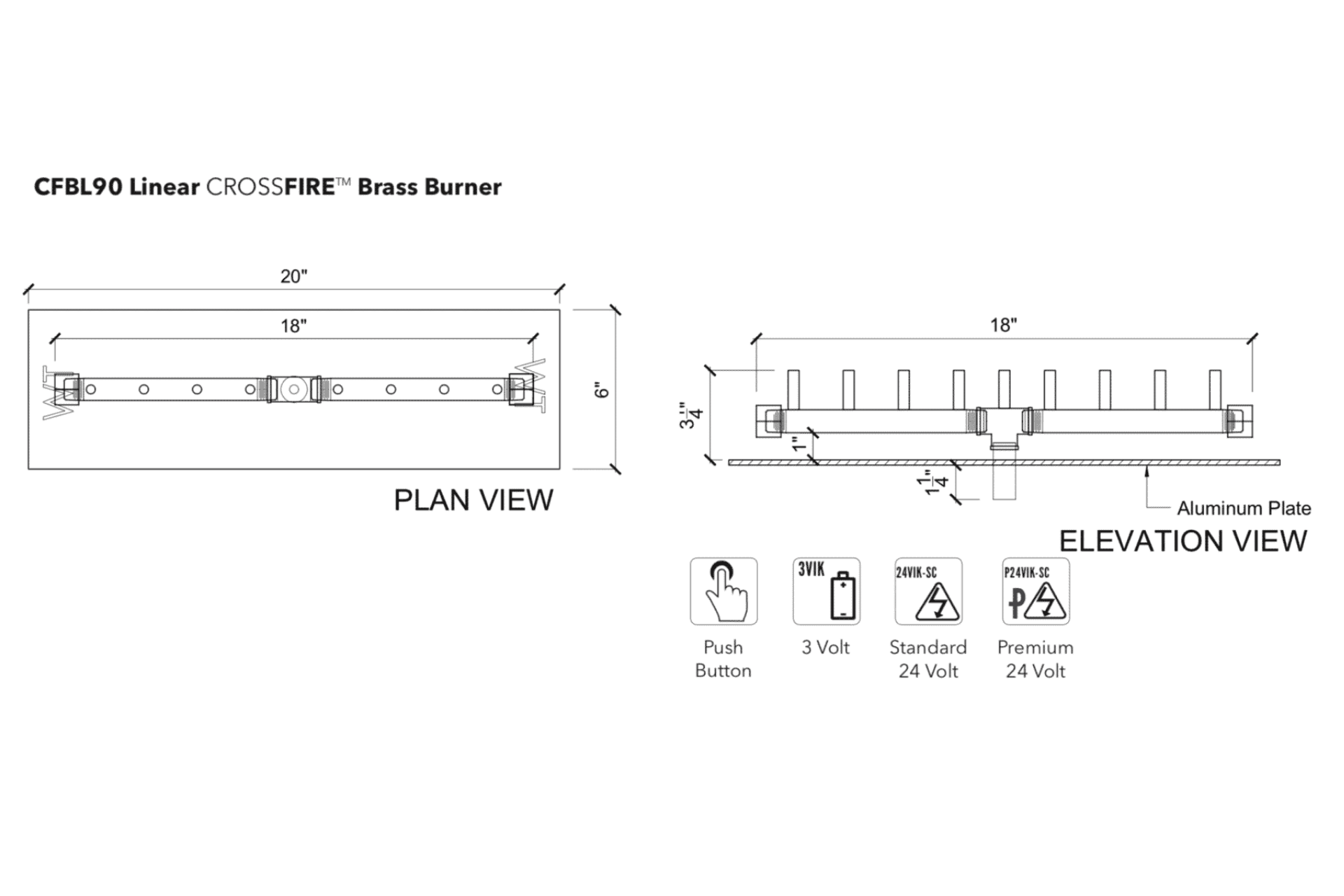

| CFBL90 | 90,000 BTU; burner 17.625 in. long; plate 6 x 20 in. |
|---|---|

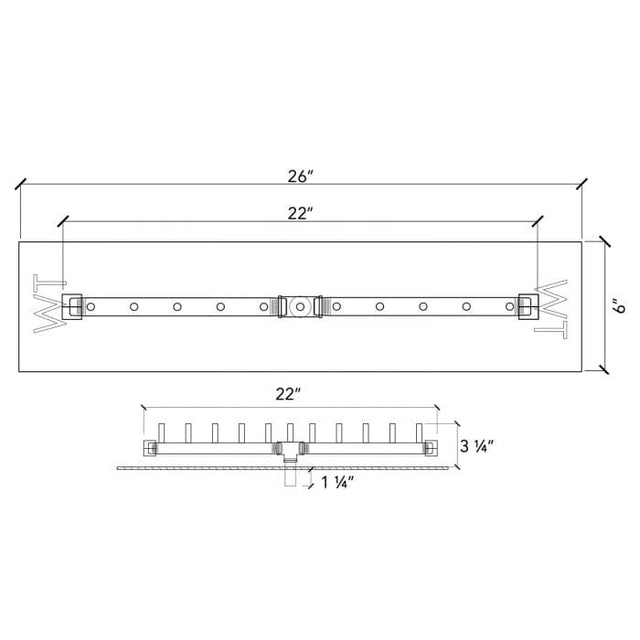

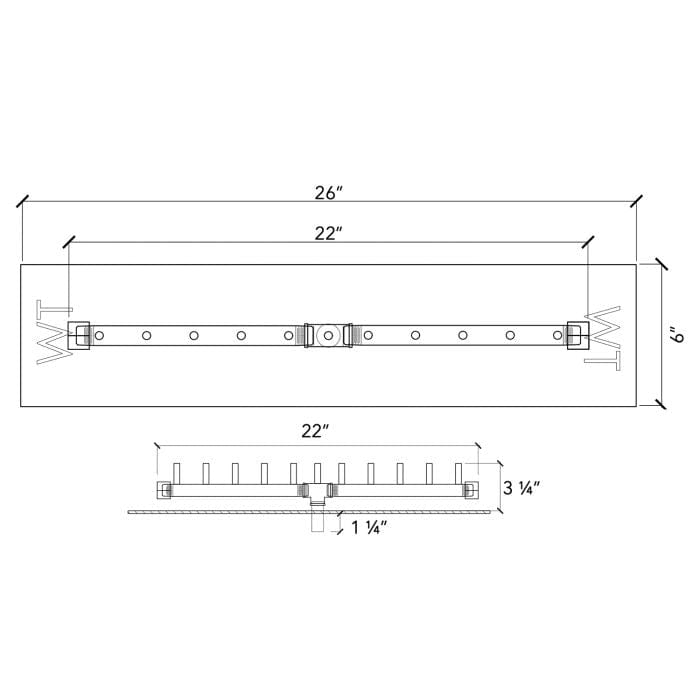

| CFBL110 | 110,000 BTU; burner 21.625 in. long; plate 6 x 26 in. |

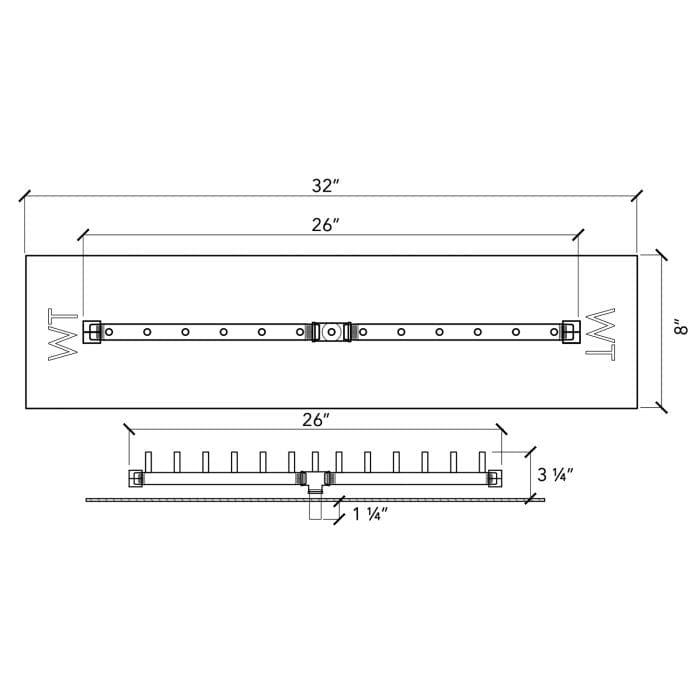

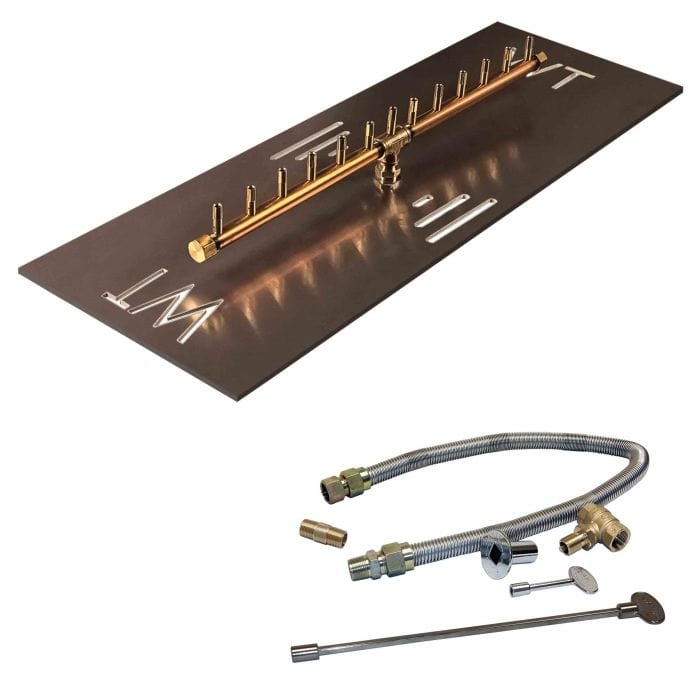

| CFBL130 | 130,000 BTU; burner 25.625 in. long; plate 8 x 32 in. |

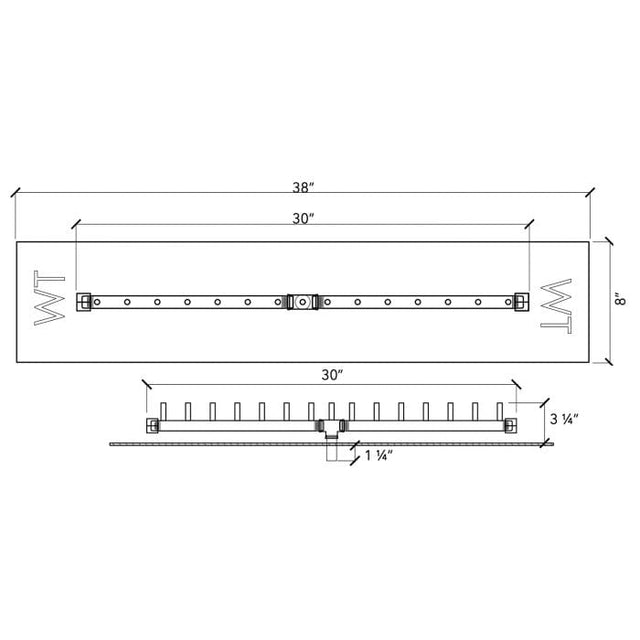

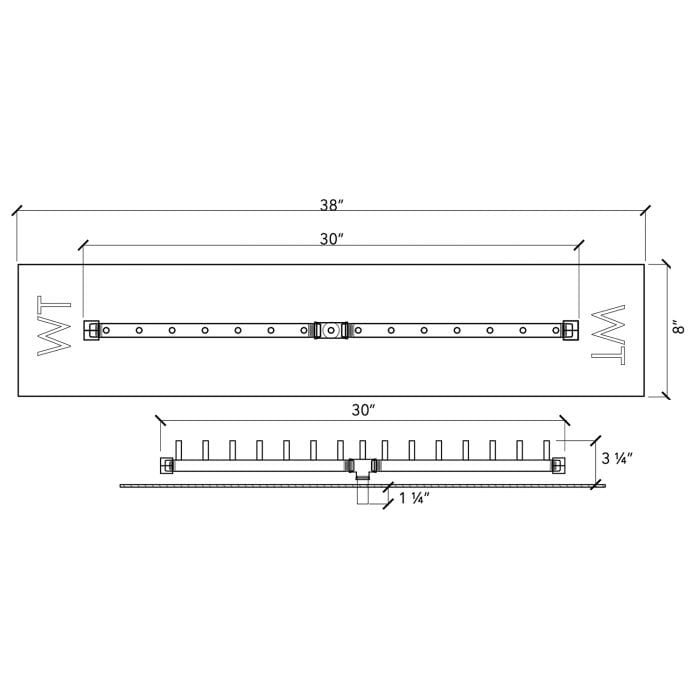

| CFBL150 | 150,000 BTU; burner 29.625 in. long; plate 8 x 38 in. |

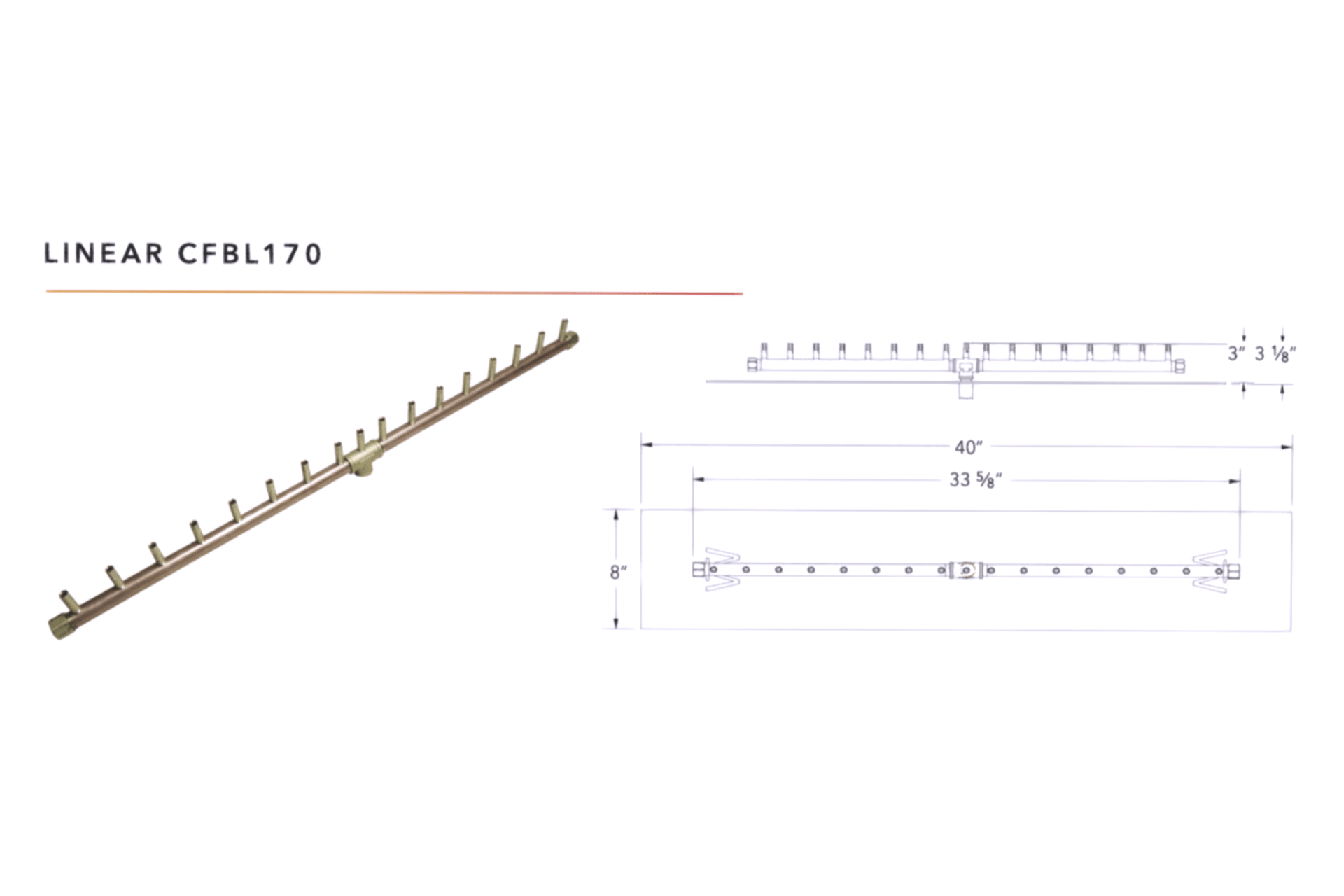

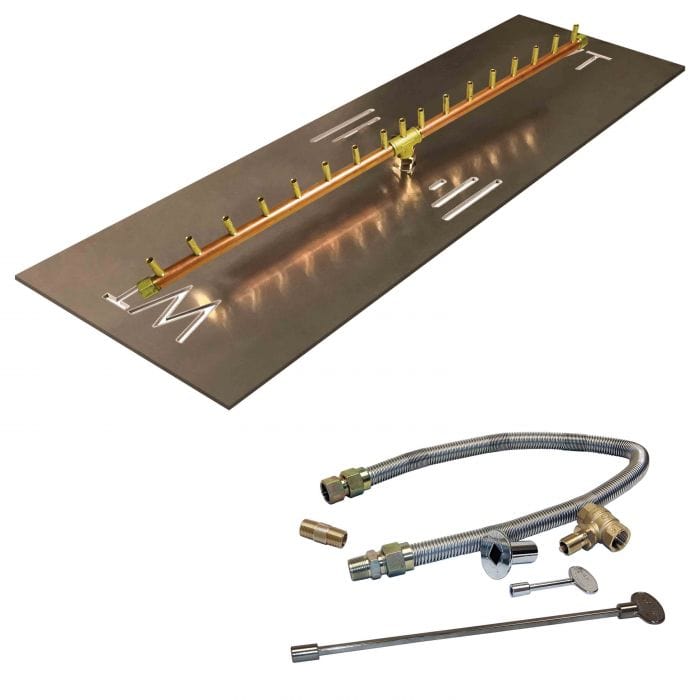

| CFBL170 | 170,000 BTU; burner 33.625 in. long; plate 8 x 40 in. |

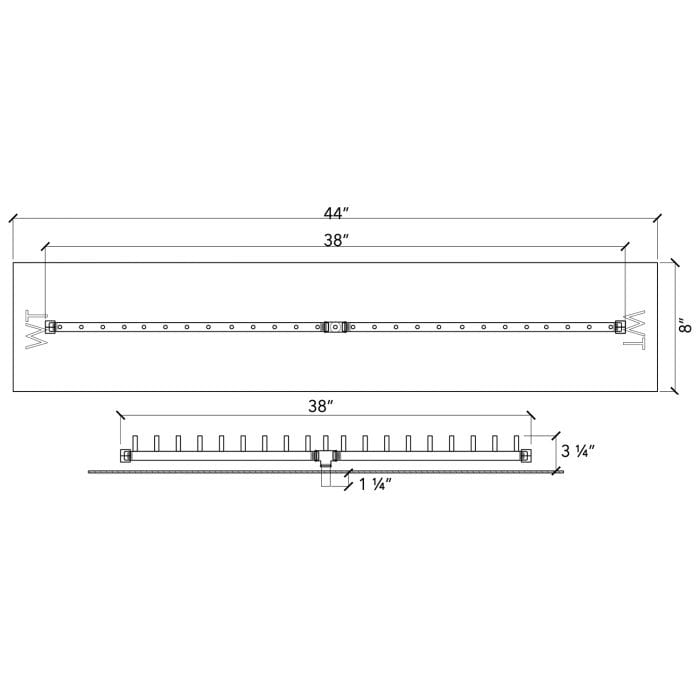

| CFBL190 | 190,000 BTU; burner 37.625 in. long; plate 8 x 44 in. |

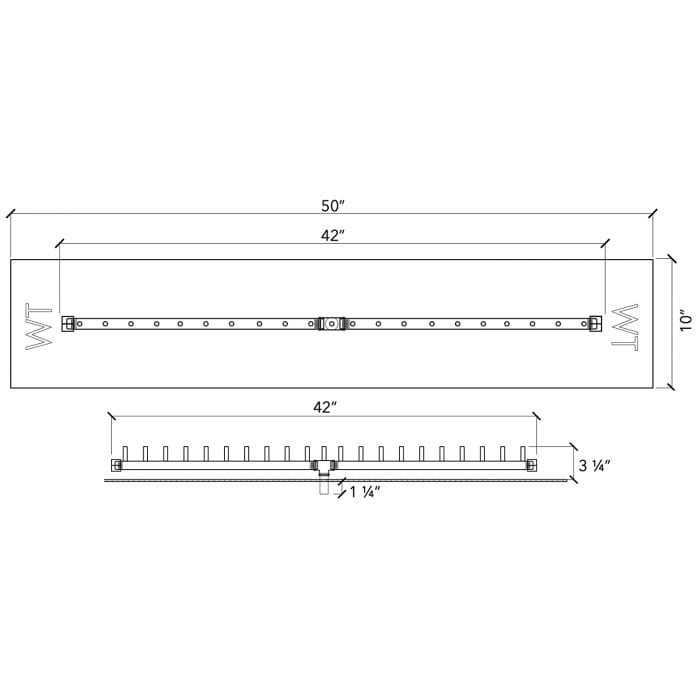

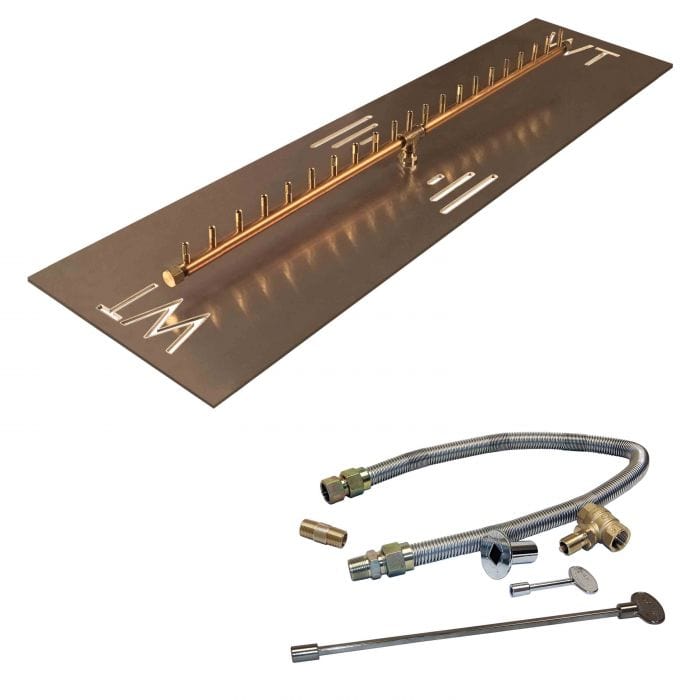

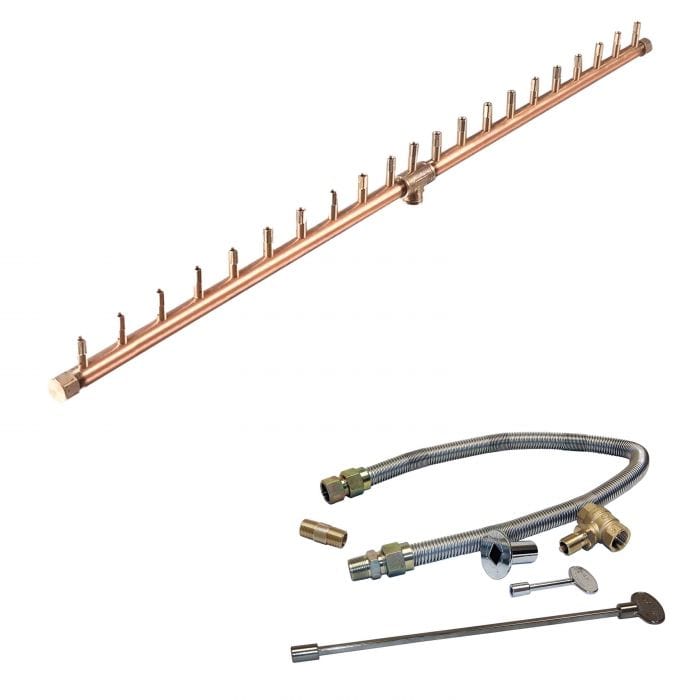

| CFBL210 | 210,000 BTU; burner 41.625 in. long; plate 10 x 50 in. |

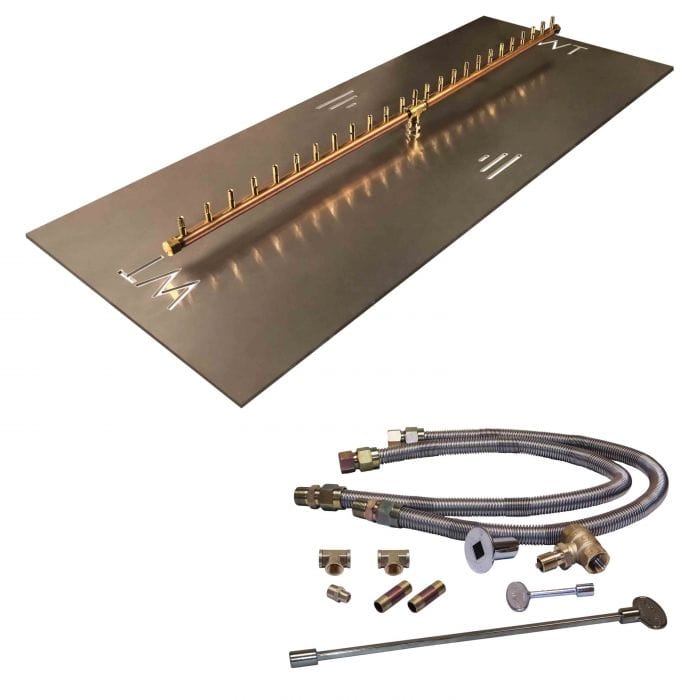

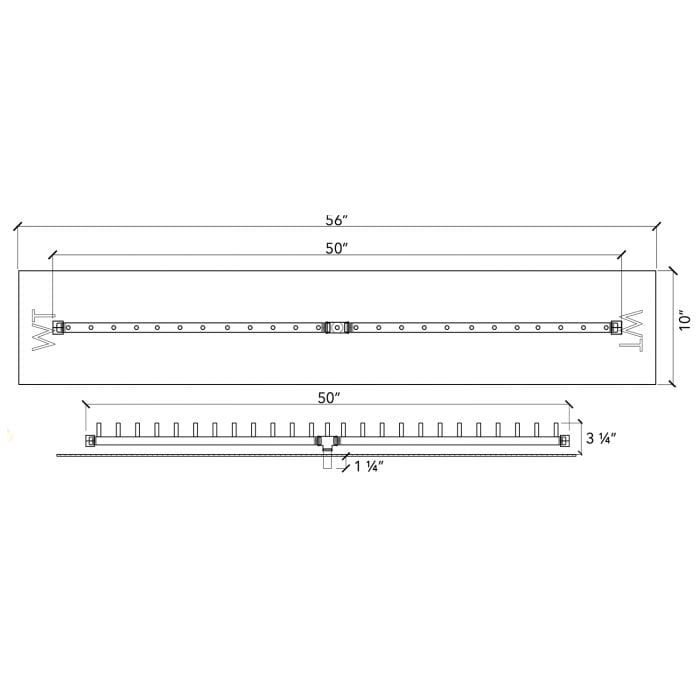

| CFBL250 | 250,000 BTU; burner 49.625 in. long; plate 10 x 56 in. |

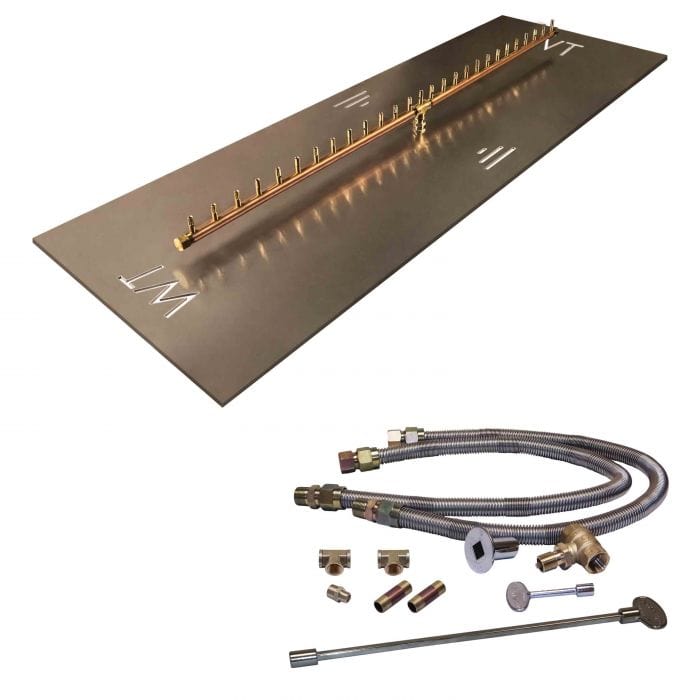

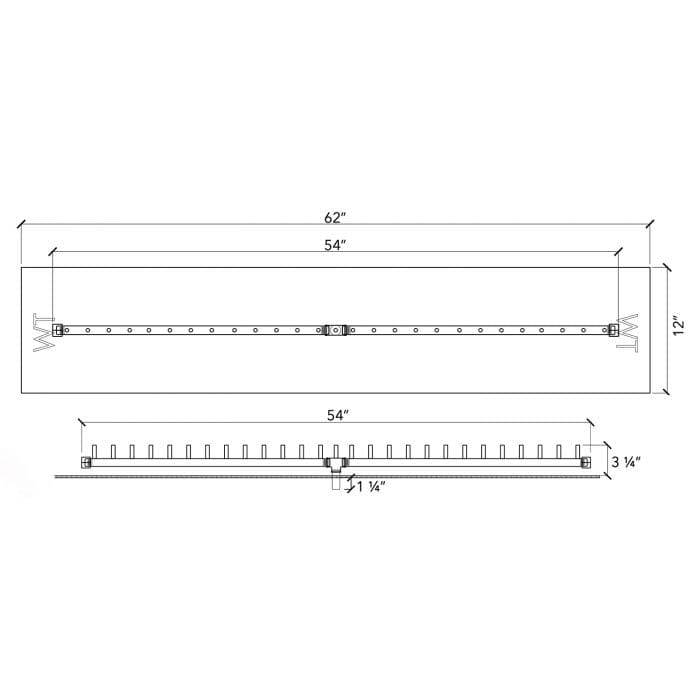

| CFBL270 | 270,000 BTU; burner 53.625 in. long; plate 12 x 62 in. |
What Is Included and What You Will Need

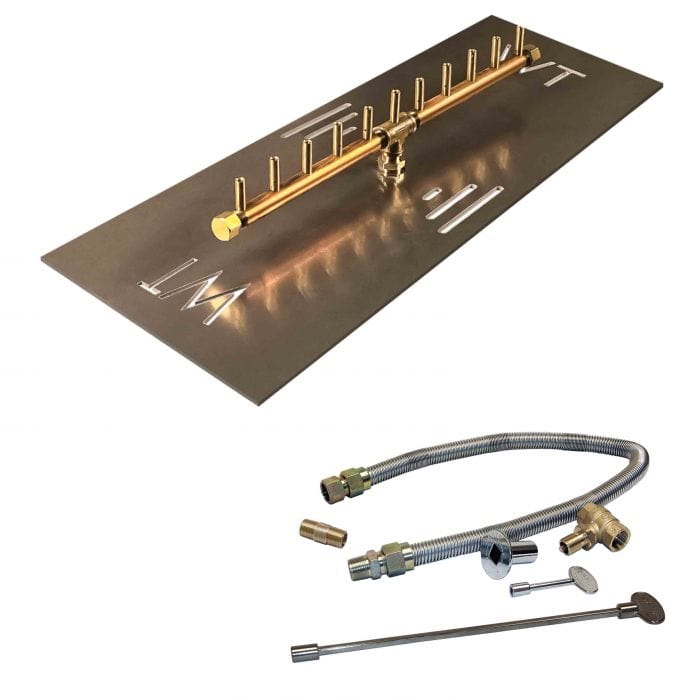

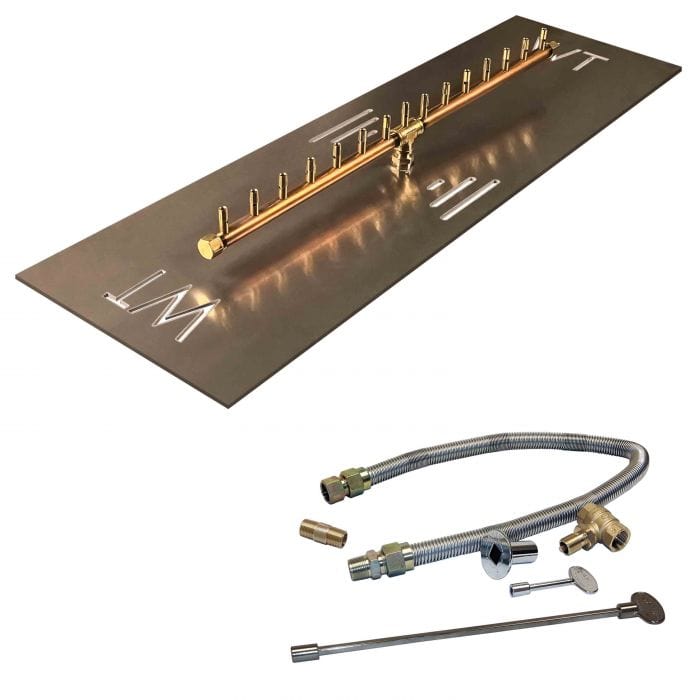

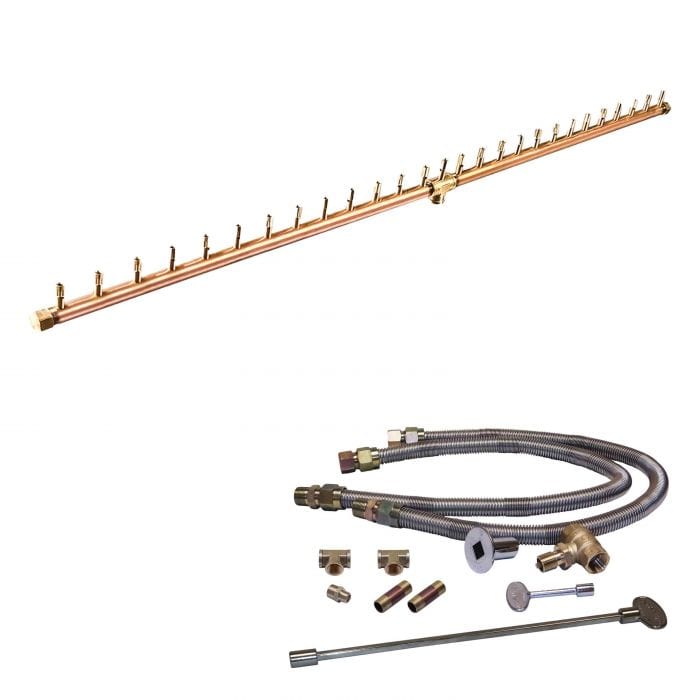

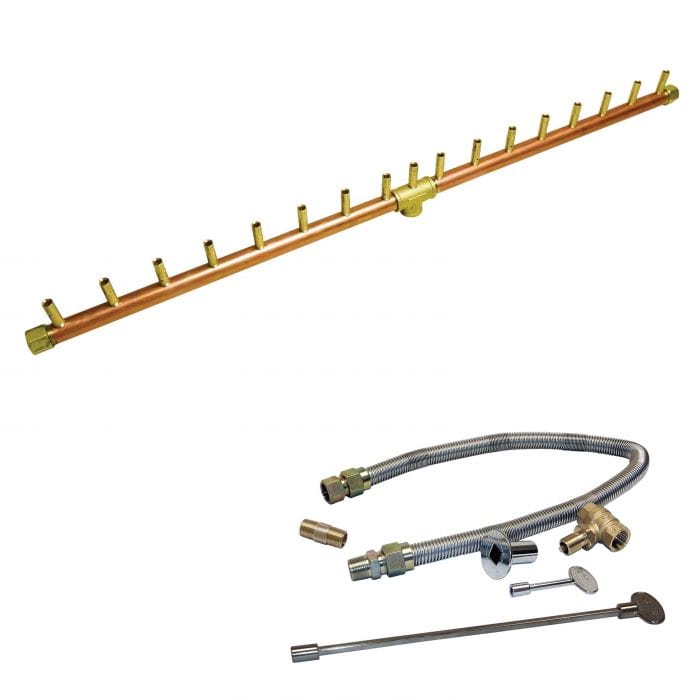

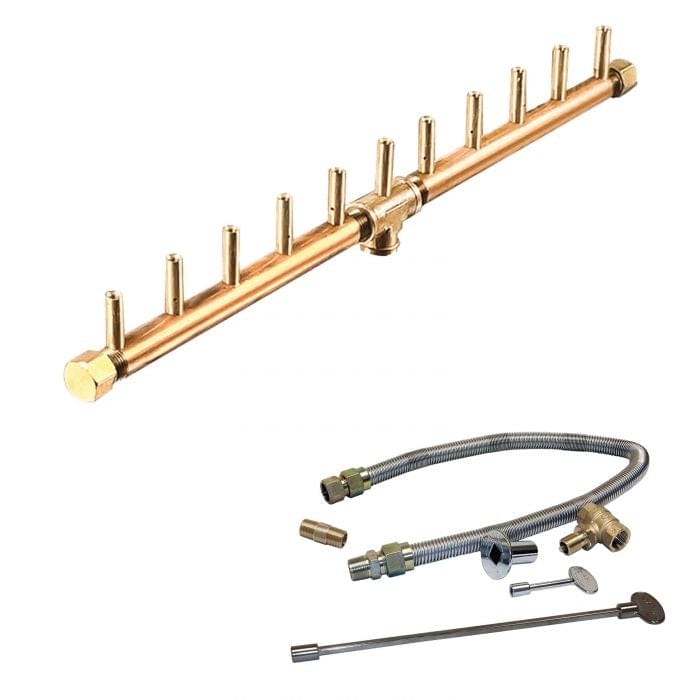

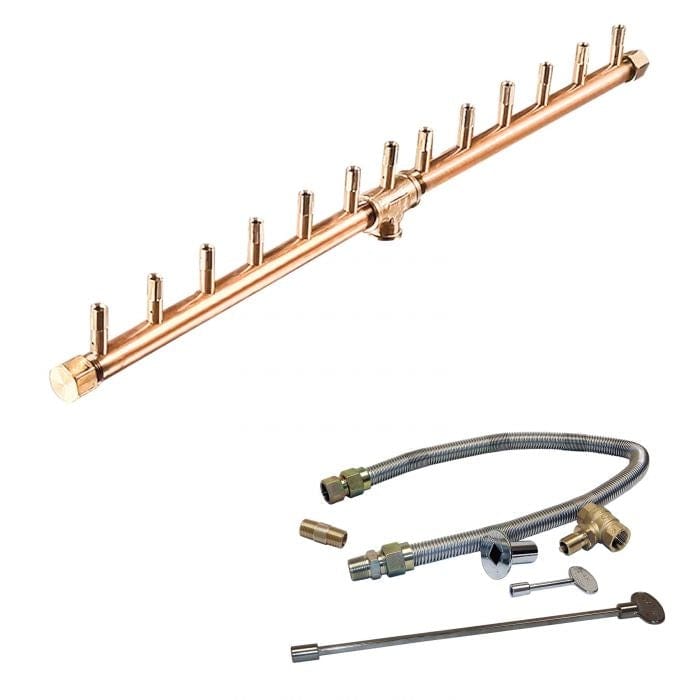

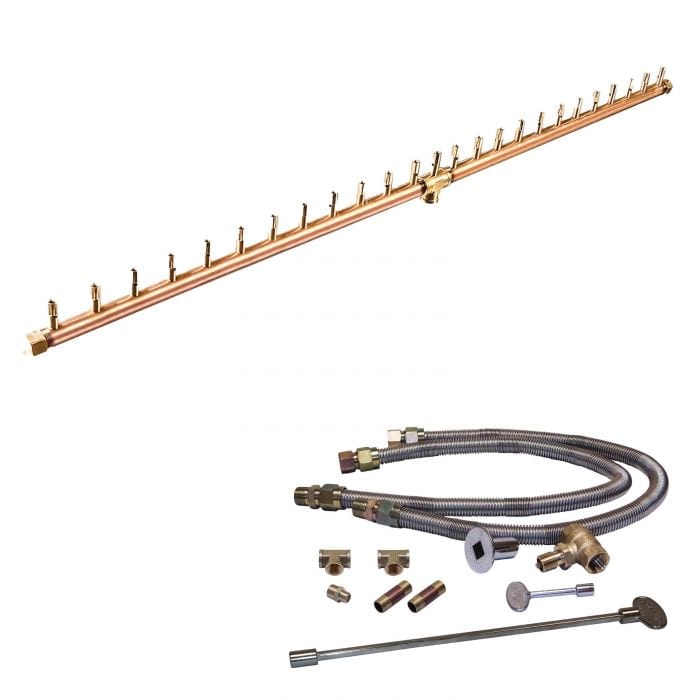

- Included: CROSSFIRE linear brass burner, flex line kit (two lines on large burners, per current listing), key valve kit with chrome decorative flange and two keys, match light ignition
- Option above: matching rectangular aluminum plate, or I already have a plate
- Required, sold separately: fire-rated media such as Warming Trends black lava rock (BLR) or rolled lava rock (LRR)
- Optional ignition upgrades: PBIK3.0 push button spark ignition or Mercury (MERC) spark ignition with safety shutoff
- Required: a non-combustible, vented enclosure and a gas line with an exterior shutoff, run by a licensed installer
Installation Notes
Warming Trends requires venting on at least two opposing sides of the enclosure, 18 sq in. minimum each, and at least 84 in. of overhead clearance from combustible structures or materials (Version 6 manual). Never fill the cavity with gravel or concrete, keep the burner serviceable from above, fit a gas shutoff outside the fire feature, and have a licensed gas professional make the connection and leak test. Cover the burner with fire-rated media no more than 1/2 in. above the jets. For New York City addresses, outdoor gas fire features and their gas piping fall under the NYC Fuel Gas Code and Department of Buildings permitting, and propane at residences is restricted by the NYC Fire Code, so the approval path must be confirmed before you buy. Book a design consultation and we will size the burner, plate and gas line.
Documentation
- Owner/Instruction Manual (V3.1)
- Manual De Instrucciones
- Burner Size Guide
- 6 Steps To Fire
- Warming Trends Warranty
- Warming Trends Owner's Guide and Instruction Manual, Version 6
Frequently Asked Questions
Which size do I need?
Pick the plate that fits inside your opening, from 6 x 20 in. (CFBL90) to 12 x 62 in. (CFBL270), per the Warming Trends size guide.
Is the plate included?
Only if you select a plate size above. Choose I already have a Plate if you do not need one.
Natural gas or propane?
Each burner is built for one fuel. Order the version that matches your supply.
What media can I use?
Fire-rated media made for fire features, such as lava rock or fire glass, no more than 1/2 in. above the jets. Never use gravel, pebbles or river rock.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Warming Trends Full Lifetime Warranty on CROSSFIRE and other jetted brass burners, from the date of purchase and transferable with proof of ownership; Warming Trends repairs or exchanges a defective burner free during the warranty period. Misuse, installation defects, modification and indoor use are excluded, installation services are not covered, and ignition electronics carry separate warranties (push button ignition has none). Warming Trends requires burners and electronics to be covered when not in use or the warranty is void.
