Amantii  |  SKU: BI-TRD-38-SIG, SIG-38-BGL

Amantii Signature TRD 38" Optimyst-Ready Built-In Electric Fireplace

Regular price $3,808.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Choose with help from our Maspeth showroom. Read customer reviews on Google.

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days

Northeast shipping only: ME, VT, NY, NH, MA, CT, PA, NJ, MD, DE and RI. For any other state, call 718-326-4328 for a shipping quote before ordering. Product and local-service restrictions apply. Shipping details.

400+ five-star Google reviews
  • Northeast shipping. Eligible orders over $999 ship free within our 11-state area; other eligible orders have a flat rate at checkout. Product exclusions apply. Shipping details.
  • Factory-authorized Amantii dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Visit our Maspeth, Queens showroom
58-30 Maspeth Ave
Maspeth, NY 11378
Monday–Friday
9:00 AM–5:00 PM
Saturday
10:00 AM–3:00 PM
Sunday
Closed

Call ahead to confirm the model you want to see and pickup readiness.

Shipping & Delivery Area

  • Online shipping is limited to Maine, Vermont, New York, New Hampshire, Massachusetts, Connecticut, Pennsylvania, New Jersey, Maryland, Delaware and Rhode Island.
  • Eligible orders over $999 receive free standard shipping; eligible orders of $999 or less have a flat rate shown at checkout.
  • Our own trucks deliver eligible local orders up to 120 miles. e-NRG fuel, white-glove delivery and assembly have separate eligibility, distance limits and charges.
  • For other states, or when no delivery option appears, call 718-326-4328 for a quote before ordering.
  • Read the shipping policy for details.

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns

  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Overall Dimensions: 38" W x 20-1/2" D x 38-1/8" H

The Amantii Signature TRD 38 (BI-TRD-38-SIG) is a traditional-proportion built-in electric fireplace with a tall 22" viewing opening, built to accept a Dimplex Optimyst CDFI500-PRO water vapor cassette. It is for homeowners who want a classic square firebox in a wall or mantel, with the option of real-looking flame and smoke from water mist instead of a flat LED picture. You can run it on its own LED flame, or add the cassette, a liner and a log kit to build the look you want.

Key Specifications

Model BI-TRD-38-SIG (Amantii model TS2210010-1)
Flame technology LED flame effect (84 LEDs) with rotor motor and 6 brightness levels; Optimyst-ready for one Dimplex CDFI500-PRO water vapor cassette
Power 120V AC, 12.5 A, plug-in cord on the left side; hardwire option at 120V or 240V
Heater 1,500 W at 120V (High 1,500 W, Low 750 W); 3,000 W at 240V hardwired
Heating area Approx. 400 sq ft
Flame-only draw 46 W max
Viewing area 35-3/8" W x 22" H
Venting None required
Controls Remote with timer and thermostat, on-unit controls, Tuya Smart app over Wi-Fi
Certifications Tested to UL 2021 for the United States and Canada
Weight 139.8 lb net; 173.5 lb shipping

Dimensions and Cutout

Overall (W x H x D) 38" x 38-1/8" x 20-1/2"
Wall opening (W x H x D) 38-1/4" x 38-5/8" x 20-7/8" (sized for the adjustable leveling feet)
Glass viewing opening 35-3/8" W x 22" H
Power cord Exits the left side, approx. 70.9" long
Shipping carton 44-1/8" x 43-7/8" x 25-1/2"
Venting No flue or termination

Features

  • Optimyst-ready: the Dimplex CDFI500-PRO cassette slots into notches at the back of the firebox and wires into the Signature so both run on one cord
  • Openings in the bottom of the unit for routing the cassette's water line and power
  • Six flame brightness levels, with heat that runs independently of the flame
  • Remote timer from 30 minutes to 8 hours and adjustable room temperature setting
  • Wi-Fi app control through Tuya Smart, plus remote and on-unit controls

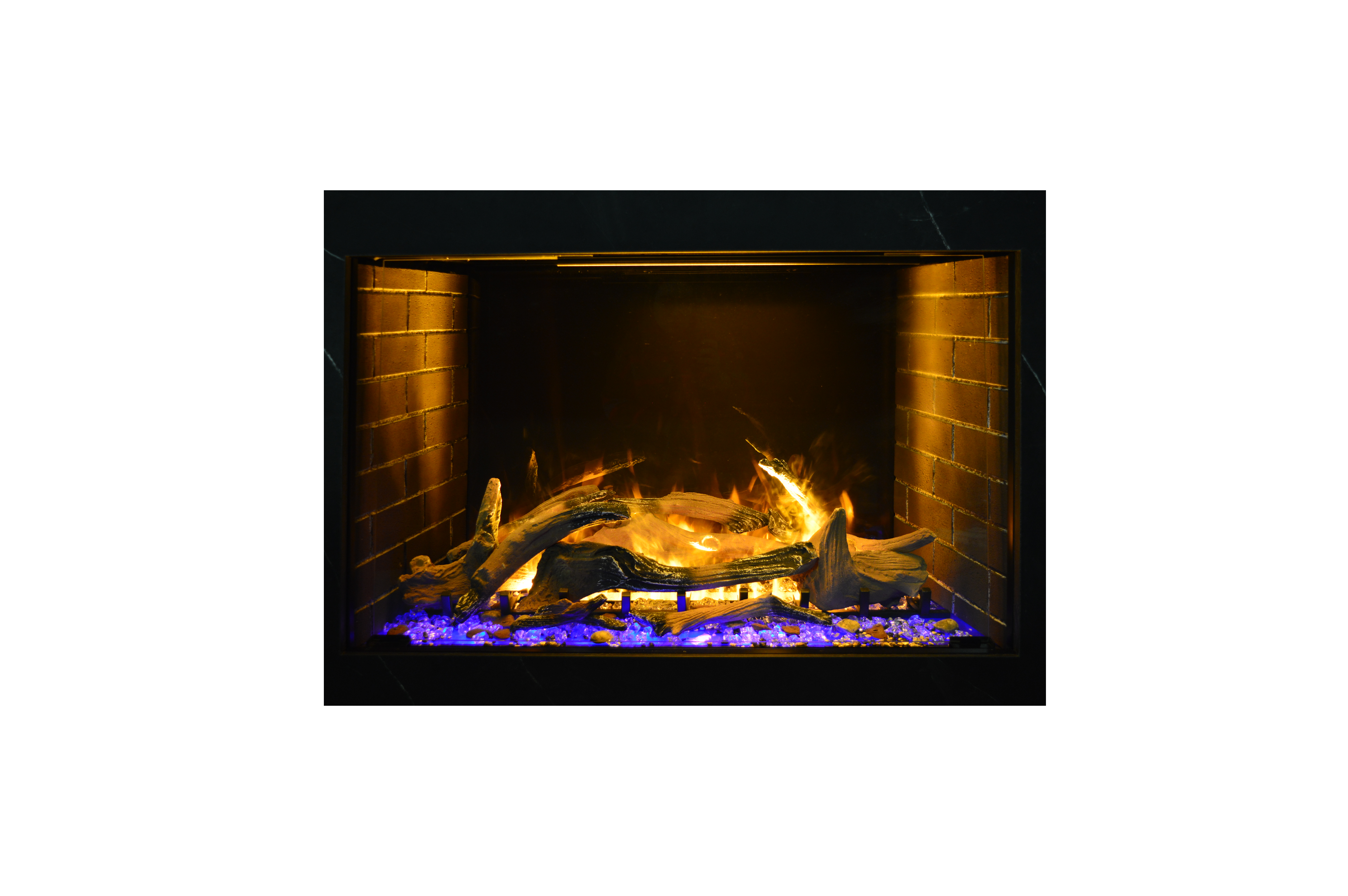

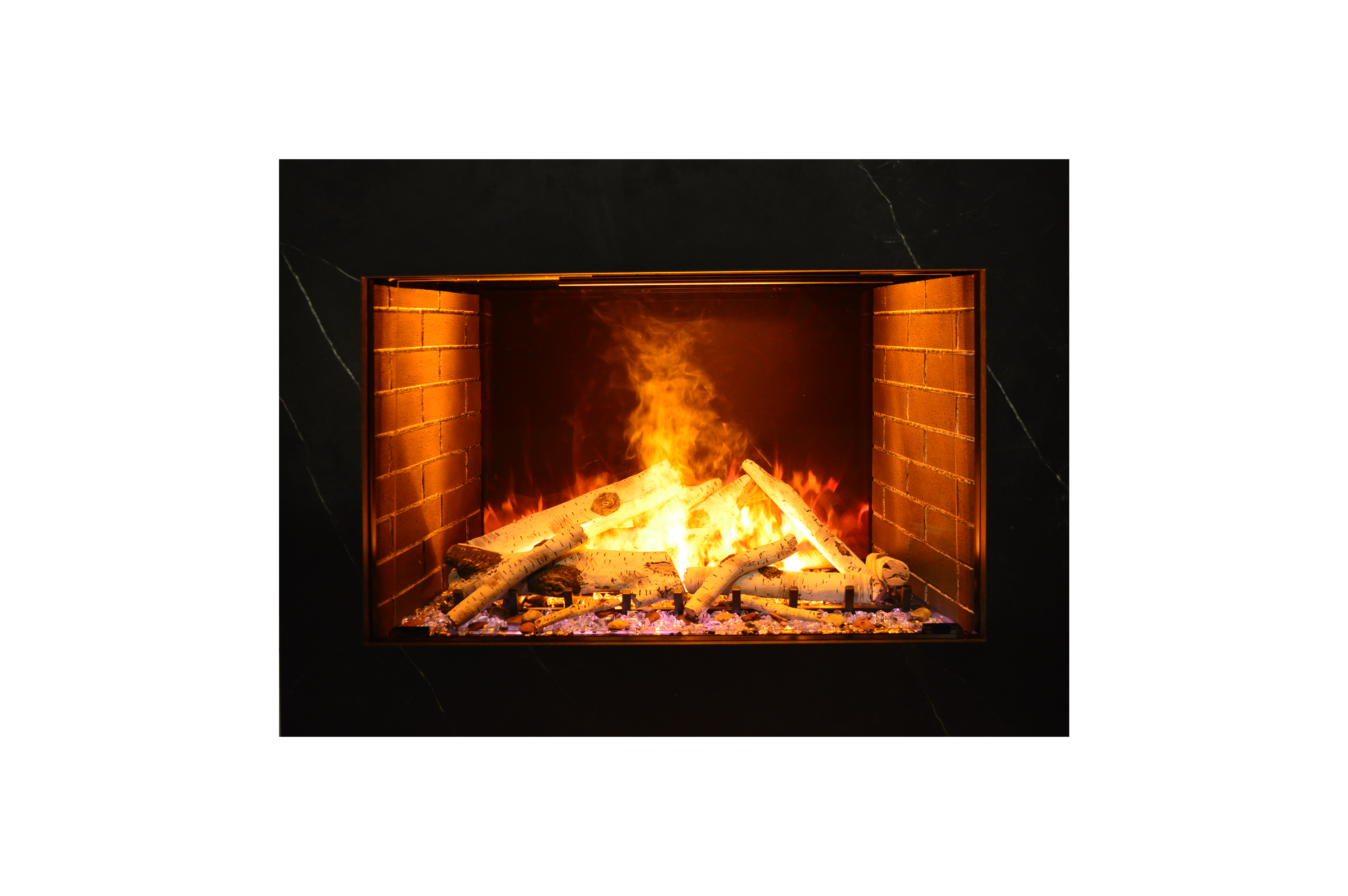

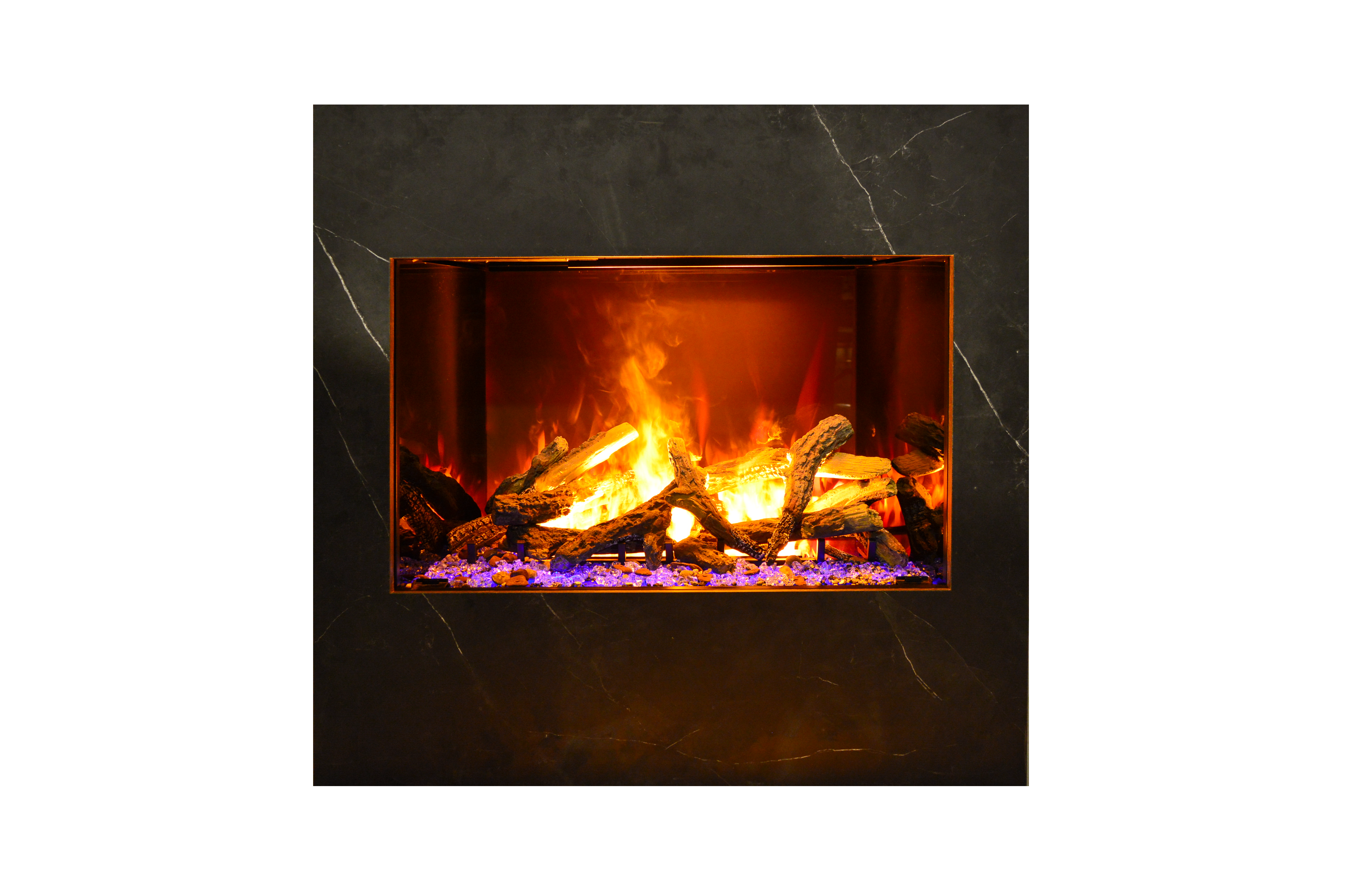

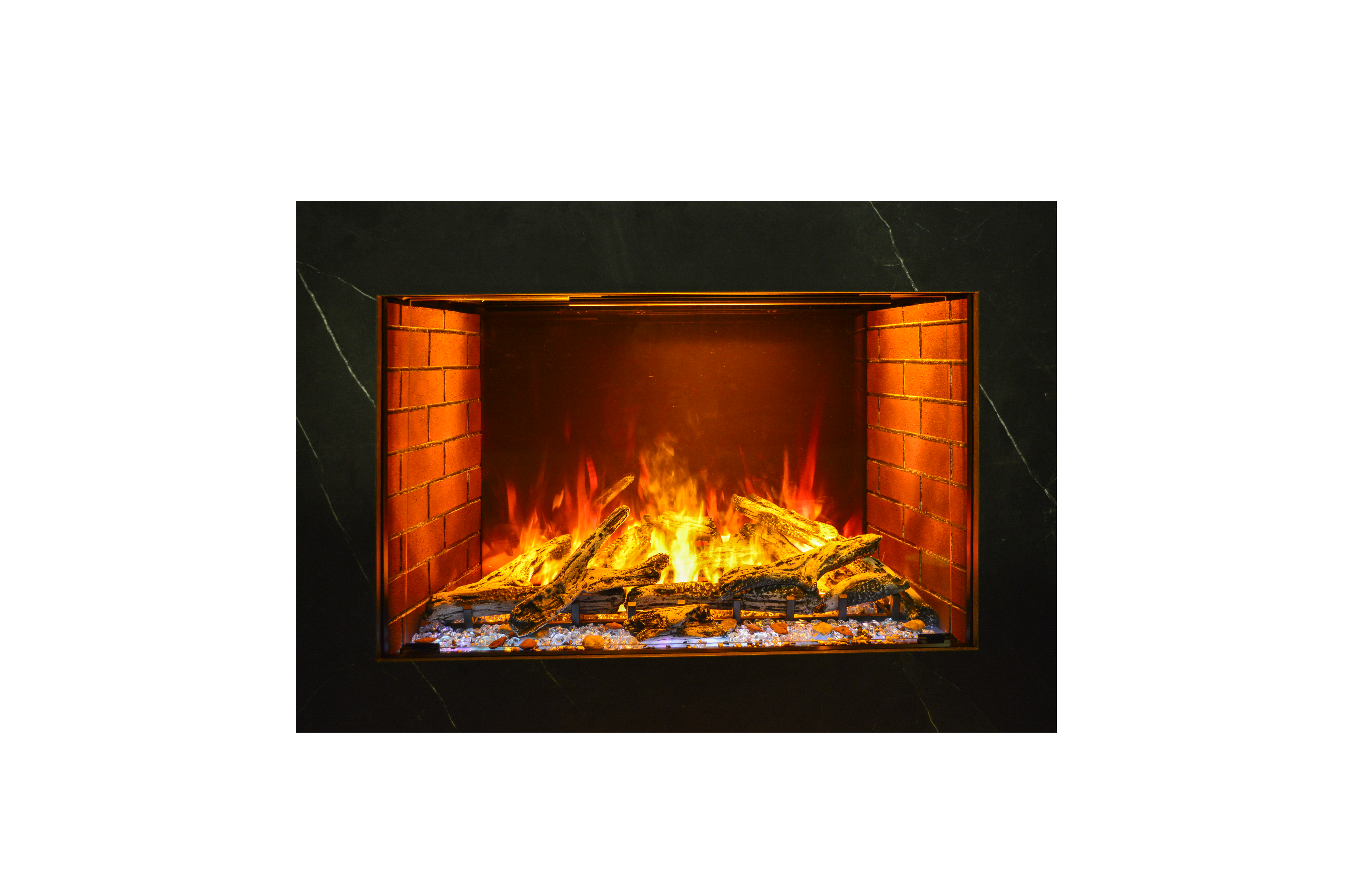

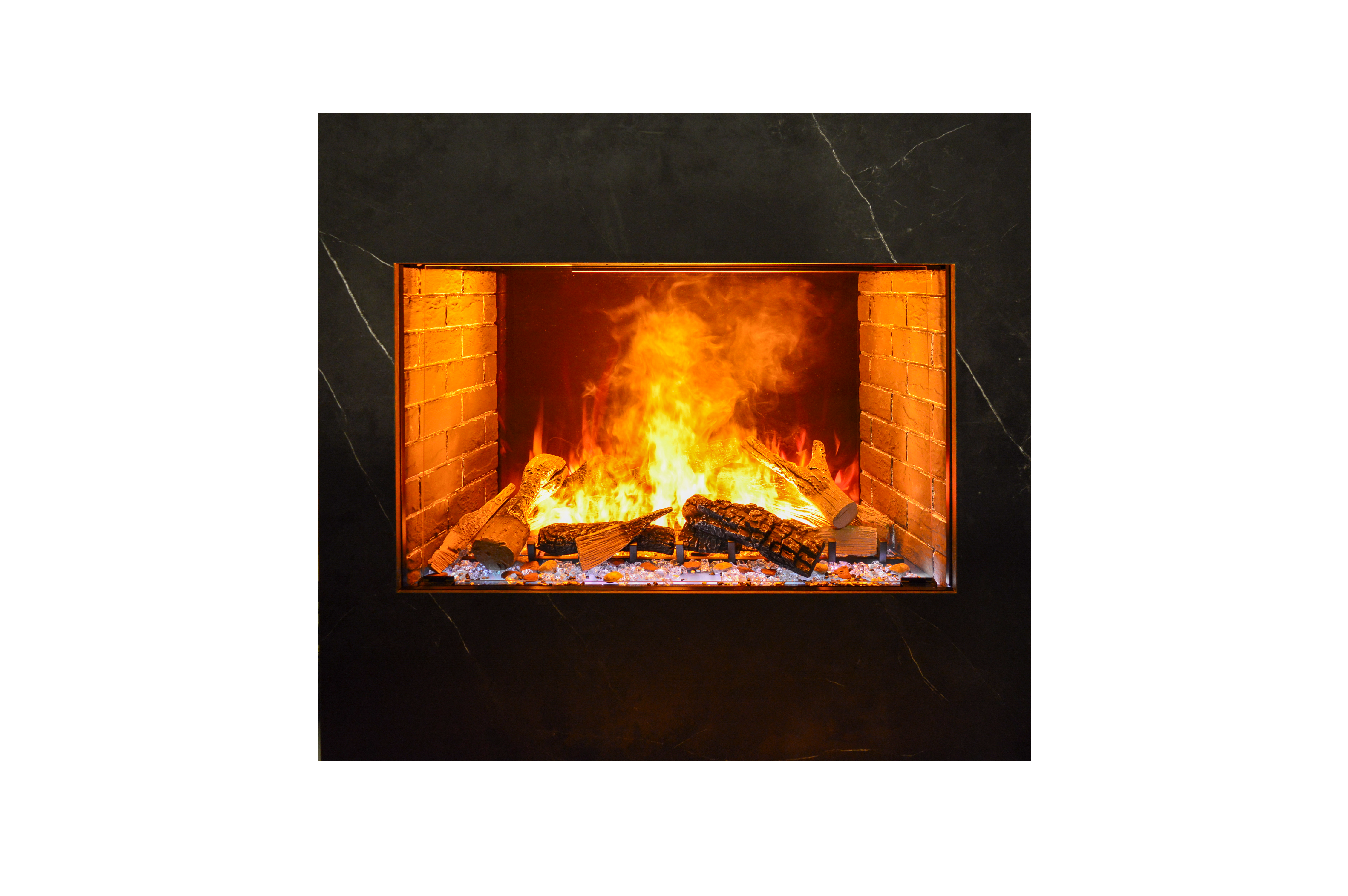

  • Four interior liner finishes and seven designer media kits, offered in the options above
  • Glass front included; the flame can run year-round with the heat off

What Is Included and What You Will Need

  • Included: Signature TRD 38 firebox with glass front, power cord, remote control; cassette, media kit and liner only as selected above
  • Required: a grounded 20A, 120V branch circuit, preferably dedicated; 240V operation must be hardwired by a qualified electrician
  • Required: a framed wall opening 38-1/4" W x 38-5/8" H x 20-7/8" D
  • For the water vapor flame: the Dimplex CDFI500-PRO Optimyst cassette plus a cold water supply with a shutoff valve and the filter shown on the Amantii spec drawing

Installation Notes

Frame the opening to the table above and leave at least 1/4" around the unit. Choose a dry location at least 3 ft from curtains, furniture and other combustibles, and avoid direct sunlight on the screen. The unit ships with a cord for a standard 120V outlet; do not use an extension cord. Hardwiring at 120V or 240V means removing the cord and wiring through the left side cover plate, which is work for a licensed electrician. If you add the Optimyst cassette, plan the water line and power before the wall is closed, since they run through the bottom openings and the cassette is wired into the Signature junction. As an electric fireplace with no vent or gas line, it is a practical choice for New York City apartments and brownstones. Book a design consultation and we will plan the opening, circuit and water supply with your contractor.

Documentation

Frequently Asked Questions

Does the TRD 38 come with the water vapor flame?

No. It ships with an LED flame and is Optimyst-ready. Choose the CDFI500-PRO cassette option above to get the water vapor flame and smoke effect.

Does it plug in or hardwire?

It ships with a cord for a 20A, 120V outlet. An electrician can hardwire it at 120V, or at 240V to double heater output to 3,000 W.

Do I need a water line?

Only if you add the Optimyst cassette. The LED flame needs power only; the cassette needs a water supply routed through the bottom of the firebox.

How much space will it heat?

Amantii rates it for approximately 400 sq ft as supplemental heat at 120V.

Related reading: Water Vapor Fireplace Buying Guide and Electric Fireplace Buying Guide.

Warranty

Amantii 2-year limited warranty from the date of first purchase against manufacturing and material defects; Amantii replaces defective parts or products during that period. Products made by other manufacturers, including the Dimplex Optimyst cassette, are not covered by the Amantii warranty and carry their maker's own warranty.
