Description
Description
Overall Dimensions: 67 in W x 37 in D x 96 in H

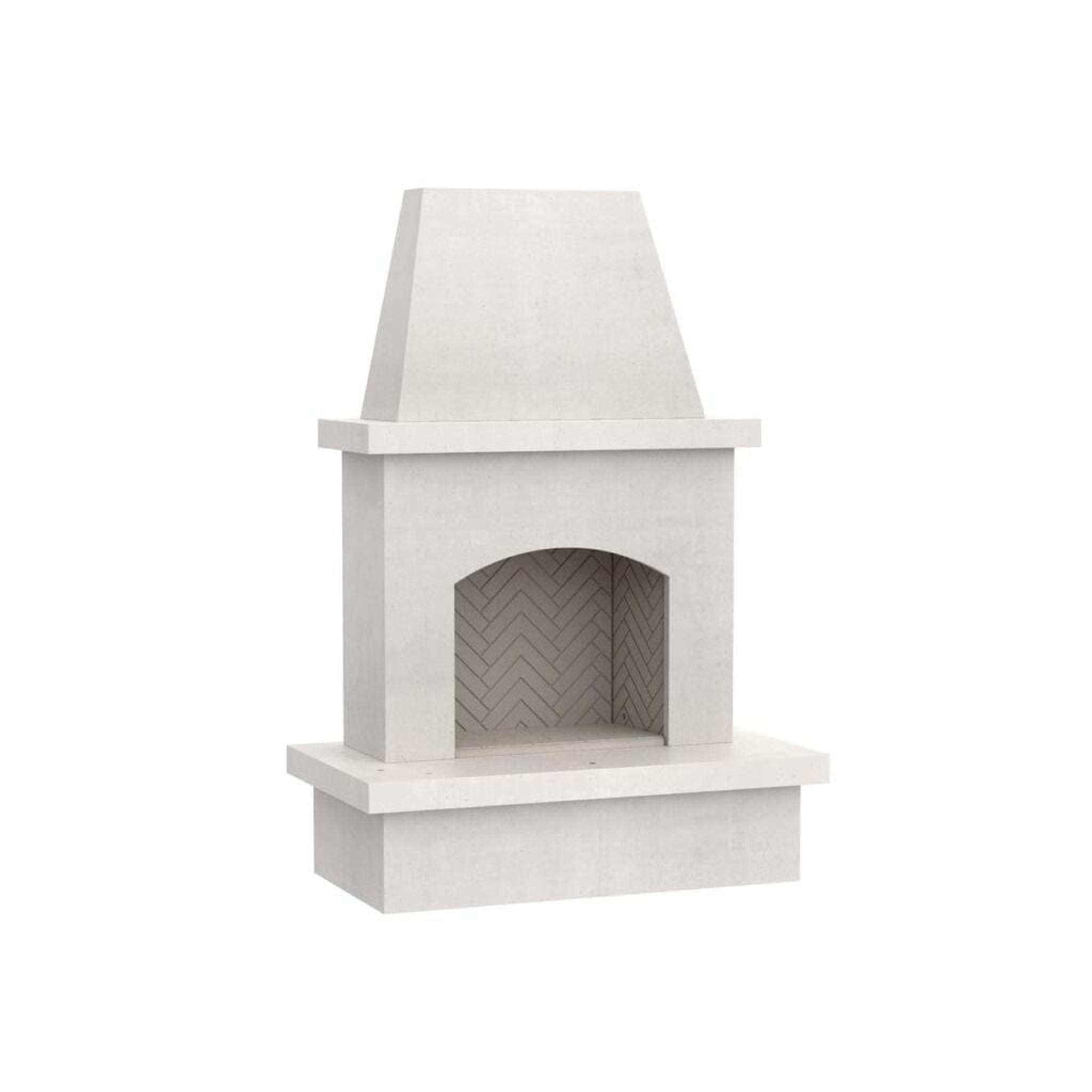

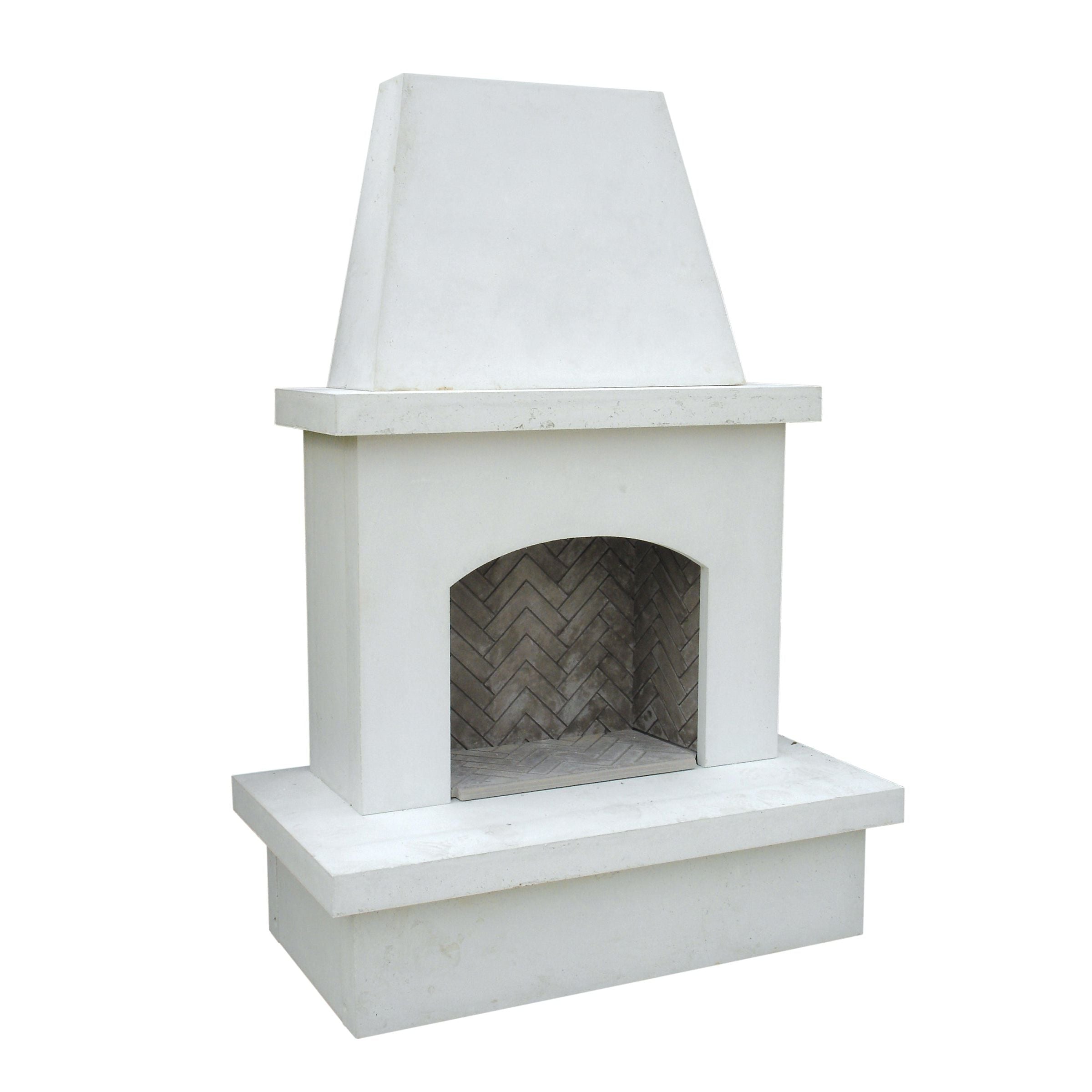

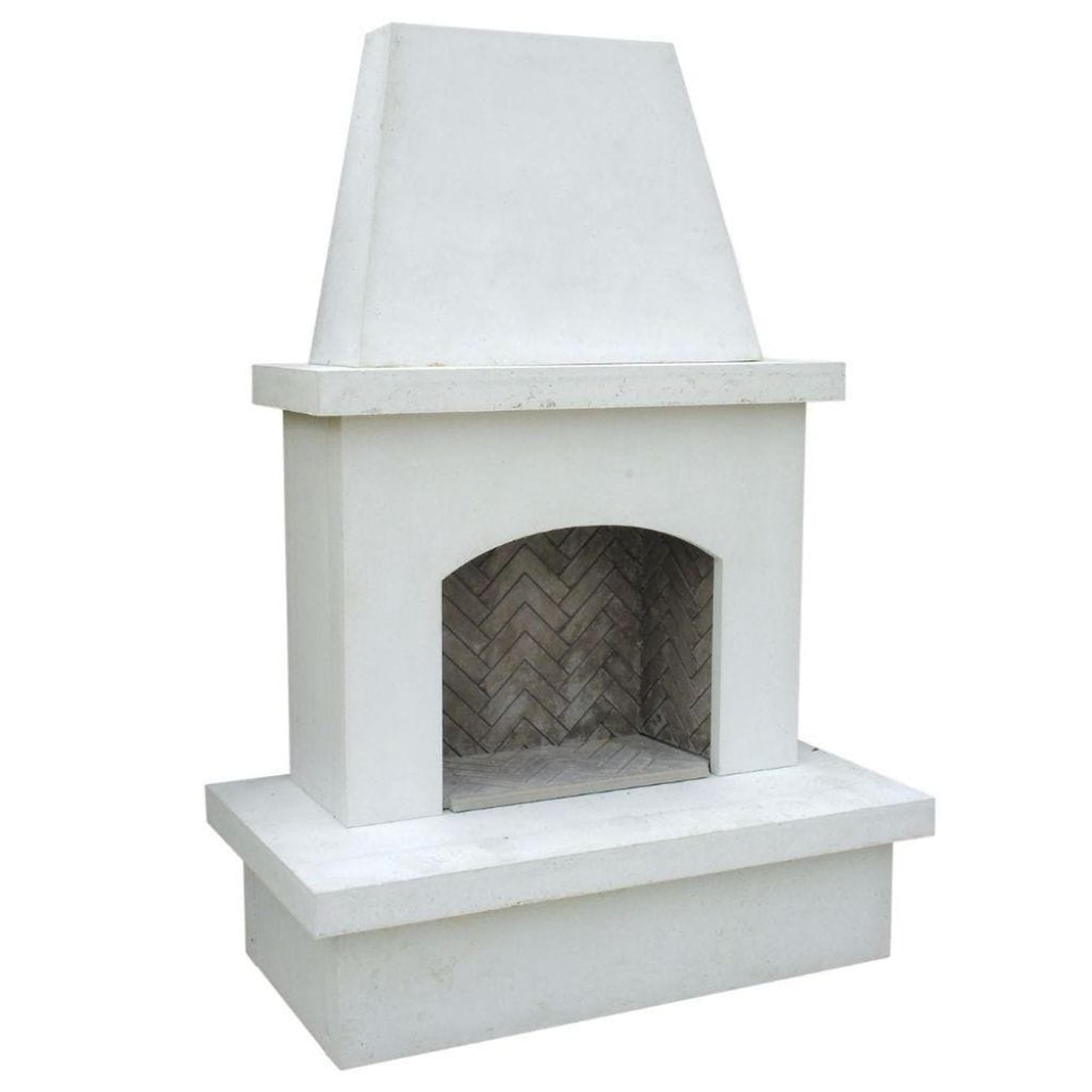

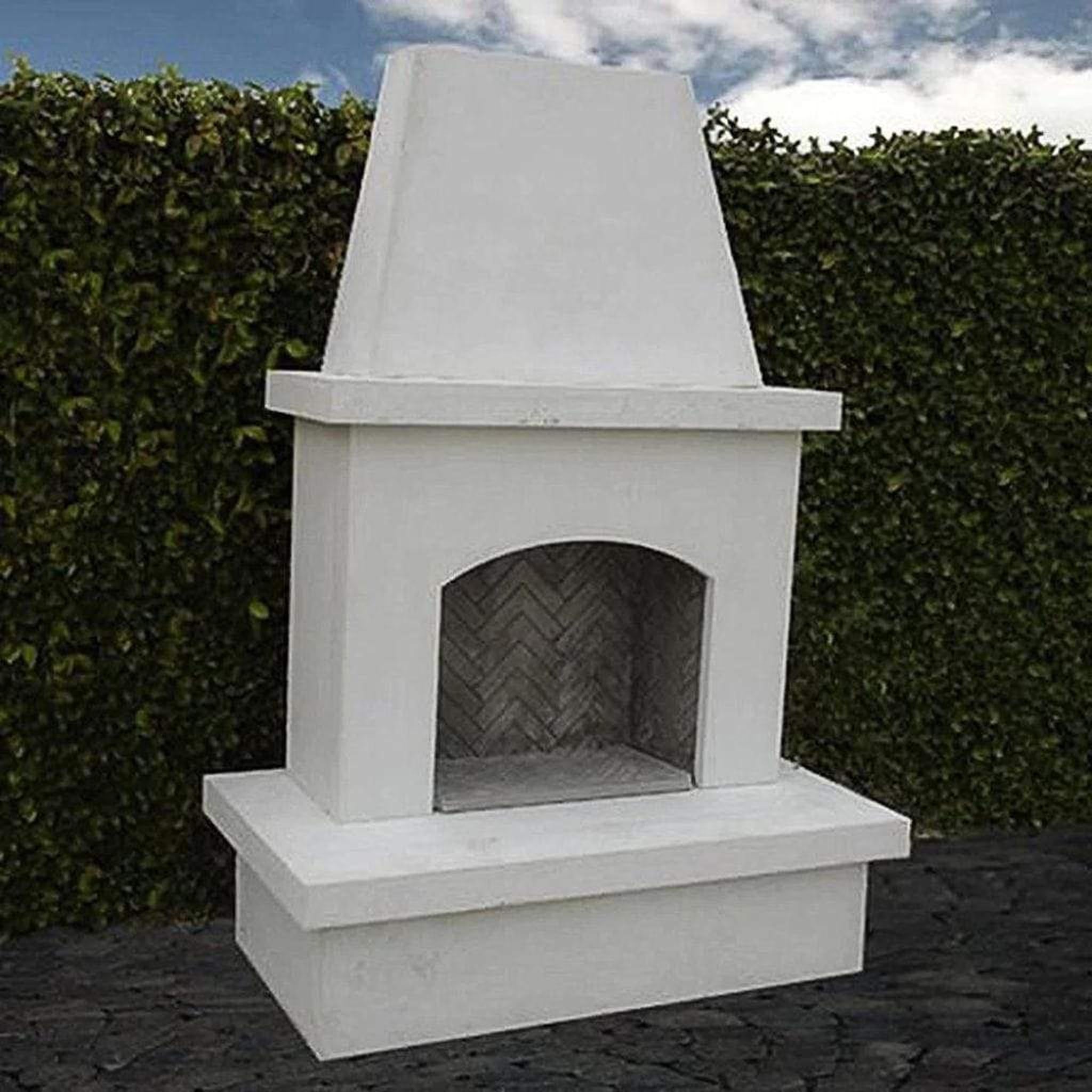

The American Fyre Designs Contractor's Model Vent-Free Outdoor Fireplace is a handcrafted GFRC fireplace shell in white, with a recessed hearth and body so a mason or builder can clad it in stone, tile, brick or veneer. It is the starting point for a custom outdoor fireplace built around your patio. The burner system is selected and sold separately.
Key Specifications
| Model | 140-11-A-WC-RBC |
|---|---|
| Type | Vent-free outdoor fireplace (140 series) |
| Fuel | Natural gas or propane (burner sold separately) |
| Burner options | G10 vent-free stainless log burner up to 24 or 30 in with a 24 in log set, or G21 vent-free glass and gems burner up to 24 in |
| Material | Glass fiber reinforced concrete (GFRC), white finish only |
| Firebox | 28-1/2 in W x 15 in D x 24 in H per the AFD spec sheet |
| Pieces | 9 |
| Certification | ANSI Z21.97-2017 / CSA 2.41 outdoor decorative gas appliance |
| Weight | 810 lb per the AFD spec sheet |
Dimensions and Cutout
| Overall (W x D x H) | 67 x 37 x 96 in |
|---|---|
| Hearth and body | 2 in recessed, to accept cladding |
| Gas key valve | Right side, out the back |
| Side and rear clearance | 6 in to combustibles |
| Front clearance | 36 in |
| Overhead clearance | 36 in above the unit; vent-free units must not sit under overhead combustibles less than 3 ft above the top |
Features
- Handcrafted GFRC construction for harsh climates
- Recessed 2 in hearth and body for stone, tile, brick or veneer cladding
- Herringbone firebox liners for a masonry look
- Key valve and gas source on the right, out the back
- Vent-free design certified for use under a covered area that is blocked at the top and throat, per current listing
- Choose your burner and log set or glass media
What Is Included and What You Will Need
- Included: Contractor's Model fireplace structure in white GFRC with recessed hearth and body, and herringbone firebox liners; ships crated by freight
- Required to operate, sold separately: a G10 or G21 vent-free burner system in natural gas or propane, plus a log set or glass media
- Field cladding (stone, tile, brick or veneer) by your installer
- A gas line, 1/2 in minimum, with a shutoff; inlet 5 to 10.5 in w.c. natural gas or 11 to 13 in w.c. propane
Installation Notes
Outdoor use only; never install it inside a building, garage or enclosed area. Set it on a hard, level surface and keep all vent openings clear in all weather. Gas piping must be installed by a qualified installer to local code. Vent-free gas appliances cannot be installed in New York City under the NYC Fuel Gas Code. We sell this model for installations outside the five boroughs where local code allows it. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Can I finish it in stone?
Yes. The hearth and body are recessed 2 in so a mason can clad them in stone, tile, brick or veneer.
What burner do I need?
A vent-free G10 log burner or G21 glass burner, in natural gas or propane. The burner system is sold separately.
Does it come with a burner?
No. The burner, valve and log set or glass media are chosen and sold separately.
Can it go under a covered patio?
Vent-free units need 36 in of clearance above and must not sit under overhead combustibles less than 3 ft above. Confirm with your local code.
Related reading: Outdoor fireplace buying guide and Gas fire pit and fire table buying guide.
Warranty
American Fyre Designs by R.H. Peterson Co. warrants the GFRC fireplace body for three years and burners, valves, electrical components, accessories and controls for one year (batteries, wind guards and screens excluded). Proof of purchase and installation by a qualified professional to the manual are required, and coverage excludes damage from burning wood or any fuel other than natural gas or propane, and damage or discoloration from high wind.
