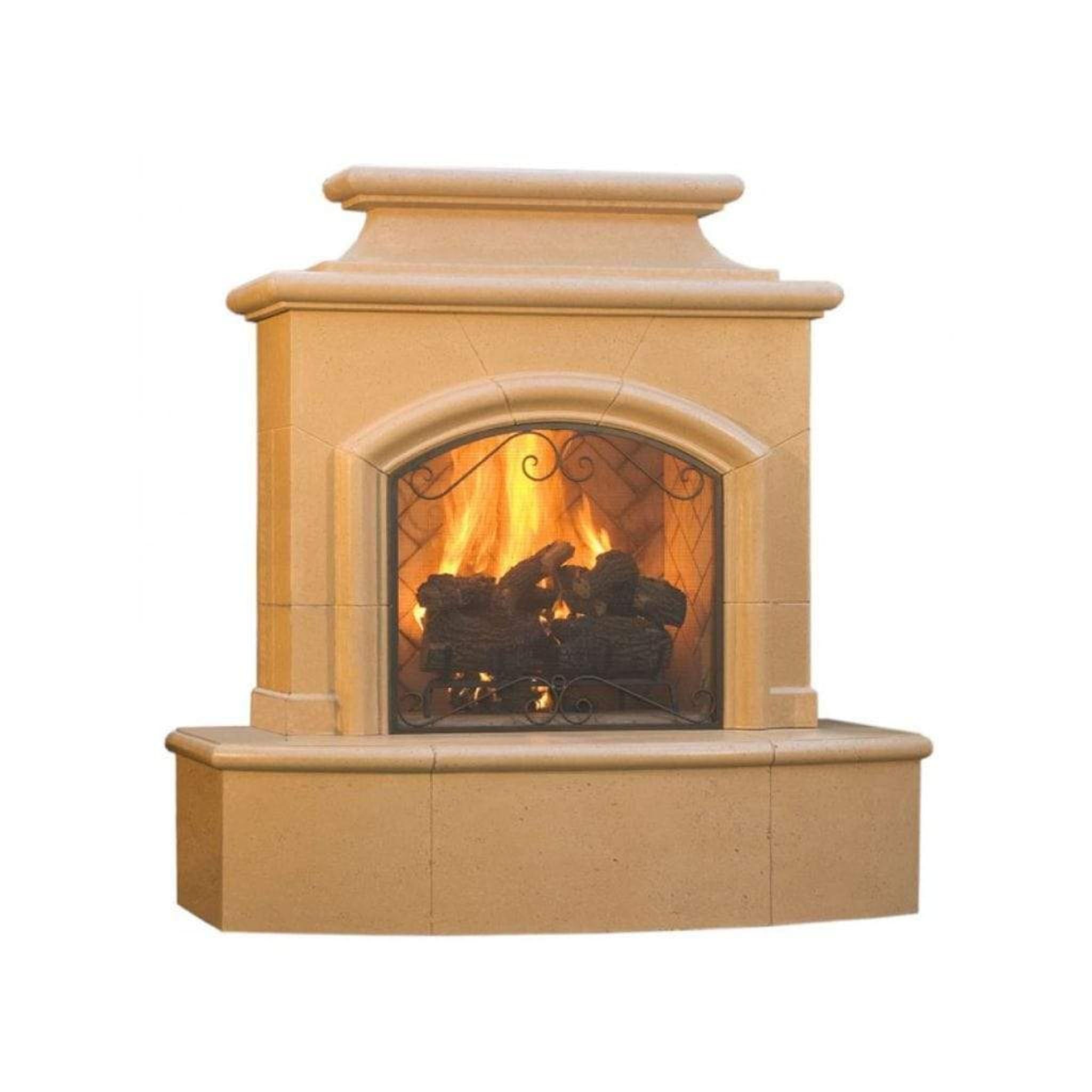

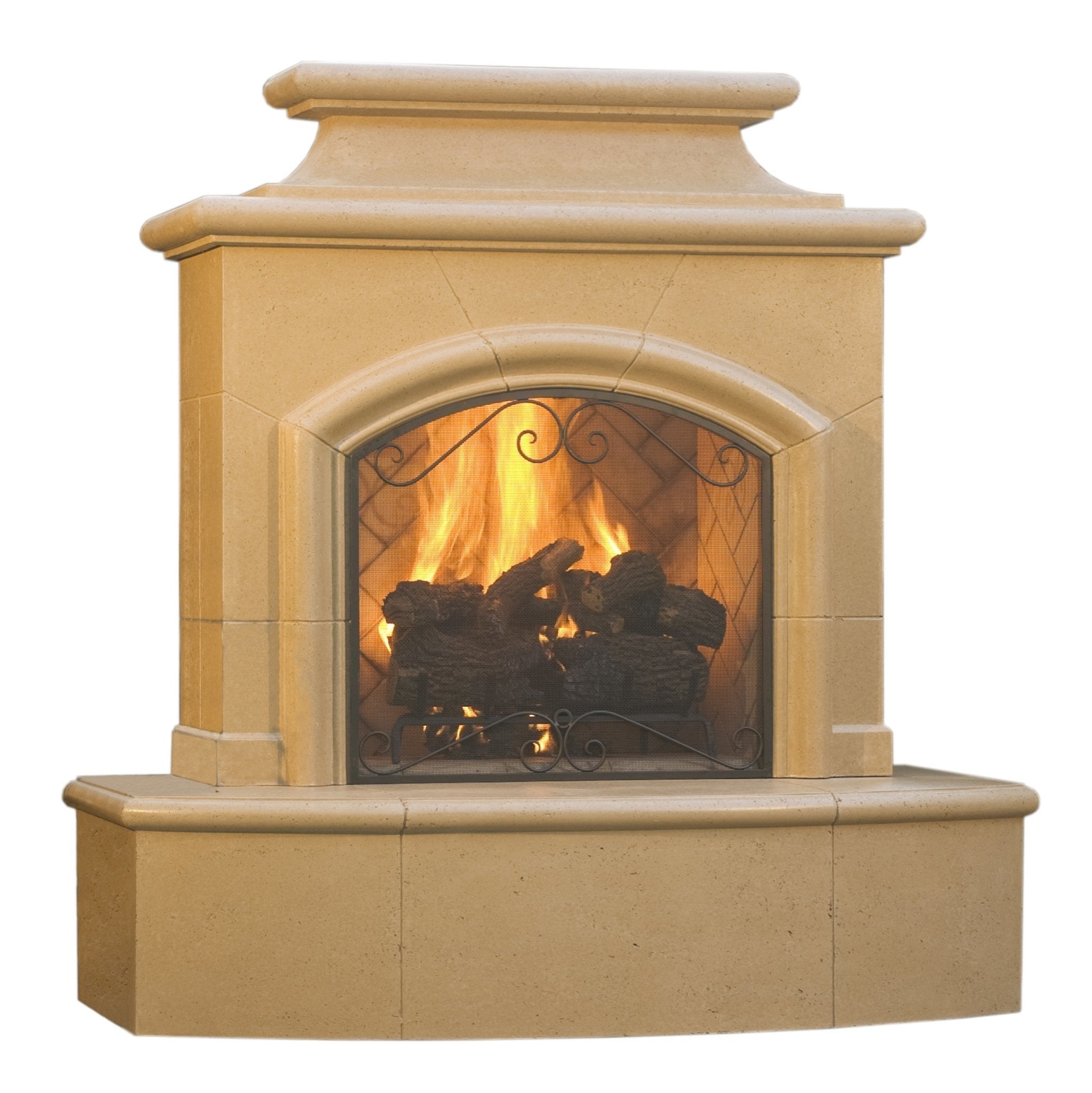

American Fyre Designs Mariposa Vent-Free Outdoor Fireplace

$7,088.40 $7,876.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized American Fyre Designs dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Please Note: American Fyre Designs products are for outdoor use only. Each piece is individually handcrafted and made to order, so orders cannot be canceled once placed. Finishes are subject to slight texture and color variation; samples are available upon request.

Overall Dimensions: 65"W x 36"D x 67"H

Bring resort-level ambiance to your outdoor living space with the American Fyre Designs Mariposa Vent-Free Outdoor Fireplace. Handcrafted from durable glass fiber reinforced concrete (GFRC), the vent-free Mariposa is blocked at the top and throat and is certified to be installed under a covered area: ideal for covered patios, pergolas, and outdoor rooms where a vented chimney is not practical.

Features

  • Handcrafted glass fiber reinforced concrete (GFRC) construction withstands harsh climates
  • Vent-free design is certified to go under a covered area (blocked at the top and the throat)
  • Includes four herringbone firebox liners for a finished masonry look
  • Choice of 16-inch radiused bullnose or dramatic 113-inch extended bullnose hearth
  • Optional 2-inch recess on hearth and/or body accommodates field cladding in tile, stone, or veneer
  • Compatible with vent-free log sets or glass media with G10/G21 vent-free burner systems (sold separately)

Key Specifications

Model 173-xx-x-xx-RBC
Dimensions 65"W x 36"D x 67"H
Weight 970 lbs
Pieces 7
Construction Glass Fiber Reinforced Concrete (GFRC)
Fuel Natural Gas or Propane (burner sold separately)
Type Vent-Free Outdoor Fireplace
Certification ANSI Z21.97-2017 / CSA 2.41 outdoor decorative gas appliance

Dimensions and Cutout

Overall (W x D x H) 65"W x 36"D x 67"H

What Is Included and What You Will Need

  • Included: Mariposa vent-free fireplace structure in your selected finish, hearth style, and recess configuration
  • Included: Four herringbone firebox liners
  • Included: Crated freight shipment
  • Required: choose your finish color, hearth style, and recess option. The gas shut-off key valve is located on the right side with the gas source out the back.
  • Recess options (optional): No Recess, Hearth Only, or Hearth and Body: a 2" deep recess on all vertical sides for cladding in stone, tile, or brick.
  • Sold separately (required to operate): a vent-free burner system and media: G10 vent-free stainless steel log burner (up to 24"/30" with 24" log) or G21 vent-free contemporary glass/gems burner (up to 24"), in natural gas or propane, plus your choice of vent-free log set or glass media.

Installation Notes

Vent-free gas appliances cannot be installed in New York City under the NYC Fuel Gas Code. We sell this model for installations outside the five boroughs where local code allows it.

This GFRC fireplace weighs 970 lbs and must sit on a level, non-combustible base that can carry the load; rooftop and terrace installs need structural and building approval. Gas connections should be made by a licensed gas fitter to local code. Follow the clearances in the American Fyre Designs installation and owner manual.

Planning an outdoor room around it? Book a design consultation.

Documentation

Frequently Asked Questions

What do I need to buy separately?

A vent-free burner system and media: G10 vent-free stainless steel log burner (up to 24"/30" with 24" log) or G21 vent-free contemporary glass/gems burner (up to 24"), in natural gas or propane, plus your choice of vent-free log set or glass media.

Can it be clad in stone or tile?

Yes, with a recess option. No Recess, Hearth Only, or Hearth and Body: a 2" deep recess on all vertical sides for cladding in stone, tile, or brick.

Can it be installed in New York City?

No. Vent-free gas appliances cannot be installed in New York City under the NYC Fuel Gas Code. We sell this model for installations outside the five boroughs where local code allows it.

Can I cancel after ordering?

Each American Fyre Designs piece is handcrafted and made to order, so orders cannot be canceled once placed.

Related reading: Outdoor fireplace buying guide, Vent-free vs direct vent gas fireplaces.

Warranty

American Fyre Designs covers the GFRC fireplace body with a 3-year limited warranty; burners, valves, and electronic components carry a 1-year limited warranty.
