Description
Description
Available Sizes: American Made Grills Estate Freedom Built-In Propane Grills
Overall Dimensions: 30" W x 29.36" D x 25.484" H

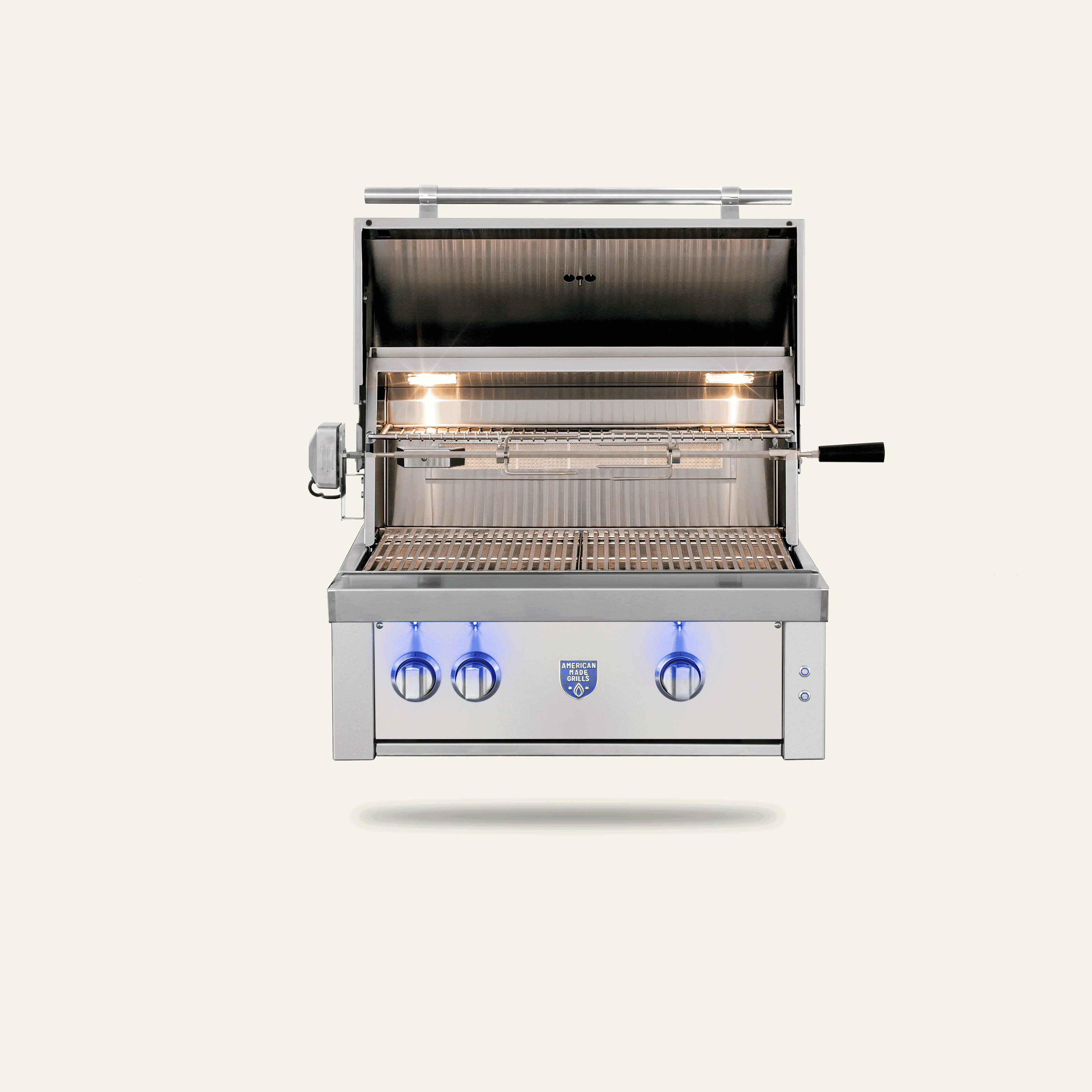

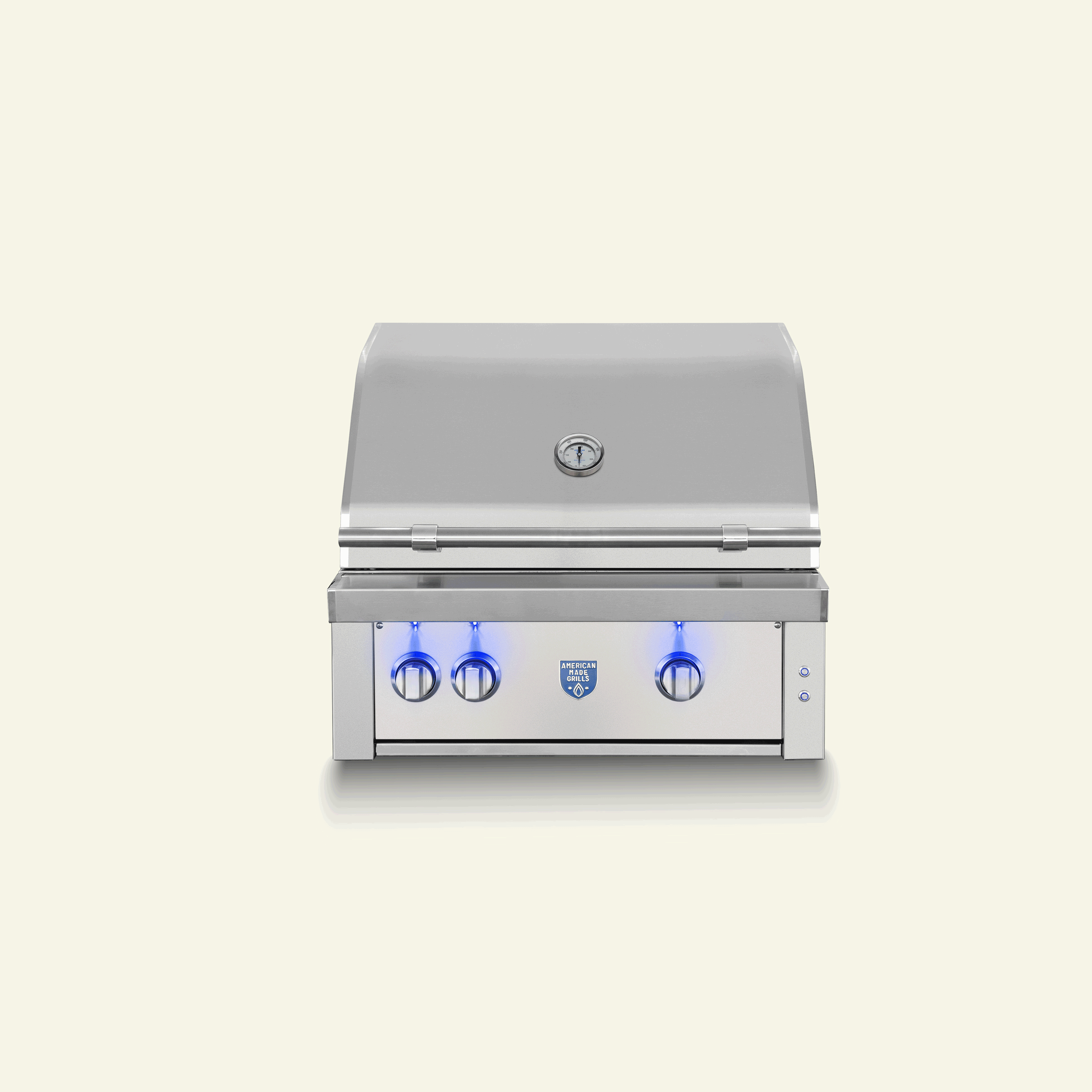

The American Made Grills Estate Freedom 30-Inch Built-In Propane Grill (EST30-FR-LP) is the base-model Estate 30: the same 304 stainless body, 18-gauge double-lined spring-assisted hood, two 26,000 BTU stainless U-tube burners and 12,000 BTU infrared back burner, sold without the accessories bundled with the standard Estate. It suits a compact outdoor kitchen on propane where a 30-inch American-built grill head fits better than a 36. Every Estate is built, factory tested and serviced at the American Made Grills factory on Long Island, New York.
Key Specifications
| Model | EST30-FR-LP (Estate Freedom 30-Inch, Built-In) |
| Fuel | Liquid propane |
| Main Burners | 2 stainless steel U-tube burners, 26,000 BTU each |
| Infrared Back Burner | 12,000 BTU |
| Total Output | 64,000 BTU |
| Total Cooking Surface | 755 sq in per current listing |
| Cooking Grates | Heavy-duty 9 mm stainless steel (2 grates) |
| Construction | #304 stainless steel; 18-gauge double-lined hood with spring assist |
| Ignition | Flame Thrower ignition |
| Lighting | Interior halogen cooking lights and LED-lit control knobs (plug-in transformer) |
| Heat Management | Easy-Clean Briquette System with 1 heat zone separator |
| Gas Supply Pressure | 14 in W.C. maximum, 11 in W.C. minimum (propane) |
| Certification | Tested to ANSI Z21.58 / CGA 1.6 |
| Made In | USA (Long Island, New York) |
Dimensions and Cutout
| Overall Width | 30" |
| Overall Depth | 29.36" |
| Overall Height | 25.484" |
| Cutout (W x D x H) | 28-3/4" x 21-5/8" x 10-1/4" (Estate manual and 2026 American Made Grills cutout sheet) |
| Cutout with GL-EST30 Insulated Liner (W x D x H) | 31" x 24-1/2" x 11-1/2" |
| Side and Rear Clearance to Combustibles | 18" minimum (4" to strictly non-combustible walls; 14" to a protected combustible wall) |
| Overhead Clearance | 5 feet minimum from countertop to overhead construction |
Features

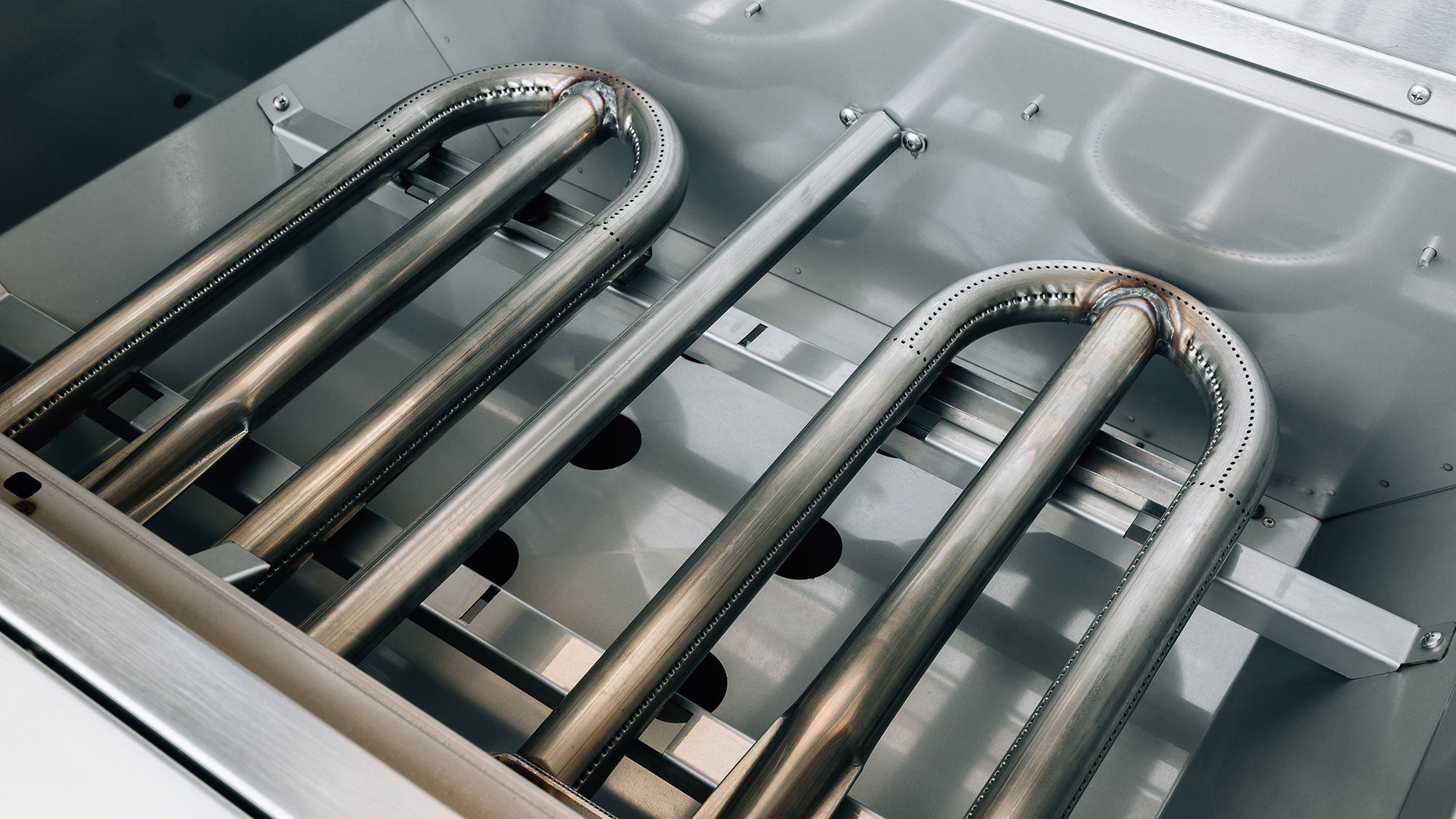

- Two 26,000 BTU stainless U-tube main burners for two true temperature zones.
- 12,000 BTU infrared back burner ready for the optional rotisserie kit.

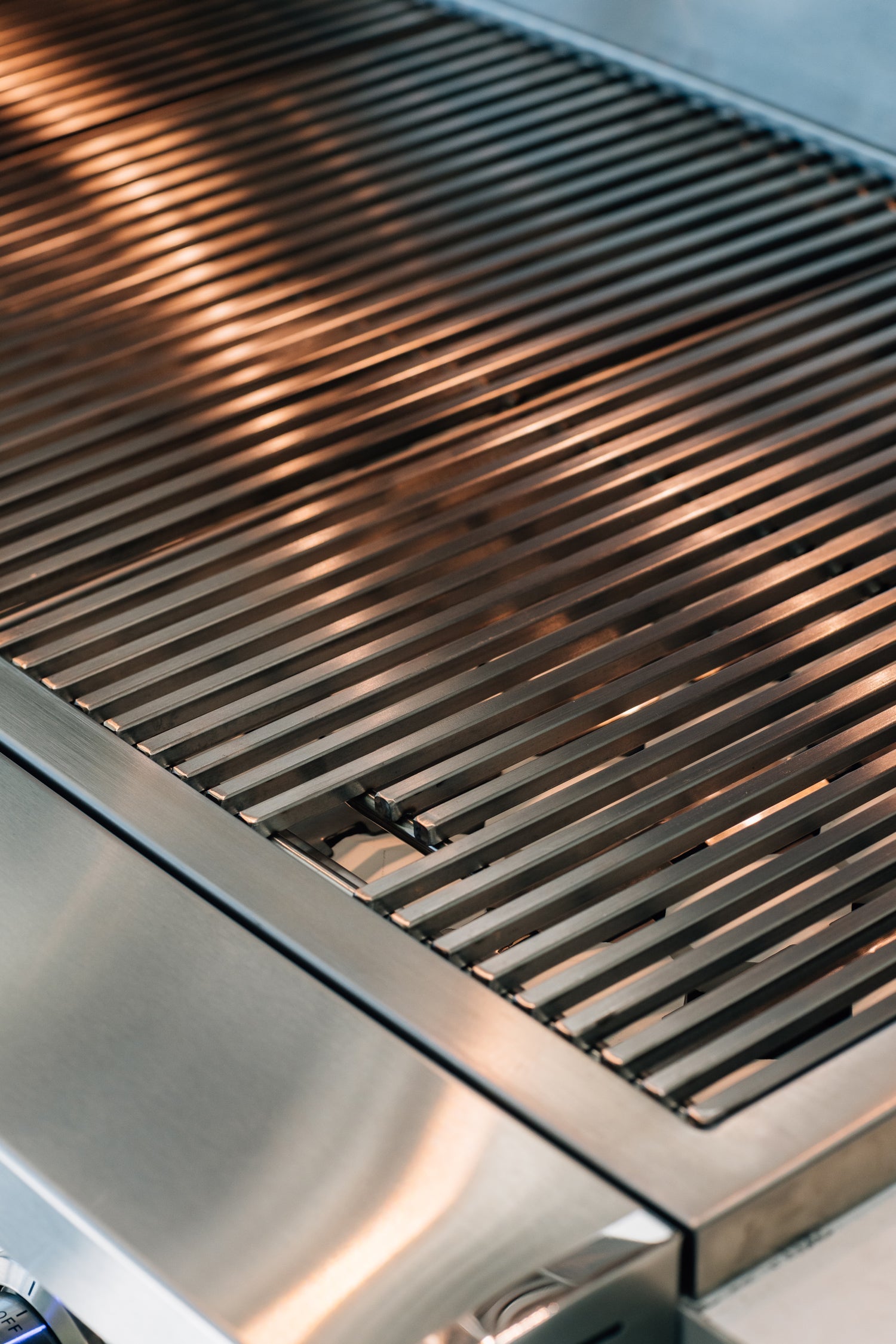

- Heavy 9 mm cooking grates.

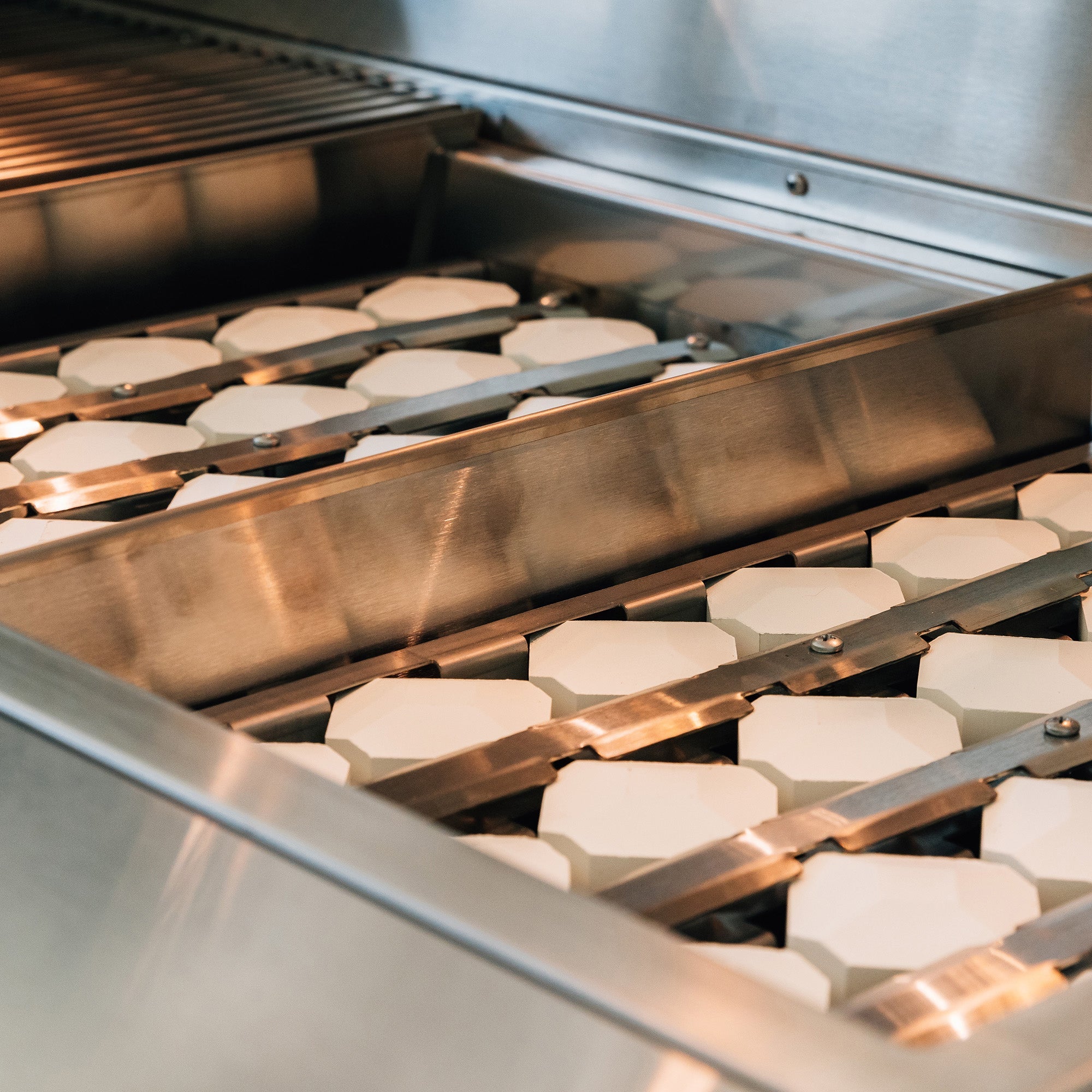

- Easy-Clean Briquette System with a heat zone separator for even heat and two-zone cooking.

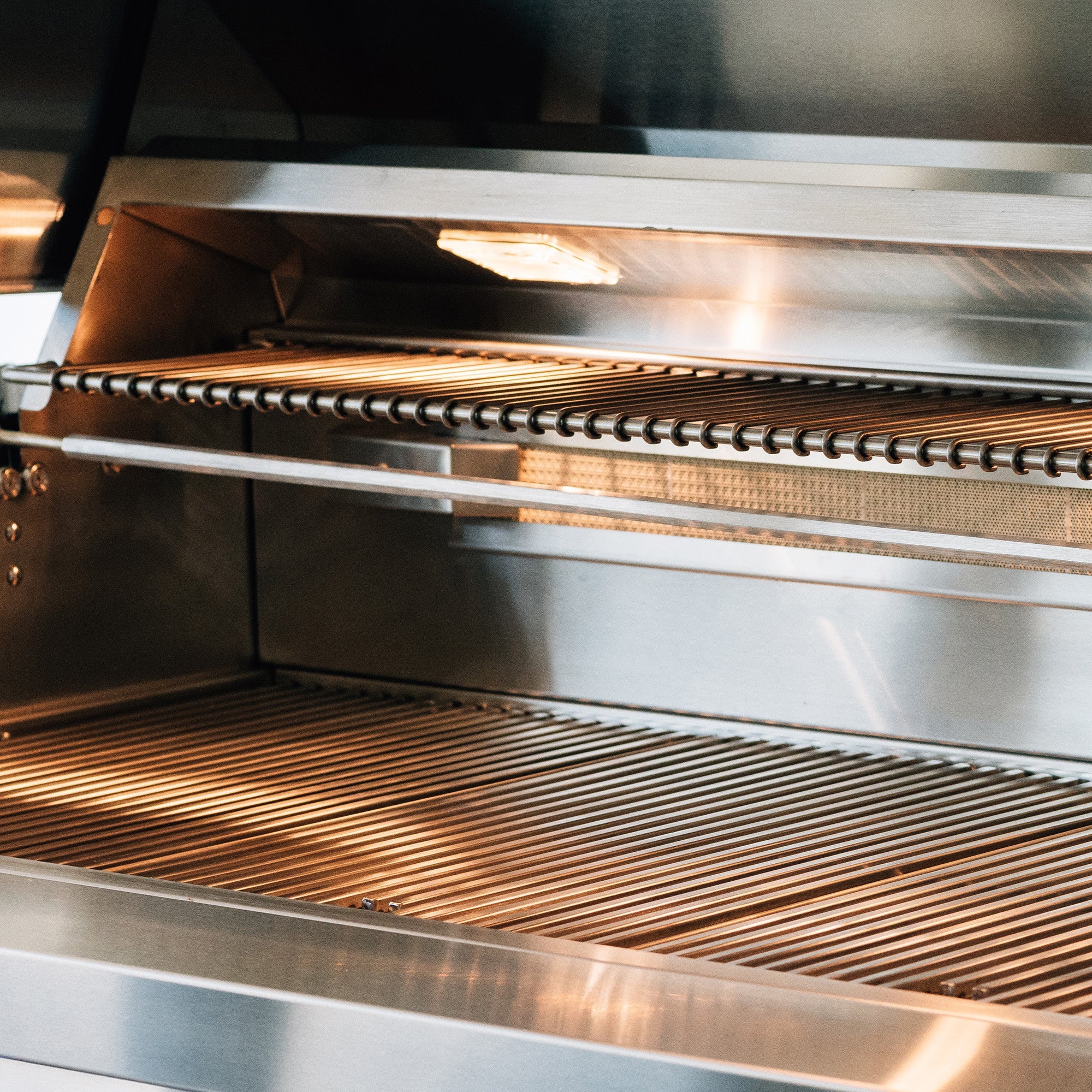

- Flame Thrower ignition, LED-lit knobs and interior halogen lights for night cooking.
- 18-gauge double-lined spring-assist hood with a full-width #304 stainless handle.
- Interchangeable decorative faceplates change the look after installation.
- Built, factory tested and serviced in the USA.
What Is Included and What You Will Need
- Included: Estate Freedom 30-inch propane grill head, 2 cooking grates, 2 burner covers, warming rack, drip tray, heat zone separator, vinyl grill head cover, cleaning care kit, lighting transformer and owner's manual.
- Not included: rotisserie kit and the Estate 30 Deluxe Built-In Grill Cover (GRILLCOV-EST30D); select "With Deluxe Grill Cover" above to add it.
- Required: a propane supply with regulator sized for 64,000 BTU, run by a licensed gas fitter; a non-combustible island, or the Estate 30 Insulated Grill Liner for wood-framed or other combustible islands; a 120V outdoor outlet for the lighting transformer.
- Optional: Estate 30 Rotisserie Kit (ROTKIT-EST30), Drop-In Infrared Sear Burner (IRB-EST) and Estate Double Side Burner (ESTSB2).
- Also available: Estate Freedom 30-Inch Natural Gas model.
Installation Notes
Outdoor use only. The island must be non-combustible unless the insulated liner is used. Keep 18 inches of side and rear clearance to combustible walls, 4 inches to a non-combustible backsplash and 5 feet from countertop to overhead construction; an exhaust hood is required under combustible overhead construction. A regulator must be installed; never connect the gas line directly to the grill. Propane tanks are heavily restricted on New York City terraces and rooftops, so most NYC installations run natural gas instead; check with your building and the FDNY rules before choosing propane. Book a design consultation to have us plan the island, gas and electrical around this grill.
Documentation
Frequently Asked Questions
What is the difference between the Estate Freedom 30 and the standard Estate 30?
Same body, back burner and warranty. The standard Estate ships with more accessories in the box, including a rotisserie kit; the Freedom ships with stainless U-tube burners, cover and care kit, and you add the rest as needed.
Can I use a 20 lb propane tank?
The built-in grill needs a regulated propane supply; how the tank is housed depends on your island design and local fire code. We will spec it during design.
Do I need the insulated grill liner?
Only for a combustible island such as wood framing. Masonry or steel-framed islands take the grill directly in the 28-3/4" x 21-5/8" x 10-1/4" cutout.
Related reading: Built-In Gas Grill Buying Guide and Natural Gas vs Propane Grill.
Warranty
American Made Grills Gold Standard Lifetime Warranty with replacement parts 100% non-prorated: lifetime on stainless steel construction, cooking grates, burners, burner covers, valves, flame tamers, heat zone separators, temperature gauges, hood springs and the briquette system; 3 years on all other parts and electrical, including LED bulbs, wire harness, switches, transformer and halogen light. Valid for the original purchaser at a residential installation and requires registration at americanmadegrills.com/register.
