American Outdoor Grill 30-Inch 3-Burner L-Series Built-In Natural Gas Grill with Lights & Rotisserie
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
American Outdoor Grill 30-Inch 3-Burner L-Series Built-In Natural Gas Grill with Lights & Rotisserie - Built-In is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
- Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
- Factory-authorized American Outdoor Grill dealer. You keep the full manufacturer warranty.
- 30-day returns, no restocking fee.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
American Outdoor Grill 30-Inch 3-Burner L-Series Built-In Natural G...
American Outdoor Grill 30-Inch 3-Burner L-Series Built-In Natural Gas Grill with Lights & Rotisserie - Built-In is backordered and will ship as soon as it is back in stock.
Description
Description
Available Sizes: American Outdoor Grill L-Series Built-In Natural Gas Grills with Lights and Rotisserie
24 in. | 30 in. (Current Size) | 36 in.
Same series, fuel and built-in installation. Burner count, cooking area and cutout dimensions differ by size.
Overall Dimensions: 33-7/8" W x 25-7/8" D x 22-1/4" H

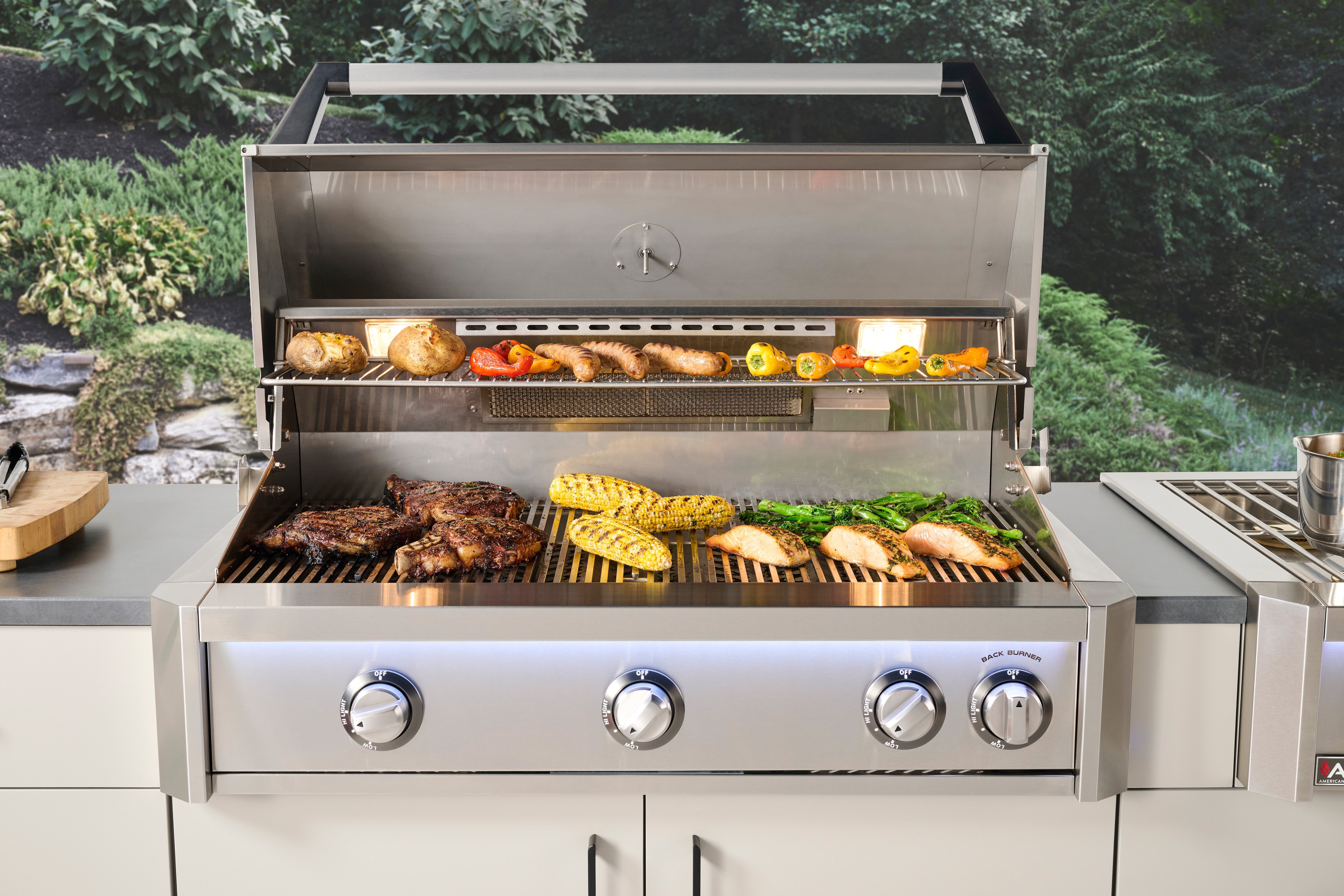

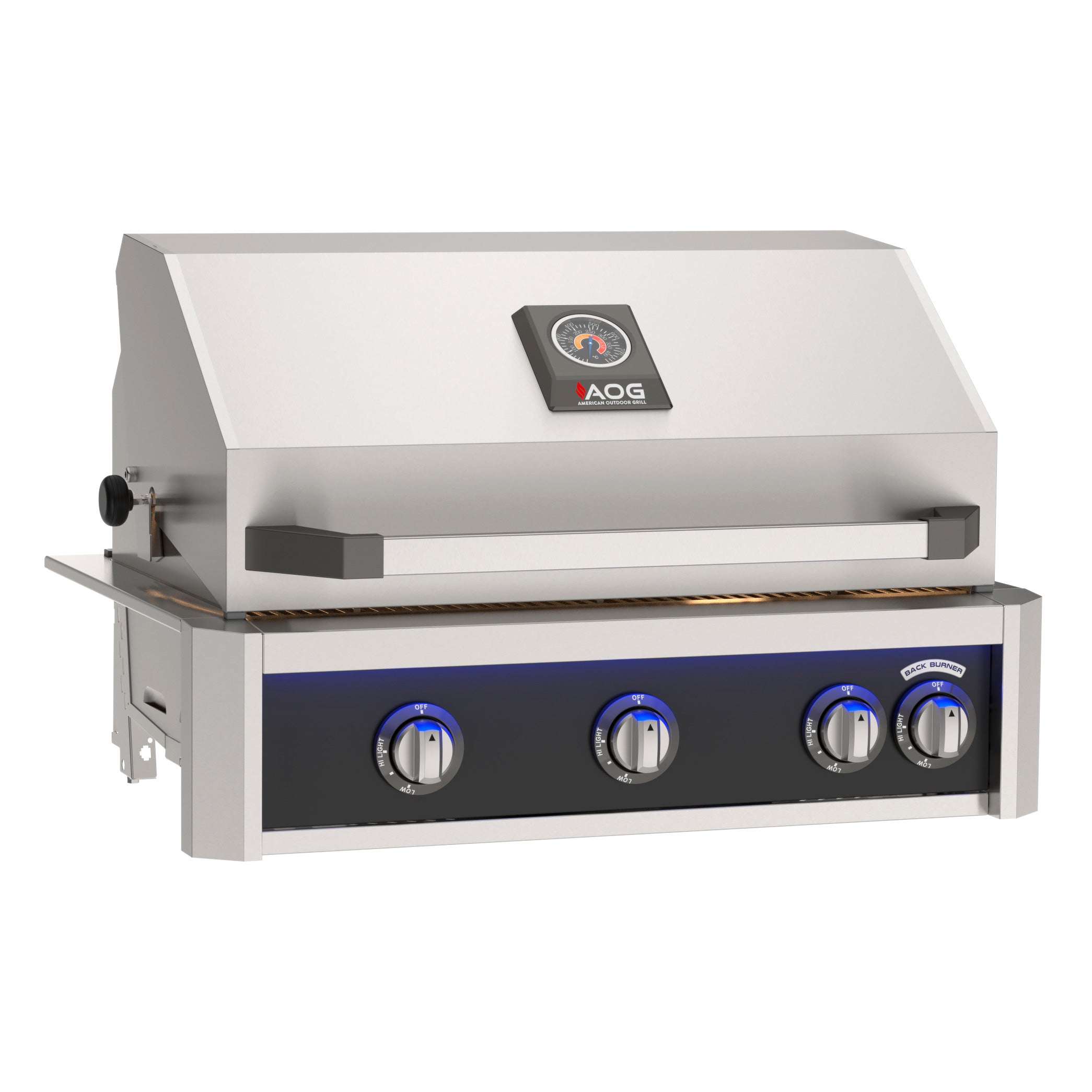

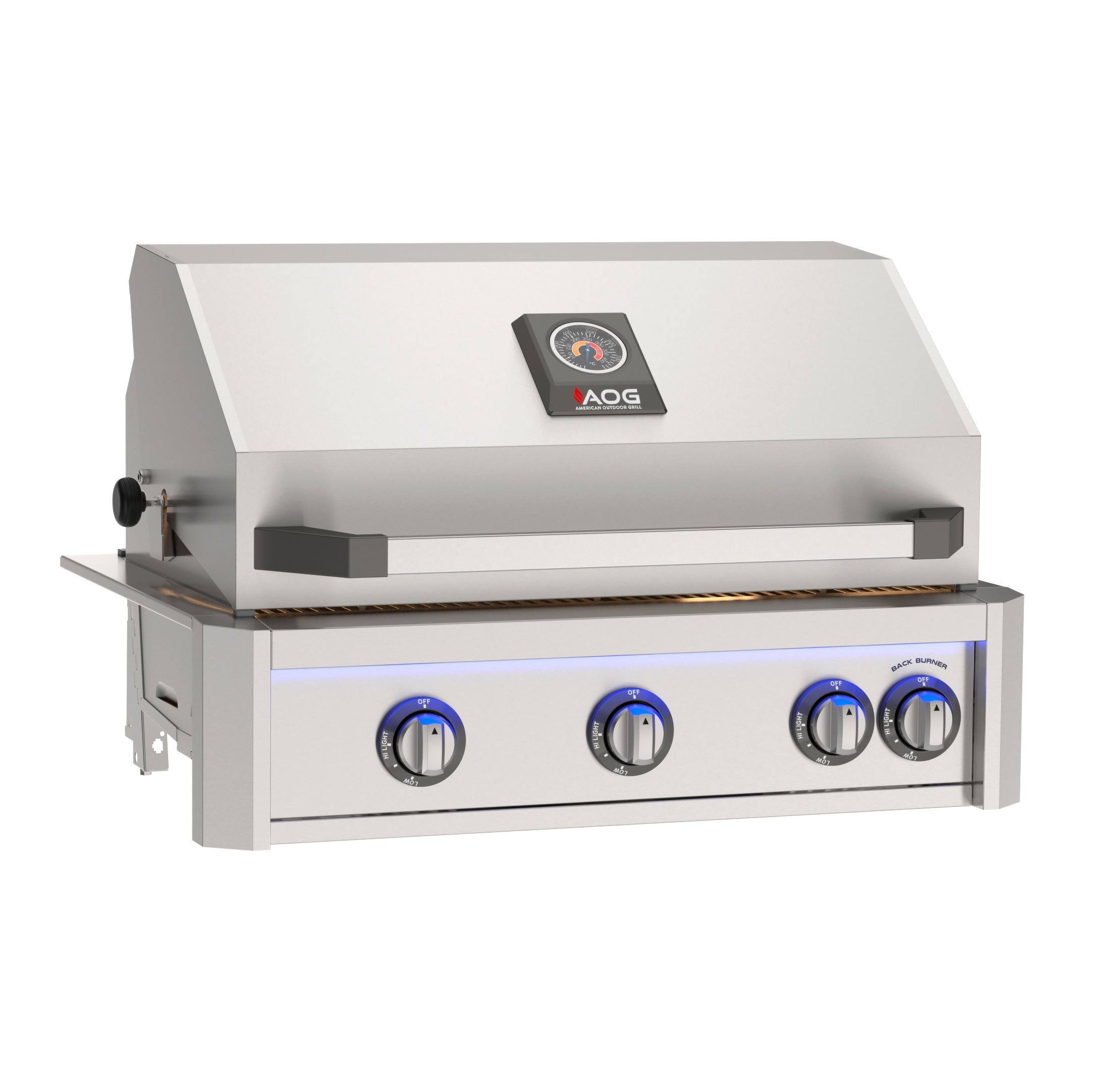

The American Outdoor Grill 30-Inch L-Series Built-In Natural Gas Grill (AOG30LN) is a complete package from the Robert H. Peterson Co.: three 304 stainless tubular burners, an infrared backburner with the rotisserie kit included, and a lighting system built for cooking after dark. At 30 inches it suits a terrace or compact island that still wants rotisserie capability and a spring-assisted hood. Natural gas configuration; a conversion kit ships in the box.
Key Specifications
| Model | AOG30LN (30" L-Series Built-In, natural gas) |
| Main Burners | 3 heavy-duty 304 stainless tubular burners, 45,000 BTU primary |
| Infrared Backburner | 12,000 BTU, with rotisserie kit (spit rod, forks and motor) included |
| Primary Cooking Surface | 540 sq in |
| Cooking Grids | Diamond Sear 304 stainless steel |
| Heat Management | Vaporizer panels |
| Ignition | Flame Thrower ignition system |

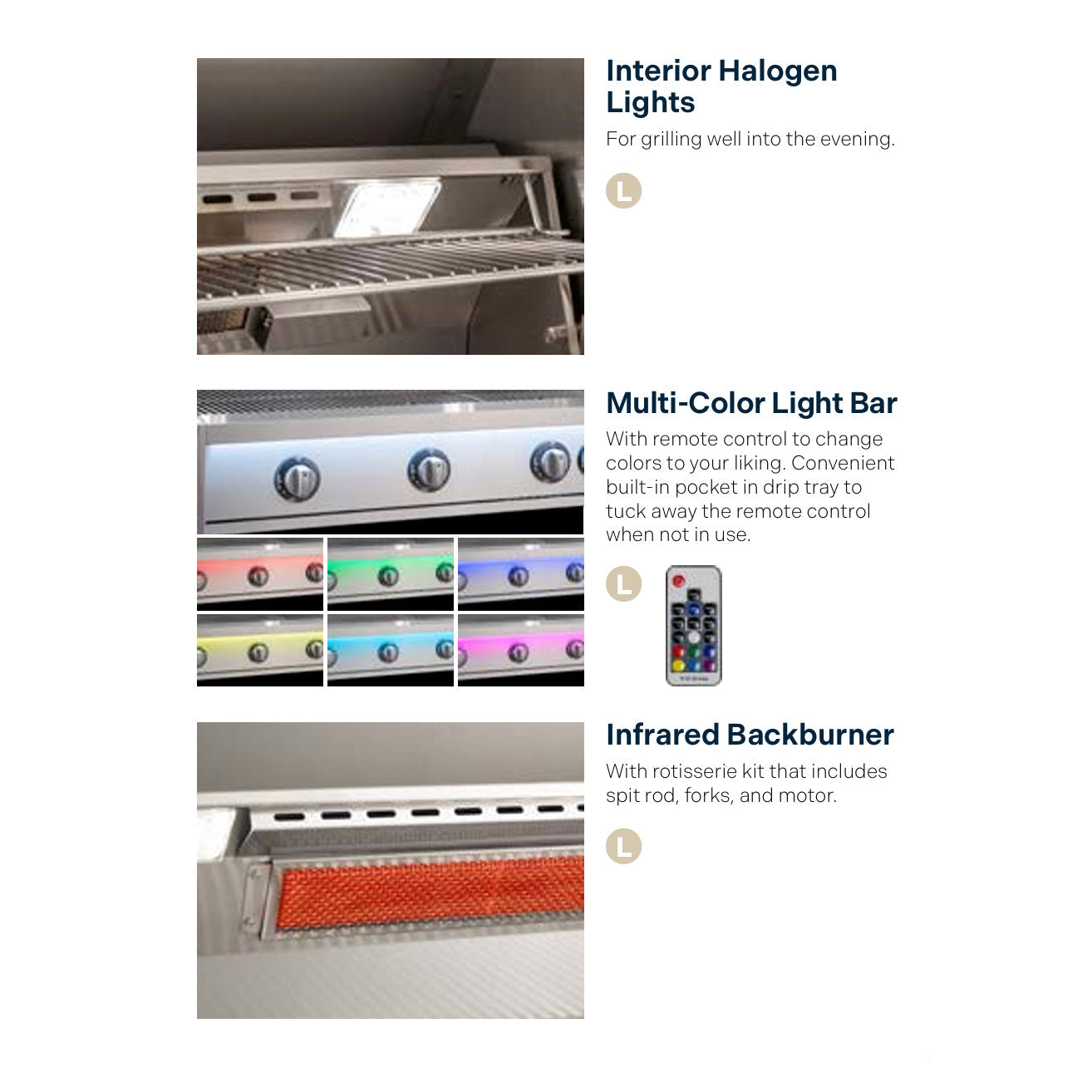

| Lighting | Interior halogen lights plus external multi-color LED light bar with remote control and LED master power button |

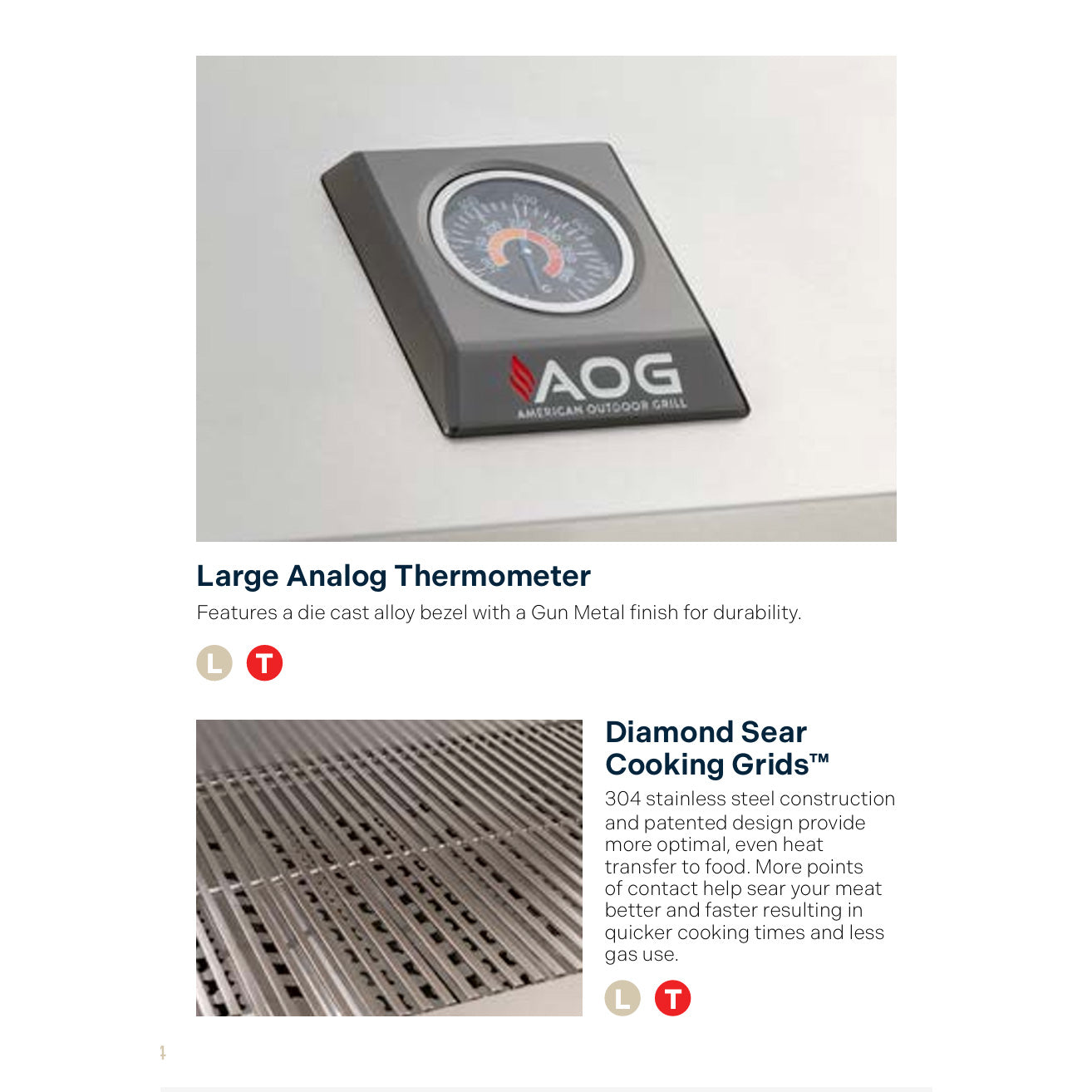

| Hood | Spring-assisted, with large analog thermometer in a die-cast gun metal bezel |
| Power | 120V AC required; 15 A minimum GFCI grounded receptacle |
| Made By | The Robert H. Peterson Co., USA |
Dimensions and Cutout
| Overall (W x D x H) | 33-7/8" x 25-7/8" x 22-1/4" per the AOG 2026 Spec Guide |
| Cutout (W x D x H) | 30-1/2" x 19-1/2" x 8-1/2" |
| Counter overhang cutout width | 34-1/2" |
| Cutout with 30-IL-C insulating liner (W x D x H) | 34-5/8" x 21-5/8" x 9" |
| Enclosure | Non-combustible countertop required; a combustible enclosure needs the insulating liner |
Features
- Diamond Sear 304 stainless grids hold heat at the surface for strong sear marks

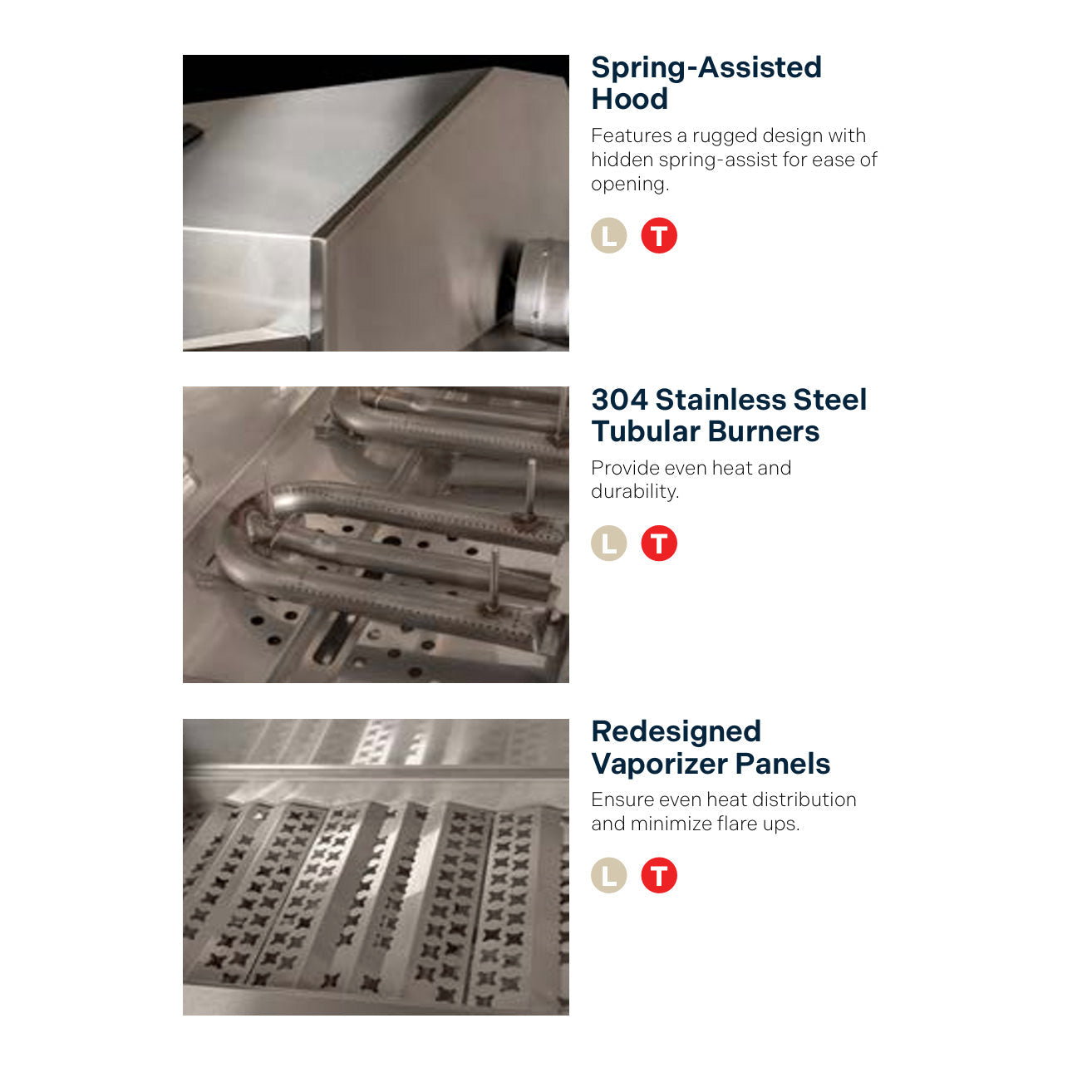

- Three heavy-duty 304 stainless tubular burners with vaporizer panels for even heat and fewer flare-ups
- 12,000 BTU infrared backburner and rotisserie kit included
- External multi-color LED light bar with remote, plus interior halogen lights

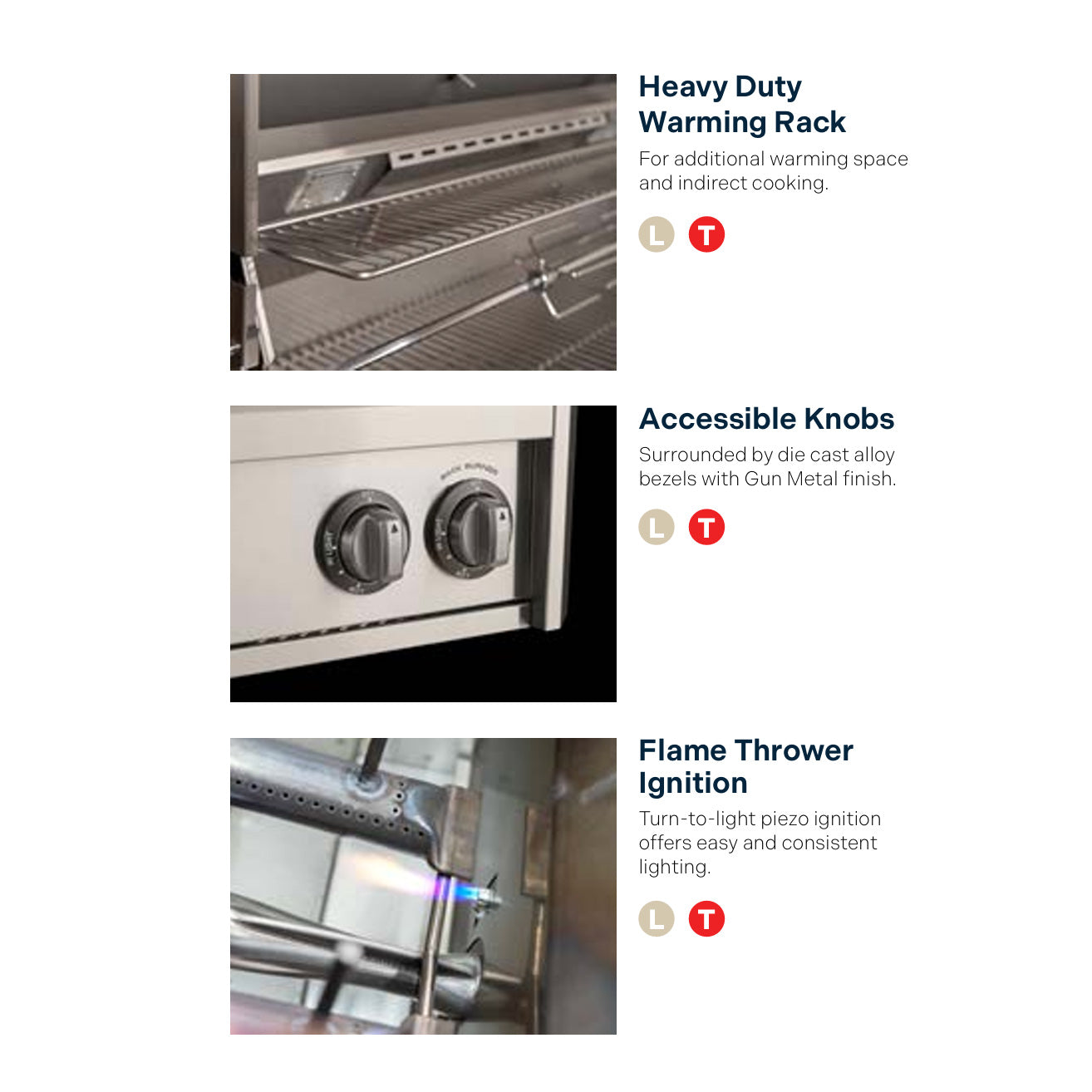

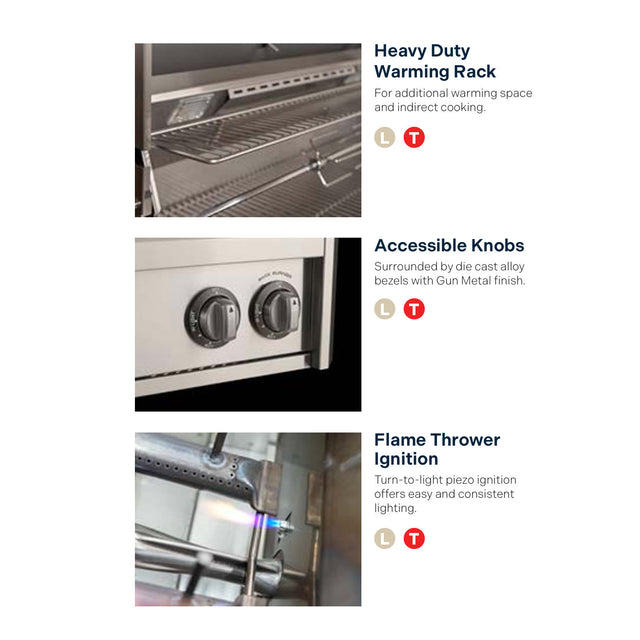

- Flame Thrower ignition for consistent lighting
- Spring-assisted hood with a commercial caliber handle and die-cast gun metal end caps
- Heavy-duty warming rack
- Optional black or white accent color panel for the control panel
What Is Included and What You Will Need
- Included: 30" L-Series grill head (natural gas), infrared backburner, rotisserie kit, LED light bar with remote, warming rack and gas conversion kit
- Required: a natural gas supply sized for 57,000 BTU total with shutoff, a non-combustible countertop and enclosure (or the AOG 30-IL-C insulating liner for combustible framing), proper enclosure venting, and a 120V GFCI receptacle within reach
- Optional: the AOG stainless steel griddle (GR18A) and an outdoor vent hood such as the AOG 36 in 1000 CFM vent hood (VHD-36) for covered installs
- Also available: AOG30LP propane model
Installation Notes
AOG requires the enclosure to sit on a hard, level surface, be properly vented, and have a non-combustible countertop; the grill hangs from its stainless hanger on the cutout edges. If the countertop overhangs the front wall, it must be cut flush for the width of the control panel. Leave a 1-1/2 in hole for the gas supply and one for the electrical supply. Gas piping must meet the National Fuel Gas Code and local code, and in New York City the gas connection must be made by a licensed master plumber under permit. Book a design consultation to have us plan the island, gas and electrical around this grill.
Documentation
Frequently Asked Questions
Is the rotisserie included?
Yes. The L-Series includes the infrared backburner and a rotisserie kit with spit rod, forks and motor.
Can I convert it to propane later?
AOG ships every grill with a gas conversion kit; conversion should be done by a qualified gas installer.
Does it need electricity?
Yes. All L-Series grills require 120V AC for the lights and rotisserie, on a 15 A minimum GFCI receptacle.
L-Series or T-Series?
The L-Series adds the infrared backburner, rotisserie kit, LED light bar and halogen interior lights; the T-Series uses the same cutout without them.
Related reading: Built-In Gas Grill Buying Guide and What Size Grill Do I Need.
Warranty
AOG limited warranty: stainless steel burners and barbecue housing for as long as the original purchaser owns them (lifetime); Diamond Sear cooking grids 15 years; valves, controls and manifolds 10 years; backburners, rotisserie kits and vaporizer panels 3 years; ignition systems (excluding batteries), electronic components, grill parts and accessories 2 years.
