Aquafire - Lite Series Water Vapor Electric Fireplace Insert
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Aquafire - Lite Series Water Vapor Electric Fireplace Insert - 16 Inch / Without Water Softener / Without Scent Diffuser is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Aquafire - Lite Series Water Vapor Electric Fireplace Insert - 16 Inch / Without Water Softener / Without Scent Diffuser is backordered and will ship as soon as it is back in stock.
Description
Description
Lead Time: Typically ships within 1–3 business days.
Aquafire Lite is the entry point into real water vapor flame: the same patented Double Air-Vapor Flow system that sculpts the flame on the full-size models, in a shallower 9 1/4" deep chassis that drops into a slimmer wall. It runs 8 to 10 hours on a fill, plugs into a standard outlet, and produces no heat, no gas, no smoke and no venting requirement — making it the practical choice for a media wall, a bedroom, a bar back or a retrofit into an old firebox.
- Ultra-realistic natural flame from a single LED light bar, with adjustable density, speed and brightness.
- 8 to 10 hours of runtime on a full tank, with automatic fill via the integrated pump.
- Shallowest Aquafire chassis at 9 1/4" deep — fits walls that cannot take the 12" Pro or AWA body.
- Four lengths from a 16" accent to a 60" feature wall.
- Cool to the touch, zero emissions — safe around children, pets and combustible finishes, year-round.
- Flush-mount drop-in install with air intake through the top, sides and bottom, controlled from the unit or the remote.
Choosing Your Configuration
Size is required. The Vapor Pure water softener and the Scent Diffuser are optional — leave both set to "Without" for the base fireplace. Hard water is the leading cause of shortened mist-maker life, so a Vapor Pure softener is strongly recommended anywhere in the NYC, Long Island or New Jersey service area. Choose Residential Grade (300 grains) for a home, Commercial Grade (700 grains) for a hospitality or high-run install. The Lite Series cannot be direct plumbed and is not gangable.

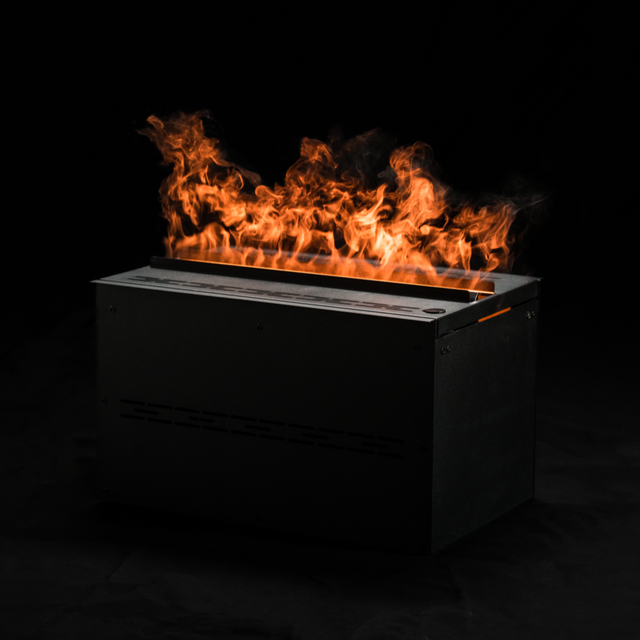

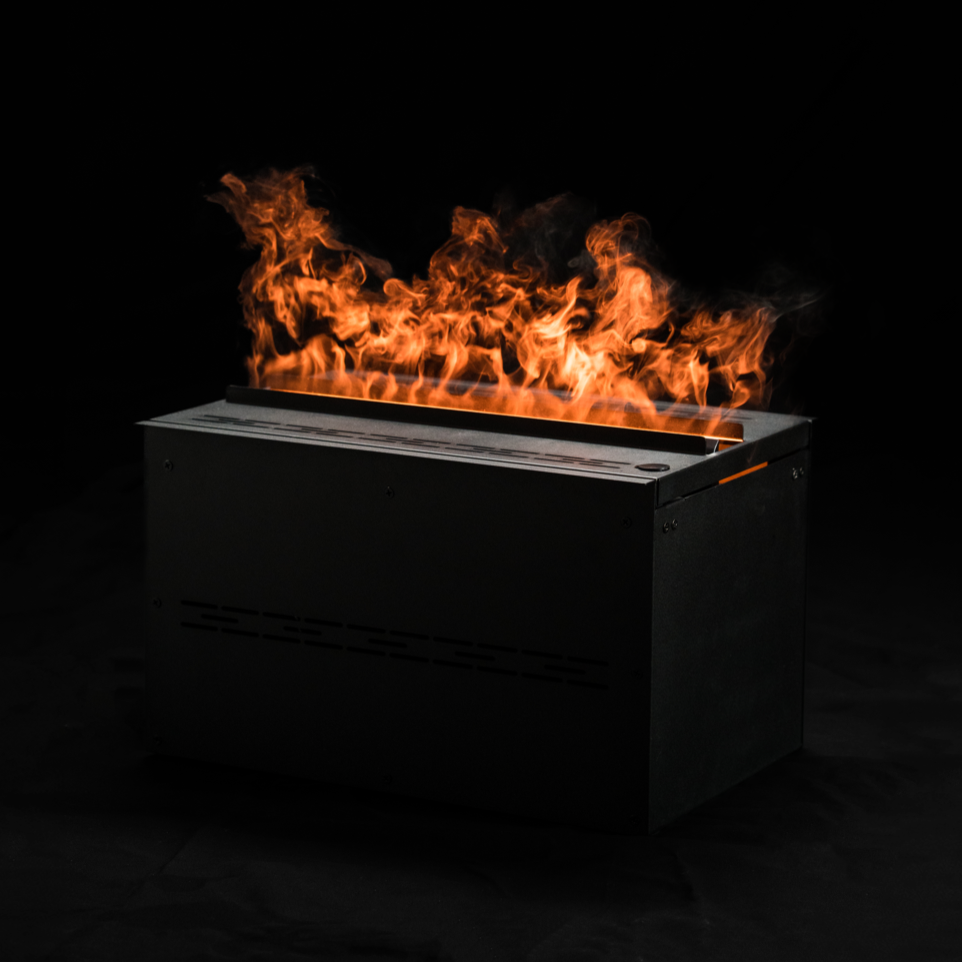

| 16" Lite (098-AWL-16-42) | 16"W x 9 1/4"D x 9 1/4"H · 120V standard receptacle · 8–10 hour runtime |
| 20" Lite (098-AWL-20-50) | 20"W x 9 1/4"D x 9 1/4"H · 120V · 8–10 hour runtime |
| 40" Lite (098-AWL-40-100) | 40"W x 9 1/4"D x 9 1/4"H · 55 W (24V adapter) · 4.0 L tank · 8–10 hours · 35.2 lbs |
| 60" Lite (098-AWL-60-150) | 60"W x 9 1/4"D x 9 1/4"H · 80 W (24V adapter) · 6.0 L tank · 8–10 hours · 51.2 lbs |
| Cutout / housing opening | 20 1/4" / 40 1/4" / 60 1/4" W x 9 5/8" D x 11" minimum H |
| Flame color | Natural orange, single LED light bar |
| Flame settings | Density, speed, brightness |
| Fill | Automatic fill via integrated pump — direct plumb not available on Lite |
| Controls | Buttons on the unit plus multi-function remote |
| Gangable | No |
| UV-C sanitizing | Not included on Lite Series |
| Heat output | None — zero emissions, no venting required |
| Warranty | 2-year limited |
What's Included
- Aquafire Lite fireplace insert with LED light bar
- Multi-function remote control
- Water fill / drain tube
- 24V power adapter
- User manual and quick start guide
- Vapor Pure water softener and beech wood scent diffuser if selected above
Spec Sheet | Installation Manual | Owner's Manual
Warranty: Aquafire covers the Lite Series with a 2-year limited warranty against defects in materials and workmanship. Operating the fireplace on untreated hard water is the most common cause of premature mist-maker failure and denied claims.
