Description
Description
Overall Dimensions: 37.52 in W x 26.37 in D x 24.89 in H per Broil King; cutout 36-1/4 in W x 23-1/8 in D x 10-29/32 in H (per current listing)

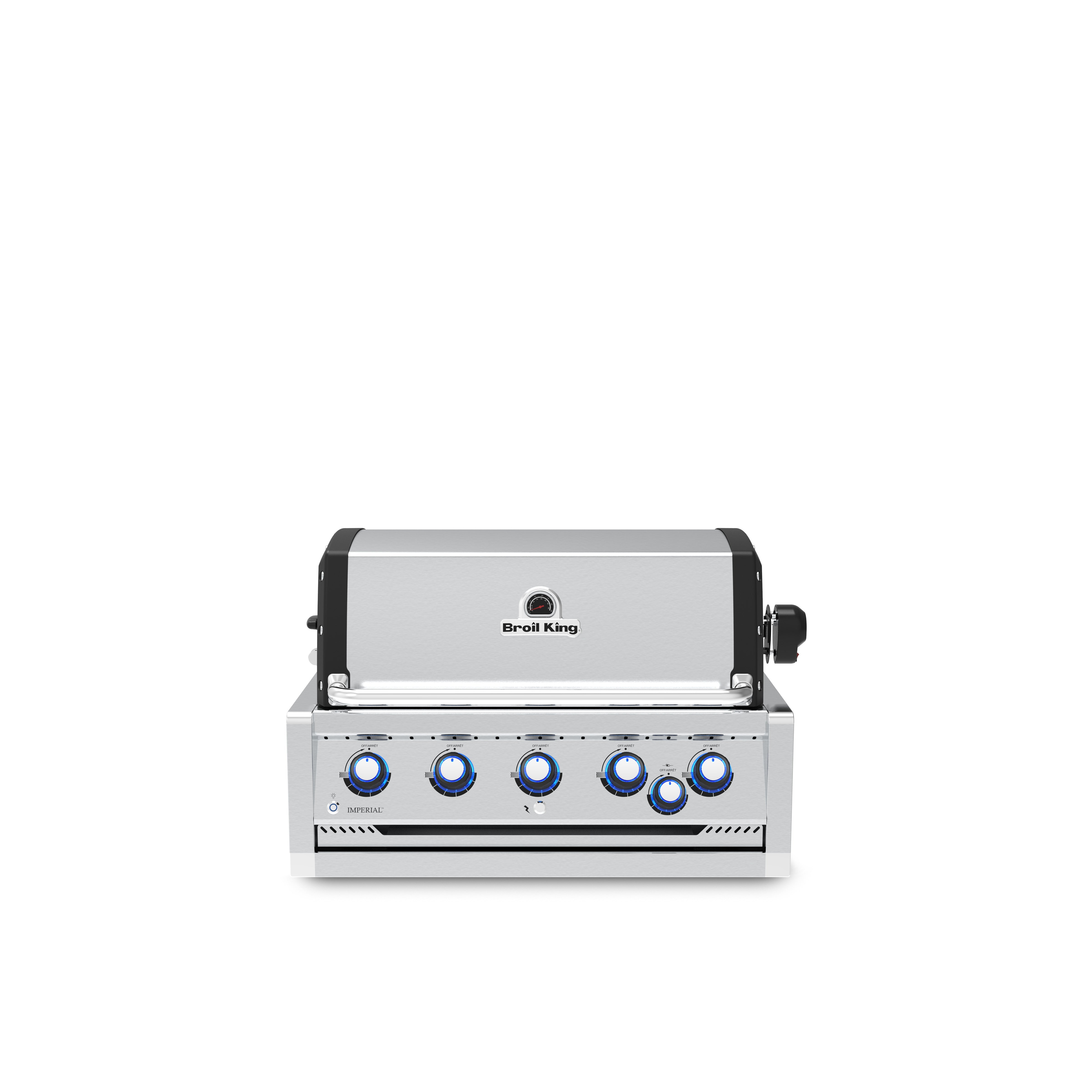

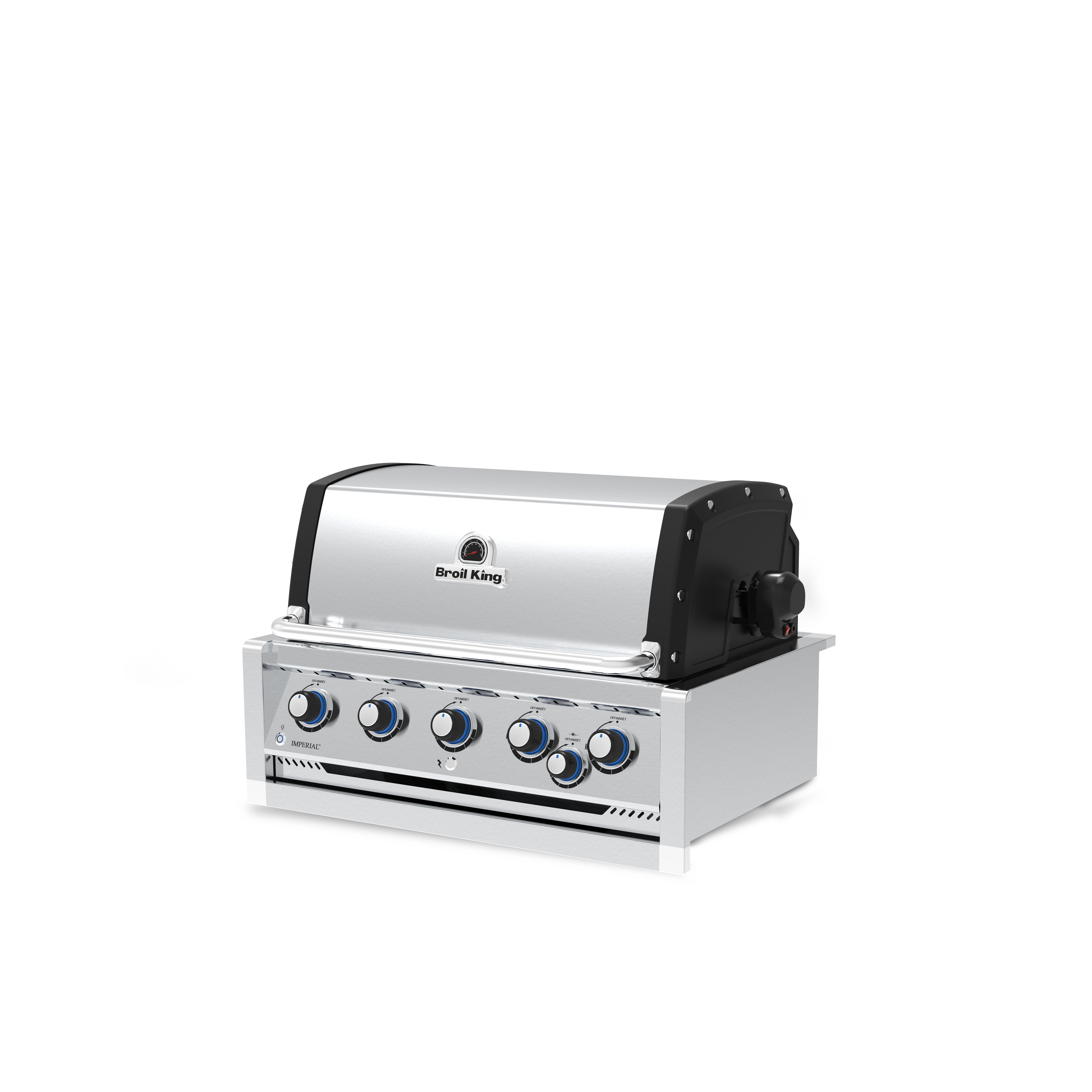

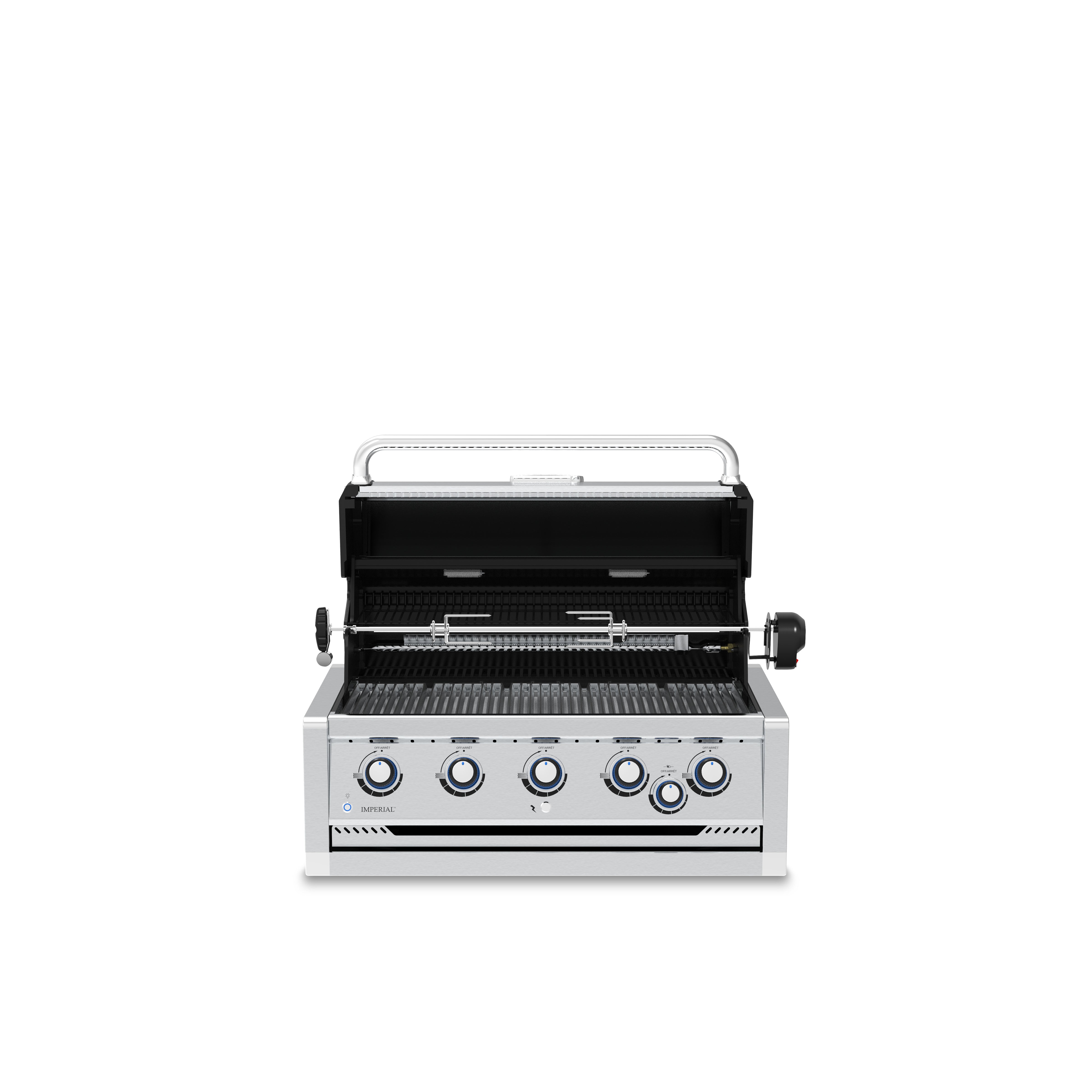

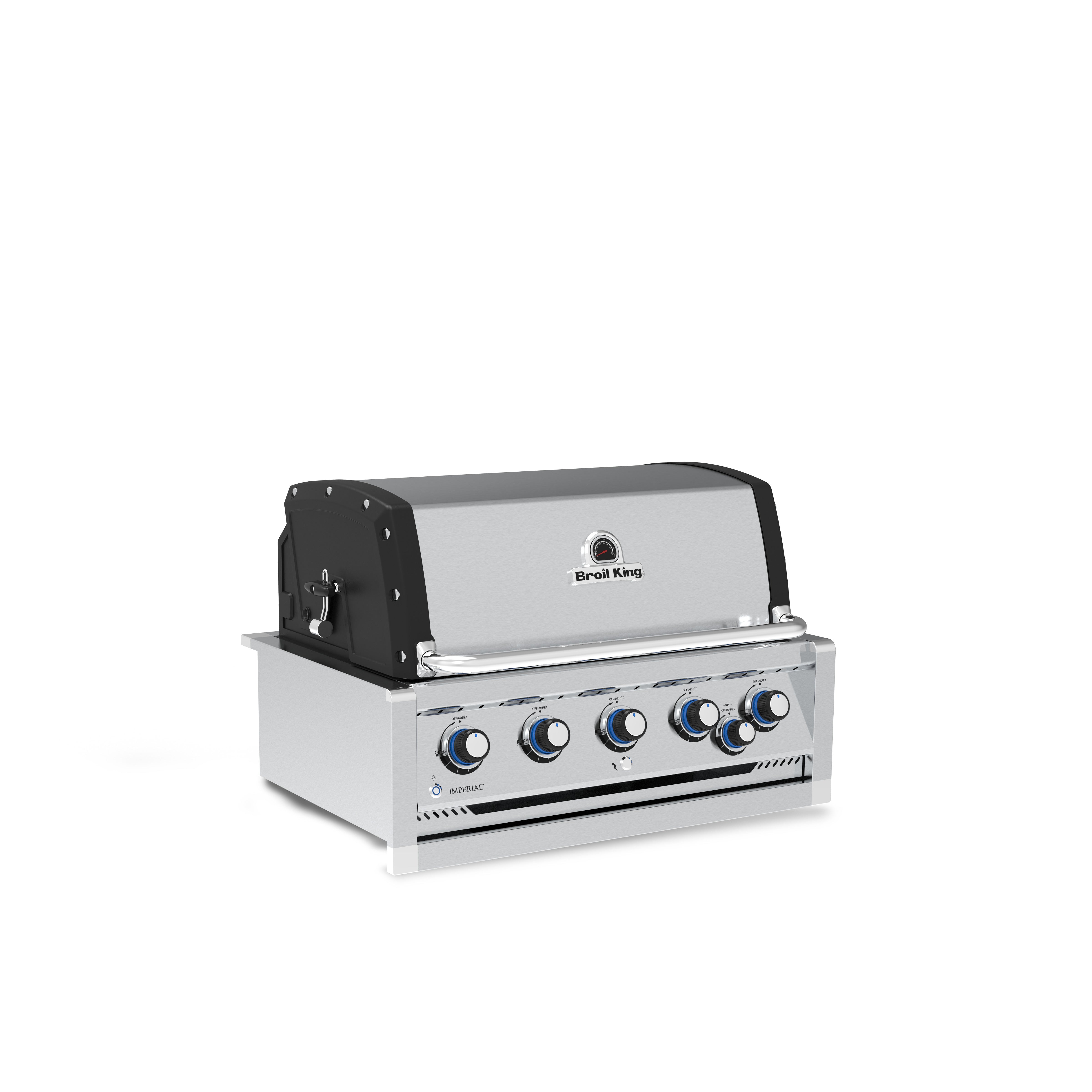

The Broil King Imperial S 570 Built-In 38 is a five-burner built-in grill with a 304 stainless cookbox, five cast stainless grids and Broil King's stainless Flav-R-Wave system. Five Dual-Tube burners put 55,000 BTU under 625 sq in of primary grilling space, and a 15,000 BTU rear burner with the included rotisserie kit handles roasts. Broil King also includes an insulating sleeve for installation near combustible construction. This listing is the propane model.
Key Specifications
| Model | Imperial S 570 Built-In 38, SKU 958074 (propane) |
| Main Burners | 5 stainless steel Dual-Tube burners, 55,000 BTU |
| Rear Burner | 15,000 BTU stainless steel rotisserie burner; rotisserie kit included |
| Cooking Area | 625 sq in primary, 875 sq in total with the stainless warming rack |
| Grids | 5 professional cast stainless steel grids; 31-15/16 x 19-1/4 in cooking surface per current listing |
| Cookbox | 304 stainless steel with cast aluminum end caps; stainless Flav-R-Wave |
| Valves | Linear-Flow valves with 180 degree control |
| Ignition | Sure-Lite electronic ignition |
| Lighting | Built-in oven lights and illuminated control knobs |
| Gas Pressure | Propane 11 in w.c. per the Broil King built-in manual |
| Weight | 184 lb per Broil King |
Dimensions and Cutout
| Grill Head (W x D x H) | 37.52 x 26.37 x 24.89 in per Broil King (current listing shows 37.44 x 26.95 x 24.6 in) |
| Cutout (W x D x H) | 36-1/4 x 23-1/8 x 10-29/32 in per current listing; confirm against the Broil King assembly manual |
| Clearances Above Counter | 6 in to non-combustible walls; 12 in to protected combustible walls; 15 in to combustible walls |
| Overhead | At least 60 in to overhead construction; under combustible overhead, a hood larger than the cooking area rated at least 1,200 CFM |
| Enclosure Vents | With an LP cylinder in the enclosure: 20 sq in at the top trim and 10 sq in at the bottom trim; without a cylinder: 10 sq in top, 5 sq in bottom trim and 10 sq in at the enclosure bottom |
Features
- Five stainless Dual-Tube burners with two rows of flame each for even heat
- Reversible cast stainless grids for searing or basting, per current listing
- Stainless Flav-R-Wave system vaporizes drippings and shields the burners
- 15,000 BTU rear rotisserie burner with rotisserie kit included
- Insulating sleeve included for installs near combustible construction
- Built-in oven lights and lit control knobs
- Slide-out grease tray
What Is Included and What You Will Need
- Included per Broil King: grill head, five cast stainless grids, stainless warming rack, rotisserie kit and insulating sleeve
- Required: an island cutout with the vent openings above, a regulated propane supply at 11 in w.c., and a GFI outlet inside the enclosure about 15 in below the countertop for the lights, plus a rotisserie outlet at the rear right
Installation Notes
Broil King's built-in manual sets the clearances above, requires at least 60 in to overhead construction, and calls for an outdoor hood of at least 1,200 CFM under combustible overhead construction (recommended under non-combustible overhead too). Enclosures need screened vent openings that admit a 1/8 in rod; LP enclosures need larger vents. Gas connection must be made by a qualified installer. In New York City, FDNY restricts propane cylinder storage and use, so most city installs run on natural gas; ask us before ordering the LP model for a city address. Book a free design consultation and we will help you plan the island, gas and power.
Documentation
Frequently Asked Questions
Is the rotisserie included?
Yes. Broil King includes the rotisserie kit, powered by the 15,000 BTU rear burner.
Can it go in a wood-framed island?
Broil King includes an insulating sleeve for installation near combustible construction and lists below-counter clearances in its manual; follow both.
Can I keep the propane tank inside the island?
Broil King allows it with larger enclosure vents: 20 sq in at the top trim and 10 sq in at the bottom trim. Check local fire rules first, especially in New York City.
Is there a natural gas version?
Yes, Broil King SKU 958077, sold as a separate listing.
Related reading: Built-in gas grill buying guide and What size grill do I need?
Warranty
Broil King's built-in owner's manual lists a limited lifetime warranty on the stainless lid components and stainless cookbox, and 15 years on cast stainless grids, Dual-Tube burners, side and rear burners, stainless Flav-R-Wave, stainless components and remaining parts and paint; Flav-R-Wave rust-through is covered for 3 years and surface rust is not covered.
