Broil King Imperial S 690i 6-Burner Built-In Propane Gas Grill - Propane is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 44.8 in W x 27 in D x 24.6 in H (per current listing)

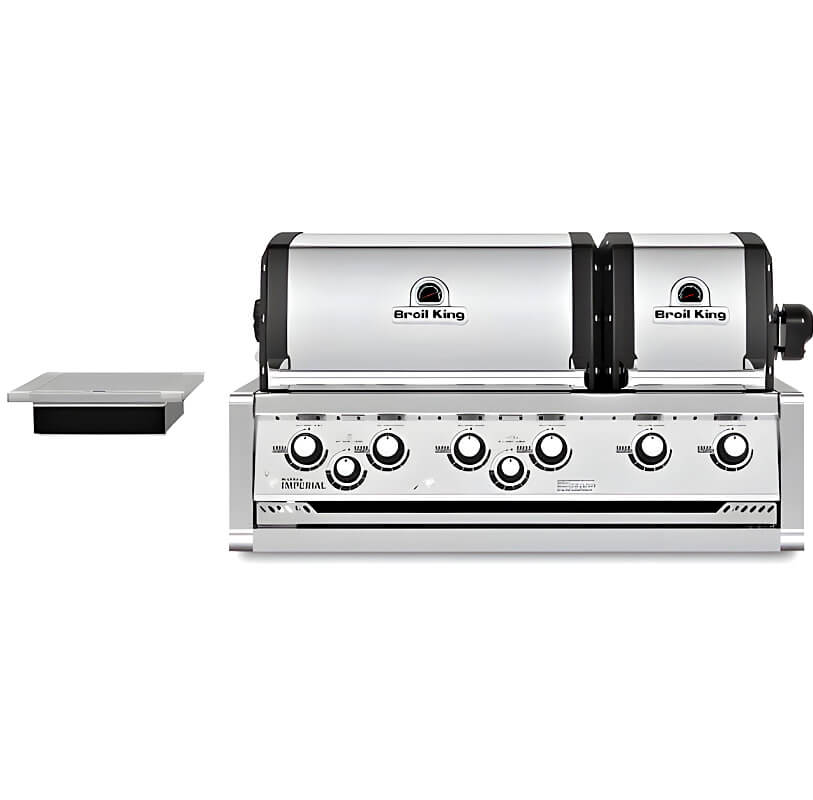

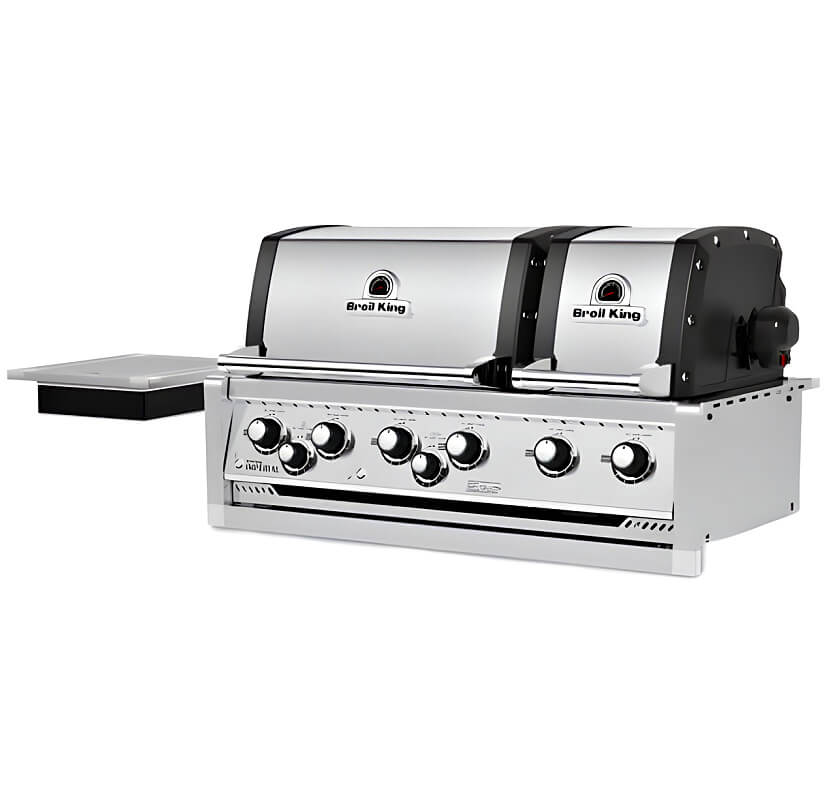

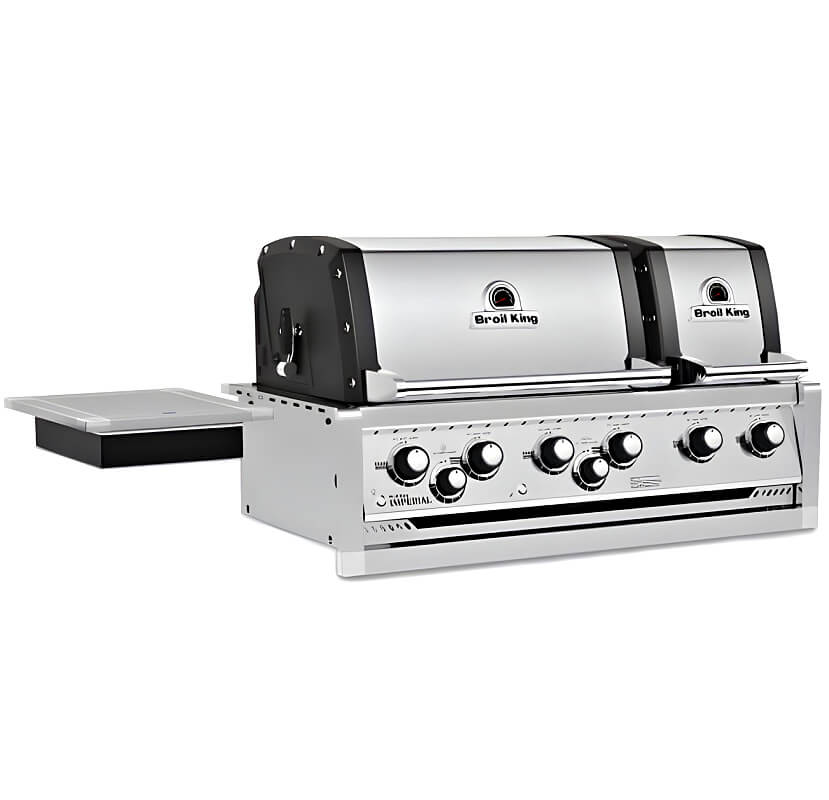

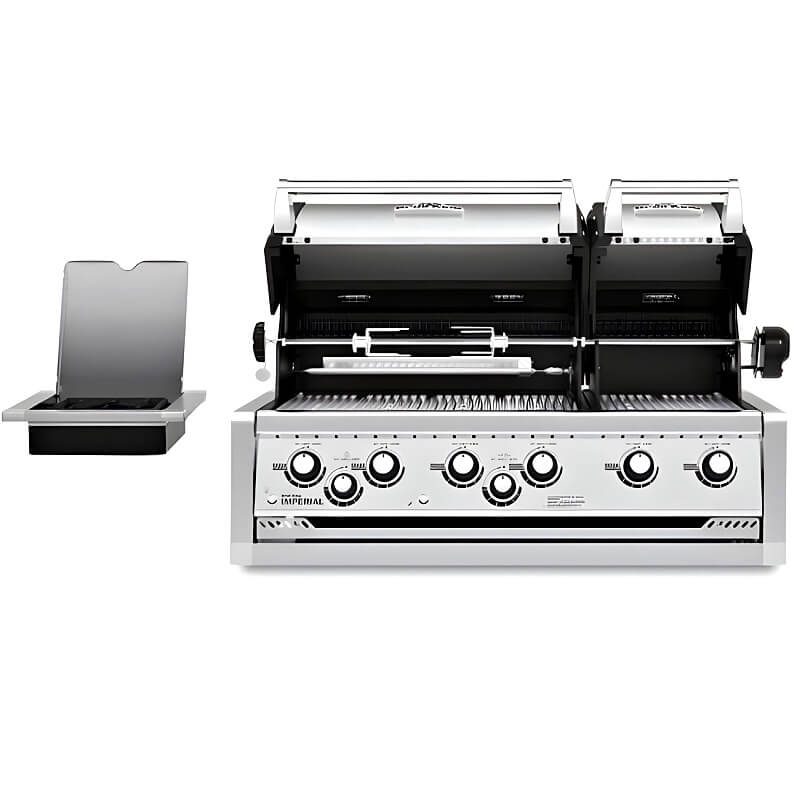

The Broil King Imperial S 690 built-in (957084 propane, 957087 natural gas) is the Imperial S 670 grill head with a 10,000 BTU side burner added, so sauces and sides cook right beside the main grill. Six stainless Dual-Tube burners deliver 60,000 BTU across 750 sq in of primary grilling in two independent cookboxes, and a 15,000 BTU rear rotisserie burner and rotisserie kit come with it. Choose propane or natural gas above.
Key Specifications
| Model | Broil King Imperial S 690 Built-In: 957084 (propane) or 957087 (natural gas) |
| Main Burners | 6 stainless steel Dual-Tube burners, 60,000 BTU |
| Side Burner | 10,000 BTU |
| Rear Burner | 15,000 BTU stainless steel rotisserie burner, rotisserie kit included |

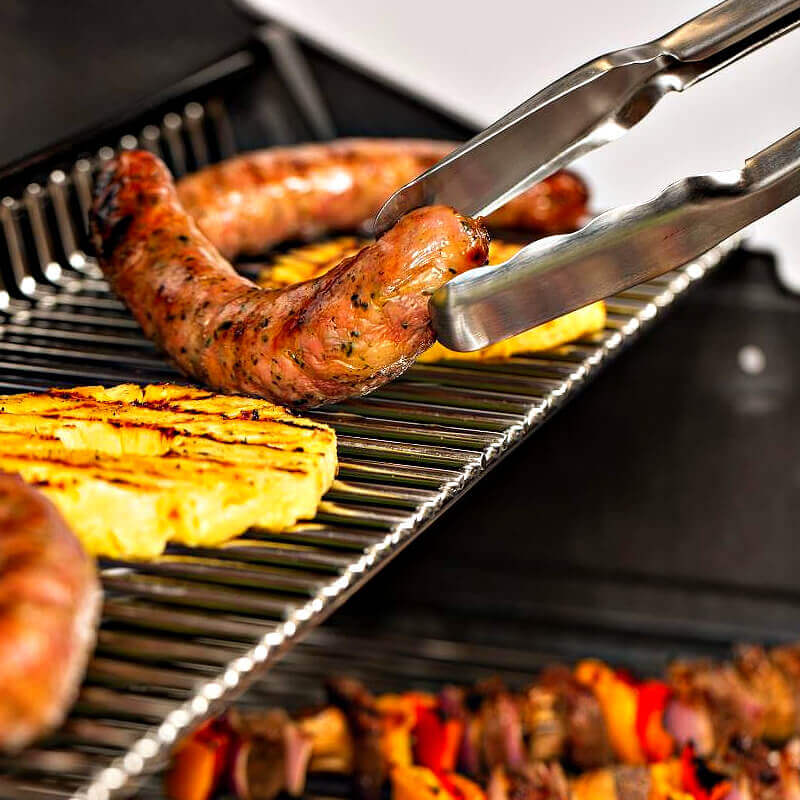

| Cooking Area | 750 sq in primary; 1,000 sq in total with the 250 sq in warming rack per current listing |

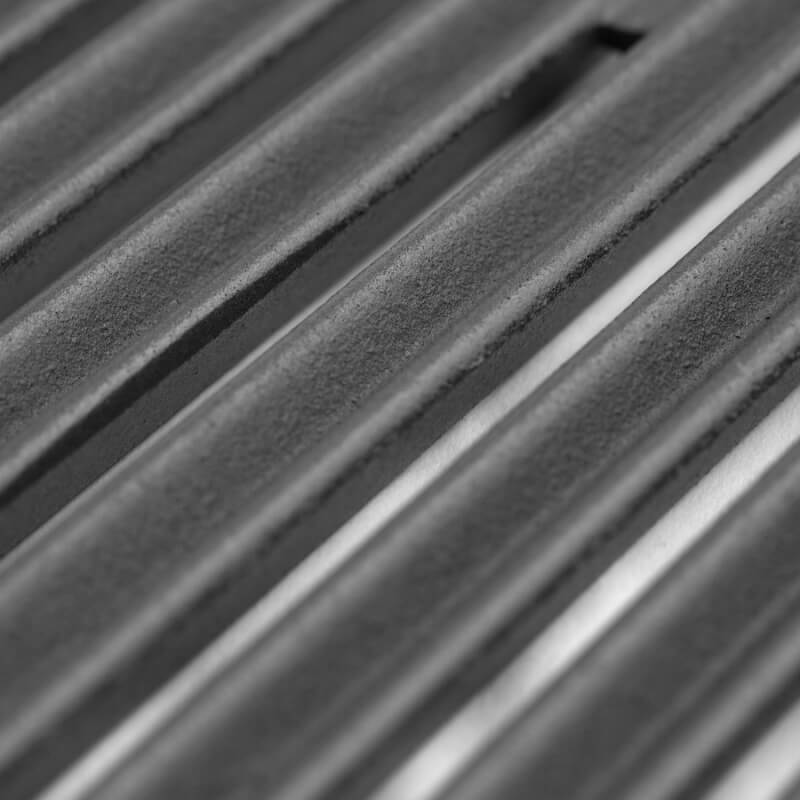

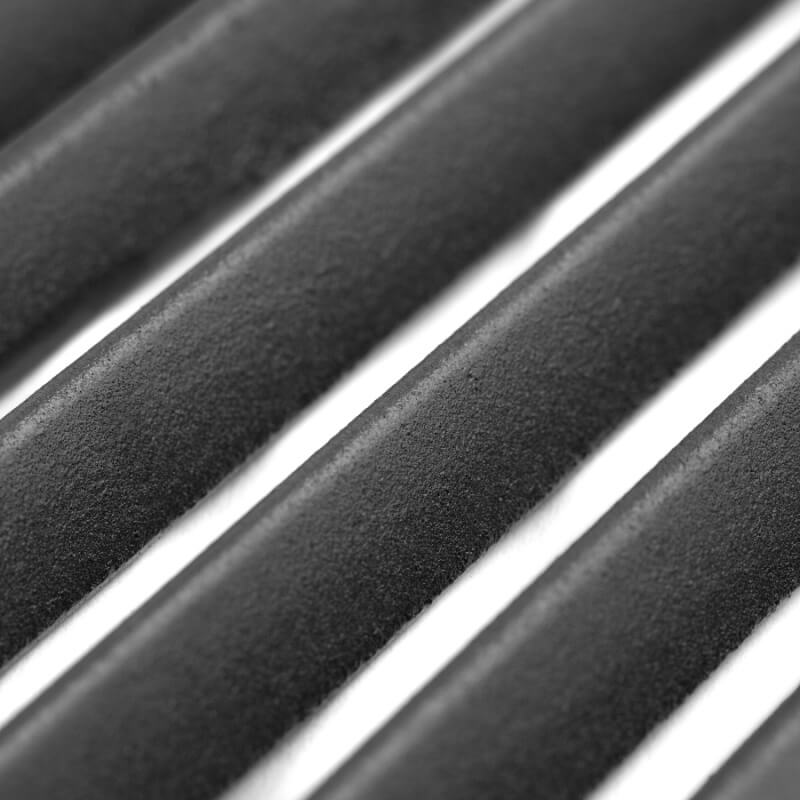

| Cooking Grids | Professional cast stainless steel |

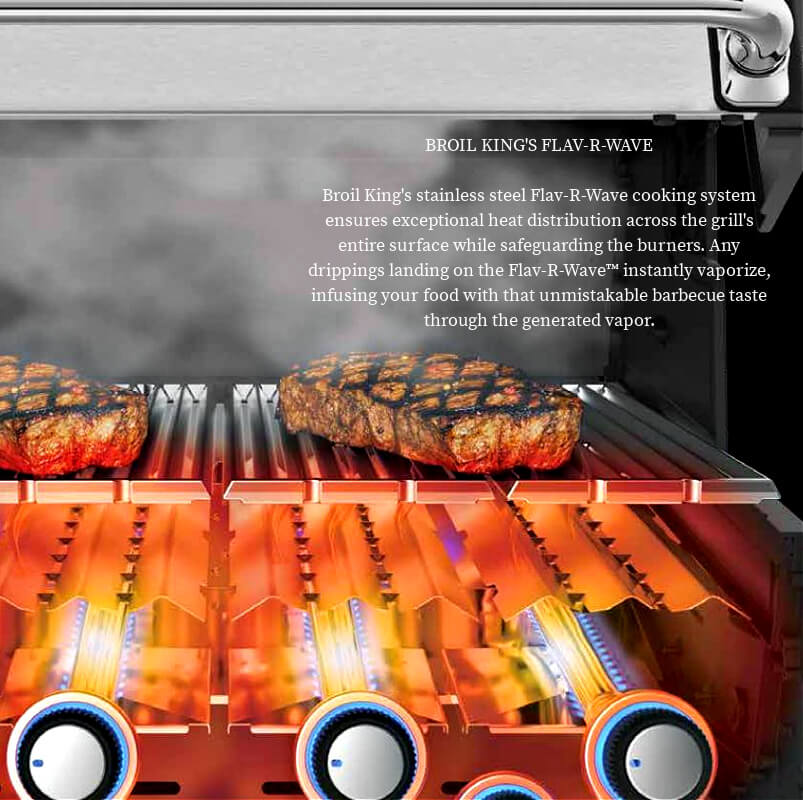

| Cooking System | Stainless steel Flav-R-Wave |

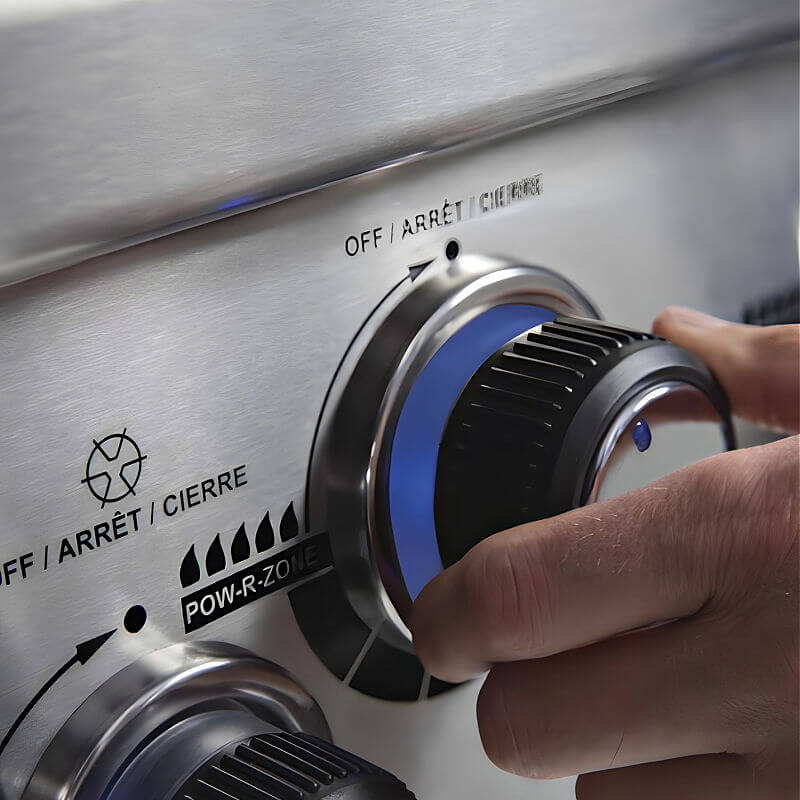

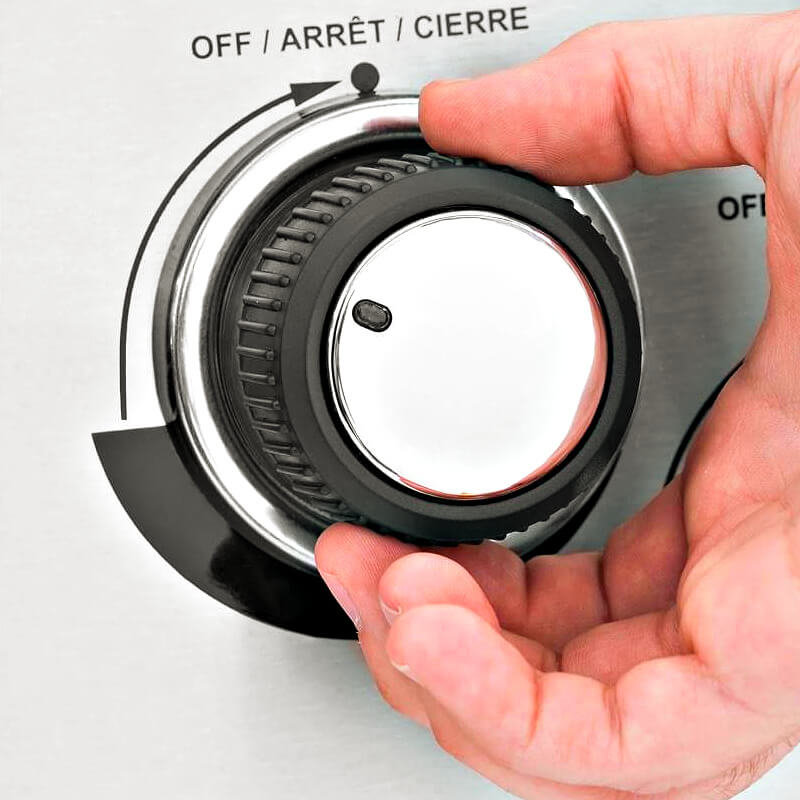

| Valves and Controls | Linear-Flow valves with 180 degree Sensi-Touch control |

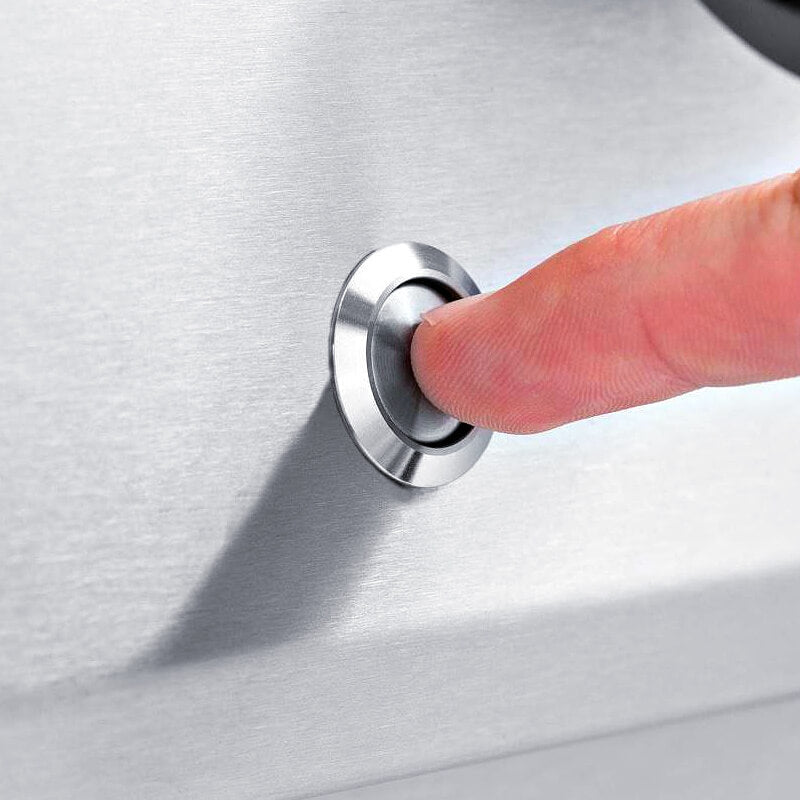

| Ignition | Sure-Lite electronic dual-electrode ignition |
| Lights | Built-in cookbox lights and control knob lights |
| Gas | NG 7 in w.c. or LP 11 in w.c. per the Broil King owner's manual |
Dimensions and Cutout
| Overall (W x D x H) | 44.8 x 27 x 24.6 in per current listing |
| Cutout | Per the Broil King Imperial S 670 / S 690 assembly manual drawing; confirm with us before cutting stone |
| Clearances Above Counter | 15 in to a combustible wall, 12 in to a protected combustible wall, 6 in to a non-combustible wall (sides and rear) |
| Overhead | 60 in minimum from the grilling surface; combustible overhead construction needs an exhaust hood of at least 1,200 CFM |
Features

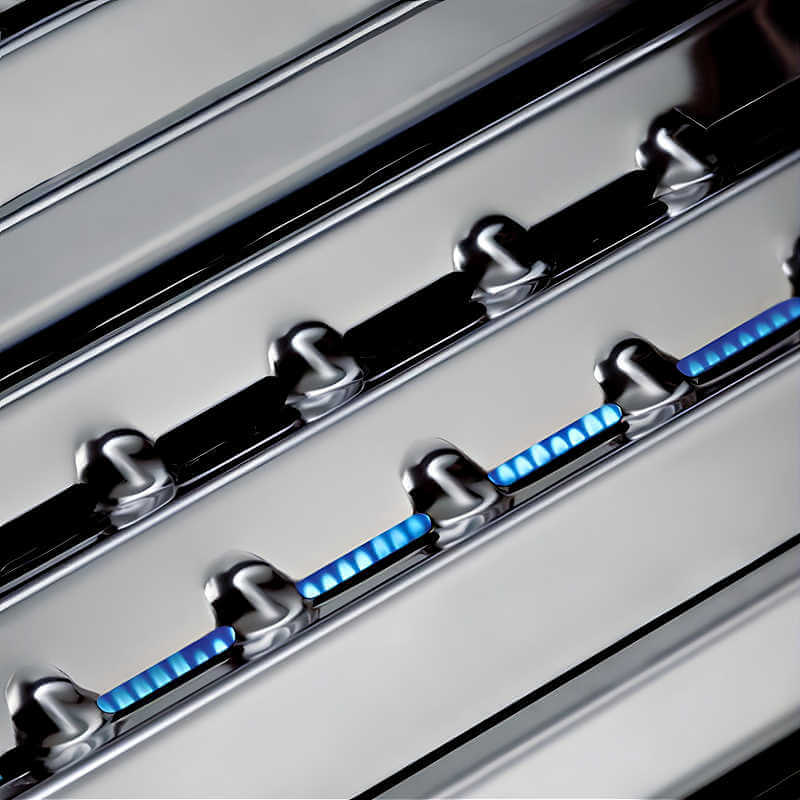

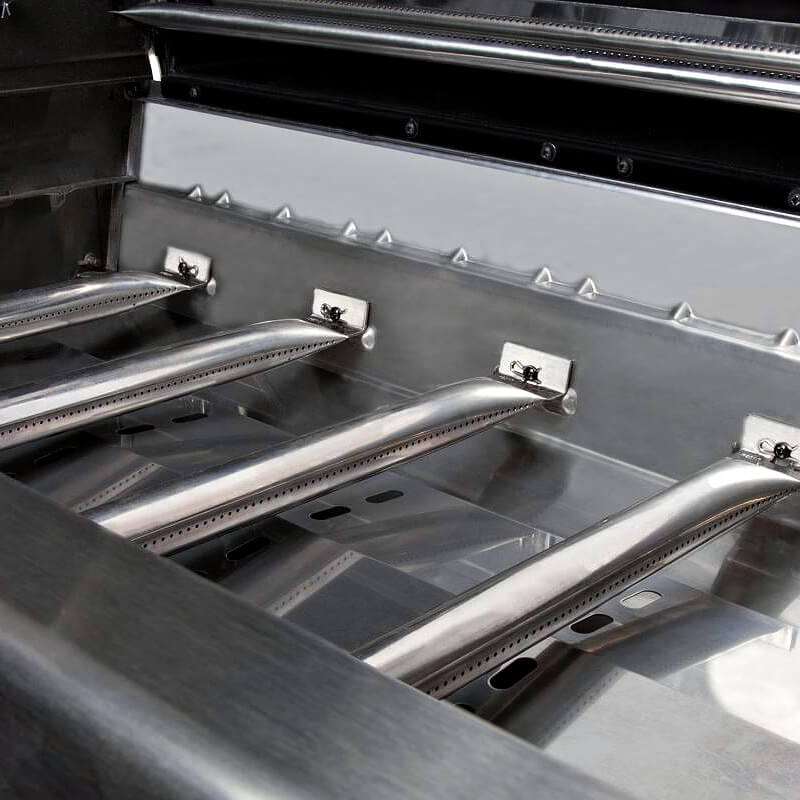

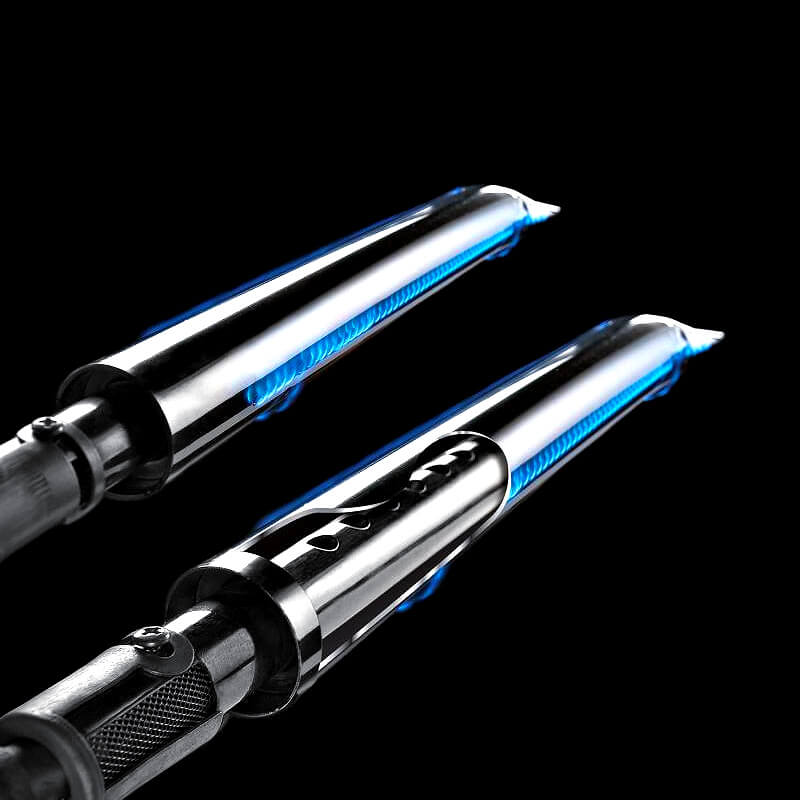

- Six Dual-Tube burners with two rows of flame each

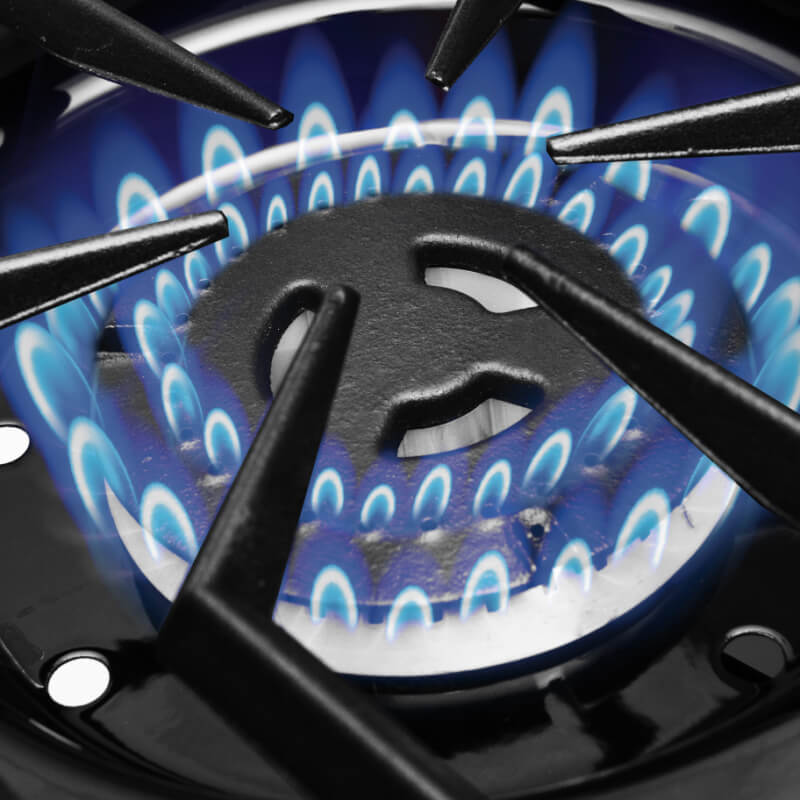

- 10,000 BTU side burner for sauces and sides
- Two independent cookboxes under roll-action lids with cast aluminum end caps
- Cast stainless steel grids and stainless Flav-R-Wave

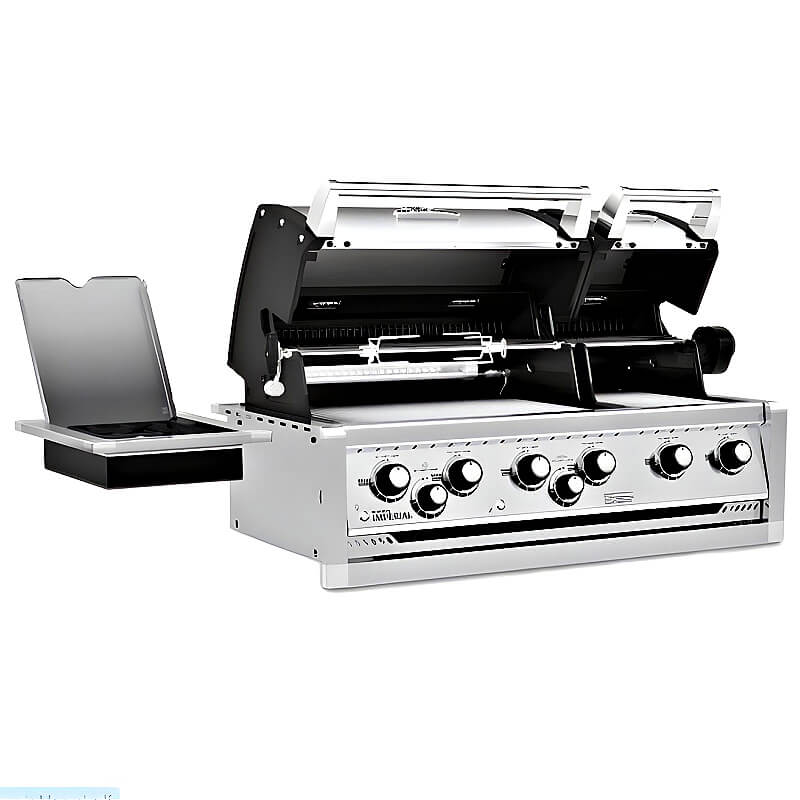

- Rear rotisserie burner and premium rotisserie kit included
- Two Deluxe Accu-Temp thermometers

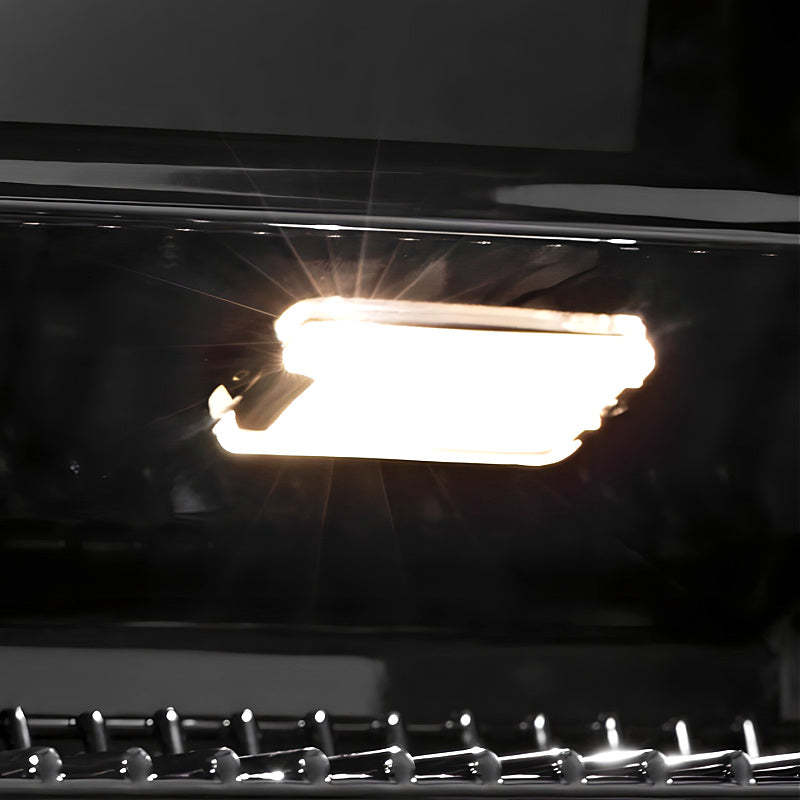

- Cookbox and control knob lights
- Slide-out grease tray
What Is Included and What You Will Need
- Included: grill head with side burner, cast stainless grids, Flav-R-Wave, warming rack, rear rotisserie burner and rotisserie kit
- Required: an island built to the Broil King cutout with enclosure ventilation per the manual, a GFI outlet inside the enclosure for the lights and rotisserie, and a propane or natural gas supply
- Propane: a 20 lb cylinder is not included
Installation Notes
Broil King requires 15 in from combustible walls above the counter, 6 in from non-combustible walls, and 60 in of overhead clearance, with a 1,200 CFM hood under combustible overhead construction. Vent the enclosure as the manual specifies; larger vents are required when an LP cylinder is stored inside. In New York City, propane tank storage carries FDNY rules and gas work must be done by a licensed master plumber under a DOB permit, so confirm the fuel with us before you order. Book a free design consultation and we will help you lay out the island, cutout and utilities.
Documentation
- Owner's Manual (as linked previously)
- Imperial S 670 / S 690 Assembly Manual (70084-E75)
- Broil King Owner's Manual (70094-40)
Frequently Asked Questions
How is the S 690 different from the S 670?
The S 690 adds a 10,000 BTU side burner; the main grill, two cookboxes and rotisserie are the same.
Is the rotisserie included?
Yes. The 15,000 BTU rear burner and the rotisserie kit come with the grill.
Does it need power?
Yes, for the lights and rotisserie motor. Broil King calls for a GFI outlet inside the enclosure.
Which fuel should I choose?
Natural gas for a permanent island with a gas line, propane for a tank. Choose above.
Related reading: Built-in gas grill buying guide and Side burner, power burner and griddle guide.
Warranty
Broil King's owner's manual lists a limited lifetime warranty on the stainless steel lid components and cookbox, with separate multi-year terms on grids, Dual-Tube burners, side and rear burners and Flav-R-Wave, for the original purchaser in normal domestic use. Labor, installation and service calls are not covered. The current listing summarized it as 10 years on burners and 2 years on remaining parts and paint; we confirm the exact terms at order.
