Broil King  |  SKU: 957944

Broil King Regal S 690 Pro Infrared 6-Burner Portable Gas Grill

$2,699.00 $2,899.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

This item is available for pick-up or local delivery only (NYC Tri-State NJ CT & Long Island). Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Local delivery or pick-up across NYC, Long Island, NJ and CT. Delivery is free on this item.
  • Factory-authorized Broil King dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Local Delivery
  • Our team & trucks deliver locally within 60 miles of our showroom. (NYC Tri-State including all of Suffolk County)
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 days
  • $49.95 Flat-Rate Local Shipping on orders under $999
  • Setup & Assembly available for most items at checkout

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
Call for a free quote 718-326-4328

Visit our sister site to learn more about our showroom products like Direct Vent Gas Fireplaces, www.NYCFireplaces.com

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Available Sizes: Broil King Regal S Pro IR Freestanding Gas Grills

Model 490 — 4 burners | Model 590 — 5 burners | Model 690 — 6 burners (Current Size)

Overall Dimensions: 70 in W x 24.8 in D x 49.2 in H (per current listing; Broil King does not publish overall dimensions for this model)

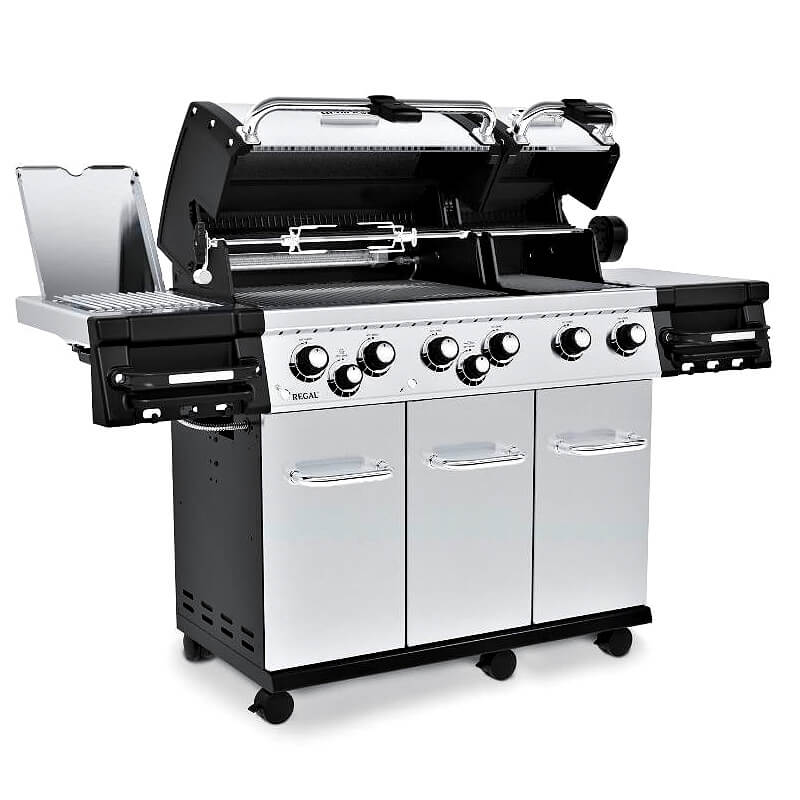

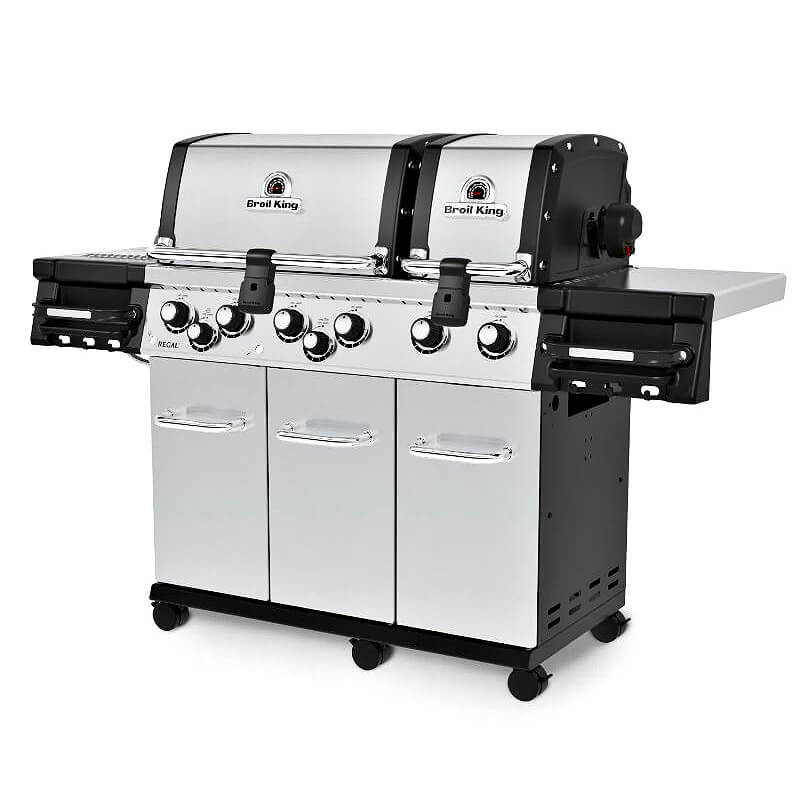

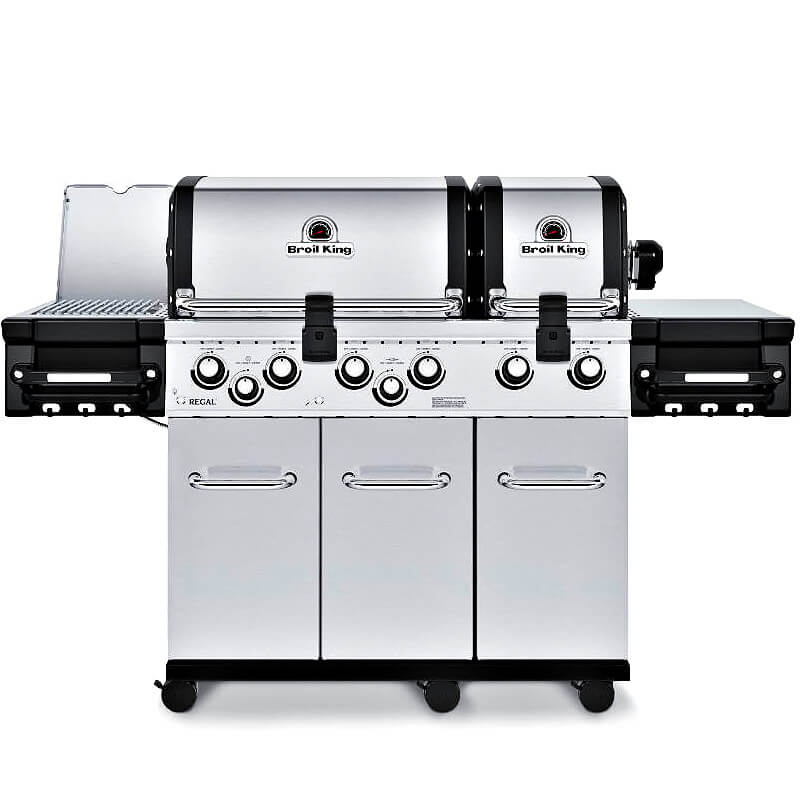

The Broil King Regal S 690 Pro Infrared is a six-burner cart grill with two fully independent cookboxes, so you can run a hot sear zone on one side and a low roast on the other. Six stainless Dual-Tube burners deliver 60,000 BTU across a 500 sq in large cookbox and a 250 sq in small cookbox, with a 10,000 BTU infrared side burner and a 15,000 BTU rear burner with a premium rotisserie kit. The cart has 304 stainless side shelves, stainless doors and lids, and a pull-out tank drawer on propane models.

Key Specifications

Model Regal S 690 Pro Infrared; Broil King SKU 957944 (propane), 957947 (natural gas)

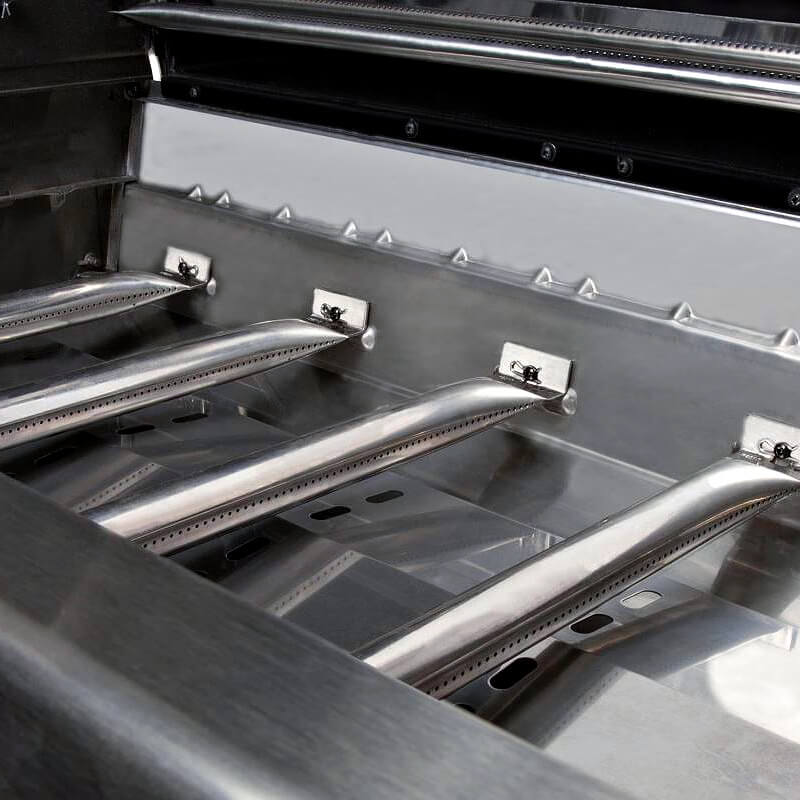

Main Burners 6 stainless steel Dual-Tube burners, 60,000 BTU

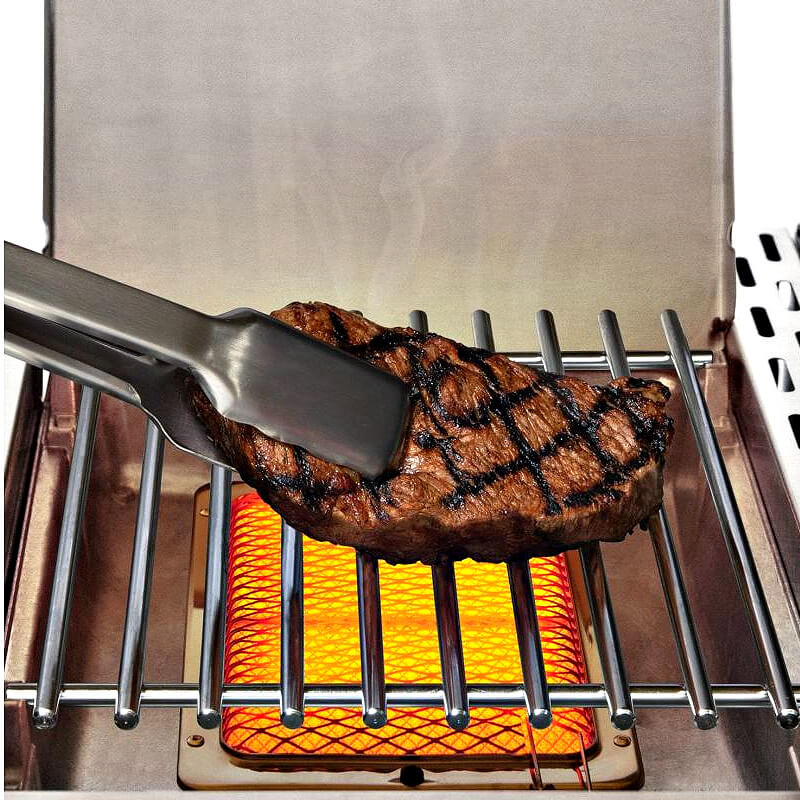

Side Burner 10,000 BTU infrared with solid 8 mm stainless grid
Rear Burner 15,000 BTU stainless rotisserie burner; premium rotisserie kit included
Cooking Area 500 sq in large cookbox plus 250 sq in small cookbox; 1,150 sq in total including the infrared grid and warming racks
Grids Apex reversible stainless steel V-Grids; main 25.5 x 19.25 in and secondary 12.46 x 19.25 in per current listing
Cookbox Twin independent 304 stainless cookboxes with cast aluminum end caps; roll-action lids

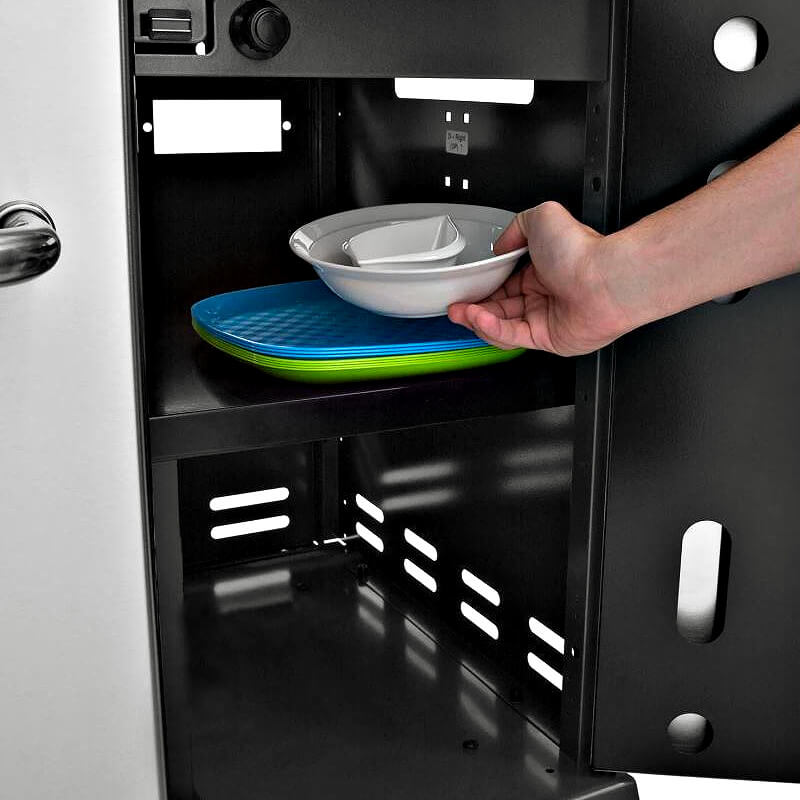

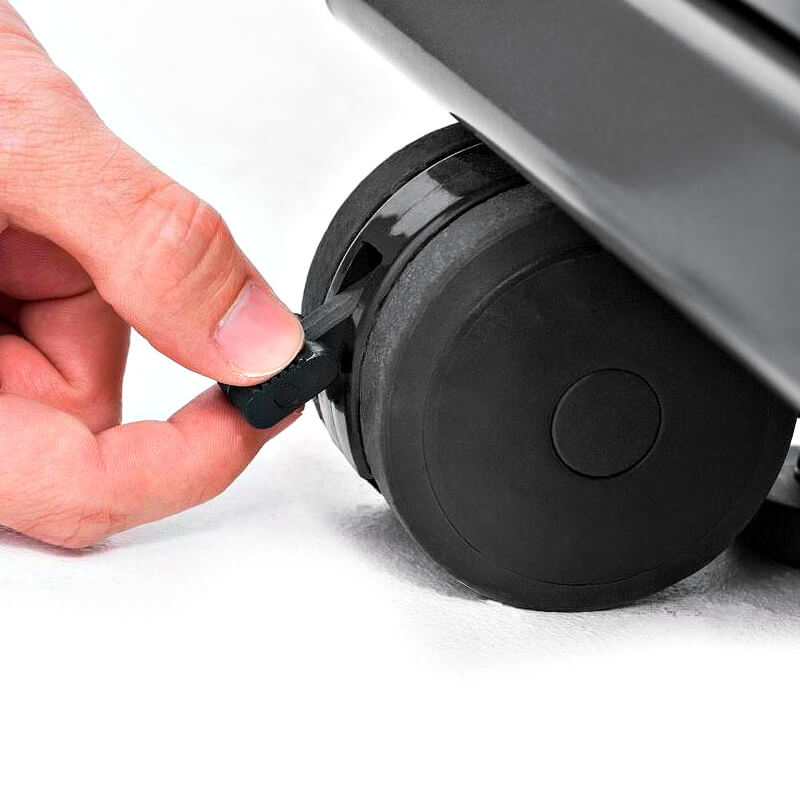

Cart Rigid steel cabinet with stainless doors, 304 stainless side shelves, powder-coat finish, 3 in locking casters

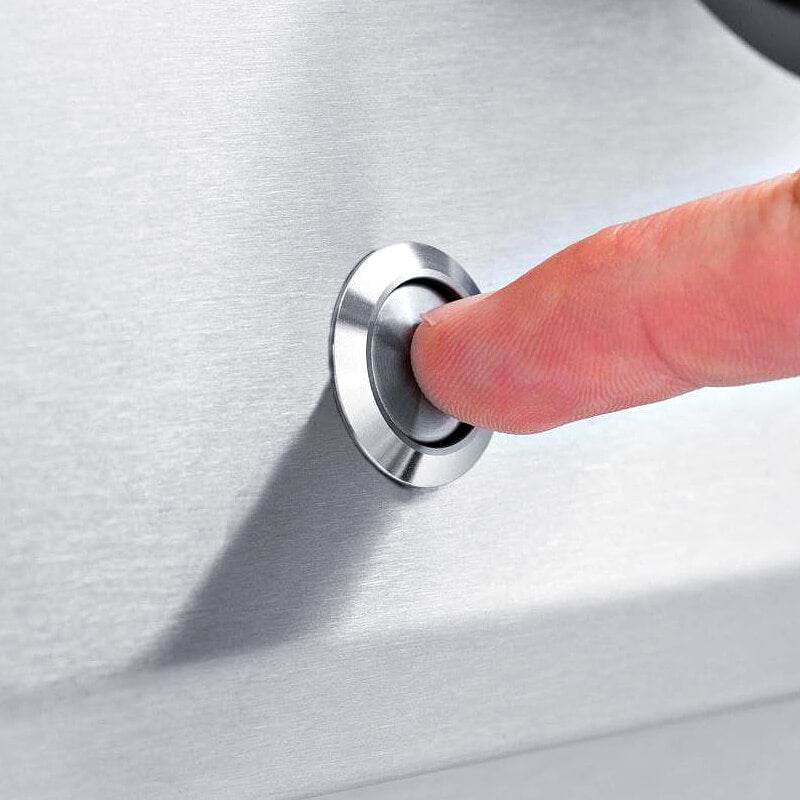

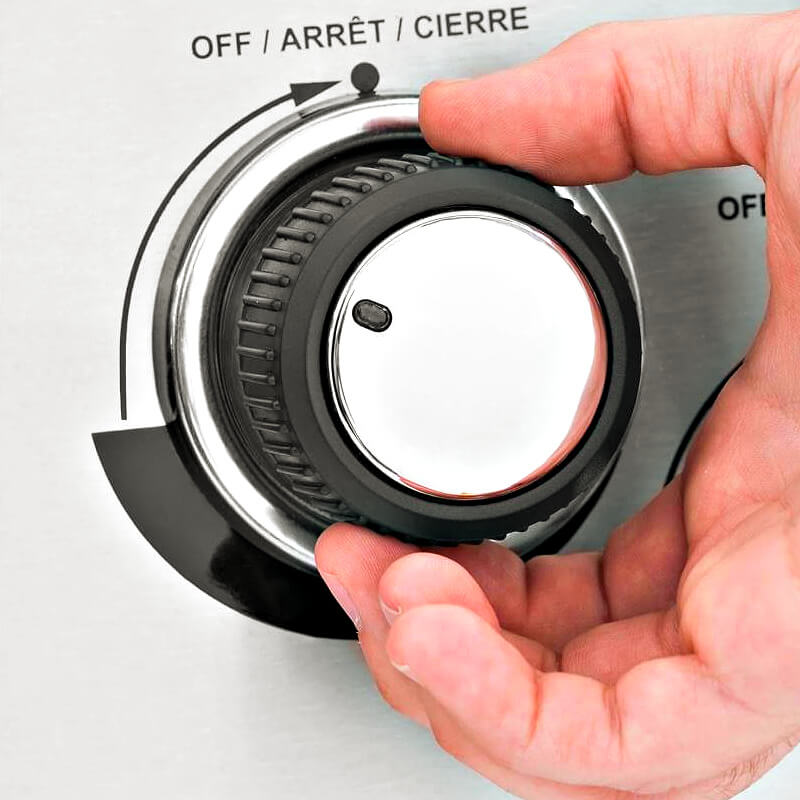

Valves and Ignition Linear-Flow valves with 180 degree control; Sure-Lite electronic ignition

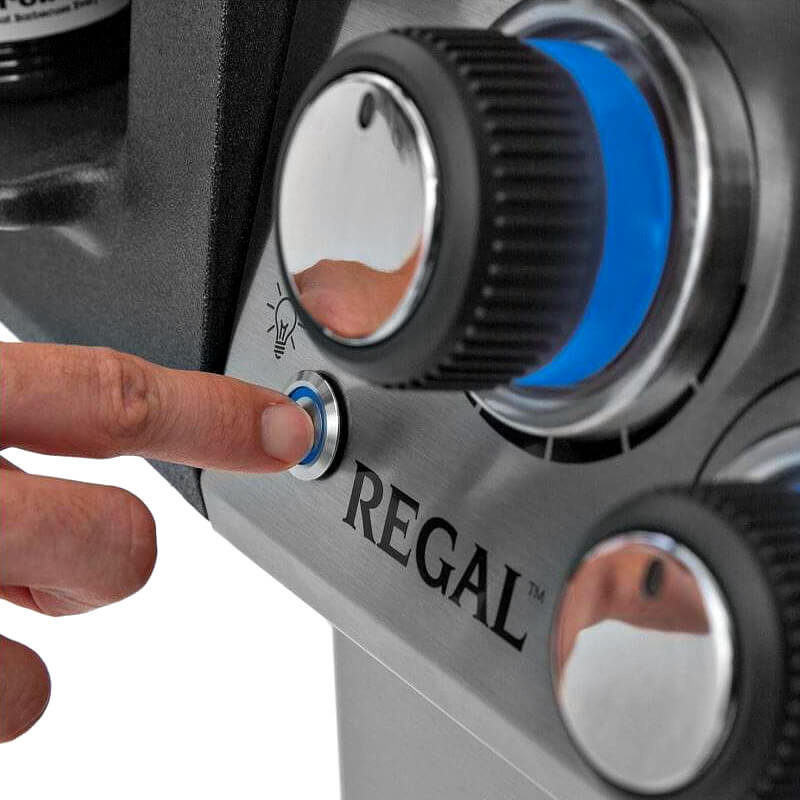

Lighting Two COB light strips, light on the removable handle, illuminated control knobs
Gas Pressure Propane 11 in w.c. (regulator set) per the Broil King LP owner's manual
Weight 270 lb per Broil King

Dimensions and Cutout

Overall (W x D x H) 70 x 24.8 x 49.2 in per current listing
Cutout Not applicable; freestanding cart grill
Clearance to Combustibles 30 in from each side and 30 in from the rear
Overhead Do not operate under any overhead roof construction

Features

  • Twin independent cookboxes for two-zone cooking

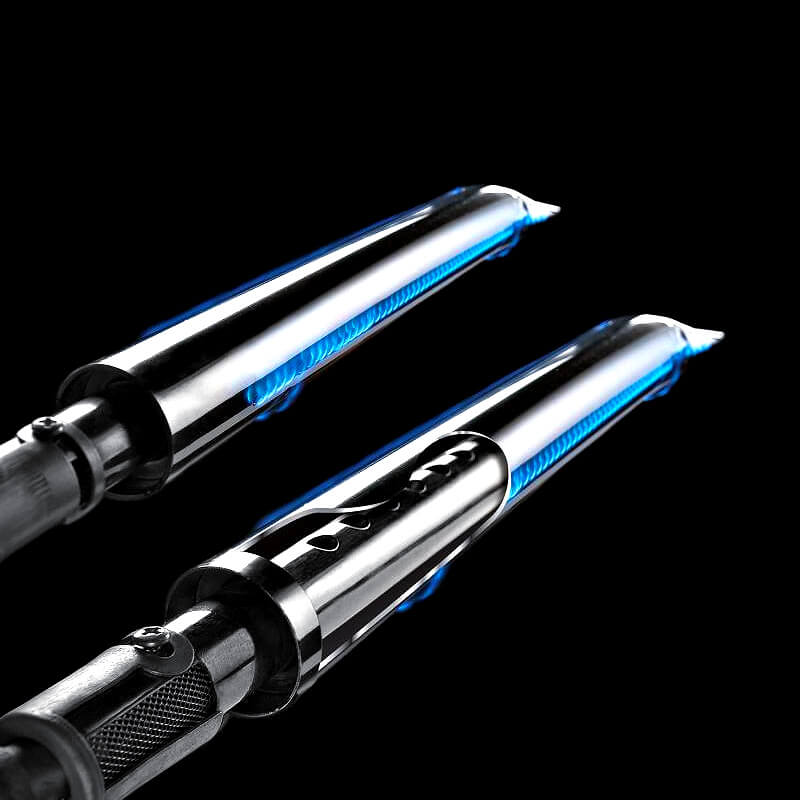

  • Six Dual-Tube burners with two rows of flame each

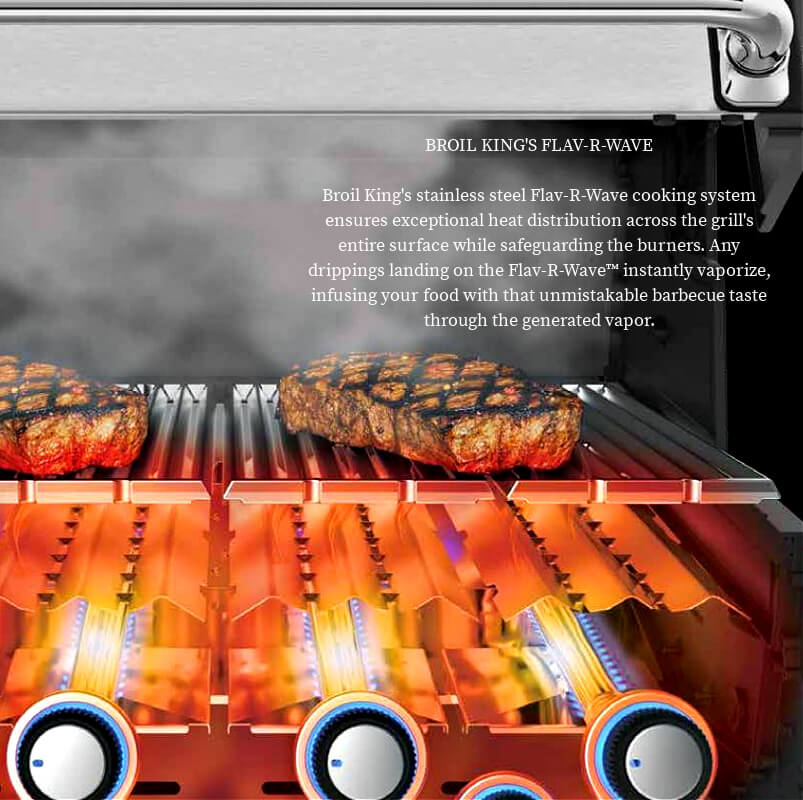

  • Stainless Flav-R-Wave vaporizes drippings and shields the burners
  • 10,000 BTU infrared side burner for high-heat searing
  • 15,000 BTU rear burner with premium rotisserie kit
  • Premium thermometer and roll-action lids
  • COB light strips, handle light and illuminated knobs for night cooking
  • Pull-out tank drawer on propane models; stainless warming rack

What Is Included and What You Will Need

  • Included per Broil King: grill on cart, Apex stainless grids, infrared side burner, stainless warming racks and premium rotisserie kit
  • Required: a 20 lb propane cylinder (LP model) or a natural gas supply with the Broil King NG hose (NG model), plus an outdoor GFI outlet for the lights

Installation Notes

This is a freestanding cart grill for outdoor use only. Broil King requires 30 in from combustible surfaces at each side and at the rear, and prohibits operation under any overhead roof construction. Connect the GFI power cord for the lights. A natural gas hookup should be made by a qualified installer; in New York City a fixed natural gas line requires a licensed master plumber and a DOB permit, and FDNY restricts propane cylinder storage and use, so most city installs run on natural gas. Talk to our design team about fuel and placement for your space.

Documentation

Frequently Asked Questions

Why two cookboxes?

Each cookbox has its own lid and burners, so you can sear in one and roast or keep food warm in the other at a different temperature.

Is it portable?

It is a freestanding cart grill on 3 in locking casters, weighing 270 lb per Broil King, so it rolls on a patio but is not a tabletop or travel grill.

Can I use it under a covered patio?

No. Broil King prohibits operation under any overhead roof construction and requires 30 in from combustibles at the sides and rear.

Is it available for natural gas?

Yes. Broil King lists SKU 957947 for natural gas and 957944 for propane; choose the fuel in the variant selector.

Related reading: What size grill do I need? and Natural gas vs propane grill

Warranty

Broil King's owner's manual lists, for Regal grills, a limited lifetime warranty on lid components and the stainless cookbox, and 15 years on stainless grids, Dual-Tube burners, side, rear and infrared side burners (excluding screen), stainless components and remaining parts and paint. The Flav-R-Wave is covered against rust-through for 5 years on Regal models; surface rust is not covered.
