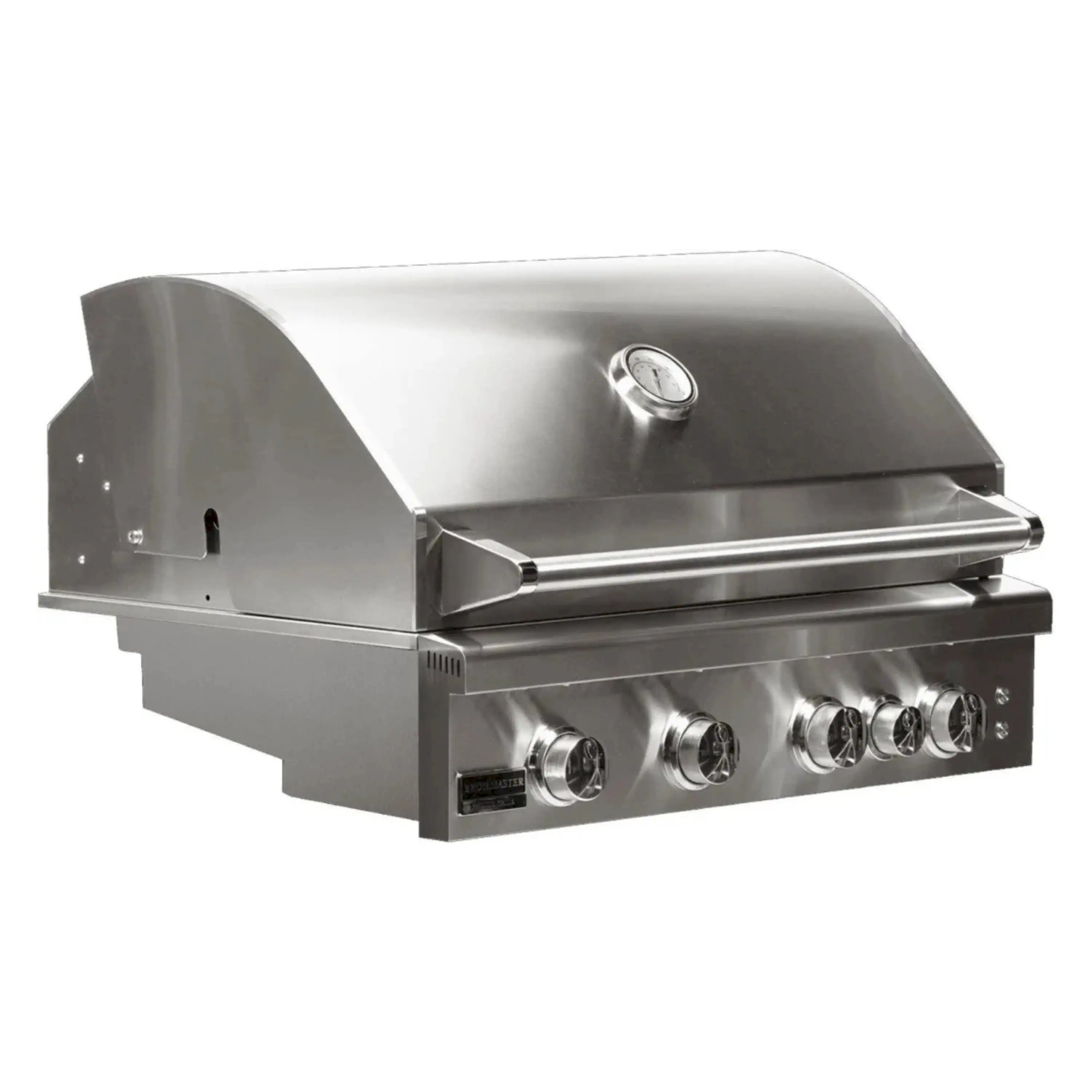

Broilmaster B-Series 32-Inch 4-Burner Marine Grade Fully Loaded Built-In Natural Gas Grill - BSB324MGN
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Broilmaster B-Series 32-Inch 4-Burner Marine Grade Fully Loaded Built-In Natural Gas Grill - BSB324MGN - Without Cover / Add For LP Conversion +$27 is backordered and will ship as soon as it is back in stock.
Choose with help from our Maspeth showroom. Read customer reviews on Google.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
- Northeast shipping. Eligible orders over $999 ship free within our 11-state area; other eligible orders have a flat rate at checkout. Product exclusions apply. Shipping details.
- Factory-authorized Broilmaster dealer. You keep the full manufacturer warranty.
- 30-day returns, no restocking fee.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Maspeth, NY 11378
- Monday–Friday
- 9:00 AM–5:00 PM
- Saturday
- 10:00 AM–3:00 PM
- Sunday
- Closed
Call ahead to confirm the model you want to see and pickup readiness.
Shipping & Delivery Area
Shipping & Delivery Area
- Online shipping is limited to Maine, Vermont, New York, New Hampshire, Massachusetts, Connecticut, Pennsylvania, New Jersey, Maryland, Delaware and Rhode Island.
- Eligible orders over $999 receive free standard shipping; eligible orders of $999 or less have a flat rate shown at checkout.
- Our own trucks deliver eligible local orders up to 120 miles. e-NRG fuel, white-glove delivery and assembly have separate eligibility, distance limits and charges.
- For other states, or when no delivery option appears, call 718-326-4328 for a quote before ordering.
- Read the shipping policy for details.
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Broilmaster B-Series 32-Inch 4-Burner Marine Grade Fully Loaded Built-In Natural Gas Grill - BSB324MGN - Without Cover / Add For LP Conversion +$27 is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: grill head 31-3/16 in W x 20-1/2 in D x 7-15/16 in H below the lid (per the Broilmaster B-Series spec sheet); cutout 31 in W x 20-1/2 in D x 8-1/2 in H
The Broilmaster B-Series 32 inch Marine Grade Fully Loaded built-in grill (BSB324MGN, natural gas) is the coastal version of the B-Series, built in 316 stainless steel with 316 cast stainless burners and 316 stainless grids. It drops into a non-combustible island and suits waterfront homes on Long Island and the Jersey Shore, where Broilmaster says its Marine Grade models are meant for corrosive salt air. It is not for installation on boats or watercraft.
Key Specifications
| Model | BSB324MGN (B-Series 32 in Marine Grade Fully Loaded built-in, natural gas) |
| Construction | 316 stainless steel grill head per the Broilmaster B-Series specification table |
| Main Burners | 4 cast 316 stainless steel burners, 14,000 BTU each, 56,000 BTU total |
| Rear Burner | 14,000 BTU rotisserie burner; rotisserie kit BSAMR32 optional |
| Cooking Area | 524 sq in main; 690 sq in total with the warming rack |
| Cooking Grids | Four 5/16 in (8 mm) 316 stainless grids |
| Heat Control | 4 stainless vaporizers (flame tamers) and 3 removable stainless heat zone dividers |
| Ignition | Push and turn Flame Thrower, no battery |
| Lights | Blue 12V LED control panel lights and two 12V halogen interior work lights (transformer powered) |
| Fuel | Natural gas; NG to LP conversion kit BR0225 (Broilmaster ships the opposite gas conversion kit with the grill) |
| Certification | ANSI Z21.58 / CSA 1.6 outdoor cooking gas appliance |
Dimensions and Cutout
| Grill Head (W x D x H) | 31-3/16 x 20-1/2 x 7-15/16 in below the lid |
| Cutout (H x D x W) | 8-1/2 x 20-1/2 x 31 in per the Broilmaster manual |
| Hood and Side Clearance | 5 in minimum behind the hood so it can open; 12 in on each side of the grill |
| Combustible Clearance | 16 in from the sides and back to combustible construction |
| Combustible Island | BSASL32 insulated sleeve (32 x 21 x 8-3/8 in); sleeve cutout 33-3/4 in W x 21-1/4 in D x 8-7/8 in H per the manual |
Features
- 316 stainless grill head, burners and grids for salt-air locations
- Rear rotisserie burner ready for the optional BSAMR32 kit
- Removable heat zone dividers for a hot side and a holding side
- Stainless vaporizers that turn drippings to flavor smoke
- Blue LED control lights and two halogen interior work lights
- Battery-free Flame Thrower ignition
- Stainless warming rack, hood thermometer and slide-out drip tray
- Drops into the cutout and rests on its sides and back, so it lifts out for service
What Is Included and What You Will Need
- Included: BSB324MGN grill head with grids, vaporizers, heat zone dividers and warming rack, plus the gas conversion kit Broilmaster packs with the grill
- Required: a non-combustible masonry enclosure with the cutout above, a natural gas line with a T handle manual shut-off valve, and a GFI-protected outlet for the light transformer
- Combustible islands: the BSASL32 insulated sleeve; never run the transformer or a gas hose inside the sleeve
- Options above: BSACV34S weather cover; B069756 low pressure hose and regulator if you convert to a 20 lb propane tank
- Optional: BSAMR32 rotisserie kit
Installation Notes
Broilmaster designs the built-in for a non-combustible masonry enclosure such as brick or cement board; do not grout or fasten the grill in, since it must lift out for maintenance. Keep 16 in to combustible construction at the sides and back and plug the transformer into a GFI-protected circuit. Broilmaster says never to locate the grill under a roof or overhang, in a garage, porch, shed or breezeway, or on a balcony, deck or patio above the ground floor, which rules out most New York City terraces and rooftops. Gas work in the city must be done by a licensed master plumber under a DOB permit. Book a free design consultation and we will help you lay out the island, cutout and gas supply.
Documentation
Frequently Asked Questions
What makes it Marine Grade?
Broilmaster builds the BSB324MG in 316 stainless, with 316 cast burners and 316 grids, for coastal areas with corrosive salt air. It is not for boats or other watercraft.
What cutout do I need?
8-1/2 in high, 20-1/2 in deep and 31 in wide per the Broilmaster manual, or the larger sleeve cutout if you use the BSASL32 in a combustible island.
Is the rotisserie included?
The 14,000 BTU rear burner is built in; the BSAMR32 rotisserie kit is sold separately.
Can I use it on a roof deck?
No. Broilmaster says never to use the grill on a balcony, deck or patio above the ground floor.
Related reading: 304 vs 316 stainless steel grills and How to measure a built-in grill cutout.
Warranty
Empire Comfort Systems warrants Broilmaster B-Series grills, including the BSB324MG, to the original purchaser: limited lifetime against rust-through on the stainless grill housing, cooking grids, cast stainless burners, drip pans, warming rack and built-in components such as sleeves, doors and vent register kits (one-time replacement); five years against rust-through on V-grates, flame tamers, heat zone partitions and infrared burners; and one year on valves, knobs, ignitors, hoses, fittings and other parts. Labor and service calls are not covered.
