Broilmaster  |  SKU: BSB405N

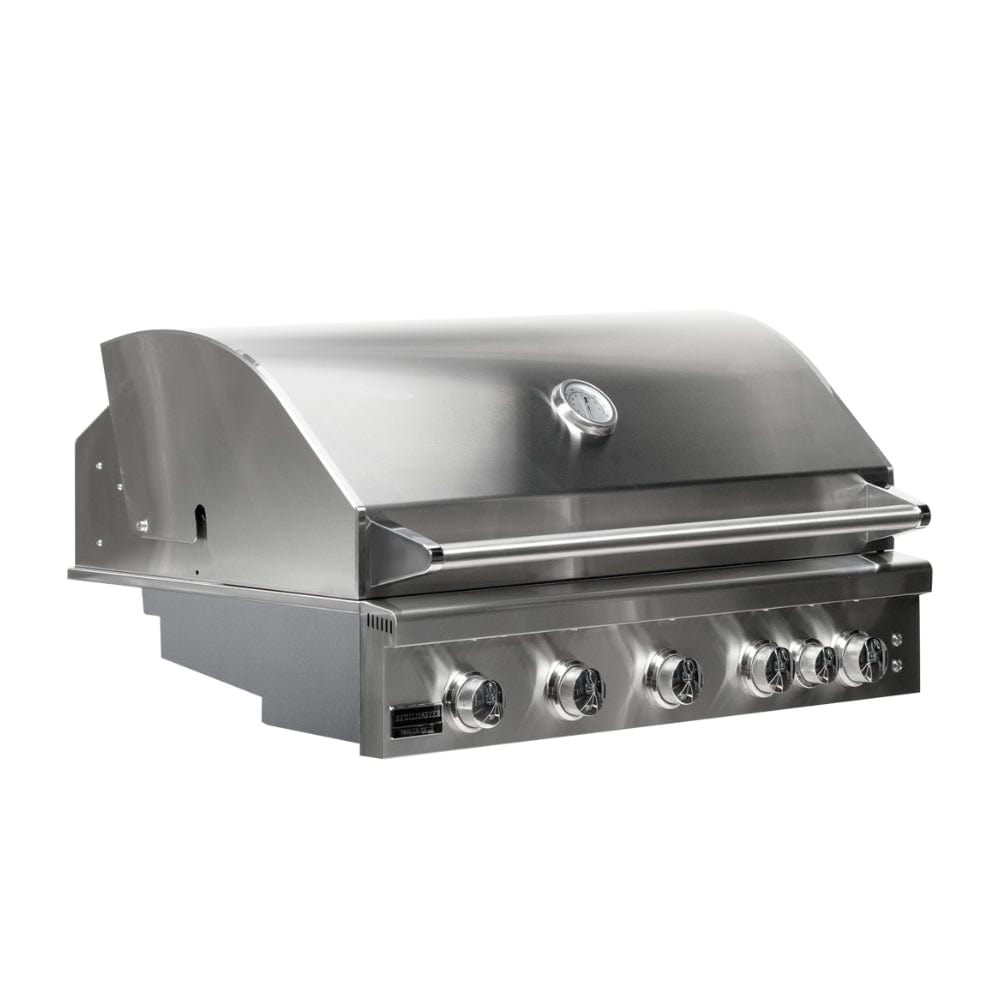

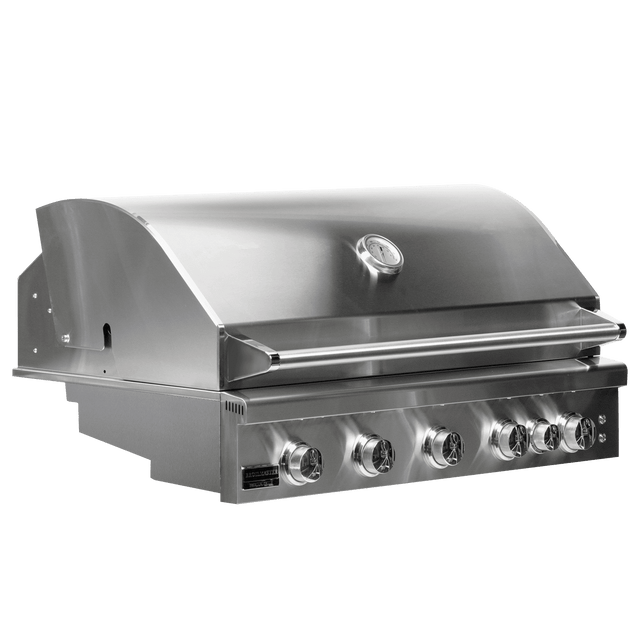

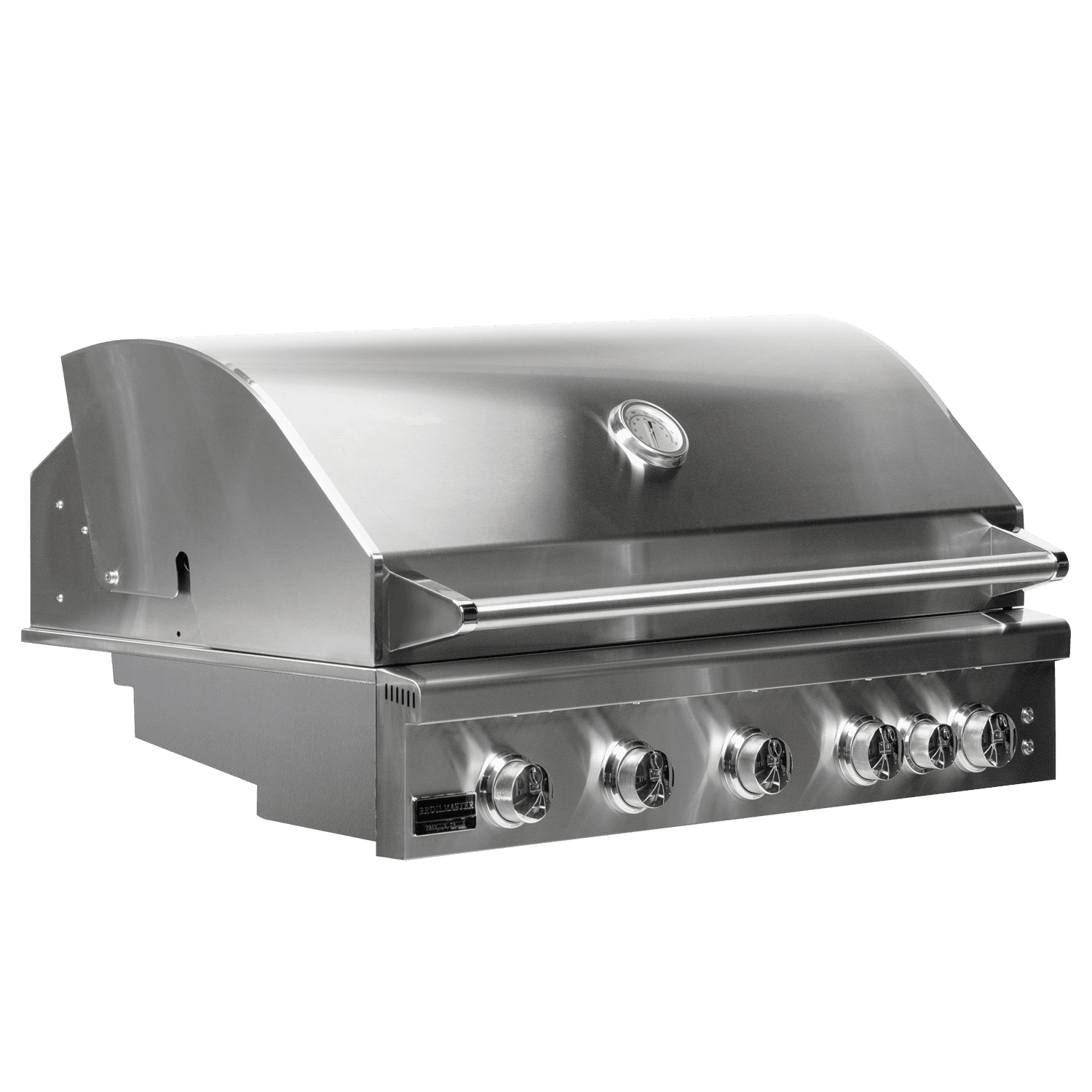

Broilmaster B-Series 40-Inch 5-Burner Fully Loaded Built-In Natural Gas Grill - BSB405N

Regular price $2,909.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Choose with help from our Maspeth showroom. Read customer reviews on Google.

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days

Northeast shipping only: ME, VT, NY, NH, MA, CT, PA, NJ, MD, DE and RI. For any other state, call 718-326-4328 for a shipping quote before ordering. Product and local-service restrictions apply. Shipping details.

400+ five-star Google reviews
  • Northeast shipping. Eligible orders over $999 ship free within our 11-state area; other eligible orders have a flat rate at checkout. Product exclusions apply. Shipping details.
  • Factory-authorized Broilmaster dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Visit our Maspeth, Queens showroom
58-30 Maspeth Ave
Maspeth, NY 11378
Monday–Friday
9:00 AM–5:00 PM
Saturday
10:00 AM–3:00 PM
Sunday
Closed

Call ahead to confirm the model you want to see and pickup readiness.

Shipping & Delivery Area

  • Online shipping is limited to Maine, Vermont, New York, New Hampshire, Massachusetts, Connecticut, Pennsylvania, New Jersey, Maryland, Delaware and Rhode Island.
  • Eligible orders over $999 receive free standard shipping; eligible orders of $999 or less have a flat rate shown at checkout.
  • Our own trucks deliver eligible local orders up to 120 miles. e-NRG fuel, white-glove delivery and assembly have separate eligibility, distance limits and charges.
  • For other states, or when no delivery option appears, call 718-326-4328 for a quote before ordering.
  • Read the shipping policy for details.

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns

  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Available Sizes: Broilmaster B-Series Fully Loaded Built-In Natural Gas Grills

32" | 40" (Current Size)

Overall Dimensions: grill head 38 in W x 20-1/2 in D x 7-15/16 in H below the lid (per the Broilmaster B-Series spec sheet); cutout 38 in W x 20-1/2 in D x 8-1/2 in H

The Broilmaster B-Series 40 inch Fully Loaded built-in grill (BSB405N, natural gas) is the largest B-Series head: five cast stainless burners at 14,000 BTU each, 648 sq in on the main grids and a 15,000 BTU rear rotisserie burner. It drops into a non-combustible island and lifts out for service, and it is built by Empire Comfort Systems, the maker of Broilmaster.

Key Specifications

Model BSB405N (B-Series 40 in Fully Loaded built-in, natural gas)
Construction 304 stainless steel per the Broilmaster B-Series specification table
Main Burners 5 cast stainless steel burners, 14,000 BTU each, 70,000 BTU total
Rear Burner 15,000 BTU rotisserie burner; rotisserie kit BSAMR40 optional
Cooking Area 648 sq in main; 853 sq in total with the warming rack

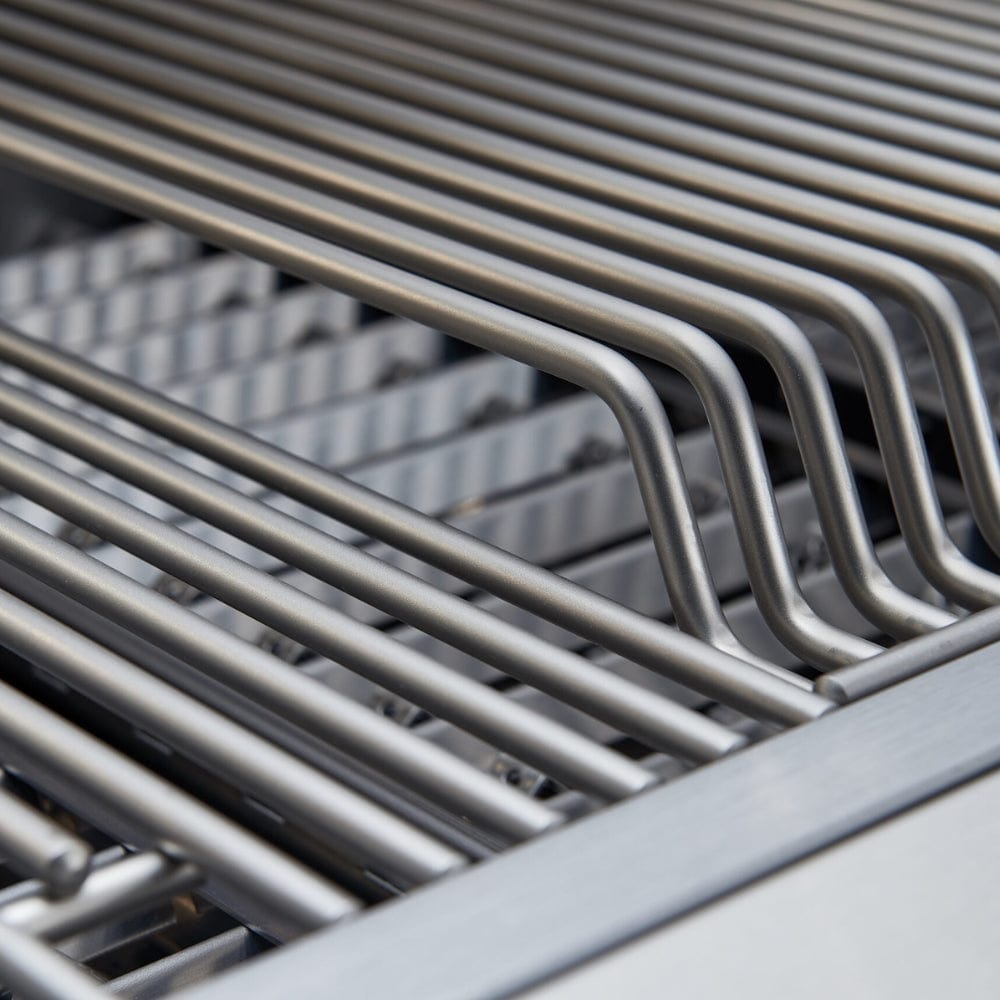

Cooking Grids Five 5/16 in (8 mm) stainless grids

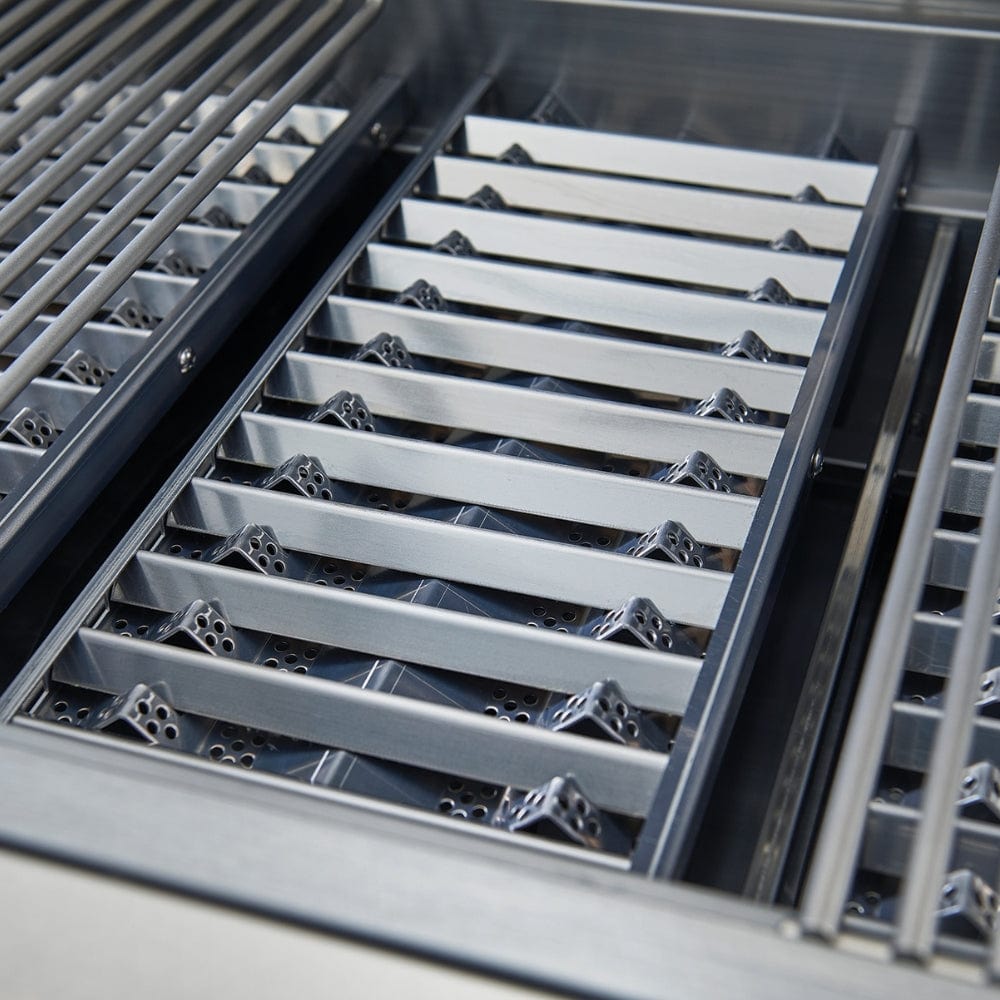

Heat Control 5 stainless vaporizers (flame tamers) and 4 removable stainless heat zone dividers
Ignition Push and turn Flame Thrower, no battery
Lights Blue 12V LED control panel lights and two 12V halogen interior work lights (transformer powered)
Fuel Natural gas; NG to LP conversion kit BR0225 (Broilmaster ships the opposite gas conversion kit with the grill)
Certification ANSI Z21.58 / CSA 1.6 outdoor cooking gas appliance

Dimensions and Cutout

Grill Head (W x D x H) 38 x 20-1/2 x 7-15/16 in below the lid
Cutout (H x D x W) 8-1/2 x 20-1/2 x 38 in per the Broilmaster manual
Hood and Side Clearance 5 in minimum behind the hood so it can open; 12 in on each side of the grill
Combustible Clearance 16 in from the sides and back to combustible construction
Combustible Island BSASL40 insulated sleeve (39 x 21 x 8-3/8 in); sleeve cutout 41 in W x 21-1/4 in D x 8-7/8 in H per the manual

Features

  • Five cast stainless burners for 70,000 BTU across a 40 in head
  • Rear rotisserie burner ready for the optional BSAMR40 kit
  • Four removable heat zone dividers for multiple temperature zones
  • Stainless vaporizers that turn drippings to flavor smoke
  • Blue LED control lights and two halogen interior work lights
  • Battery-free Flame Thrower ignition
  • Stainless warming rack, hood thermometer and slide-out drip tray
  • Drops into the cutout and rests on its sides and back, so it lifts out for service

What Is Included and What You Will Need

  • Included: BSB405N grill head with grids, vaporizers, heat zone dividers and warming rack, plus the gas conversion kit Broilmaster packs with the grill
  • Required: a non-combustible masonry enclosure with the cutout above, a natural gas line with a T handle manual shut-off valve, and a GFI-protected outlet for the light transformer
  • Combustible islands: the BSASL40 insulated sleeve; never run the transformer or a gas hose inside the sleeve
  • Options above: BSACV42S weather cover; B069756 low pressure hose and regulator if you convert to a 20 lb propane tank
  • Optional: BSAMR40 rotisserie kit

Installation Notes

Broilmaster designs the built-in for a non-combustible masonry enclosure such as brick or cement board; do not grout or fasten the grill in, since it must lift out for maintenance. Keep 16 in to combustible construction at the sides and back and plug the transformer into a GFI-protected circuit. Broilmaster says never to locate the grill under a roof or overhang, in a garage, porch, shed or breezeway, or on a balcony, deck or patio above the ground floor, which rules out most New York City terraces and rooftops. Gas work in the city must be done by a licensed master plumber under a DOB permit. Book a free design consultation and we will help you lay out the island, cutout and gas supply.

Documentation

Frequently Asked Questions

What cutout do I need?

8-1/2 in high, 20-1/2 in deep and 38 in wide per the Broilmaster manual, or the larger sleeve cutout if you use the BSASL40 in a combustible island.

How much cooking room is there?

648 sq in on the main grids and 853 sq in including the warming rack.

Is the rotisserie included?

The 15,000 BTU rear burner is built in; the BSAMR40 rotisserie kit is sold separately.

Can I use it on a roof deck?

No. Broilmaster says never to use the grill on a balcony, deck or patio above the ground floor.

Related reading: Built-in gas grill buying guide and How to measure a built-in grill cutout.

Warranty

Empire Comfort Systems warrants Broilmaster B-Series grills to the original purchaser: limited lifetime against rust-through on the stainless grill housing, cooking grids, cast stainless burners, drip pans, warming rack and built-in components such as sleeves, doors and vent register kits (one-time replacement); five years against rust-through on V-grates, flame tamers, heat zone partitions and infrared burners; and one year on valves, knobs, ignitors, hoses, fittings and other parts. Labor and service calls are not covered.
