Description

Available Sizes: Bromic Platinum Smart-Heat Gas Heaters

Natural gas: 300 (22 in.) (Current Size) | 500 (29 in.)

Propane: 300 (22 in.) (Current Size) | 500 (29 in.)

Bromic Platinum Smart-Heat gas heaters. Size and heat output differ; order the same fuel as your gas supply and confirm clearances.

Overall Dimensions: 22.1 in W (per the Bromic Platinum Gas manual); 22 x 15.62 x 14.85 in per current listing

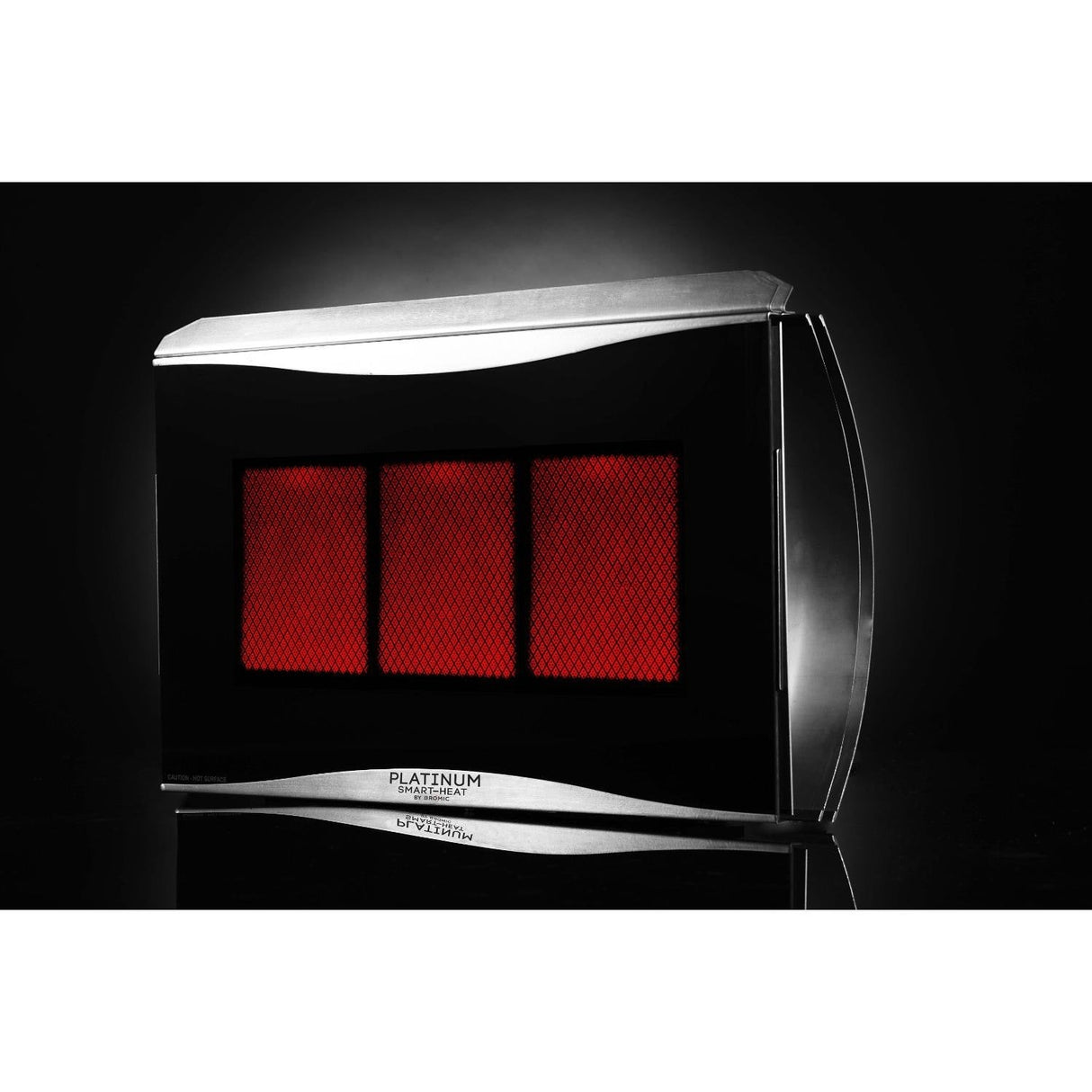

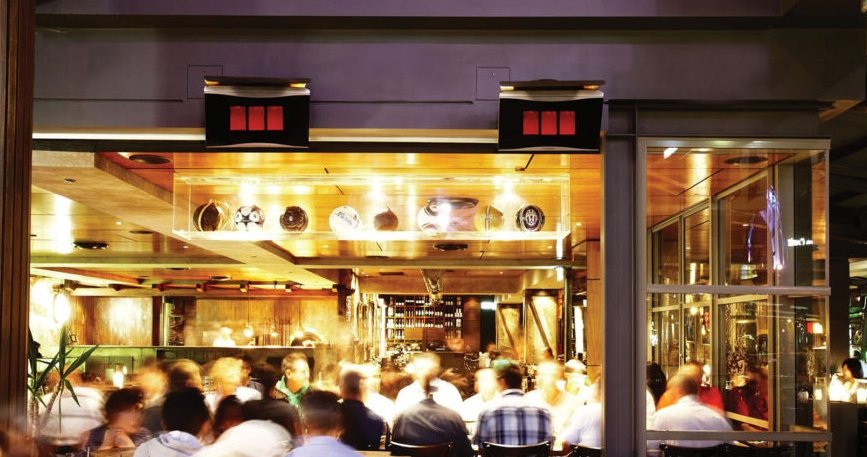

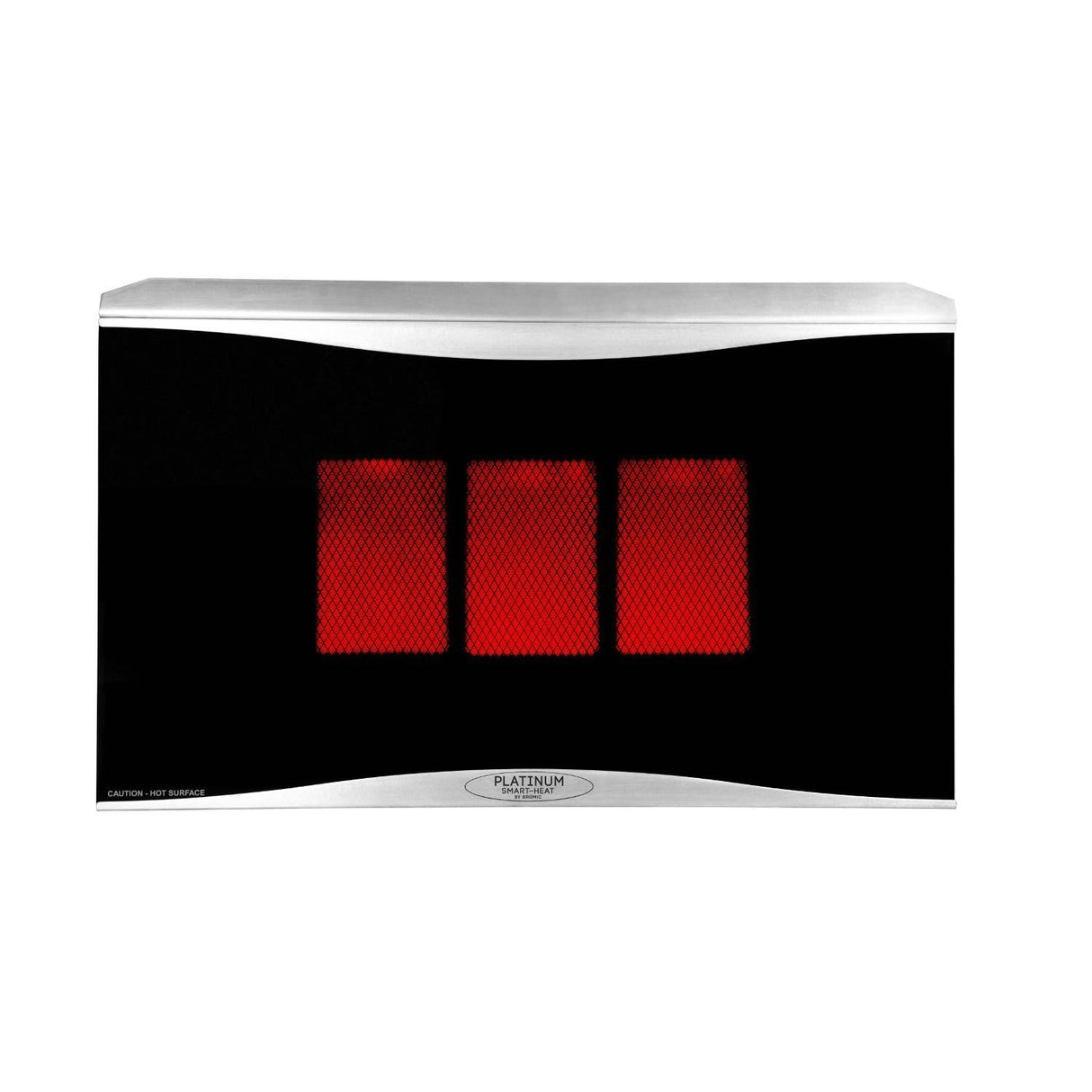

The Bromic Platinum 300 Smart-Heat Gas heater (BH0110001-1 natural gas, BH0110002-1 propane) is a wall or ceiling mounted radiant patio heater behind Bromic's ceramic-glass screen, rated at 23,600 BTU for about 160 sq ft. It is built for covered patios, pergolas and restaurant terraces where a freestanding mushroom heater would be in the way, and it ties into Bromic's Affinity smart controls or a manual wall switch. Choose the fuel, an optional heat deflector and an Affinity on/off controller above.

Key Specifications

Model Bromic Platinum 300 Smart-Heat Gas: BH0110001-1 (natural gas) or BH0110002-1 (propane)
Heat Output 23,600 BTU
Heat Area About 160 sq ft per the Bromic cut sheet
Gas Pressure NG: 6 to 14 in w.c. inlet, 5 in w.c. manifold. LP: 11 to 14 in w.c. inlet, 10 in w.c. manifold
Electrical 110V, under 2 A
Ignition Electronic ignition with flame failure safety shut-off per current listing
Wind Resistance Up to 12 mph per the Bromic cut sheet
Rating IPX4; ETL and cETL listed (4009079)
Controls Affinity on/off controller or manual wall switch
Weight 33 lb

Dimensions and Cutout

Width 22.1 in per the Bromic manual
Mounting Height 8 ft minimum above the ground
Clearance to Combustibles Above 3 ft without the heat deflector, 14 in with the deflector; 3 ft on the manual's B dimension
Mounting Wall bracket included; ceiling mount poles in 9.69, 13.62, 17.56, 25.43, 33.31 and 41.18 in lengths

Features

  • Signature ceramic-glass screen for even radiant heat
  • Wall bracket included, with ceiling pole mounts available
  • Pivoting bracket to aim the heat
  • Affinity smart control compatibility for one or many heaters
  • Optional heat deflector that reduces the clearance above to 14 in
  • Fully enclosed body built for outdoor use

What Is Included and What You Will Need

  • Included: heater with wall bracket and control housing
  • Required: a gas line at the pressures above with a CSA approved flexible connector, and a 110V supply
  • Options above: BH3030001-1 heat deflector and the BH3130051 Affinity on/off controller
  • Optional: ceiling mount pole kit for ceiling installations and the accessories suggested below

Installation Notes

Bromic approves the Platinum gas heater for outdoor areas only, never indoor residential spaces. Outdoors means an open area, or a covered area with no more than two walls, or one with more walls only if Bromic's open-area percentages are met. Mount at least 8 ft above the ground and keep the listed clearances to combustibles; installation must be done by an authorized gas installer to local code. In New York City, gas work must be done by a licensed master plumber under a DOB permit, and propane storage carries FDNY rules. Book a free design consultation and we will help you plan heater placement and the gas supply.

Documentation

Frequently Asked Questions

Can it go under a covered patio?

Yes, if the space qualifies as outdoors under Bromic's rules and the heater keeps 3 ft to combustibles above, or 14 in with the heat deflector.

How high must it be mounted?

At least 8 ft above the ground.

Does it need electricity?

Yes. It needs a 110V supply drawing under 2 A for the ignition and controls.

Can I control several heaters together?

Yes. Bromic's Affinity smart controls can run one or multiple heaters.

Related reading: Patio heater buying guide and Best patio heater for a covered patio.

Warranty

Bromic's US warranty lists two years on Platinum Gas heaters for the original owner, excluding maintenance items such as hoses and igniters. Claims start with the dealer who sold the heater.
