Bromic  |  SKU: BH3622001

Bromic Heating Platinum Smart-Heat 53-Inch 4500W Dual Element 240V Electric Infrared Heater - White - BH3622001

$2,936.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Bromic dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Overall Dimensions: 53.2 in W x 10.1 in H x 2.1 in D (1351 x 257 x 54 mm, per the Bromic Platinum Electric 4500W manual)

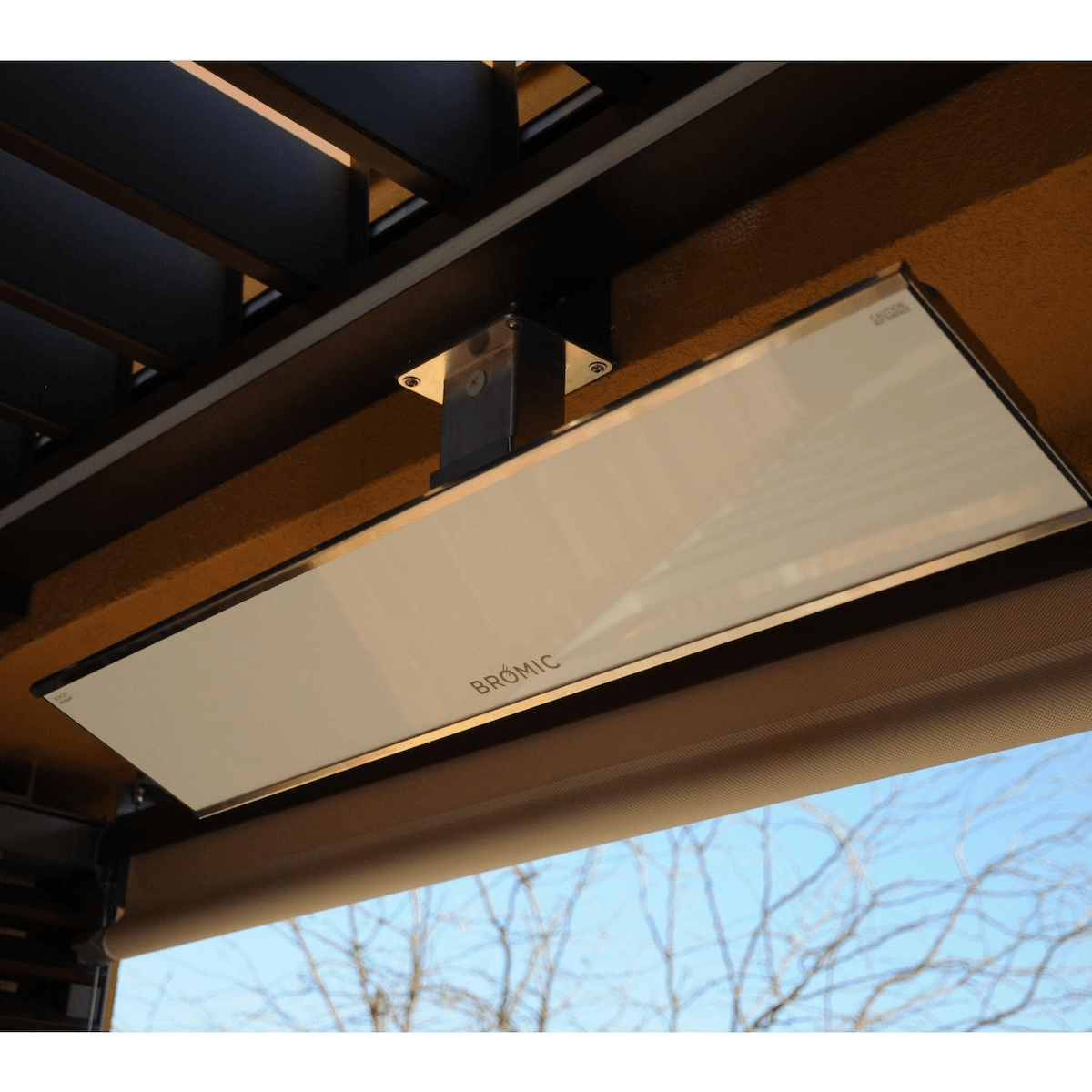

The Bromic Platinum Smart-Heat Electric 4500W (BH3622001, white) is the largest heater in Bromic's slim Platinum electric line, rated for about 143 square feet from a single unit. In white it blends into light ceilings and soffits, and at 2.1 inches deep it can sit tight to the ceiling or be recessed with Bromic's kits. It suits covered terraces, pergolas and restaurant patios with 220 to 240V service where the heater should all but disappear.

Key Specifications

Model Bromic Platinum Smart-Heat Electric Series II 4500W, BH3622001 (white, 220 to 240V)
Heat Output 4,500 W

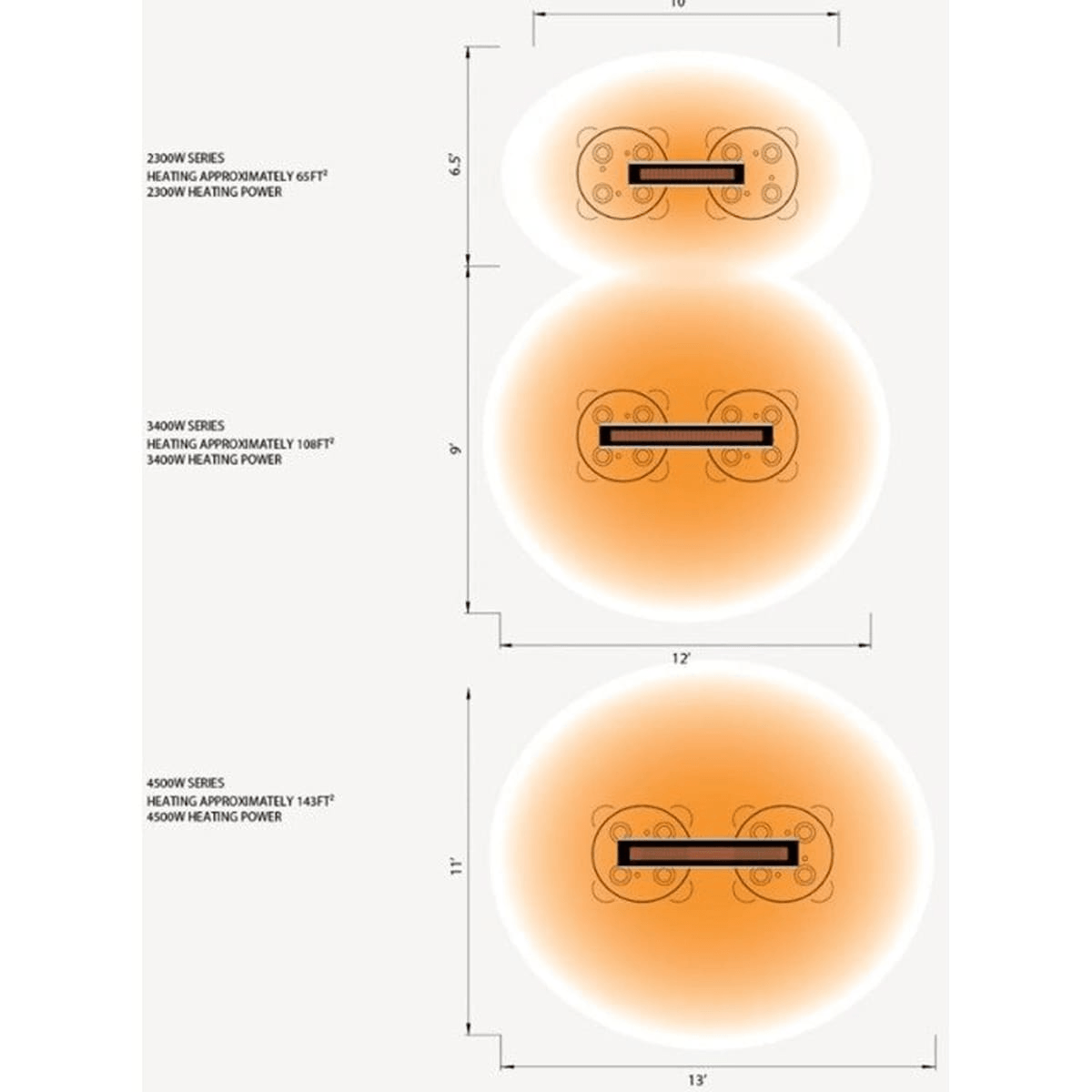

Heat Area About 143 sq ft per the Bromic cut sheet
Power 220 to 240V AC, 50/60 Hz, 18.8 A
Ingress Protection IP54, wind resistant
Finish Brushed 304 stainless steel body, white
Controls Bromic Affinity On/Off, Affinity Dimmer or a manual wall switch
Certification cETLus, Intertek 5001799
Weight 33 lb (15 kg)

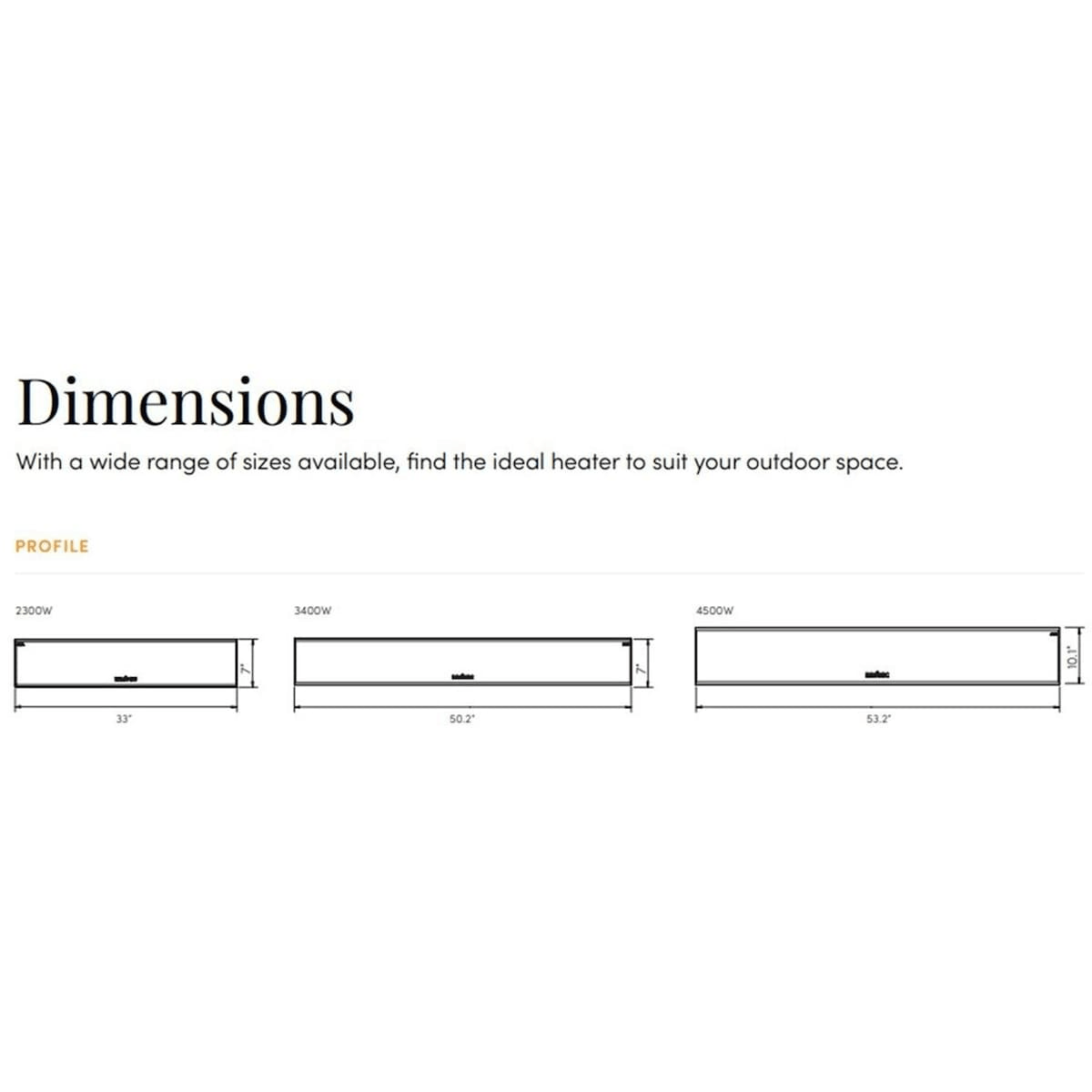

Dimensions and Cutout

Heater (W x H x D) 53.2 x 10.1 x 2.1 in
Minimum Mounting Height 71 in (1800 mm) wall mounted; 96 in (2400 mm) ceiling mounted
Safety Distance 3 ft (1000 mm) in front of the heater and to combustible materials
Ceiling Recess Standard recess kit needs at least 13.8 in of height above the 4500W heater; otherwise use the low clearance recess kit with its own powered cooling fan

Features

  • 4,500 W radiant output for about 143 sq ft
  • Ultra-thin 2.1 in profile in a white finish
  • Wall and ceiling mounting bracket included
  • Optional ceiling recess kits and 2 ft or 4 ft tube suspension kits
  • Heat zones: switch one or several heaters from a single remote switch or controller
  • IP54 and wind resistant for covered outdoor spaces
  • Integrates with Bromic Affinity smart controls

What Is Included and What You Will Need

  • Included: heater with ceiling and wall mounting bracket
  • Options on this listing: Affinity On/Off controller or Affinity Dimmer controller
  • Required: a dedicated 220 to 240V circuit sized for 18.8 A, with a double pole breaker and RCD/GFCI protection, installed by a licensed electrician
  • Optional: Bromic recess kit or suspension kit, sold separately

Installation Notes

Installation must be carried out by a licensed electrician to local code. Mount at least 71 in above the floor on a wall or 96 in on a ceiling, keep 3 ft clear in front, and do not install it above or in front of an electrical outlet, or near a pool, shower or bathtub. Bromic does not allow this heater on boats or recreational vehicles. Many New York City buildings have 208V service; if yours does, choose the 208V Platinum (BH3622005 in white). Book a free design consultation and we will lay out heaters, circuits and controls.

Documentation

Frequently Asked Questions

What circuit does it need?

220 to 240V at 18.8 A on its own circuit with a double pole breaker and ground fault protection, installed by an electrician.

How much area does one heater cover?

Bromic rates the 4500W Platinum at about 143 sq ft.

Can it be recessed into the ceiling?

Yes, with a Bromic recess kit. The standard kit needs 13.8 in above the heater; a low clearance kit with a cooling fan is available for tighter ceilings.

Black or white?

Same heater in two finishes. White suits light soffits and painted ceilings; the black version is BH3622000.

Related reading: Patio heater buying guide and Bromic vs Infratech patio heaters.

Warranty

Bromic's US warranty page lists 3 years on Platinum Smart-Heat Electric heaters from the date of purchase. Bromic supplies the replacement heater or part; labor, shipping and permits are the owner's responsibility. The previous listing stated 1 year parts.
