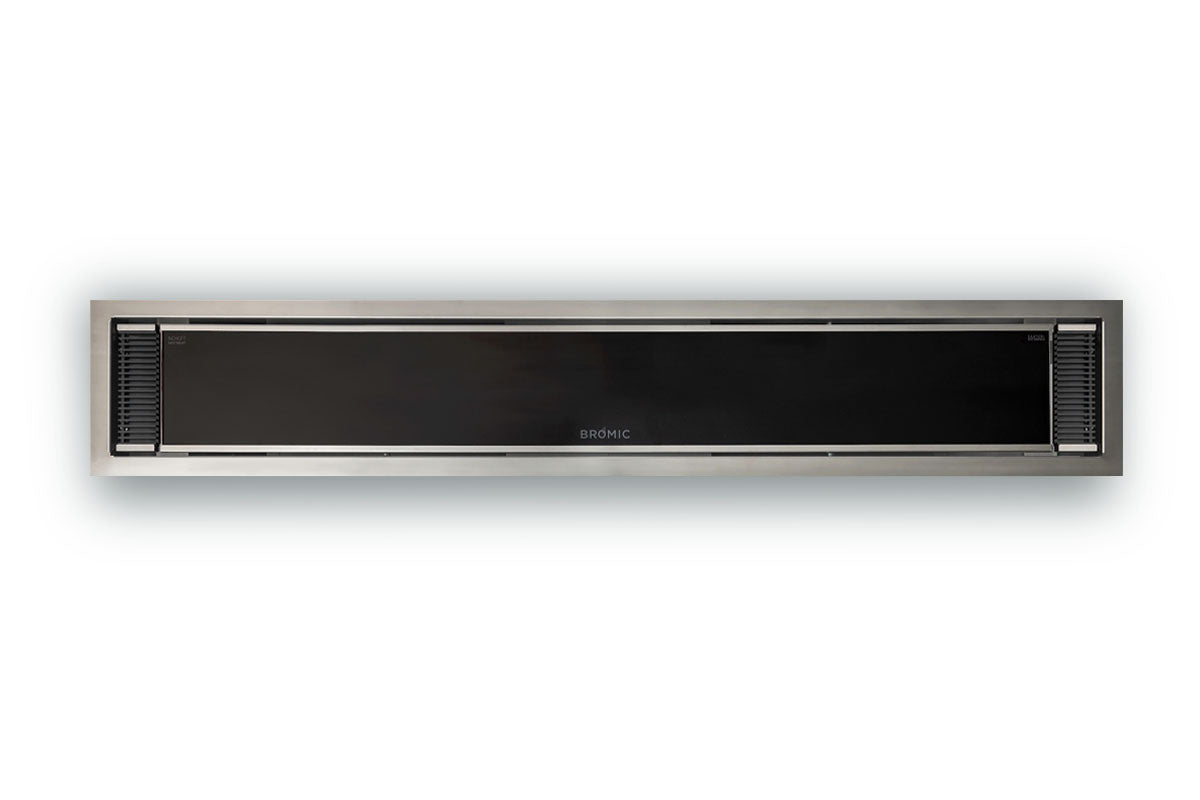

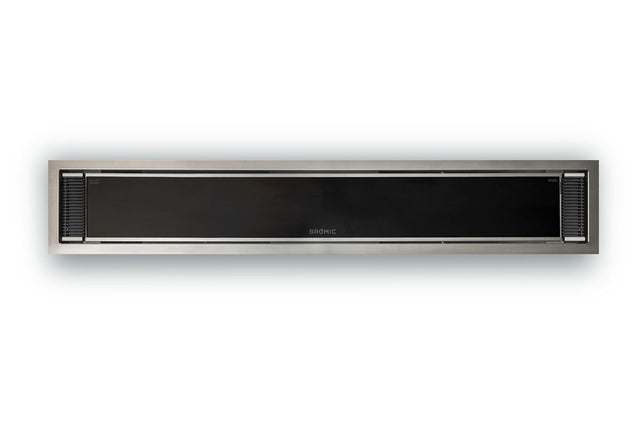

Bromic Platinum Electric Marine 3400W Low-Clearance Ceiling Recess Kit
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Bromic Platinum Electric Marine 3400W Low-Clearance Ceiling Recess Kit is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Bromic Platinum Electric Marine 3400W Low-Clearance Ceiling Recess Kit is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 58.1 in L x 10.3 in W x 6.9 in H (1475 x 261 x 175 mm)

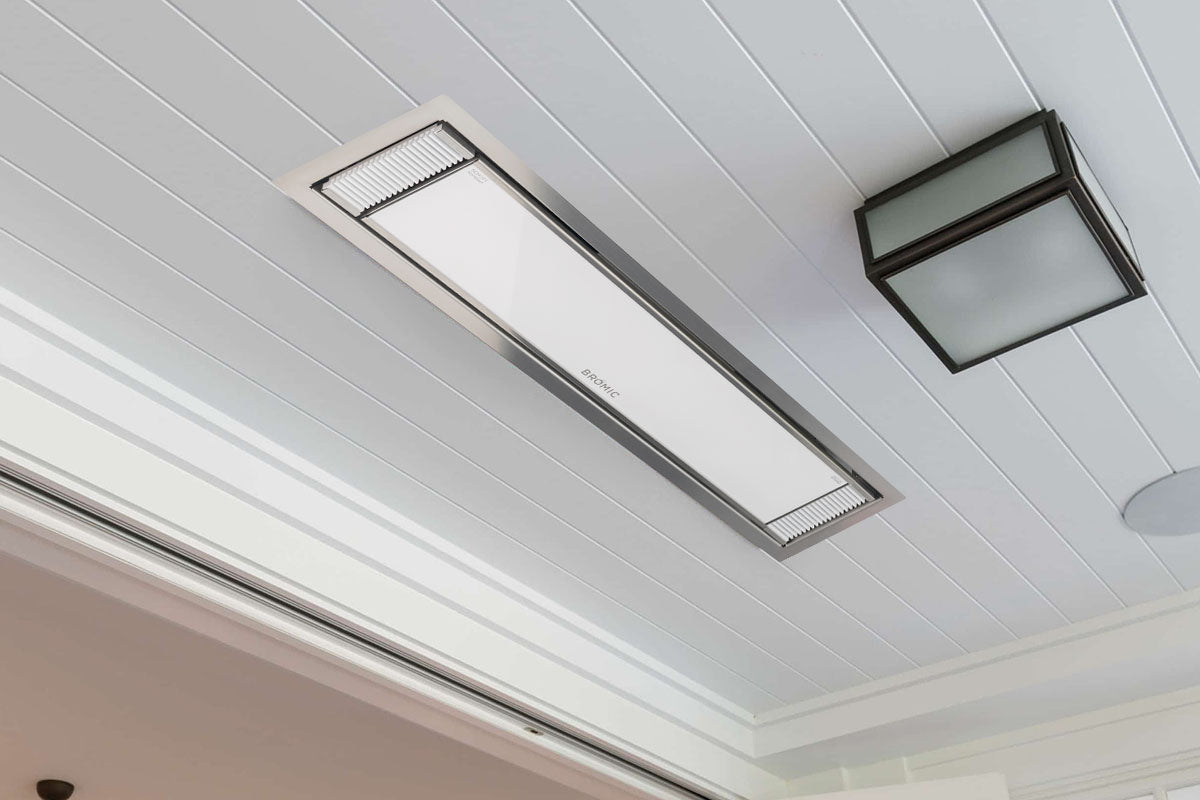

The Bromic BH3623010 is the low-clearance ceiling recess kit for the Platinum Smart-Heat Electric 3400W marine grade heater. It sets the heater flush into a ceiling or soffit that has only about 7 in (180 mm) of space above the finished surface, so a covered terrace, pergola or restaurant ceiling can have hidden radiant heat where a standard recess box will not fit. The 316 stainless steel construction suits coastal and pool-side sites.
Features
- Recesses the Platinum Electric 3400W heater flush into the ceiling with about 180 mm (7.1 in) of vertical space above the ceiling surface
- Brushed marine grade 316 stainless steel recess box, IP cover, terminal box and trim assembly

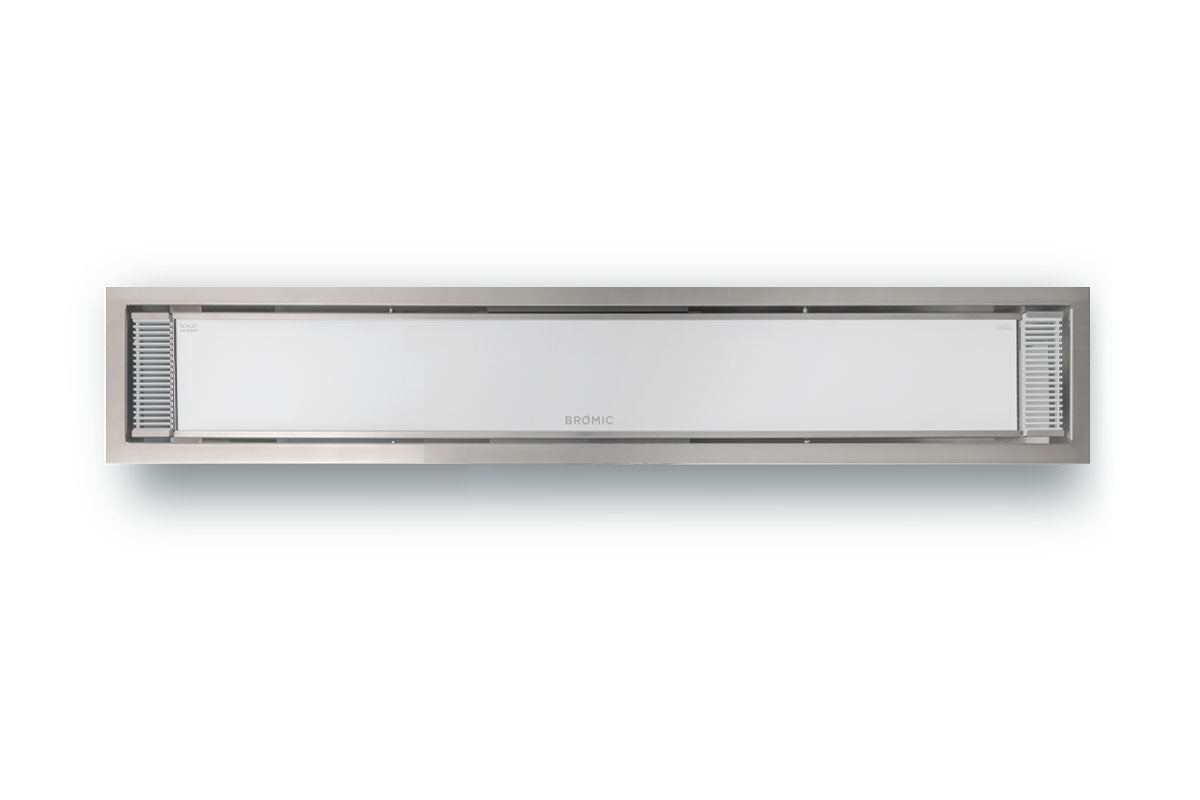

- Black and white vent covers to match the heater color
- Built-in fan keeps the recess cool; it needs a constant (unswitched) supply drawing under 1 A
- Sized for the 3400W heater only; the kit and heater lengths must match
Key Specifications
| Model / SKU | Bromic Platinum Electric Low Clearance Recess Kit, 3400W, marine grade, BH3623010 |
| Fits | Bromic Platinum Smart-Heat Electric 3400W marine grade heater (sold separately) |
| Material | Brushed marine grade 316 stainless steel |
| Kit weight | 31 lb |
| Fan supply | 100-127 V, 208 V or 220-240 V AC, under 1.0 A, constantly powered |

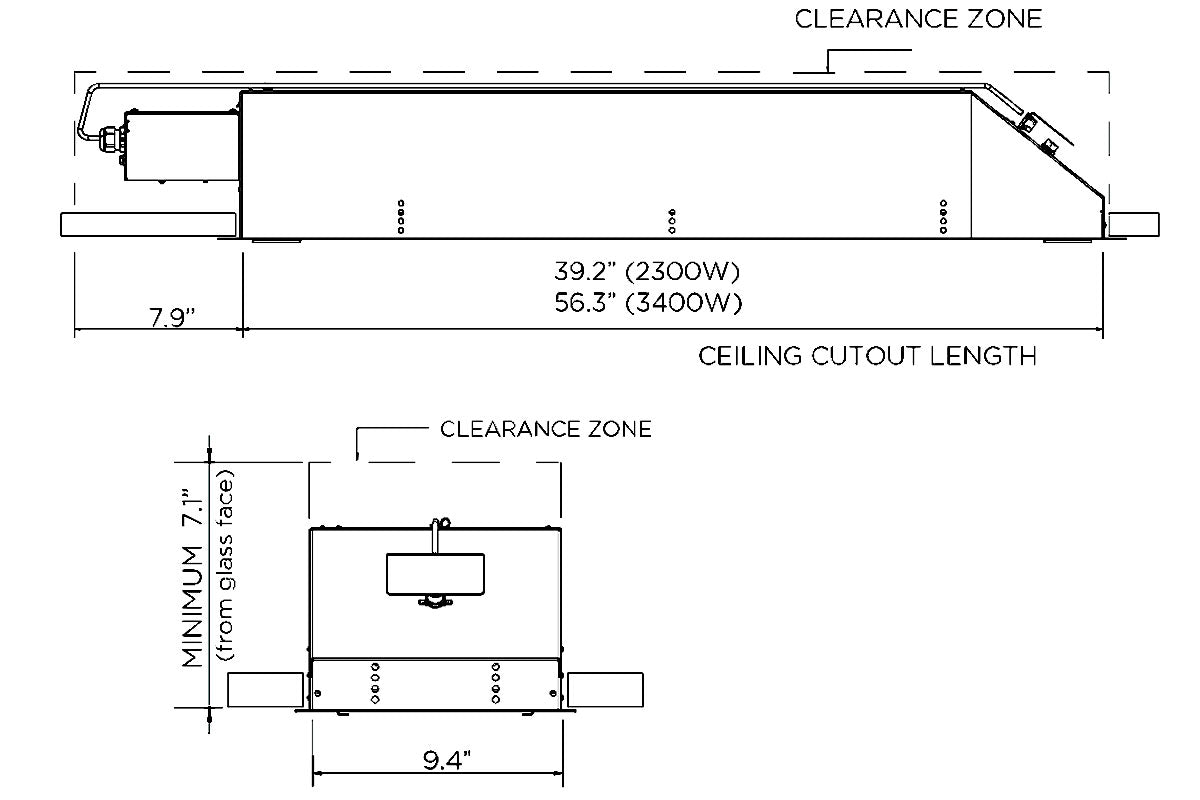

Dimensions and Cutout
| Kit (L x W x H) | 1475 x 261 x 175 mm (58.1 x 10.3 x 6.9 in) |
| Ceiling cutout | 1430 x 240 mm (56.3 x 9.4 in); ceiling thickness 10 to 30 mm |
| Joist gap | At least 240 mm (9.4 in) |
| Clearances | 180 mm above the ceiling surface; 200 mm from the terminal box end; 500 mm from the cutout to the nearest wall and between heaters; heater surface at least 2400 mm (about 7 ft 10 in) above the floor |
What Is Included and What You Will Need
- Ceiling recess box, IP cover and terminal box
- Black and white vent covers, trim assembly and vent cover trims
- Mounting screws for the trim
- You will need: the Bromic Platinum Electric 3400W heater, fasteners for the ceiling box, a framed opening that does not cut joists, and a licensed electrician
Optional Accessories
- Bromic Affinity Smart-Heat on/off, dimmer or 2-channel controllers
Installation Notes
The kit must be permanently installed by a licensed electrician to local code. Do not cut or notch joists or rafters, confirm the structure can carry the kit and heater, never cover the heater with insulation, and protect it fully from water above. The fan must have a constant, unswitched supply, and the heater will not run unless the thermal cut-off plug is fitted in the terminal box.
In New York City, the heater and fan circuits require a licensed electrician and an electrical permit.
Designing a ceiling with hidden heat? Book a design consultation.
Documentation
Frequently Asked Questions
Is the heater included?
No. Order the Bromic Platinum Electric 3400W marine grade heater separately.
How much ceiling depth does it need?
About 180 mm (7.1 in) of vertical space above the ceiling surface, plus the cutout and joist gap listed above.
Why does it need constant power?
The kit fan cools the recess and must run independently of the heater switch.
Related reading: Patio heater buying guide, Best patio heater for a covered patio.
Warranty
Per the current listing, the recess kit is covered by Bromic's one year parts warranty on the Platinum Electric series for the original owner; labor is not included. See the Bromic warranty for full terms.
