Challenger Designs Coastal 90.125 WGRDD Powder Coated Aluminium Kitchen Island for 32 Inch Gas Grill with Refrigerator Opening

Overall Dimensions: 90.125" W x 25" D x 36.25" H

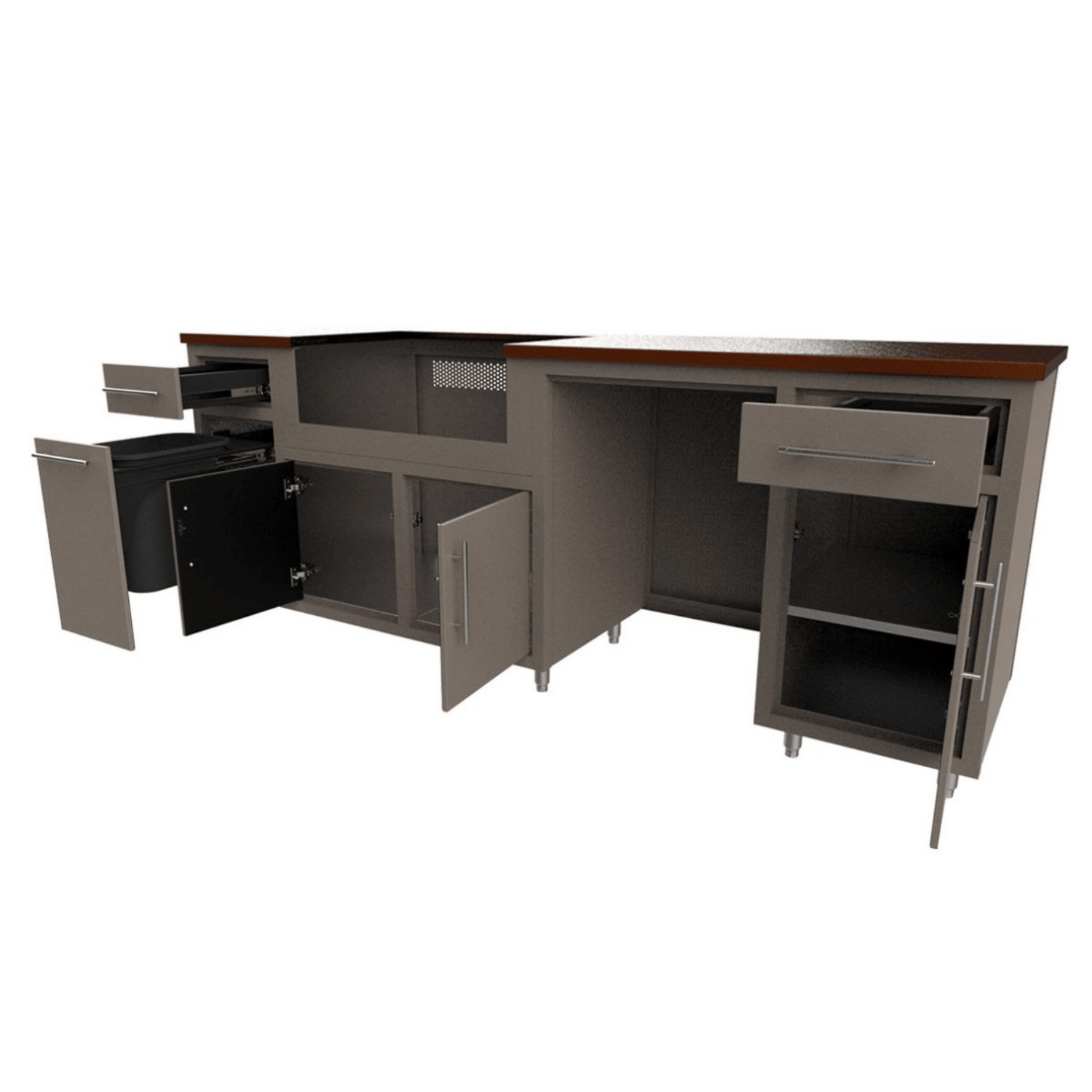

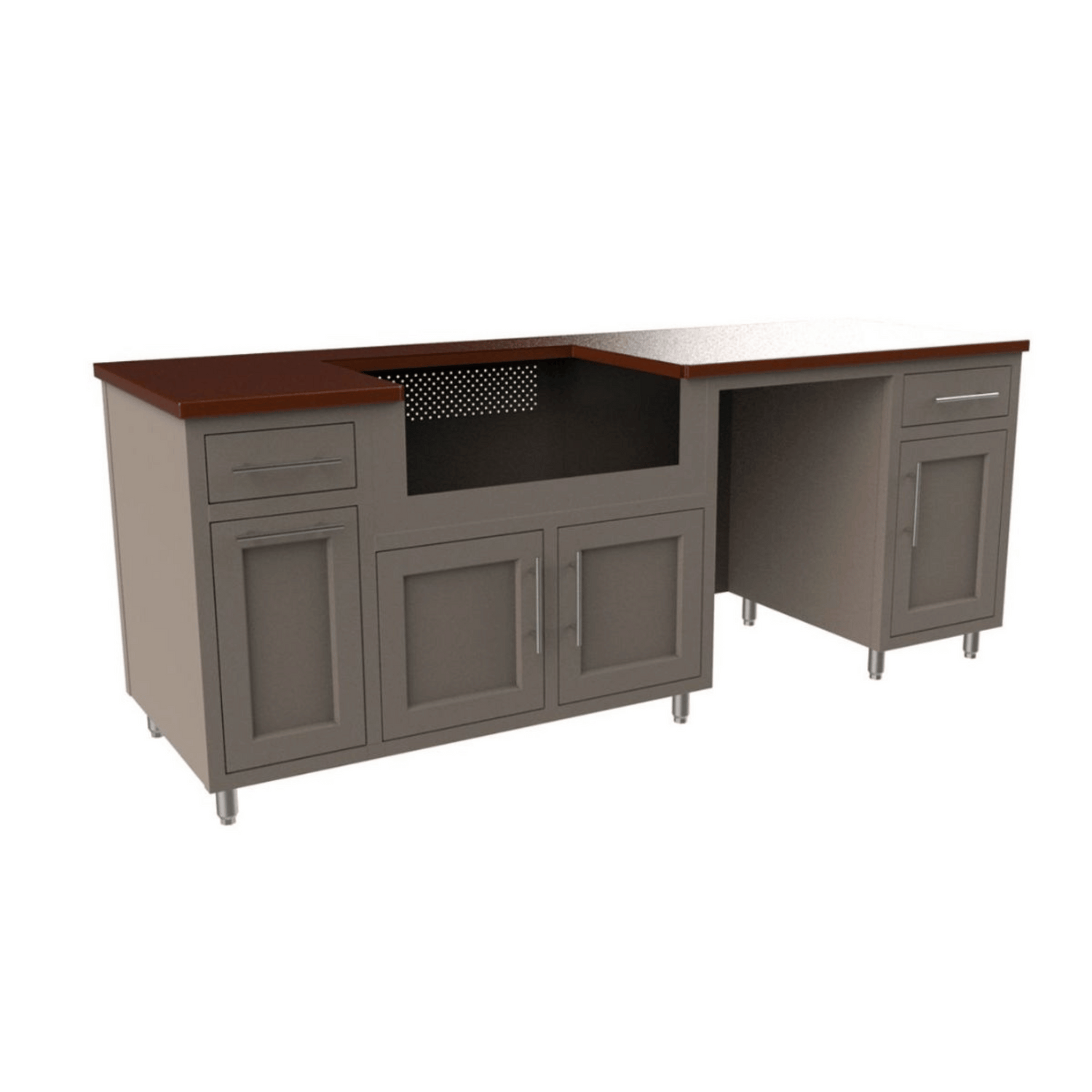

The Challenger Designs Coastal 90.125 WGRDD is a pre-built, powder-coated aluminum outdoor kitchen island that holds a grill of 32 inches or smaller, a 21.5-inch-wide refrigerator opening, a pull-out waste bin and a door-drawer base with an adjustable shelf. It is for the homeowner who wants a finished 7.5-foot cooking and prep wall without a masonry build, delivered fully assembled.

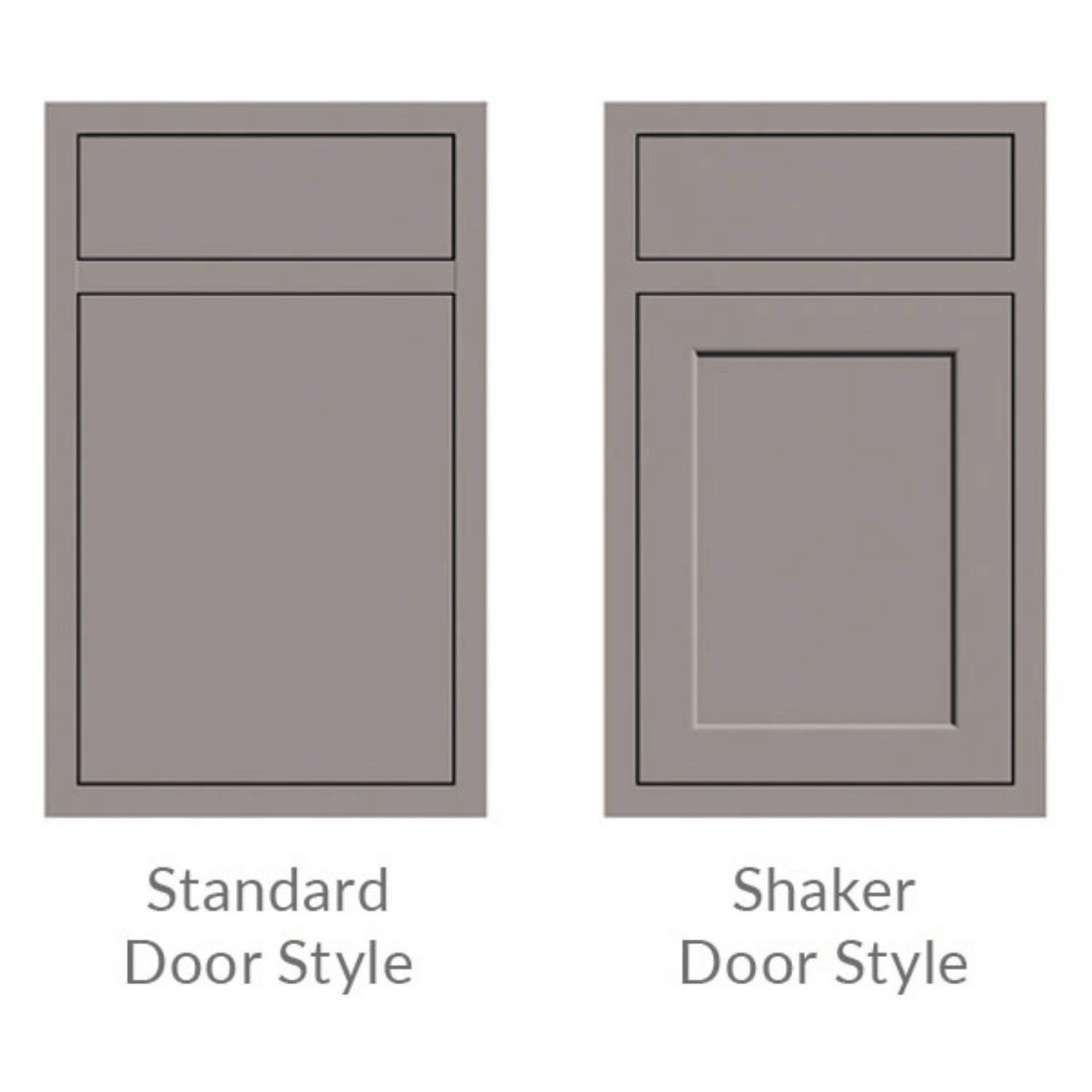

All-aluminum construction does not rust, warp or rot, hardware is 304 stainless steel, and the cabinets are weather-sealed apart from the vented grill base. Pick a countertop, cabinet color and door style; the grill itself is not included.

Key Specifications

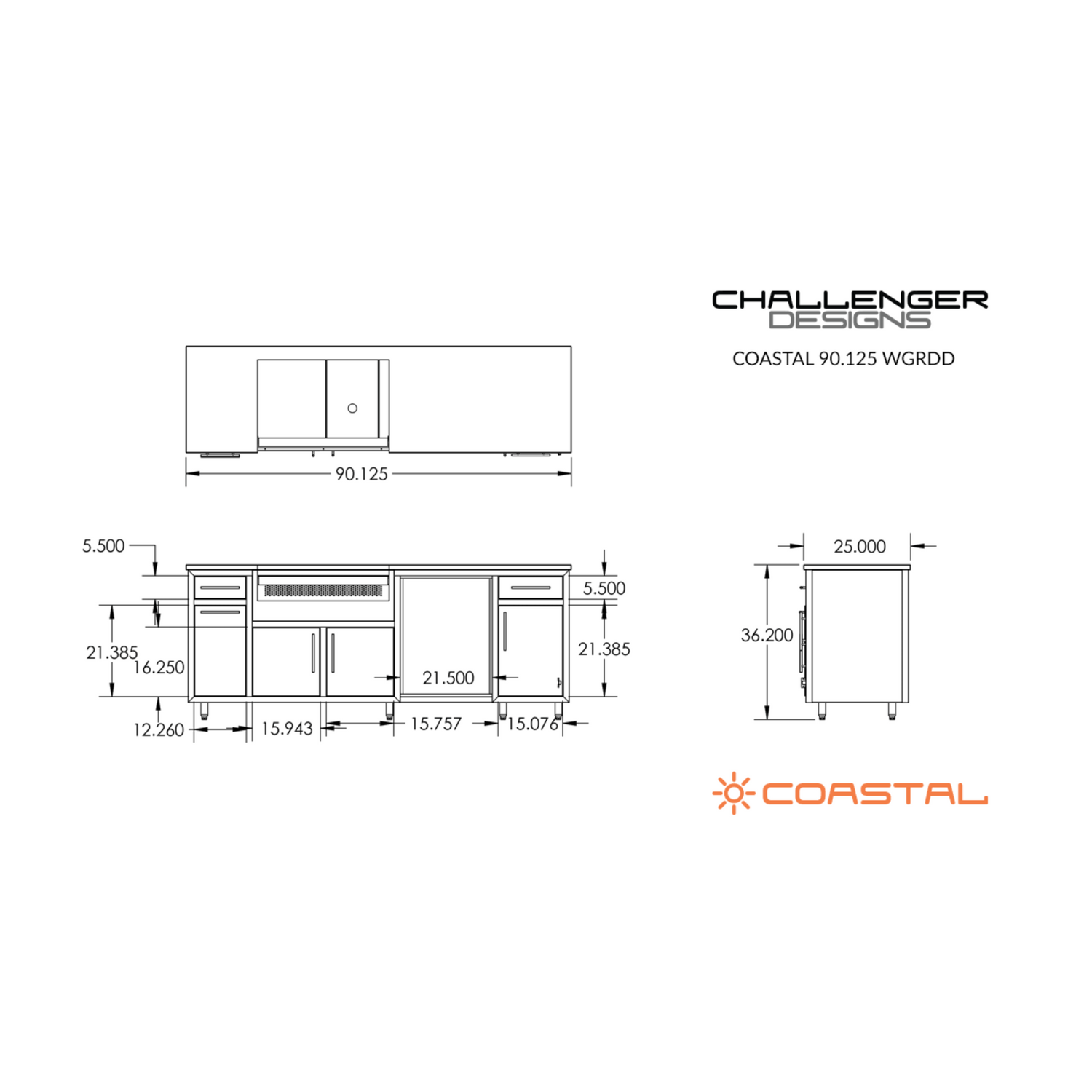

Dimensions and Cutout

Features

• Pre-built island that ships fully assembled with the countertop installed
• Weather-sealed all-aluminum cabinets that will not rust, warp or rot
• 21.5-inch refrigerator opening with a pull-out waste bin and drawer above
• Door-drawer base with an adjustable shelf
• Grill base accommodates most 32 inch or smaller gas grills
• Integrated back panel and shelf system
• 304 stainless steel pulls and adjustable legs
• Made in the USA

What Is Included and What You Will Need

• Included: Coastal 90.125 island with countertop, cabinets as configured above and 304 stainless steel pulls and legs; the grill and refrigerator are not included
• Required: a gas grill of 32 inches or smaller with a cutout width of 30.75 inches or less (the grill model must be specified once the order is placed) and a refrigerator sized for the 21.5 by 33.625 inch opening
• Required: gas supply (20 lb LP tank cutout under the grill, or natural gas plumbed by your installer), 120V power for the refrigerator and a level pad or deck
• Optional: color-matched toe kick kit; an on-demand water system is not available on this model per the Challenger notes

Installation Notes

Delivery is by freight and the island arrives assembled, so plan for a pallet or lift-gate path to the patio. Set the island on a level, non-combustible surface, allow for grill and refrigerator ventilation as their manuals require, and have gas piping done by a qualified installer. In New York City, gas work must be done by a licensed master plumber under a DOB permit, and propane tank storage carries FDNY rules. We install in NYC, Long Island, Westchester and New Jersey. Book a free design consultation and we will help you plan the layout, utilities and installation.

Documentation

• Spec Sheet (2024 Coastal Catalog)

Frequently Asked Questions

Which grills fit?

Most 32 inch or smaller gas grills with a cutout width of 30.75 inches or less, up to 22.5 inches deep and 13.25 inches high with the countertop.

Is the grill included?

No. The grill model is confirmed once you order. Ask us about matching a grill and refrigerator to this island.

What size refrigerator fits?

The opening is 21.5 inches wide and 33.625 inches high. Check the refrigerator's cutout dimensions against those before you buy.

Can I add casters?

Casters are not available on this model; it stands on 4 inch adjustable stainless legs.

Related reading: Outdoor Kitchen Planning Guide and Built-In vs Freestanding Grill.

Warranty

Per our current listing, Challenger Designs backs the cabinet structure with a limited lifetime warranty against defects in materials and workmanship, with 3-year coverage on the powder-coated finish against flaking, peeling and cracking. We could not find these terms on a Challenger document, so confirm the exact terms with us before purchase.
