Challenger Designs Coastal 90.125 WGRS Powder Coated Aluminium Kitchen Island for 32 Inch Gas Grill with Refrigerator Opening and Sink Base
Challenger Designs Coastal 90.125 WGRS Powder Coated Aluminium Kitchen Island for 32 Inch Gas Grill with Refrigerator Opening and Sink Base - Copper Vein / Cappuccino / Standard is backordered and will ship as soon as it is back in stock.
- See it in person at our Queens showroom, 147+ live displays.
- Factory-authorized Challenger dealer. You keep the full manufacturer warranty.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Description
Description
Overall Dimensions: 90.125" W x 25" D x 36.25" H

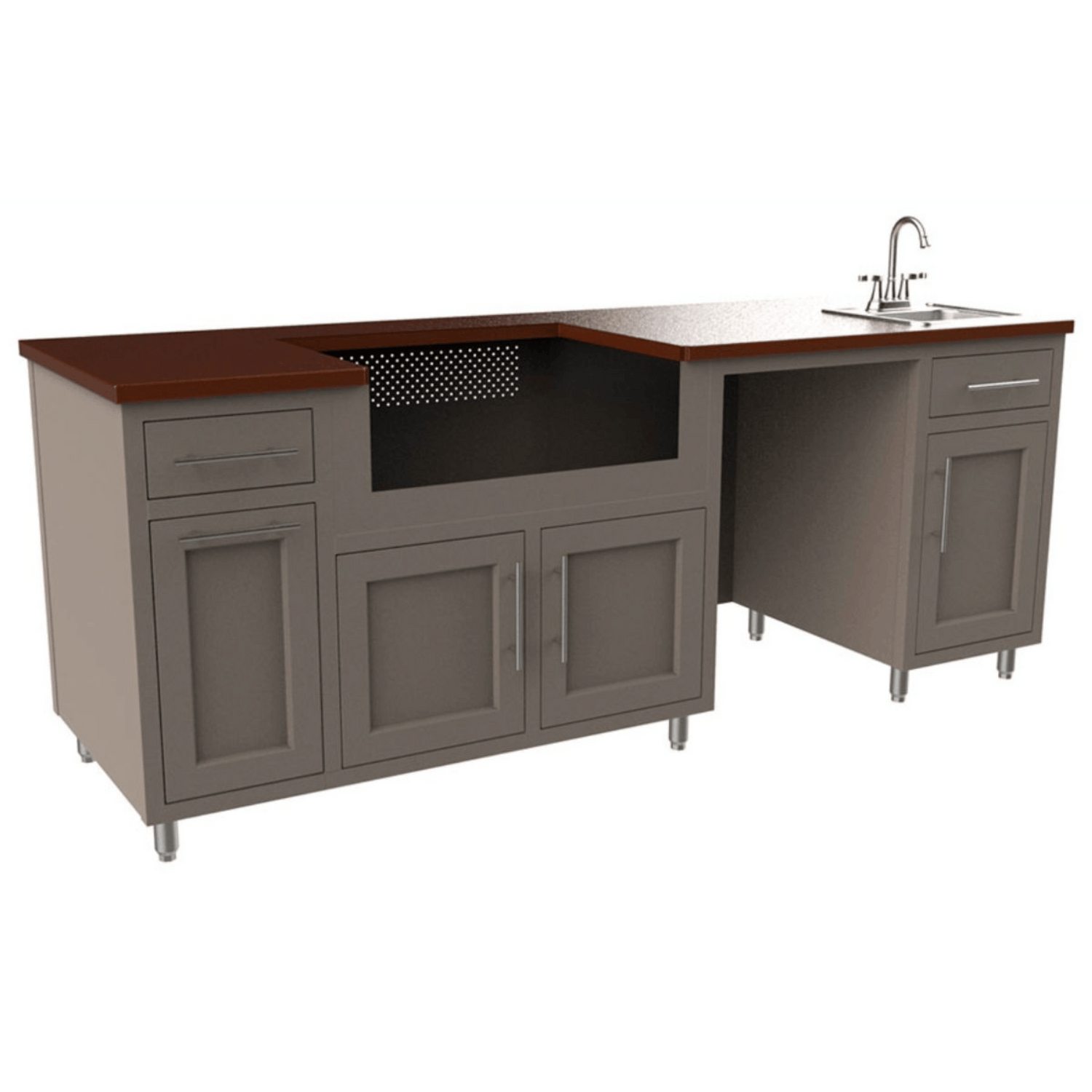

The Challenger Designs Coastal 90.125 WGRS is a pre-built, powder-coated aluminum outdoor kitchen island that holds a grill of 32 inches or smaller, a 21.5-inch-wide refrigerator opening, a pull-out waste bin and a sink base with a 15-inch stainless bar sink and faucet. It is for the homeowner who wants a finished 7.5-foot cooking and prep wall without a masonry build, delivered fully assembled.
All-aluminum construction does not rust, warp or rot, hardware is 304 stainless steel, and the cabinets are weather-sealed apart from the vented grill base. Pick a countertop, cabinet color and door style; the grill itself is not included.
Key Specifications
| Model | Coastal 90.125-WGRS (COGI-90.125-WGRS in the Challenger catalog) |
| Configuration | Gas grill base, 21.5" refrigerator opening, pull-out waste bin with drawer above, sink base with a 15" drop-in stainless steel bar sink and faucet |
| Construction | All-aluminum, powder-coated; weather-sealed cabinets except the vented gas grill base |
| Hardware | 304 stainless steel 9" pulls and 304 stainless steel adjustable 4" legs |
| Drawers | Powder-coated textured black drawer boxes with full-extension slides |

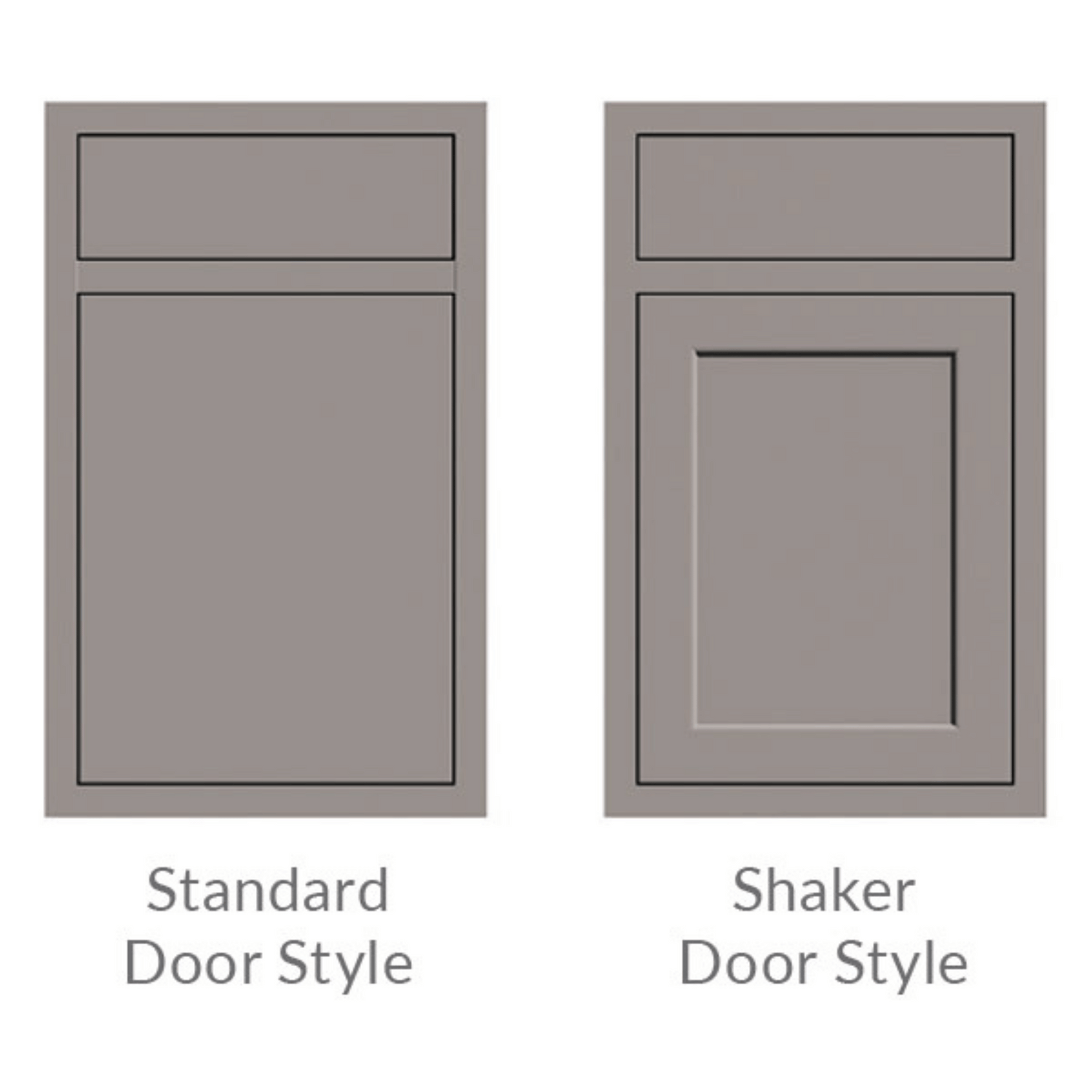

| Doors | Gasketed doors; Standard or Shaker style at no price difference |
| Countertops | Copper Vein, Silver Vein, Textured Black or Brushed Stainless Steel (upgrade) |
| Cabinet colors | Cappuccino, Textured Grey Glimmer, Textured White, Textured Black |
| Fuel set-up | Cutout under the grill for a 20 lb LP tank, or natural gas (installer makes the NG plumbing access) |
| Weight | Not published by Challenger |

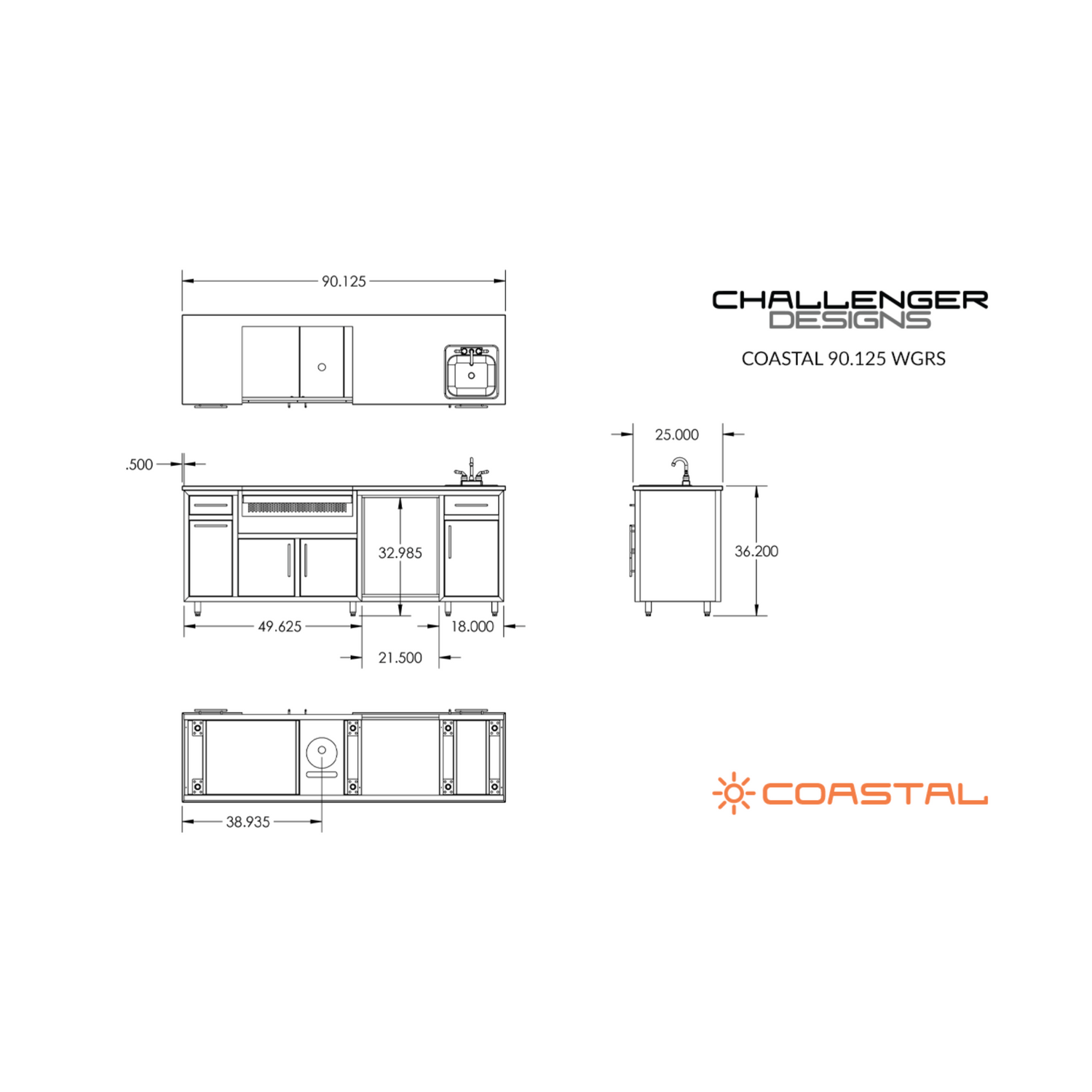

Dimensions and Cutout
| Overall | 90.125" W x 25" D x 36.25" H |
| Grill cutout (maximum) | 30.75" W x 22.5" D x 13.25" H with countertop; fits most 32" or smaller grills |
| Refrigerator opening | 21.5" W x 33.625" H |
| Casters | Not available on refrigerator units; the island stands on adjustable legs |
| Accessories | Towel bar handle and toe kick kit per the Challenger catalog; covers not available |
Features
- Pre-built island that ships fully assembled with the countertop installed
- Weather-sealed all-aluminum cabinets that will not rust, warp or rot

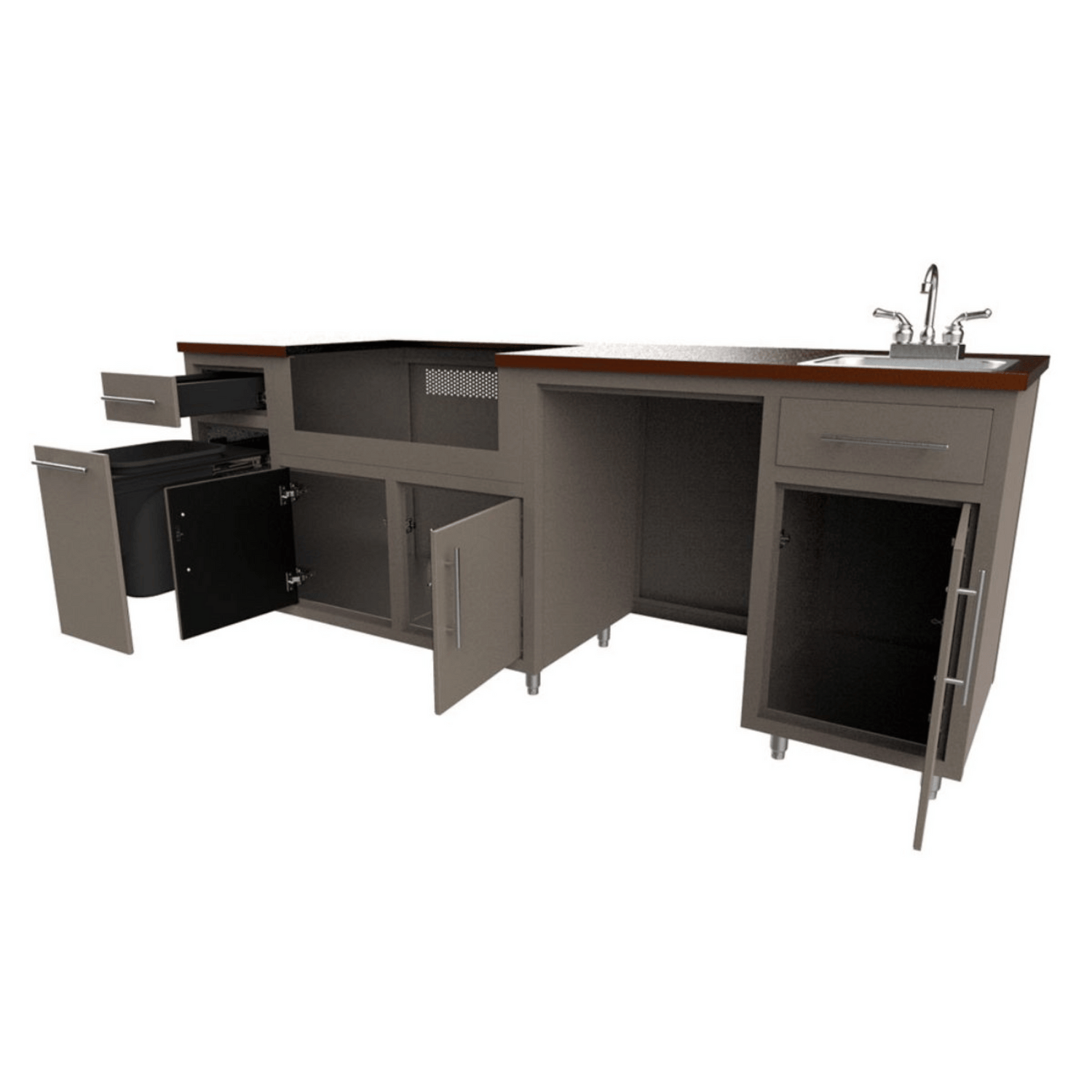

- 21.5-inch refrigerator opening with a pull-out waste bin and drawer above
- Sink base with a 15-inch drop-in stainless bar sink and faucet
- Grill base accommodates most 32 inch or smaller gas grills
- Integrated back panel and shelf system
- 304 stainless steel pulls and adjustable legs
- Made in the USA
What Is Included and What You Will Need
- Included: Coastal 90.125 island with countertop, cabinets as configured above and 304 stainless steel pulls and legs; the grill and refrigerator are not included
- Required: a gas grill of 32 inches or smaller with a cutout width of 30.75 inches or less (the grill model must be specified once the order is placed) and a refrigerator sized for the 21.5 by 33.625 inch opening
- Required: gas supply (20 lb LP tank cutout under the grill, or natural gas plumbed by your installer), 120V power for the refrigerator and a level pad or deck
- Optional: color-matched toe kick kit; the Challenger notes list an on-demand water system option for other Coastal models, so ask us what applies to this one
Installation Notes
Delivery is by freight and the island arrives assembled, so plan for a pallet or lift-gate path to the patio. Set the island on a level, non-combustible surface, allow for grill and refrigerator ventilation as their manuals require, and have gas piping done by a qualified installer. In New York City, gas work must be done by a licensed master plumber under a DOB permit, and propane tank storage carries FDNY rules. We install in NYC, Long Island, Westchester and New Jersey. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Which grills fit?
Most 32 inch or smaller gas grills with a cutout width of 30.75 inches or less, up to 22.5 inches deep and 13.25 inches high with the countertop.
Is the grill included?
No. The grill model is confirmed once you order. Ask us about matching a grill and refrigerator to this island.
What size refrigerator fits?
The opening is 21.5 inches wide and 33.625 inches high. Check the refrigerator's cutout dimensions against those before you buy.
Can I add casters?
Casters are not available on this model; it stands on 4 inch adjustable stainless legs.
Related reading: Outdoor Kitchen Planning Guide and Built-In vs Freestanding Grill.
Warranty
Per our current listing, Challenger Designs backs the cabinet structure with a limited lifetime warranty against defects in materials and workmanship, with 3-year coverage on the powder-coated finish against flaking, peeling and cracking. We could not find these terms on a Challenger document, so confirm the exact terms with us before purchase.
