Description
Description
Delivery and Assembly available for local customers - contact us before ordering for lead time
Overall Dimensions: 83 in W x 31 in D x 36.25 in H

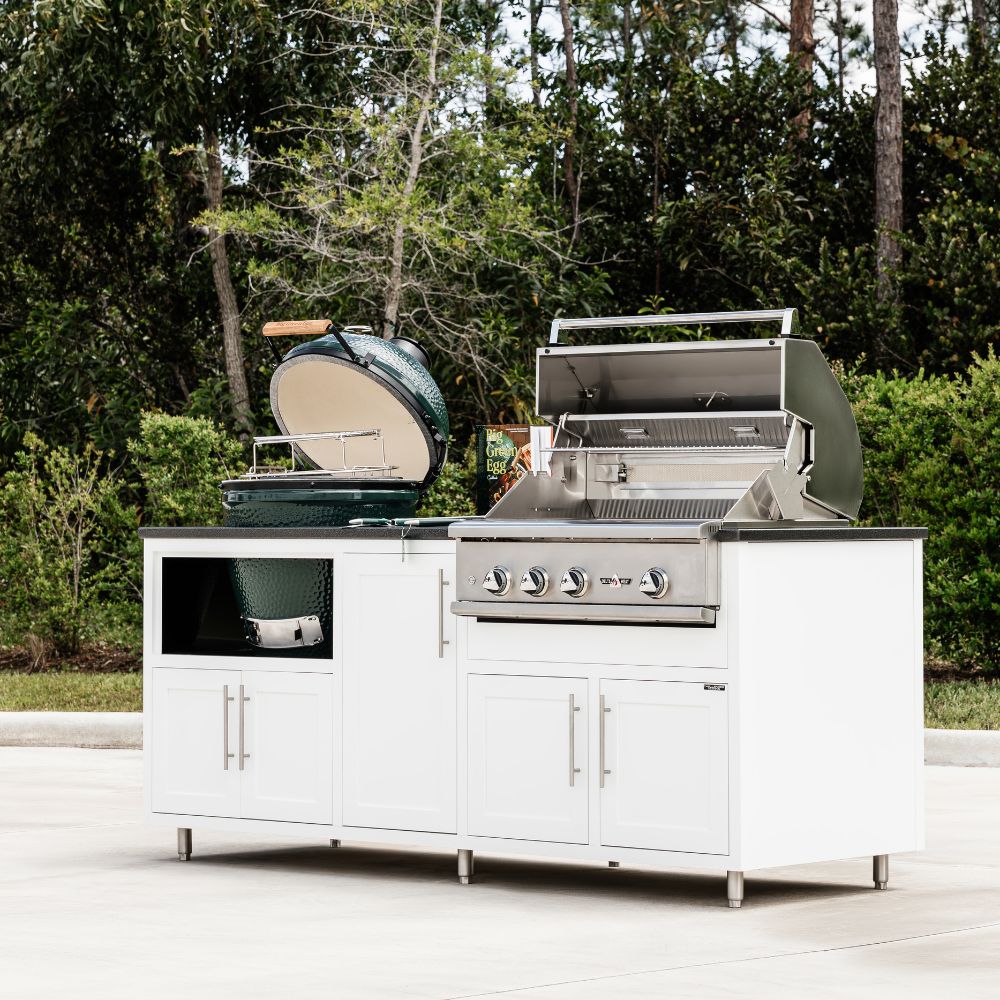

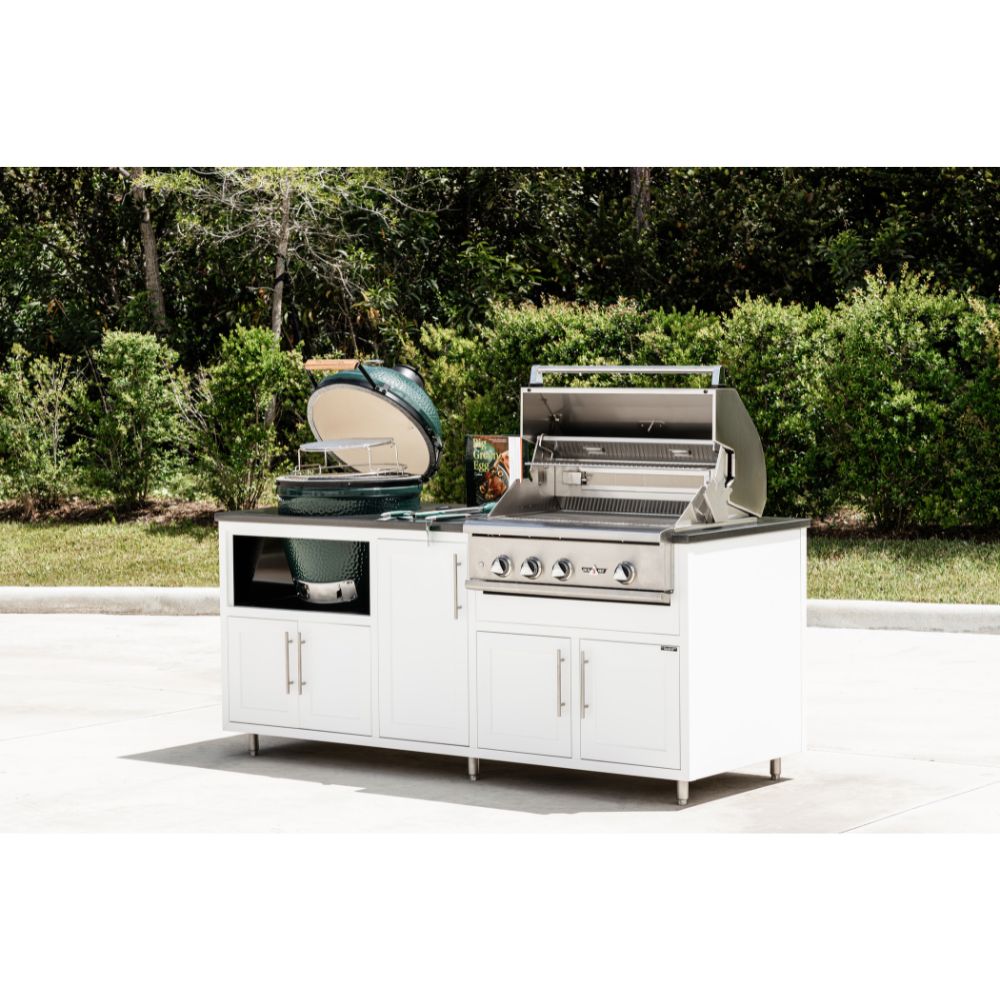

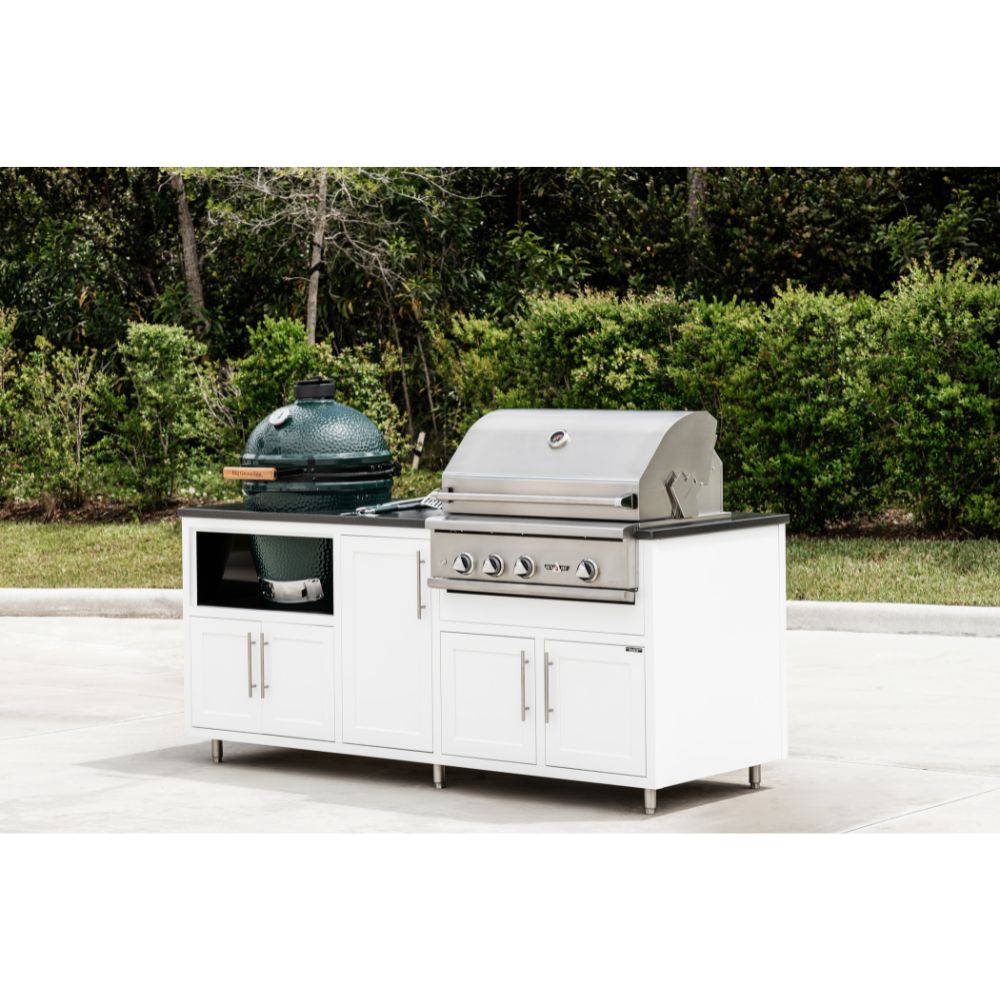

This Challenger Designs Coastal KDG island is a ready-made outdoor kitchen in White: an 83-inch powder-coated aluminum cabinet with a Delta Heat 32-inch built-in gas grill and a Large Big Green Egg. The KDG layout puts the 30-inch ceramic grill base on the left, a storage door base in the middle and the gas grill base on the right, so the two cookers sit at opposite ends with prep and storage space between them.
The cabinet ships assembled, and buying the island with its appliances removes the cutout guesswork of a custom build.
Features
- Delta Heat 32-inch built-in gas grill with three stainless steel burners
- Ceramic grill base sized for a Large Big Green Egg
- Rust-resistant powder-coated aluminum cabinetry built for outdoor use
- Fully gasketed shaker-style doors and drawers on full-extension slides
- Ships fully assembled; appliances ship separately and drop into their cutouts
- Standard 36.25-inch height with adjustable legs; color-matched toe kick kit available
Key Specifications
| Series | Challenger Designs Coastal Collection |
| Island layout | COGI-83-KDG: 30-inch ceramic grill base on the left, a storage door base in the middle and the gas grill base on the right |
| Cabinet color | White (per listing title) |
| Cabinet material | Powder-coated aluminum |
| Grill | Delta Heat 32-inch built-in gas grill (DHBQ32G), three stainless steel burners, 525 sq. in. main grilling area |
| Kamado | Large Big Green Egg (117632) |
| Max gas grill cutout | 30.75 in. W x 28.5 in. D x 13.25 in. H with countertop |
| Fuel | Natural gas or propane grill, chosen by variant |

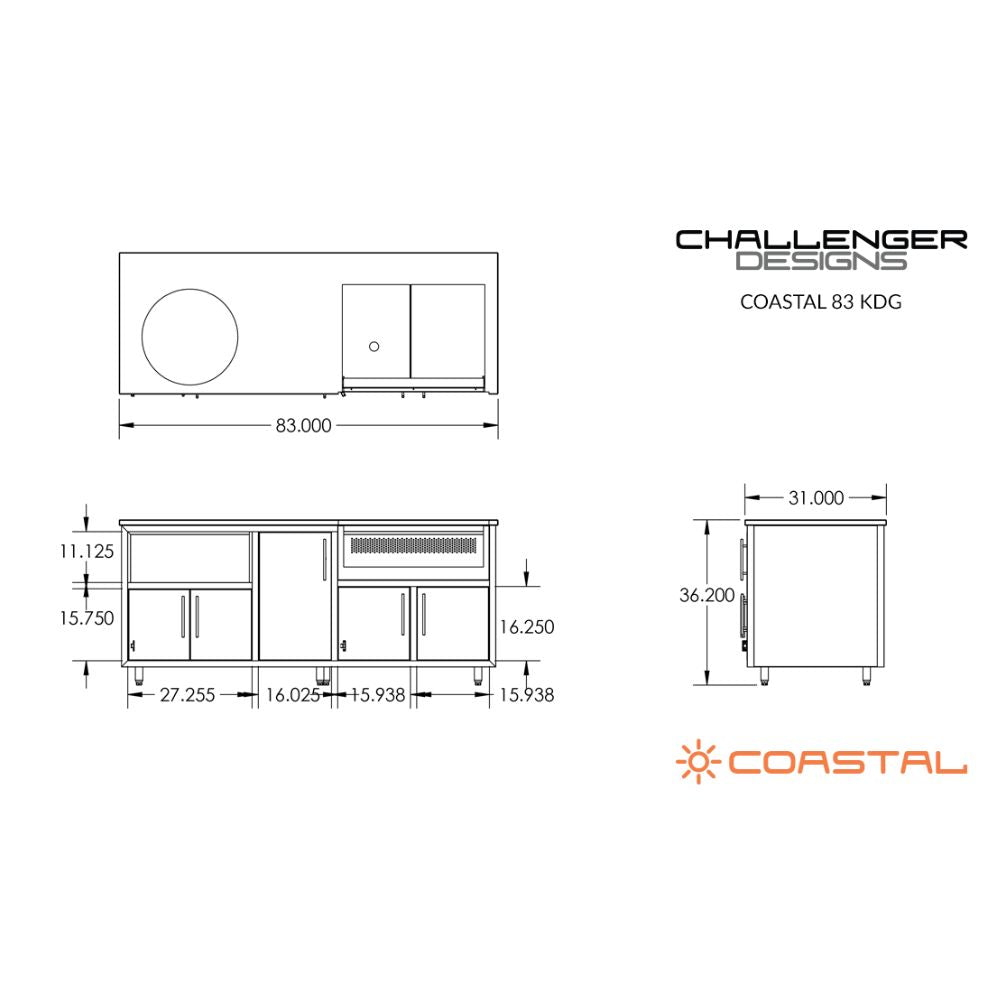

Dimensions and Cutout
| Island (W x D x H) | 83 x 31 x 36.25 in. |
| Options | Toe kick kit COGI-83-TK, 6-caster set, towel bar handle, grate hanger, tool hook (Challenger catalog) |
What Is Included and What You Will Need
- Included: Challenger Coastal KDG island cabinet
- Included: Delta Heat 32-inch built-in gas grill (natural gas or propane per variant)
- Included: Large Big Green Egg ceramic kamado
- You will need: a gas supply for the grill and a level, hard surface for the island
Optional Accessories
Installation Notes
The island ships assembled, about 83 in. wide and 31 in. deep, so plan the delivery path, gates and elevators before ordering. Set it on a level, hard surface. The Big Green Egg sits in a ventilated ceramic grill base and should be kept to its own clearance guidance. Natural gas grills should be connected by a licensed plumber; in NYC that work is done under permit, and rooftop or terrace sites need building approval.
Planning a custom layout instead? Book a design consultation.
Documentation
Frequently Asked Questions
Does it come assembled?
Yes. The cabinet ships fully assembled; the grill and Big Green Egg ship separately and set into their bases.
What is the difference between GDK and KDG?
Only the order of the bases. GDK has the gas grill on the left and the kamado on the right; KDG reverses them.
Can I add casters?
Yes. Challenger offers a 6-caster set for this 83-inch island as an option.
Related reading: Outdoor kitchen planning guide, Built-in vs freestanding grills.
Warranty
Challenger Designs covers its Coastal cabinets against defects in materials and workmanship under normal use for the original purchaser, for as long as they own the cabinet (per Challenger dealer specifications). The grill, kamado and refrigerator are covered by their own manufacturers' warranties.
