The Outdoor GreatRoom Crystal Fire Plus Linear Gas Burner
The Outdoor GreatRoom Crystal Fire Plus Linear Gas Burner - 12" x 24" / Manual (LP or NG) is backordered and will ship as soon as it is back in stock.
Description
Description
Lead Time: Ships in 2–5 business days.
Overall Dimensions: Burner trim from 25.63" x 13.50" (12" x 24" size) up to 120" x 13.50" (12" x 120" size)

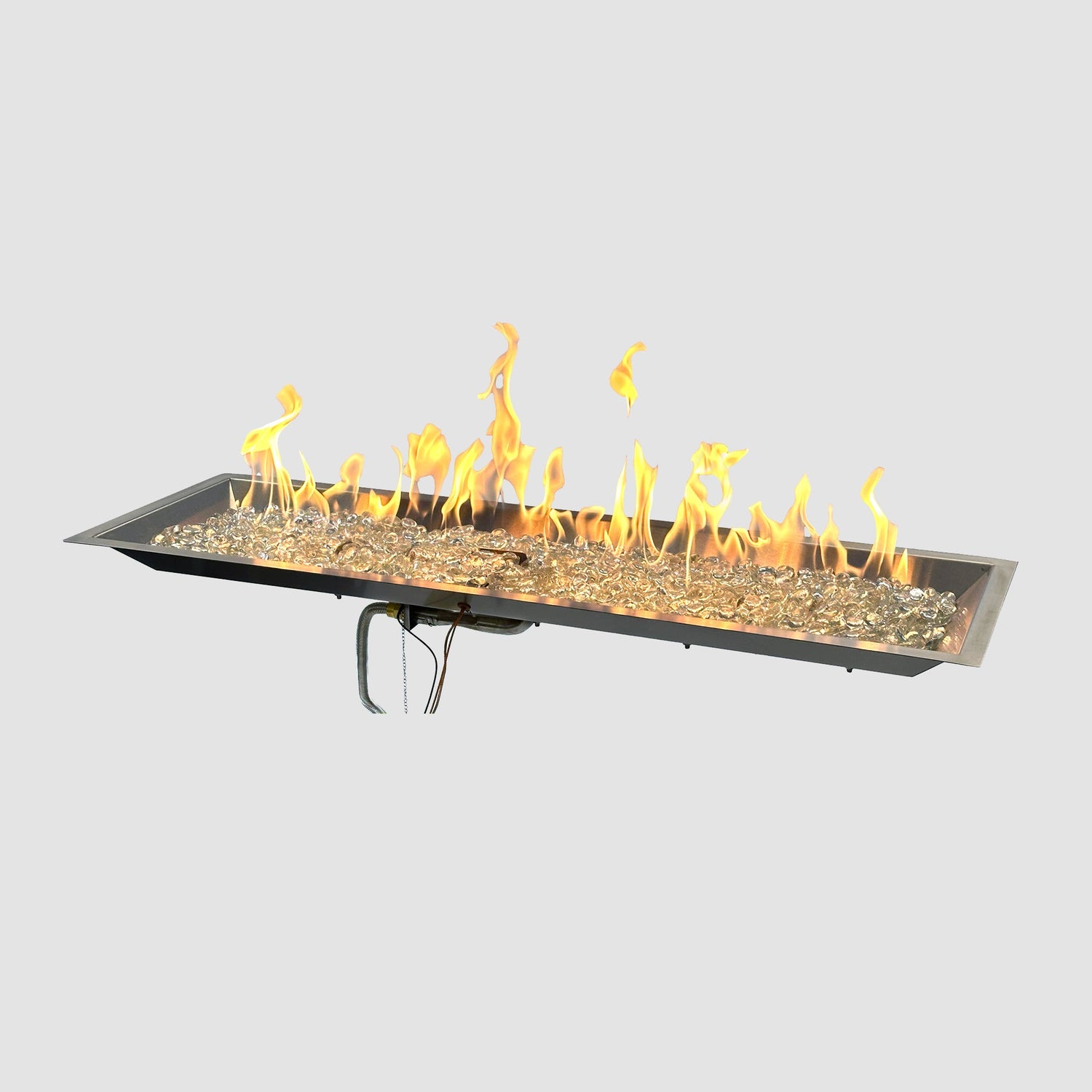

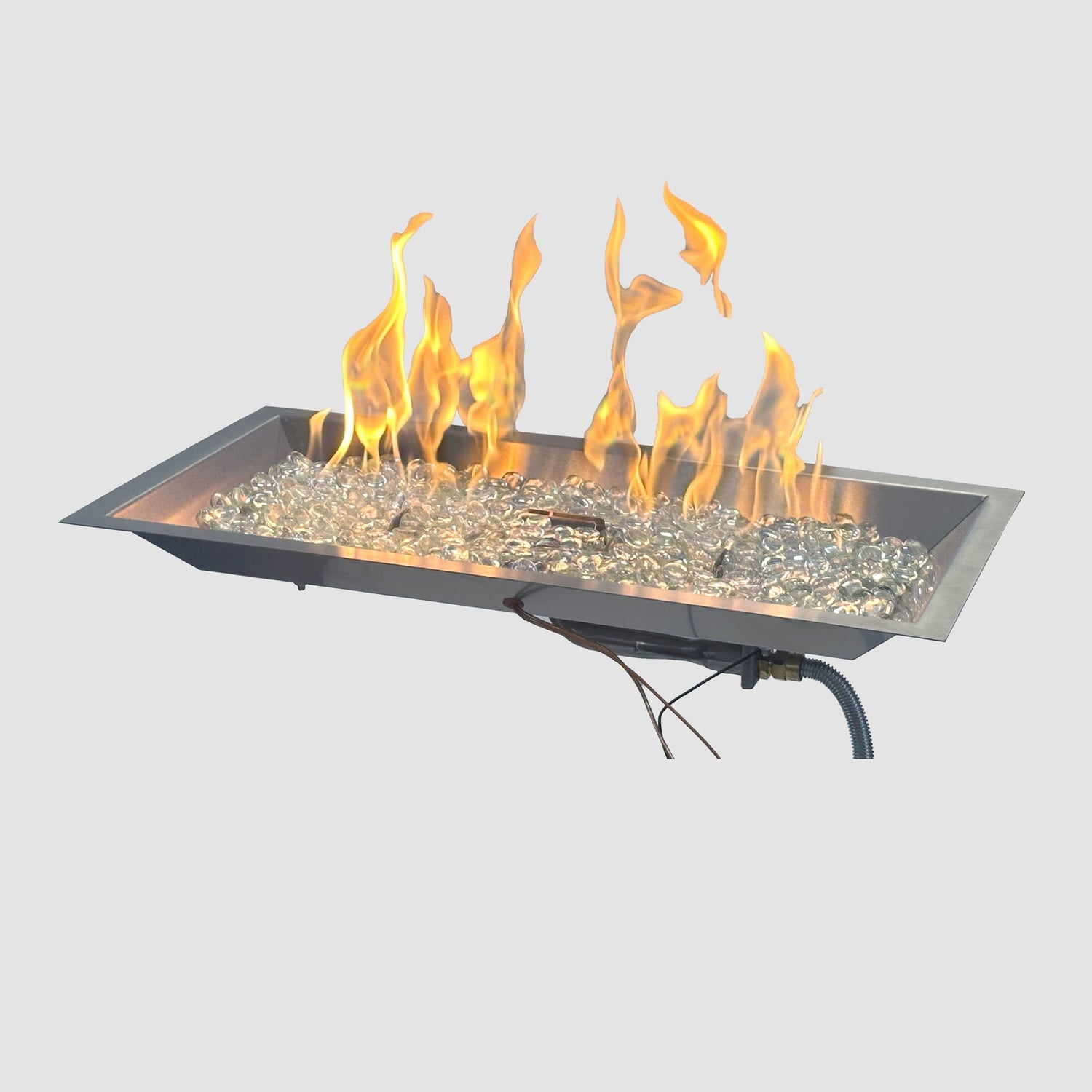

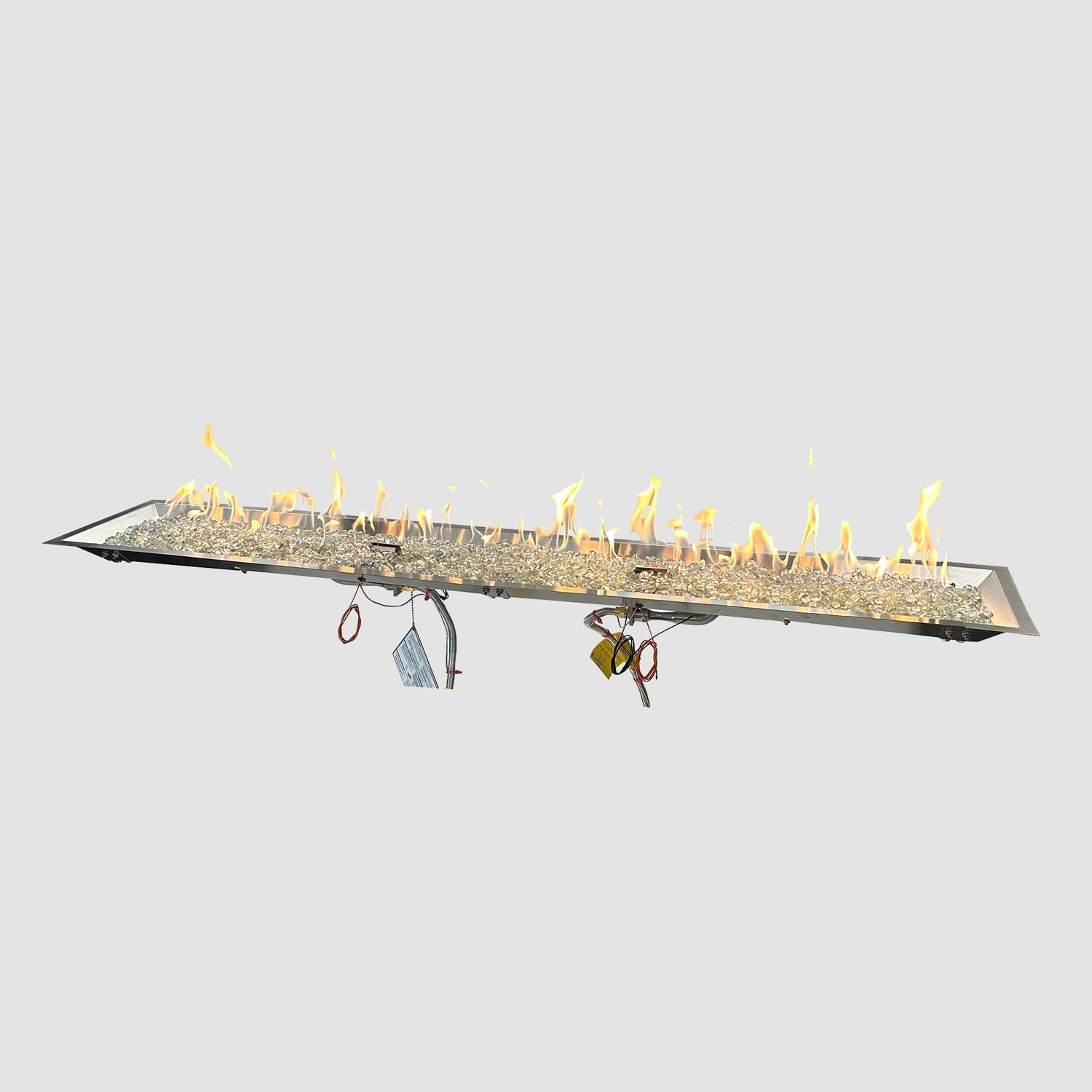

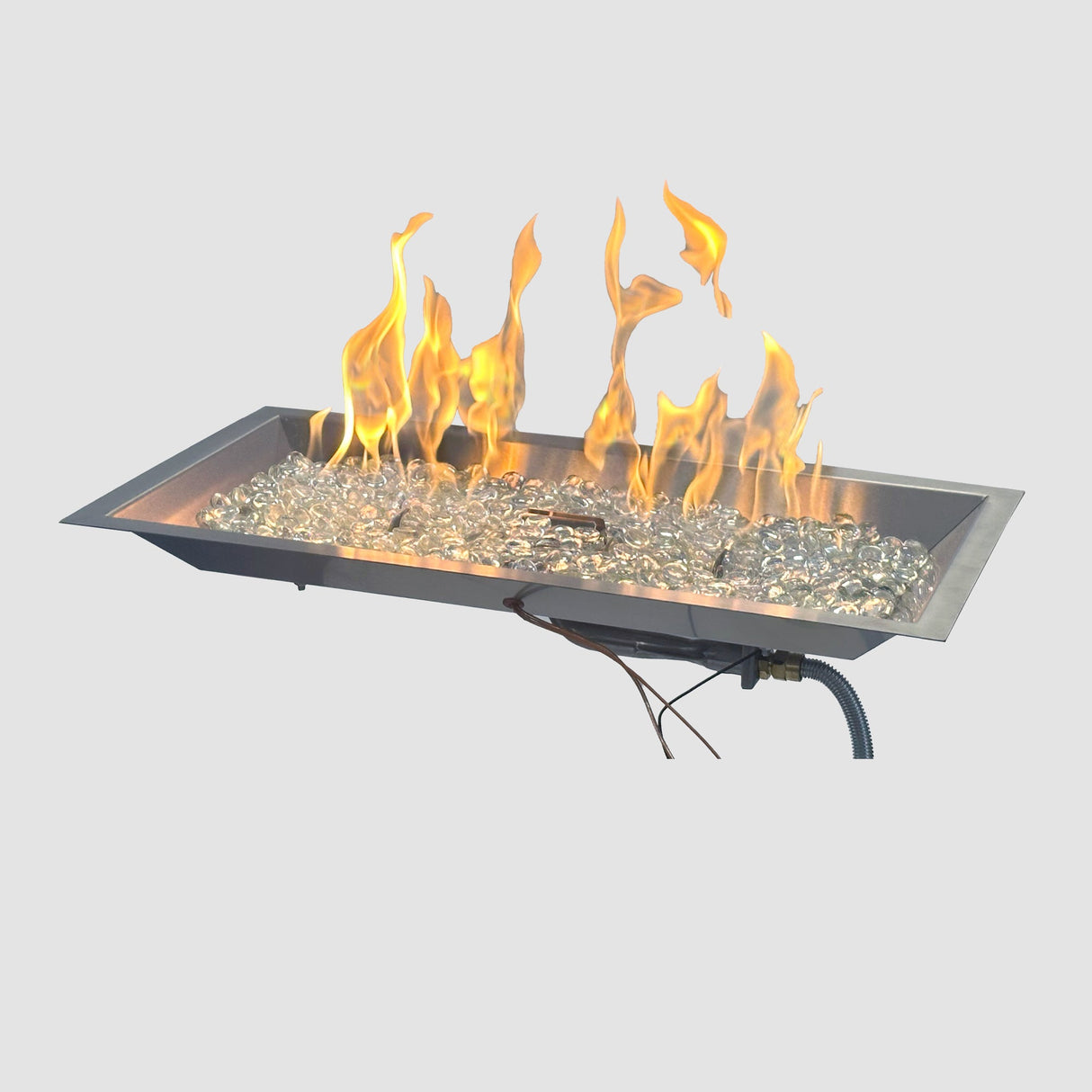

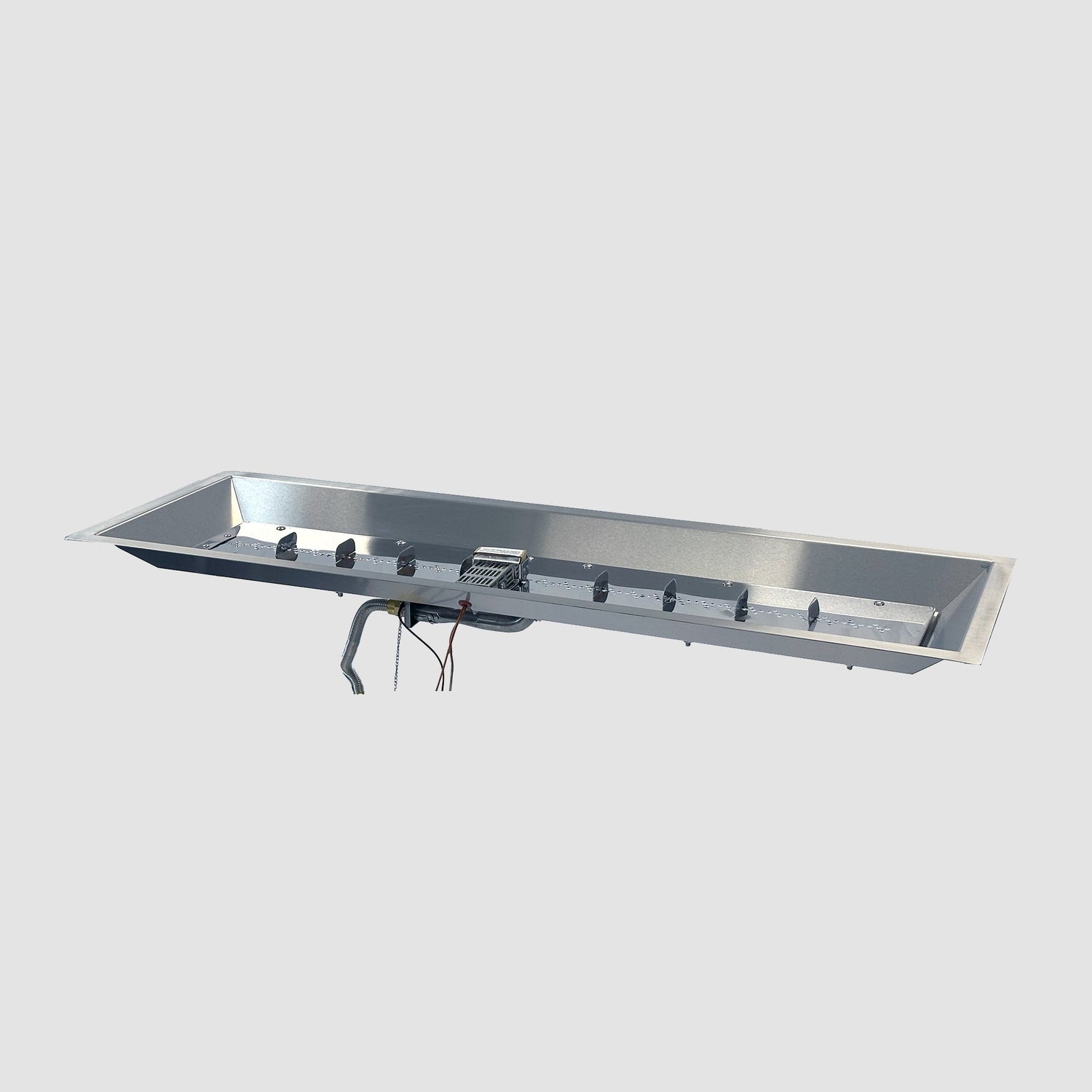

The Outdoor GreatRoom Crystal Fire Plus linear burner is a stainless steel gas burner for custom-built fire pits and outdoor fire features. You build the enclosure, drop in the burner, and cover it with tempered fire glass for a tall, full flame. It is for landscape designers, builders and homeowners who need a specific length, from 24 to 120 inches, rather than a finished fire pit.
Key Specifications
| Model | Crystal Fire Plus linear burner kits CFP1224 through CFP12120 (12" wide, eight lengths) |
| Fuel | Prepared for propane, natural gas conversion kit included; direct spark ignition versions are sold per fuel |
| Construction | Commercial-grade #304 stainless steel |

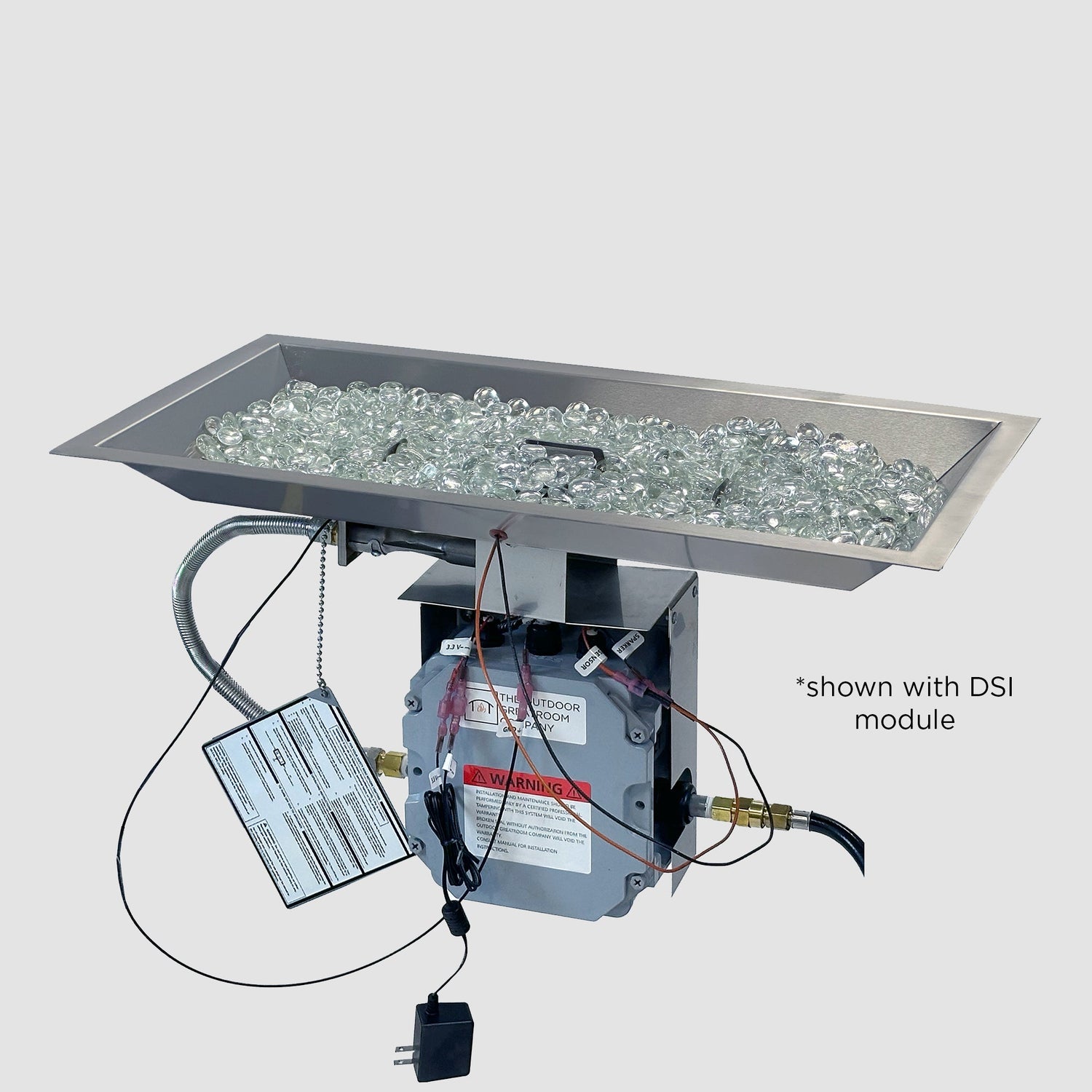

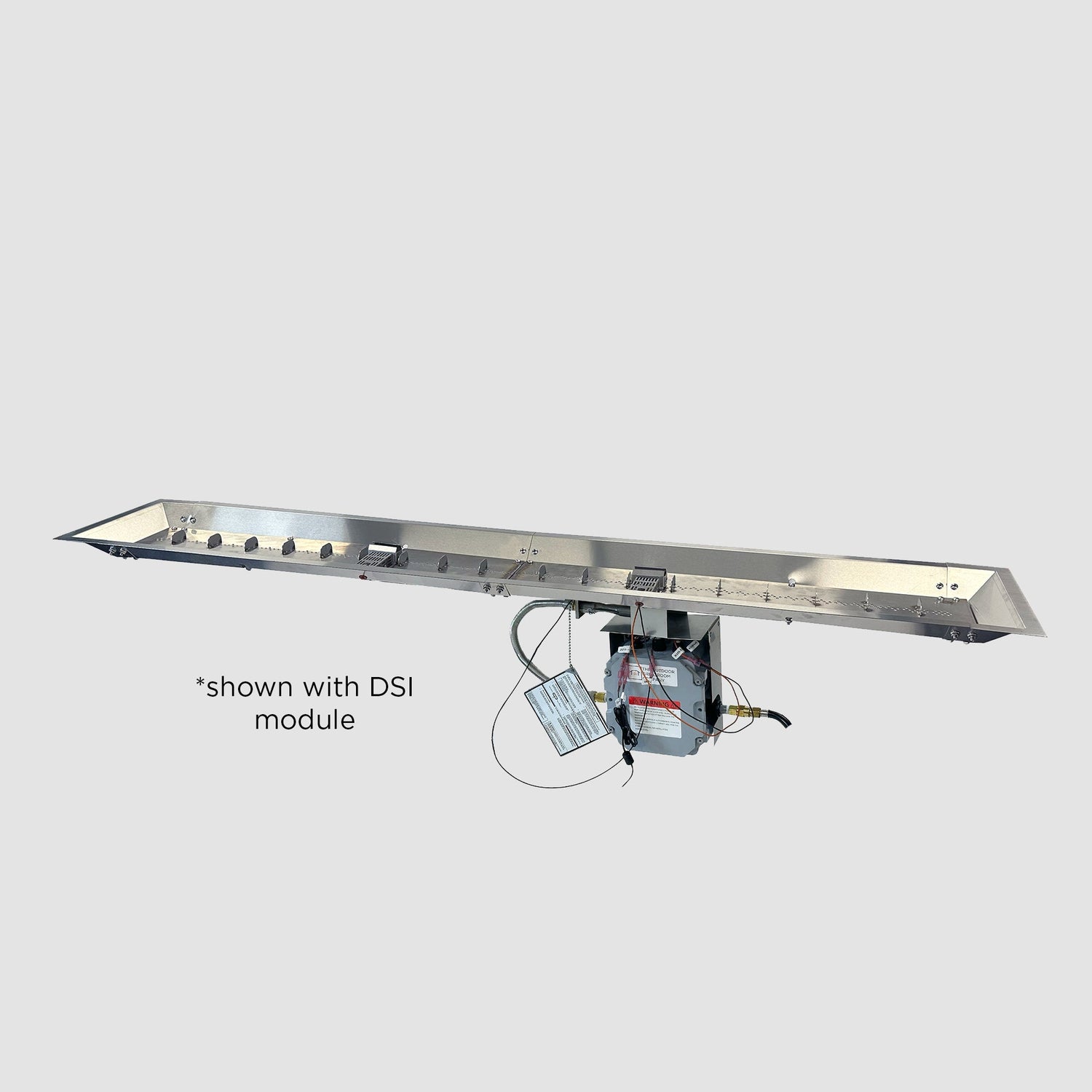

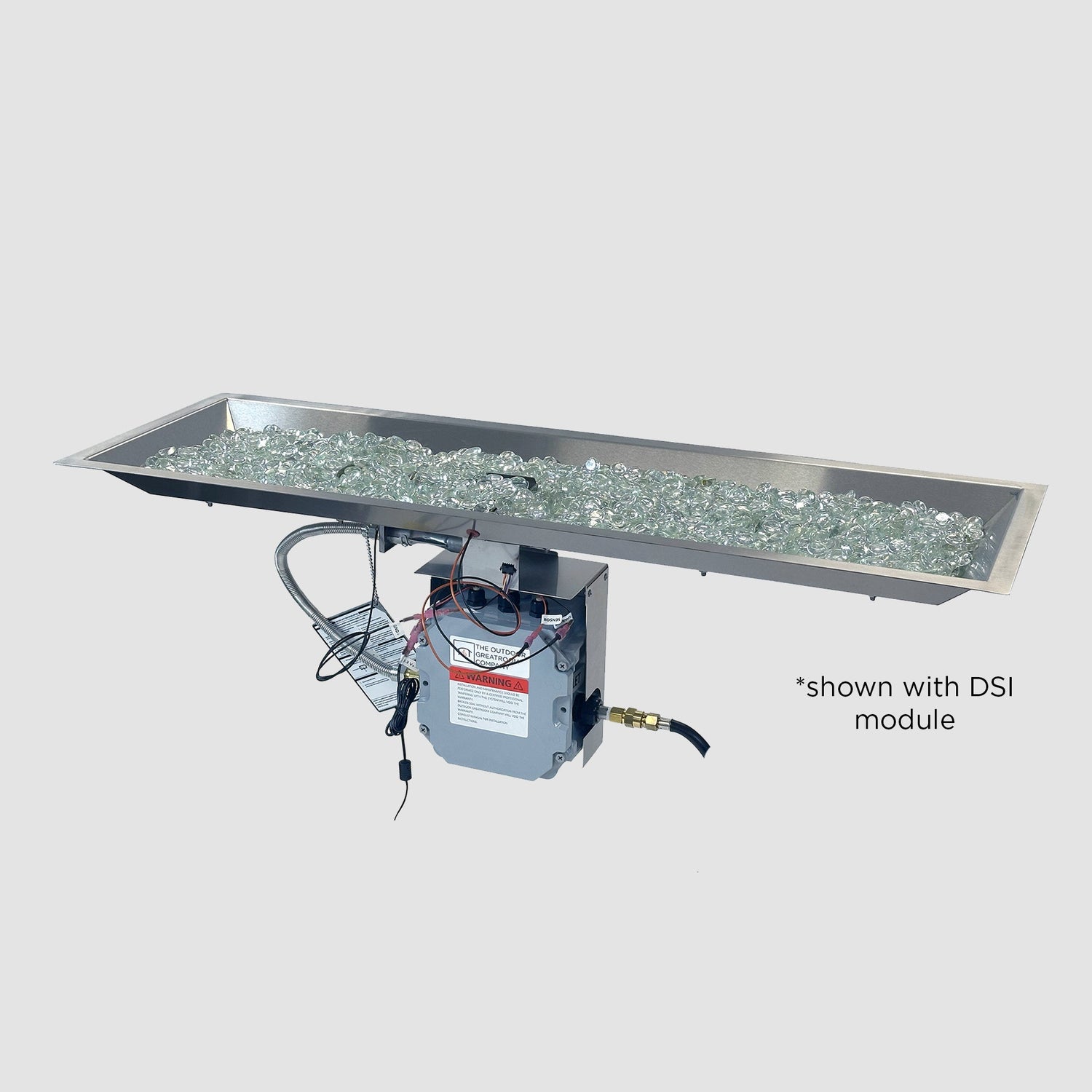

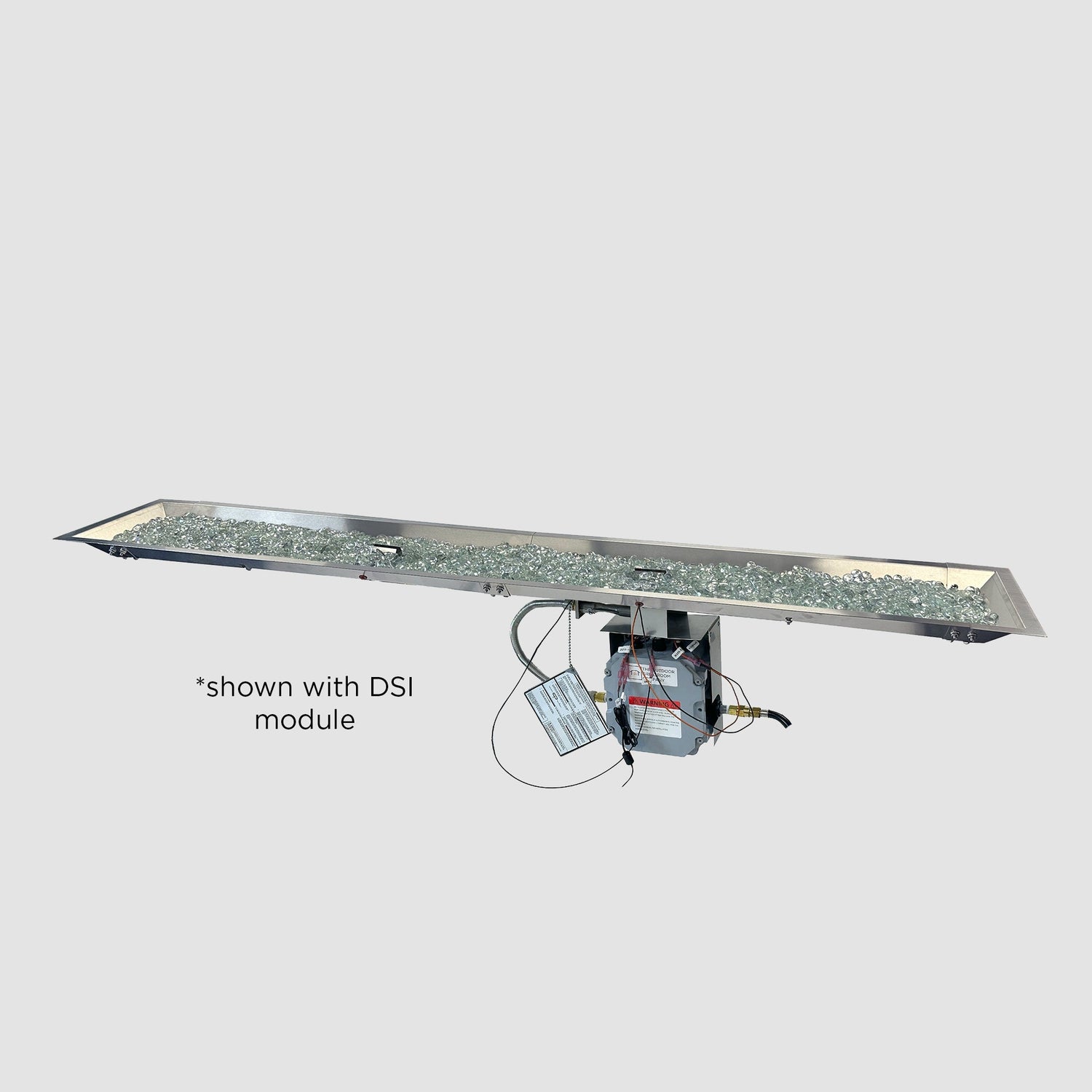

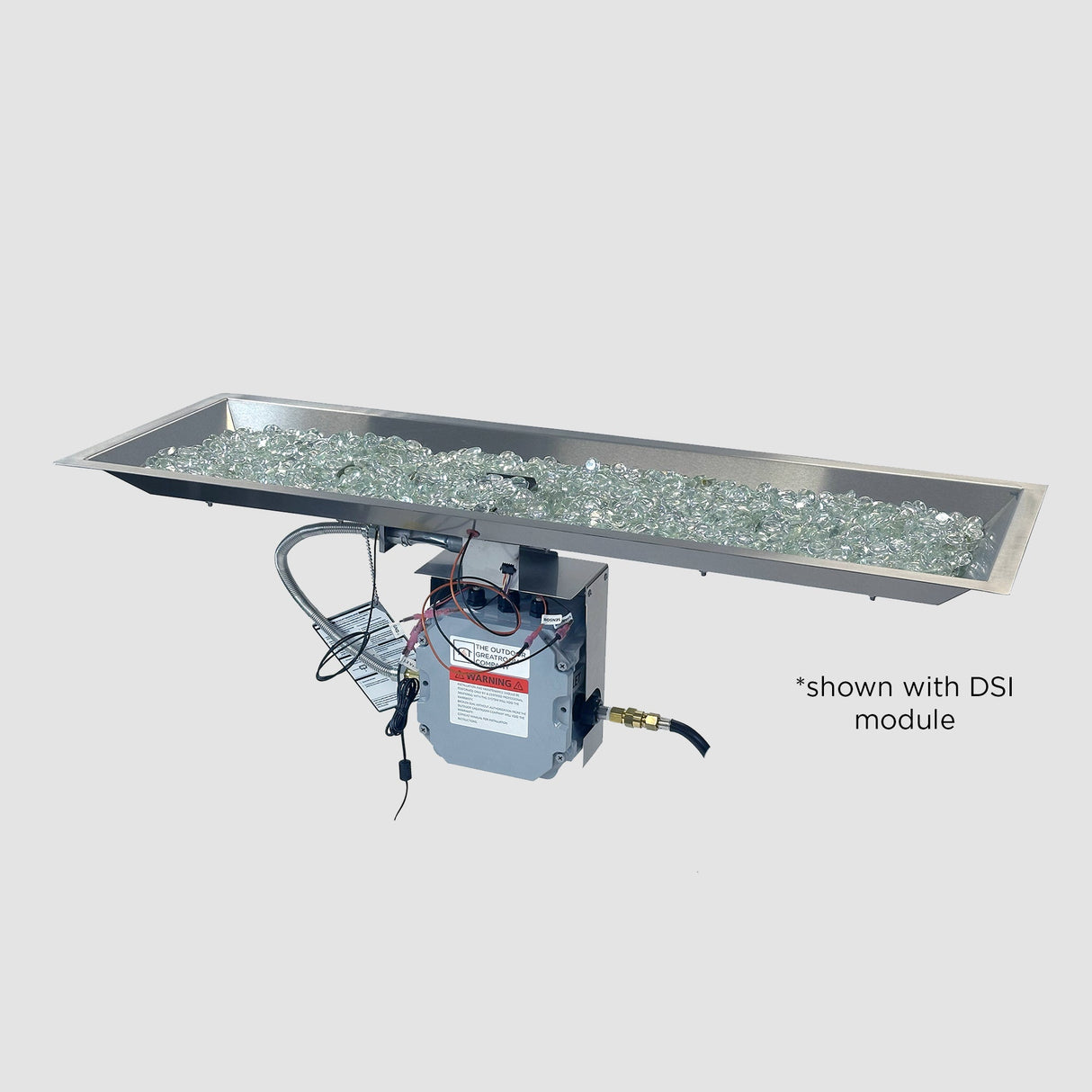

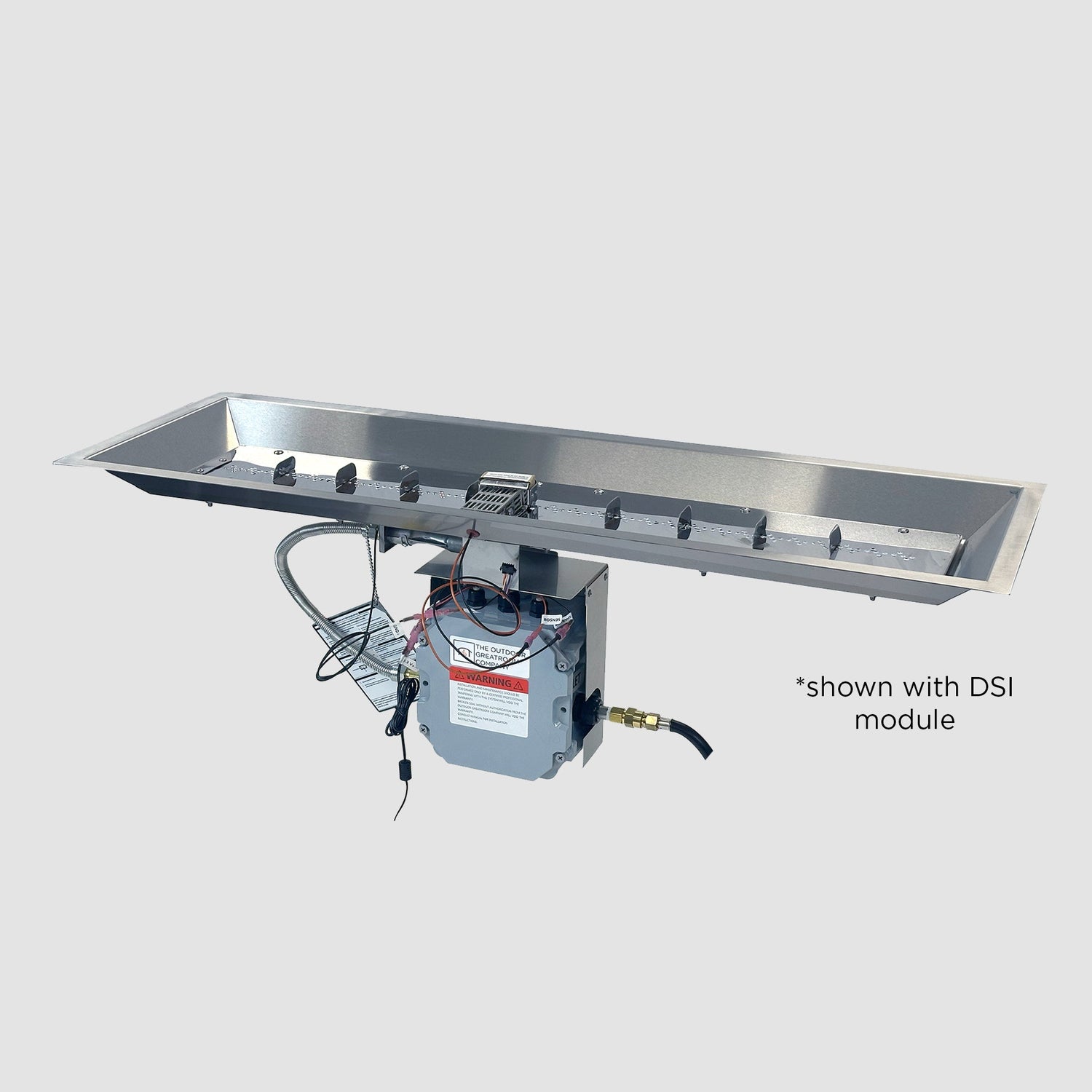

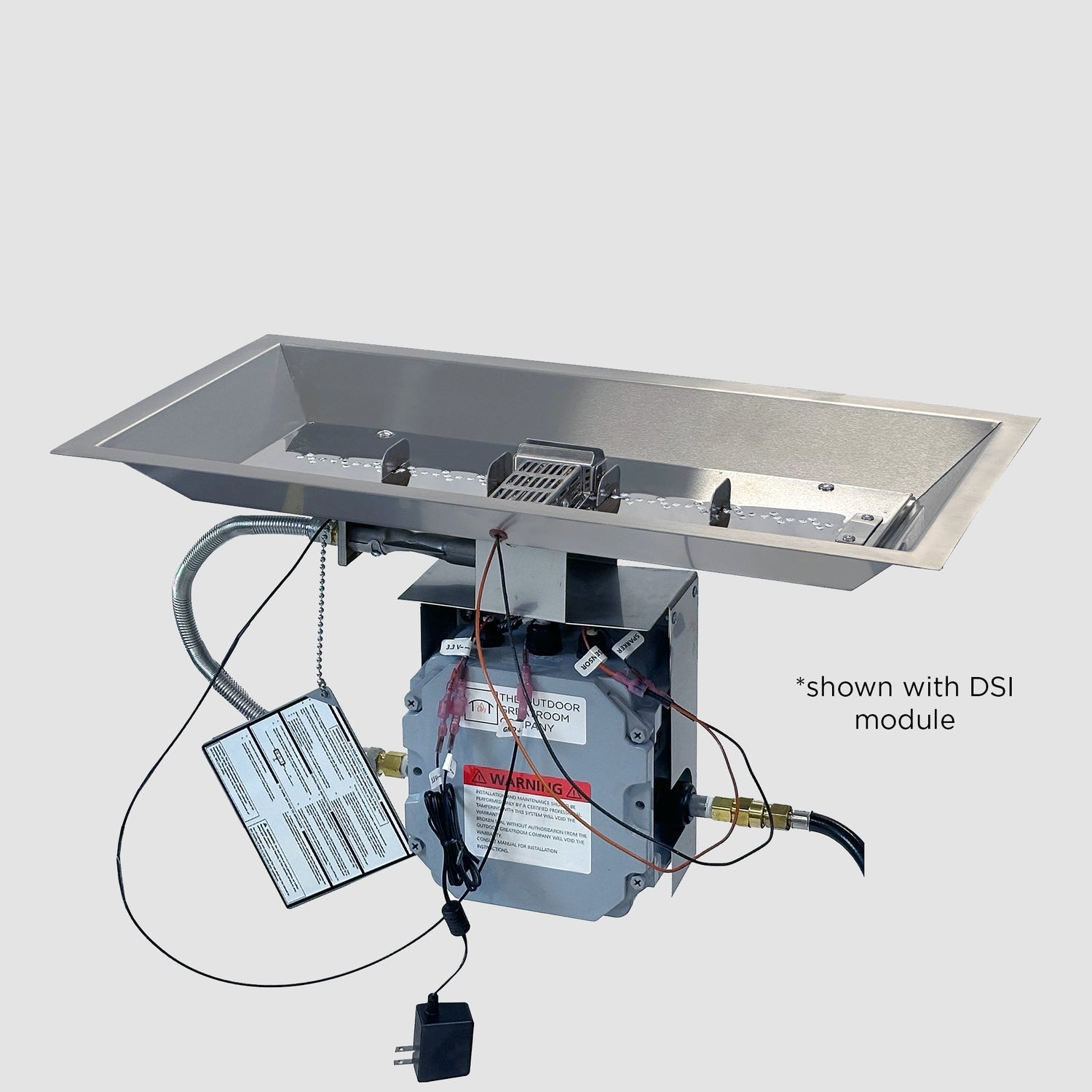

| Ignition | Manual push-button with battery-operated sparker, or electronic direct spark ignition (DSI) |
| Flame control | Adjustable from low to high; thermocouple safety shutoff |
| Certification | UL and ULC listed to ANSI Z21.97-2017 / CSA 2.41-2017 outdoor decorative gas appliances |
| Use | Outdoor use only, in a custom enclosure you build |
Dimensions and Cutout
| Size | Store SKU (manual ignition) | Burner trim, L x W | Max input LP / NG | Glass gems included |
|---|---|---|---|---|

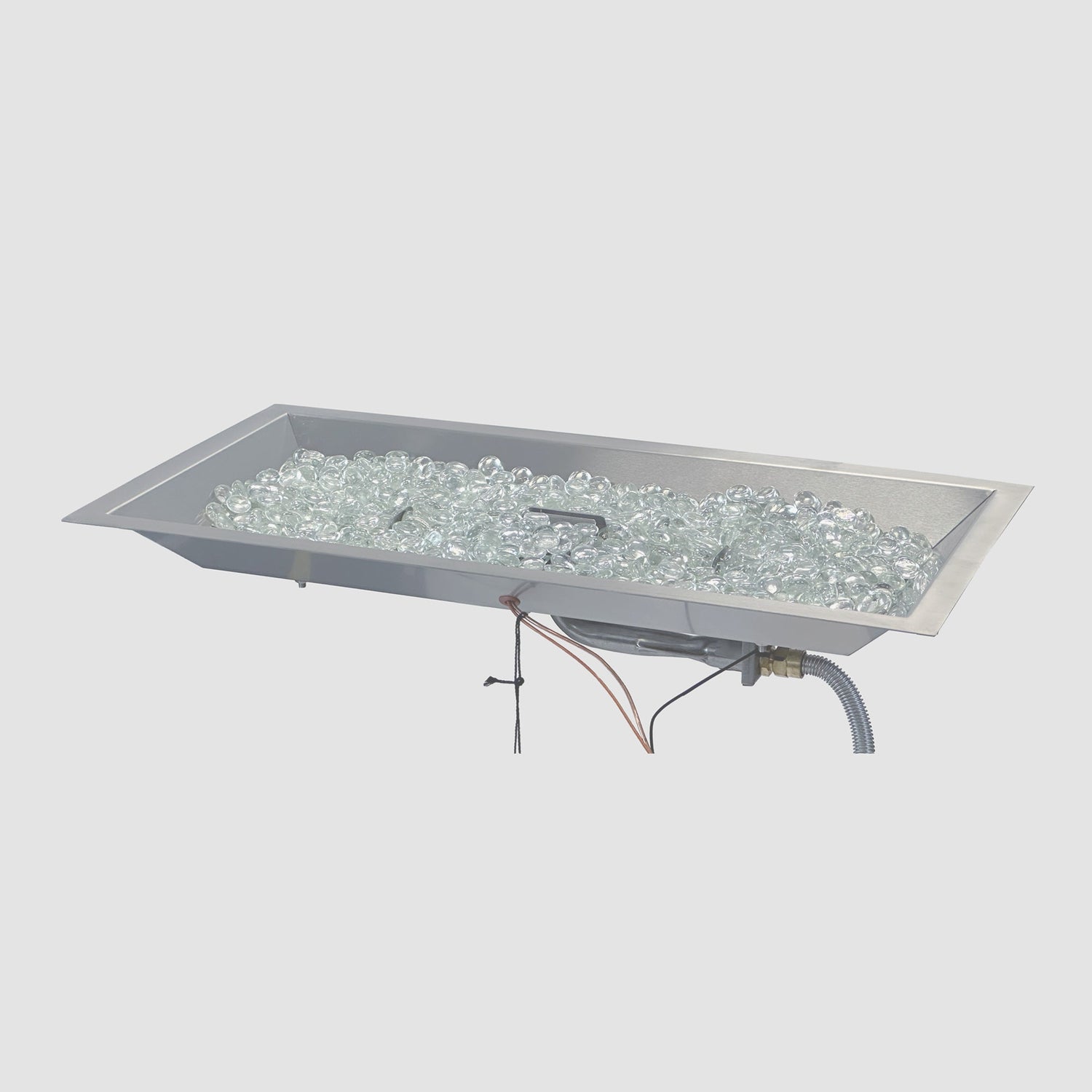

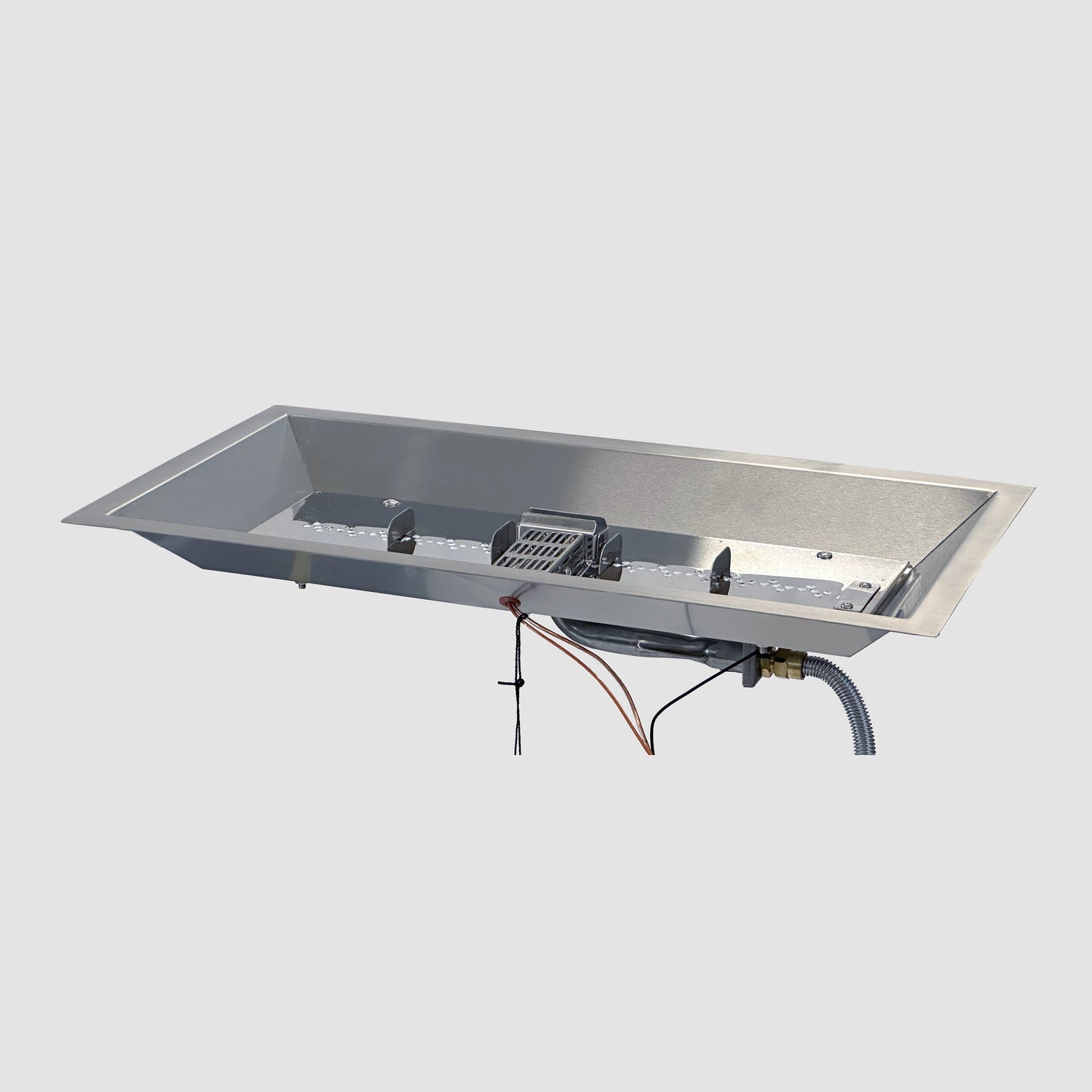

| 12" x 24" | CFP1224-K | 25.63" x 13.50" | 56K / 55K BTU/hr | 15 lb |

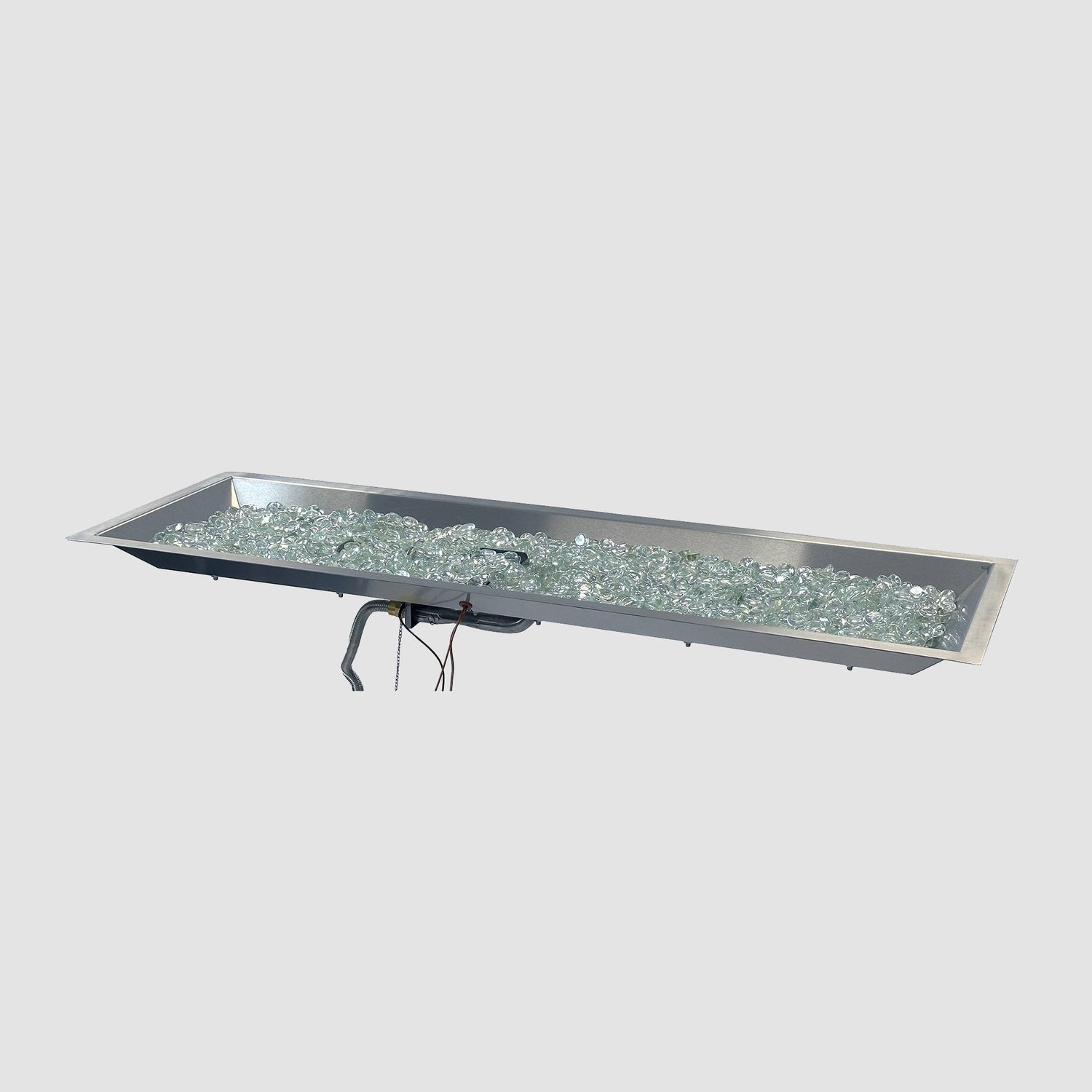

| 12" x 42" | CFP1242-K | 42.52" x 13.50" | 65K LP as shipped for a 20 lb cylinder (80K with the included #35 orifice) / 80K BTU/hr | 20 lb |
| 12" x 64" | CFP1264-B | 64.30" x 13.50" | 102K / 101K BTU/hr | 25 lb |

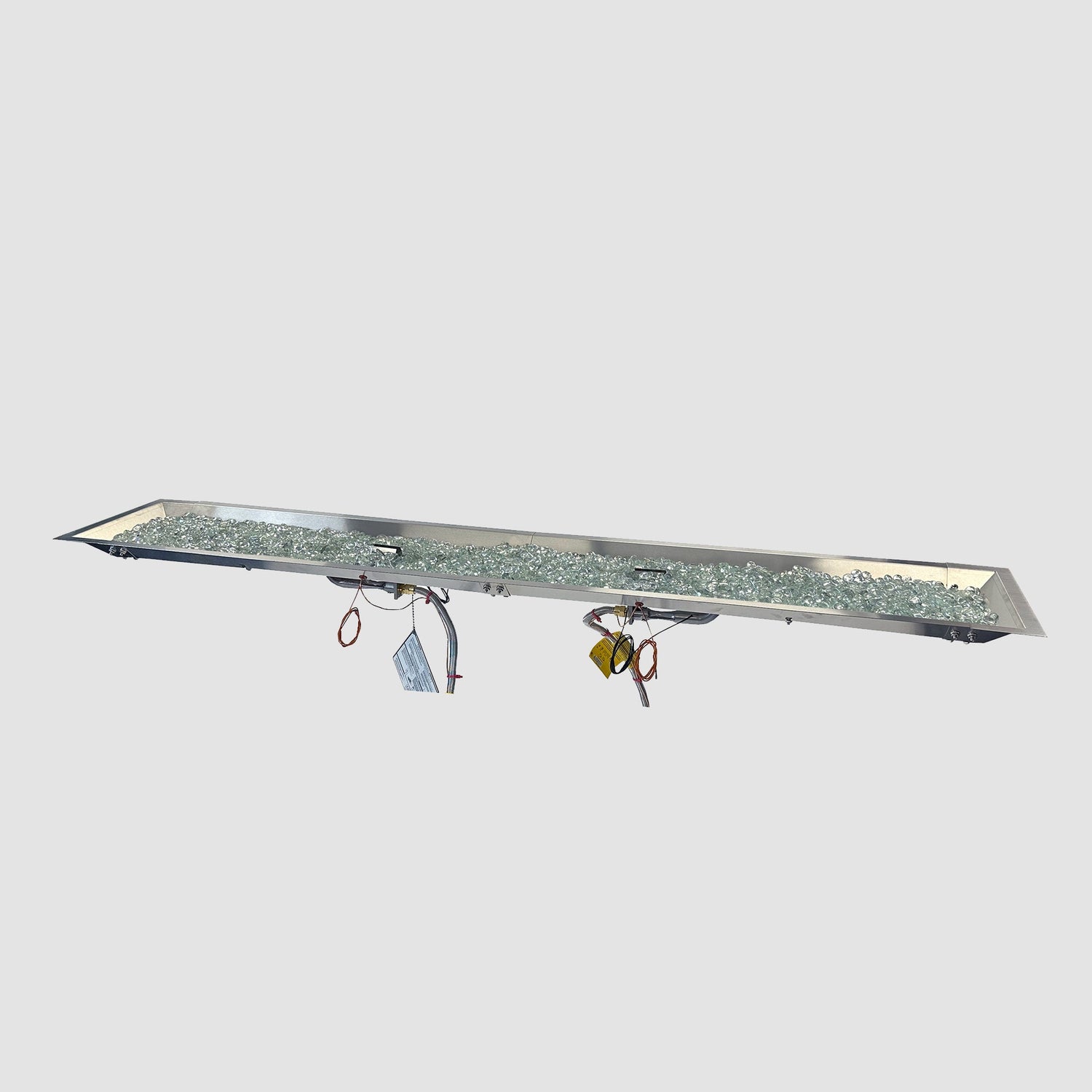

| 12" x 72" | CFP1272-B | 72.00" x 13.50" | 121K / 120K BTU/hr | 30 lb |
| 12" x 84" | CFP1284-B | 84.00" x 13.50" | 140K / 142K BTU/hr | 35 lb |
| 12" x 96" | CFP1296-B | 96.00" x 13.50" | 160K / 160K BTU/hr | 40 lb |
| 12" x 108" | CFP12108-B | 108.00" x 13.50" | 180K / 180K BTU/hr | 45 lb |
| 12" x 120" | CFP12120-B | 120.00" x 13.50" | 204K / 202K BTU/hr | 50 lb |
| Clearances to combustibles | 72" above the burner, 24" from the burner trim to combustible side walls, and 4" to combustibles around the burner in an enclosure; the enclosure top surface must be non-combustible (Crystal Fire Plus linear manual) |
| Gas supply pressure | LP: 11 in w.c. ideal (8 minimum, 14 maximum). NG: 7 in w.c. ideal (3.5 minimum, 10.5 maximum) |
| Enclosure | Needs equal-size vents and drainage; vent sizing for propane cylinder and natural gas systems is in the manual |
Features
- Commercial-grade #304 stainless steel construction
- UL and ULC listed to ANSI Z21.97-2017 / CSA 2.41-2017
- Adjustable flame height, with a brighter, fuller flame than earlier burners per Outdoor GreatRoom
- Safety ignition and shutdown with thermocouple protection
- Factory gas connections to reduce setup time
- Eight lengths from 24 to 120 inches
- Manual push-button ignition or electronic direct spark ignition

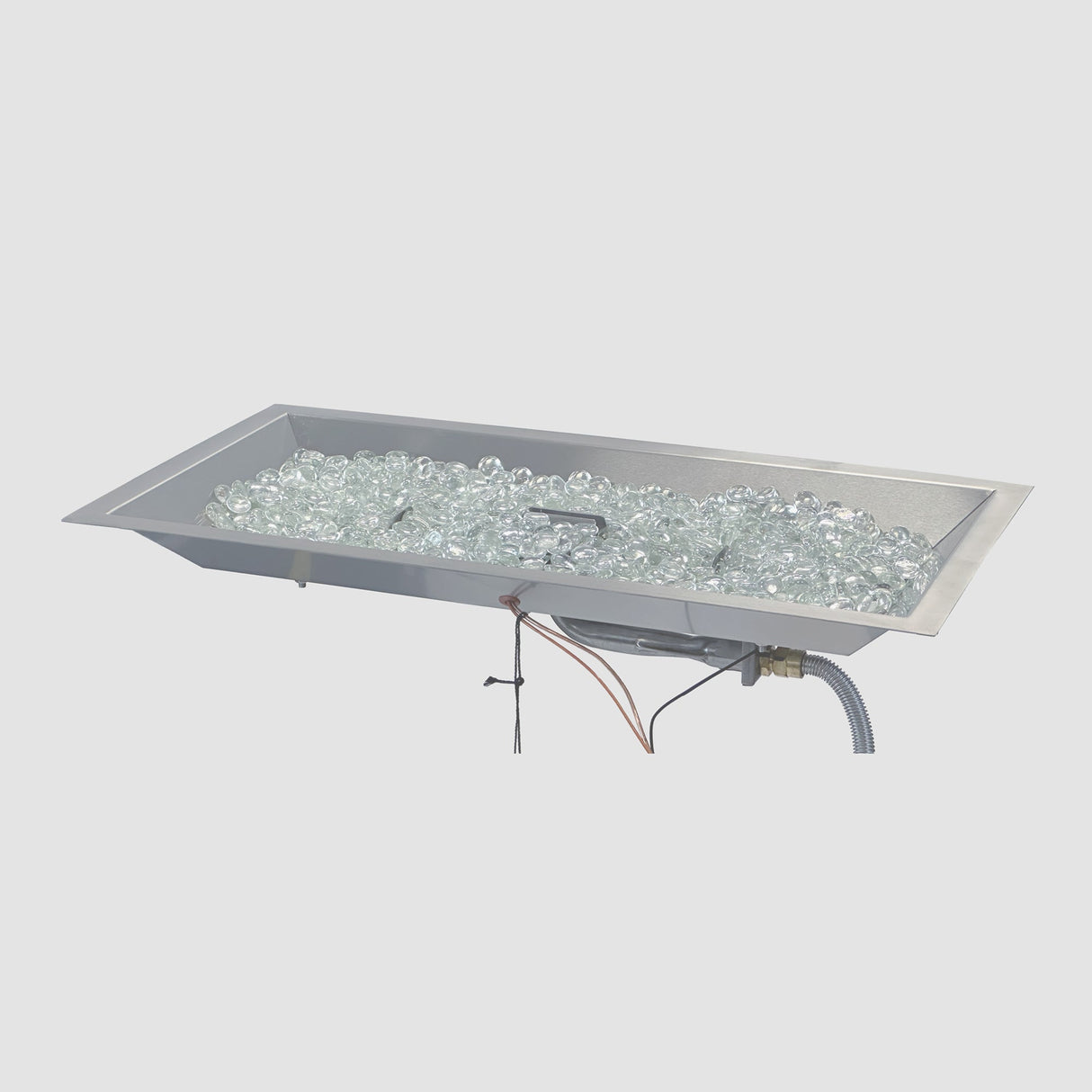

- Clear tempered fire glass gems included

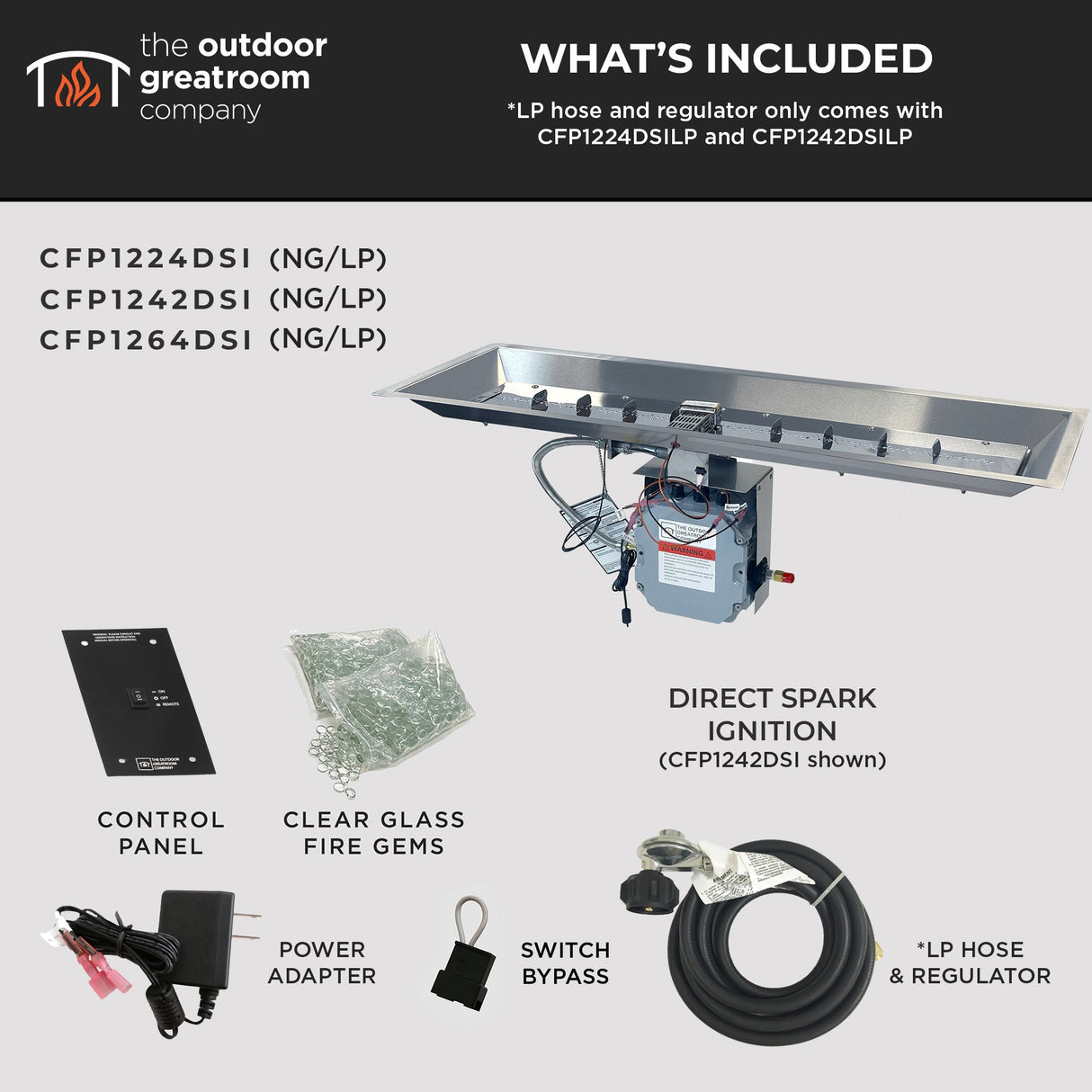

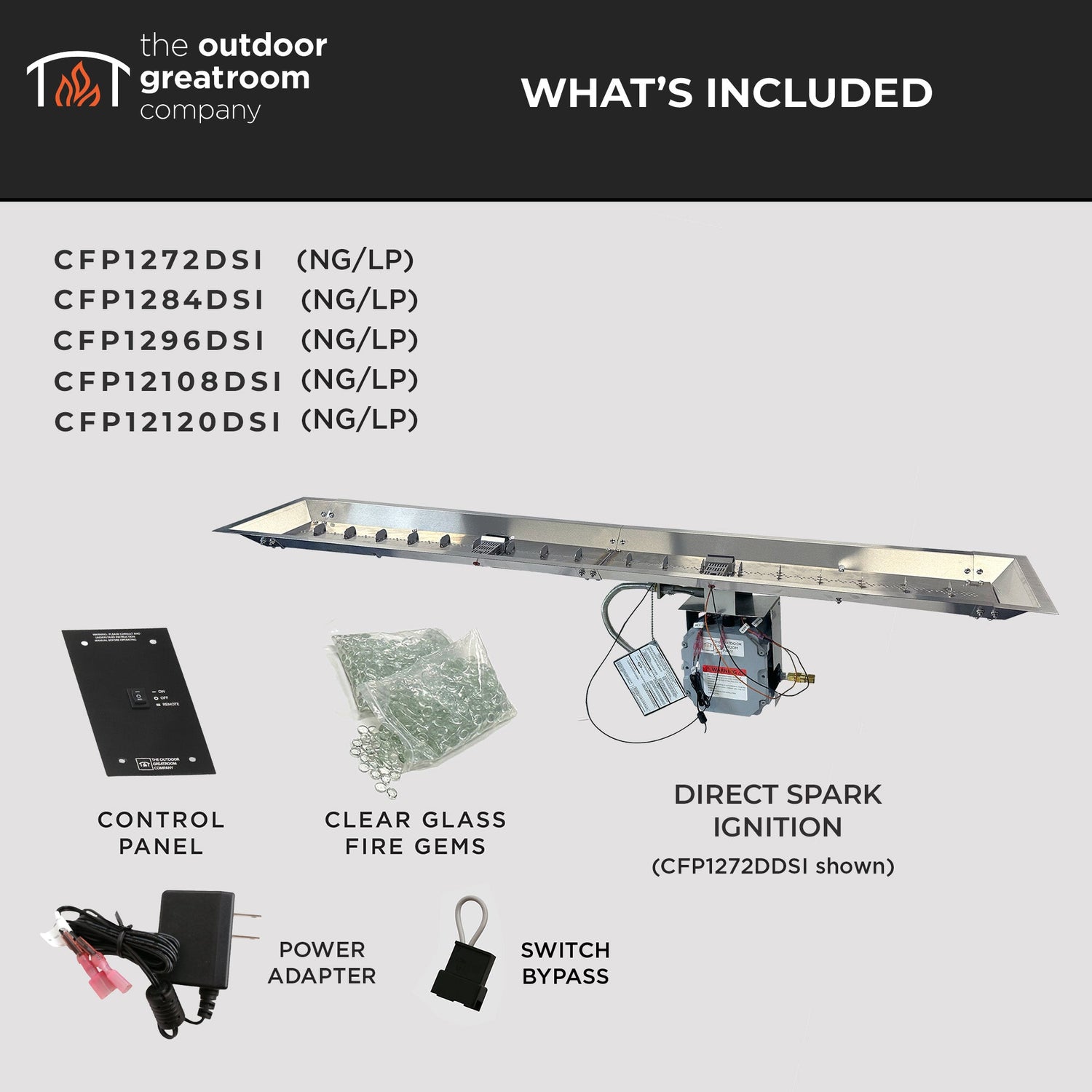

What Is Included and What You Will Need

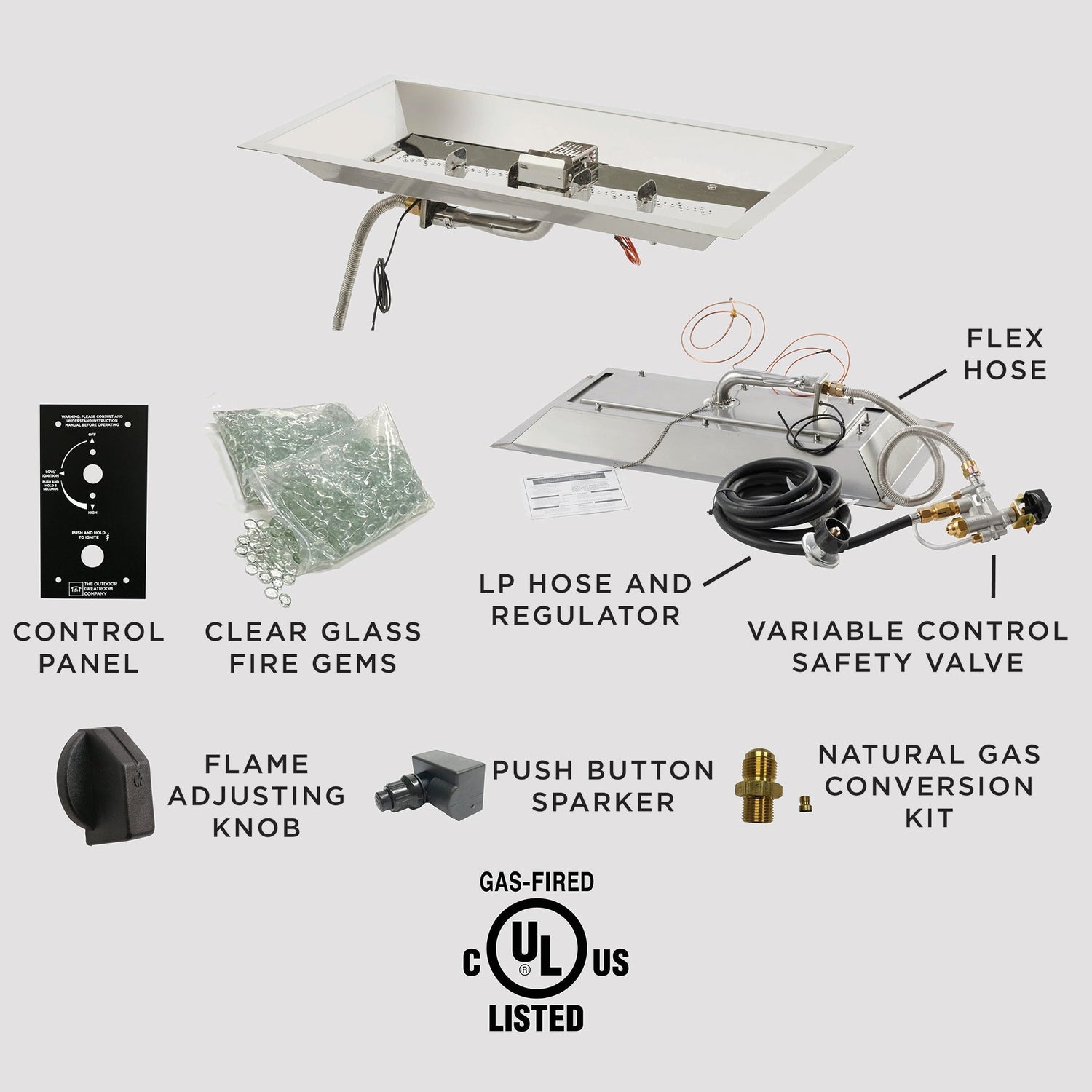

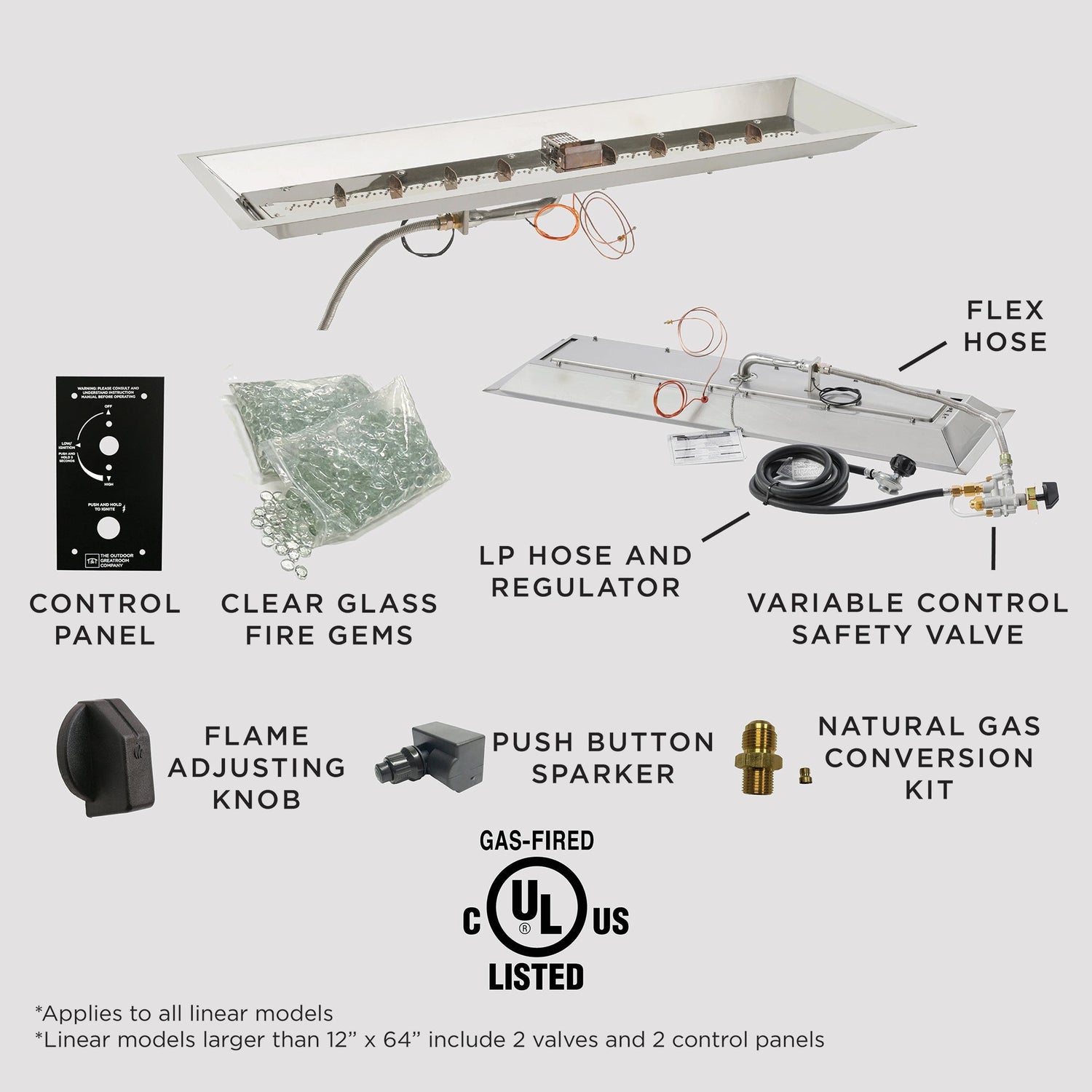

- Included (per the Crystal Fire Plus linear manual): burner with trim, 1/2 inch stainless steel flex line, manual control valve, push-button sparker, control panel with knob, natural gas conversion kit, and clear glass media in 5 lb bags
- The 24 and 42 inch kits include a 10 foot regulator hose for a 20 lb propane cylinder. The 64 inch and larger kits do not, because they burn more gas than a standard cylinder can supply

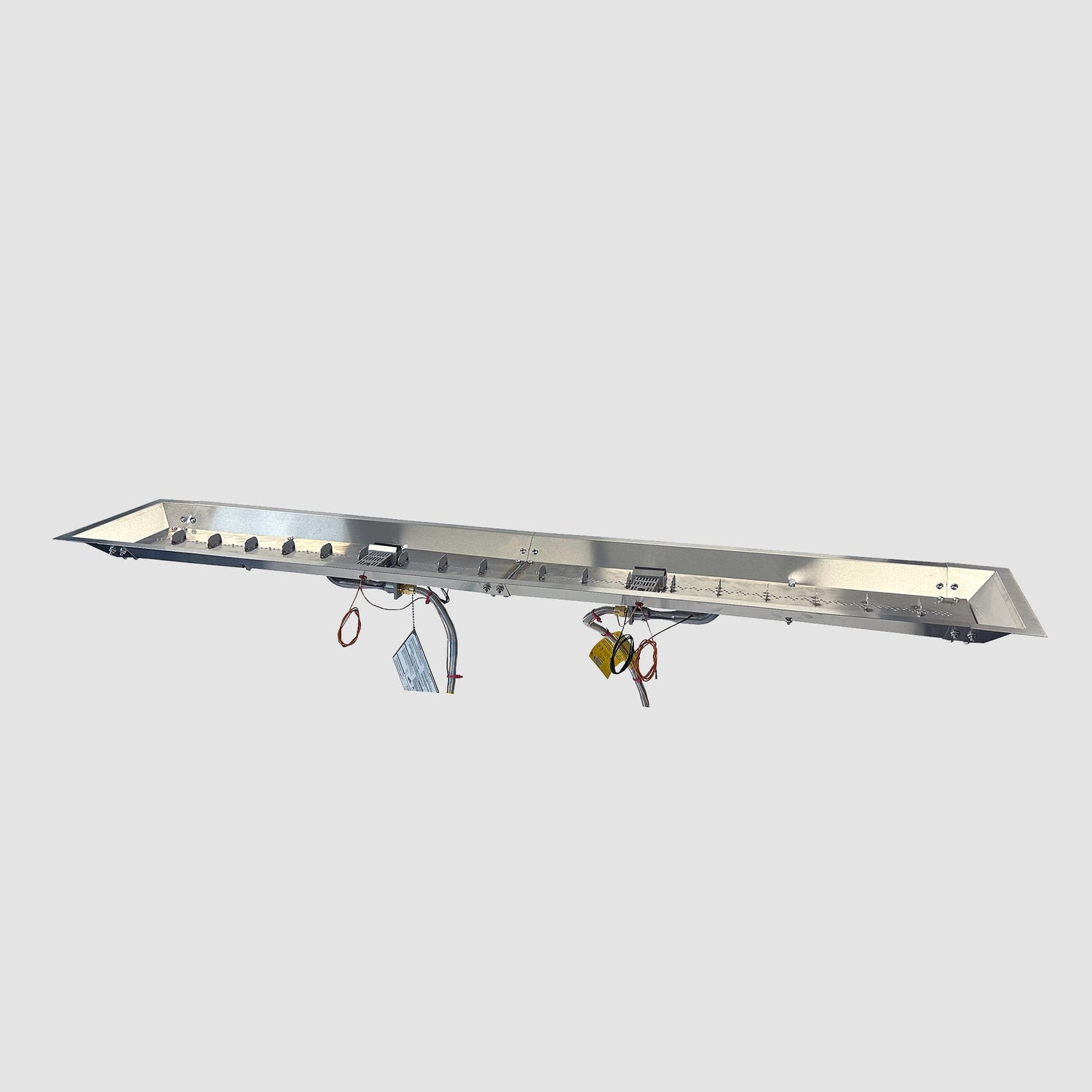

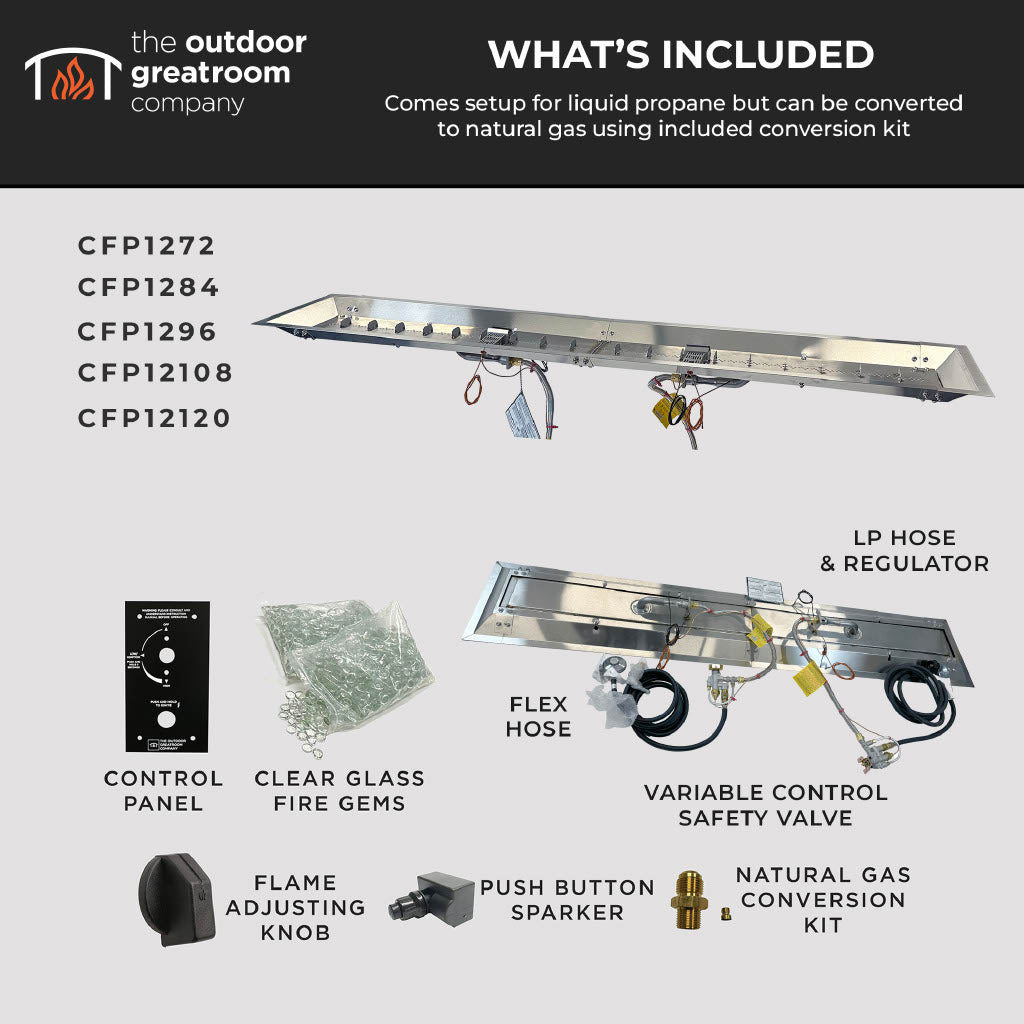

- The 72 inch and larger kits include two valves, two sparkers and two control panels

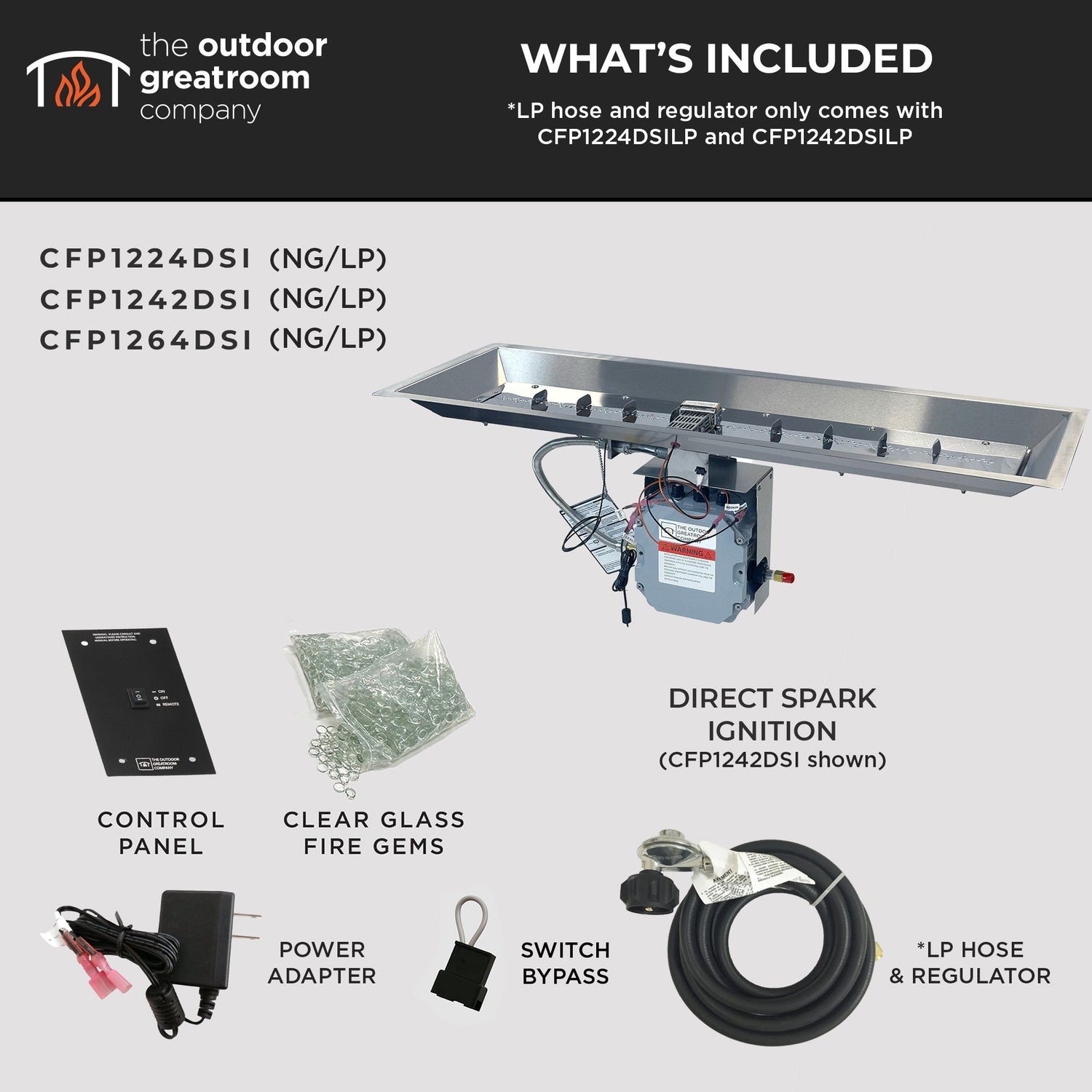

- Required: a non-combustible enclosure you build with required vents, a gas supply or propane cylinder, a licensed gas installer, and a GFCI protected outlet for DSI versions
- Optional: tempered fire glass gems and an outdoor ceramic fiber log set; glass wind guards and burner covers are available from Outdoor GreatRoom
Installation Notes
For outdoor use only, in an enclosure that meets the manual's clearance, ventilation and non-combustible top requirements. Gas connections should be leak checked and made by a licensed installer when connected to a fixed gas line. In New York City, outdoor gas appliances, gas piping and propane storage fall under the NYC Fuel Gas Code, FDNY rules and DOB permitting, so the approval path must be confirmed before purchase. Book a free design consultation and we will help you size the burner, plan the enclosure and coordinate gas and installation in NYC and Long Island.
Documentation
- Crystal Fire Plus Linear Burner Manual
- Manual Ignition Burner Collection Info Sheet
- Electronic Ignition Manual
- Quick Start Guide
- Commercial Burner Supplement
Frequently Asked Questions
Which size should I choose?
Match the burner length to the opening in your enclosure. The burner trim is 13.5 inches wide on every size, and the manual lists the trim length for each. Higher BTU sizes use more gas, so confirm your gas line capacity.
Can I run it from a propane cylinder?
The 24 and 42 inch kits include a regulator hose for a 20 lb cylinder. The 64 inch and larger kits do not, because they use more gas than a standard cylinder can supply, so plan a larger or hard-piped supply.
Does it include fire glass?
Yes. Each kit includes clear tempered glass gems, from 15 lb on the 24 inch to 50 lb on the 120 inch. Other media is sold separately.
Is it only for outdoor use?
Yes. Outdoor GreatRoom lists it as an outdoor decorative gas appliance and requires the clearances and enclosure ventilation in the manual.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Per the Crystal Fire Plus linear manual: a limited lifetime warranty, defined as 10 years, on stainless steel burners installed in a residential setting (5 years commercial), and a three-year warranty on ignition and electronic components in a residential setting (1 year commercial).
