The Outdoor GreatRoom Crystal Fire Plus Round Gas Burner
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
The Outdoor GreatRoom Crystal Fire Plus Round Gas Burner - 20" Round / Manual (LP or NG) is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
- Local delivery or pick-up across NYC, Long Island, NJ and CT. $49.95 flat rate, free over $999.
- Factory-authorized The Outdoor GreatRoom Company dealer. You keep the full manufacturer warranty.
- 30-day returns, no restocking fee.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Free & Flat Rate Local Delivery
Free & Flat Rate Local Delivery
- Our team & trucks deliver locally within 60 miles of our showroom. (NYC Tri-State including all of Suffolk County)
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 days
- $49.95 Flat-Rate Local Shipping on orders under $999
- Setup & Assembly available for most items at checkout
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
Call for a free quote 718-326-4328
Visit our sister site to learn more about our showroom products like Direct Vent Gas Fireplaces, www.NYCFireplaces.com
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
The Outdoor GreatRoom Crystal Fire Plus Round Gas Burner
The Outdoor GreatRoom Crystal Fire Plus Round Gas Burner - 20" Round / Manual (LP or NG) is backordered and will ship as soon as it is back in stock.
Description
Description
Lead Time: Ships in 2–3-5 business days.
Overall Dimensions: CFP20 burner 21.06 in diameter; CFP30 burner 32.00 in diameter

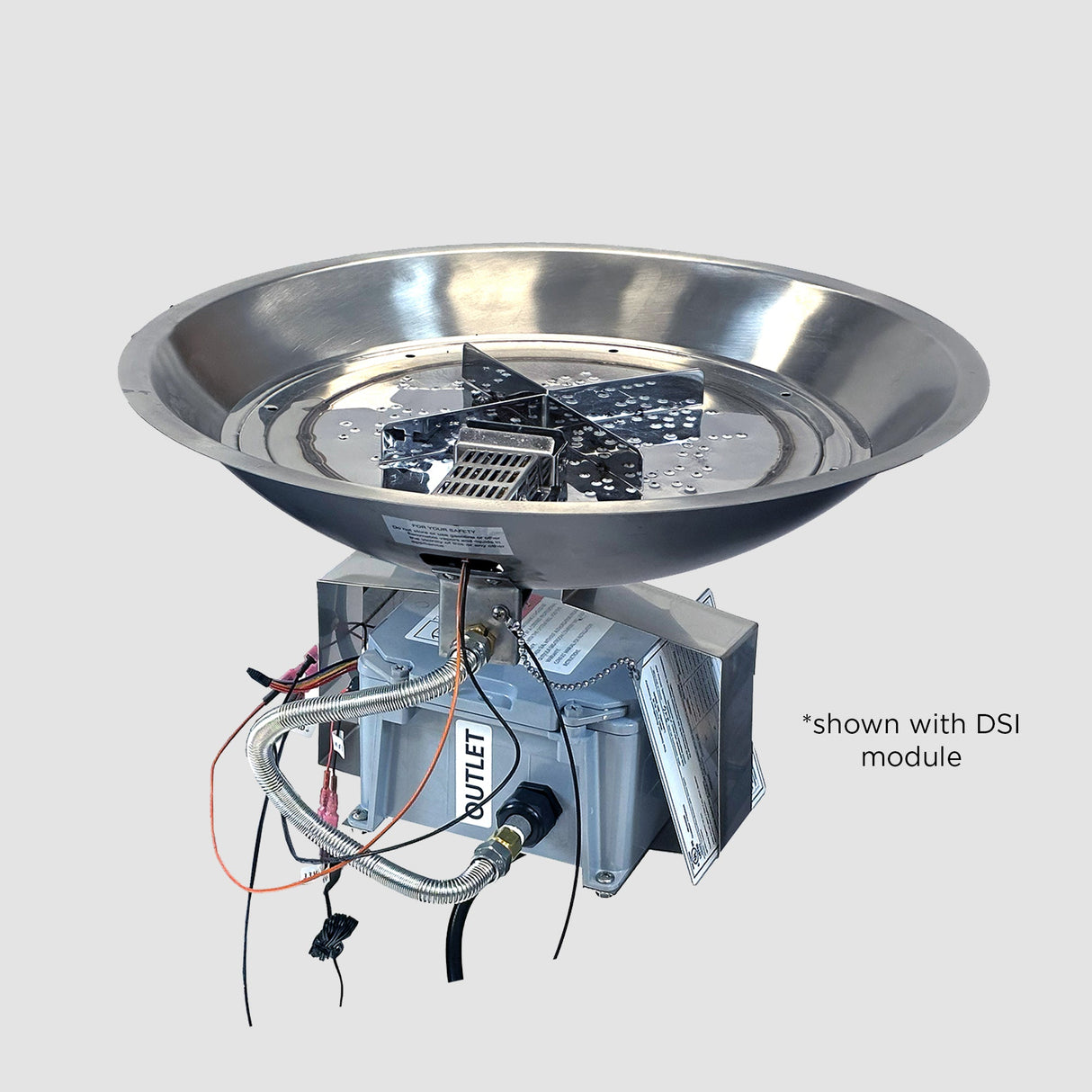

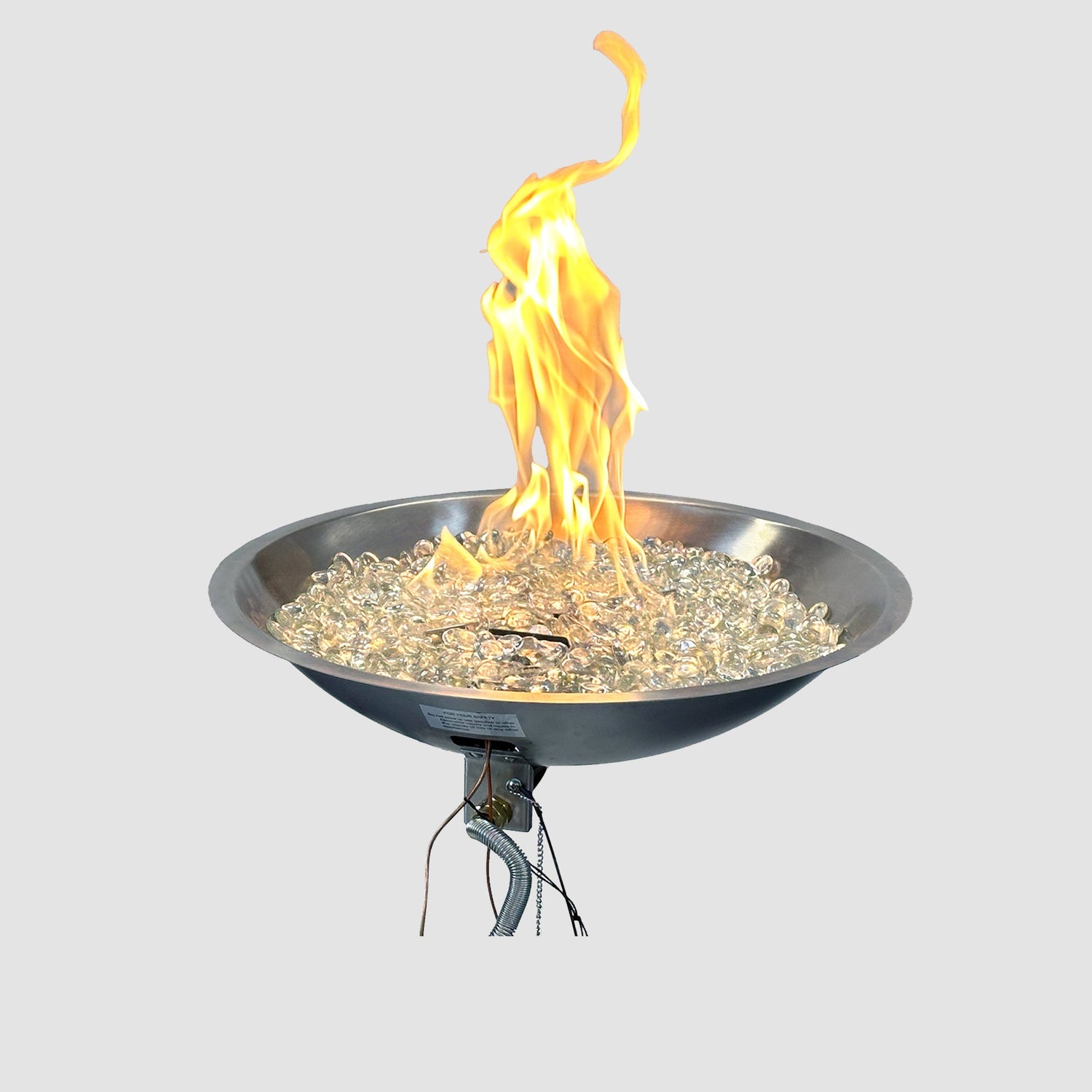

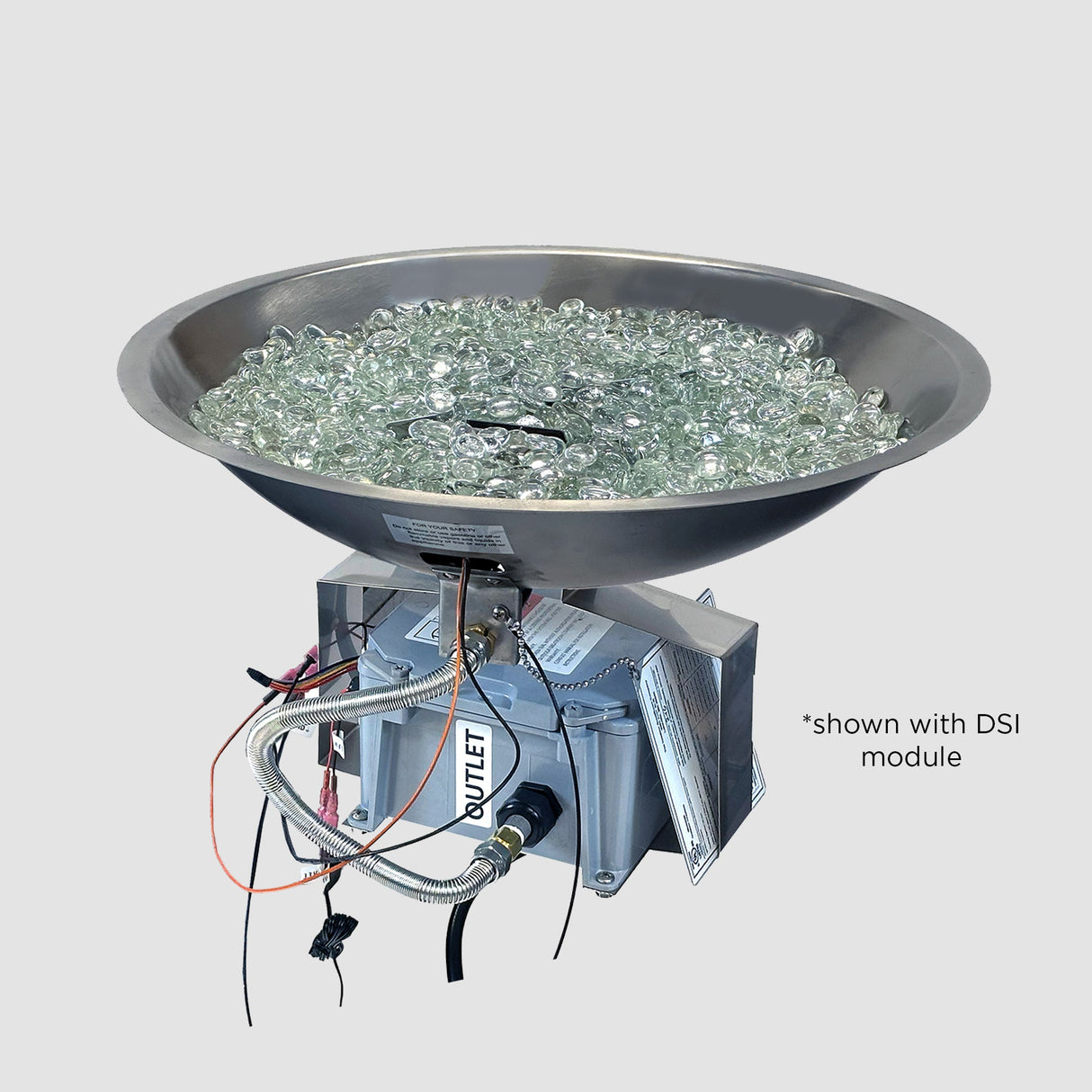

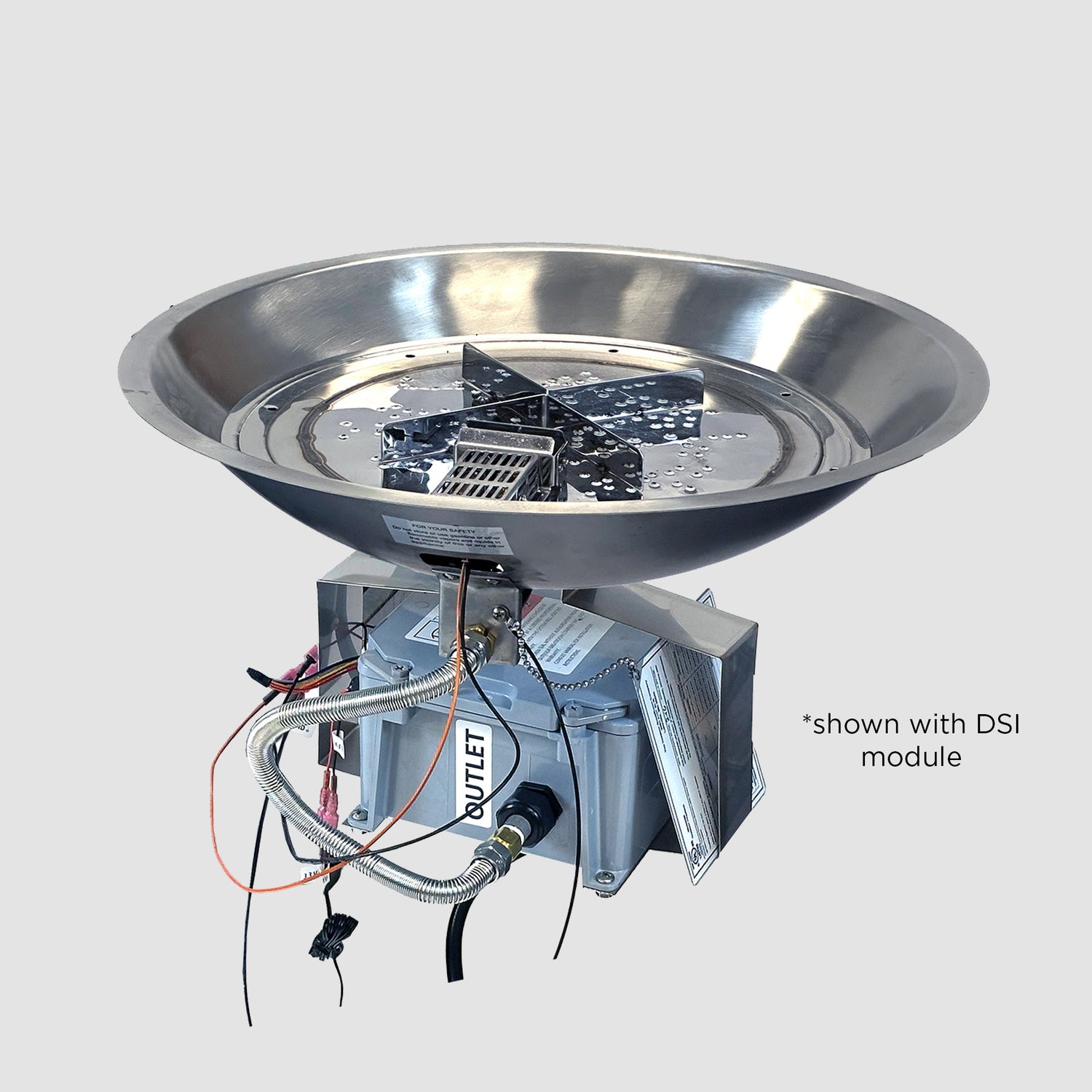

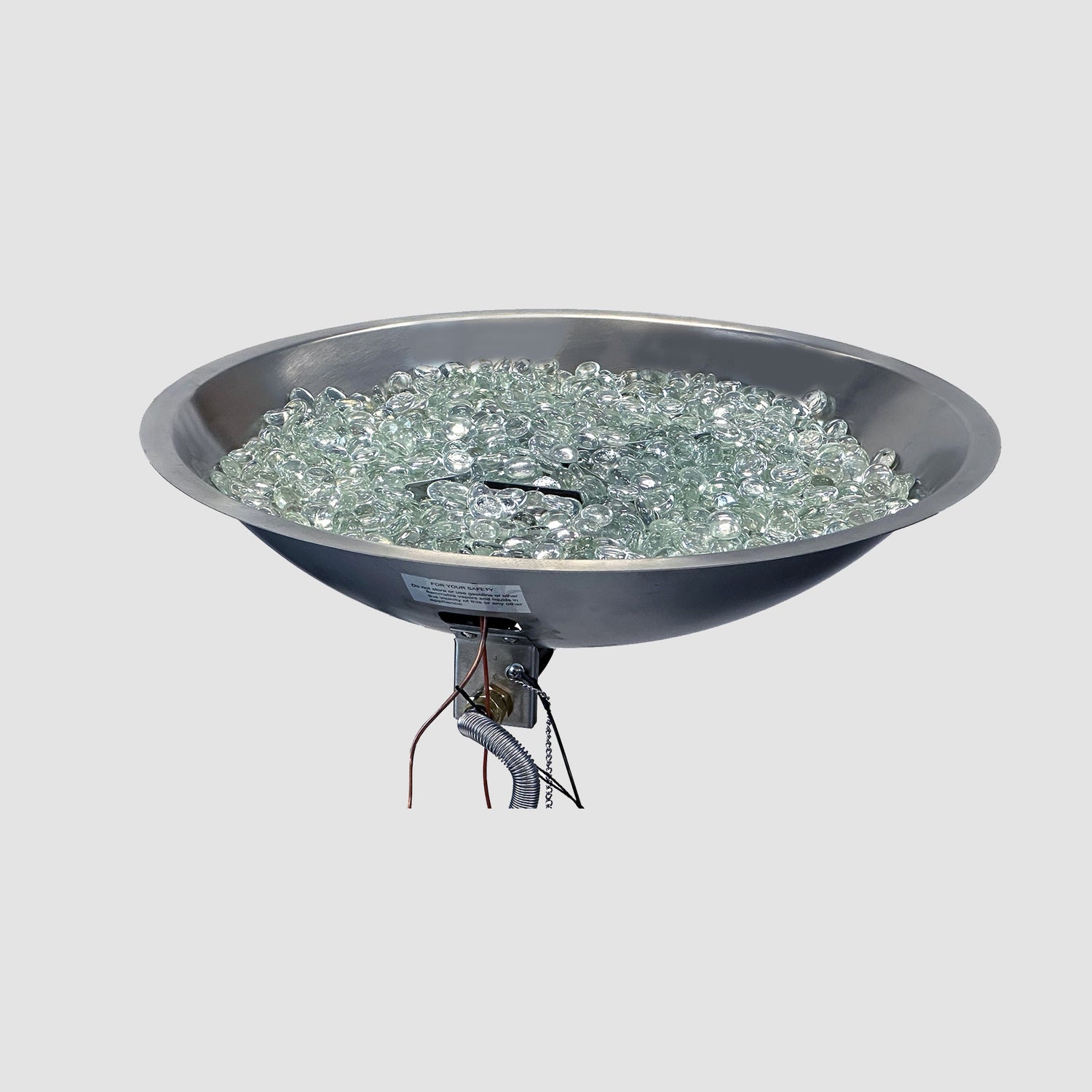

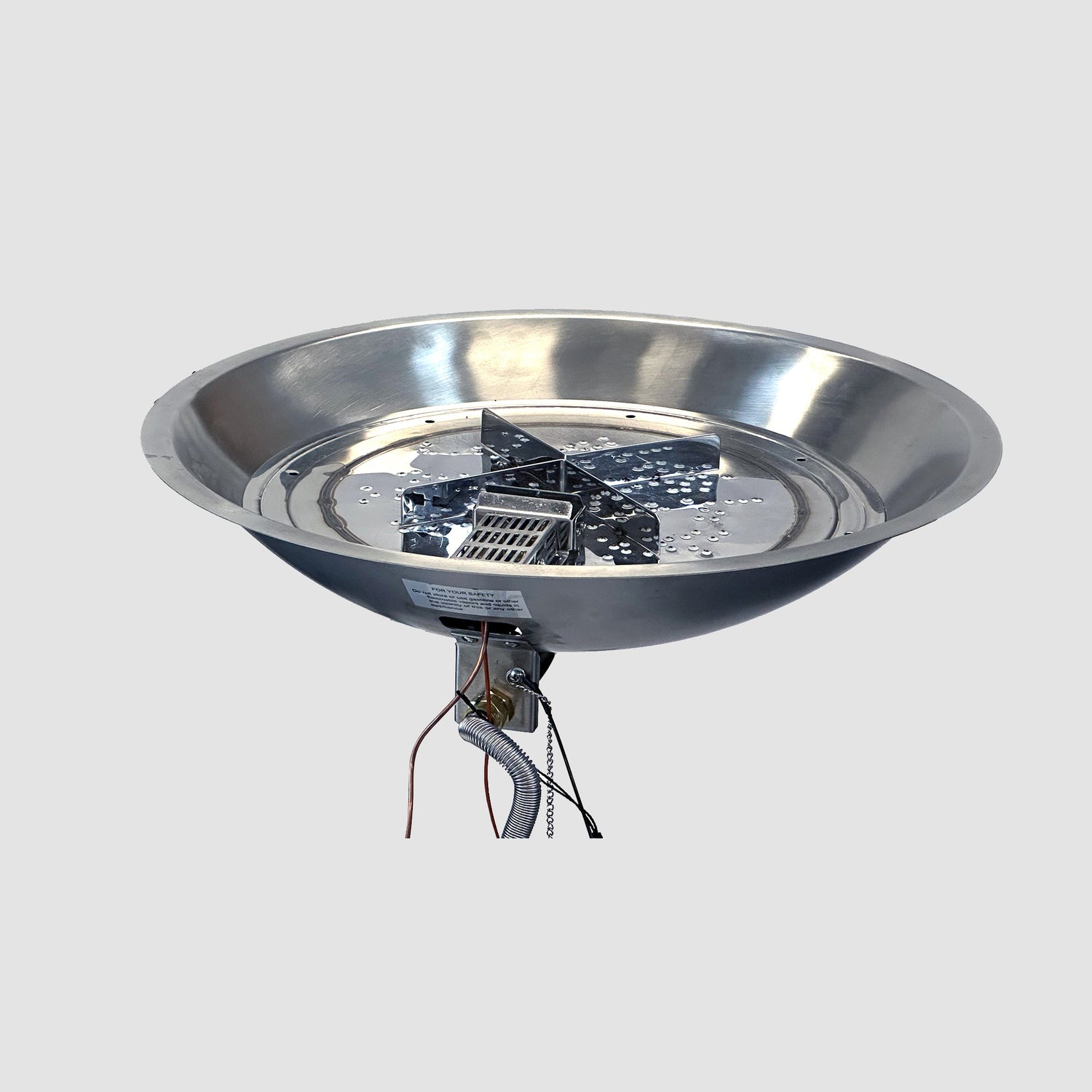

The Outdoor GreatRoom Crystal Fire Plus round burner is a stainless steel gas burner for custom built outdoor fire pits and fire features. It comes in 20 in (CFP20) and 30 in (CFP30) sizes, each as a manual ignition kit or with direct spark ignition, and produces a tall, full flame over a bed of tempered glass media.
Key Specifications
| Model / SKU | CFP20-K, CFP20DSILP, CFP20DSING, CFP30-K, CFP30DSILP, CFP30DSING |
| Fuel | Kits: LP, with natural gas conversion kit included. DSI: LP or NG, not field convertible |
| Input, CFP20 | Manual: LP 25,000 to 56,000 BTU/hr, NG 25,000 to 55,000 BTU/hr (info sheet lists 55,000 BTU) |
| Input, CFP30 | Manual: LP 50,000 to 100,000 BTU/hr, NG 50,000 to 104,000 BTU/hr (info sheet lists 105,000 BTU) |
| Ignition | Push-button sparker with manual safety valve, or direct spark ignition |
| Material | #304 stainless steel |
| Certification | ANSI Z21.97-2017 / CSA 2.41-2017 |
| Use | Outdoor only |
Dimensions and Cutout
| CFP20 burner | 21.06 in diameter |
| CFP30 burner | 32.00 in diameter |
| Enclosure clearance | 4 in around the burner pan |
| Side clearance | 24 in |
| Overhead clearance | 72 in from top of burner |
| Glass media, info sheet | CFP20 10 lb; CFP30 25 lb |
| Cutout | Not published; build the enclosure to the manual's clearances |
Features
- Commercial-grade #304 stainless steel burner
- UL and ULC listed to ANSI Z21.97-2017 / CSA 2.41-2017
- Fully adjustable flame height
- Manual ignition kits ship set up for LP with a natural gas conversion kit included
- Direct spark ignition option, ordered as LP or NG
What Is Included and What You Will Need

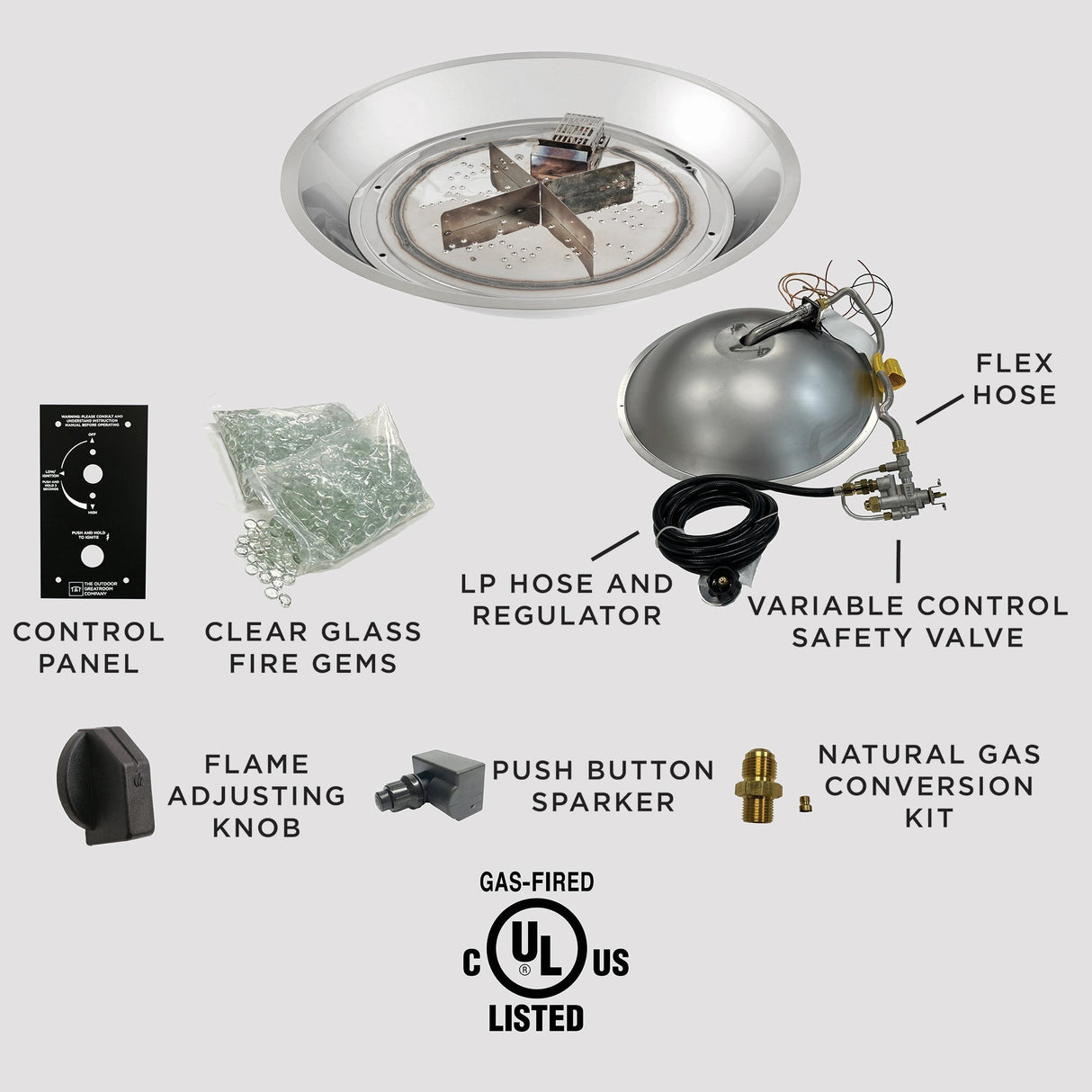

- Manual ignition kits (-K): stainless steel burner, variable control safety valve (VCSV), push-button sparker, black control panel (VCSV-CP-BLK), control knob, 1/2 in stainless steel flex line, natural gas conversion kit and clear glass media (CFG-D), plus a 10 ft LP hose and regulator on CFP20-K only (CFP30 draws too much gas for a 20 lb tank and ships without one)

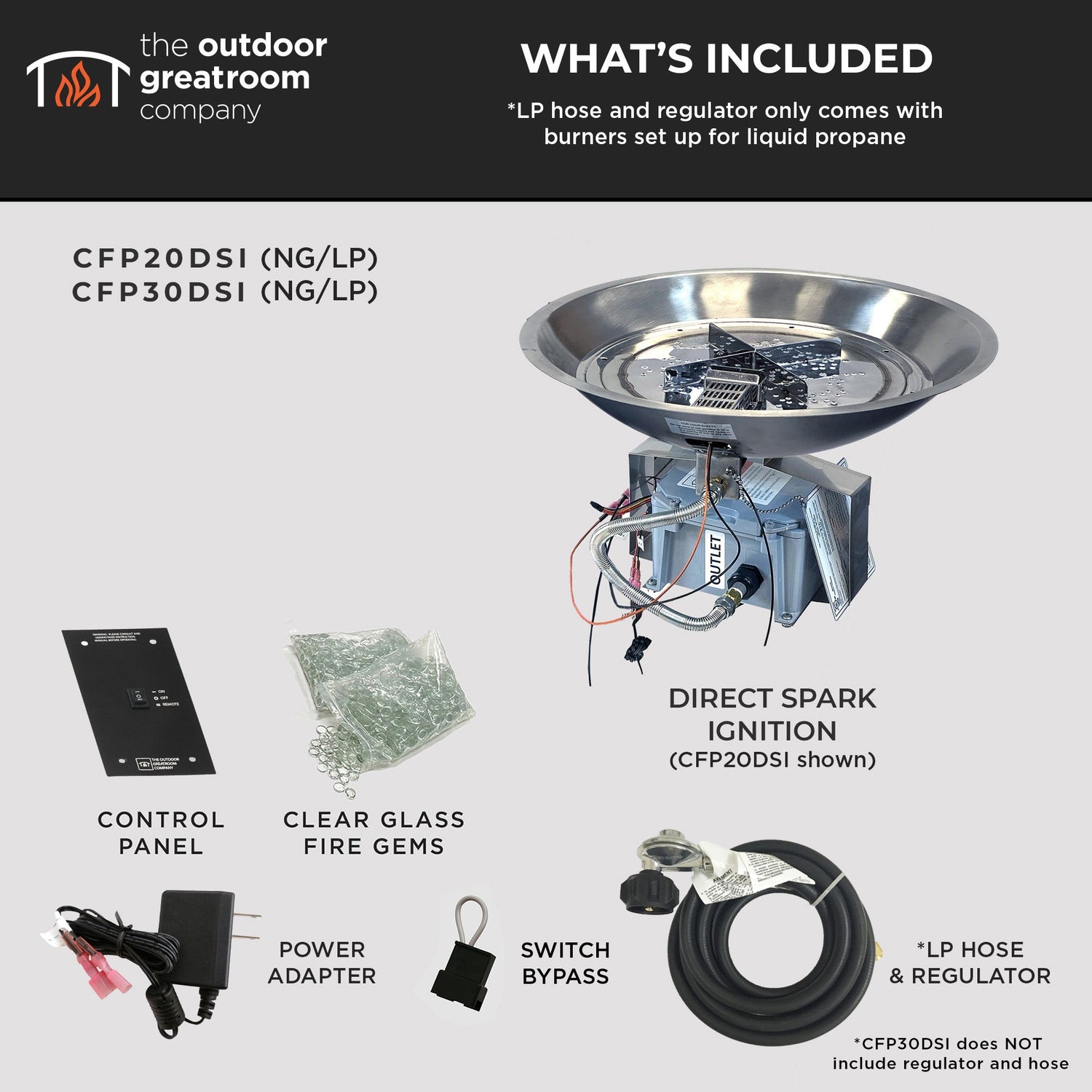

- Direct spark ignition models (DSI LP or DSI NG): ordered for one fuel and not field convertible
- You will need: a non-combustible enclosure built to the manual, enclosure ventilation, a licensed gas connection, and for DSI models a GFCI protected outlet or the optional CF-DSI-BP battery pack (2 D cells)
- Other fire media, pavers, construction materials and accessories are sold separately
Installation Notes
The Crystal Fire Plus burner is for outdoor use only, in a space that meets the manual's outdoor definition (no overhead cover with four walls; or a cover with no more than two walls; or a cover with three walls where at least 30 percent of the wall area is open). Keep 24 in of clearance from the sides of the burner and 72 in overhead, measured from the top of the burner. The enclosure needs 4 in of clearance around the burner pan, a non-combustible top surface, and vents: two openings within 5 in of the top and two within 5 in of the bottom, sized by the amount of stored fuel. Supply pressure: LP 8 to 14 in WC (11 ideal), NG 3.5 to 10.5 in WC (7 ideal). In New York City, a fixed natural gas line requires a licensed master plumber and a DOB permit, and FDNY restricts propane cylinder storage and use, so most city installs run on natural gas; ask us before ordering an LP setup for a city address. For help planning the enclosure and gas run, book a consultation with our design team.
Documentation
- Crystal Fire Plus Round and Square Burner Manual
- Manual Ignition Burner Collection Info Sheet
- Electronic Ignition Manual
- Quick Start Guide
- Commercial Burner Supplement
FAQ
Which size should I choose?
The CFP20 is 21.06 in across and the CFP30 is 32.00 in across. Pick the size that fits your fire pit with 4 in of clearance to the enclosure walls.
Can I run the CFP30 on a 20 lb propane tank?
No. The manual states the CFP30 gas consumption is too high for a 20 lb tank, so it ships without the LP hose and regulator.
Can a DSI model be converted to the other fuel?
No. Direct spark ignition models are built for LP or NG and are not field convertible. The manual ignition kit includes a natural gas conversion kit.
Can it go under a covered porch?
Only if the space meets the manual's outdoor definition and the 72 in overhead clearance is kept. Fully enclosed or mostly enclosed spaces are not allowed.
Related reading
Warranty
The Outdoor GreatRoom Company covers the stainless steel Crystal Fire Plus burner under a limited lifetime warranty of 10 years for residential use (5 years commercial), with ignition and electronic components covered for 3 years residential (1 year commercial). See the manual for full terms.
