The Outdoor GreatRoom Crystal Fire Plus Square Gas Burner
The Outdoor GreatRoom Crystal Fire Plus Square Gas Burner - 24" (24" x 24") / Manual (LP or NG) is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: CFP2424 burner 24.60 x 24.60 in
The Outdoor GreatRoom Crystal Fire Plus 24 x 24 in square burner is a stainless steel gas burner for custom built outdoor fire pits and fire features. It is offered as a manual ignition kit (CFP2424-K) or with direct spark ignition for LP or NG, and produces a tall, full flame over a bed of tempered glass media.
Key Specifications
| Model / SKU | CFP2424-K, CFP2424DSILP, CFP2424DSING |
| Fuel | Kit: LP, with natural gas conversion kit included. DSI: LP or NG, not field convertible |
| Input | Manual: LP 25,000 to 56,000 BTU/hr, NG 25,000 to 55,000 BTU/hr (info sheet lists 55,000 BTU) |
| Ignition | Push-button sparker with manual safety valve, or direct spark ignition |
| Material | #304 stainless steel |
| Certification | ANSI Z21.97-2017 / CSA 2.41-2017 |
| Use | Outdoor only |
Dimensions and Cutout
| Burner | 24.60 x 24.60 in |
| Enclosure clearance | 4 in around the burner pan |
| Side clearance | 24 in |
| Overhead clearance | 72 in from top of burner |
| Glass media, info sheet | 20 lb |
| Cutout | Not published; build the enclosure to the manual's clearances |
Features
- Commercial-grade #304 stainless steel burner
- UL and ULC listed to ANSI Z21.97-2017 / CSA 2.41-2017
- Fully adjustable flame height
- Manual ignition kits ship set up for LP with a natural gas conversion kit included
- Direct spark ignition option, ordered as LP or NG

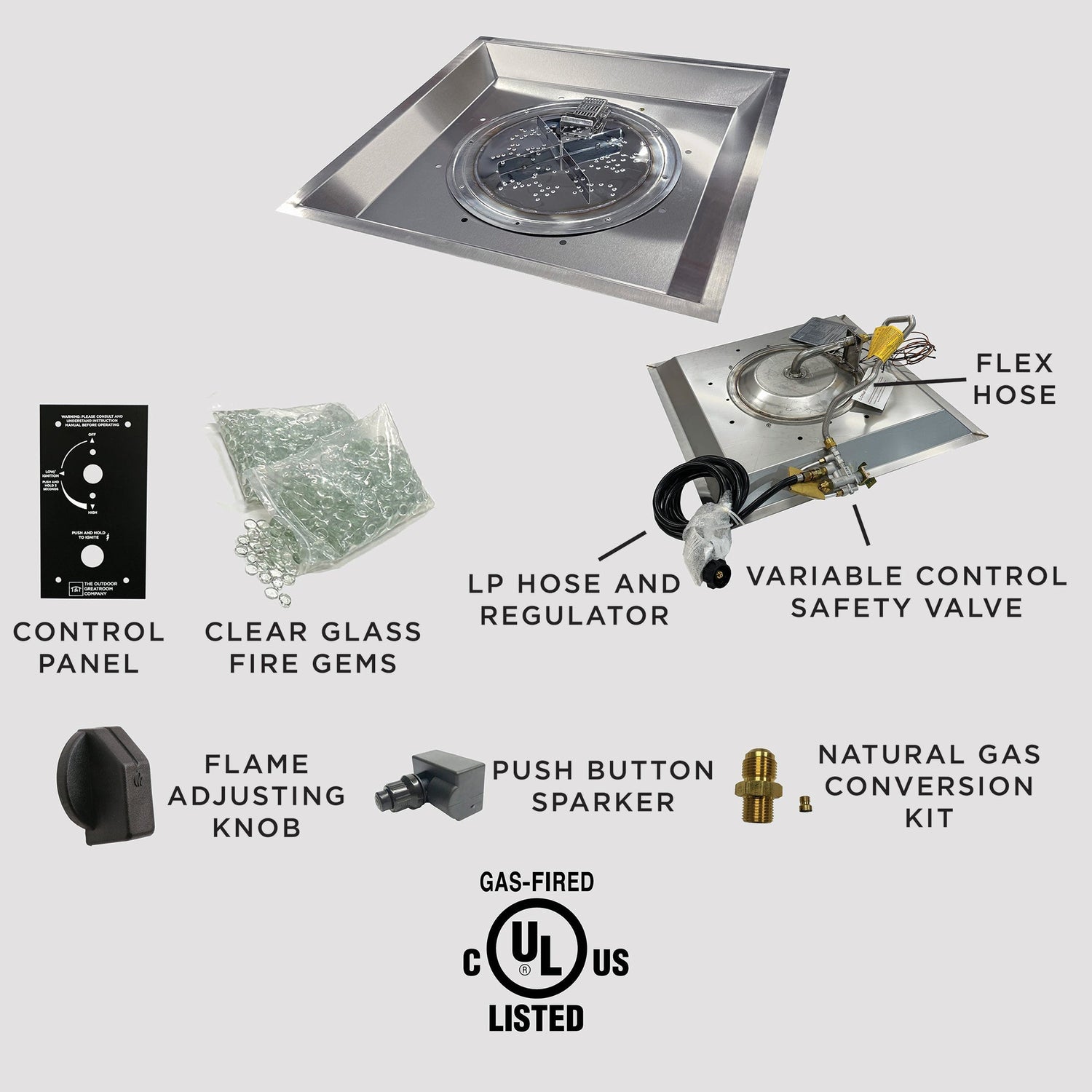

What Is Included and What You Will Need
- Manual ignition kits (-K): stainless steel burner, variable control safety valve (VCSV), push-button sparker, black control panel (VCSV-CP-BLK), control knob, 1/2 in stainless steel flex line, natural gas conversion kit and clear glass media (CFG-D), plus a 10 ft LP hose and regulator
- Direct spark ignition models (DSI LP or DSI NG): ordered for one fuel and not field convertible
- You will need: a non-combustible enclosure built to the manual, enclosure ventilation, a licensed gas connection, and for DSI models a GFCI protected outlet or the optional CF-DSI-BP battery pack (2 D cells)
- Other fire media, pavers, construction materials and accessories are sold separately
Installation Notes
The Crystal Fire Plus burner is for outdoor use only, in a space that meets the manual's outdoor definition (no overhead cover with four walls; or a cover with no more than two walls; or a cover with three walls where at least 30 percent of the wall area is open). Keep 24 in of clearance from the sides of the burner and 72 in overhead, measured from the top of the burner. The enclosure needs 4 in of clearance around the burner pan, a non-combustible top surface, and vents: two openings within 5 in of the top and two within 5 in of the bottom, sized by the amount of stored fuel. Supply pressure: LP 8 to 14 in WC (11 ideal), NG 3.5 to 10.5 in WC (7 ideal). In New York City, a fixed natural gas line requires a licensed master plumber and a DOB permit, and FDNY restricts propane cylinder storage and use, so most city installs run on natural gas; ask us before ordering an LP setup for a city address. For help planning the enclosure and gas run, book a consultation with our design team.
Documentation
- Crystal Fire Plus Round and Square Burner Manual
- Manual Ignition Burner Collection Info Sheet
- Electronic Ignition Manual
- Quick Start Guide
- Commercial Burner Supplement
FAQ
What size enclosure do I need?
The burner measures 24.60 x 24.60 in. The manual calls for 4 in of clearance between the burner pan and the enclosure on every side.
Can a DSI model be converted to the other fuel?
No. Direct spark ignition models are built for LP or NG and are not field convertible. The manual ignition kit includes a natural gas conversion kit.
What power does the DSI model need?
A GFCI protected outlet, or the optional CF-DSI-BP battery pack that runs on 2 D cell batteries.
Can it go under a covered porch?
Only if the space meets the manual's outdoor definition and the 72 in overhead clearance is kept. Fully enclosed or mostly enclosed spaces are not allowed.
Related reading
Warranty
The Outdoor GreatRoom Company covers the stainless steel Crystal Fire Plus burner under a limited lifetime warranty of 10 years for residential use (5 years commercial), with ignition and electronic components covered for 3 years residential (1 year commercial). See the manual for full terms.
