Description
Description
Available Sizes: Delta Heat Single Access Door
16" (Current Size) | 24"

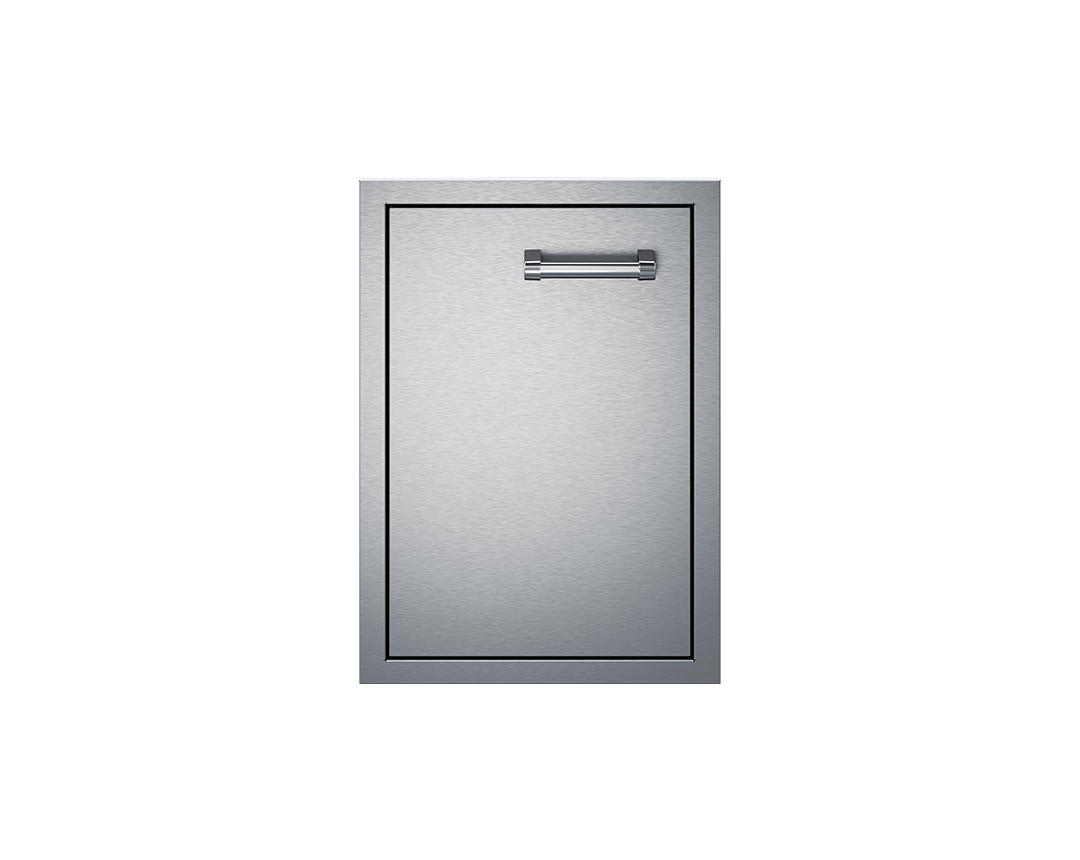

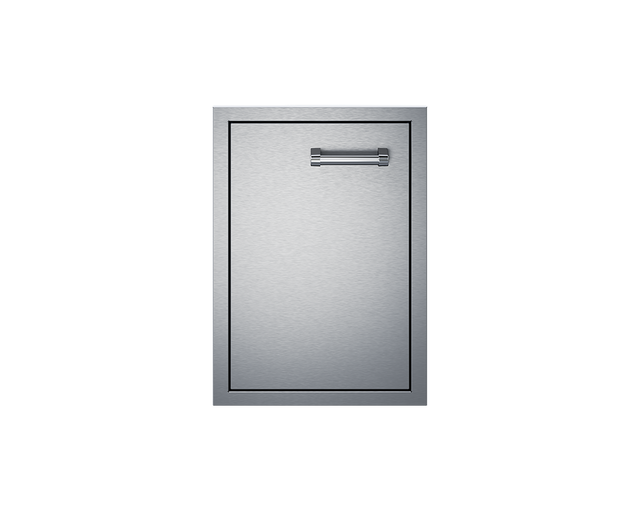

The Dometic Delta Heat DHAD16-C is a 16 in single access door for an outdoor kitchen island, a vertical door in 304 stainless steel. It opens onto the island interior for the gas shutoff, water lines or storage, and its one-piece 18 gauge frame and polished accents match Delta Heat grills and drawers.
Features
- 304 stainless steel door and one-piece 18 gauge frame
- Adjustable European hinges
- Left or right hinged (choose the option)
- Access to gas and water connections or storage inside the island
Key Specifications
| Model / SKU | Dometic Delta Heat DHAD16R-C / DHAD16L-C |
| Type | Vertical single access door |
| Material | 304 stainless steel |
| Hinging | left or right hinged (choose the option) |
| Weight | 17 lb (per current listing) |
Dimensions and Cutout
| Overall | 16 in W x 22-1/4 in H |
| Cutout | 14-1/4 in W x 20-1/4 in H |
What Is Included and What You Will Need
- Delta Heat DHAD16-C access door with frame and hinges
- You will need: an island opening cut to the size above
Optional Accessories
- Delta Heat DHSD132-B 13 in double drawers
- Delta Heat DHTD182T-B tall double trash drawer
- Delta Heat DHOS15 drop-in sink
Installation Notes
Cut a 14-1/4 x 20-1/4 in opening; the frame flange covers the edge. Choose the hinge side so the door swings clear of the grill and other doors. Delta Heat asks you to verify its specifications before you finalize the island enclosure. Planning the rest of the island? Book a design consultation.
Documentation
- Delta Heat DHAD16L-C 16 in Left Hand Access Door Spec Drawing
- Delta Heat DHAD16R-C 16 in Right Hand Access Door Spec Drawing
- Delta Heat Cutout Dimensions Sheet
- Delta Heat Grills and Accessories Brochure
- Dometic Delta Heat 2024 Product Catalog (storage and bar accessories, grill specifications)
Frequently Asked Questions
What size opening do I cut?
14-1/4 in W x 20-1/4 in H.
Can I change the hinge side later?
Order the hinge side you need: Delta Heat sells left and right hinged versions as separate part numbers.
Related reading: Outdoor kitchen planning guide, Stainless vs aluminum outdoor kitchen cabinetry.
Warranty
Delta Heat warrants its fabricated stainless steel components against defects in materials and workmanship for two years under normal residential use (90 days in multi-user settings; commercial use excluded). Discoloration, surface scratches, staining and minor surface rust are excluded (Delta Heat terms as published by authorized dealers).
