Delta Heat  |  SKU: DHPW22-N

Delta Heat Built-In 22 Inch Gas Power Burner - DHPW22

$2,789.00 $3,243.02

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Delta Heat dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Overall Dimensions: 22 in W x 26 in D x 12.5 in H (per current listing)

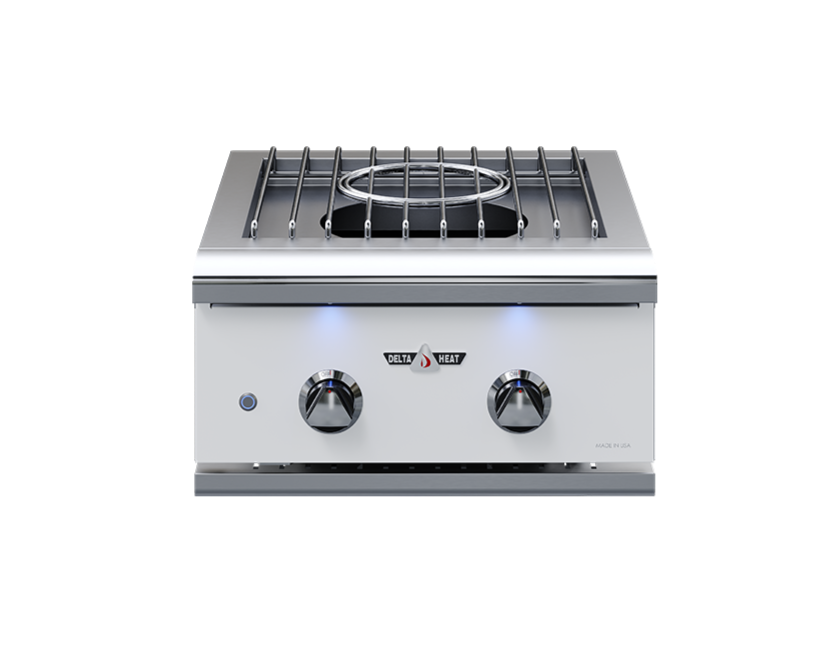

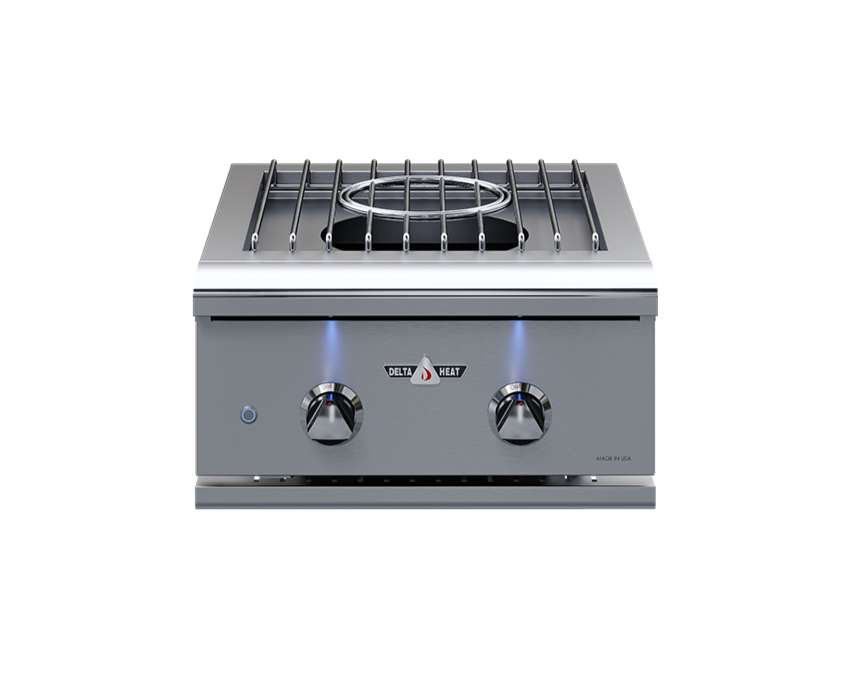

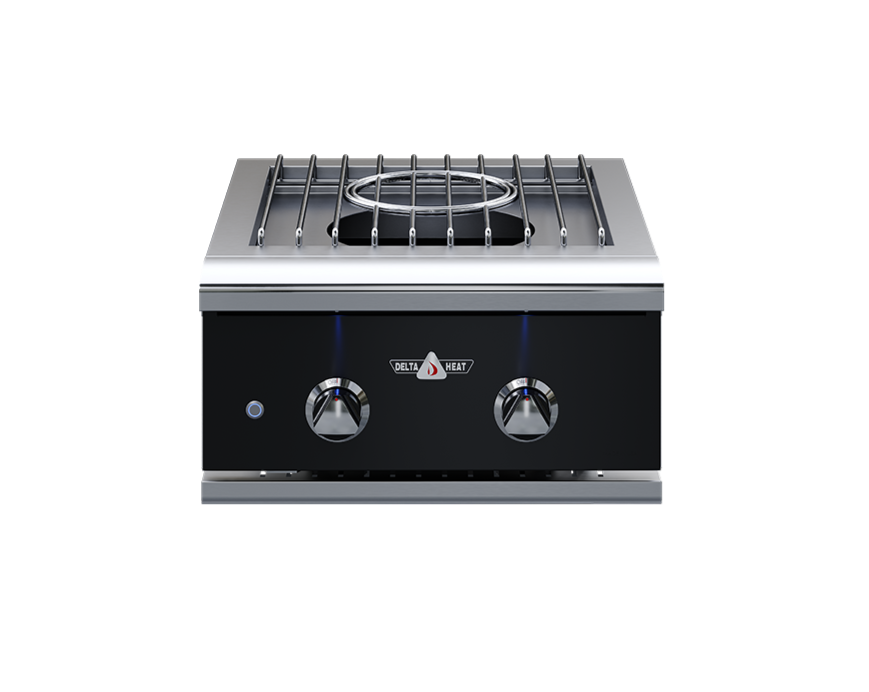

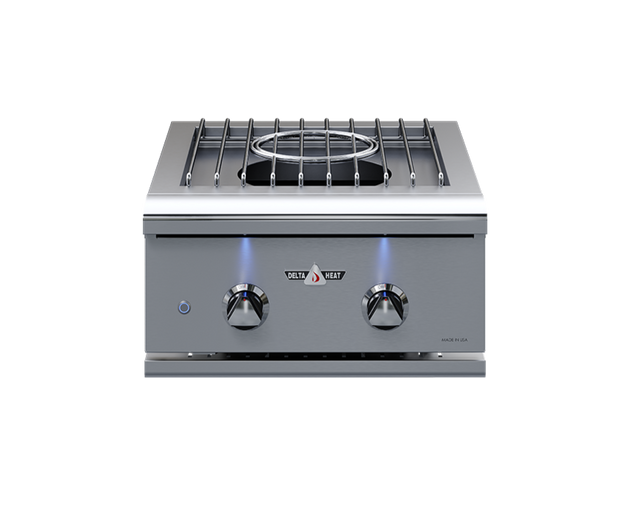

The Delta Heat DHPW22 is a 22 inch built-in power burner for outdoor kitchens, with a 60,000 BTU dual ring cast brass burner for wok cooking, boiling and searing. It is built from 304 stainless steel with a stainless grate and removable wok ring, a stainless top cover to close it up when not in use, LED control panel lights and 9V electronic ignition. Choose natural gas or propane, a stainless, black or white control panel, and an optional cover above.

Key Specifications

Model DHPW22-N / -L (stainless), DHPW22-KN / -KL (black), DHPW22-WN / -WL (white)
Heat Output 60,000 BTU dual ring cast brass burner
Orifices NG outer #33, inner #43; LP outer #50, inner #54
Gas 3/4 in ID supply line, 1/2 in NPT female inlet; regulator pre-installed (NG 4 in w.c., LP set for plumbed 10 in w.c.); 14 in w.c. max inlet
Ignition 9V battery electronic ignition
Electrical 120V GFCI outlet for the LED lights (transformer rated 120VAC, 2.2 A); 15 A dedicated circuit per Delta Heat catalog
Grates Round stainless grate with removable wok ring (middle grate)
Construction 304 stainless steel with stainless top cover

Dimensions and Cutout

Cutout (non-combustible) 19.50 in W x 20.75 in D x 11.50 in H
Enclosure Height Delta Heat recommends building the burner enclosure 6 to 12 in lower than the countertop
Combustible Construction Requires the Delta Heat insulating jacket and at least 12 in from the sides and back
Non-combustible Construction 1 in behind and 1 in to the sides above the cooking surface

Features

  • 60,000 BTU dual ring cast brass burner
  • Stainless steel grate with removable wok ring
  • Stainless steel top cover protects the burner between uses
  • LED control panel lights
  • 9V electronic ignition
  • Stainless, black or white control panel to match Delta Heat grills
  • Griddle plate accessory available (DHGP18)

What Is Included and What You Will Need

  • Included: power burner with round grate, middle grate (wok ring) and pre-installed regulator for your gas type
  • Option above: VCPW22 cover
  • Required: an island cutout in non-combustible construction, or the Delta Heat insulating jacket for combustible construction
  • Required: a gas line with an accessible shutoff valve installed by a qualified installer, and a grounded 120V GFCI outlet

Installation Notes

Delta Heat certifies the power burner for outdoor use only; never use it inside a building, garage or other enclosed area, and never under unprotected overhead combustible construction. Keep at least 12 in to combustible construction at the sides and back. In New York City, gas work must be done by a licensed master plumber under a DOB permit, and propane tank storage in the city carries FDNY rules, so confirm the fuel with us before you order. Book a free design consultation and we will help you place it in your outdoor kitchen.

Documentation

Frequently Asked Questions

Can I use a wok on it?

Yes. Remove the middle grate (wok ring) to seat a wok on the burner.

Does it need electricity?

The ignition runs on a 9V battery; the LED panel lights plug into a grounded 120V GFCI outlet.

What cutout does it need?

19.50 in W x 20.75 in D x 11.50 in H in non-combustible construction, ideally 6 to 12 in below the countertop.

Can it go in a wood-framed island?

Only with the Delta Heat insulating jacket and at least 12 in to combustibles at the sides and back.

Related reading: Side burner, power burner and griddle guide and Outdoor kitchen planning guide.

Warranty

Delta Heat's manual lists a limited two-year warranty on the power burner and a one-year full warranty on the burner and all components, for the original owner under normal residential use. Discoloration, staining and minor surface rust are excluded, and the registration card must be sent in to activate coverage.
