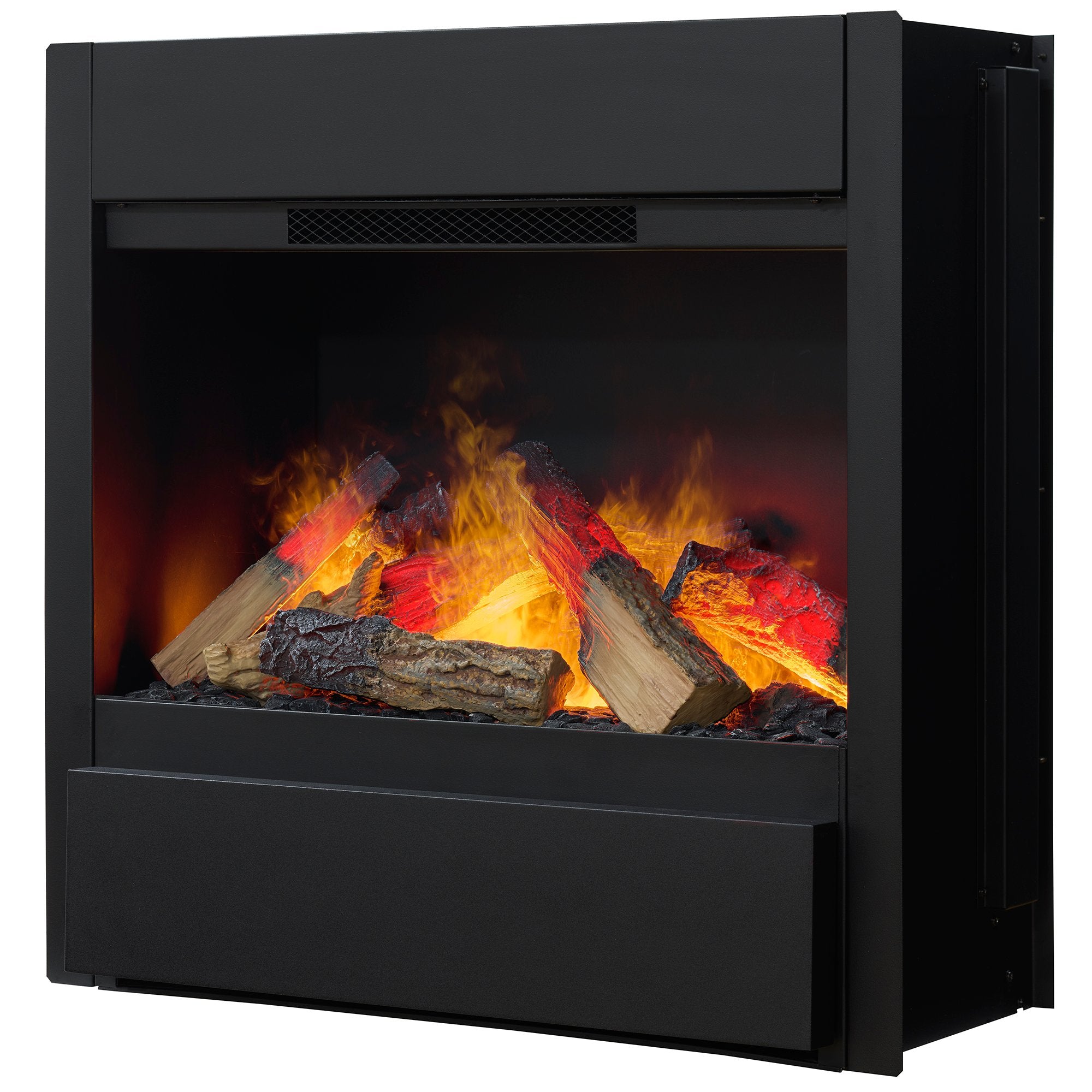

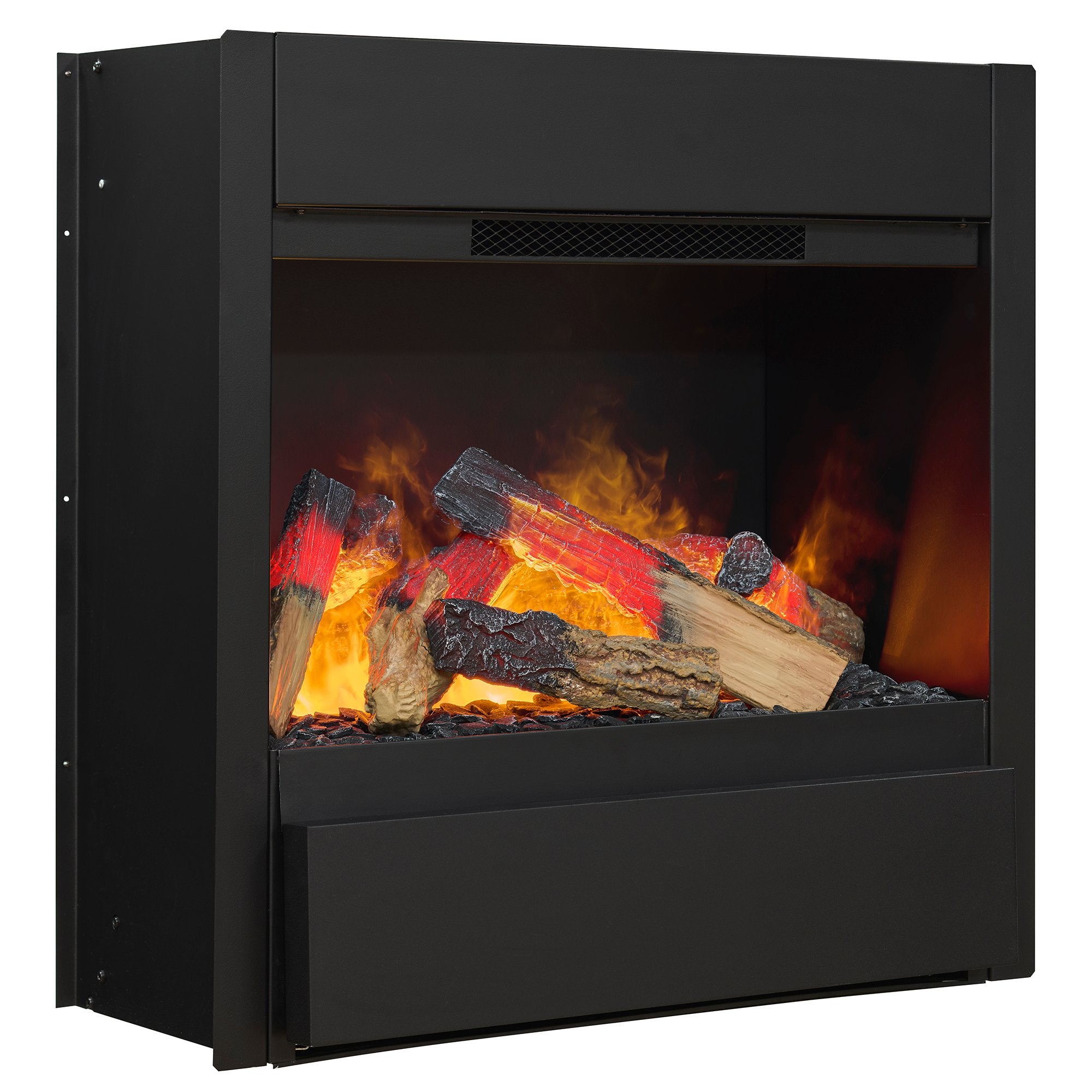

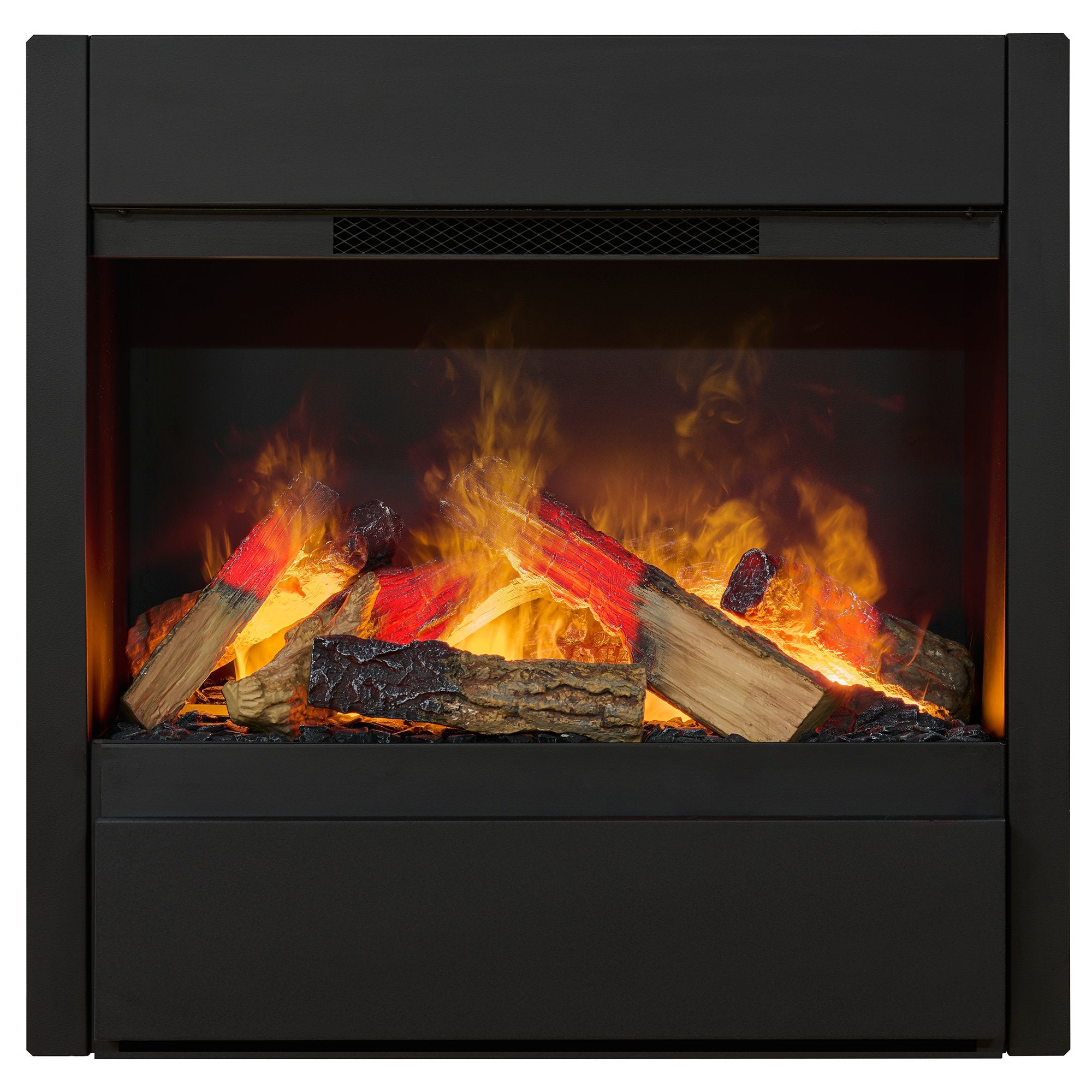

Dimplex ABN15 Optimyst Revive 25in Vapor Fireplace
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Dimplex ABN15 Optimyst Revive 25in Vapor Fireplace is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Dimplex ABN15 Optimyst Revive 25in Vapor Fireplace is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 25-1/4 x 24-15/16 x 12-13/16 in (W x H x D), per the Dimplex Revive sell sheet
The Dimplex Optimyst Revive (ABN15-RGB-AM) is a 25 in water vapor fireplace insert that turns an unused hearth into a working focal point without a chimney or gas line. Optimyst technology lights a fine water mist from below to create 3D flames and smoke over a charred log set, refilled from a pull-out drawer, with an optional 1,250 W fan-forced heater.
Features
- Optimyst water vapor and light flame effect with six flame height levels
- Pull-out drawer and removable tank for refills, with no plumbing connection
- Realistic charred log set molded from real logs
- Optional 1,250 W fan-forced heater (about 4,265 BTU), or flames only all year
- Sized to slide into an existing fireplace opening as an insert
- Remote control included
Key Specifications
| Model | ABN15-RGB-AM (order no. 500003863) |
| Type | Water vapor fireplace insert |
| Voltage | 120V (3-wire) |
| Watts | 1,250 |
| Amps | 10.42 |
| Heat output | About 4,265 BTU |
| Water | Clean tap water; softener recommended in hard-water areas; no plumbing |
| Listing | UL file E71416 |
| Controls | Remote control included |
| UPC | 781052154094 |
Dimensions and Cutout

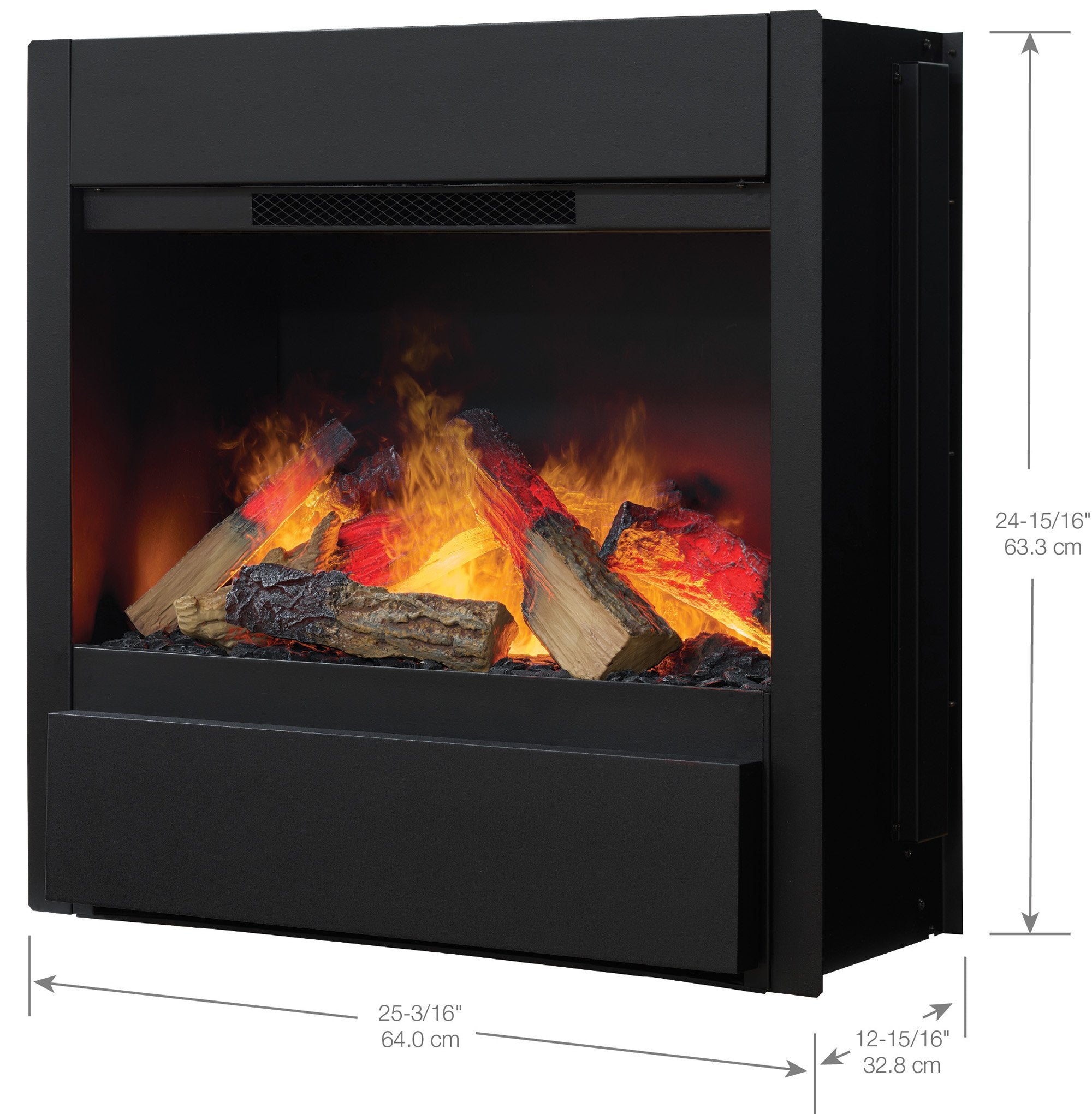

| Insert | 25-1/4 in W x 24-15/16 in H x 12-13/16 in D |
| Viewing area | 22-1/4 x 11-15/16 in |
| Minimum opening | 25-1/4 in W x 25 in H x 12 in D |
| Fresh air | At least 16 sq in of fresh air inlet area must stay open |
What Is Included and What You Will Need
- Optimyst Revive ABN15-RGB-AM insert with log set and water tank
- Remote control
- You will need: an existing fireplace or opening at least 25-1/4 x 25 x 12 in, a 120V outlet on a 15 A circuit (dedicated recommended), and clean tap water
Optional Accessories
Installation Notes
Before fitting the Revive into an existing fireplace, have the chimney professionally cleaned and blocked off. Keep the fresh air inlets clear and place the unit away from drafts, vents and ceiling fans, which disturb the vapor flame. Do not add water until the unit is secured in place.
Use normal clean tap water; in hard-water areas a water softener is recommended, and the reservoir, tank and transducer need regular cleaning with soap and water. Empty and dry the unit if it will sit unused for more than two weeks.
Because it burns nothing and needs no vent, a water vapor fireplace is a practical way to bring a sealed or non-working NYC fireplace back to life.
Planning a fireplace upgrade? Book a design consultation.
Documentation
Frequently Asked Questions
Does it need a water line?
No. You fill a removable tank from the pull-out drawer.
Is the flame hot?
No. The flame is lit water vapor; heat only comes from the separate fan-forced heater, which you can switch off.
What size opening does it need?
At least 25-1/4 in wide, 25 in high and 12 in deep.
Can it go in a fireplace that is not working?
Yes, once the chimney is cleaned and blocked off.
Related reading: Water vapor fireplace buying guide, Water vapor vs electric fireplaces, Best fireplace for an NYC apartment.
Warranty
Dimplex covers the Opti-myst Revive with a 2-year limited warranty, with service performed by Dimplex authorized dealers or service agents, per the installation and user's guide. See the guide for full terms and exclusions.
