Description
Description
Overall Dimensions: 31-1/8 x 26-5/8 x 12-1/8 in (W x H x D), per the Dimplex REV30 specification

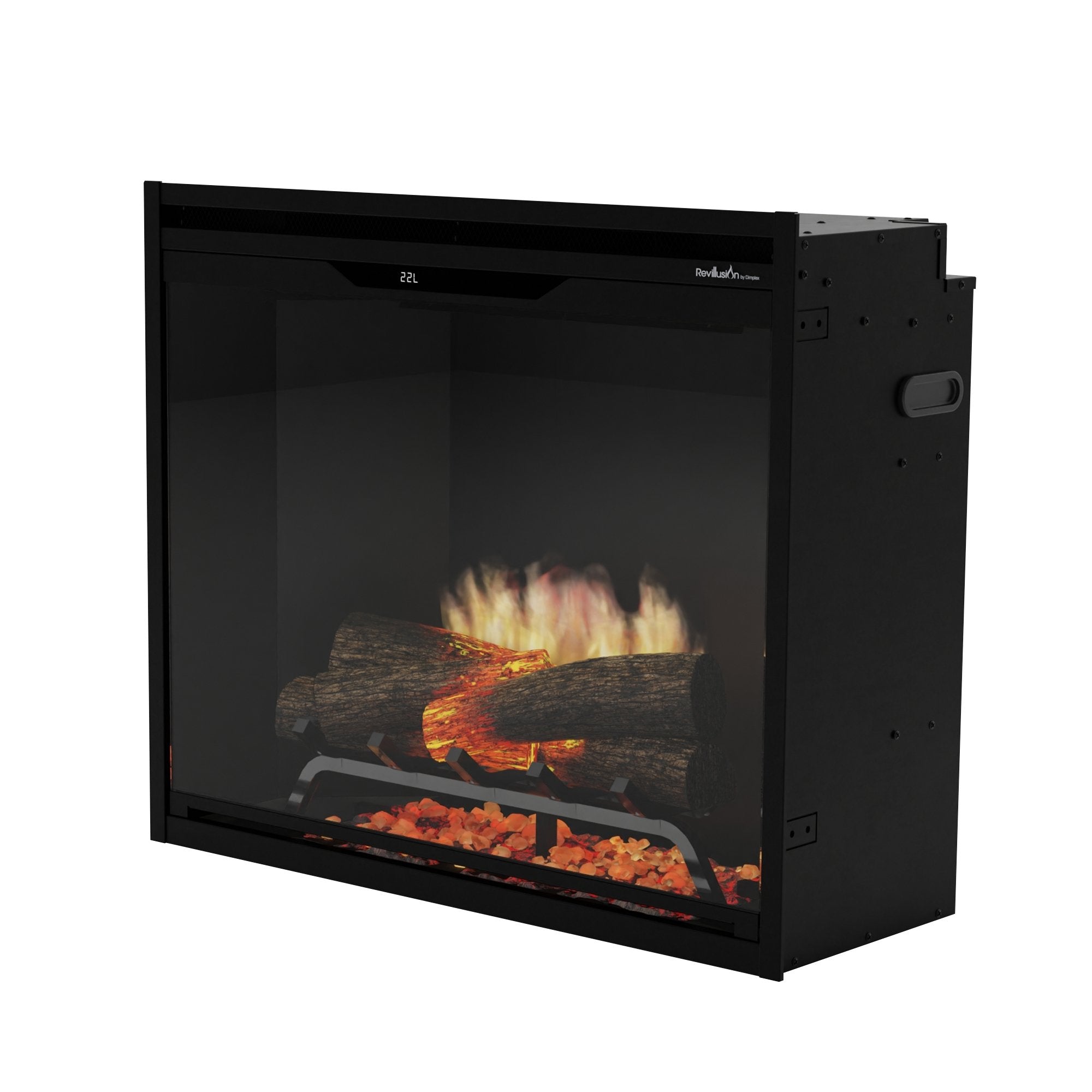

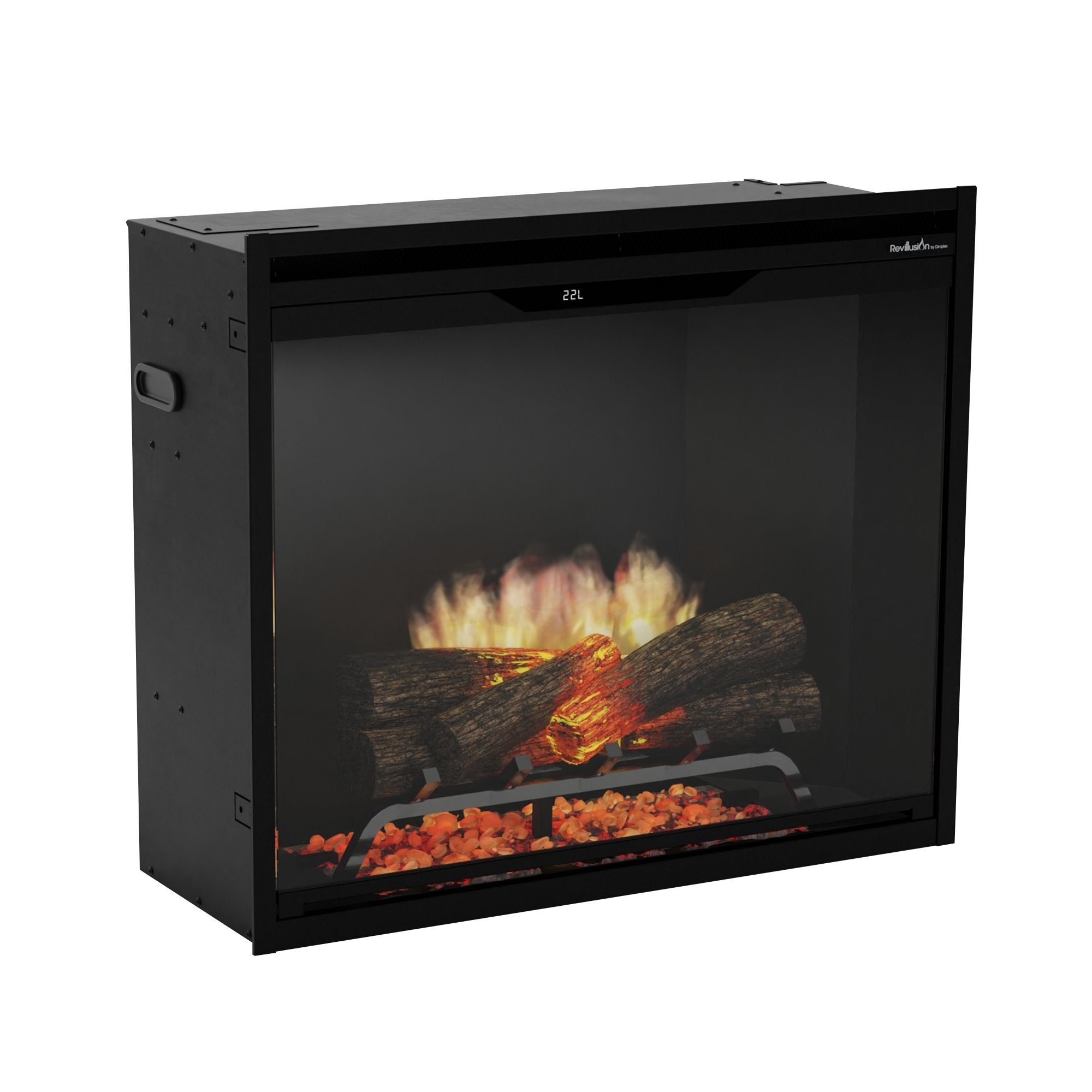

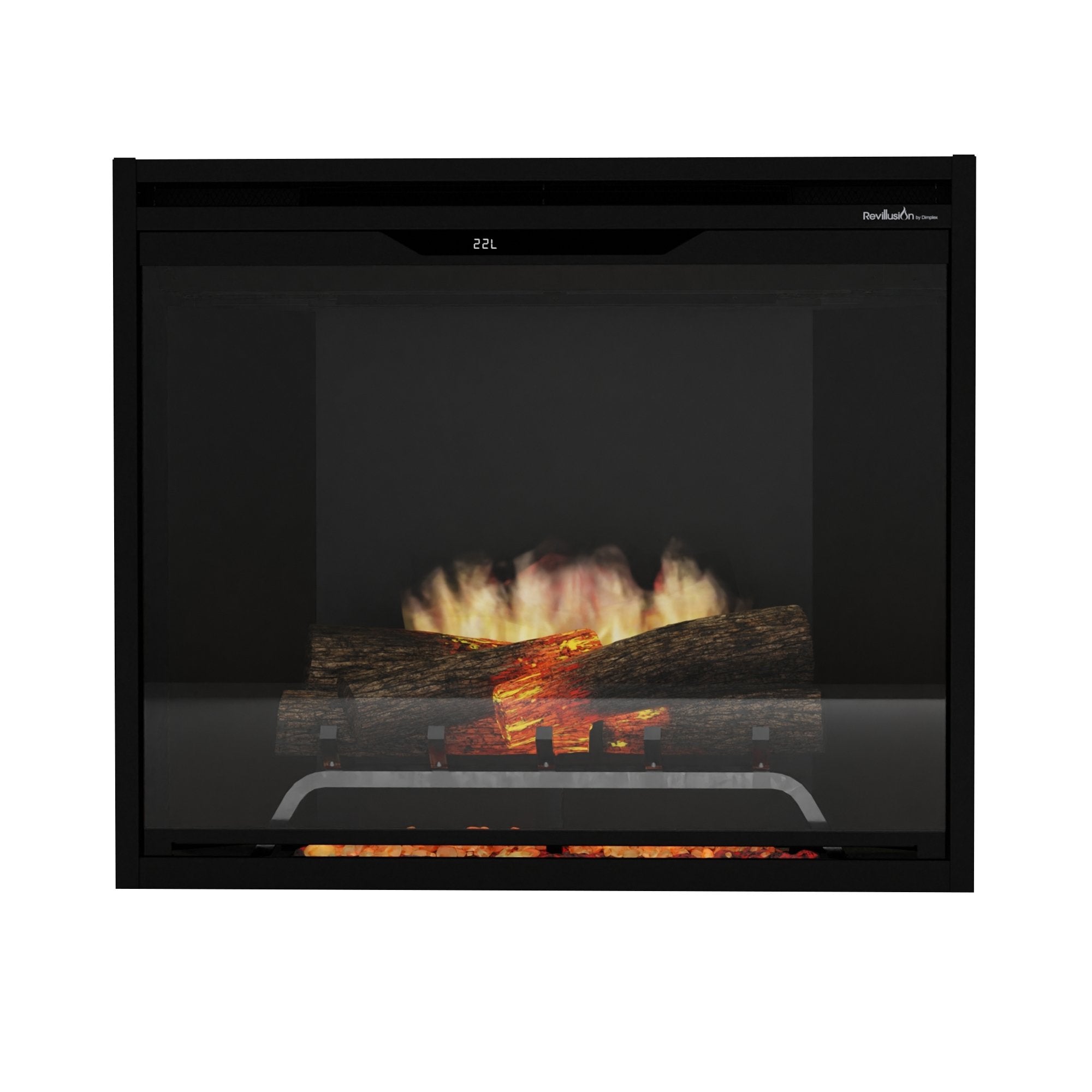

The Dimplex Revillusion 30 in built-in electric firebox (REV30-BL) uses Dimplex's patented Revillusion flame and a partially frosted acrylic panel so the flames appear to rise from inside handcrafted Realogs, with a full-depth view into a black interior. It installs in a framed wall or an existing fireplace opening and wires to 120V, 208V or 240V for up to about 8,800 BTU of fan-forced heat.
Features
- Revillusion flame effect with brighter, more random flames that appear to rise from within the logs
- Realogs handcrafted from real wood with internal LED lighting, over a tumbled glass and black gravel ember bed
- Black interior surround (270 degree on the brick versions) with adjustable mood lighting
- Fan-forced, louver-less heater: 1,300 W at 120V, 1,975 W at 208V, 2,575 W at 240V
- Self-trimming flange finishes the rough opening; 30 in tempered front glass and plug kit included
- Built-in touch controls and a multi-function remote
Key Specifications
| Model | REV30-BL |
| Finish | Black |
| Voltage | 120V (3-wire), 208V or 240V (4-wire) |
| Watts | 1,300 / 1,975 / 2,575 (flame only: 40 W) |
| BTU | 4,436 / 6,739 / 8,786 |
| Amps | 10.8 / 9.5 / 10.7 |
| Heater | Fan-forced, louver-less circulation |
| Venting | None required |
| Controls | Built-in touch controls and multi-function remote |
| Weight | 84.2 lb |
Dimensions and Cutout
| Firebox | 31-1/8 in W x 26-5/8 in H x 12-1/8 in D |
| Framing | 30-5/8 in W x 26-1/4 in H x 12-1/2 in D |
| Clearances | Zero clearance design, except insulation and vapor barrier at least 2 in from the top of the firebox (installation manual) |
What Is Included and What You Will Need
- REV30-BL Revillusion 30 in firebox with Realogs and ember bed media
- 30 in tempered front glass and plug kit
- Multi-function remote
- Options on this page: RBF30TRIM38 or RBF30TRIM44 installation trim, for openings larger than the firebox flange
- You will need: a framed opening or fireplace sized to the framing dimensions and a dedicated 15 A circuit, or a 120V outlet for the plug kit
Optional Accessories
- Dimplex RBF30TRIM38 Revillusion 38 in Installation Trim
- Dimplex RBF30TRIM44 Revillusion 44 in Installation Trim
Installation Notes
Dimplex recommends a dedicated, properly fused 15 A circuit at the voltage you choose; wire 120V with a 3-wire circuit or 208V/240V with a 4-wire circuit, or use the included plug kit at 120V. In a bathroom the unit must be on a GFCI-protected circuit. No venting is required.
Electric fireplaces need no chimney, vent or gas line, which makes them one of the few fireplace options most New York City co-op and condo boards approve. A hardwired installation is electrical work that must be performed by a licensed electrician in NYC.
Planning a built-in fireplace wall? Book a design consultation.
Documentation
Frequently Asked Questions
Will it fit my existing fireplace?
If the opening is at least the framing size (30-5/8 x 26-1/4 x 12-1/2 in) it can slide in, and the optional 38 in or 44 in trim covers larger openings.
Does it need a dedicated circuit?
Dimplex recommends one, especially if the heater trips a shared breaker. It can plug into a 120V outlet with the included plug kit or be hardwired at 120V, 208V or 240V.
Can I run the flames without heat?
Yes. Flame-only operation draws about 40 W.
What is the difference between the finishes?
Only the interior backer: Neutral Brick, Weathered Concrete, Herringbone or Black.
Related reading: Electric fireplace buying guide, How to measure a fireplace opening, Best fireplace for an NYC apartment.
Warranty
Dimplex covers the Revillusion firebox with a 2-year limited warranty against defects in materials and workmanship, per the installation manual and sell sheet. See the manual for full terms and exclusions.
