Dometic DrawBar 5S Wine Cooler (Panel Ready) Kitchen Drawer - DrawBar5S

Available through our showroom

Some manufacturers don't allow online sales, so this item is sold through our showroom. Call for pricing, availability and installation, or request parts and service. 718-326-4328

400+ five-star Google reviews
  • See it in person at our Queens showroom, 147+ live displays.
  • Factory-authorized Dometic dealer. You keep the full manufacturer warranty.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Get pricing and availability Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Visit our showroom website where you can see hundreds of additional products not shown on this site.

www.NYCFireplaces.com

Description

Overall Dimensions: 21.8 x 21.6 x 5.5 in (W x D x H), per the Dometic manual

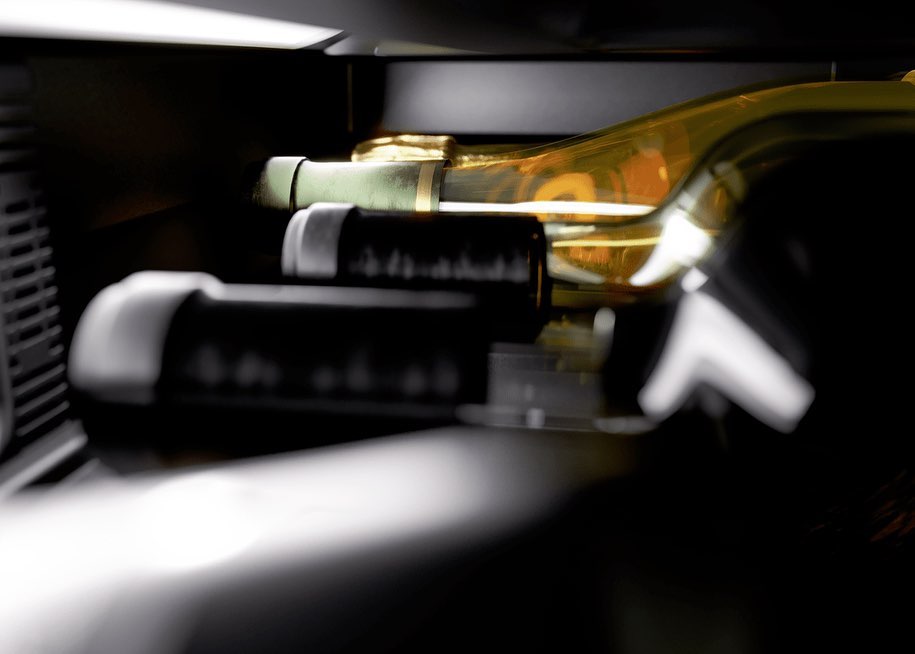

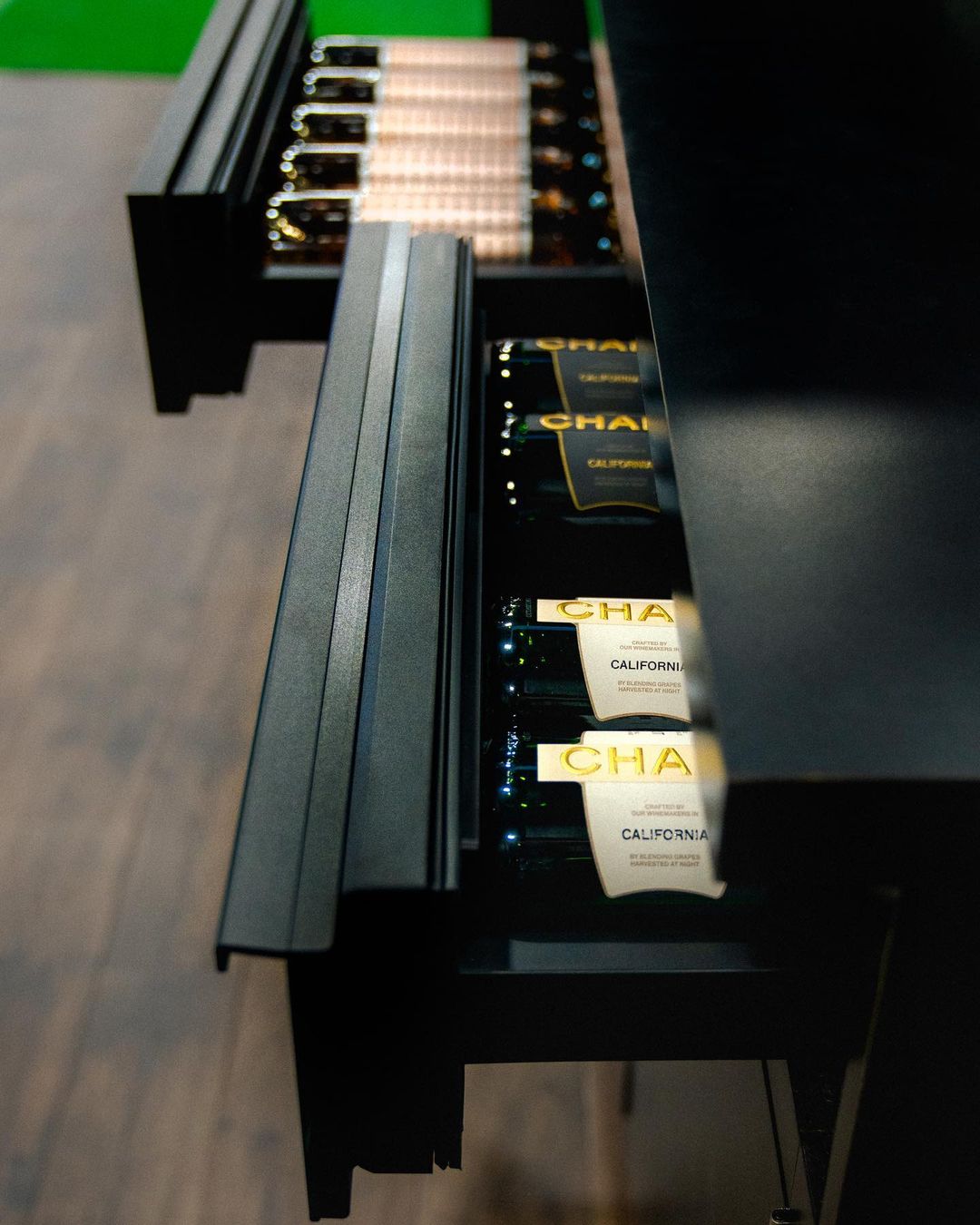

The Dometic DrawBar5S is a compressor-cooled wine drawer that holds five bottles in a 5.5 in tall drawer built into kitchen cabinetry, with a panel-ready front that takes your own cabinet overlay panel. It chills wine to one of five preset serving temperatures from 41 to 63 F and lights the bottles with a soft LED when the drawer opens, a compact way to keep a few bottles at serving temperature in a kitchen island or bar without giving up a full-height cabinet.

Features

  • Holds 5 bottles of any length up to 3.8 in (96 mm) in diameter, including Champagne

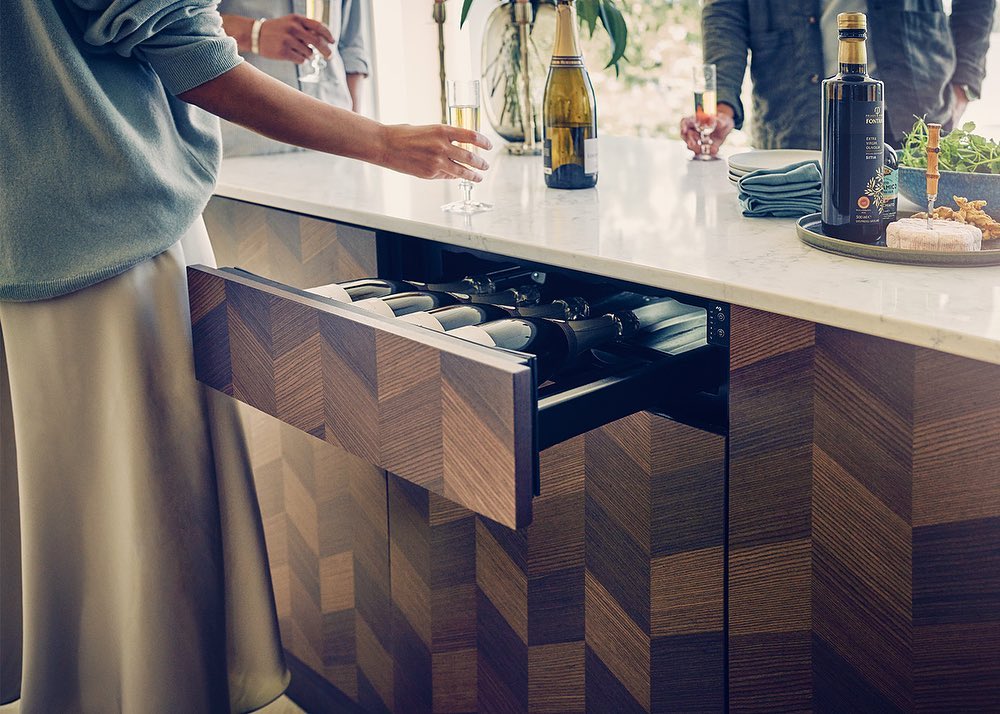

  • Panel-ready: fits a custom kitchen cabinet overlay panel and handle
  • Compressor cooling to as much as 17 C (31 F) below ambient
  • Five preset temperatures: 41, 46, 52, 57 and 63 F (Dometic manual)
  • Humidity tray and interior LED light
  • Installs in a cabinet or niche 22 to 23 in wide
  • UL certified, R600a refrigerant

Key Specifications

Model / SKU Dometic DrawBar5S, 9620000533
Type Built-in wine cooling drawer, compressor
Front Panel ready (overlay panel not included)
Capacity 5 bottles; 15 L total volume; 22.05 lb max load
Temperature presets 41, 46, 52, 57 and 63 F
Electrical 110 to 120 V, 60 Hz, 84 W rated input
Noise 45 dB(A)
Refrigerant R600a, 10 g
Weight 36.16 lb (Dometic manual)
Use Indoor, in enclosed buildings (Dometic manual)

Dimensions and Cutout

Drawer (W x D x H) 21.8 x 21.6 x 5.5 in
Installation space 22 to 23 in wide, at least 21.7 in deep and 5.6 in high (Dometic figures)
Ventilation prep Two 2.4 x 7 in cutouts in the left and right rear corners of the shelf, with the supplied baffle sponges between the fan and cabinet back (manual)

What Is Included and What You Will Need

  • Dometic DrawBar5S wine drawer
  • Mounting plates, spacers, screws and baffle sponges; 2 manuals
  • You will need: a cabinet or niche to the installation dimensions, a grounded 110 to 120 V outlet within reach of the supply cord, and a custom overlay panel and handle sized to the drawer front

Installation Notes

Prepare the cabinet with the two rear-corner ventilation cutouts and fit the baffle sponges, attach the mounting plates with the supplied spacers, plug in the cord, then secure the housing to the cabinet walls and set the drawer back on its rails. For the 5S, fasten your overlay panel to the drawer door behind the gasket using the supplied screws. Dometic recommends a location with an ambient temperature of 80 F or less so the drawer can reach its lowest setting.

The DrawBar is designed for use inside enclosed buildings, so it is not an outdoor kitchen appliance.

Planning a bar or kitchen island? Book a design consultation.

Documentation

Frequently Asked Questions

Can it be installed outdoors?

No. Dometic designs the DrawBar for operation in enclosed buildings.

What size cabinet opening does it need?

An installation space 22 to 23 in wide, at least 21.7 in deep and 5.6 in high.

Which temperatures can I choose?

Five presets: 41, 46, 52, 57 and 63 F.

Is a front panel included?

No. The 5S is panel ready; you supply the overlay panel and handle.

Related reading: Outdoor refrigerator and ice maker buying guide.

Warranty

Dometic warrants the DrawBar to the original purchaser in the continental United States and Canada under its MoBar, DrawBar and Wine Coolers limited warranty: one year parts, labor and freight; parts only in year two; and three years on the sealed system (parts, labor and freight in year one, parts only in years two and three). Use beyond normal residential use, such as catering or bed and breakfast settings, is covered for 60 days. The product must be installed per Dometic instructions and the dated purchase receipt is required. See the warranty document for full terms.
