American Fyre Designs Fiesta Dining Fire Table Gas Fire Pit
American Fyre Designs Fiesta Dining Fire Table Gas Fire Pit - 12" Star Burner / Smoke / Propane is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 54 in diameter x 28 in H (per the American Fyre Designs 775 spec sheet)

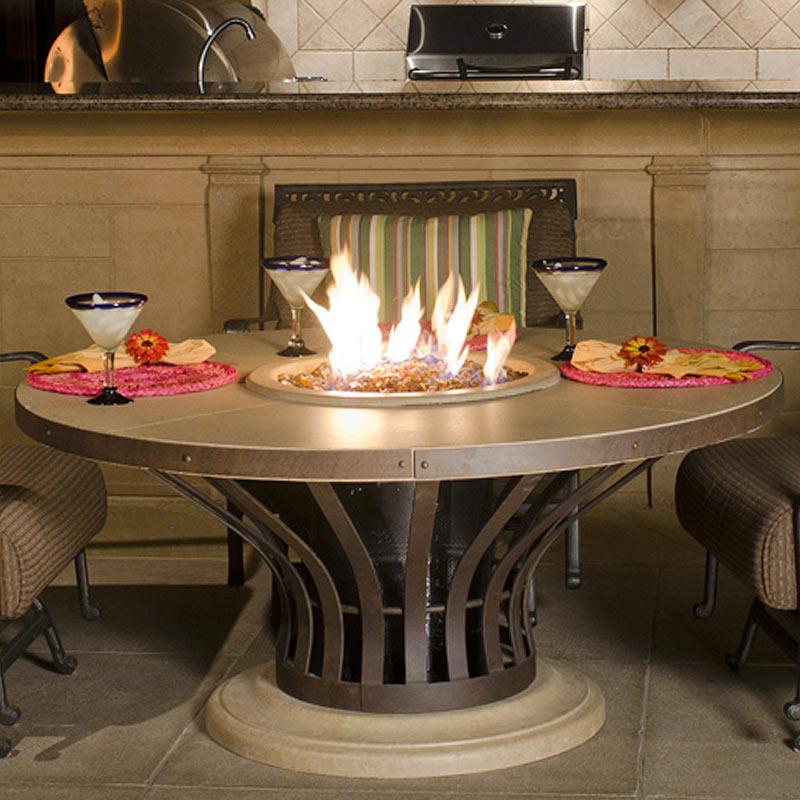

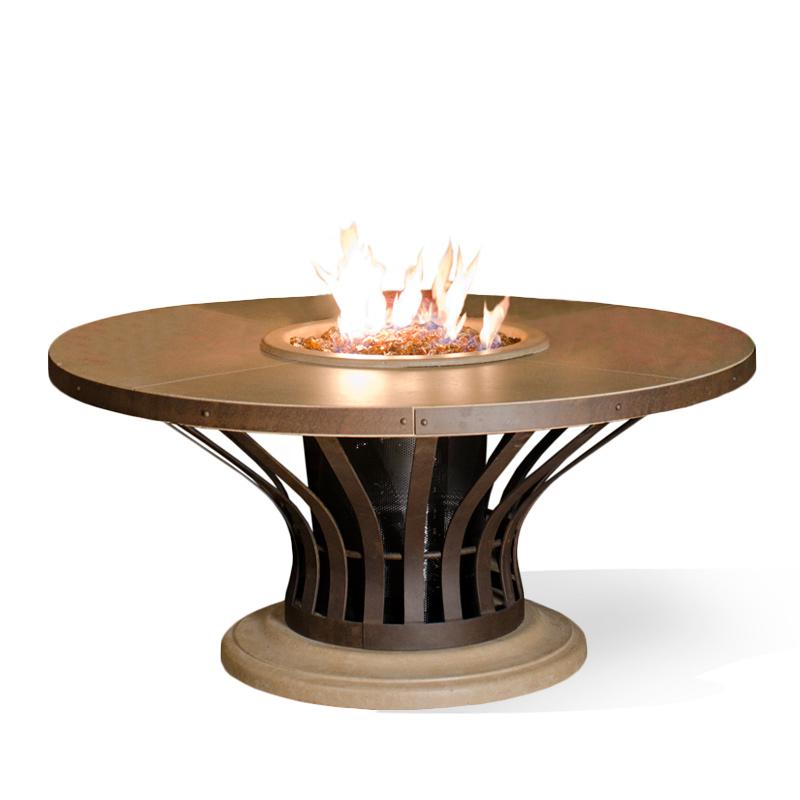

The American Fyre Designs Fiesta Dining Fire Table (model 775) is a 54 inch round glass fiber reinforced concrete (GFRC) fire table at 28 inches high, with a 12 inch stainless steel star burner in the center of a wide ledge for plates and drinks. The base has a storage door that hides a standard propane cylinder, or the table can be piped for natural gas. It suits a patio or rooftop seating group that wants a fire feature you can actually gather around and set things on.
Key Specifications
| Model | American Fyre Designs Fiesta Dining 775 (SKUs 775-xx-11-M2PC propane, 775-xx-11-M2NC natural gas) |
| Fuel | Natural gas or propane, selected at checkout |
| Heat Input | 60,000 BTU natural gas and propane for M models per AFD manual H2-058 (the 775 spec sheet lists 60,000 NG / 50,000 LP for the V2 key valve version) |
| Burner | 12 in stainless steel star burner |
| Ignition and Control | M2 manual flame sensing control with igniter and thermocouple |
| Construction | Glass fiber reinforced concrete (GFRC) top and base |
| Finishes | Smoke, Cafe Blanco or Black Lava |
| Fuel Storage | Base holds a 5 gal (20 lb) propane cylinder, not included |
| Certification | ANSI Z21.97 / CSA 2.41 outdoor decorative gas appliance |
| Weight | 290 lb per AFD manual H2-058; 350 lb per the 775 spec sheet |
Dimensions and Cutout
| Overall | 54 in diameter x 28 in H |
| Fire Area | 22 in diameter center opening per the 775 spec sheet drawing |
| Side Clearance | 3 ft from the unit edge to any construction |
| Overhead Clearance | 6 ft from the top of the unit to any construction |
Features
- Dining-height 28 in round table with a 54 in GFRC top
- 12 in stainless steel star burner for an even ring of flame
- Storage door in the base conceals a 20 lb propane cylinder
- Natural gas or propane configurations
- Lava granule base media supplied; top with AFD fire glass, lava or other approved AFD media
- Three heavy texture GFRC finishes
- Fuel conversion is possible where permitted, using the AFD conversion kit
What Is Included and What You Will Need
- Included: GFRC top, base, base door and base bottom, burner and valve assembly, lava granule base layer
- Not included: decorative primary media. AFD recommends about 20 lb of fire glass or 15 lb of lava for the Fiesta Dining; see American Fyre Designs fire glass
- Propane: a 20 lb cylinder and the supplied regulator and hose. Natural gas: a 1/2 in minimum gas line with a shutoff, run by a licensed plumber
- Inlet pressure: natural gas 5 to 10.5 in w.c.; propane 11 to 13 in w.c.
Installation Notes
Outdoor use only. Keep 3 ft of side clearance and 6 ft of clearance above the table to any construction, so do not place it under a low pergola or umbrella. Gas lines longer than 20 ft may need a larger pipe. Natural gas installation must be done by a qualified professional installer, and in New York City gas piping work requires a licensed master plumber and permit. Rooftop and terrace installs in the city often have building and fire department rules, so check with your building first. Book a free design consultation and we will help you plan placement, gas and finishes.
Documentation
Frequently Asked Questions
Can the propane tank go inside the table?
Yes. The base has a storage door sized for a standard 5 gal (20 lb) propane cylinder.
Can I put it under a covered patio?
Only with at least 6 ft from the top of the table to the ceiling or any overhead construction, and 3 ft to the sides.
How much fire glass do I need?
About 20 lb of fire glass, or 15 lb of lava, on top of the supplied lava granule base.
Is it a dining table?
At 28 in high it sits at dining height, with a wide concrete ledge around the burner for plates and drinks.
Related reading: Gas fire pit buying guide and Natural gas vs propane.
Warranty
R.H. Peterson warrants American Fyre Designs GFRC fire tables and burners for three years, and electrical components, valves, accessories and controls for one year, for the original purchaser in single family residential use. Proof of purchase is required and labor is not covered. Commercial installs fall under a separate AFD warranty.
