Fire Magic 1 Hour Stainless Steel Gas Timer Box - 5521-11T
Fire Magic 1 Hour Stainless Steel Gas Timer Box - 5521-11T is backordered and will ship as soon as it is back in stock.
Description
Description

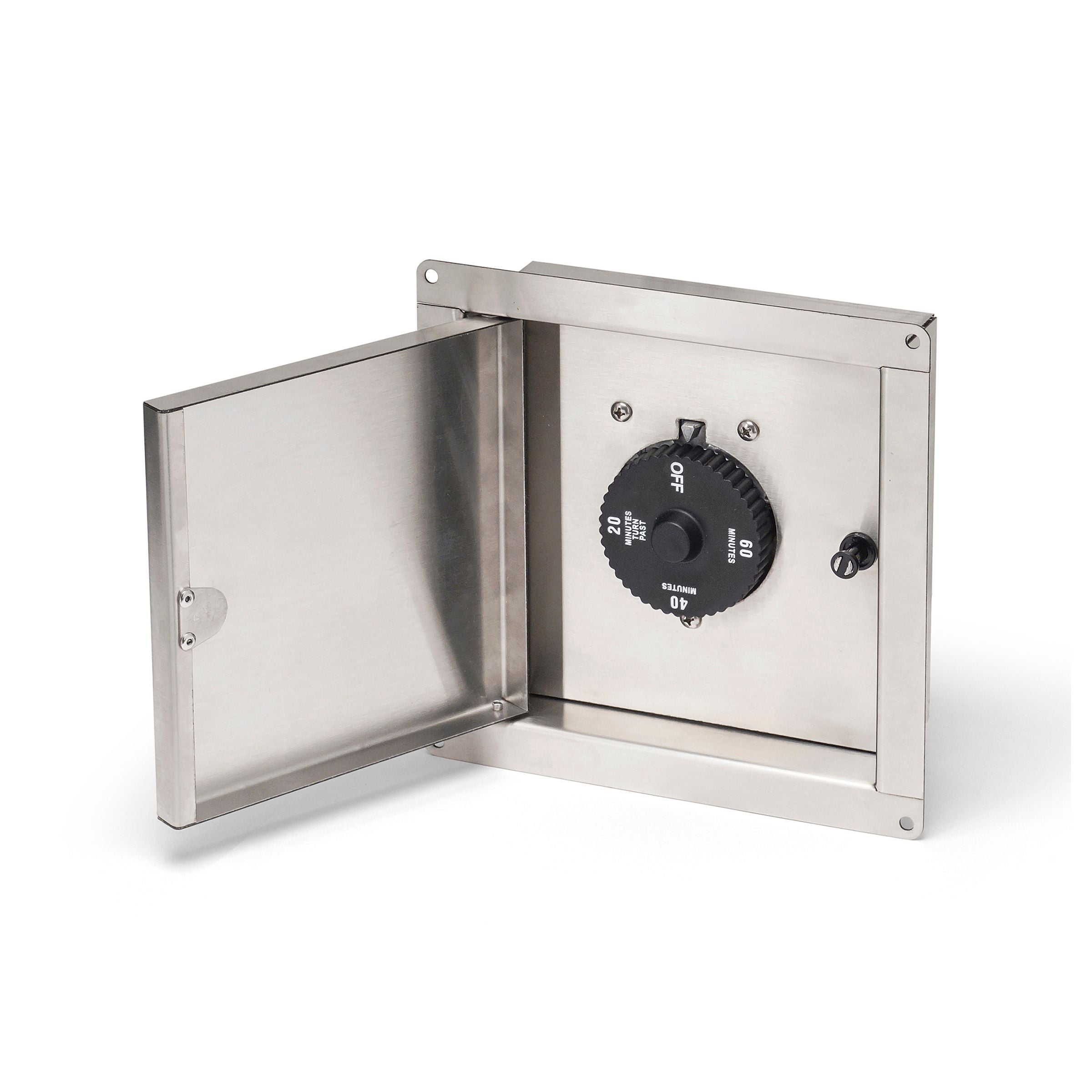

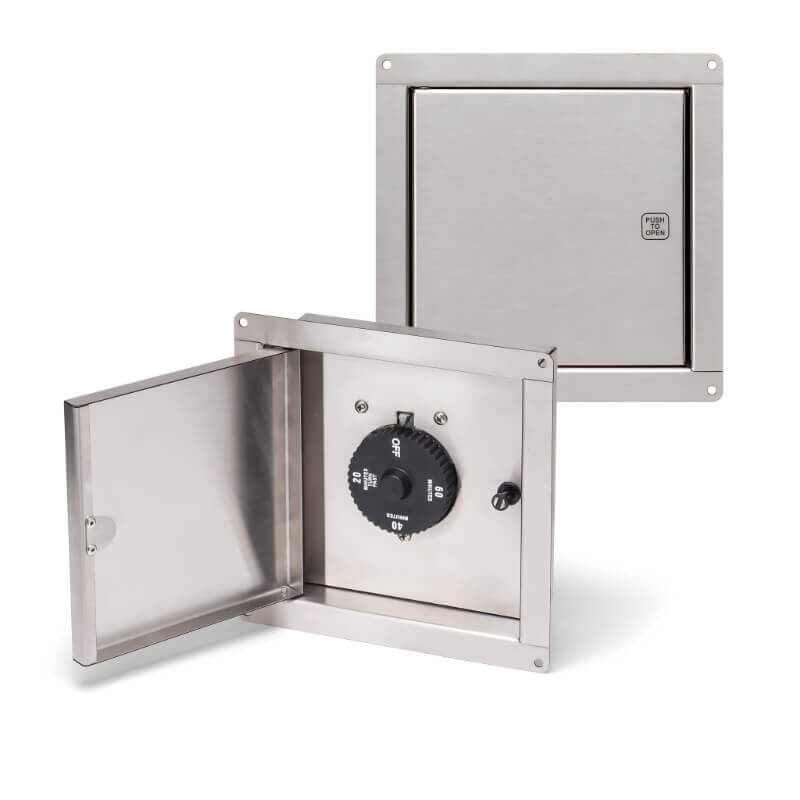

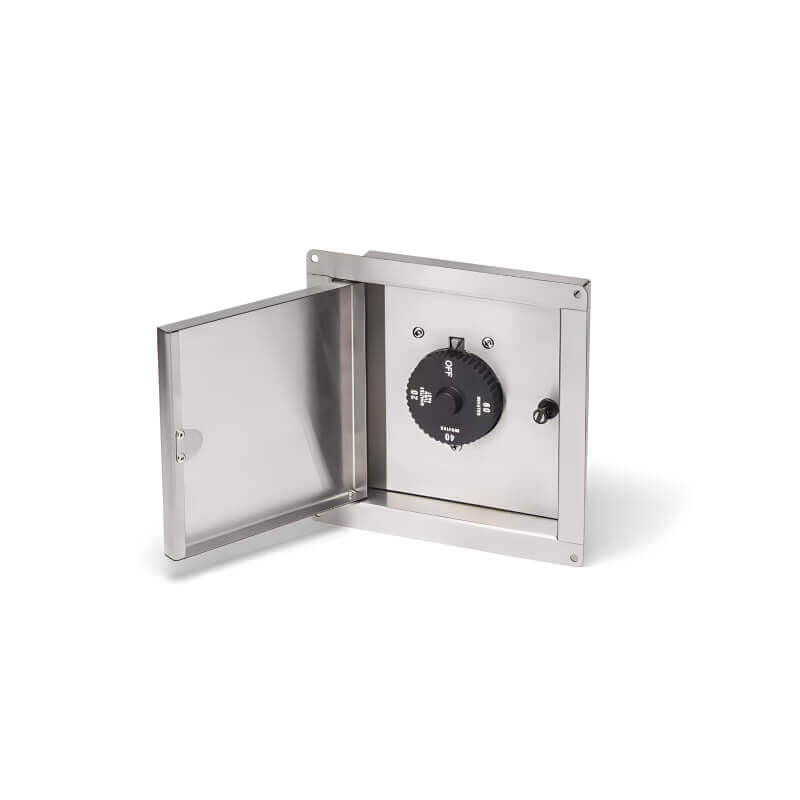

The Fire Magic 5521-11T is a stainless steel gas connection box with a 1-hour shut-off timer. It installs in the gas line between the primary shut-off valve and the appliance, and when the dial winds down to OFF it shuts off the gas automatically.
Features
- 1-hour mechanical timer: gas shuts off at OFF
- 100,000 Btu per valve on natural gas or propane (Fire Magic)
- Stainless steel box with hinged cover (per current listing)
- Mounts in a Fire Magic GFRC island or a custom enclosure
- 1/2 in flare adapters included
Key Specifications
| Model / SKU | Fire Magic 5521-11T |
| Timers | One, 1 hour, marked in 20 minute steps |
| Capacity | 100,000 Btu per valve, NG at 7 in w.c. or LP at 11 in w.c. |
| Max pressure | 1/2 psig |
| Operating range | 0 to 150 F |
| Fittings | 1/2 in flare adapters, IN and OUT |
Dimensions and Cutout
| Cut-out (current Fire Magic guide, 5521) | 7 1/2 W x 6 1/2 H in |
| 5520 series (L-C2-563) | Box 7 3/4 W x 7 3/4 H x 2 1/2 D in; cut-out 6 1/2 x 6 1/2 in |
What Is Included and What You Will Need
- Fire Magic 5521-11T timer box with 1/2 in flare adapters
- You will need: flex connectors, a primary gas shut-off valve upstream, and a licensed gas installer
Optional Accessories
- Fire Magic Gas Connection Box with 1-Hour Timer & Quick Disconnect - 5521-01T
- Fire Magic Automatic Timer Gas Safety Shut-off Valve
Installation Notes
Fire Magic says the box must sit between the required primary shut-off valve and the appliance, at least 10 in from the appliance (or it can overheat) and within 6 ft of it, with the rear reachable for service. The timer must not be used as the primary shut-off. Leak-test every connection with soapy water. For settings under 20 minutes, turn the dial past 20 first, then back. Planning the rest of the outdoor kitchen? Book a design consultation.
Documentation
- Fire Magic Gas Connection Box with Timer Instructions L-C2-563 (5520-11T to 5520-14T)
- Fire Magic Product Specifications Guide L-C1-01326 (current cut-outs)
Frequently Asked Questions
Can the timer replace my gas shut-off valve?
No. Fire Magic says the timer must not be used as the primary gas supply shut-off valve.
How far from the grill does it go?
At least 10 in away and within 6 ft of the appliance, per Fire Magic.
Related reading: Outdoor kitchen planning guide, Built-in gas grill buying guide.
Warranty
Fire Magic's limited warranty schedule (printed in its current owner's manuals) covers grill accessories for one (1) year from the date of purchase. For the original purchaser, single family residential use in the US or Canada, with proof of purchase; labor is excluded and professional installation is required.
