Fire Magic 30" Gourmet Built-In Griddle
Fire Magic 30" Gourmet Built-In Griddle - Propane / No Thanks is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 34 1/2 in W x 29 1/2 in D x 14 in H (height per current listing)

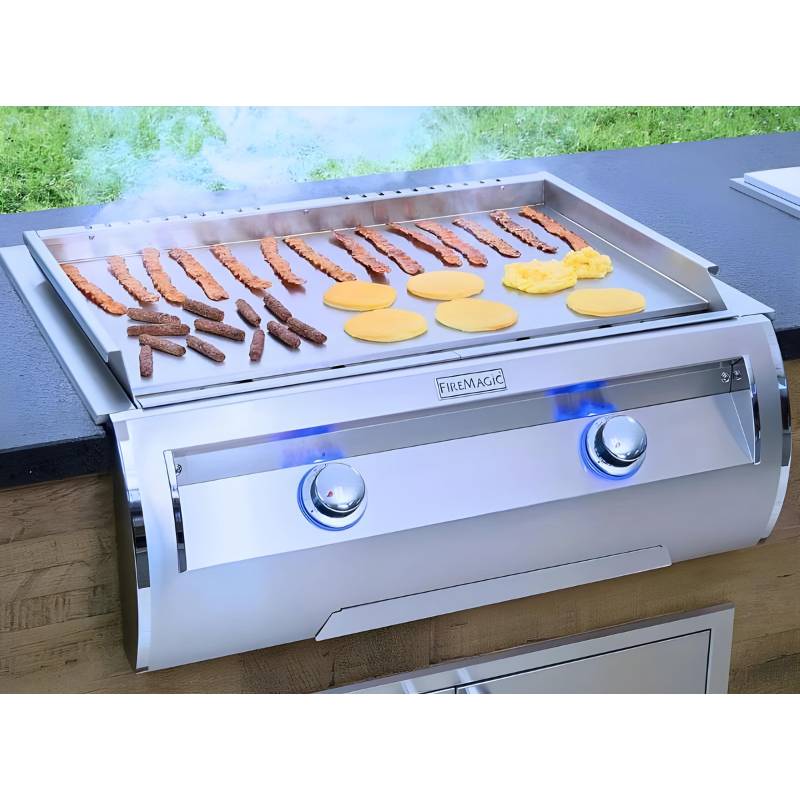

The Fire Magic E660i Gourmet Griddle is a built-in gas griddle with a 30 x 18 in cooking surface and two independently controlled burners for two-zone cooking. It drops into the same cutout as the E660i grill, so it is the natural partner for an Echelon or Aurora 660 island: sear on the grill, then cook breakfast, fajitas and fried rice on the plate. Black glass control panel models and models without that option are sold on this page.
Key Specifications

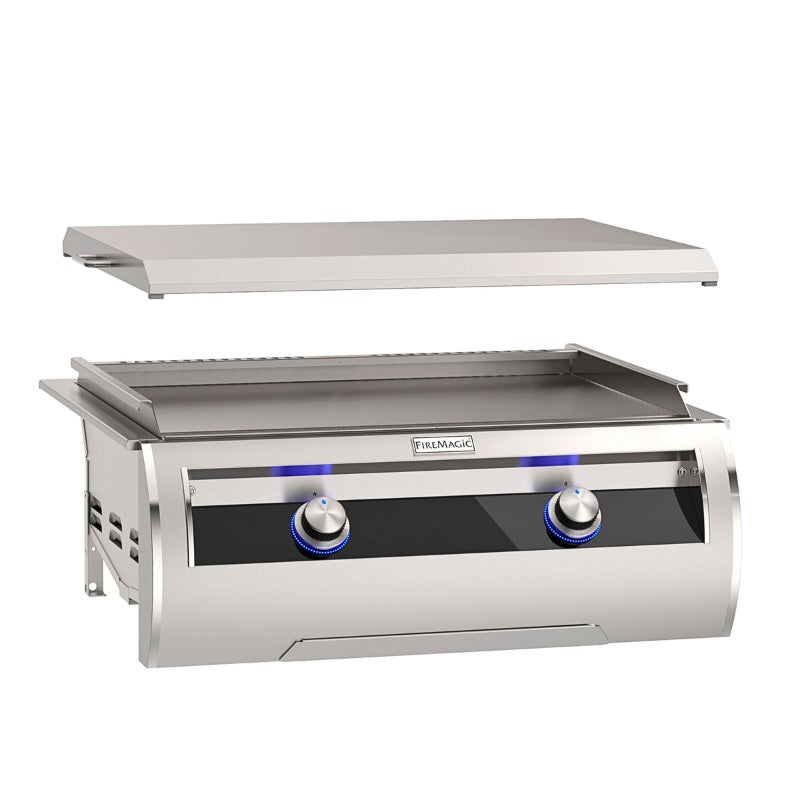

| Model | E660i-1T4N / E660i-1T4P (black glass control panel); E660i-0T4N / E660i-0T4P (without black glass option, per current listing) |
| Fuel | Natural gas or propane (choose at order) |
| Total input | 45,000 BTU, two heavy-duty stainless steel burners |
| Cooking surface | 30 x 18 in, 3/8 in thick stainless steel plate |
| Ignition | Hot surface ignition, two back-lit control knobs |
| Electrical | 120 VAC, 15 A minimum, GFCI grounded weather-proof in-use receptacle (not included) |
| Construction | 304 stainless steel |
| Certification | ANSI Z21.58 / CSA 1.6 |
| Weight | 207 lb (per current listing) |
Dimensions and Cutout
| Overall width / depth | 34 1/2 in / 29 1/2 in (Fire Magic spec guide) |
| Cutout width | 31 1/4 in |
| Cutout depth | 23 1/2 in |
| Cutout height | 11 1/2 in |
| Control panel width | 33 in (cutout dimension D, for countertops with an overhang) |
Features
- Two-zone cooking with independent gas controls
- 3/8 in thick stainless steel griddle plate for warp-free, even heat
- Two-piece drip collector trough over two ports that funnel grease into the drip pan
- Hot surface ignition and back-lit control knobs
- Same cutout as the E660i grill

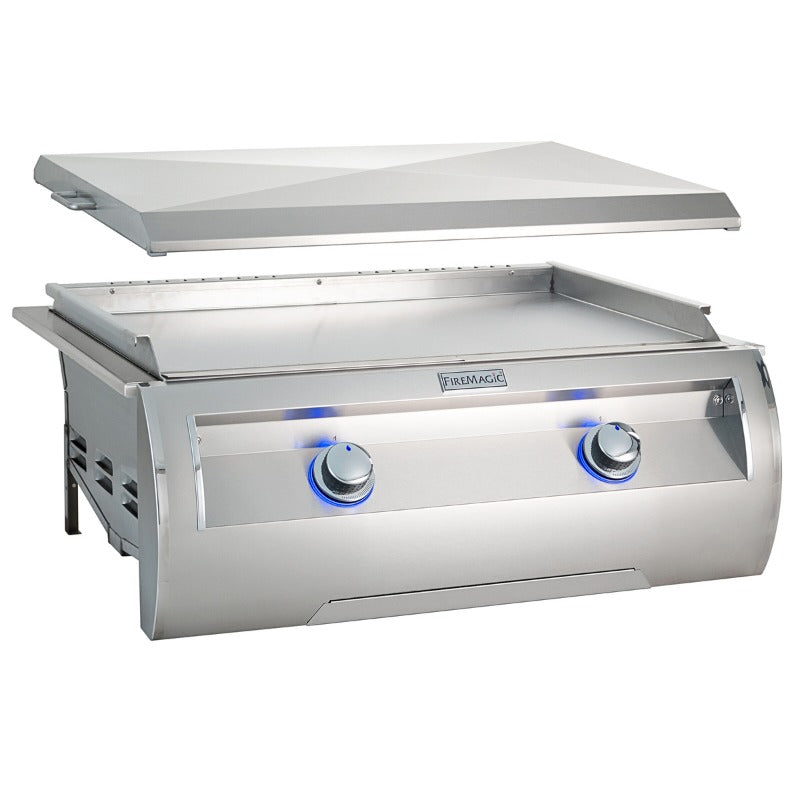

- Removable stainless steel griddle cover for protection when not in use
- All 304 stainless steel construction
What Is Included and What You Will Need
- Included: griddle with stainless steel cover and drip pan.
- Required: a 120 VAC, 15 A GFCI weather-proof in-use receptacle, a gas supply at the correct pressure, and a licensed installer.
- Combustible enclosure: an insulating liner is required. See the Fire Magic insulating liner for E660i and A660i built-in grills (3176-52).

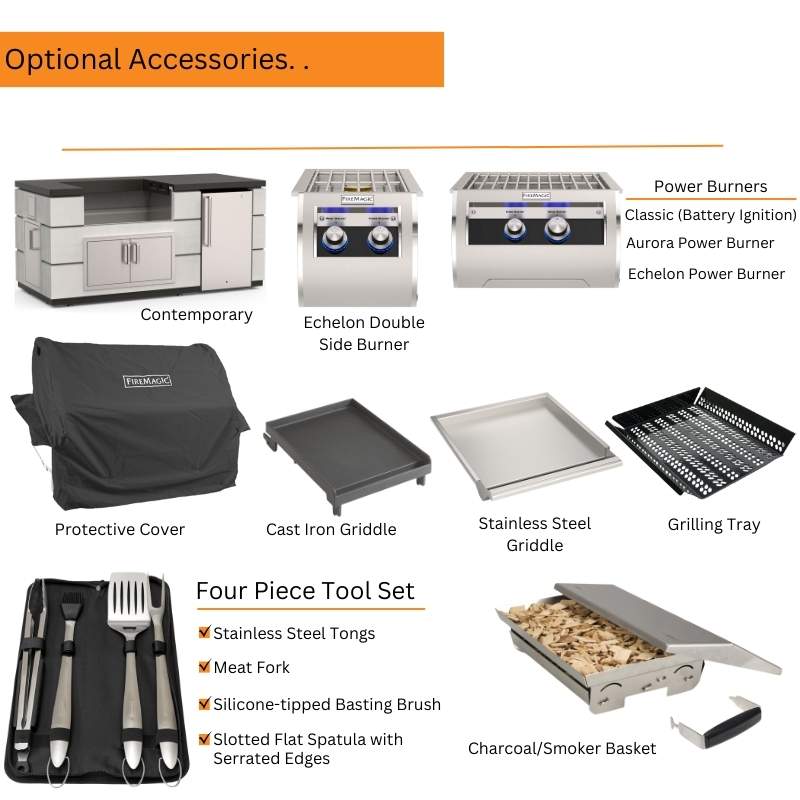

- Optional: portable cart grill base 660-SC24 and protective vinyl covers (sold separately; ask us for current part numbers).
Installation Notes
Gas supply pressure per the Fire Magic manual: natural gas 7 in w.c. normal (5 in minimum, 10 1/2 in maximum); propane 11 in w.c. normal (10 in minimum, 13 in maximum). Keep a 5 ft clearance between the countertop and overhead construction, 4 in to a non-combustible rear wall, 12 in to a protected combustible rear wall, 15 in to a combustible rear wall, and 24 in to side walls. The countertop must be non-combustible. Installation by a licensed gas fitter is required, and NYC and Long Island projects need the right permits. Book a design consultation and we will plan the cutout, gas and power for you.
Documentation
- Fire Magic Product Specifications Guide
- Echelon Griddle Installation and Operating Manual
- Black Glass Gourmet Griddle Features Sheet
Frequently Asked Questions
Does the griddle need electricity?
Yes. Ignition and the control lights need a 120 VAC, 15 A minimum GFCI grounded, weather-proof in-use receptacle. It is not included.
Will it fit my existing E660i grill cutout?
Fire Magic states it uses the same cutout as the E660i grill: 31 1/4 in wide x 23 1/2 in deep x 11 1/2 in high.
Can I install it in a wood-framed island?
Only with the correct insulating liner and a non-combustible countertop. See the liner linked above.
Natural gas or propane?
Both are offered. The fuel is set at the factory for the variant you choose, so confirm it matches your supply before ordering.
Related reading: Side burner, power burner and griddle guide and Outdoor kitchen planning guide.
Warranty
Fire Magic's published warranty covers built-in griddles (except the ignition system and thermostat) for ten (10) years. Ignition systems and electronic components, including lights and thermostats, are covered for one (1) year. The warranty applies to the original purchaser with proof of purchase and to single family residential use, and does not cover labor. Full terms: Fire Magic warranty.
