Fire Magic  |  SKU: 53811BSC

Fire Magic Echelon Black 24-Inch Utility Drawer with Utensil Bin - 53811BSC

Regular price $705.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Choose with help from our Maspeth showroom. Read customer reviews on Google.

Northeast shipping only: ME, VT, NY, NH, MA, CT, PA, NJ, MD, DE and RI. For any other state, call 718-326-4328 for a shipping quote before ordering. Product and local-service restrictions apply. Shipping details.

400+ five-star Google reviews
  • Northeast shipping. Eligible orders over $999 ship free within our 11-state area; other eligible orders have a flat rate at checkout. Product exclusions apply. Shipping details.
  • Factory-authorized Fire Magic dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Visit our Maspeth, Queens showroom
58-30 Maspeth Ave
Maspeth, NY 11378
Monday–Friday
9:00 AM–5:00 PM
Saturday
10:00 AM–3:00 PM
Sunday
Closed

Call ahead to confirm the model you want to see and pickup readiness.

Shipping & Delivery Area

  • Online shipping is limited to Maine, Vermont, New York, New Hampshire, Massachusetts, Connecticut, Pennsylvania, New Jersey, Maryland, Delaware and Rhode Island.
  • Eligible orders over $999 receive free standard shipping; eligible orders of $999 or less have a flat rate shown at checkout.
  • Our own trucks deliver eligible local orders up to 120 miles. e-NRG fuel, white-glove delivery and assembly have separate eligibility, distance limits and charges.
  • For other states, or when no delivery option appears, call 718-326-4328 for a quote before ordering.
  • Read the shipping policy for details.

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns

  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

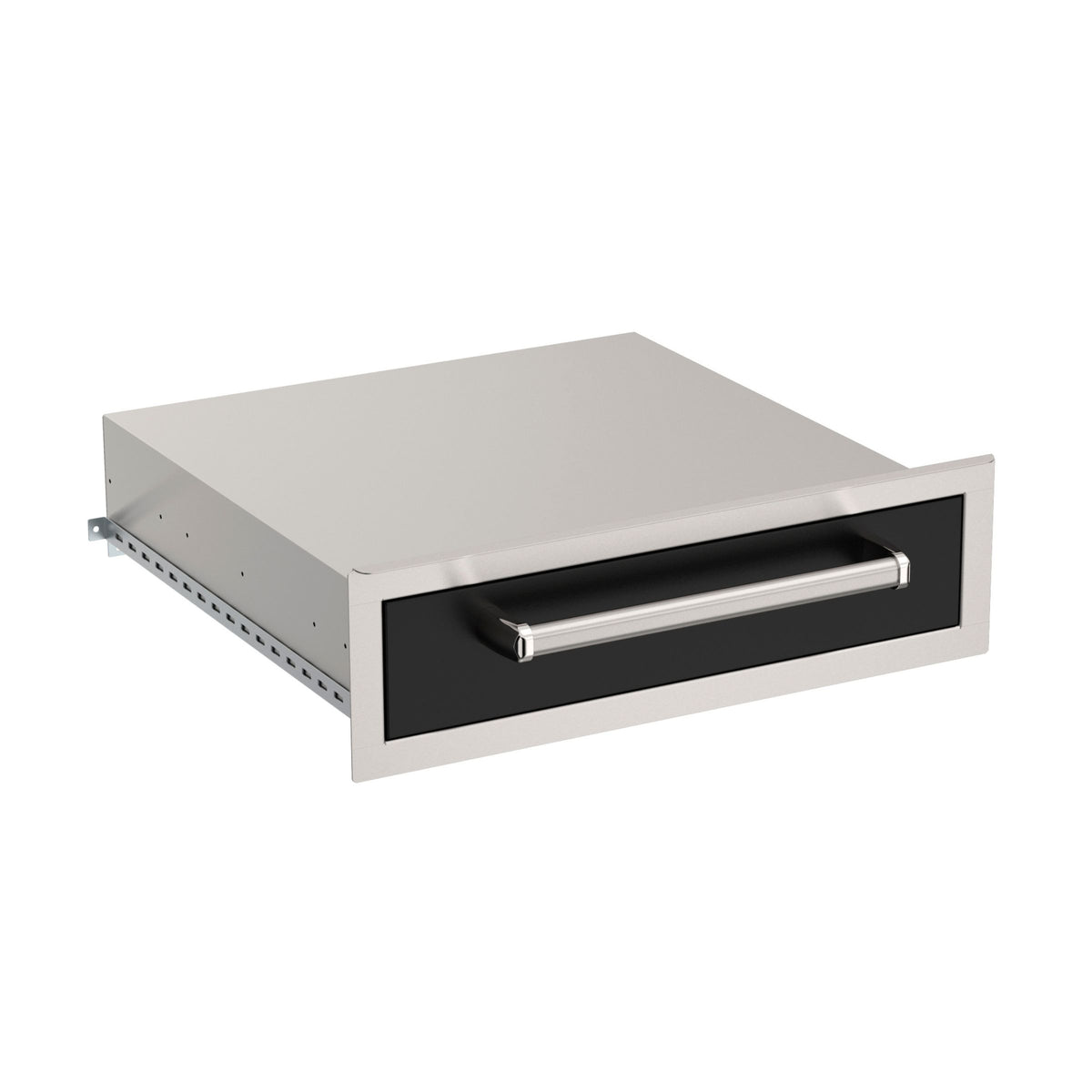

Fire Magic Echelon Black Utility Drawer - 53811BSC

A wide, shallow soft-close drawer in black powder coat over 304 stainless steel, sized to hold a Fire Magic cooking griddle flat or to keep tongs, spatulas and towels in one long tray beside the grill. Fire Magic lists this model as the Echelon Black Griddle Drawer on its website and as the Utility Drawer in its price book; both names refer to this one unit, 53811BSC. At 24 1/2 in wide and only 5 1/4 in tall it fits under a countertop where a full-height drawer stack will not.

Key Features

  • Sized for a griddle. The 24 1/2 in wide by 26 in deep opening is proportioned to store a Fire Magic griddle plate flat, so it is stowed where it is used instead of leaning in a garage.
  • Black powder coat over 304 stainless steel. The same finish as the Echelon Black grill and the rest of the Echelon Black doors and drawers, so a full run reads as one piece of cabinetry.
  • Soft-close glides. The drawer pulls itself the last inch and settles quietly, which keeps the frame square over years of use.
  • Polyurethane foam filled front. Adds rigidity and insulation so a wide drawer front stays flat and solid.
  • Continuous rain guard gasket. Full-perimeter sealing keeps water out of the island enclosure.
  • Removable utensil bin included. Keeps small tools sorted inside the drawer.

Specifications

Model 53811BSC
Also listed as Echelon Black Griddle Drawer
Collection Echelon Black (5-Series)
Finish Black powder coat over 304 stainless steel
Cut-out width 24 1/2 in
Cut-out height 5 1/4 in
Cut-out depth 26 in
Orientation Horizontal
Number of drawers 1
Drawer glides Soft-close, included
Utensil bin Included
Insulation Polyurethane foam filled
Weather sealing Continuous full-perimeter rain guard gasket
Mounting type Flush
Shipping weight 46 lbs
Carton size 31 3/4 in L x 13 in W x 29 in H
Made in USA Yes

What's Included

  • One Echelon Black utility drawer, model 53811BSC
  • Removable utensil bin
  • Mounting hardware
  • Installation instructions

Required to Complete the Installation

Nothing further is required. This is a drop-in unit with no gas, fuel or electrical connection and no separate frame kit to purchase. It needs a finished island opening of 5 1/4 in high by 24 1/2 in wide by 26 in deep. The 26 in depth is the figure to check first: this drawer is deeper than the 14 1/2 in wide Echelon Black drawers, so confirm the island has that much clear depth behind the face. The griddle plate itself is sold separately.

Optional Accessories and Matching Units

The Echelon Black Collection also includes the matching double drawer (53802BSC), triple drawer (53803BSC), the 30 in access door and double drawer combo (53810BSC), the 36 in access door with platter storage and double drawer (53816BSC), the 14 1/2 in vertical single access door (53920BSC) and the 30 in and 39 in double access doors (53930BSC, 53934BSC, 53938BSC), so an entire run of island storage can be finished in the same black powder coat. They are linked below.

Documentation

Fire Magic Door, Drawer and Pantry Installation Specifications (PDF) - the Echelon Black cut-out schedule is on page 8.

Fire Magic Stainless Steel Care Instructions (PDF)

Planning a full Echelon Black run? Book a design consultation.

Frequently Asked Questions

What cut-out does the 53811BSC need?

5 1/4 in high, 24 1/2 in wide and 26 in deep, per Fire Magic install specifications L-C2-358 REV 5.

Will a griddle fit inside?

The drawer is proportioned to hold a Fire Magic griddle plate flat; check your griddle against the 24 1/2 in width before ordering.

How long is the warranty?

Three years on Echelon Black (5 Series) doors and drawers, per Fire Magic.

Related reading: Outdoor kitchen planning guide, Stainless vs aluminum outdoor kitchen cabinetry.

Warranty

Fire Magic outdoor kitchen storage components are warranted against defects for three (3) years. The warranty applies to the original purchaser with proof of purchase and to single family residential use. Warranty claims are handled through your authorized Fire Magic dealer.
