Fire Magic  |  SKU: E660I-1T4N

Fire Magic Echelon Diamond E660I 30 Inch Black Glass Built-In Gas Griddle

$5,113.80 $5,682.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Fire Magic dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Overall Dimensions: 34 1/2 in W x 29 1/2 in D x 14 in H (height per current listing)

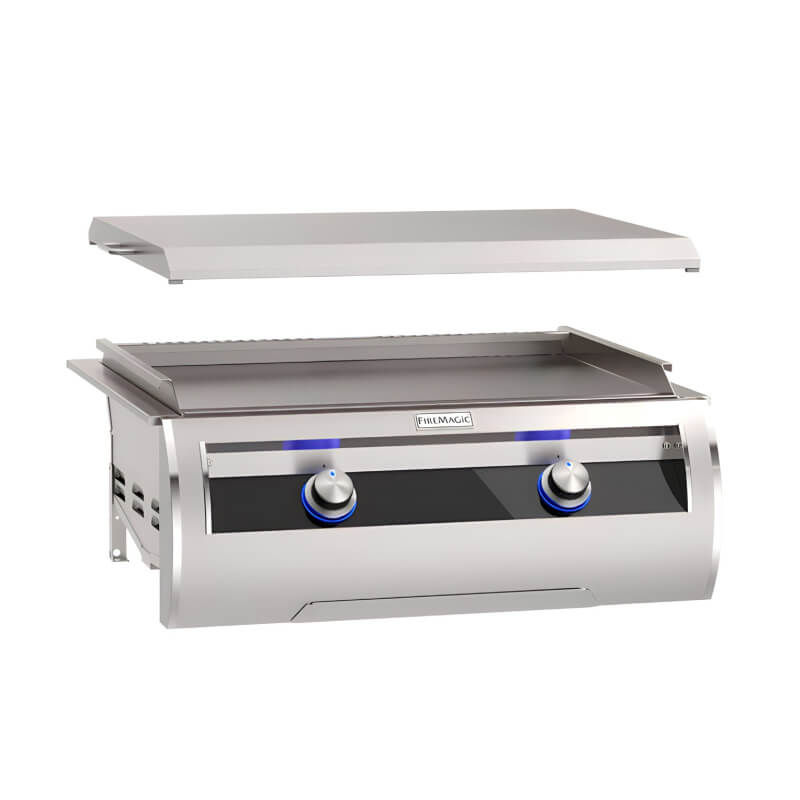

The Fire Magic Echelon Diamond E660I Black Glass Gourmet Griddle is a built-in 30 x 18 in gas griddle with a black glass control panel and blue LED lighting to match the Echelon grill line. Two burners give two-zone cooking, and the cutout matches the E660i grill, so it slots into an existing 660 layout. It is the breakfast, fajita and smash-burger half of an outdoor kitchen.

Key Specifications

Model E660I-1T4N (natural gas) / E660I-1T4P (propane)

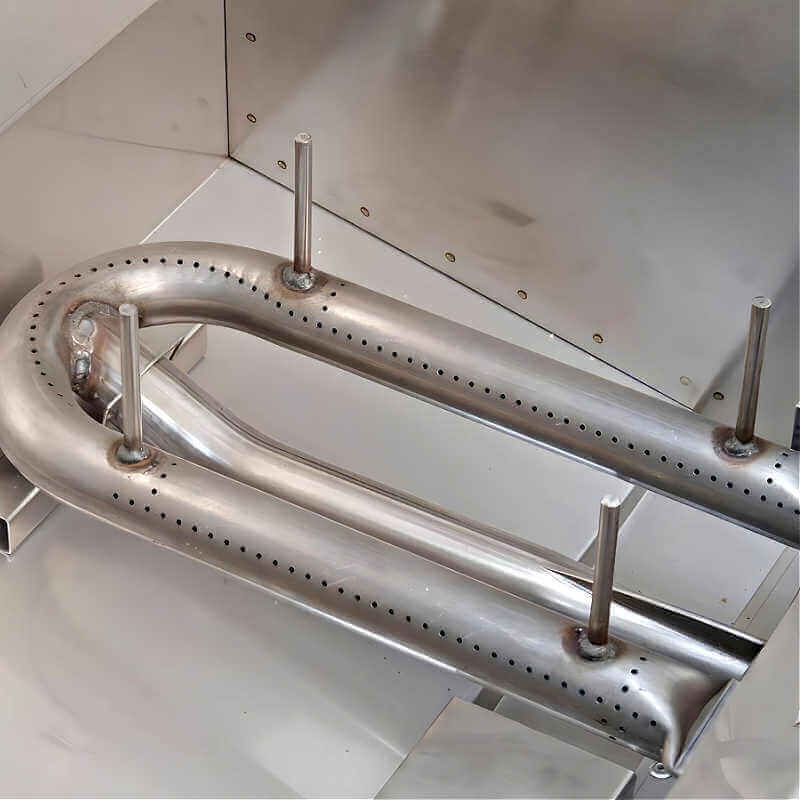

Total input 45,000 BTU, two heavy-duty stainless steel U-shaped burners
Cooking surface 30 x 18 in, 3/8 in thick stainless steel plate
Controls Black glass panel, two back-lit knobs, independent zones
Ignition Hot surface electronic ignition
Electrical 120 VAC, 15 A minimum, GFCI grounded weather-proof in-use receptacle (not included); powers ignition and LED lights
Construction 304 stainless steel
Certification ANSI Z21.58 / CSA 1.6
Weight 207 lb (per current listing)

Dimensions and Cutout

Overall width / depth 34 1/2 in / 29 1/2 in (Fire Magic spec guide)
Cutout width 31 1/4 in
Cutout depth 23 1/2 in
Cutout height 11 1/2 in
Control panel width 33 in (cutout dimension D, for countertops with an overhang)

Features

  • Black glass control panel with blue LED lights
  • Two-zone cooking with independent gas controls
  • 3/8 in stainless steel plate for even heat and durability

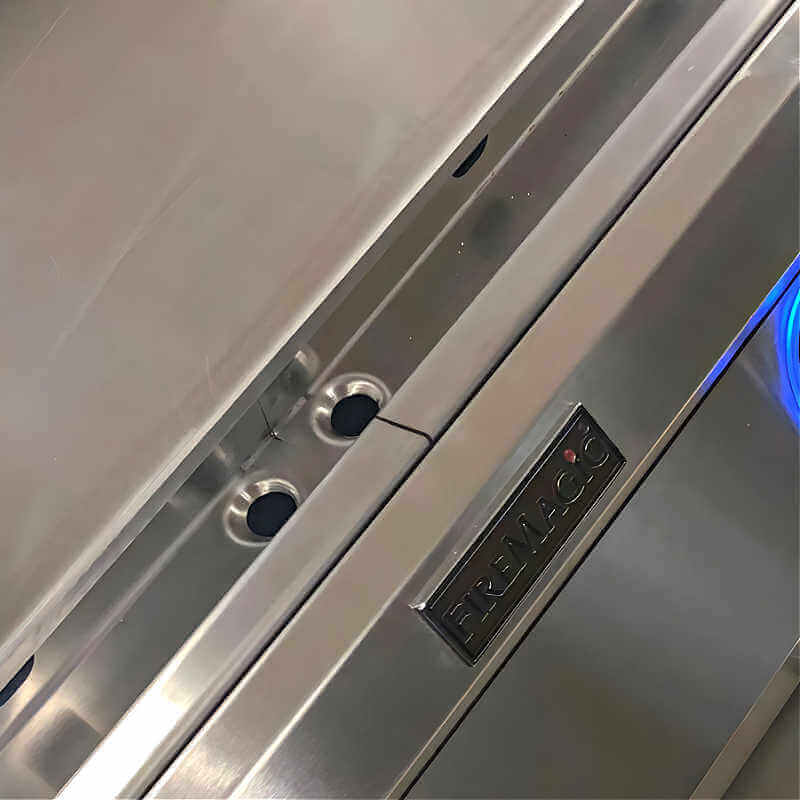

  • Two-piece drip collector trough feeding two grease ports and a pull-out drip pan

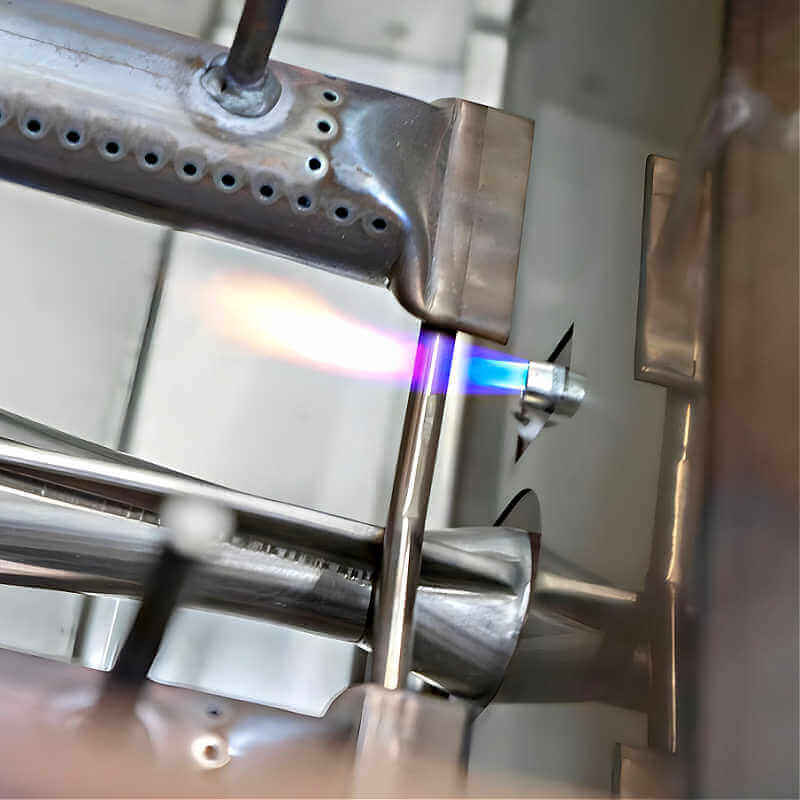

  • Hot surface ignition for a quick, reliable start
  • Stainless steel cover to protect the plate when not in use
  • All 304 stainless steel construction

What Is Included and What You Will Need

  • Included: griddle with stainless steel cover and drip pan.
  • Required: a 120 VAC GFCI weather-proof in-use receptacle, correct gas supply pressure, and a licensed installer.
  • Combustible enclosure: an insulating liner is required. See the Fire Magic insulating liner for E660i and A660i built-in grills (3176-52).
  • Optional: portable cart grill base 660-SC24 and protective covers (sold separately; ask us for current part numbers).

Installation Notes

Gas supply pressure per the Fire Magic manual: natural gas 7 in w.c. normal (5 in minimum, 10 1/2 in maximum); propane 11 in w.c. normal (10 in minimum, 13 in maximum). Keep 5 ft from the countertop to overhead construction, 4 in to a non-combustible rear wall, 12 in to a protected combustible rear wall, 15 in to a combustible rear wall, and 24 in to side walls. The countertop must be non-combustible. A licensed gas fitter must install it, and NYC and Long Island jobs need the correct permits. Book a design consultation and we will plan the cutout, gas and power with you.

Documentation

Frequently Asked Questions

Does this griddle need power?

Yes. Ignition and the blue LED lights run on a 120 VAC, 15 A minimum GFCI grounded weather-proof in-use receptacle, which is not included.

Does it fit an E660i grill cutout?

Yes. Fire Magic lists the same cutout: 31 1/4 in wide x 23 1/2 in deep x 11 1/2 in high.

Do I need an insulating liner?

Only if the enclosure is combustible. Use the correct liner and keep a non-combustible countertop.

What is the cooking area?

Fire Magic publishes a 30 x 18 in cooking surface. Some retail listings quote 660 sq in, which does not match 30 x 18 in (540 sq in), so we list only the dimensions.

Related reading: Side burner, power burner and griddle guide and Outdoor kitchen planning guide.

Warranty

Fire Magic's published warranty covers built-in griddles (except the ignition system and thermostat) for ten (10) years. Ignition systems and electronic components, including lights and thermostats, are covered for one (1) year. It applies to the original purchaser with proof of purchase and to single family residential use, and does not cover labor. Full terms: Fire Magic warranty.
