Description
Description
Shop now with free shipping!
Overall Dimensions: Cutout 25 x 25 x 12 in (W x D x H); front panel 26 1/8 in wide, per the Fire Magic 3596A manual

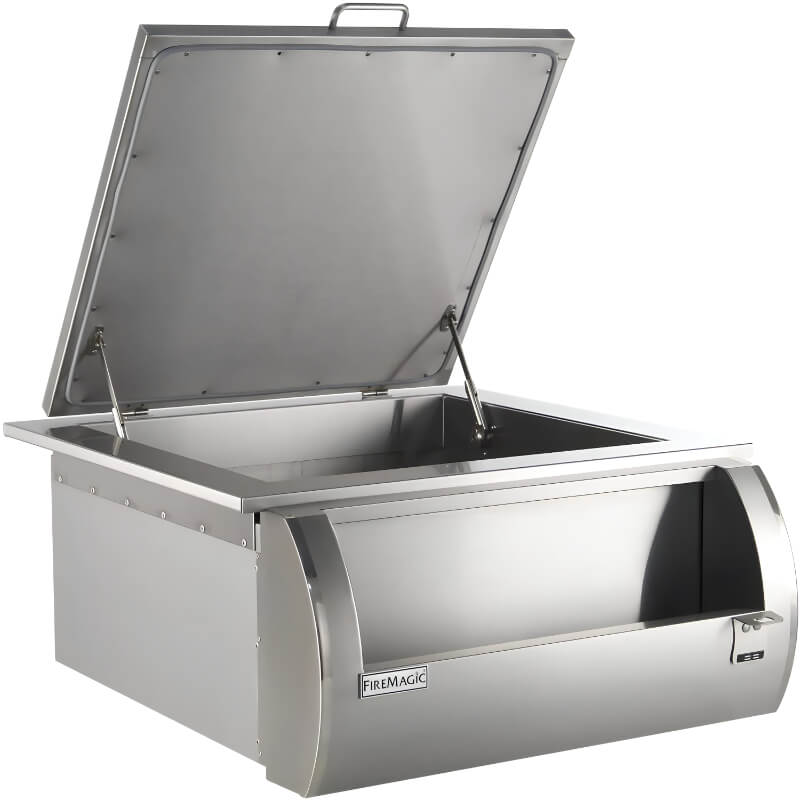

The Fire Magic 3596A slide-in refreshment center puts an insulated ice bin, a front speed rail and a bottle opener right at the counter, so drinks and mixers stay at the island instead of in the kitchen. It is 304 stainless steel with an insulated, gasketed lid and a built-in drain, sized for about 30 lb of ice.
Features
- Insulated 304 stainless steel ice bin holding about 30 lb of ice (per current listing)
- Insulated lid with a sealing gasket and soft-down hinges; the lid lifts off for cleaning
- Front speed rail for bottles, mixers and condiments
- Built-in bottle opener on the front panel
- Center gravity drain with a supplied drain kit for plumbing to a drain
- Slide-in design with a front panel that sits flush against the island face
Key Specifications
| Model / SKU | Fire Magic slide-in refreshment center, 3596A |
| UPC | 619655066103 |
| Ice capacity | About 30 lb (per current listing) |
| Construction | 304 stainless steel, insulated walls (per current listing) |
| Lid | Insulated lid 33596-05 with gasket and soft-down hinges |
| Drain | Drain kit 3596-11 included |
| Front panel | 3596-05 with speed rail and bottle opener |
| Hanger | 2 1/2 in all around (Fire Magic specification guide) |
| Made in | USA (per current listing) |
Dimensions and Cutout
| Counter cut-out | 25 in W x 25 in D x 12 in H |
| Front panel width cut-out | 26 1/8 in, for a countertop with an overhang |
| Below the unit | Clearance for the drain assembly is required |
What Is Included and What You Will Need
- 3596A refreshment center with insulated lid
- Front panel with speed rail and bottle opener
- Drain kit
- You will need: a 25 x 25 x 12 in countertop cut-out, room below for the drain assembly, a drain connection that meets local code, and silicone to seal the hanger to the countertop
Optional Accessories
- Fire Magic fabric cover for the refreshment center (optional per the Fire Magic manual)
- Fire Magic 15 x 15 outdoor-rated stainless sink (3587)
- Fire Magic Premium Flush 30 in access door and double drawer combo (53810SC)
Installation Notes
Cut the countertop to 25 x 25 in with a 12 in deep opening, leaving clearance below for the drain. Set the unit into the opening with silicone between the hanger and the countertop, then attach the supplied drain kit and plumb it to a drain as local code requires. Handle the unit carefully so the pre-installed drain spout is not damaged, and do not set it down flat before installation.
If the countertop overhangs the island face, cut the overhang flush across the 26 1/8 in front panel width so the panel sits flat against the wall, with 1/4 in clearance at the sides and below for panel removal.
Planning bar and storage around your grill? Book a design consultation.
Documentation
- Fire Magic 3596A Refreshment Center Installation Manual
- Fire Magic Product Specification Guide (cut-out specs)
Frequently Asked Questions
What size cut-out does it need?
25 in wide by 25 in deep by 12 in high, per the Fire Magic installation manual.
Does it need a drain?
Yes. A drain kit is included; plumb it to a drain or as appropriate for your installation and local code.
How much ice does it hold?
About 30 lb, per the current listing.
Is there a drop-in version?
Yes, Fire Magic also makes the 33596 drop-in refreshment center.
Related reading: Outdoor refrigerator and ice maker buying guide, Outdoor kitchen planning guide.
Warranty
Fire Magic warrants outdoor kitchen components such as doors, drawers and storage units for three (3) years against defects in materials and workmanship under normal residential use (Fire Magic product specification guide). Ignition systems and electrical parts are excluded from the three-year term. See the installation instructions for full conditions.
