Description
Description
Overall Dimensions: Fits a fireplace at least 28 in wide at the front, 22 in at the rear, 12 in deep and 16 in high, per the Hargrove manual

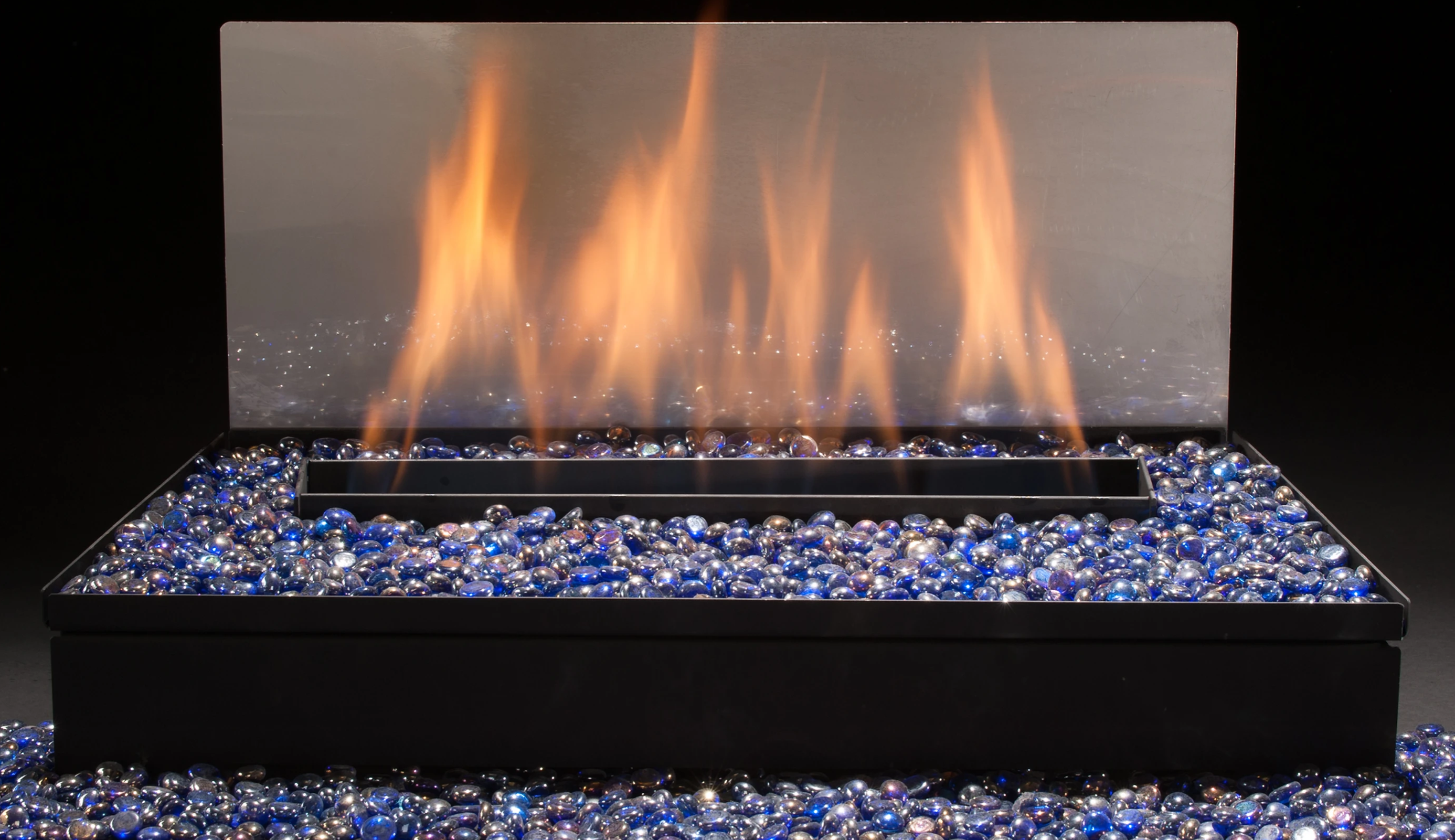

The Hargrove Element Series 18 in burner (ESCS18) is a contemporary, linear vent-free burner for an existing masonry or factory-built wood fireplace. A mirrored stainless back panel reflects the flame, and you finish it with fire glass, river rocks, or Aspen twig or driftwood log kits, so it reads modern rather than rustic. It uses a millivolt valve that works with a wall switch, thermostat or remote.
Features
- Linear vent-free burner with a reflective stainless back panel
- Up to 33,000 BTU/h on natural gas or 28,000 BTU/h on propane
- Millivolt valve with ODS safety pilot, ready for a wall switch, thermostat or remote

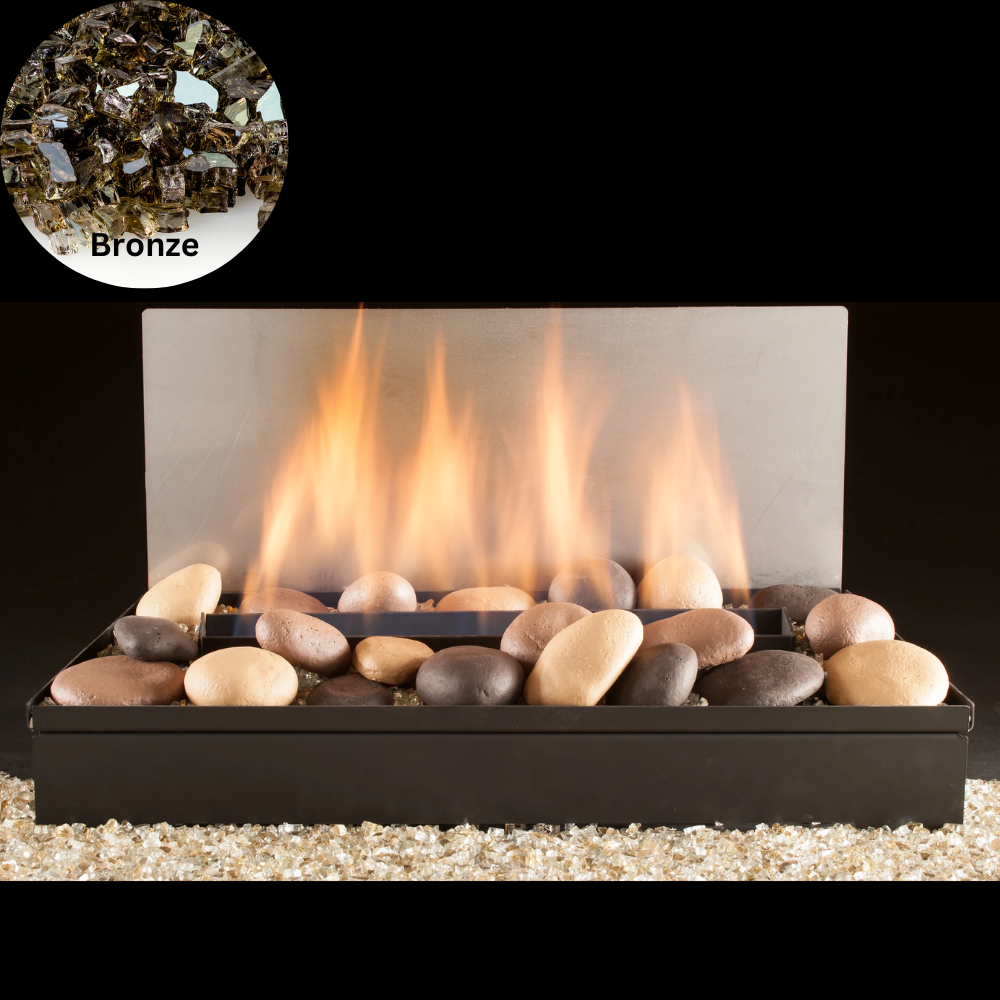

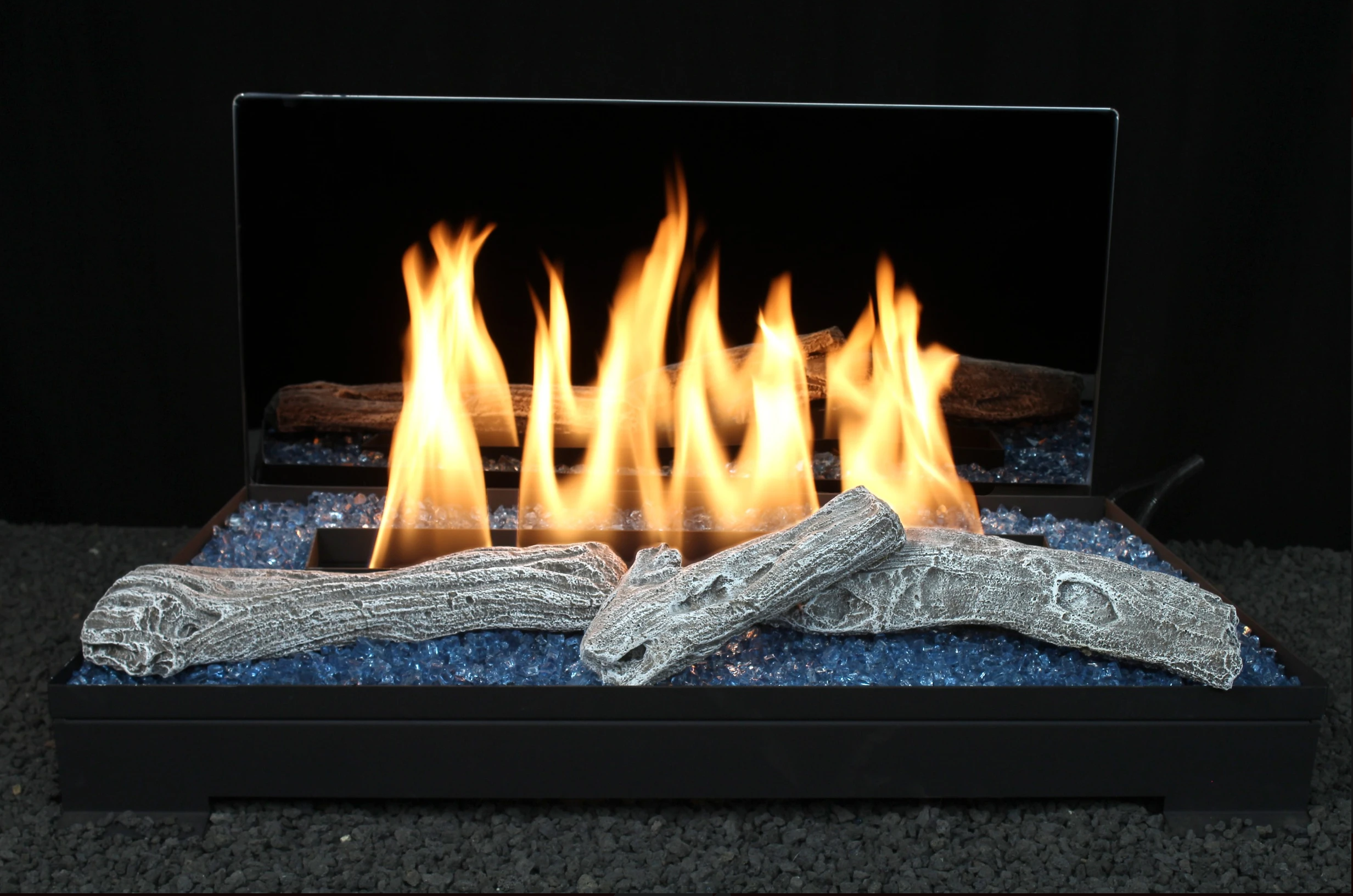

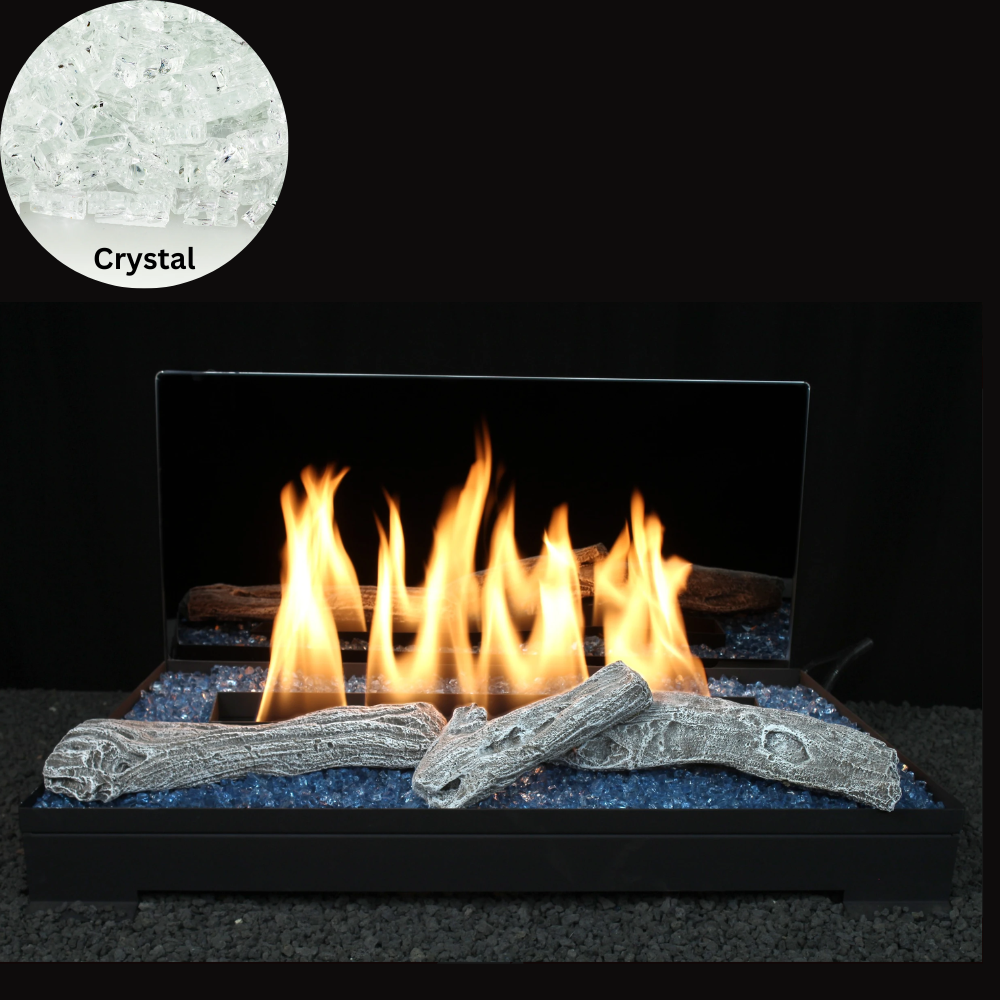

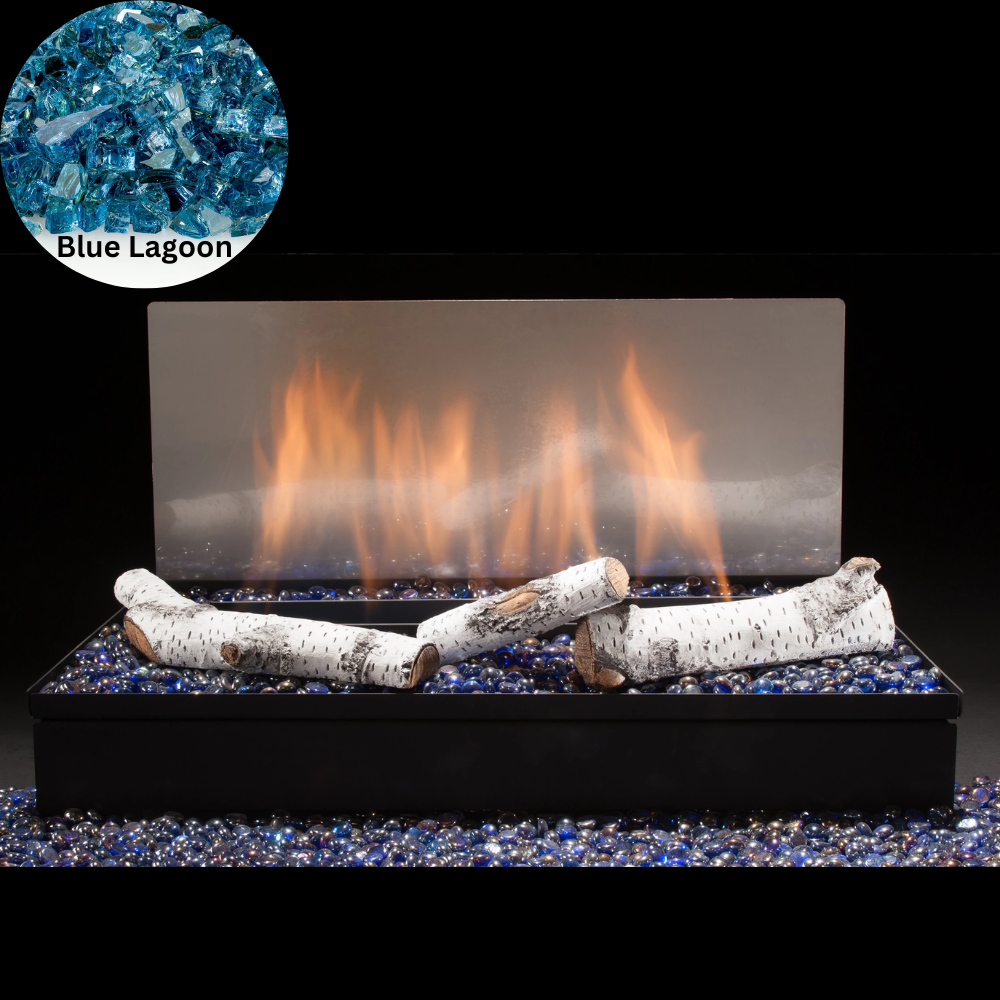

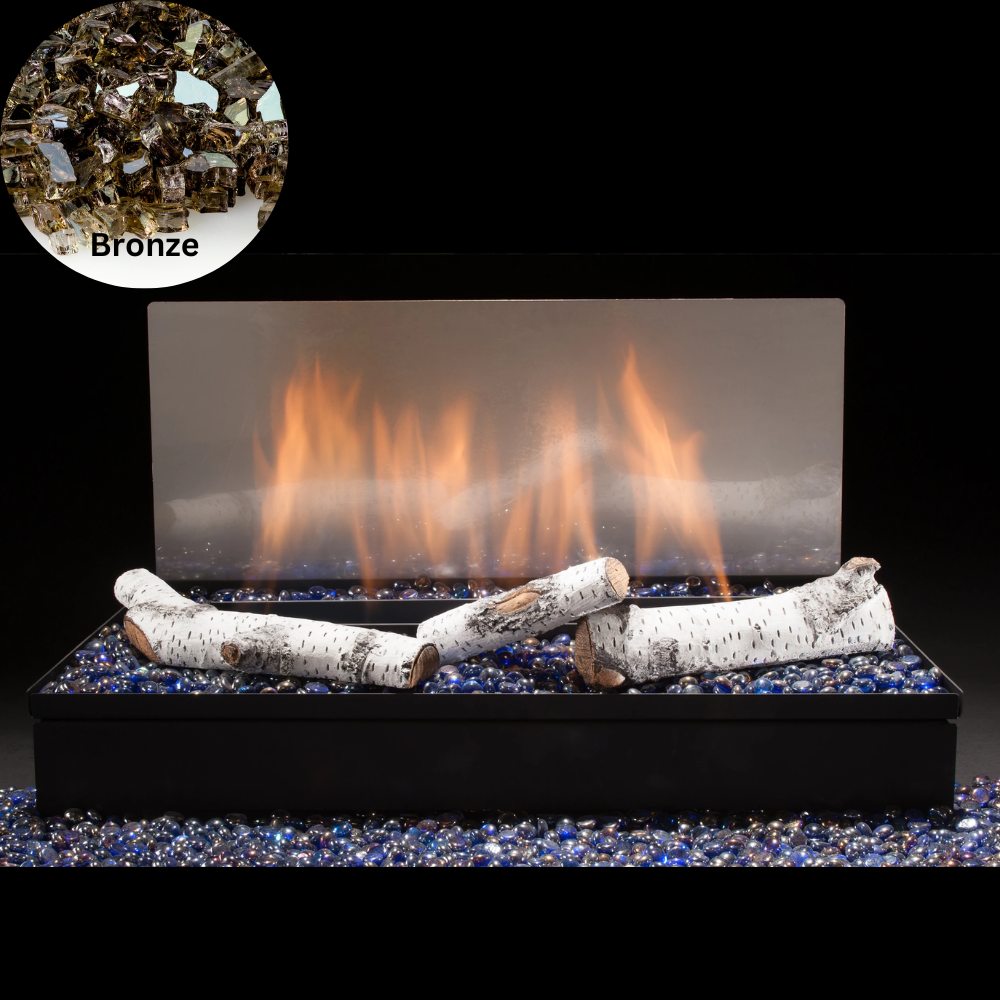

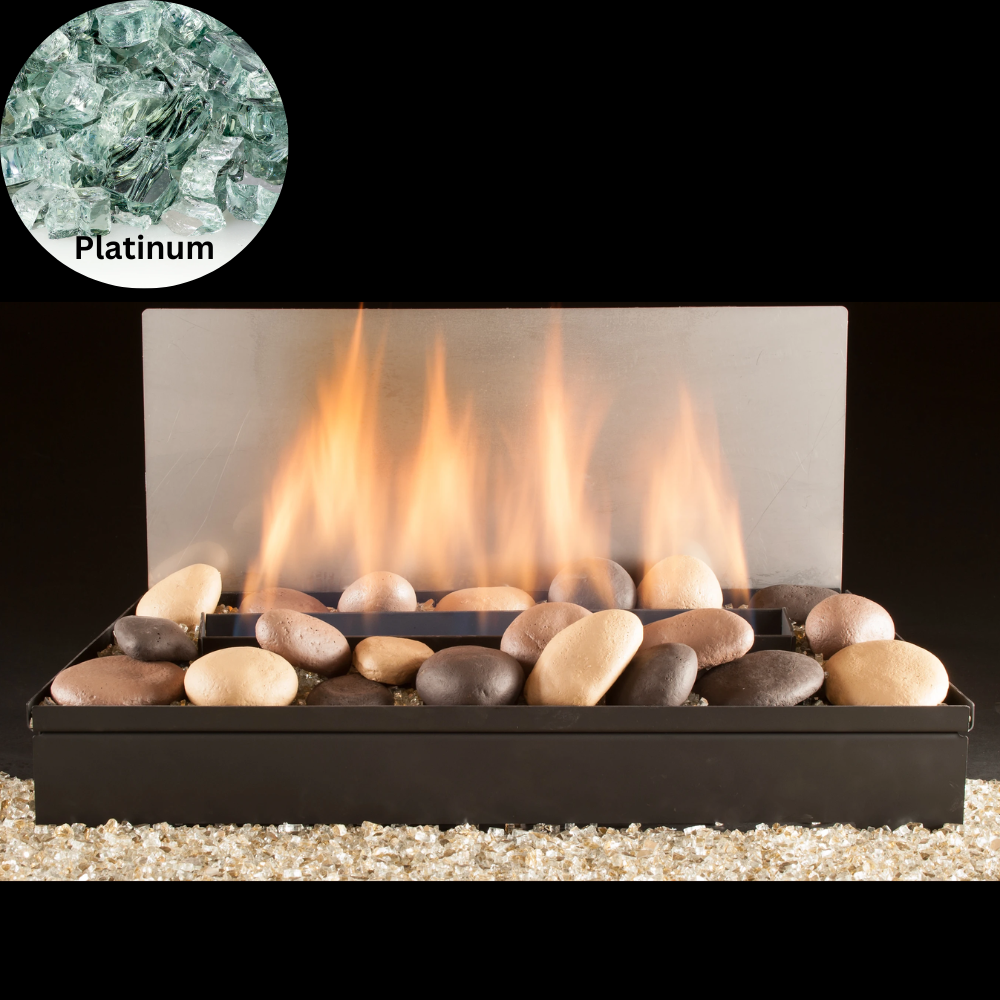

- Choose fire glass, river rocks, an Aspen twig kit or a driftwood kit (variants on this page); about 6 lb of glass media for the 18 in burner
- Contemporary look for a traditional wood-burning firebox
Key Specifications
| Model / SKU | Hargrove Element Series 18 in; ESCS18N2C, ESCS18P2C |
| Series | Element Series (ESCS18) |
| Venting | Vent-free (certified unvented to ANSI Z21.11.2; also certified vented to ANSI Z21.60/CGA 2.26) |
| Max input | 33,000 BTU/h natural gas; 28,000 BTU/h propane |
| Controls offered here | millivolt (wall switch, thermostat or remote ready) |
| Gas inlet pressure | Natural gas 5 to 10.5 in WC; propane 11 to 13 in WC |
| Regulator pressure | 4 in WC natural gas; 10 in WC propane |
| Safety pilot | ODS (oxygen depletion sensor) |
| Elevation | Ratings to 2,000 ft; reduce input 4 percent per 1,000 ft above that |

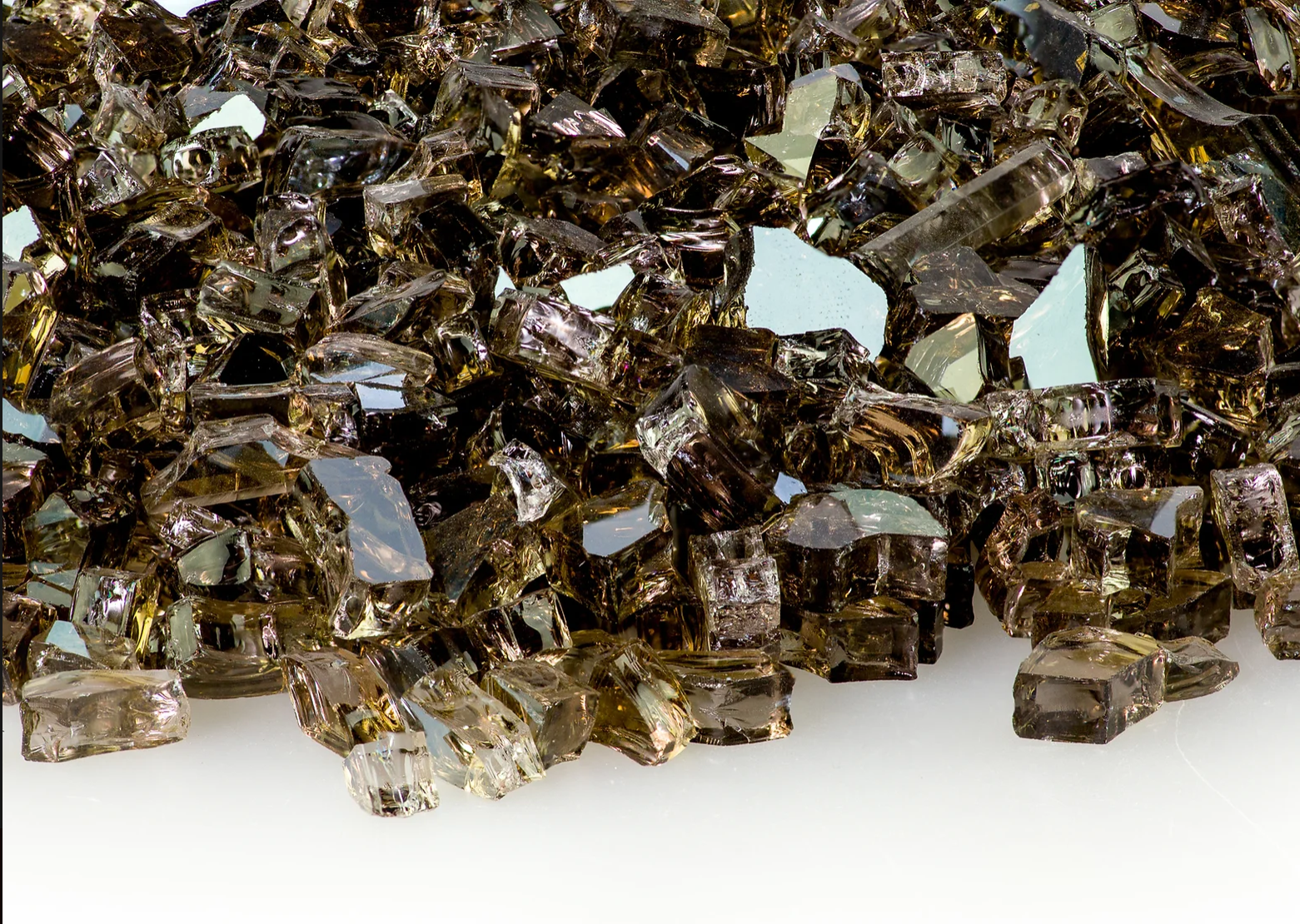

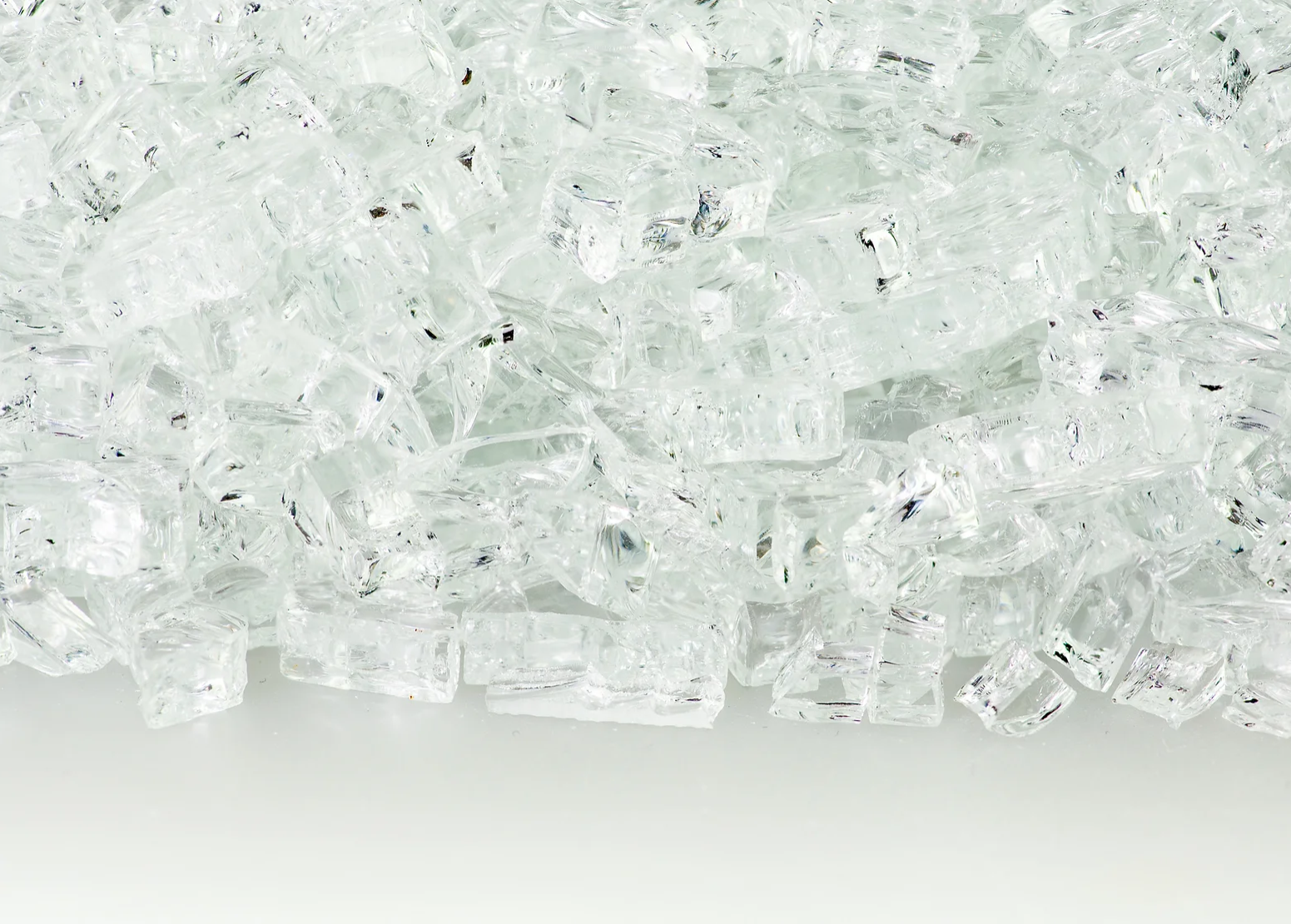

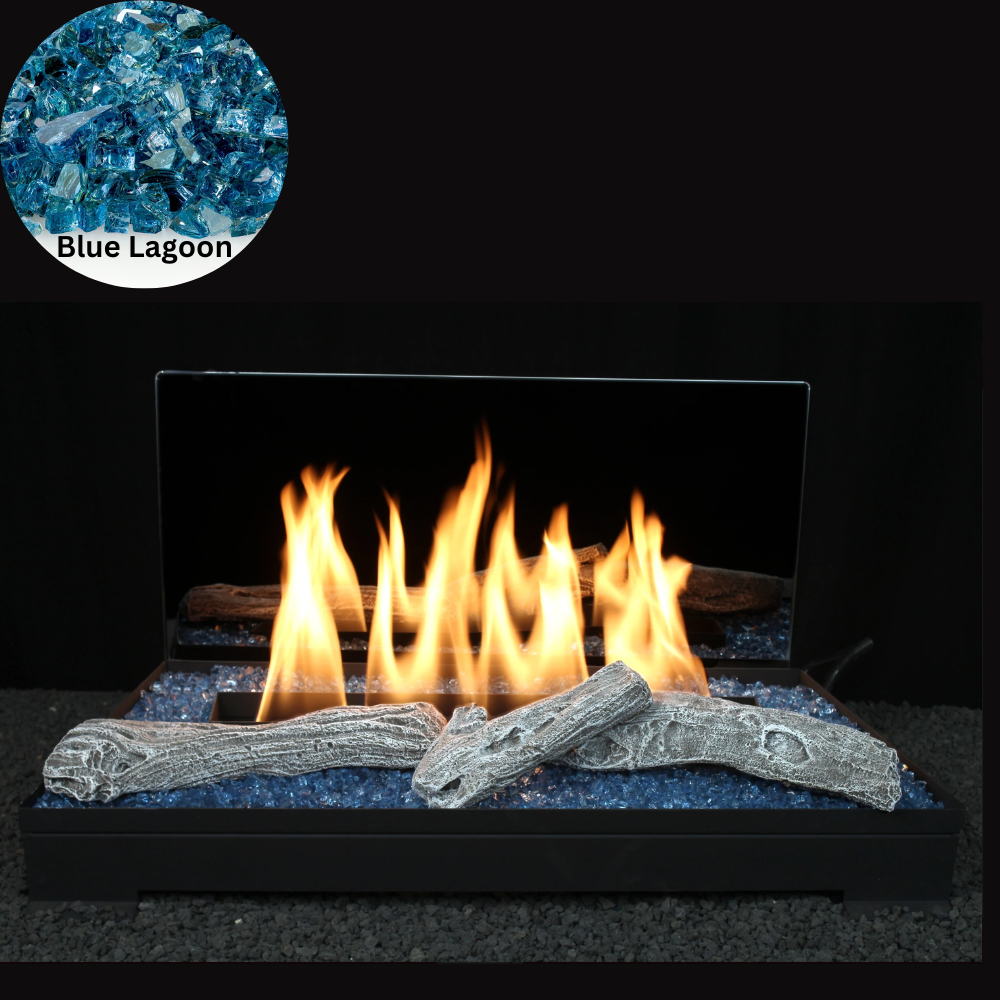

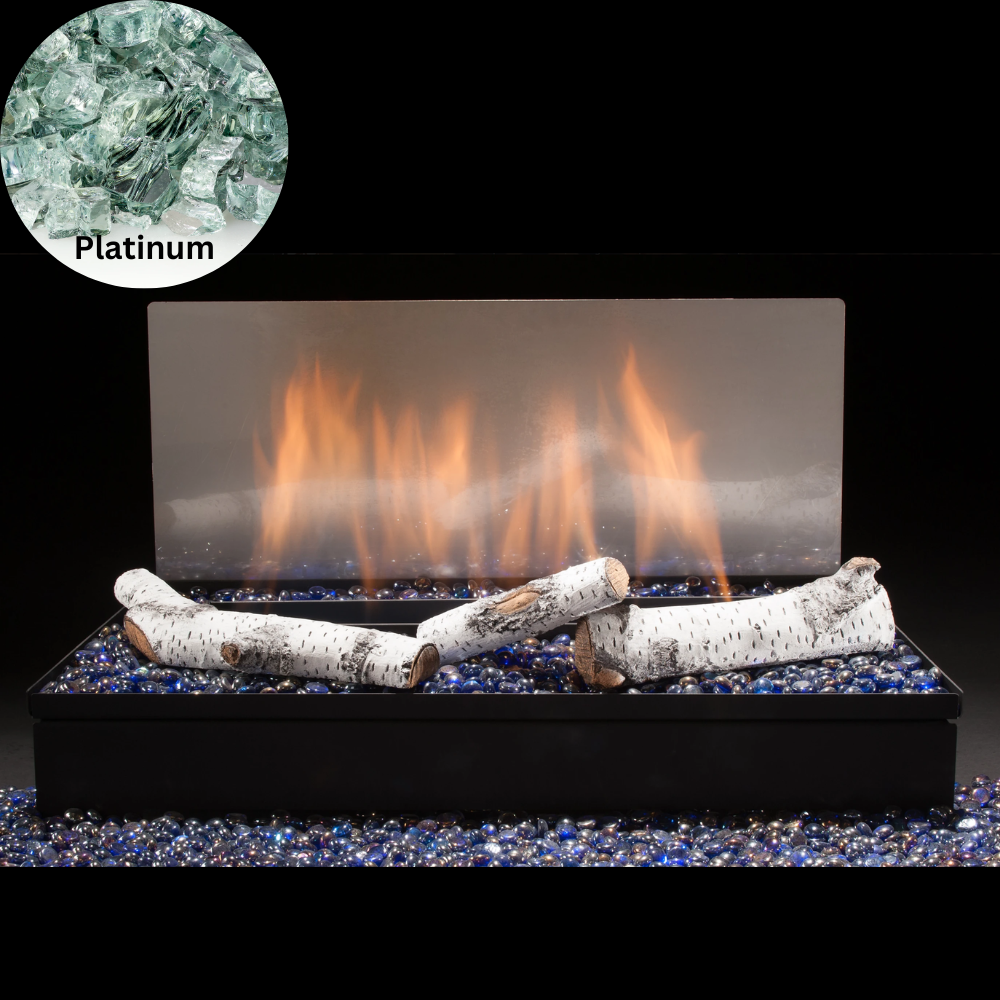

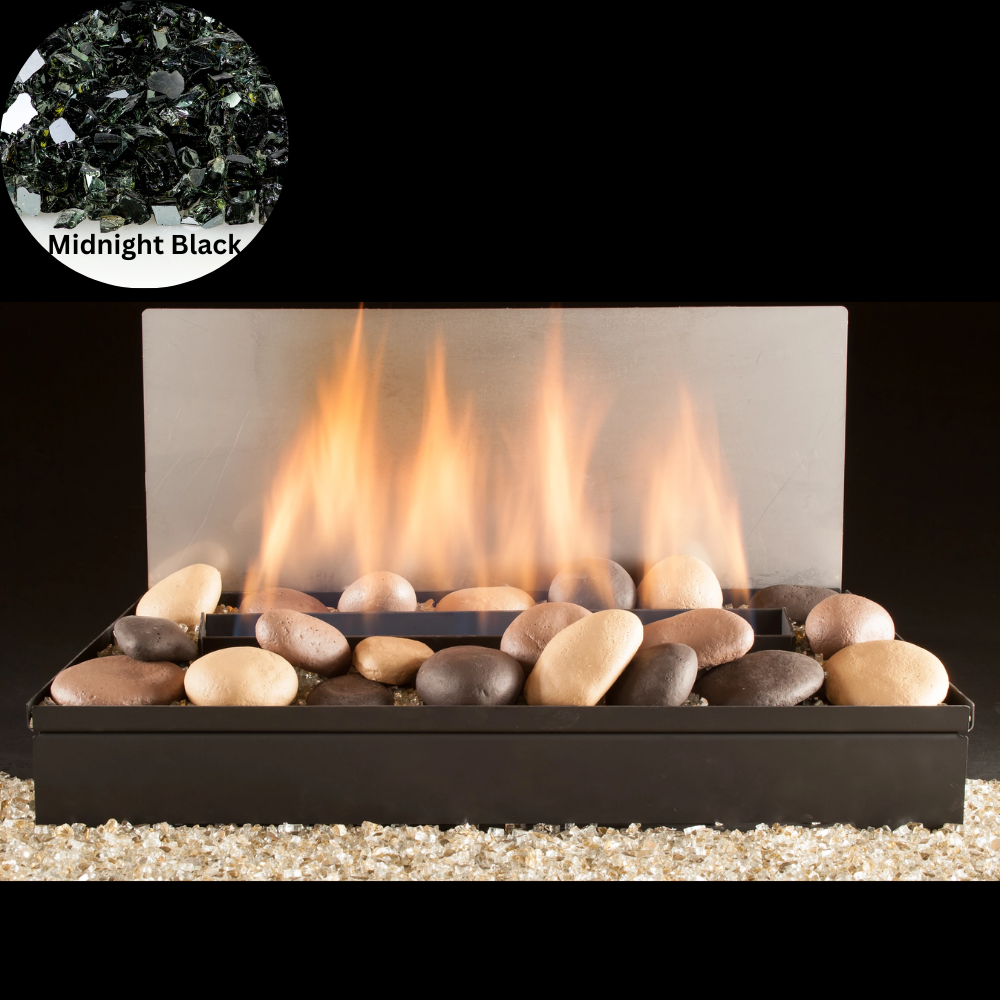

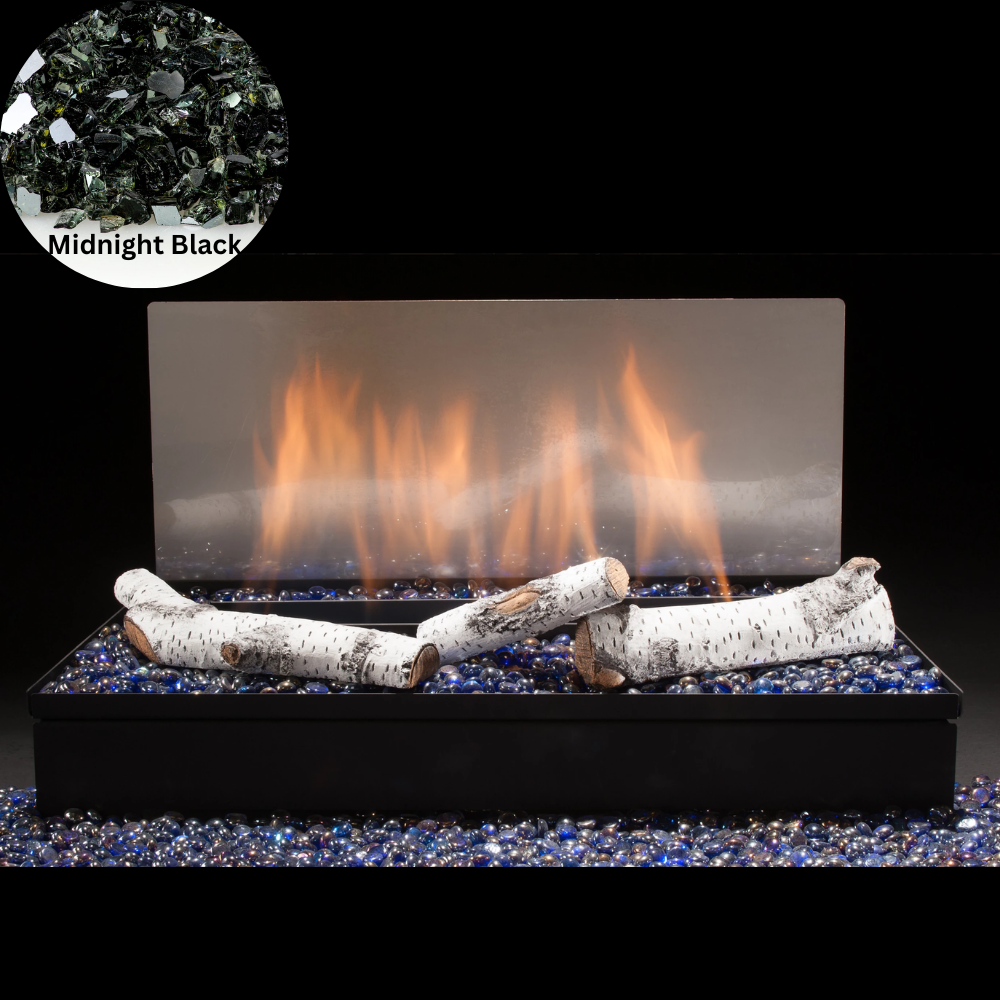

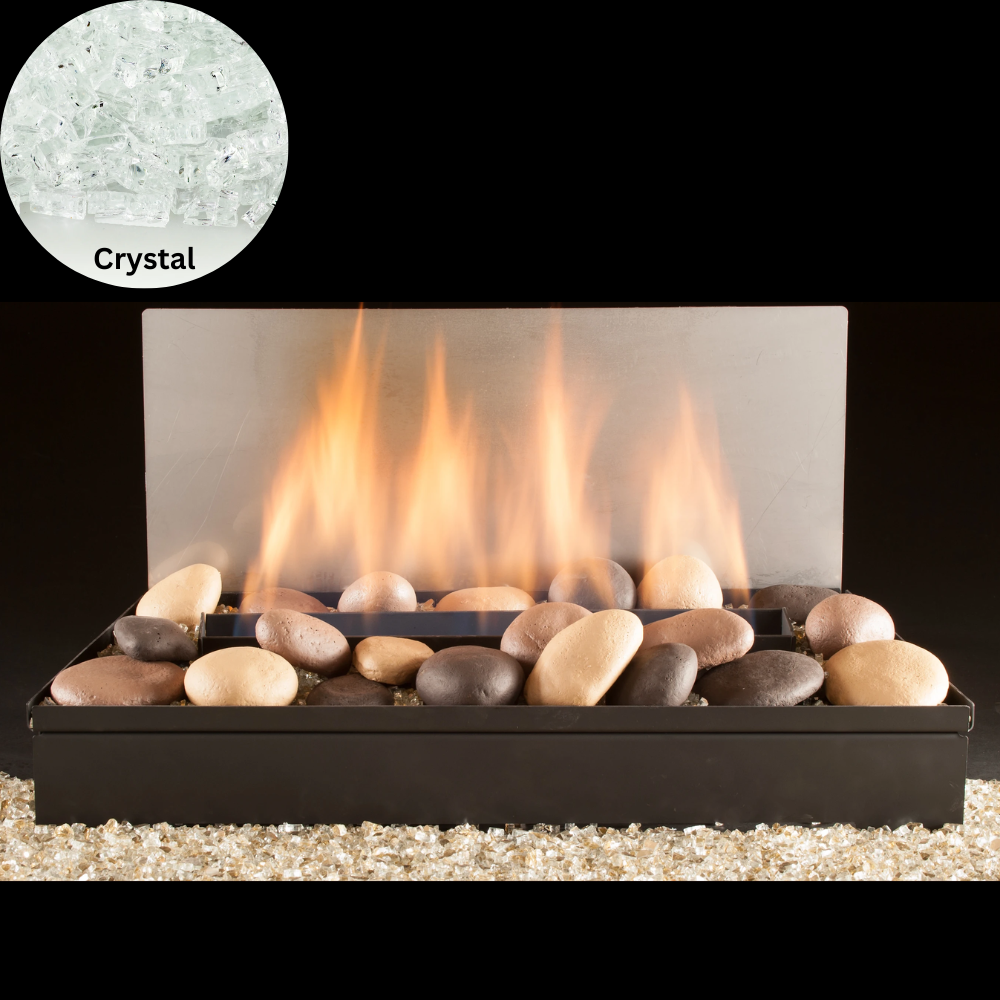

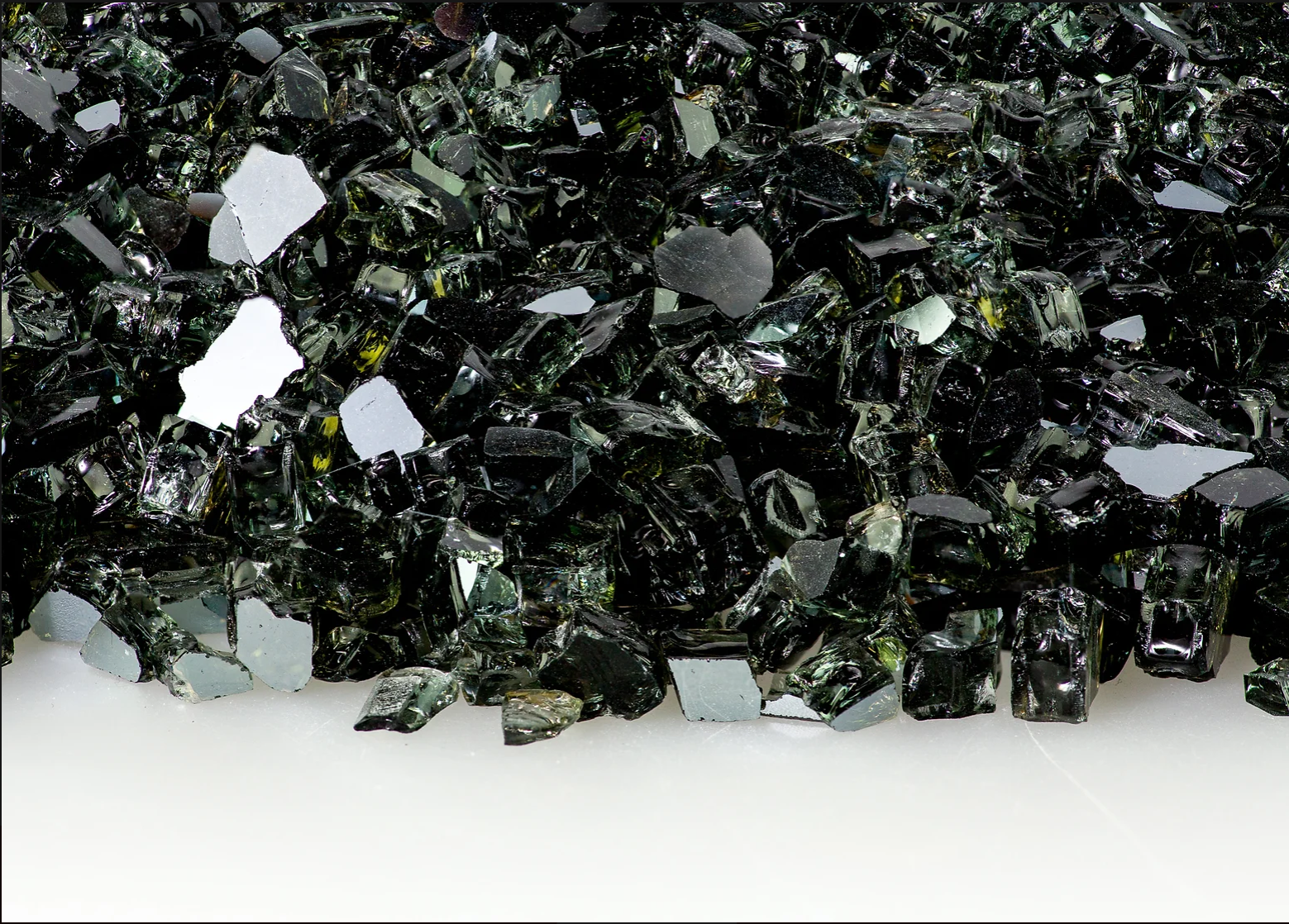

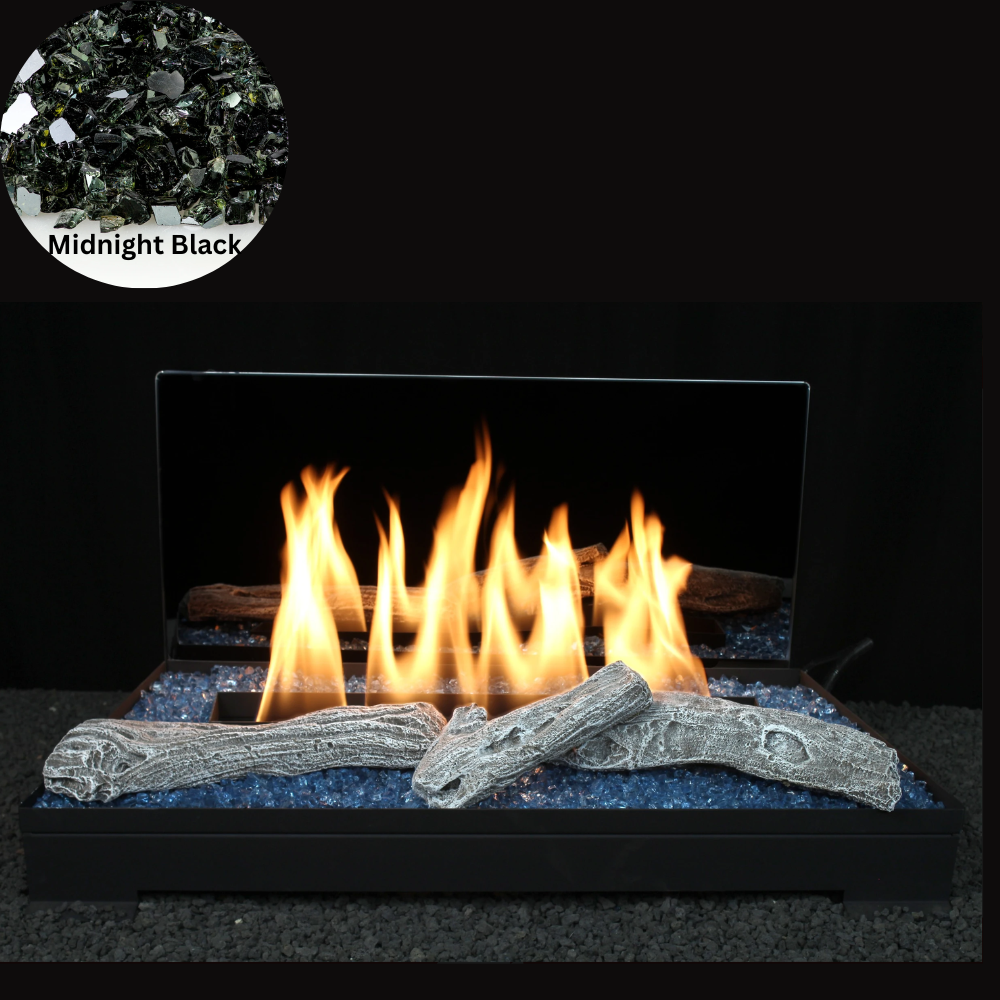

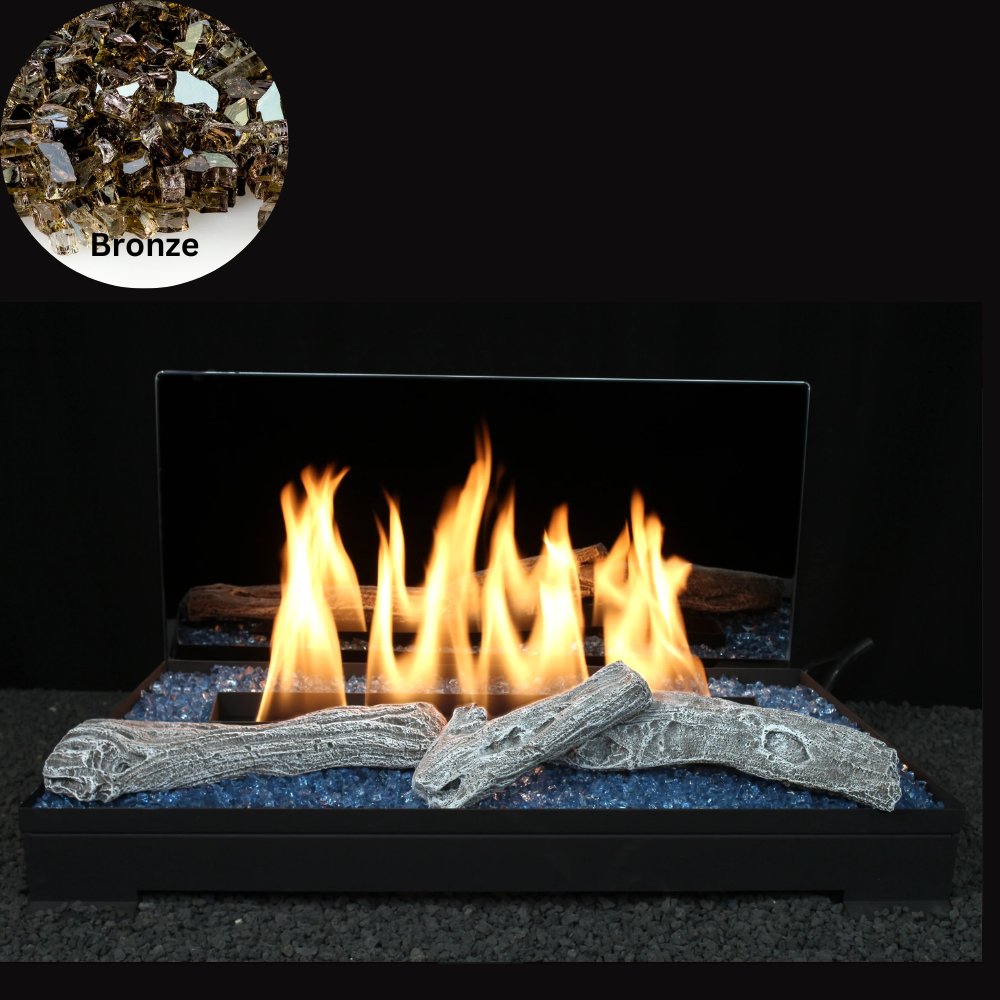

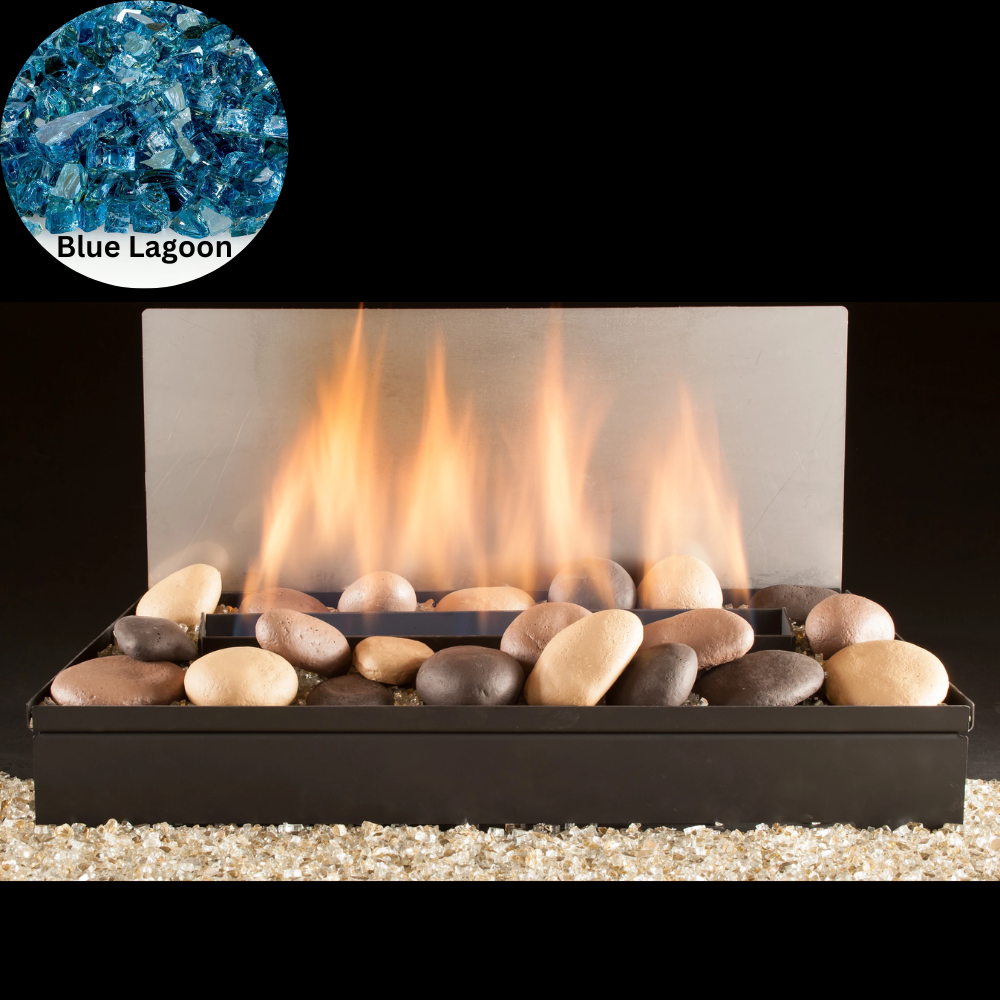

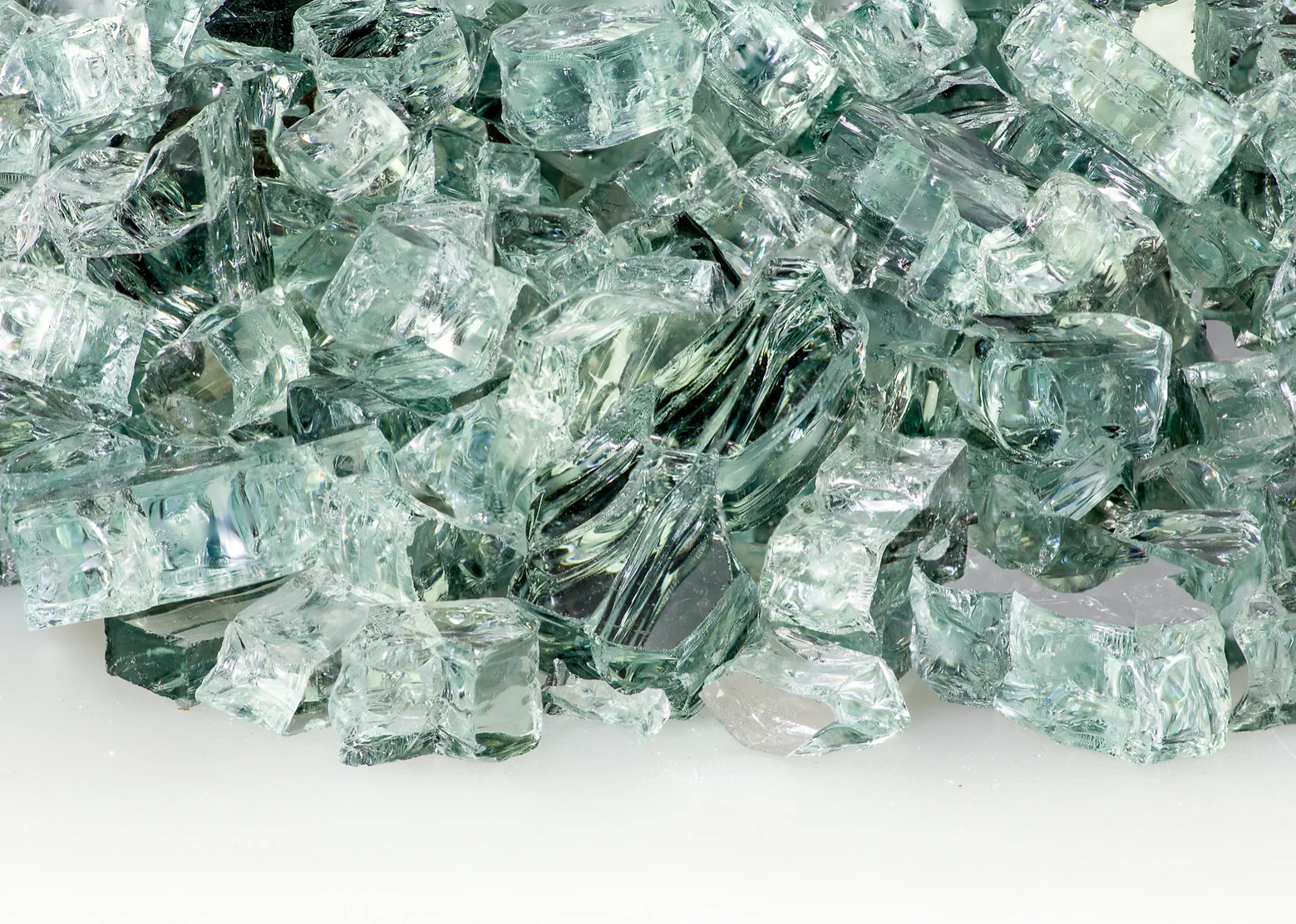

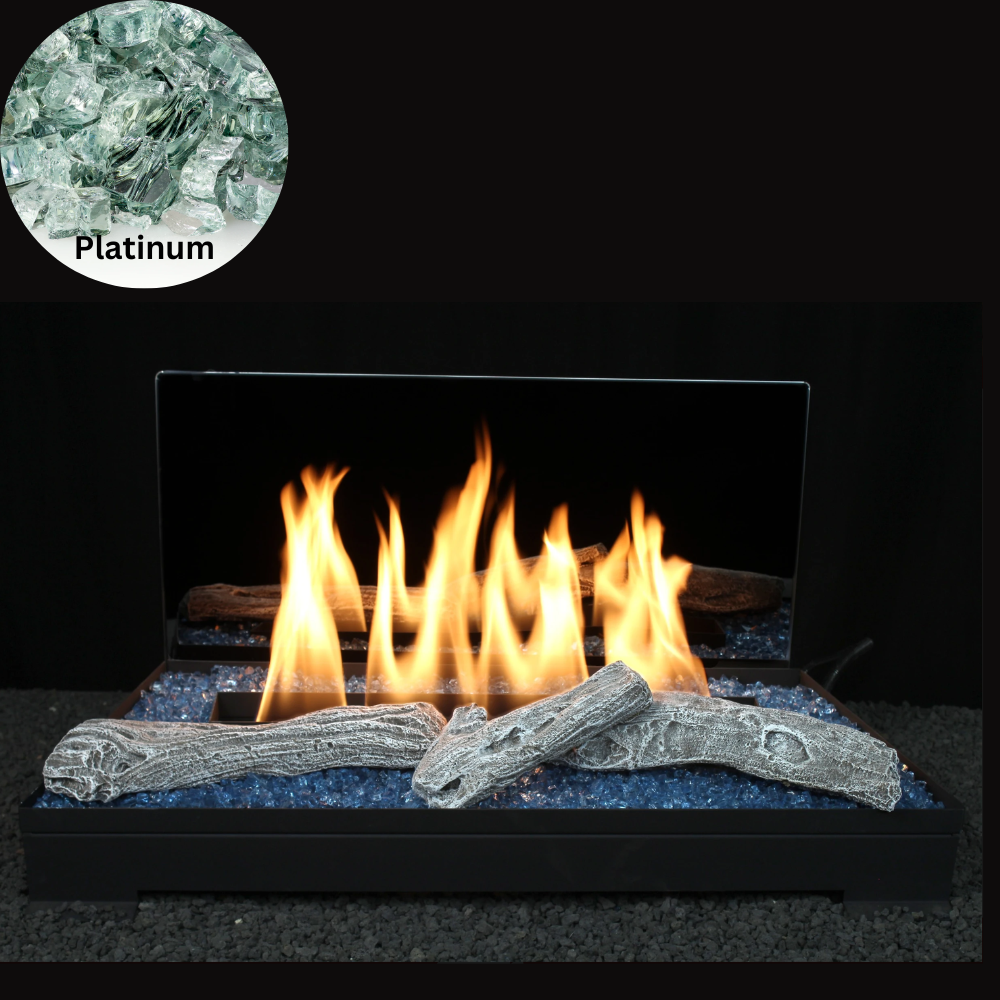

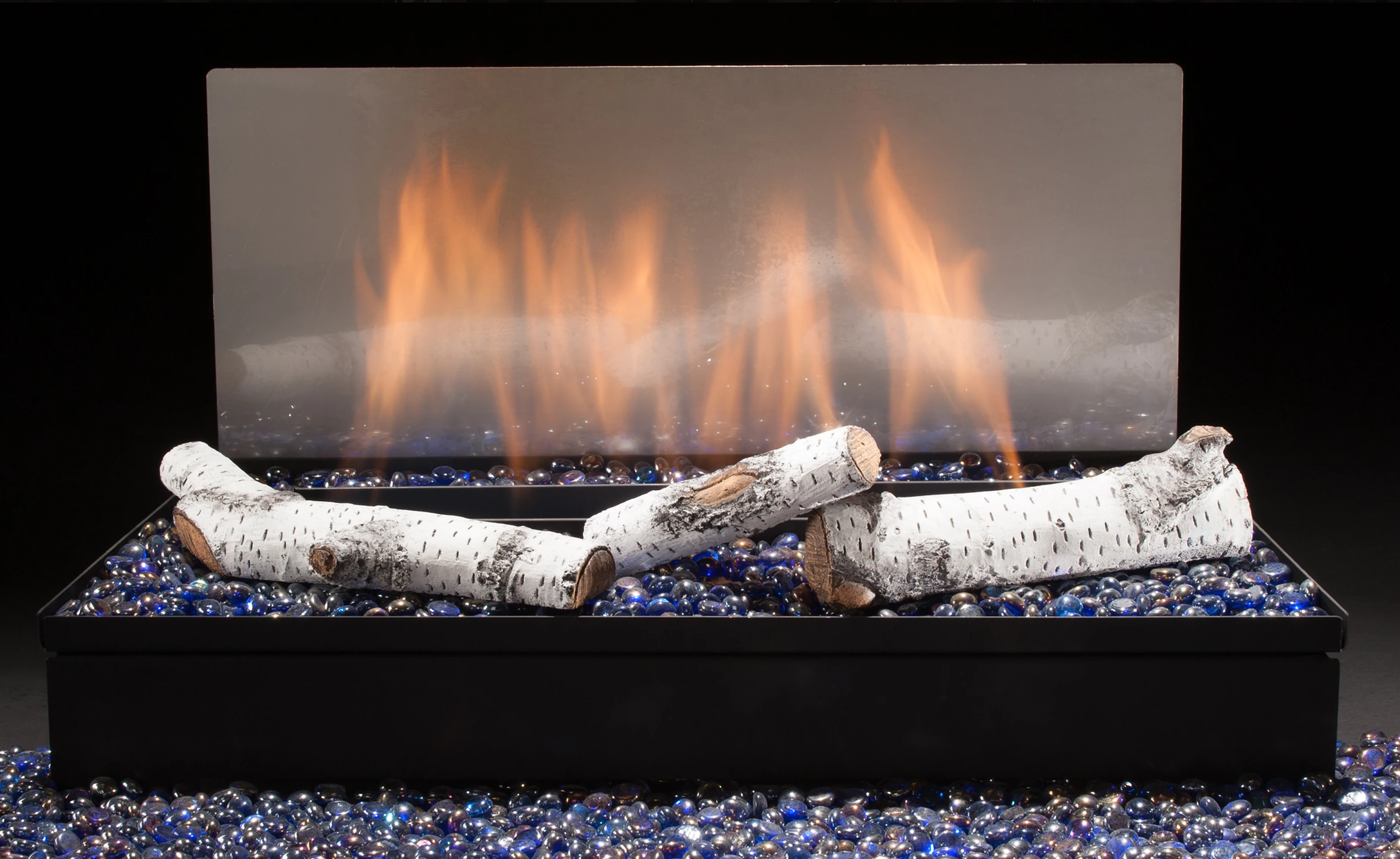

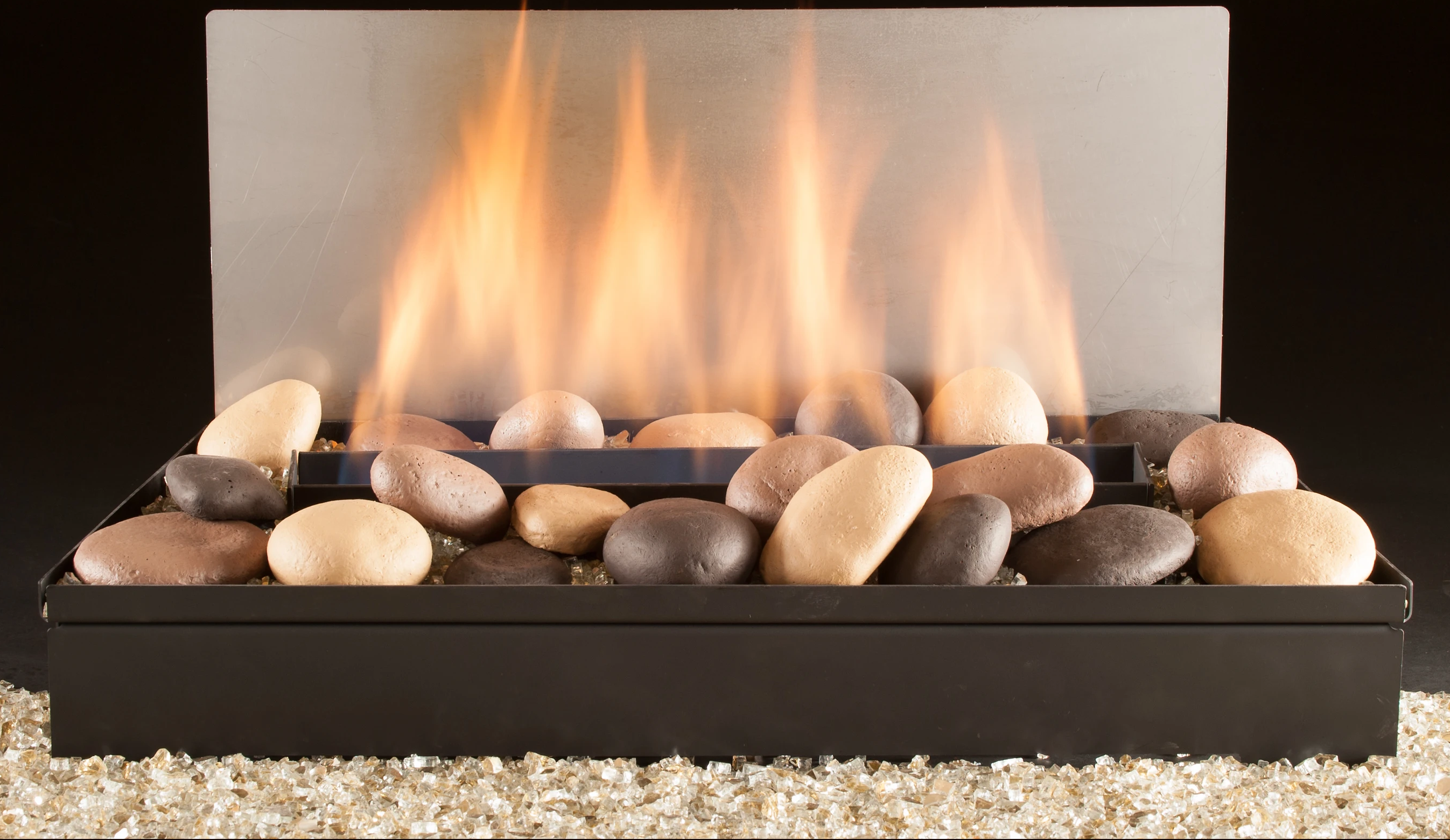

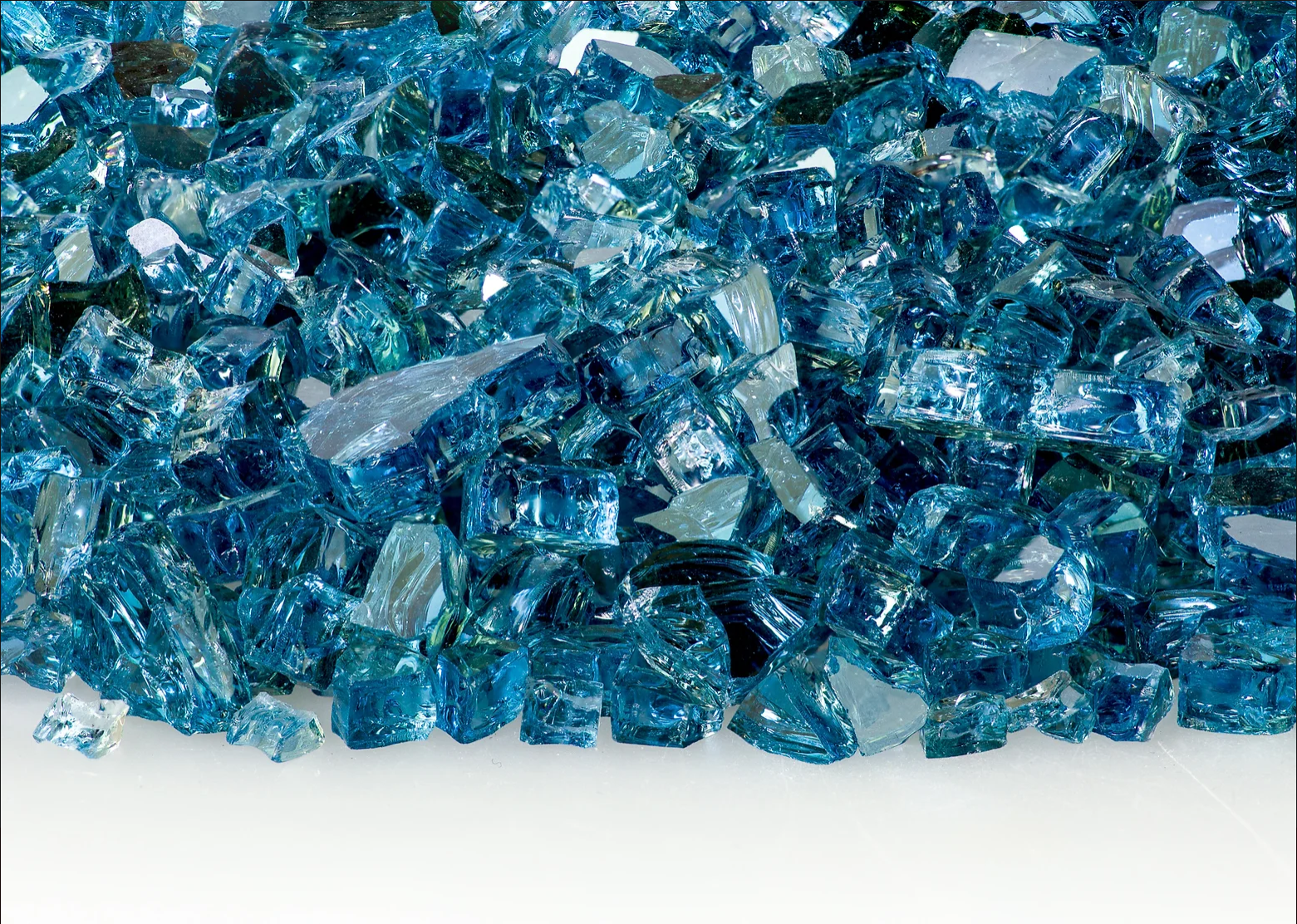

| Media options on this page | ESATK-18: Aspen twig kit; ESDTK-18: driftwood kit; ESRRK-18: river rock kit; H-BLR-10: Blue Lagoon reflective fire glass; H-BR-10: Bronze fire glass; H-CI-10: Crystal Ice fire glass; H-MBR-10: Midnight Black reflective fire glass; H-PR-10: Platinum Reflective fire glass |
Dimensions and Cutout
| Minimum fireplace opening | 28 in front width, 22 in rear width (at depth), 12 in depth, 16 in height |
| Clearance to combustible side walls | 15 in left and right |
| Clearance to combustible ceiling | 42 in |
| Mantel side clearance | 6 in left and right (not required for non-combustible mantels) |
What Is Included and What You Will Need
- Hargrove Element Series 18 in burner system
- Vent-free burner with ODS pilot and the control valve you select
- Reflective stainless back panel
- The media kit and fire glass you select (base variant is the burner only)
- You will need: a masonry or factory-built wood-burning fireplace at least 28 in wide at the front, 22 in at the rear, 12 in deep and 16 in high, a permanently piped gas supply of the correct type, a room large enough for the input (about 1,650 cu ft or more unconfined, by the 20 BTU/h per cu ft rule, counting other gas appliances), and a qualified gas installer
Installation Notes
Vent-free gas appliances cannot be installed in New York City under the NYC Fuel Gas Code. We sell this model for installations outside the five boroughs where local code allows it.
Where permitted, a qualified gas installer must set the logs in a masonry or factory-built wood-burning fireplace and connect a permanently piped supply of the correct gas type. Hargrove does not allow installation in bedrooms, bathrooms or recreational vehicles, the set is for supplemental heat rather than a primary heat source, and solid fuels must never be burned in a fireplace fitted with it. Keep glass doors fully open while it operates, and do not use a natural gas set on propane or the reverse.
Need a gas fireplace that can be installed in the city? Book a design consultation and we can suggest a direct vent option.
Documentation
- Hargrove Vent-Free Brochure
- Hargrove Element Series Vent-Free Installation and Operation Guide
- Hargrove Vent-Free Product Warranty
Frequently Asked Questions
Can this be installed in New York City?
No. Vent-free gas appliances cannot be installed in New York City under the NYC Fuel Gas Code. It is sold for installations outside the five boroughs where local code allows.
What size fireplace do I need?
At least 28 in wide at the front, 22 in at the rear, 12 in deep and 16 in high for the 18 in set, per the Hargrove manual.
Can it go in a bedroom?
No. Hargrove prohibits installation in bedrooms, bathrooms and recreational vehicles.
Related reading: Gas log set buying guide, Vent-free vs direct vent gas fireplaces, NYC fireplace code guide.
Warranty
Hargrove gives a limited lifetime warranty on the logs against manufacturing defects or breakage, five (5) years on the burner and grate, and two (2) years on valves, remote controls, switching devices and all other parts, from the verified purchase date. Notify Hargrove within 30 days of finding a defect; labor, removal and shipping are not covered. See the Hargrove warranty for full terms.
