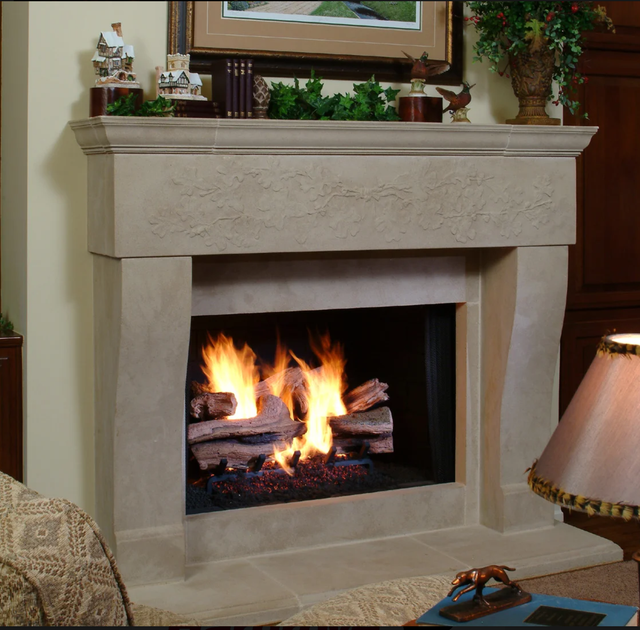

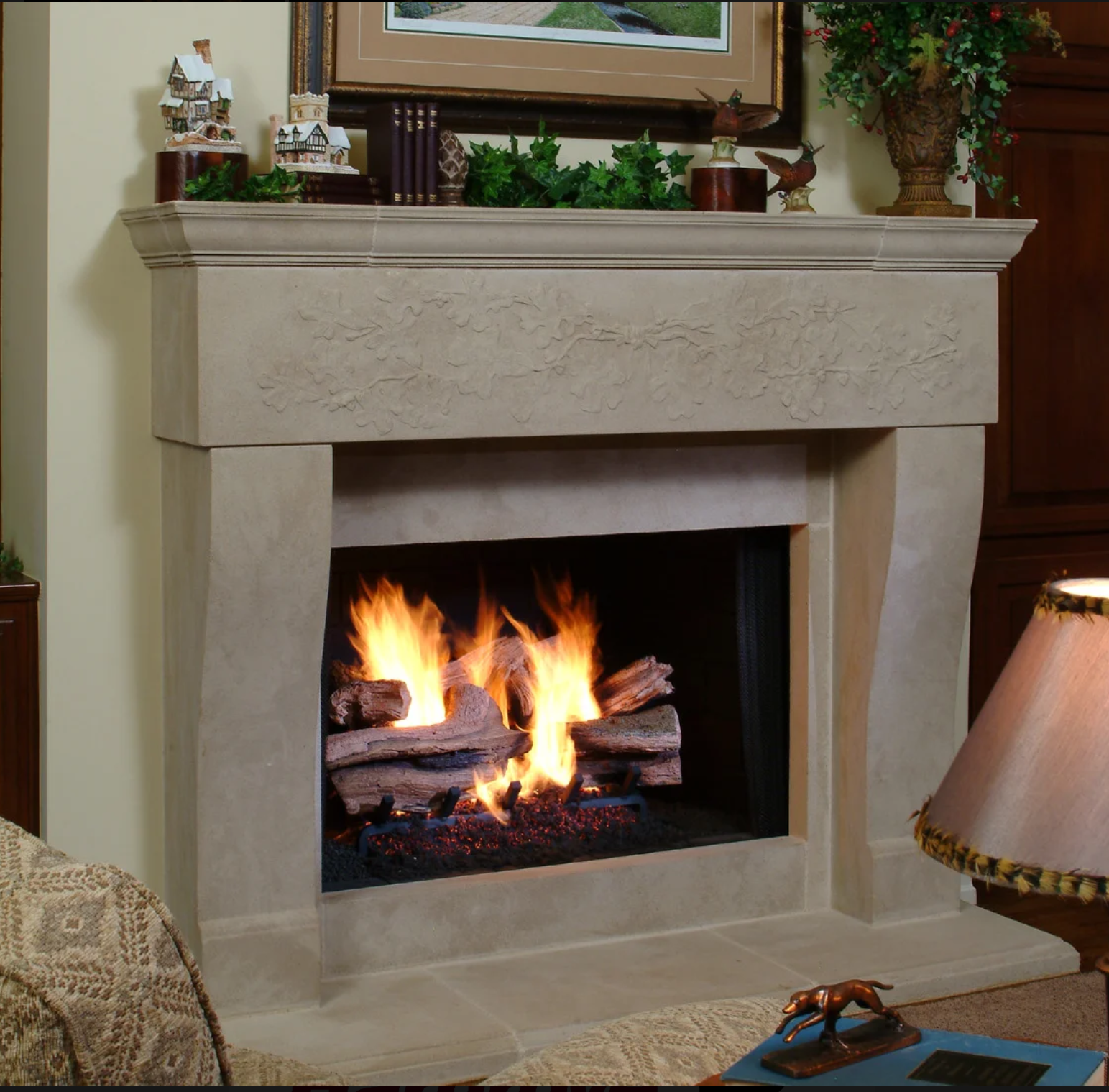

Hargrove 30 Inch Stacked Large Vented Log Set Pilot and Variable Remote - 30CNDS1F8

Regular price $2,673.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Choose with help from our Maspeth showroom. Read customer reviews on Google.

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days

Northeast shipping only: ME, VT, NY, NH, MA, CT, PA, NJ, MD, DE and RI. For any other state, call 718-326-4328 for a shipping quote before ordering. Product and local-service restrictions apply. Shipping details.

400+ five-star Google reviews
  • Northeast shipping. Eligible orders over $999 ship free within our 11-state area; other eligible orders have a flat rate at checkout. Product exclusions apply. Shipping details.
  • Factory-authorized Hargrove Premium Products dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Visit our Maspeth, Queens showroom
58-30 Maspeth Ave
Maspeth, NY 11378
Monday–Friday
9:00 AM–5:00 PM
Saturday
10:00 AM–3:00 PM
Sunday
Closed

Call ahead to confirm the model you want to see and pickup readiness.

Shipping & Delivery Area

  • Online shipping is limited to Maine, Vermont, New York, New Hampshire, Massachusetts, Connecticut, Pennsylvania, New Jersey, Maryland, Delaware and Rhode Island.
  • Eligible orders over $999 receive free standard shipping; eligible orders of $999 or less have a flat rate shown at checkout.
  • Our own trucks deliver eligible local orders up to 120 miles. e-NRG fuel, white-glove delivery and assembly have separate eligibility, distance limits and charges.
  • For other states, or when no delivery option appears, call 718-326-4328 for a quote before ordering.
  • Read the shipping policy for details.

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns

  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Available Sizes:

18–21″ listing (21″ logs) 24″ 30″ (Current Size) 36″

Kodiak double-stack burner with standing safety pilot and variable flame remote. Choose the same log style and fuel: Kodiak Char and Timbers offer natural gas or propane; Kodiak Split is offered here in natural gas only. Log piece counts, burner input, fireplace opening and chimney requirements vary by size. Confirm each model’s manual; these are double-stack packages.

Overall Dimensions: 30 in log set; needs a fireplace front opening of at least 36 in (with valve), 36 in at the back, and at least 21 in of depth for double stack (Hargrove Kodiak burner manual)

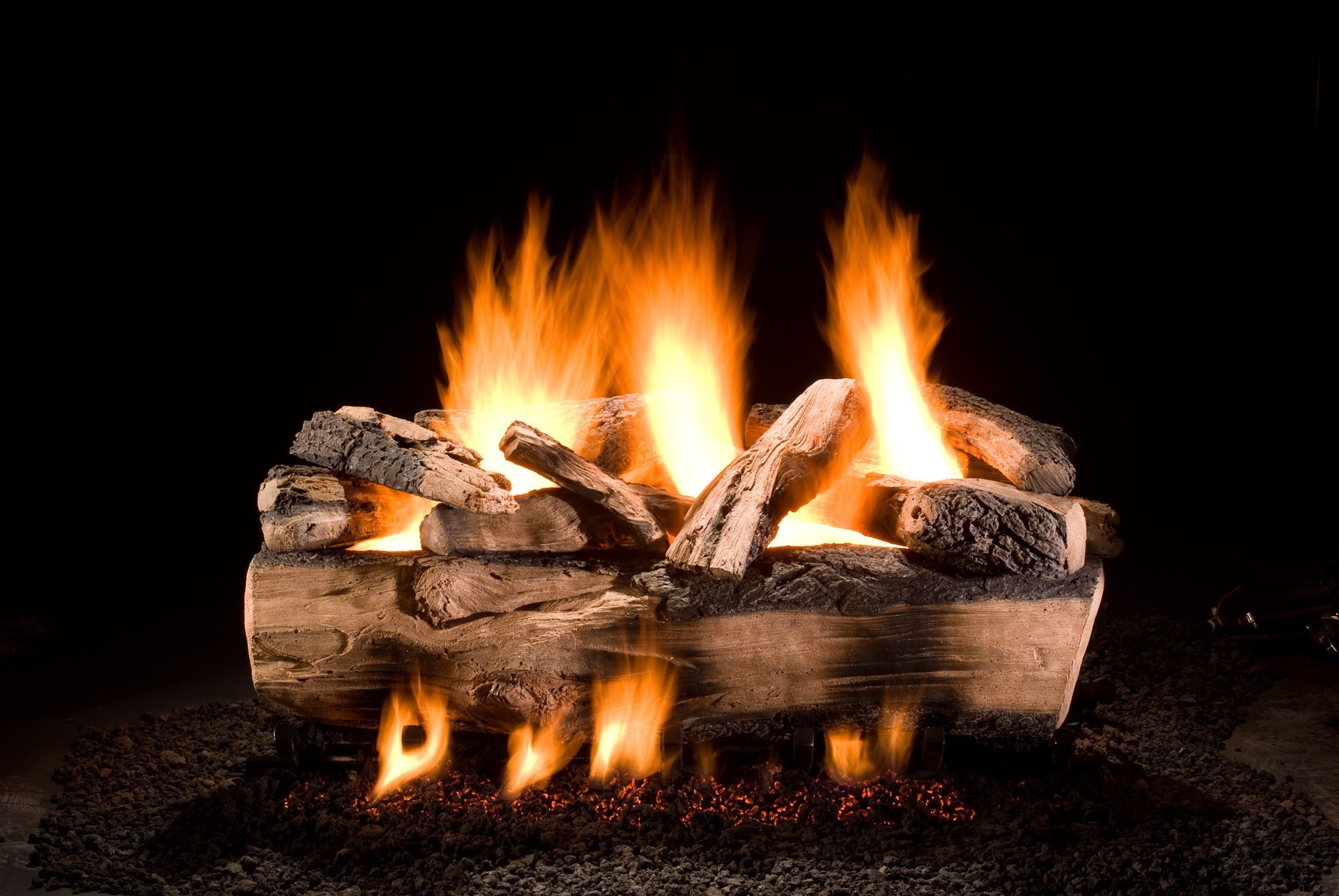

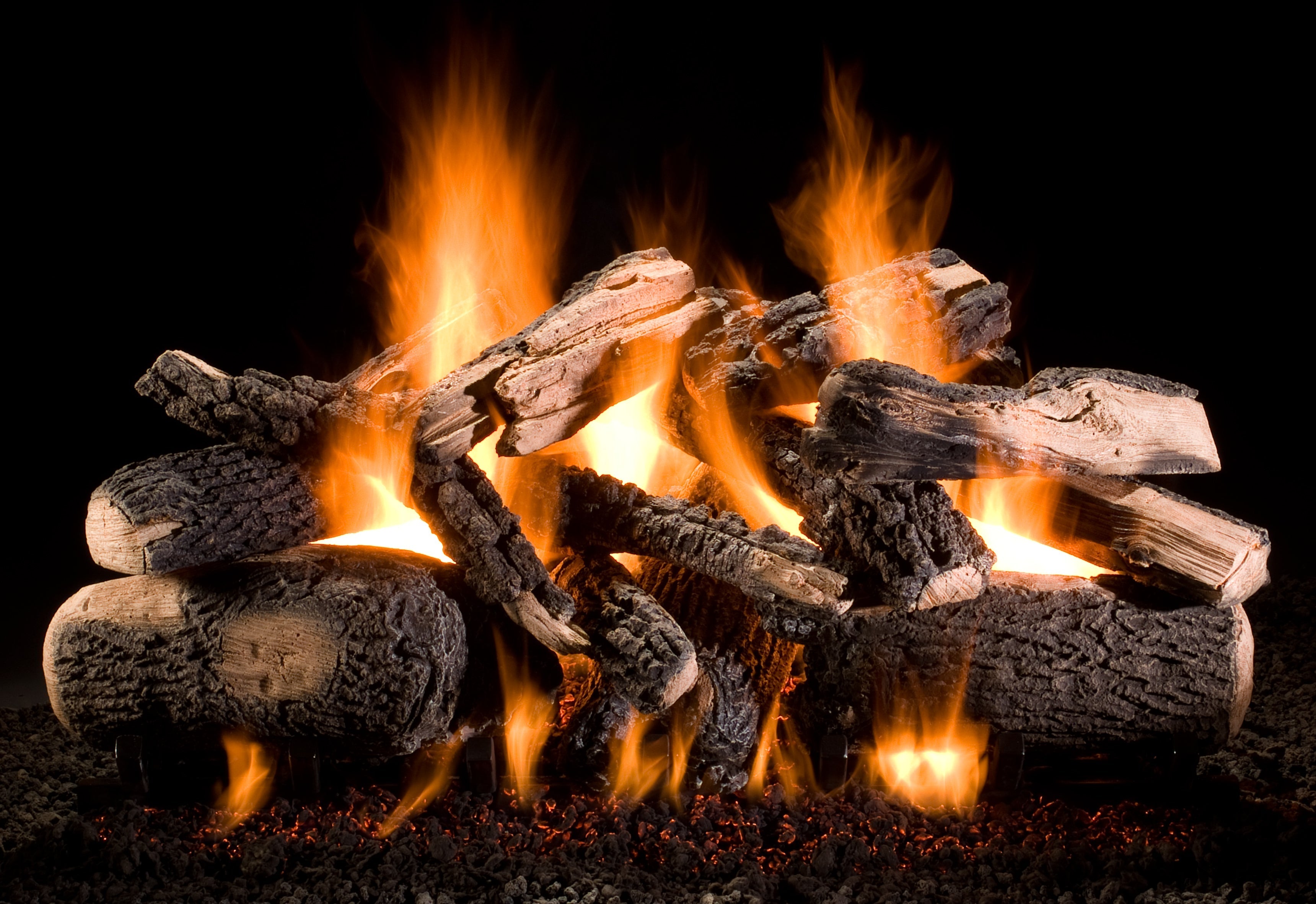

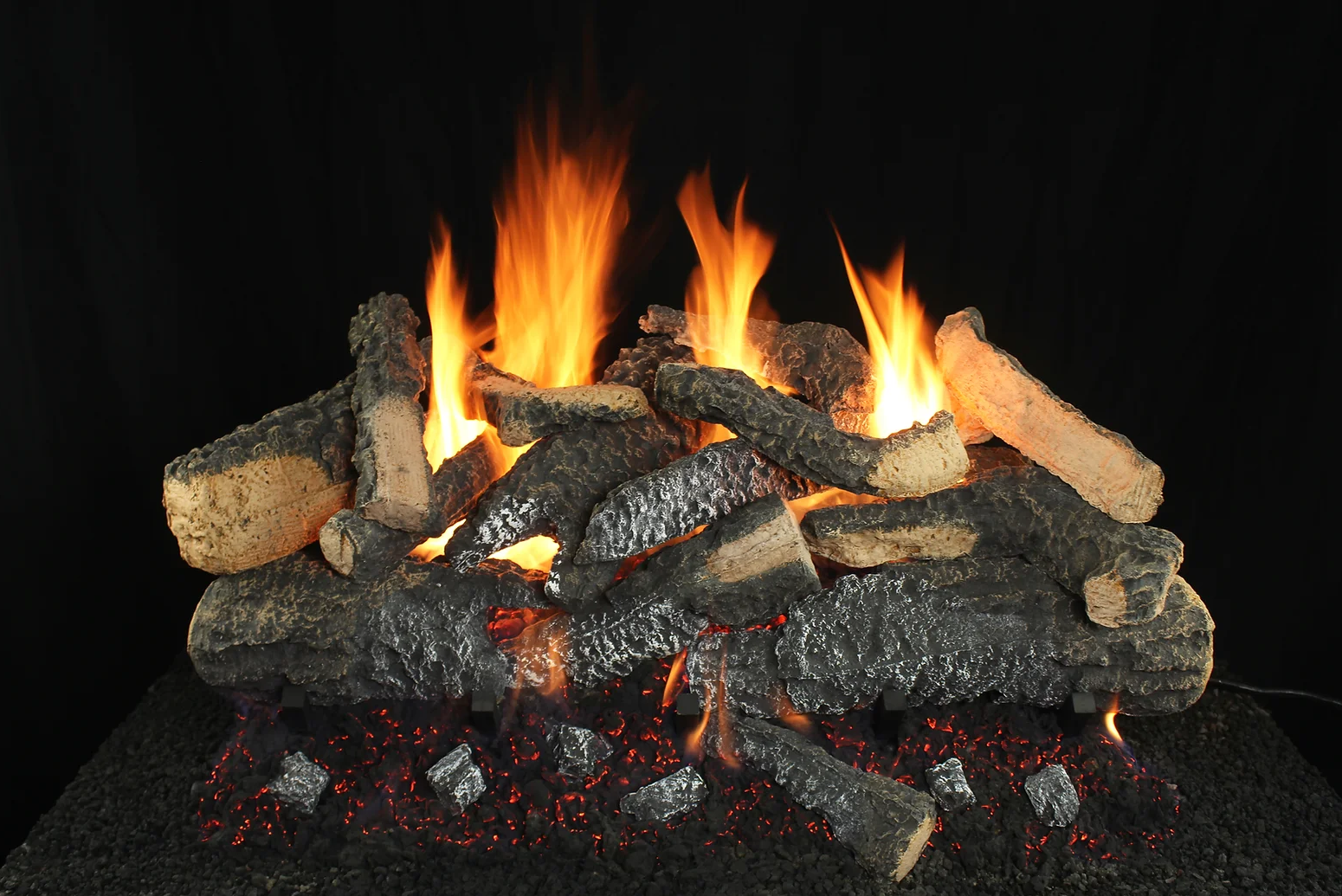

The Hargrove 30 in Stacked Large Vented Log Set with pilot and variable remote pairs Kodiak refractory logs with Hargrove's double stack burner, a large ember bed burner plus a raised main burner, controlled by a variable flame safety pilot system and remote that turns the main burner on and off and adjusts flame height. Choose Kodiak Char, Kodiak Split or Kodiak Timbers logs, on natural gas (30CNDS1F8) or propane (30CPDS1F8). It is made for a masonry or wood-burning fireplace with a fully open flue.

Key Specifications

Model 30CNDS1F8 (natural gas) or 30CPDS1F8 (propane) double stack burner; logs KCS3010DS (Char), KSS3009DS (Split, natural gas only here) or KTS3020DS (Timbers)
Control Factory installed standing safety pilot with variable flame remote, per current listing
Fuel Natural gas or propane; Hargrove requires an automatic pilot system for propane
Inlet Pressure Natural gas 7 in w.c. minimum, 10 1/2 in w.c. maximum; propane 10 in w.c. minimum, 14 in w.c. maximum
Input 110,000 BTU optimum for the 30 in double stack per the Kodiak manual BTU chart
Logs Hand-finished refractory, withstands temperatures over 2000 F

Dimensions and Cutout

Set size 30 in
Minimum fireplace front width, with valve 36 in (36 in at the back)
Minimum fireplace depth 21 in double stack (Kodiak burner manual)
Triple stack upgrade 31 in depth and 200,000 BTU total with the triple stack burner, per the Kodiak manual

Features

  • Kodiak Char, Kodiak Split or Kodiak Timbers log styles
  • Double stack burner with large ember bed and raised main burner
  • Variable flame remote to switch the burner and set flame height, per current listing
  • Standing safety pilot
  • Refractory logs with crisp, detailed texture

What Is Included and What You Will Need

  • Included: double stack burner system with valve and remote, the selected Kodiak logs, DG-24 grate, burner pan media (silica sand for natural gas, vermiculite for propane), ember material and a damper stop
  • Required: a vented, non-combustible fireplace designed and approved to burn wood, with a fully open damper and the damper stop fitted, a gas supply, and a fire screen in place when burning
  • Glass doors must stay fully open while the logs burn

Installation Notes

Hargrove's Kodiak sets need a fully vented fireplace with the damper completely open and the chimney clear, since combustion products must exit up the chimney. Never use a natural gas set on propane or a propane set on natural gas. Install to local codes, or the National Fuel Gas Code, by personnel qualified to install gas appliances. In New York City, gas work must be done by a licensed master plumber under a DOB permit, and propane tank storage in the city carries FDNY rules, so confirm the fuel with us before you order. Book a free design consultation and we will measure the opening and check the flue with you.

Documentation

Frequently Asked Questions

Can I control it with a remote?

Yes. This version uses a safety pilot with a variable flame remote that turns the main burner on and off and adjusts the flame.

Can it run on propane?

Yes, with the propane burner (30CPDS1F8) in Kodiak Char or Kodiak Timbers; Kodiak Split is offered here on natural gas only.

Do I need a working chimney?

Yes. The fireplace must be vented, approved for wood, and have a fully open damper and clear chimney.

Will it fit my firebox?

Plan on at least 36 in at the front and back and 21 in of depth.

Related reading: Gas log set buying guide and How to measure a fireplace opening.

Warranty

Per Hargrove's limited warranty: refractory logs carry a limited lifetime warranty against manufacturing defects or breakage when installed indoors; burner and grate five (5) years; valves, remote controls and switching devices two (2) years; all other parts two (2) years. Outdoor applications carry a one (1) year limited warranty. Breakage from handling after the logs have been fired is not covered, and defects must be reported to Hargrove within 30 days.
