Kingsman  |  SKU: IDV36RLH

Herringbone Brick Liner Refractory Fiber for Kingsman IDV44 Direct Vent Insert

$300.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Flat-rate shipping from $19.95. Free on orders over $999.
  • Factory-authorized Kingsman dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

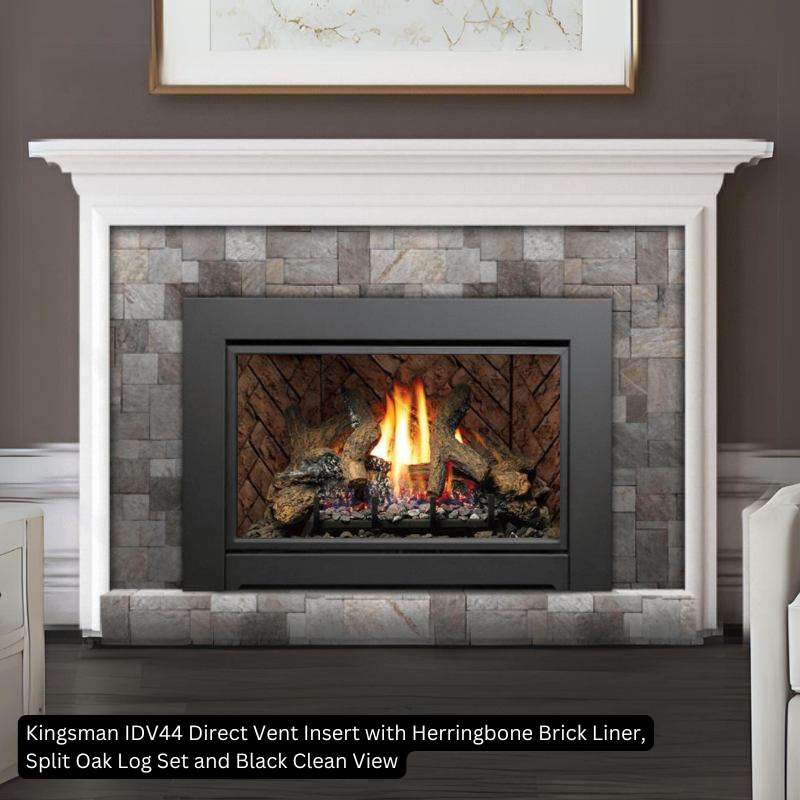

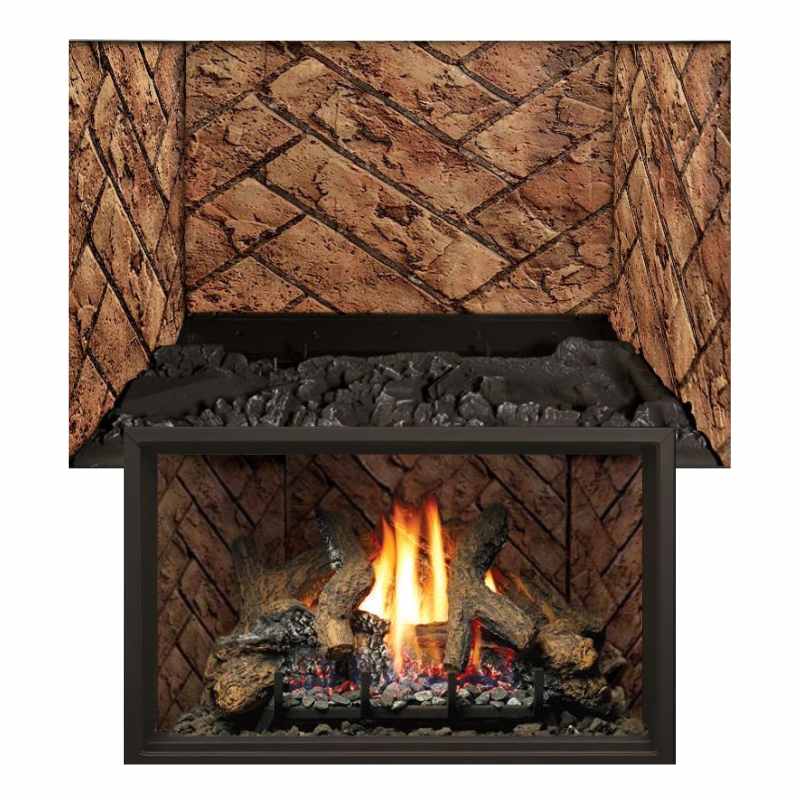

The Kingsman IDV36RLH is the herringbone refractory brick liner for the Kingsman Capri IDV44 direct vent insert. It lines the back and both sides of the firebox with a herringbone brick pattern in place of the standard panels.

Features

  • Herringbone pattern refractory fiber liner
  • Three panels: back, left side and right side (Capri manual)
  • Listed in the IDV44 parts list under brick and porcelain liners
  • Optional; installs with the insert's brick clips

Key Specifications

Model / SKU Kingsman IDV36RLH
Fits Kingsman Capri IDV44 direct vent insert
Material Refractory fiber
Pieces Back panel, right side, left side
Use Optional liner

What Is Included and What You Will Need

  • Back, left and right herringbone liner panels
  • You will need: a Kingsman IDV44 insert

Optional Accessories

Installation Notes

Per the Capri manual: lift out the log supports, remove the two screws and the back panel and the brick clips, fold up the tabs in the upper baffle, install the rear panel first, then the side panels with the brick clips, and replace the log supports. Planning the finish around your fireplace? Book a design consultation.

Documentation

Frequently Asked Questions

Does the name IDV36 mean it is for a 36 in unit?

No. Kingsman lists IDV36RLH as the herringbone liner in the IDV44 parts list.

Is a liner required?

No. Brick and porcelain liners are options for the IDV44.

Related reading: Gas fireplace insert vs direct vent fireplace, How to measure a fireplace opening.

Warranty

Kingsman's Basic One Year Warranty replaces any component found defective in materials or workmanship during the first year after installation, including labor at Kingsman's rate schedule, with prior approval and through an authorized Kingsman dealer. Accent light bulbs, gasketing and paint are excluded. The heat exchanger, combustion chamber and burner of the fireplace carry the Kingsman Limited Lifetime Warranty for the original owner (Kingsman manual warranty terms).
