Hestan | 15" Outdoor Rated Ice Machine
Hestan | 15" Outdoor Rated Ice Machine - Left side is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 15 in W x 24 in D x 34 3/8 in H

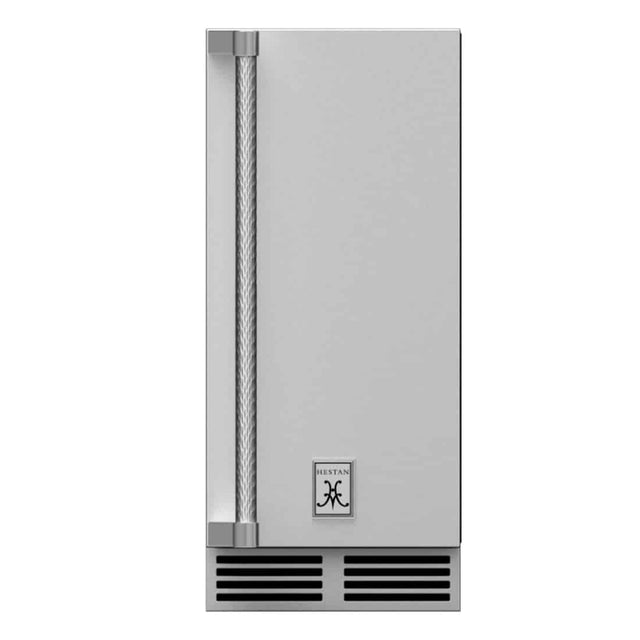

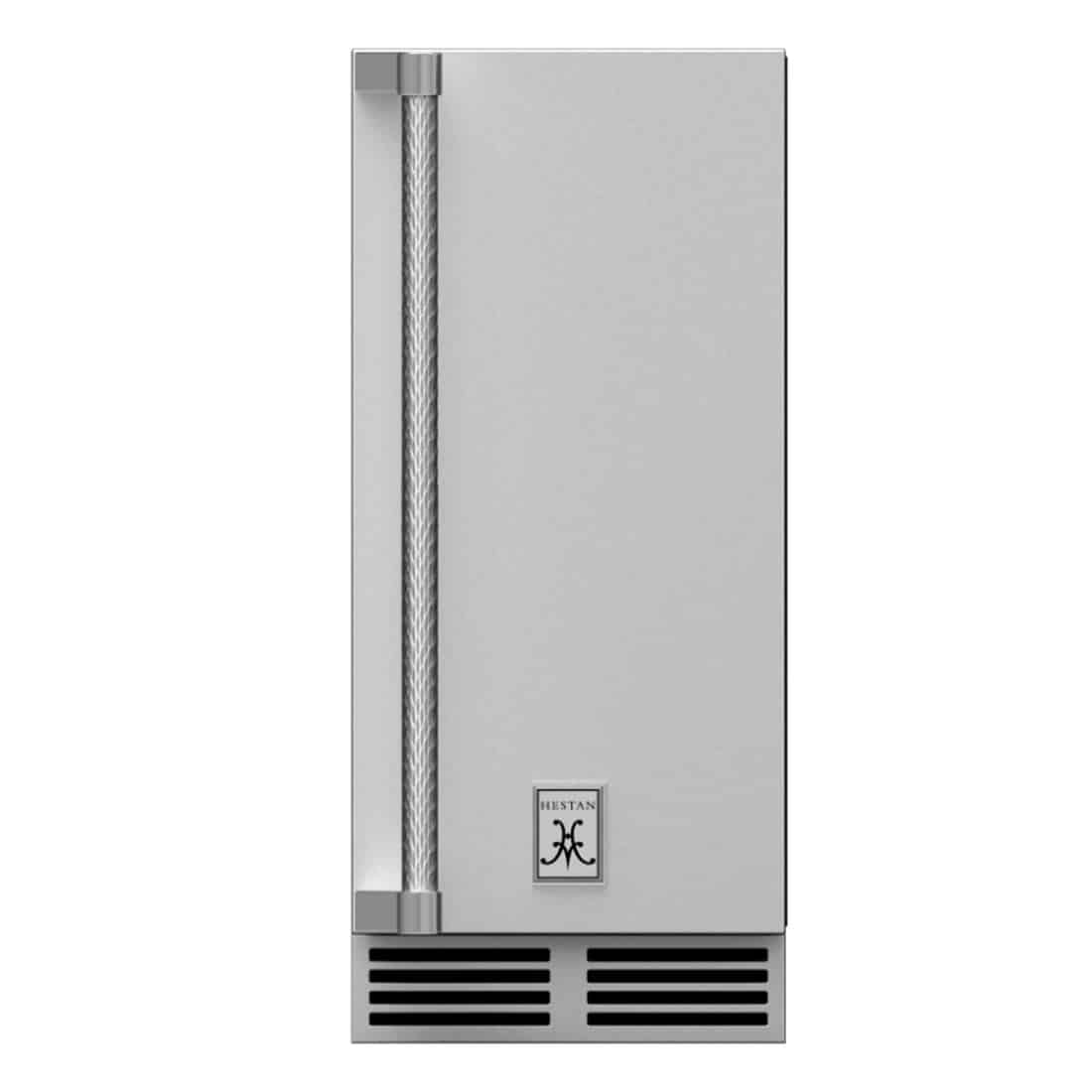

The Hestan GIM15 is a 15 in outdoor-rated built-in ice machine that makes up to 55 lb of top hat ice cubes every 24 hours and stores 22 lb in a self-contained bin. It has a stainless steel front and sides, front-in and front-out airflow for an under-counter fit, and a reversible door sold as a left-hinge or right-hinge model. It is for an outdoor kitchen that needs real ice without a trip inside.
Key Specifications
| Model | GIM15 (GIML15 left hinge, GIMR15 right hinge) |
| Ice production | Up to 55 lb per 24 hours |
| Ice storage | Up to 22 lb |
| Ice type | Top hat ice cubes |
| Cooling | Air-cooled, self-contained, built-in storage bin; refrigerant R134a |
| Electrical | 120 V, 60 Hz, 1 phase, 3.8 A per Hestan spec sheet and rating label; dedicated 115 V AC 15 A circuit |
| Airflow | Front in, front out |
| Water and drain | 1/2 in NPT-F water inlet and 1/2 in NPT-F drain outlet |
| Operating limits | Ambient 45 to 100 F; water 45 to 95 F; will not work at sub-freezing temperatures |
| Certification | UL; NSF (ice machine) |
Dimensions and Cutout
| Overall width / depth / height | 15 in / 24 in / 34 3/8 in (spec sheet) |
| Cutout width | 15 in |
| Cutout height | 34 in |
| Cutout depth | 24 in |
| Front clearance | At least 15 in; no side or top clearance required |
Features
- Up to 55 lb of ice a day and 22 lb of storage
- Stainless steel front and sides
- Heavy-duty insulation
- Front-in, front-out airflow for built-in installation
- Adjustable leveling legs
- Left-hinge or right-hinge models
- Easily disassembled water circuit for cleaning
- 6.5 ft power cord
What Is Included and What You Will Need
- Included: ice machine with 6.5 ft power cord.
- Required: a dedicated 115 V AC, 15 A circuit, a potable cold water supply with shut-off valve (minimum 10 psi), and a drain with a drain valve and a 2 in air gap.
- Optional: Hestan AGDP drain pump to push water to a sink or sanitary drain; confirm availability with us.
Installation Notes
Install the ice machine where it stays above freezing and drain it before temperatures drop below 32 F. Hestan advises a contained area with a floor drain, and water line installation is not covered by its warranty. Do not let the countertop weight rest on the unit. Use a licensed plumber and electrician, and expect NYC and Long Island jobs to need the proper permits. Book a design consultation and we will fit the cutout, water and drain into your plan.
Documentation
Frequently Asked Questions
Does it need a drain?
Yes. The unit continually makes excess water that must drain. Plan a floor drain or drain line, or Hestan's optional AGDP drain pump.
Can it stay outside in winter?
It will not work at sub-freezing temperatures. Drain it and shut off the water if air temperature will fall below 32 F.
Is the door reversible?
It is sold as a left-hinge or right-hinge model; choose your hinge at checkout.
What size cutout does it need?
15 in wide, 34 in high and 24 in deep.
Related reading: Outdoor refrigerator and ice maker buying guide and Outdoor kitchen planning guide.
Warranty
Per Hestan's limited warranty in the installation manual, products carry a two (2) year basic warranty from the original retail purchase date, covering parts and labor. The extended five (5) year sealed-system coverage in that warranty applies to Hestan undercounter refrigerators, not the ice machine.
