Hestan | 12" Built-In Gas Single Side Burner
Hestan | 12" Built-In Gas Single Side Burner - Natural Gas / Stainless Steel is backordered and will ship as soon as it is back in stock.
Description
Description
Cutout: 11 in W x 13-7/8 in D x 12 in H (Hestan side burner spec sheet)

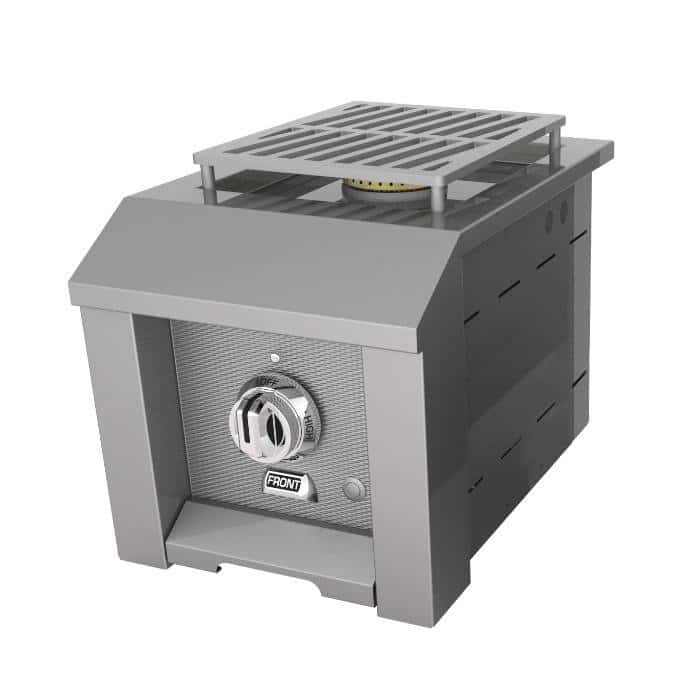

The Hestan AGB121 is a 12 in built-in single side burner that puts a 20,000 BTU/hr sealed brass burner beside a Hestan grill, for boiling, searing in a pan or keeping sauces going while the grill is busy. A 5/16 in DiamondCut stainless grate, a sealed bowl with a drain tube and a stainless cover keep it easy to clean, and the LED-lit control panel matches Hestan grills.
Features
- 20,000 BTU/hr sealed brass burner

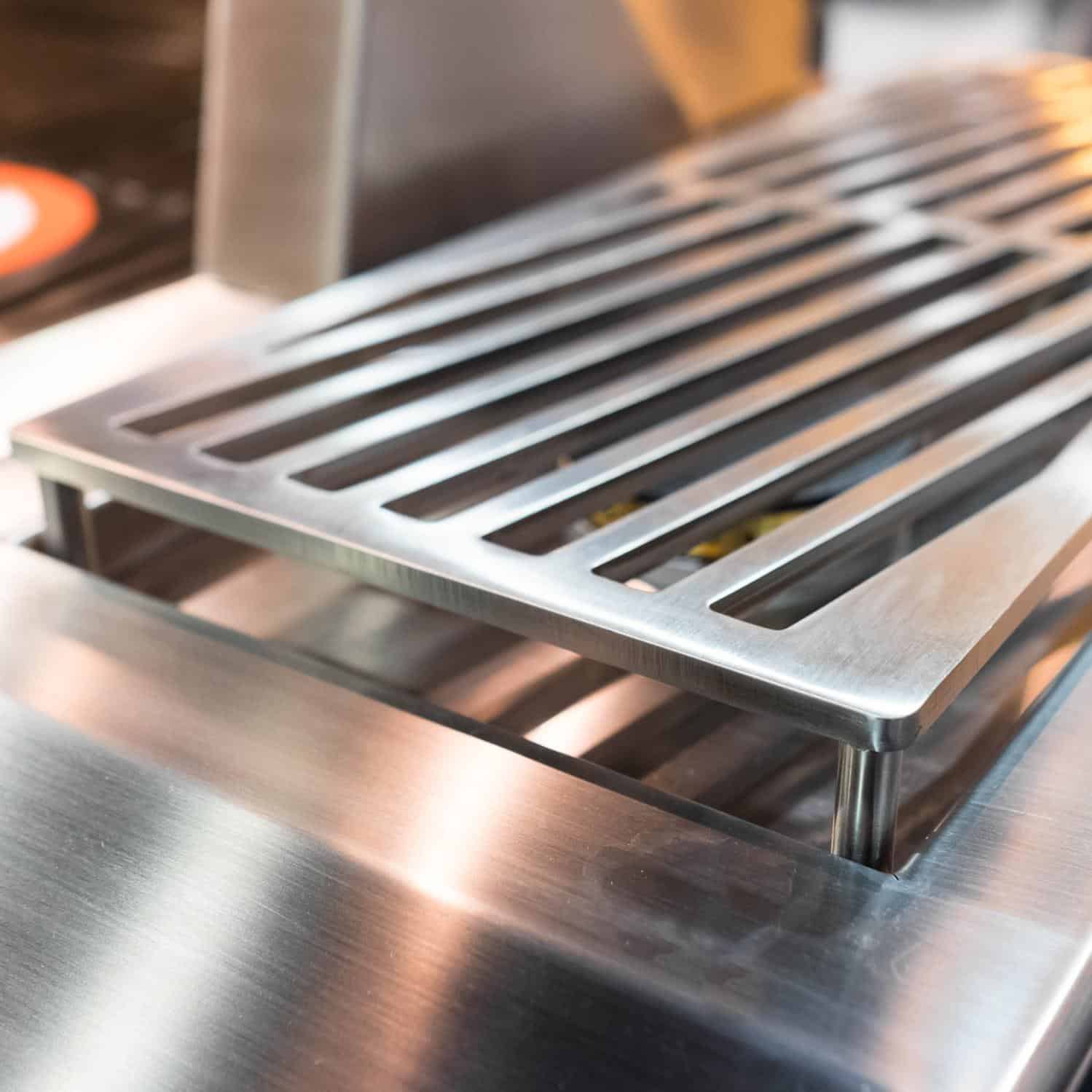

- 5/16 in thick DiamondCut lasered stainless steel grate
- Sealed burner bowl with drain tube and stainless drip tray
- Electronic spark ignition with re-ignition
- LED lighting on the front control panel

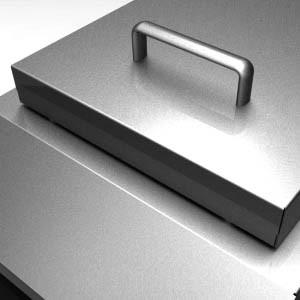

- Stainless steel top cover; natural gas or propane
Key Specifications
| Model / SKU | Hestan AGB121; AGB121-NG-SS, AGB121-LP-COLOR, AGB121-LP-SS, AGB121-NG-COLOR |
| Burner | 1 sealed brass burner, 20,000 BTU/hr |
| Grate | DiamondCut lasered stainless, 5/16 in thick |
| Ignition | Electronic spark with re-ignition |
| Electrical | 120 V, 60 Hz (1 A per the Hestan feature list) |
| Gas | 1/2 in NPT connection; supply at least 7 in WC natural gas or 11 in WC propane; manifold 4 in WC natural gas, 10 in WC propane |
| Fuel | Natural gas or propane; Hestan AGBCK conversion kits available |
| Construction | Heavy-gauge welded body |
| Overall size | 12 in W x 17-5/8 in D x 14-15/16 in H (per current listing) |
| Options | Twelve Hestan signature color finishes, high altitude kit, carbon fiber vinyl cover (Hestan spec sheet) |
Dimensions and Cutout
| Cutout (W x D x H) | 11 x 13-7/8 x 12 in |
| Countertop overhang | 1 in maximum at the control panel |
| Island ventilation | 10 sq in minimum opening on both sides and the rear (Hestan layout) |
| Service opening | 3-1/2 x 5-1/2 in opening for the gas supply and electrical |
What Is Included and What You Will Need
- Hestan AGB121 single side burner with stainless cover, for the gas type you select
- You will need: a non-combustible island with an 11 x 13-7/8 x 12 in cutout, a regulated gas supply with a 1/2 in NPT connection, a 120 V outlet, island ventilation openings and a licensed gas installer
Optional Accessories
- Hestan 30-Inch Built-In Natural Gas Grill W/ Rotisserie
- Hestan 36-Inch Built-In Natural Gas Grill W/ Rotisserie - GABR36-NG
- Hestan 30-Inch Double Access Doors
Installation Notes

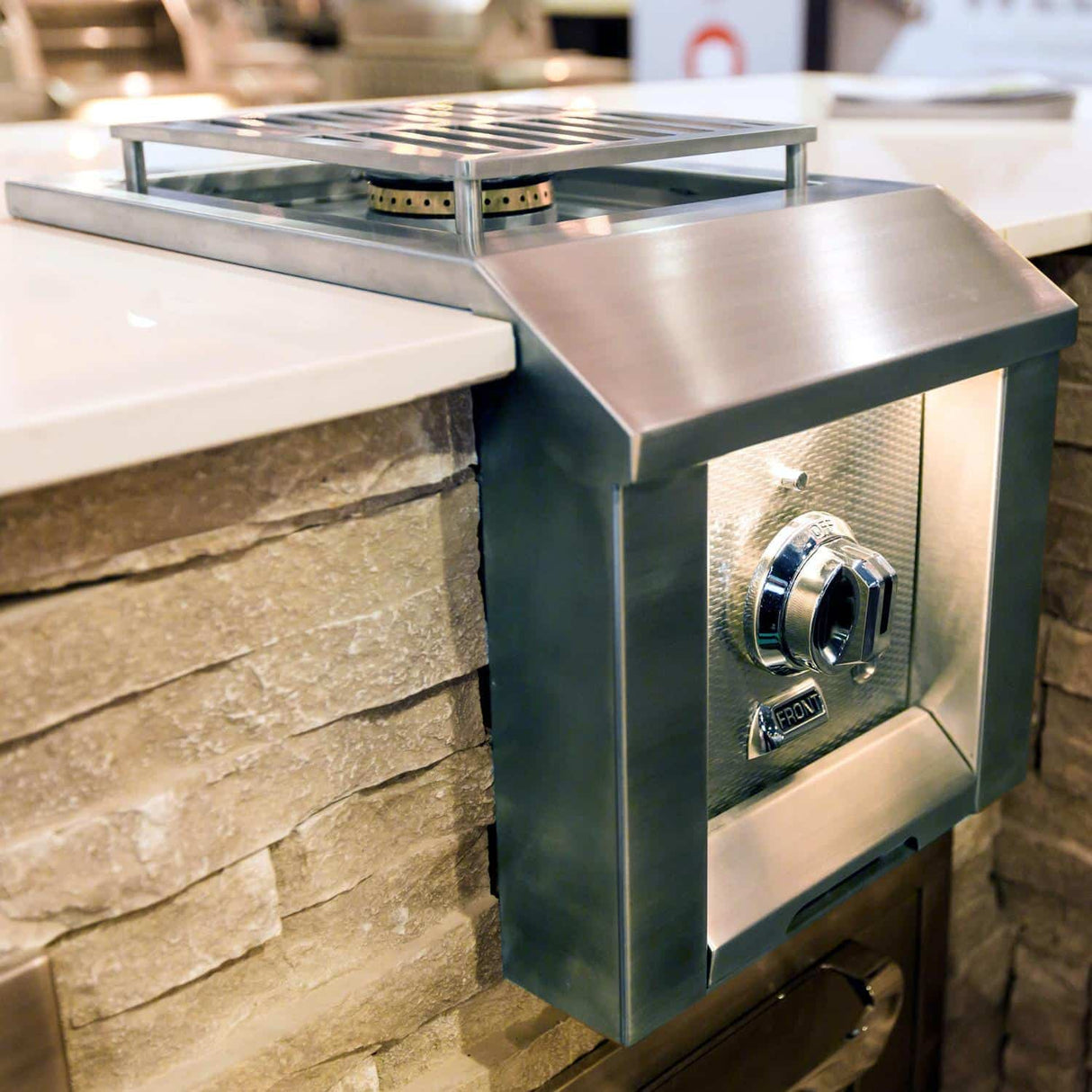

Install the AGB121 in a non-combustible island using the cutout above, with the countertop overhang no more than 1 in at the control panel and at least 10 sq in of ventilation on both sides and the rear of the enclosure. All units need a regulated gas supply; Hestan approves its outdoor products for outdoor use only. Specify natural gas or propane when ordering.
In New York City, gas piping to an outdoor kitchen must be installed by a licensed master plumber, and terrace or rooftop islands in multifamily buildings usually need building approval. Planning the cooking line? Book a design consultation.
Documentation
- Hestan Side Burners Specification Sheet (AGB121 single, AGB122 double)
- Hestan Outdoor Specifications: built-in grills, insulated jackets, side burners, refrigeration and storage (cutouts by model)
- Hestan Side Burner Gas Conversion Kit Instructions (AGBCK-NG / AGBCK-LP)
Frequently Asked Questions
How powerful is it?
One 20,000 BTU/hr sealed brass burner.
What cutout does it need?
11 in wide, 13-7/8 in deep and 12 in high, in a non-combustible island.
Does it need power?
Yes. The spark ignition and LED panel run on 120 V.
Can I order it in a color?
Yes. Hestan offers twelve signature finishes; choose the color option and tell us the finish.
Related reading: Side burner, power burner and griddle guide, Outdoor kitchen planning guide.
Warranty
Hestan outdoor products are covered, from the time of purchase and to the original purchaser, by a limited one (1) year warranty against defects in material and workmanship (per the current listing). Refer to the Hestan manual supplied with the product for full warranty details.
