Infratech 61.25-Inch W and WD Series Heater Flush Mount Frame (Stai...
Infratech 61.25-Inch W and WD Series Heater Flush Mount Frame (Stainless Steel) - 18 2305 - infratech-flushmount-master is backordered and will ship as soon as it is back in stock.
Description
Description
Explore other Infratech W and WD Series stainless flush-mount frame sizes: 33 inch | 39 inch | 61.25 inch (current)
Overall Dimensions: Frame drawing dimensions 65.25 in x 11.75 in, for 61-1/4 in heaters, per the Infratech 18-2305 drawing

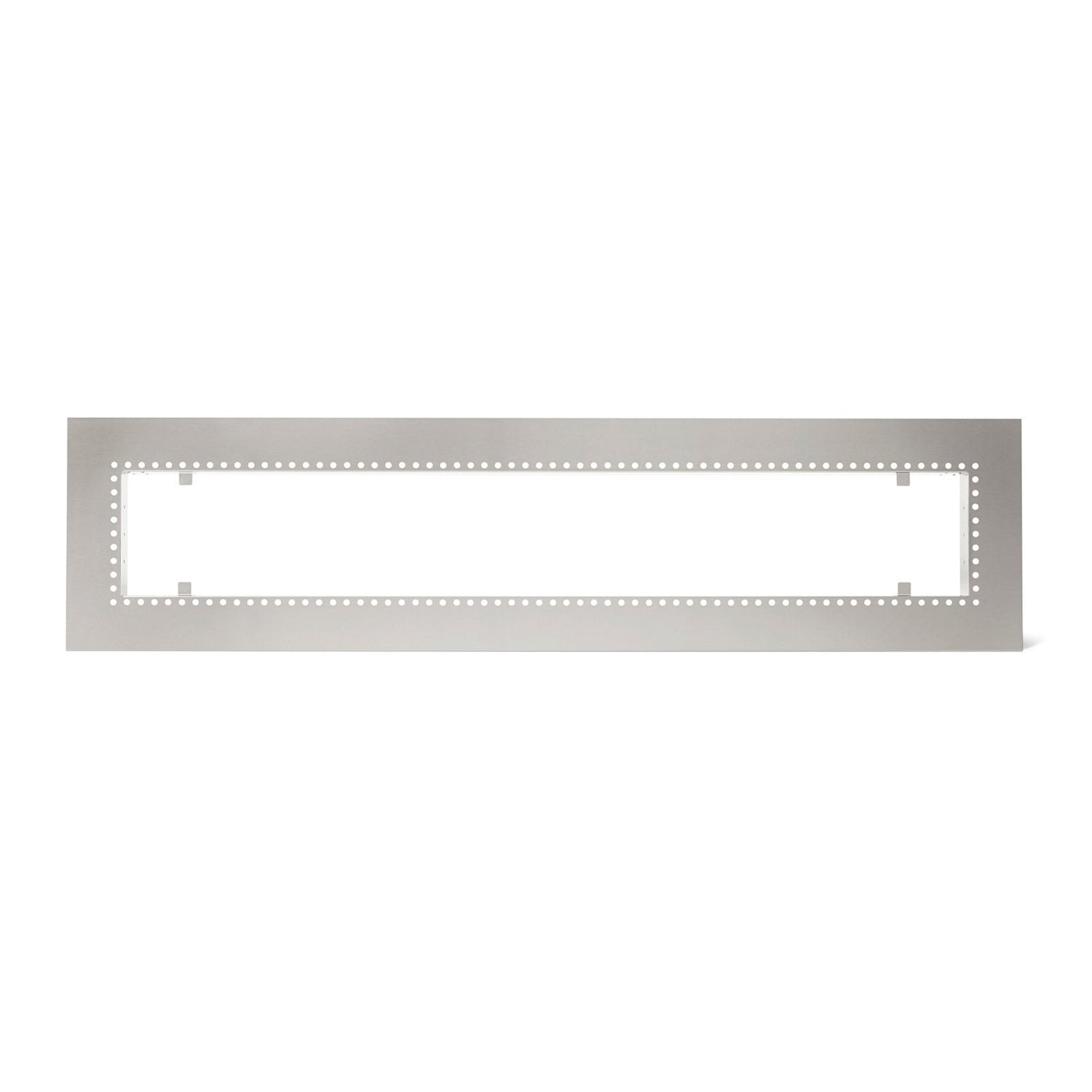

The Infratech W-61 flush mount frame (18-2305) recesses a 61-1/4 in Infratech W-Series or WD-Series heater into a flat ceiling so only the heater face shows, the cleanest way to put radiant heat into a finished porch, cabana or covered terrace ceiling. It is made of 304 stainless steel with a #4 finish and comes with the 4 ft high temperature fixture whip the installation calls for.
Features
- Fits 61-1/4 in Infratech W-Series and WD-Series heaters: W-3024 (3,000 W) and W-4024 (4,000 W) and WD-6024 (6,000 W)
- 304 stainless steel, #4 finish, for outdoor exposure
- Heater hangs on adjustable L brackets inside the frame; no surface brackets
- Supplied with a 4 ft Hi-Temp fixture whip; use Hi-Temp ceramic wire nuts (longer whips from the factory)
- Surface flange mounting holes are drilled on site by the installer
- Heater sold separately
Key Specifications
| Part number | Infratech 18-2305 (W-61 flush mount frame); store SKU 18 2305 |
| Fits | 61-1/4 in W-Series and WD-Series heaters (W-3024 (3,000 W) and W-4024 (4,000 W), WD-6024 (6,000 W)) |
| Material | 304 stainless steel, #4 finish |
| Included | Frame with adjustable L brackets and a 4 ft Hi-Temp fixture whip |
| Ceiling | Flat, non-sloped ceiling only |
Dimensions and Cutout
| Drawing dimensions | 65.25 in and 11.75 in (frame), per the Infratech drawing |
| Minimum opening | Shown on the Infratech drawing; confirm against the drawing before framing |
| Framing | Minimum 2 x 8 joists |
| Five-sided pocket lined with 5/8 in Type X drywall; 5/8 in Type X subfloor | |
| Vent holes | Keep 1/2 in clearance from the frame ventilation holes |
What Is Included and What You Will Need
- Infratech 18-2305 W-61 flush mount frame with the 4 ft Hi-Temp fixture whip
- You will need: a matching W-Series or WD-Series heater, Hi-Temp ceramic wire nuts, a fire-rated drywall pocket, an accessible junction box outside the pocket, and a licensed electrician
Optional Accessories
- Infratech W-Series 61.25-Inch Single Element 240 Volt, 3000 Watt, 12.5 Amp Outdoor Heater in Stainless Steel - W3024SS
- Infratech W-Series 61.25-Inch Single Element 240 Volt, 4000 Watt, 16.7 Amp Outdoor Heater in Stainless Steel - W4024SS
- Infratech WD-Series 61.25-Inch Dual Element 240 Volt, 6000 Watt, 25 Amp Outdoor Heater in Black - WD6024BL
Installation Notes
Infratech allows this frame only in a flat, non-sloped ceiling. Frame the opening with at least 2 x 8 joists, line and seal all five sides of the cavity with 5/8 in Type X drywall, and mount the junction box outside the sealed pocket where it stays accessible. The heater body faces straight down and sits flush with, or slightly below, the finished ceiling, resting by gravity on the adjustable L brackets; discard the surface brackets that ship with the heater. Coil excess flex into the heater cavity.
Connections are made at the heater junction box with the supplied Hi-Temp whip and Hi-Temp ceramic wire nuts, by a licensed electrician only. Infratech recommends a 15 minute cool-down after 4 hours of continuous use for the longest heater life. In New York City, a hardwired outdoor heater is electrical work for a licensed electrician, and terrace or rooftop installs in multifamily buildings often need building or board approval.
Designing a recessed heat layout? Book a design consultation.
Documentation
- Infratech 18-2305 W-61 Flush Mount Frame Drawing
- Infratech W and WD-Series Installation, Use and Care Manual (2024)
- Infratech W and WD-Series Heater CAD Drawing (Aug 2024)
Frequently Asked Questions
Is a heater included?
No. The frame is sold on its own; add a matching W-Series or WD-Series heater of the same length.
Will it work with a C-Series or SL-Series heater?
No. Infratech makes its flush mount frames for the W and WD-Series bodies only.
Can it go in a sloped ceiling?
No. Infratech allows flush mounting only in a flat, non-sloped ceiling.
Related reading: Patio heater buying guide, Best patio heater for a covered patio, Bromic vs Infratech patio heaters.
Warranty
Infratech accessories are covered by the Infratech limited warranty, which covers manufacturer replacement parts only and excludes labor; register the heater and keep proof of purchase. Confirm current coverage for mounting accessories with Infratech.
