Infratech CD-Series 61.25-Inch Dual Element 240 Volt, 6000 Watt, 25 Amp Outdoor Heater in Beige - CD6024BE

Overall Dimensions: 61-1/4 in long, C-shaped body about 2-1/2 in deep, per the Infratech C/CD-Series manual and CAD drawing

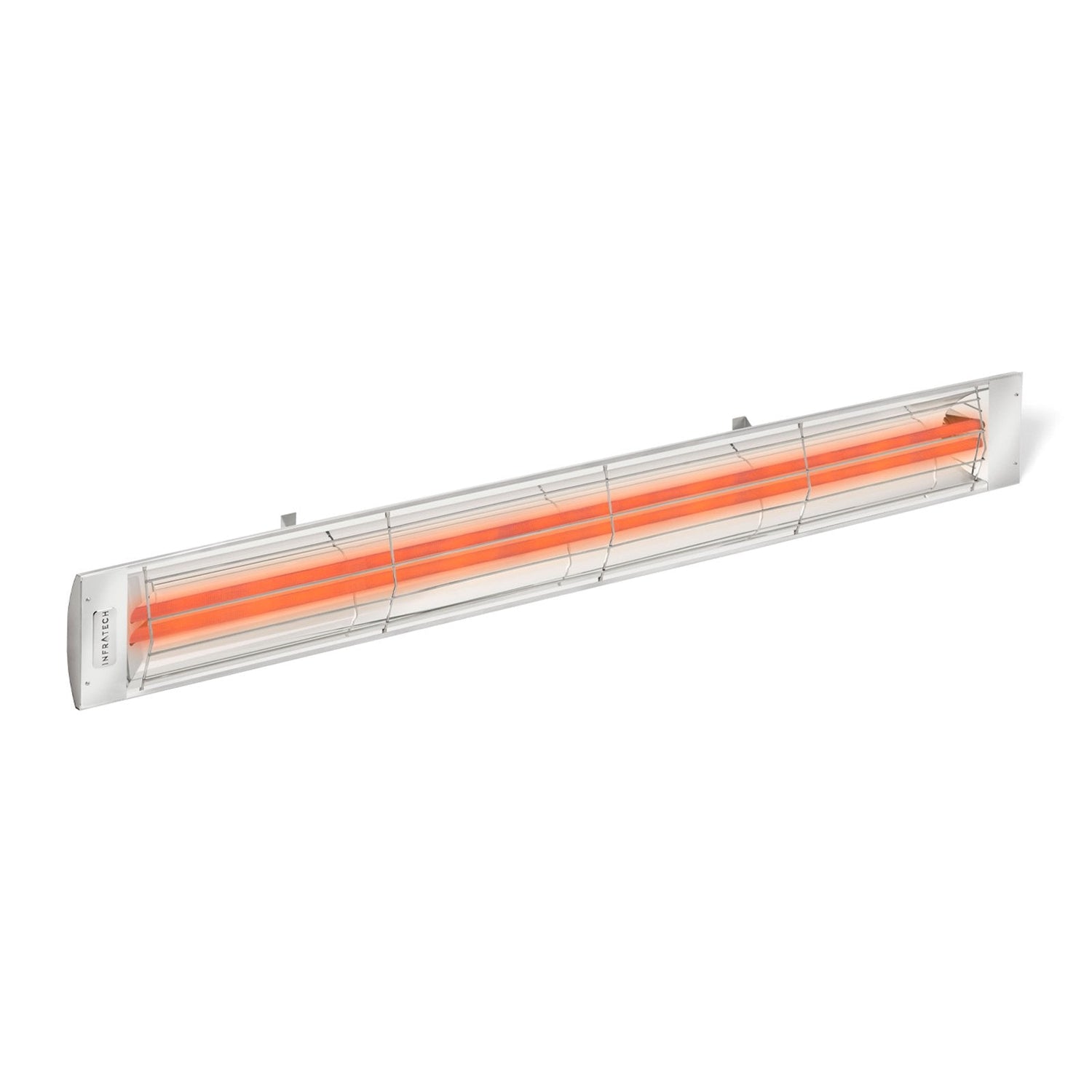

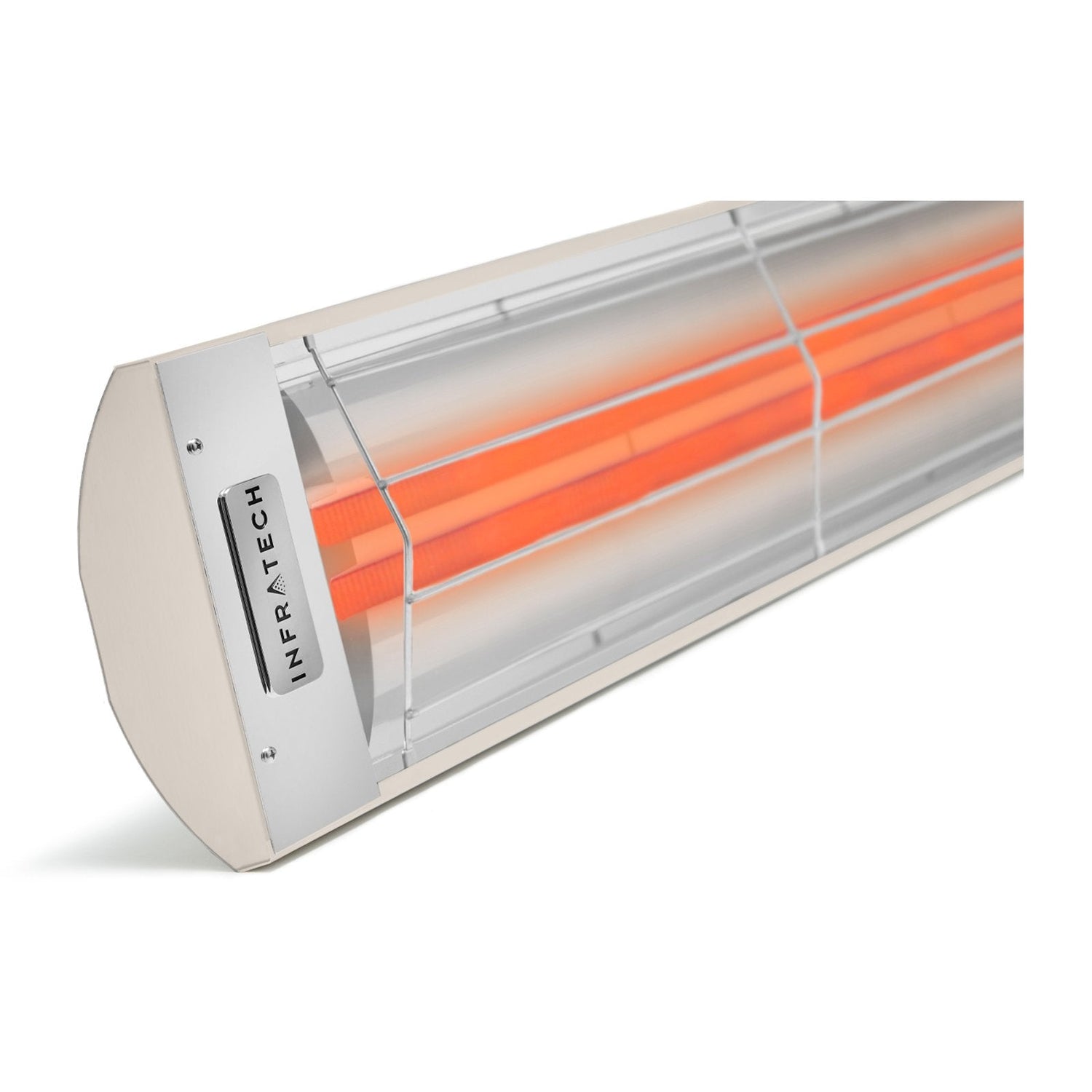

The Infratech CD6024BE is a 61-1/4 in, 6,000 W dual element electric infrared heater in a beige finish, for covered patios, porches and outdoor dining areas that need concentrated warmth. Two medium wave quartz elements warm people and surfaces rather than the air, so a breeze does not carry the heat away, and with a duplex switch you can run one element for half power or both for full power.

Features

• 6,000 W from two 3,000 W quartz elements, about 20,472 BTU
• Medium wave infrared heat with a soft glow, no odor and no combustion
• Half power or full power when the two elements are wired to separate switches
• Inset swivel brackets for wall or ceiling mounting with a floating look
• 304 stainless steel body in a beige finish (Infratech offers eight standard colors)
• UL listed for indoor and outdoor use; made in the USA

Key Specifications

Dimensions and Cutout

What Is Included and What You Will Need

• Infratech CD6024 heater in beige
• Wall or ceiling swivel mounting brackets
• You will need: a dedicated 240 V circuit hardwired by a licensed electrician, a disconnect means, and a control rated for the load (a duplex switch or two INF regulators, one per 12.5 A element)

Optional Accessories

• Infratech INF Input Heat Regulator Dual Switch w/ Flush Mount and Weather Proof Gang Box 240 Volt - 14 4215
• Infratech INF Input Heat Regulator Dual Switch w/ Stainless Steel Wall Plate and Gang Box 240 Volt - 14 4205
• Infratech Replacement 240 Volt 3000 Watt Quartz Element for W3024, WD6024, C3024, and CD6024 Heaters - E3024

Installation Notes

Infratech requires the heater to be permanently installed and hardwired by a licensed electrician to the National Electrical Code and local code, using components listed for outdoor use with at least an IPX4 rating and a means of disconnect. Mount it level with the reflector angled down, 30 to 60 degrees on a wall or up to 30 degrees on a ceiling, never lower than 6 ft above the floor for UL labeled heaters (8 ft for UL/CUL labeled heaters). Keep 6 in clear behind the heater face, 18 in from the sides and ends and from adjacent walls, 6 in from the ceiling, and 36 in clear in front.

Infratech INF input regulators control heaters up to 15 A. Each 3,000 W element in the CD6024 draws 12.5 A, so a dual INF regulator or a duplex switch can run the two elements separately for half or full power. In New York City, a hardwired outdoor heater is electrical work for a licensed electrician, and terrace or rooftop installs in multifamily buildings often need board or building approval.

Laying out heat for a covered patio? Book a design consultation.

Documentation

• Infratech C-Series and CD-Series Installation, Use and Care Manual
• Infratech C-Series and CD-Series Heater CAD Drawing
• Infratech Heater Comparison Guide (C/CD vs W/WD)

Frequently Asked Questions

How high should I mount it?

Infratech recommends 10 to 14 ft for the CD6024, and never lower than 6 ft for UL-listed heaters.

Can I run half power?

Yes. Wire the two elements to a duplex switch or a dual INF regulator to run one or both.

Does it plug in?

No. It must be hardwired on a 240 V circuit by a licensed electrician.

How much area does it cover?

About 11 x 11 ft on average and 12 x 12 ft in a protected space.

Related reading: Patio heater buying guide, Best patio heater for a covered patio, Bromic vs Infratech patio heaters.

Warranty

Infratech warrants this electric heater against defects in materials and workmanship for three (3) years from the original date of purchase, for the original purchaser at the original site of installation, per the Infratech manual. Register the heater with Infratech to validate coverage; damage from improper installation, misuse, harsh cleaning chemicals or unauthorized alteration is excluded.
