Description
Description
Explore other Infratech Slimline silver 277V heater sizes: 42.5 inch / 2400W | 63.5 inch / 4000W (current)
Overall Dimensions: 63-1/2 in long, housing about 4-3/4 in wide, per the Infratech SL-Series manual

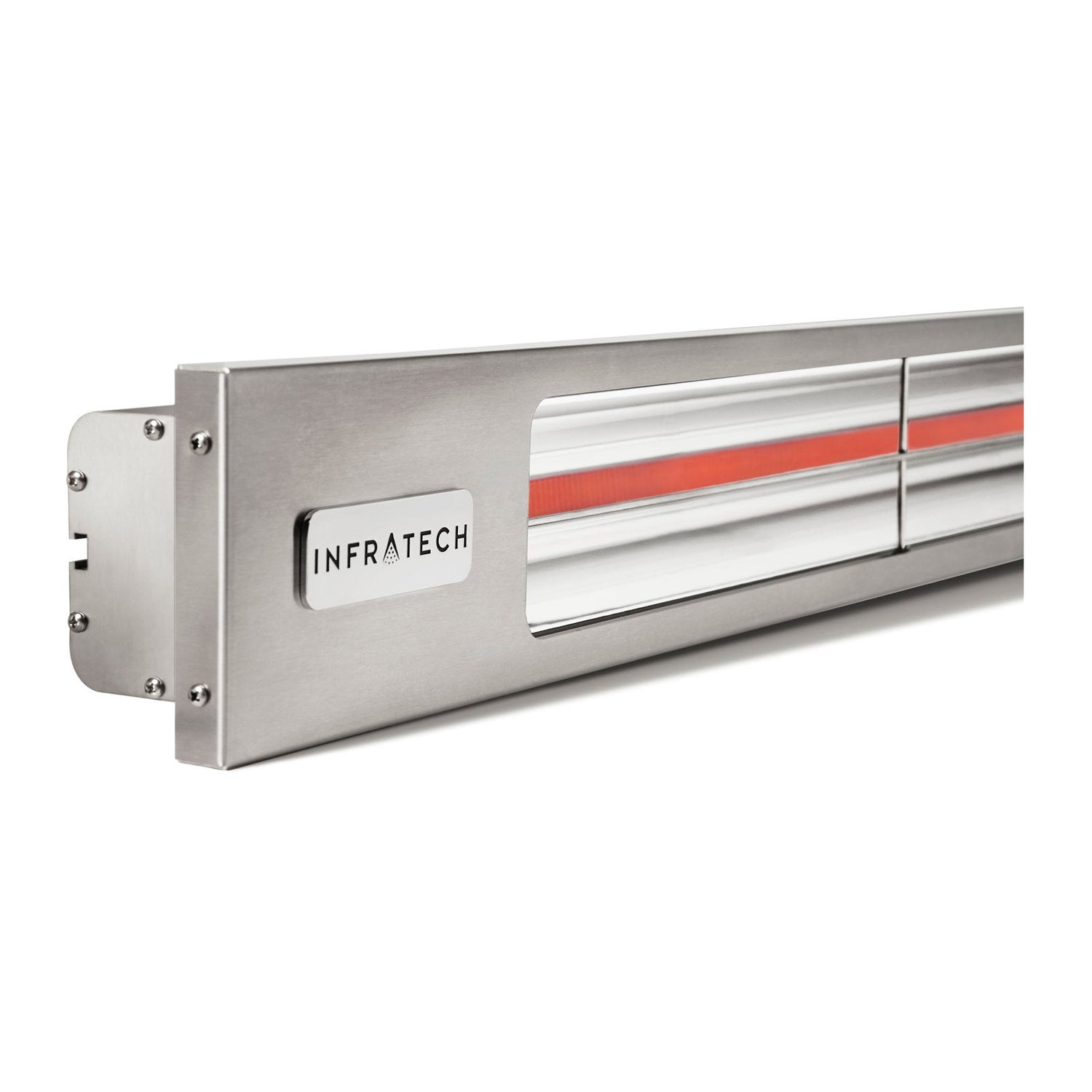

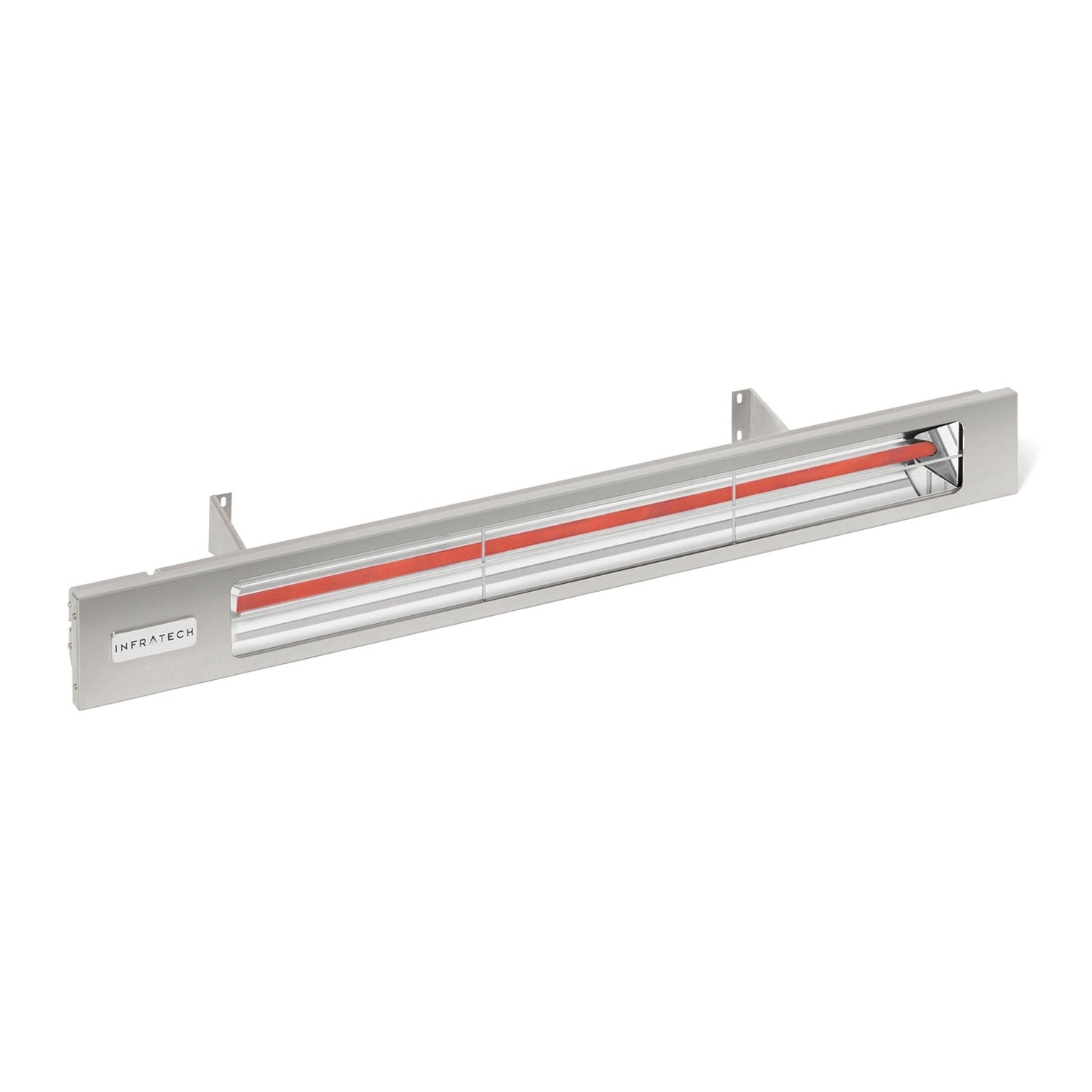

The Infratech SL4027SV is a 63-1/2 in Slimline electric infrared heater with a single 4,000 W quartz element on 277 V, in silver anodized. Its narrow anodized aluminum housing suits covered patios, pergolas and outdoor kitchens where a bulky heater would spoil the ceiling line, and medium wave infrared warms people and surfaces rather than the air.
Features
- Single 4,000 W quartz element, 277 V
- Slim anodized aluminum housing about 4-3/4 in wide, silver anodized finish
- Wall or ceiling mounting with adjustable swivel brackets (30 and 45 degree stops)
- Radiant heat with a soft glow and no odor or combustion
- UL/CUL listed for indoor and outdoor use
- Made in the USA
Key Specifications
| Model / SKU | Infratech SL4027SV |
| Element | Single quartz tube, 4,000 W |
| Voltage / amps | 277 V, about 14.4 A (calculated from 4,000 W at 277 V; confirm on the heater label) |
| Heat output | 13,648 BTU |
| Coverage | 10 x 10 ft average, 8 x 8 ft cold, 12 x 12 ft protected (Infratech manual chart) |
| Mounting height | 8 to 11 ft recommended |
| Housing | Anodized aluminum, silver anodized |
| Wiring | Hardwired by a licensed electrician |
Dimensions and Cutout
| Length | 63-1/2 in |
| Housing width | About 4-3/4 in |
| Bracket projection | About 8-3/4 in from the mounting surface (manual drawing) |
| Bracket spacing | At least 30 in apart |
| Clearances | 6 in behind the face, 18 in from sides and ends, 36 in in front; 6 in from the ceiling and 18 in from adjacent walls |
What Is Included and What You Will Need
- Infratech SL4027SV heater with wall and ceiling swivel mounting brackets, per the Infratech manual
- You will need: a dedicated 277 V circuit and disconnect installed by a licensed electrician with outdoor-rated fittings, and a control rated for the load
Optional Accessories
Installation Notes
Infratech requires the heater to be permanently installed and hardwired by a licensed electrician to the National Electrical Code and local code, using components listed for outdoor use with at least an IPX4 rating and a means of disconnect. Mount it level with the reflector angled down, 30 to 60 degrees on a wall or up to 30 degrees on a ceiling, never lower than 6 ft above the floor for UL labeled heaters (8 ft for UL/CUL labeled heaters). Keep 6 in clear behind the heater face, 18 in from the sides and ends and from adjacent walls, 6 in from the ceiling, and 36 in clear in front.
Use an on/off switch or relay rated for 277 V and the heater load; Infratech single element wall switches are rated 120 to 277 V. In New York City, a hardwired outdoor heater is electrical work for a licensed electrician, and terrace or rooftop installs in multifamily buildings often need board or building approval.
Laying out heat for a covered patio or pergola? Book a design consultation.
Documentation
Frequently Asked Questions
How big an area does it heat?
Infratech rates the 4,000 W Slimline for 10 x 10 ft average, 8 x 8 ft cold, 12 x 12 ft protected.
How high should it be mounted?
Infratech recommends 8 to 11 ft, never lower than 6 ft for UL labeled heaters or 8 ft for UL/CUL labeled heaters.
Can I use the Infratech INF regulator?
Not on this model; use an on/off switch or relay rated for the load and voltage.
Does it plug in?
No. It is hardwired on a 277 V circuit by a licensed electrician.
Related reading: Patio heater buying guide, Best patio heater for a covered patio, Bromic vs Infratech patio heaters.
Warranty
Infratech warrants this electric heater against defects in materials and workmanship for three (3) years from the original date of purchase, for the original purchaser at the original site of installation, per the Infratech manual. Register the heater with Infratech to validate coverage; damage from improper installation, misuse, harsh cleaning chemicals or unauthorized alteration is excluded.
