Description
Description
Available Sizes: Infratech W-Series 240V Single Element Heaters - Copper
33" (1500W) (Current Size) | 39" (2000W) | 61.25" (3000W) | 61.25" (4000W)
Overall Dimensions: 33 in long, W-shaped body about 3 in deep, per Infratech
The Infratech W1524 is a 33 in single element electric infrared heater, 1,500 W on 240 V, in a copper powder coat over 304 stainless steel finish. It is sized for a small seating nook, a bistro table or a short run of bar stools, and medium wave quartz infrared warms people and surfaces directly instead of the air, so a breeze does not carry the heat away. The W-Series uses a W-shaped 304 stainless steel body about 3 in deep with a mounting bracket at each end, the Infratech body designed for recessed flush mounting.
Features
- 1,500 W single quartz element, 5,118 BTU per Infratech
- Medium wave infrared: a soft glow with no odor, no combustion and no fuel to refill
- Works with an Infratech INF input regulator for variable heat
- Wall or ceiling mount on the included brackets, or recess it flush into a flat ceiling with the Infratech W-33 frame (18-2295)

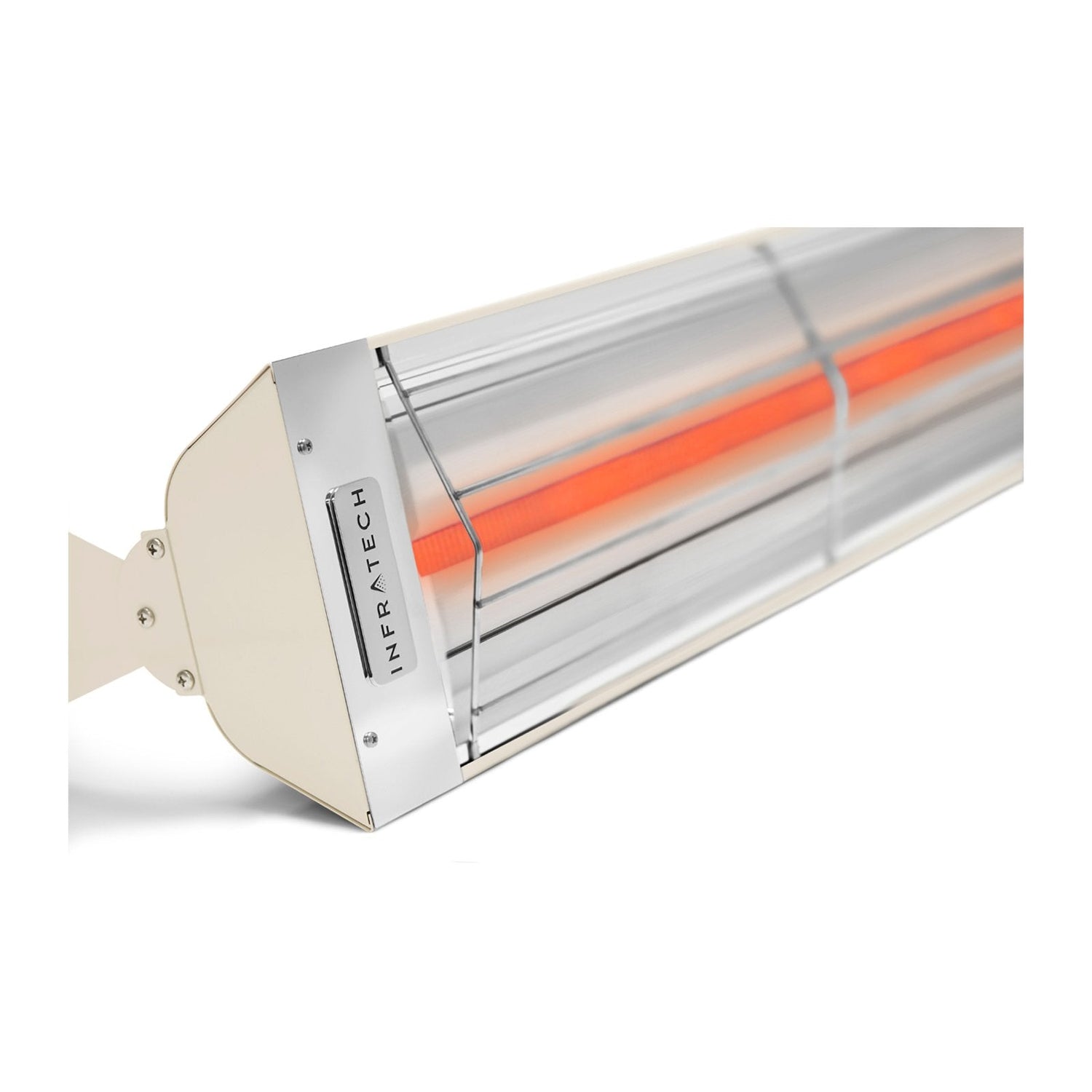

- Copper finish; Infratech offers brushed stainless plus eight standard colors and custom colors
- UL listed for indoor and outdoor use; made in the USA by Infratech in Gardena, California
Key Specifications
| Model / SKU | Infratech W-Series W1524, Copper finish (W1524CP) |
| Elements | Single medium wave quartz, 1,500 W total |
| Voltage / amps | 240 V, 6.3 A |
| Heat output | 5,118 BTU (Infratech CAD drawing) |
| Coverage | 5 x 5 ft average, 3 x 3 ft cold, 7 x 7 ft protected (Infratech coverage table for the 1,500 W model) |
| Recommended mounting height | 6 to 7 ft |
| Replacement element | E-1424 (1,500 W, 240 V) |
| Housing | 304 stainless steel, W-shaped body |

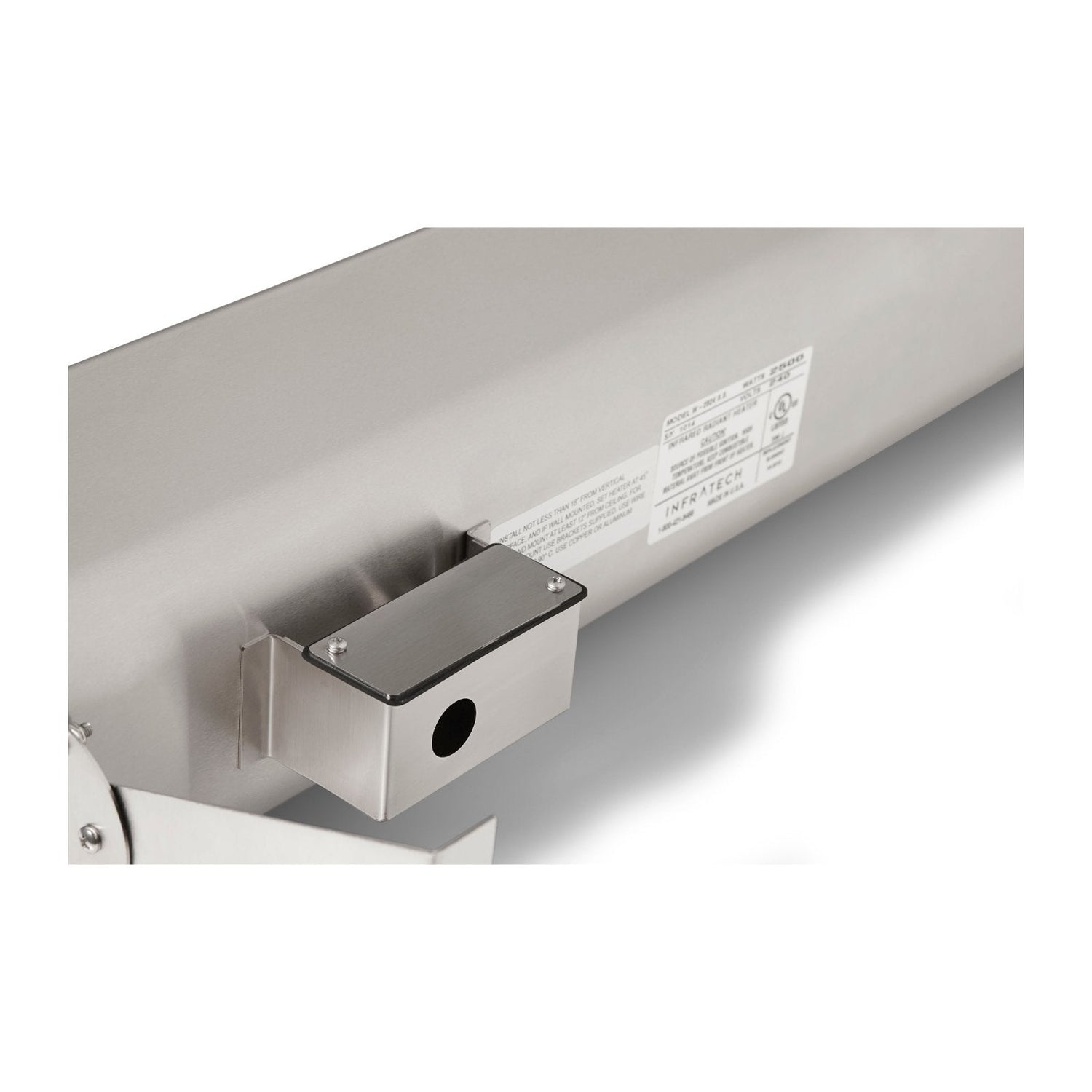

| Wiring | Hardwired by a licensed electrician; 1/2 in knock-out |
| Listing | UL listed for indoor and outdoor use |
Dimensions and Cutout
| Length | 33 in (Infratech CAD drawing) |
| Body depth | About 3 in (Infratech C/W comparison) |
| Clearance to combustibles | 6 in behind, 18 in from the sides and ends, 36 in in front |
| Wall / ceiling mount | 18 in from adjacent walls; 12 in (wall) or 6 in (ceiling) from the ceiling; 6 ft minimum height (8 ft UL/CUL) |
| Flush mount frame | Infratech W-33 (18-2295) for 33 in heaters |
What Is Included and What You Will Need
- Infratech W1524 heater in copper, with surface mounting brackets
- You will need: a dedicated 240 V circuit and disconnect installed by a licensed electrician with outdoor-rated fittings, and a control rated for the load (sold separately)
- For a recessed install you will also need the Infratech W-33 flush mount frame (18-2295) and a fire-rated ceiling pocket
Optional Accessories
- Infratech single INF input regulator, flush mount, 240 V (14-4210)
- Infratech single INF input regulator, stainless steel wall plate, 240 V (14-4200)
- Infratech Single On/Off Wall Switches
- Infratech 33 in W/WD flush mount frame (18-2295)
- Infratech replacement element E1424 (1500 W, 240 V)
Installation Notes
Infratech requires the heater to be permanently installed and hardwired by a licensed electrician to the National Electrical Code and local code. Hold the clearances above, keep cords and drapery at least 3 ft from the front and flammable materials 25 ft away, and mount it level, angled down about 45 degrees for the best spread (30 to 60 degrees on a wall, up to 30 degrees on a ceiling).
Flush mounting uses the Infratech W-33 frame (18-2295) in a flat, non-sloped ceiling framed with at least 2 x 8 joists, inside a five-sided pocket lined with 5/8 in Type X drywall, with the junction box accessible outside the pocket. The heater rests on adjustable L brackets and the surface brackets are not used.
At 6.3 A the W1524 is within the 15 A limit of an Infratech INF input regulator, which pulses the element to vary the heat, or it can run on a simple on/off switch. In New York City, a hardwired outdoor heater is electrical work for a licensed electrician, and terrace or rooftop installs in multifamily buildings often need building or board approval.
Planning heat for a covered patio, pergola or terrace? Book a design consultation and we will help size and place the heaters.
Documentation
- Infratech W and WD-Series Installation, Use and Care Manual (2024)
- Infratech W and WD-Series Heater CAD Drawing (Aug 2024)
- Infratech 18-2295 W-33 Flush Mount Frame Drawing
- Infratech Limited Warranty (2024)
Frequently Asked Questions
How much area will it heat?
Infratech rates the W1524 for about 5 x 5 ft average, 3 x 3 ft in cold conditions and 7 x 7 ft in a protected space, from a 6 to 7 ft mounting height (Infratech coverage table for the 1,500 W model). Wind and cold reduce coverage; a protected space does better.
Does it plug in?
No. It is hardwired on a 240 V circuit by a licensed electrician.
Can I use it indoors?
Yes. Infratech heaters are UL listed for indoor and outdoor use, with the same clearances.
Can it be recessed into the ceiling?
Yes, with the Infratech W-33 flush mount frame (18-2295) in a flat ceiling with a fire-rated drywall pocket. Sloped ceilings are not allowed.
Related reading: Patio heater buying guide, Best patio heater for a covered patio, Bromic vs Infratech patio heaters.
Warranty
Infratech backs its heaters with a three-year limited warranty when the heater is registered (online at infratech.com/warranty or by returning the registration card within 30 days of purchase). The warranty covers manufacturer replacement parts only; labor to remove, repair or reinstall is excluded, and damage from improper installation, misuse, harsh cleaning chemicals or non-Infratech controls may void coverage. Keep your proof of purchase.
