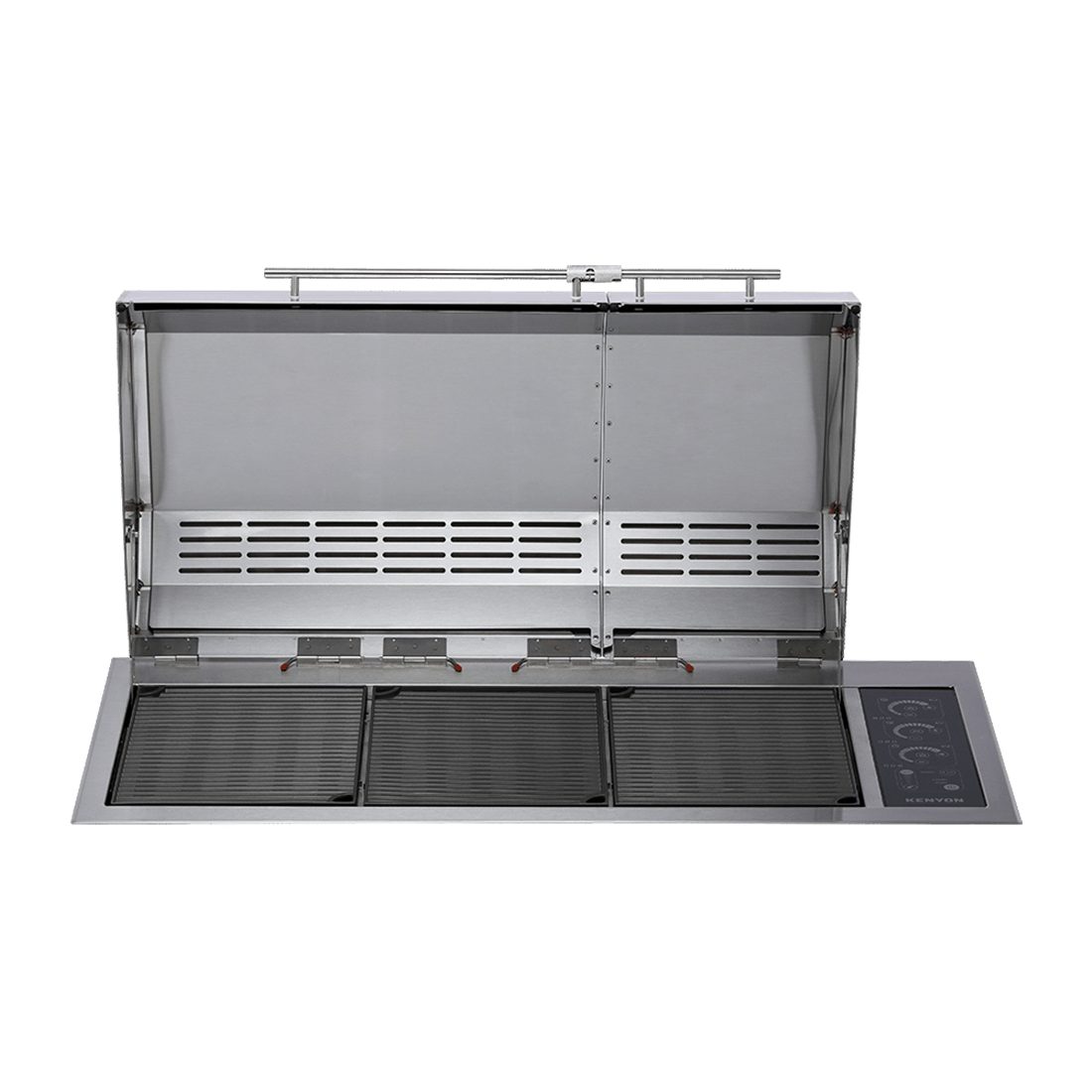

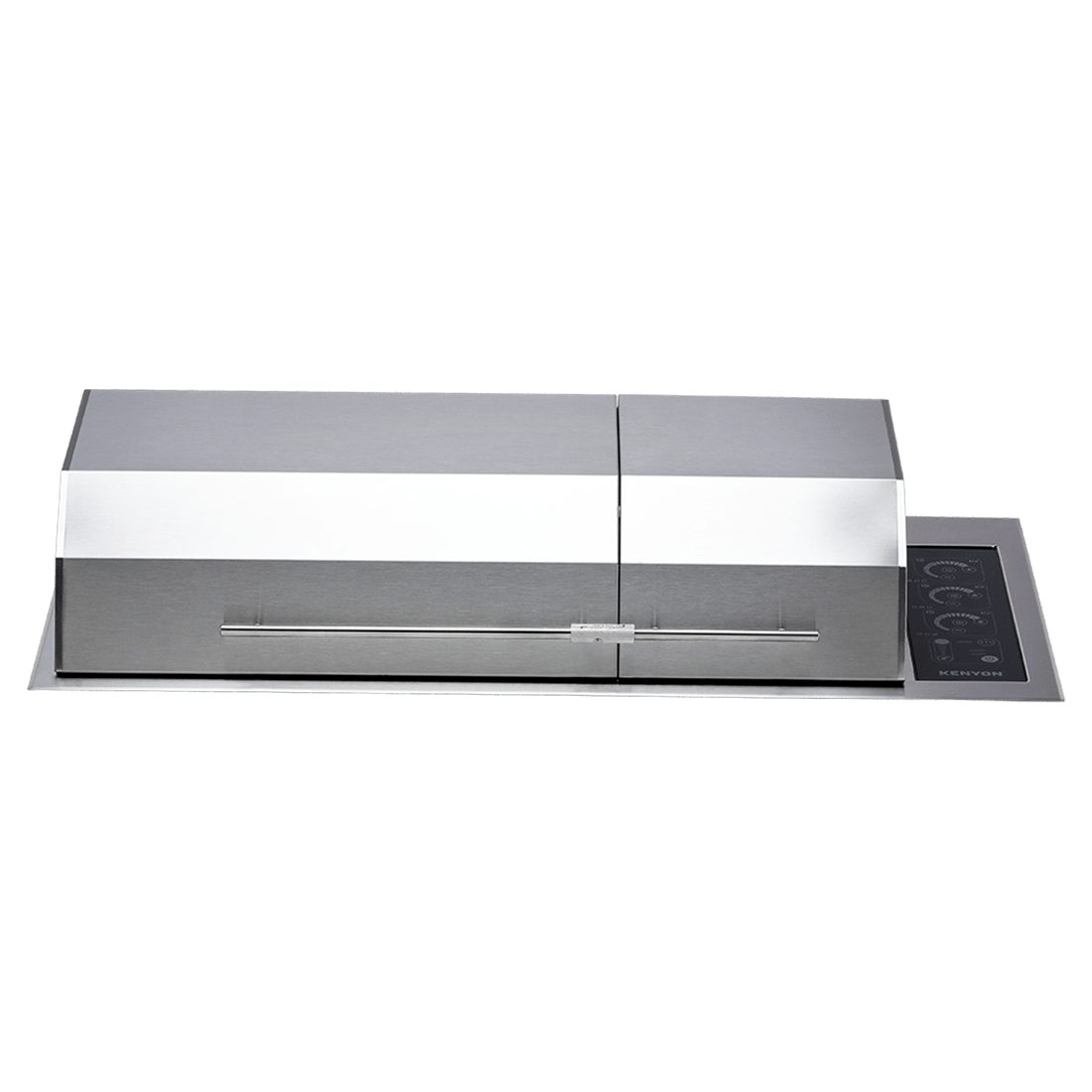

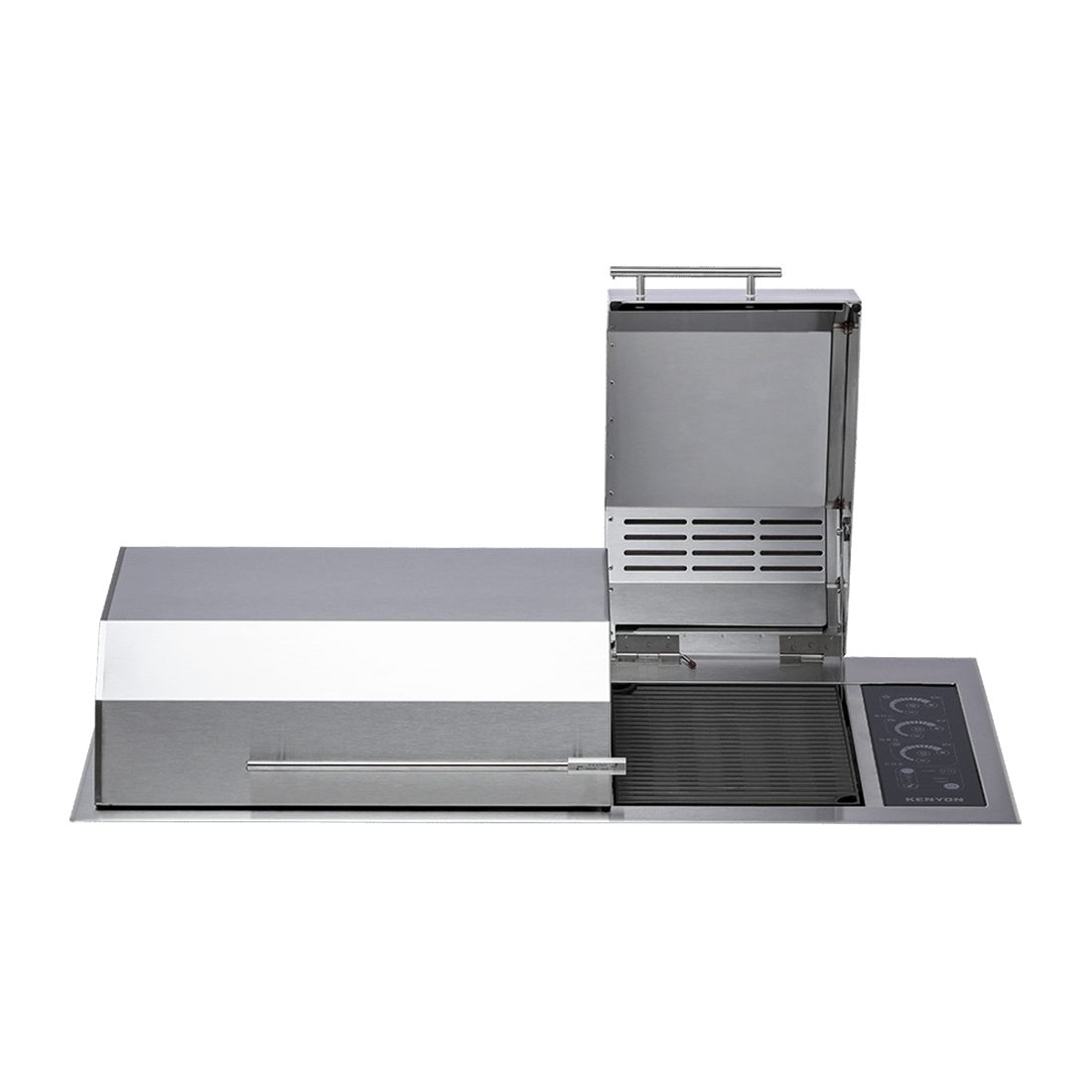

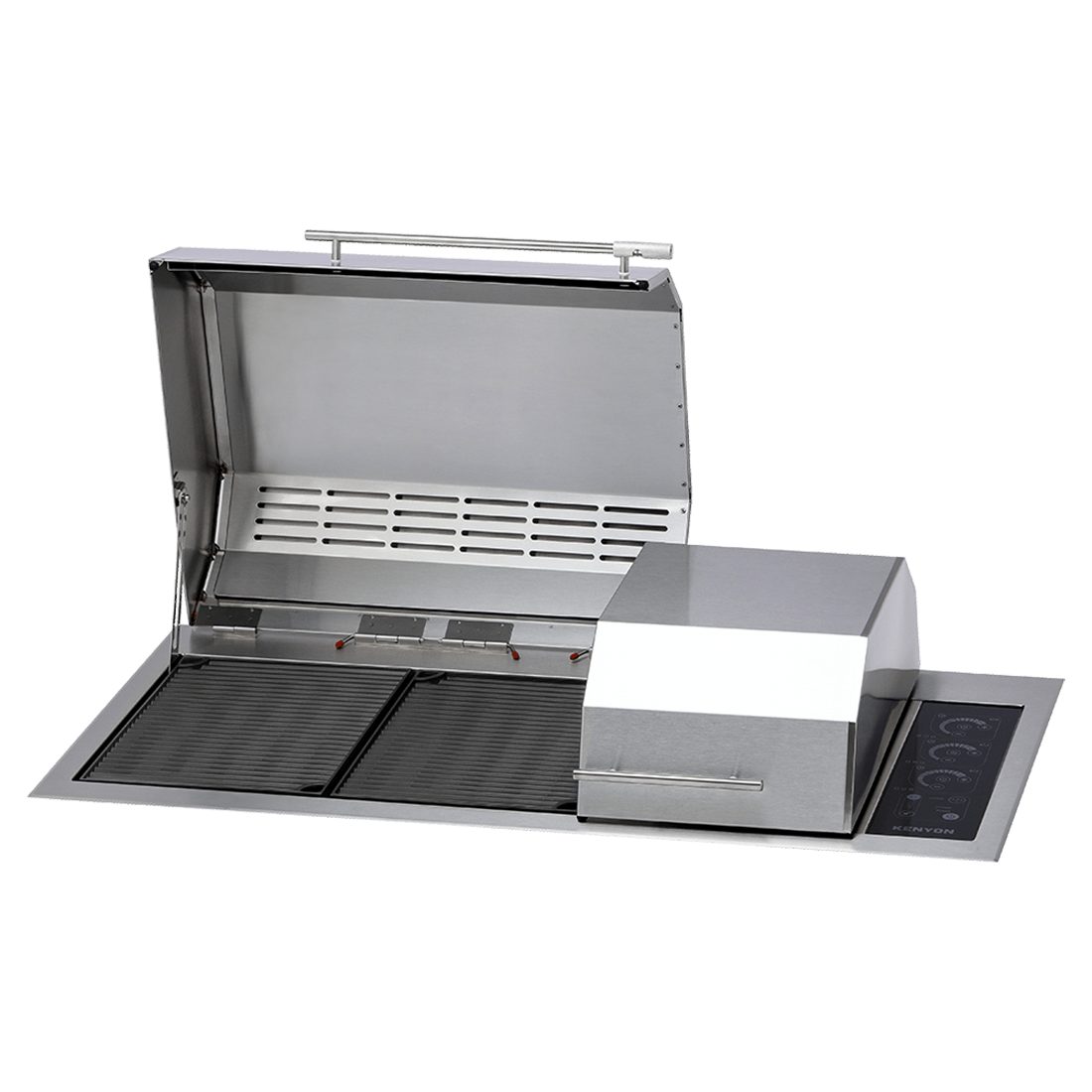

Kenyon | Big American Grill
Kenyon | Big American Grill - B70430 - w/ Mounting Holes is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 40.91 in W x 21 in D x 5.5 in H (12.5 in with lid)
The Kenyon Big American Grill is the largest built-in electric grill in Kenyon's line, with three independent 1500 W elements for 4500 W and a 465 square inch cooking surface. It is for outdoor kitchens that need an electric grill, with concealed elements that stop flare-ups, a swipe-control touch panel and removable split lids.
Key Specifications
| Model | B70430 (with mounting holes) / B70432 (without mounting holes), 240V; B70480 is the 208V model in the Kenyon manual |
|---|---|
| Power | 240V AC, 20 A, 50/60 Hz (B70430 and B70432); 4500 W maximum connected load |
| Elements | Three independent 1500 W elements |
| Cooking area | 465 sq in per current listing |
| Controls | IntelliKEN Touch: 16 power levels or 150 to 550 degrees F in 10 degree steps |
| Auto shut-off | 60 to 90 minutes depending on heat setting |
| Wiring | 3-wire cord with no plug, hardwired with a disconnect in the fixed wiring |
| Construction | Marine-grade 304 stainless steel per current listing |
| Weight | 65 lb actual, 100 lb estimated shipping weight per current listing |
| Use | Outdoor under shelter; protect from direct rain |
Dimensions and Cutout
| Overall (W x D x H) | 40.91 in x 21 in x 5.5 in, 12.5 in with lid |
|---|---|
| Opening | 38.89 in W x 18.5 in D with a 1/4 in radius, as printed in the manual; confirm against the CAD drawing |
| Countertop height | 36 in minimum above the floor |
| Edge clearances | 1 in minimum from the backsplash and 1-1/2 in from the front of the counter |
| Clearance to cabinet above | 30 in minimum to an unprotected cabinet, 24 in if protected; cabinet depth 13 in maximum |
| Clearance below | 2 in minimum to a combustible surface below the grill |
| Cabinet ventilation | Two openings of 8 sq in each at 85 degrees F ambient or below |

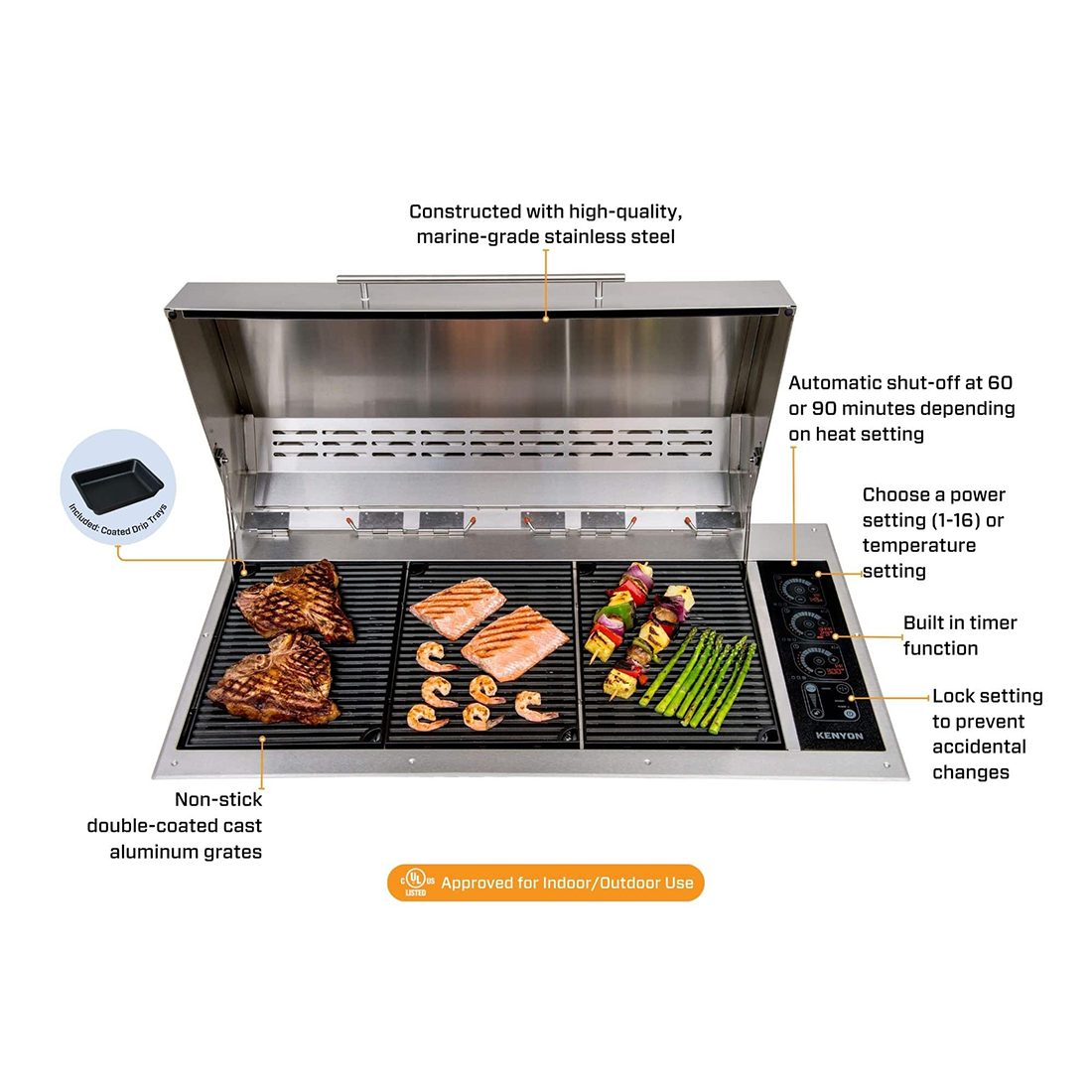

Features
- Three independently controlled 1500 W elements
- Patented concealed elements eliminate flare-ups
- Three grates included as standard
- Removable insulated split lids
- Upgraded coated drip trays beneath the elements
- Swipe-control touch panel with a safety lock and kitchen timer
- Smooth flange for stone countertops
- Direct Temperature Feedback for cooking by temperature and time
What Is Included and What You Will Need
- Included: Big American grill, stainless steel cleaner, 3 ft drain hose with brass fitting and 11 mounting screws (per the Kenyon manual); three grates per current listing
- Required: a dedicated 240V 20 A individual grounded circuit with a circuit breaker and a disconnect, and hardwiring by a licensed electrician
- Optional: Kenyon Big American Grill Cover A70073
Installation Notes
Cut the countertop to Kenyon's CAD drawing, with a countertop at least 36 in above the floor. Solid surface countertops need manufacturer guidance and corner supports, and stone countertops need acrylic latex caulk, not silicone. Provide two 8 sq in cabinet vents. The supply must be an individual grounded circuit with a circuit breaker. Kenyon requires suitable shelter from direct rain. This is an electric unit with no gas line, vent or chimney, which makes it a practical choice for New York City apartments, condos and townhouses where gas or vented appliances are not an option. Check your building or co-op rules for balcony use, and have a licensed electrician hardwire it or run any new 240V circuit to local code. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
What circuit does the Big American need?
The 240V models need a dedicated 20 A individual grounded circuit with a circuit breaker. The 208V version in the Kenyon manual draws 22 A.
What is the difference between B70430 and B70432?
B70430 comes with mounting holes and B70432 without.
Can it go under a covered patio?
Kenyon requires suitable shelter so the grill is not directly exposed to rain.
Is it a good fit for a stone countertop?
Yes, it has a smooth flange. Kenyon calls for acrylic latex caulk, not silicone, on stone countertops.
Related reading: Built-in gas grill buying guide and How to measure a built-in grill cutout.
Warranty
Kenyon's manual: electronic components are covered for three years from the date of original installation or 42 months from the invoice date, with parts and labor at pre-approved rates through an authorized Kenyon service center. Stainless steel is guaranteed against rust for life when cared for monthly as the manual describes.
