Lumien  |  SKU: Z4B1-10W-30K-A

Lumien Brass Macro Module, 10 Watts, 800 Lumens, 10-15V, 40 Beam Spread Optic, 3000K, Antique Finish

$160.29

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

This item is available for pick-up or local delivery only (NYC Tri-State NJ CT & Long Island). Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Local delivery or pick-up across NYC, Long Island, NJ and CT. $49.95 flat rate, free over $999.
  • Factory-authorized Lumien dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Local Delivery
  • Our team & trucks deliver locally within 60 miles of our showroom. (NYC Tri-State including all of Suffolk County)
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 days
  • $49.95 Flat-Rate Local Shipping on orders under $999
  • Setup & Assembly available for most items at checkout

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
Call for a free quote 718-326-4328

Visit our sister site to learn more about our showroom products like Direct Vent Gas Fireplaces, www.NYCFireplaces.com

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

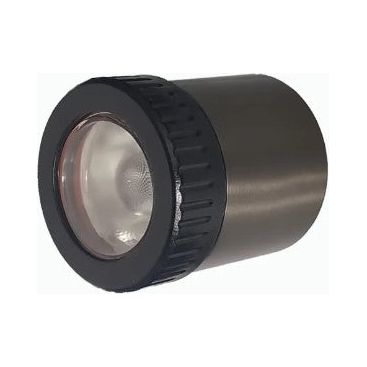

The Lumien Z4B1-10W-30K-A is a solid brass Macro Quick Connect light module in an antique finish: a 10 W LED light source with 3000K static white. It is the light engine of the Lumien Quick Connect system, so you pair it with the Macro shroud, riser, mount or well light that suits the spot, and it threads together without splicing.

Features

  • Solid brass Macro module, Antique finish
  • 10 W, 10.77 VA, 800 lumens (Lumien 2026 look book)
  • 3000K static white
  • Look book lists 15°, 40°, 60°, 80° optics for the Macro module
  • IP68 rated when assembled with Quick Connect parts
  • Dims from the primary side (MLV or ELV)

Key Specifications

Model / SKU Z4B1-10W-30K-A
System Lumien Quick Connect Macro
Power 10 W / 10.77 VA, 10-15 V
Output 800 lm
Color 3000K static white
Beam spread 15°, 40°, 60°, 80°
Dimming Primary (MLV/ELV)
RGB No
Rating IP68 when assembled
Lead wire 6 ft (current listing)
CRI / rated life 80+ / 50,000 hours (current listing)
Weight 1.6 lb (current listing)

What Is Included and What You Will Need

  • Lumien Z4B1-10W-30K-A Macro module with 40 degree optic lens (current listing)
  • You will need: a Macro Quick Connect shroud or well light and a mount, a Lumien 12-15 V transformer and direct burial low voltage wire

Optional Accessories

Installation Notes

Lumien requires a remote low voltage transformer (10 to 15 V at the fixture). Size the transformer for the total VA on the run and have a qualified landscape lighting installer make the 120 V connection.

Planning landscape lighting around an outdoor kitchen, fire feature or patio? Book a design consultation.

Documentation

Frequently Asked Questions

Is this a complete light?

No. It is the light source; add a Macro Quick Connect shroud or well light and a mount to finish the fixture.

Is a transformer included?

No. It runs from a remote Lumien 12-15 V low voltage transformer, sold separately.

How do I size the transformer?

Add up the VA of every fixture on the run and choose a Lumien transformer with headroom; Lumien publishes the VA rating of each fixture.

Related reading: Outdoor kitchen planning guide, Outdoor fireplace buying guide.

Warranty

Lumien's 2026 warranty policy covers 12V electronics and light sources for ten (10) years and brass housings for life (finish excluded). Keep your proof of purchase for any claim.
