Lumien M4B5-5.5W Full Assembly w/ 5.5 Watt Micro Light Source, Unde...
Lumien M4B5-5.5W Full Assembly w/ 5.5 Watt Micro Light Source, Underwater Short Solid Shroud - Raw Brass 2700K is backordered and will ship as soon as it is back in stock.
Description
Description

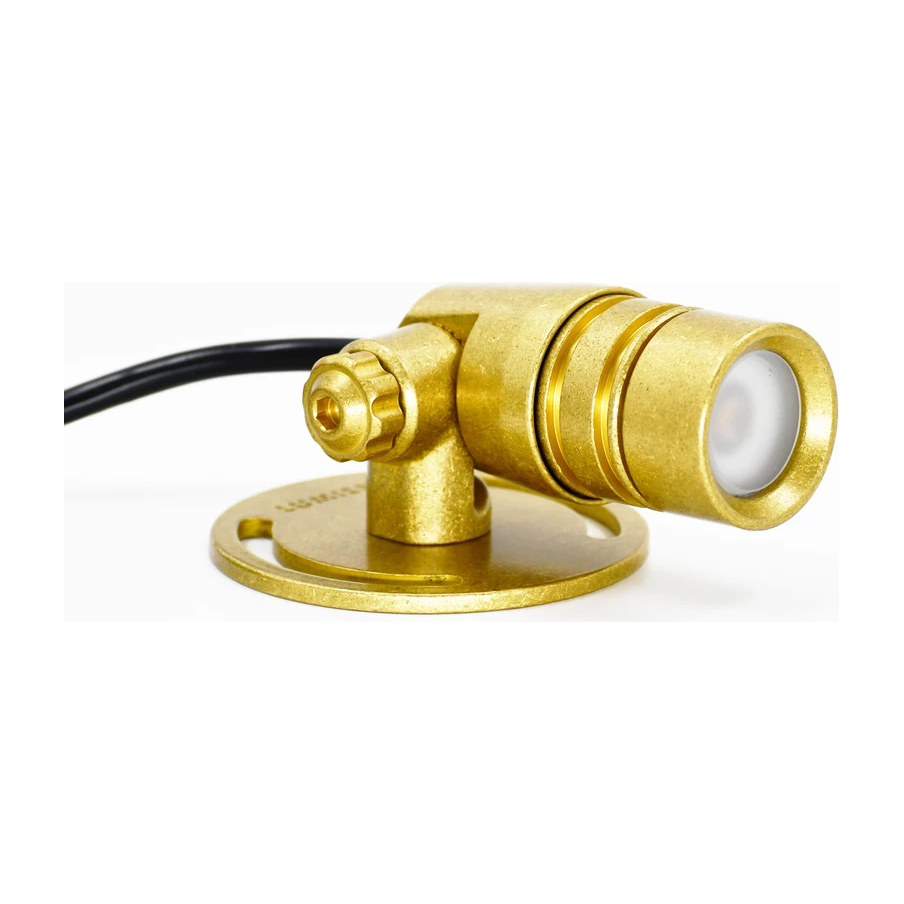

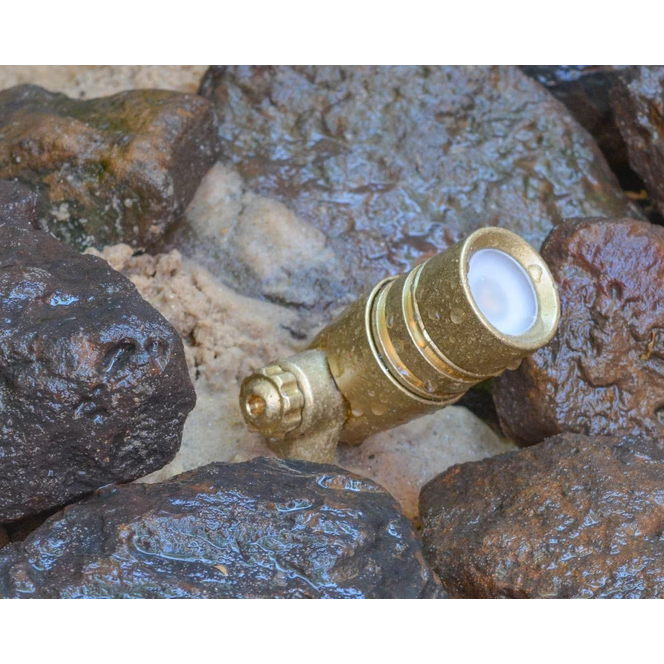

The Lumien M4B5-5.5W is a complete Select Series micro short solid shroud underwater light in raw solid brass with a 5.5 W modular micro light source, in 2700K or 3000K. It lights fountains, ponds and water features from below the surface, and its 30 ft lead gives plenty of length to run outside the water.
Features
- Raw solid brass underwater housing
- 5.5 W, 8.66 VA, 343 (2700K) / 339 (3000K) lumens (Lumien 2026 look book)
- 49° beam, short solid shroud
- 30 ft lead wire for runs out of the water
- Dims from the primary side (MLV or ELV)
- IP68 rated underwater fixture
Key Specifications
| Model / SKU | M4B5-5.5W-27K-R / M4B5-5.5W-30K-R |
| Type | Brass Select Series underwater light, integrated modular |
| Power | 5.5 W / 8.66 VA, 10-15 V |
| Output | 343 lm (2700K), 339 lm (3000K) |
| Beam spread | 49° |
| Dimming | Primary (MLV/ELV) |
| Lead wire | 30 ft |
| Mounting | Underwater mount (spec sheet) |
| Finish | Raw brass |
| Rating | IP68 underwater |
| Certification | UL Listed, File E501872 |
What Is Included and What You Will Need
- Lumien M4B5 underwater light with 5.5 W micro module and 30 ft lead
- You will need: a Lumien 12-15 V transformer and direct burial low voltage wire
Optional Accessories
- Lumien 150 W stainless steel transformer (12-15 V)
- Lumien 300 W stainless steel transformer (12-15 V)
Installation Notes
Lumien requires a remote low voltage transformer (10 to 15 V at the fixture). Size the transformer for the total VA on the run and have a qualified landscape lighting installer make the 120 V connection. Keep the transformer and all connections out of the water.
Planning landscape lighting around an outdoor kitchen, fire feature or patio? Book a design consultation.
Documentation
- Lumien 2026 Product Look Book (specifications and warranty policy)
- Lumien M4B5-5.5W Micro Short Shroud Underwater Light spec sheet
Frequently Asked Questions
Can it run fully submerged?
Yes. Lumien rates its brass underwater fixtures IP68 and supplies a 30 ft lead to reach dry ground.
Is a transformer included?
No. It runs from a remote Lumien 12-15 V low voltage transformer, sold separately.
How do I size the transformer?
Add up the VA of every fixture on the run and choose a Lumien transformer with headroom; Lumien publishes the VA rating of each fixture.
Related reading: Outdoor kitchen planning guide, Outdoor fireplace buying guide.
Warranty
Lumien's 2026 warranty policy covers brass housings for life (finish excluded), the brass finish for ten (10) years, and 12V electronics and light sources for ten (10) years. Keep your proof of purchase for any claim.
