Lynx | 48" Infrared Patio Heater
Lynx | 48" Infrared Patio Heater - Propane is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 48 in between the outermost bracket mounting holes (heater weight about 50 lb), per the Lynx LHEM48 manual

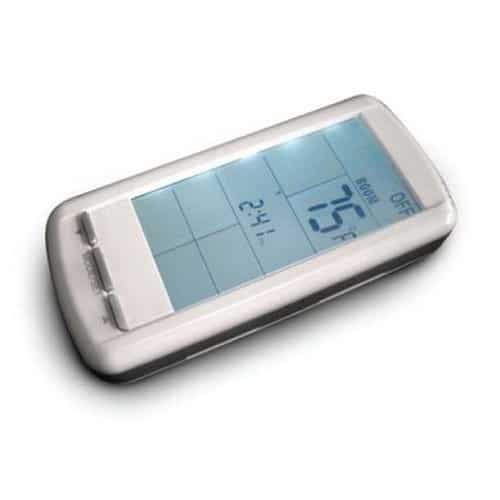

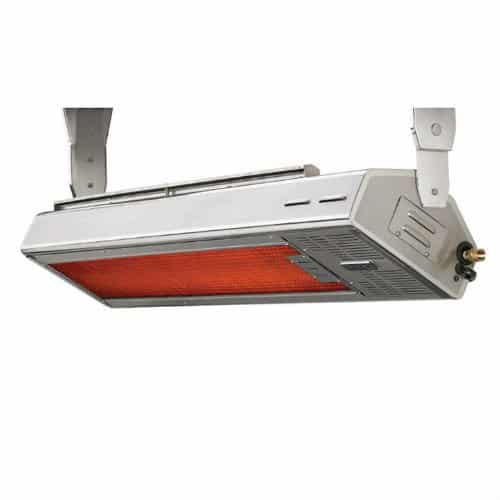

The Lynx LHEM48 is a 48 inch eave mount infrared gas patio heater built entirely from welded stainless steel, made to mount under an eave, on a patio wall or on a fascia. Its infrared burner puts out up to 35,000 BTU and turns down to 24,000 BTU on natural gas or 27,000 BTU on propane, with spark ignition, a heat sensing safety pilot, a touch screen remote and a wireless On-Off-Hi-Low wall switch. Heavy stainless brackets extend 10 to 18 in and pivot 0 to 30 degrees to aim the heat.
Key Specifications
| Model | Lynx LHEM48-NG (natural gas) or LHEM48-LP (propane) |
| Heat Output | Up to 35,000 BTU; adjustable down to 24,000 BTU (NG) or 27,000 BTU (LP) |
| Heat Levels | 6 levels on natural gas, 3 on propane, from the remote |
| Gas Pressure | NG 6 to 10 in w.c. inlet, 5 in w.c. minimum under full load; LP 11 to 13 in w.c. inlet, 10 in w.c. minimum under full load |
| Ignition | Spark ignition with heat sensing safety pilot |
| Power | Four AA batteries (6.0 V) in the heater; 110V AC adapter included (100 to 240V in, 7.5V out, 24 in cord) |
| Controls | Touch screen remote (four AAA batteries) and wireless wall-mounted On-Off-Hi-Low switch, 303.8 MHz |
| Construction | Welded stainless steel with decorative safety grill |
| Weight | About 50 lb |
Dimensions and Cutout
| Bracket Spacing | 48 in between outermost mounting holes (fits 24 in on-center joists); 45-1/2 in between innermost holes |

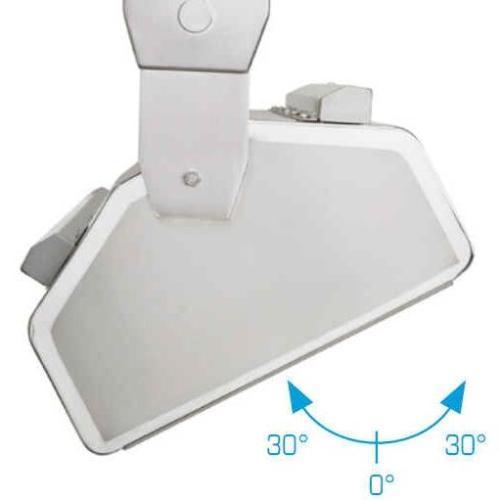

| Bracket Extension | 10 to 18 in, pivot 0 to 30 degrees |
| Clearances, Straight Mount | 14 in to overhead combustibles, 12 in to side and rear walls |
| Clearances, Angled Mount | 18 in to overhead combustibles, 12 in to side and rear walls |
| Sprinklers | 4 ft minimum recommended from fire sprinklers |
Features
- Infrared burner up to 35,000 BTU with wide turndown
- Touch screen remote with temperature or heat level readout
- Wireless On-Off-Hi-Low wall switch
- Battery operation with the included AC adapter as primary power
- Adjustable 10 to 18 in stainless brackets with 0 to 30 degree pivot
- Decorative safety grill for wind resistance
What Is Included and What You Will Need
- Included: heater, mounting brackets, eight 5/16 in stainless lag bolts, touch screen remote, wall switch, batteries and 110V AC adapter
- Required: a gas line sized for the heater with a shutoff valve within 6 ft of the termination, a short flex line for pivot adjustment, and anchors rated for at least 100 lb
- Recommended: a grounded 110V GFI outlet within 24 in of the heater's DC jack, added by a qualified electrician if needed
Installation Notes
Lynx makes the LHEM48 for outdoor use only, never in a garage, building, shed, breezeway or other enclosed area, and asks that the mount hold at least 100 lb. Keep the listed clearances to combustibles, observe local head clearance codes, and have trained, licensed personnel make the gas connection. In New York City, gas work must be done by a licensed master plumber under a DOB permit, and propane tank storage in the city carries FDNY rules, so confirm the fuel with us before you order. Book a free design consultation and we will help you place the heater.
Documentation
Frequently Asked Questions
How close can it be to an eave?
At least 14 in from overhead combustibles when mounted straight down, or 18 in when angled, and 12 in from side and rear walls.
Does it need electricity?
It can run on batteries, but Lynx recommends the included AC adapter on a grounded GFI outlet, with batteries as backup.
Can it run on propane?
Yes. Order the LHEM48-LP; propane gives three heat levels from the remote.
Can I use it in a screened porch?
Lynx says not to use it in a garage, building, shed, breezeway or other enclosed area.
Related reading: Patio heater buying guide and Best patio heater for a covered patio.
Warranty
Lynx warrants the stainless steel body housing for five years from purchase in residential use, limited to replacement parts with the owner paying labor and shipping, and excluding surface corrosion, scratches and discoloration. All other heater components are covered for one year. Commercial applications such as apartment buildings and restaurants carry a 90 day warranty.
