Lynx Professional Built-In Propane Gas Double Side Burner - LSB2-2-LP
Lynx Professional Built-In Propane Gas Double Side Burner - LSB2-2-LP - Stainless Steel is backordered and will ship as soon as it is back in stock.
Description
Description
10% Cash Back on Lynx - Limited Time
Click Here For Details
Overall Dimensions: Cutout 12-1/8 x 24-1/2 x 10-5/8 in (W x D x H), per the Lynx side burner manual

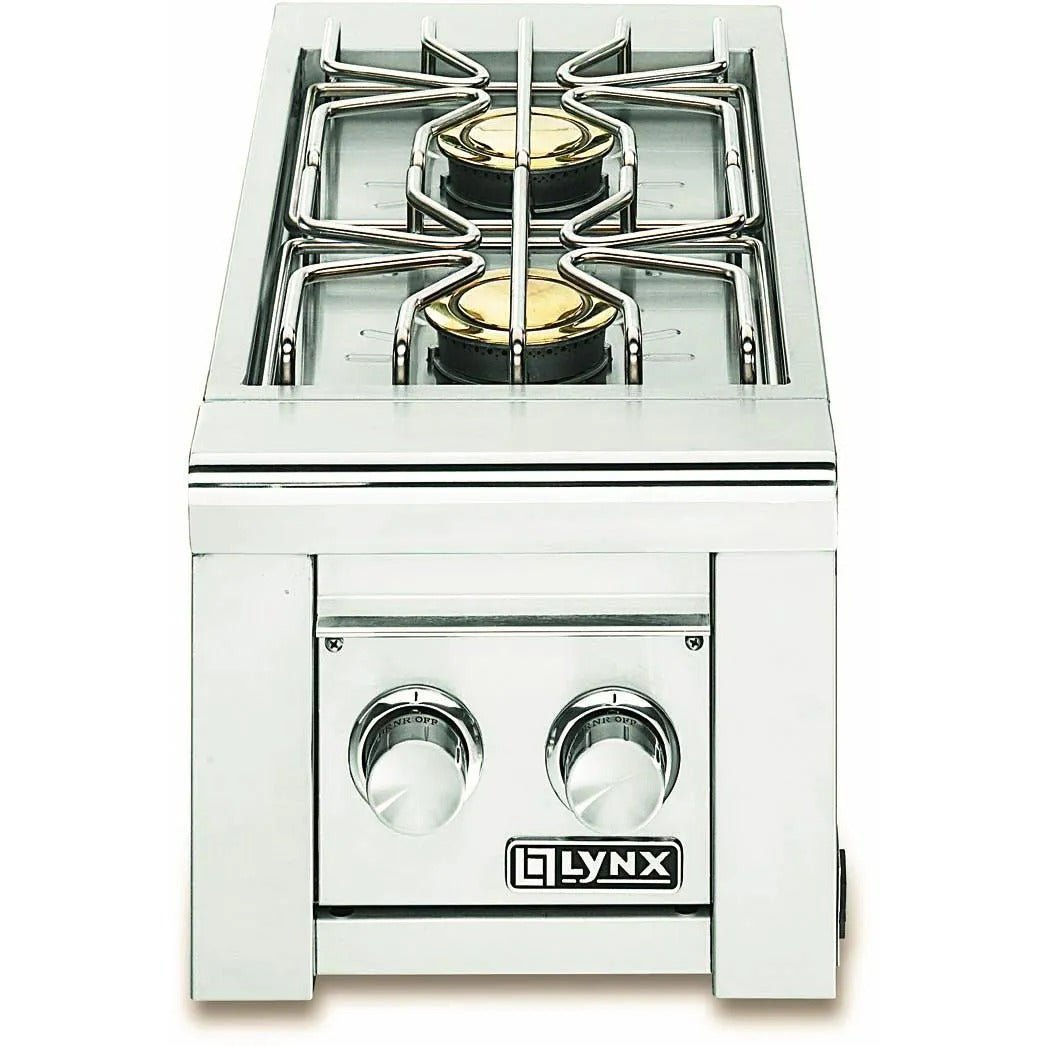

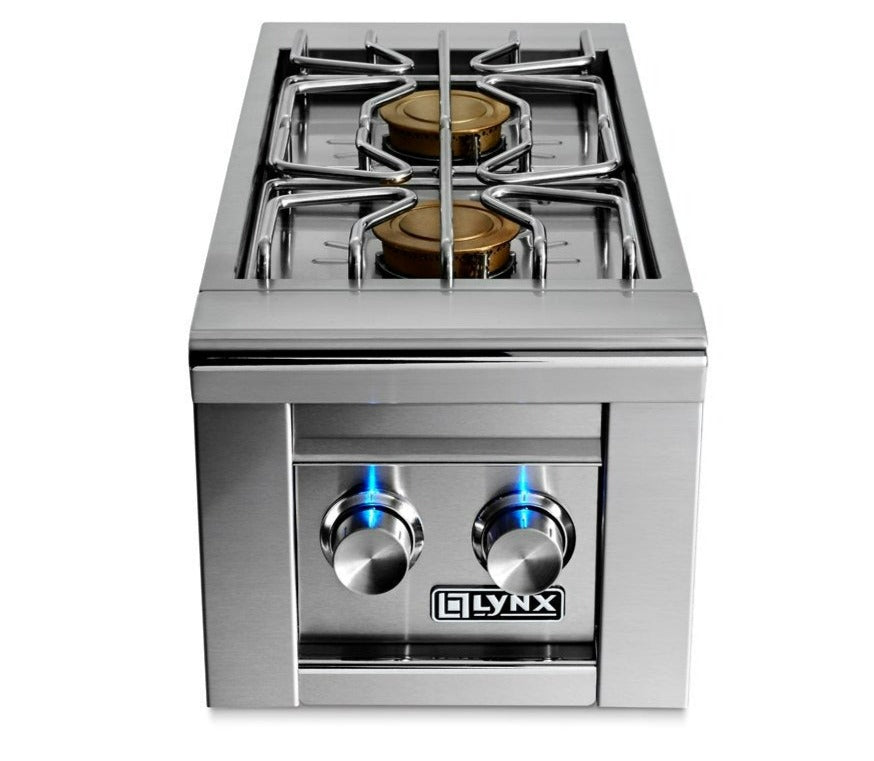

The Lynx Professional LSB2-2 puts two 15,000 BTU sealed brass burners beside your built-in grill, so sauces, sides and a pot of corn cook outdoors while the grill handles the main course. This listing is the propane version, with hot surface ignition, blue-lit controls and the same welded stainless look as Lynx Professional grills.
Features
- Two 15,000 BTU sealed brass burners (30,000 BTU total) with independent controls
- Hot surface ignition for quick, reliable lighting
- Sealed burner basin that is easy to wipe clean
- Blue LED control illumination that matches Lynx grills
- Simmer-to-high control range for sauces and pots
- Drops in and hangs from its countertop trim; no deck needed underneath
- Optional finishes in Lynx designer colors (separate variants)
Key Specifications
| Model / SKU | Lynx Professional LSB2-2, Propane, LSB2-2-LP; designer-color versions LSB2-2ECF |
| UPC (stainless) | 810043021173 |
| Fuel | Propane |
| Burners | 2 x 15,000 BTU brass, sealed |
| Total input | 30,000 BTU |
| Ignition | Hot surface ignition |
| Electrical | 120 V GFCI outlet within 6 in of the rear 1 in hole |
| Gas pressure | Natural gas 7 in WC max inlet, 4 in WC min; propane 14 in WC max inlet, 11 in WC min |
| Construction | Welded stainless steel |
| Weight | 50 lb (per current listing) |
Dimensions and Cutout
| Cutout | 12-1/8 in W x 24-1/2 in D x 10-5/8 in H |
| Overall | 13 in W x 28.37 in D x 12.125 in H (per current listing) |
| Clearance to combustibles below countertop | 12 in from sides and back |
| Clearance to combustibles above countertop | 18 in from sides and back |
What Is Included and What You Will Need
- LSB2-2 double side burner
- You will need: a non-combustible island with a 12-1/8 x 24-1/2 x 10-5/8 in cutout, a propane supply with a T-handle shut-off valve, a 120 V GFCI outlet near the rear of the cutout, and enclosure ventilation openings
Optional Accessories

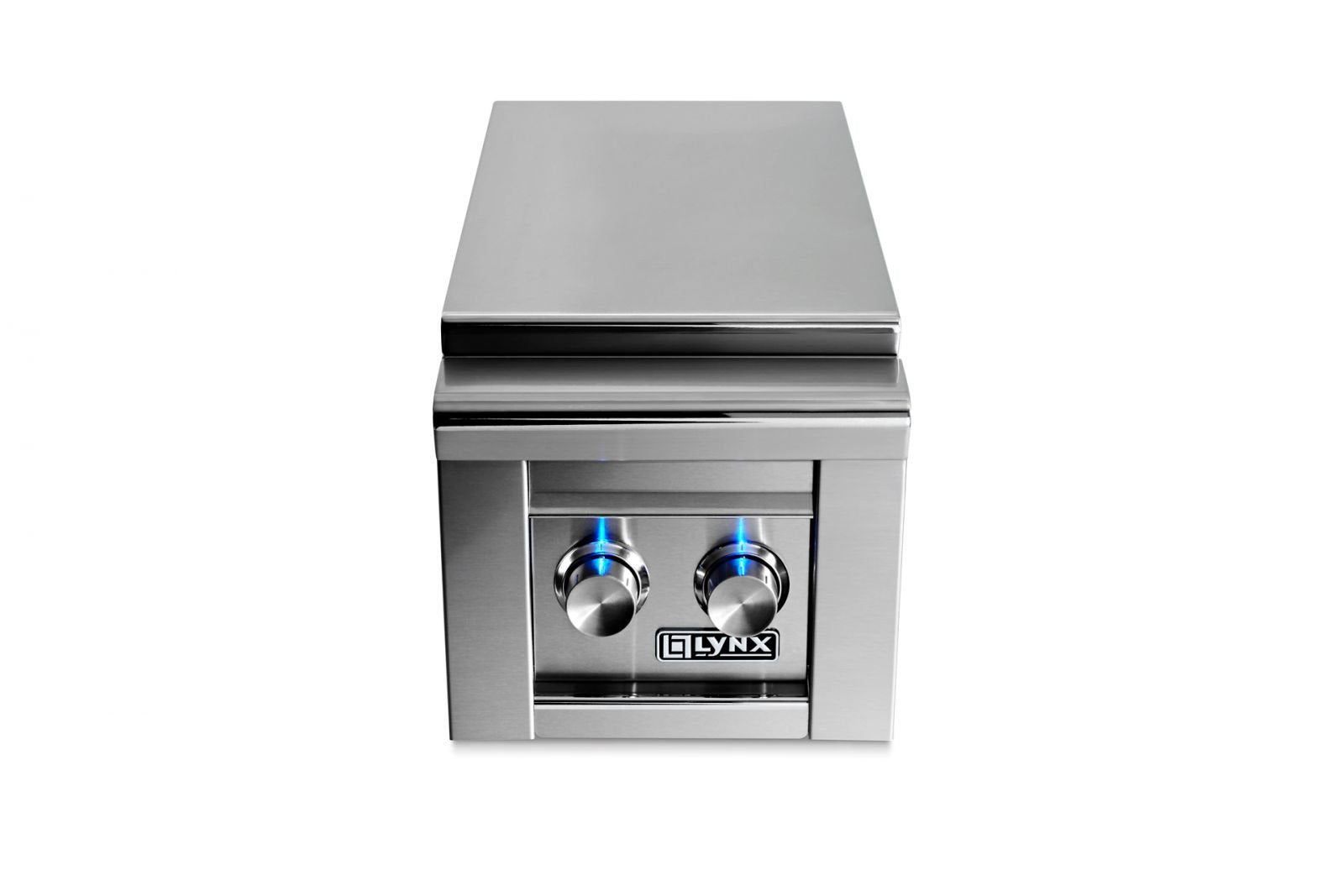

- Lynx cover for built-in double side burners
- Lynx conversion kit for switching between natural gas and propane (qualified installer)
Installation Notes
Install only in a built-in enclosure of non-combustible materials; the burner drops into the cutout and hangs from its trim. Provide ventilation openings in the enclosure, keep combustible construction 12 in from the sides and back below the counter and 18 in above it, and never install under an unprotected overhead combustible surface.
A qualified installer must make the gas connection with a T-handle manual shut-off and leak test it, and a 120 V GFCI outlet must sit within 6 in of the 1 in hole at the rear of the cutout for the ignition and lights.
In New York City, outdoor gas piping must be installed by a licensed master plumber under a permit, and FDNY limits propane cylinders on terraces and rooftops, so plan the gas supply with your contractor early. Planning the full kitchen? Book a design consultation.
Documentation
Frequently Asked Questions
How powerful are the burners?
Each burner is rated 15,000 BTU, 30,000 BTU total, with a range down to a simmer.
Does it need electricity?
Yes. Hot surface ignition and the LED lights need a 120 V GFCI outlet within 6 in of the rear hole in the cutout.
Can it go in a wood island?
No. Lynx requires a non-combustible enclosure and clearances to any combustible construction.
Can I switch fuel later?
Lynx offers conversion kits; a qualified installer should do the conversion.
Related reading: Side burner, power burner and griddle guide, Outdoor kitchen planning guide.
Warranty
Lynx warrants the stainless steel body and cooking grates for the lifetime of the original purchaser, manifolds and gas valves for five (5) years, and all other components for two (2) years. For the first year Lynx covers parts and authorized service labor. Residential use only; see the Lynx manual for full terms.
