Lynx Professional Built-In Propane Single Side Burner - LSB1-3-LP
Lynx Professional Built-In Propane Single Side Burner - LSB1-3-LP is backordered and will ship as soon as it is back in stock.
Description
Description
10% Cash Back on Lynx - Limited Time
Click Here For Details
Overall Dimensions: 13 in W x 15-7/8 in D x 12-1/8 in H with the cover, per the Lynx LSB1-3 drawing

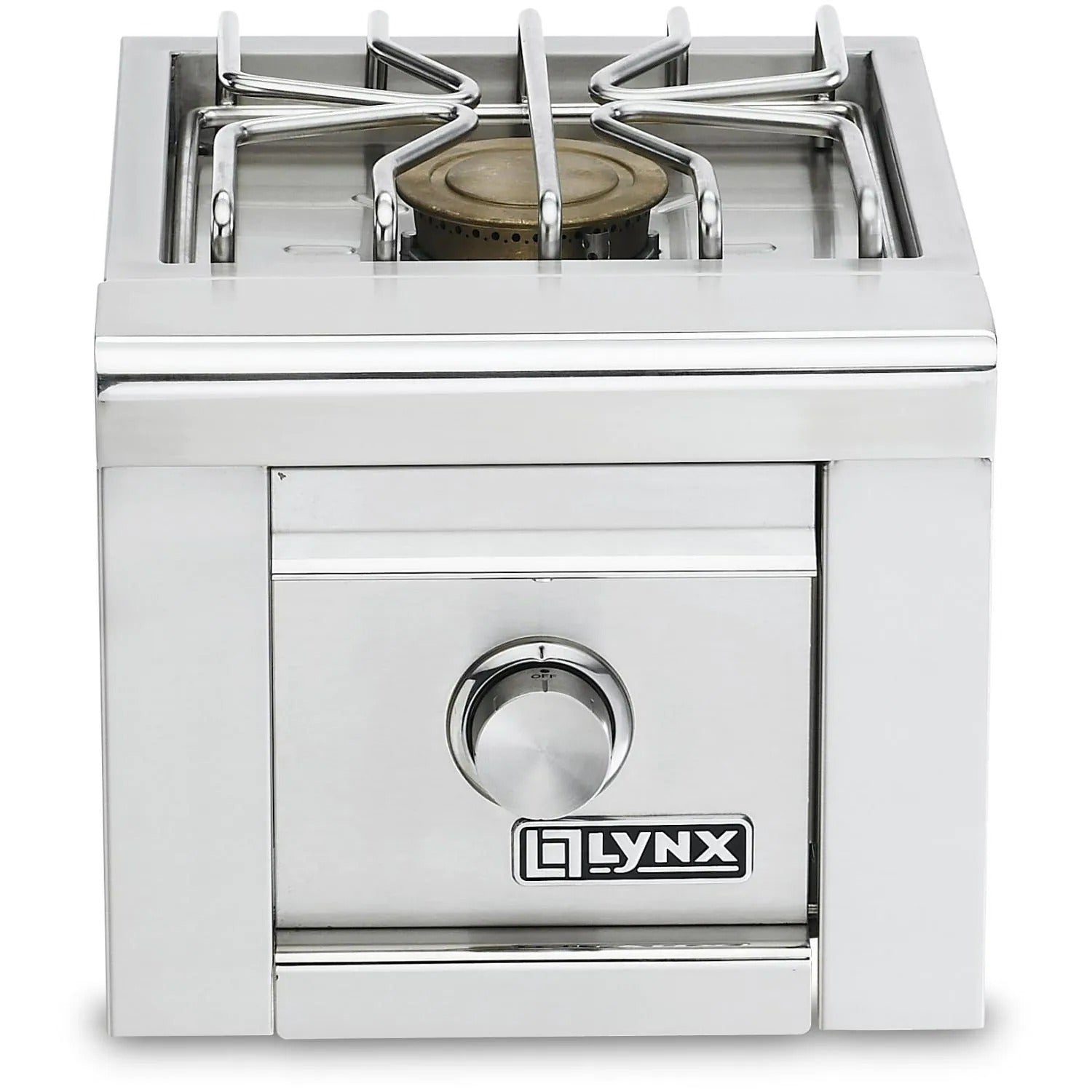

The Lynx Professional LSB1-3-LP is a built-in single side burner for propane, with one 15,000 BTU/hr brass burner under a removable cover. It drops into a non-combustible island next to a Lynx grill and plugs into the grill for its lighting and ignition power, so the control glows to match the grill.
Features
- One 15,000 BTU/hr brass burner, from a hard simmer to high heat
- Sealed burner and basin that wipe clean

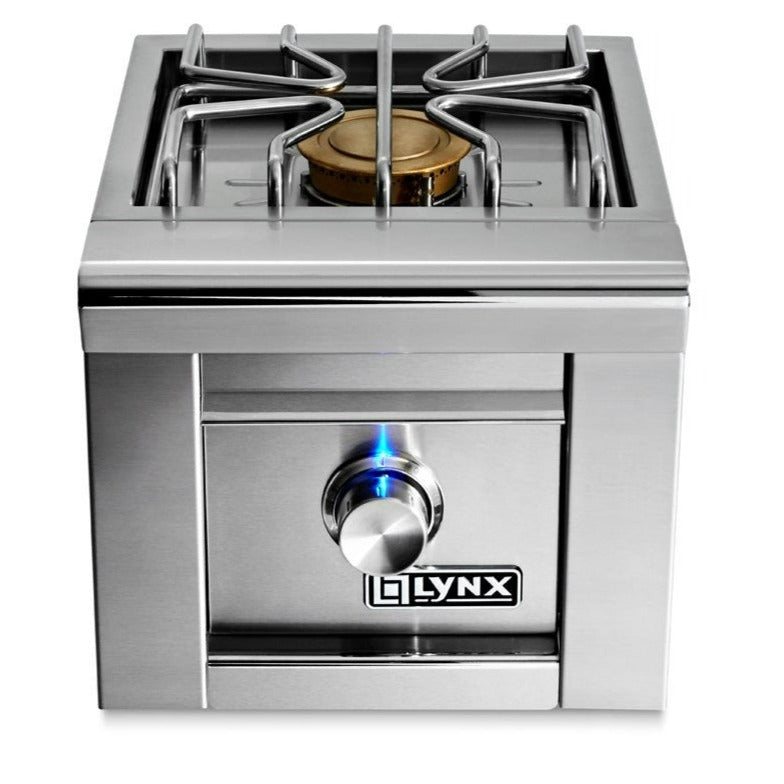

- Hot surface ignition, with blue LED control illumination when connected to a Lynx grill

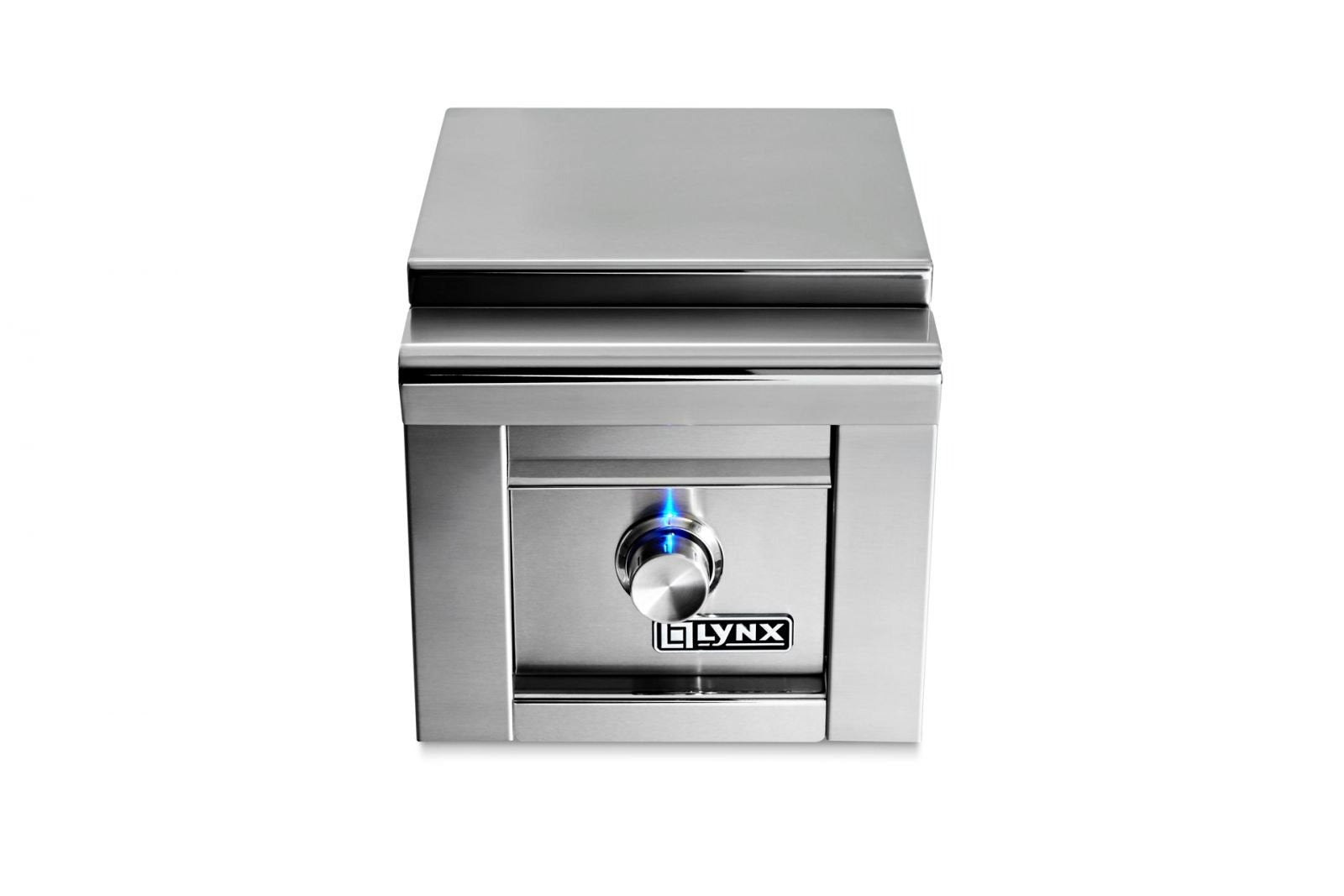

- Removable cover keeps the burner clean when not in use
- 6 ft wiring harness to connect to a Lynx grill; LASK switch kit available when there is no grill nearby
Key Specifications
| Model / SKU | Lynx Professional LSB1-3-LP |
| Fuel | Propane; conversion requires a Lynx conversion kit installed by a qualified technician |
| Burner | 1 x 15,000 BTU/hr |
| Ignition | Hot surface ignition powered through the Lynx grill (or LASK kit) |
| Power | Outdoor 120 VAC 15 A GFI outlet within reach of the supplied 12 V transformer |
| Installation | Built-in, non-combustible enclosure only |
| Weight | 41 lb (per current listing) |
Dimensions and Cutout
| Overall | 13 in W x 15-7/8 in D x 12-1/8 in H with cover |
| Island cutout | 12-1/8 in W x 10-5/8 in H x 12-1/2 in D, with a 2 in gas access hole |
| Clearance to combustibles | 12 in at the sides and back below the counter, 18 in above the counter; no unprotected overhead combustibles |
What Is Included and What You Will Need
- Lynx LSB1-3-LP side burner with cover and 6 ft grill connection harness, per the Lynx manual
- You will need: a non-combustible island cut to 12-1/8 x 10-5/8 x 12-1/2 in, a regulated propane supply with a shutoff valve, a 120 V GFI outlet, and a Lynx grill or LASK switch kit for power
Optional Accessories
Installation Notes
Lynx built-in accessories must go into a non-combustible enclosure; the burner hangs from its counter trim and needs no deck below. Keep 12 in to combustible construction at the sides and back below the counter and 18 in above it, never install under unprotected overhead combustibles, and vent the enclosure. A pressure regulator is required on the gas supply, and all work must meet the National Fuel Gas Code and National Electrical Code. In New York City, gas appliances are connected under the NYC Fuel Gas Code by a licensed master plumber, and FDNY rules restrict propane on many terraces and rooftops, so confirm the fuel your building allows.
Planning an outdoor kitchen? Book a design consultation.
Documentation
- Lynx Side Burner / Power Burner Care and Use / Installation Manual (LPB, LSB1-3, LSB2-2, LSB2PC)
- Lynx LSB1-3 Single Side Burner Dimensions and Island Cutout
- Lynx Side Burners Care and Use Manual (Rev. E)
Frequently Asked Questions
How powerful is it?
One 15,000 BTU/hr burner.
Does it need power?
Yes. It plugs into a Lynx grill, or a Lynx LASK switch kit, with a 120 V GFI outlet.
Can I switch fuels?
Only with the Lynx conversion kit, installed by a qualified technician.
Related reading: Side burner, power burner and griddle guide, Outdoor kitchen planning guide.
Warranty
Lynx warrants the stainless steel body housings, burner and cooking grates against defects in material and workmanship under normal use for the lifetime of the original purchaser, the manifolds and gas valves for five (5) years, and all other components for two (2) years; in multi-user settings the term is ninety (90) days, per the Lynx warranty summary. Refer to the Lynx manual for full terms.
